FAW Jiefang Tiger 6G Standard Load Northern Version 4.5T 4.16m Single Row Pure Electric Grating Light Truck 100.16kWh 4X2(6 wheels)

Export reference
MSRP N/A
Rated payload:: 1.15ton
Wheelbase:: 3300mm
Cargo box type:: Stake type
Model code (announced):: CA5049CCYP40L2BEVA85
Type:: stake truck
Box length class:: 4.2m
Drive 4X2 (6 wheels)
Battery Brand: CATL
Motor 1 Brand: FAW
Curb Weight: 3.15ton

Overview

The FAW Jiefang Tiger 6G Standard Load Northern Version 4.5T 4.16m Single Row Pure Electric Grating Light Truck 100.16kWh 4X2(6 wheels) is a Light Truck featuring CATL battery/range, FAW motor, 4X2 (6 wheels) drive and 1.15t payload.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA5049CCYP40L2BEVA85
Type: stake truck
Drive type: 4X2
Wheelbase: 3300mm
Box length class: 4.2m
Cab length: 5.995m
Cab width: 2.2m
Cab height: 3.37m
Curb Weight: 3.15ton
Rated payload: 1.15ton
GVWR: 4.495ton
Max. speed: 90km/h
Origin: Qingdao, Shandong
tonnage class: Light Truck
Version: Standard Load Edition Northern Version
Energy Type: Electric
electric motor
Motor 1 Brand: FAW
Motor 1 Model: CAM230PT52
Motor Type: Permanent magnet synchronous motor
Fuel Type: Electric
total rated power: 68kW
Peak power: 147kW
Battery/Charging
Battery Brand: CATL
Battery capacity: 100.16kWh
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 4.16m
Cargo box width: 2.1m
Cab parameters
Cab width: 2010mm
seating capacity: 3Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1950kg
rear axle allowable load: 2545kg
Tire
Tire Size: 7.00R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

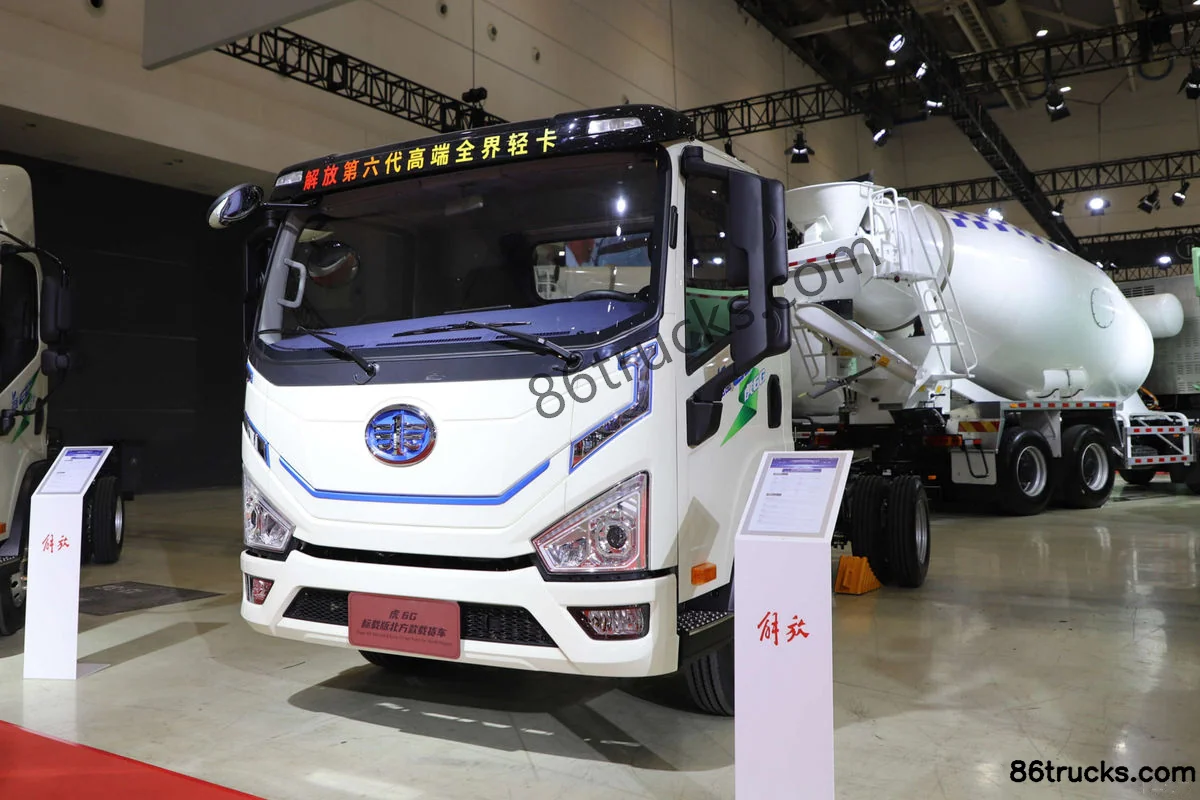

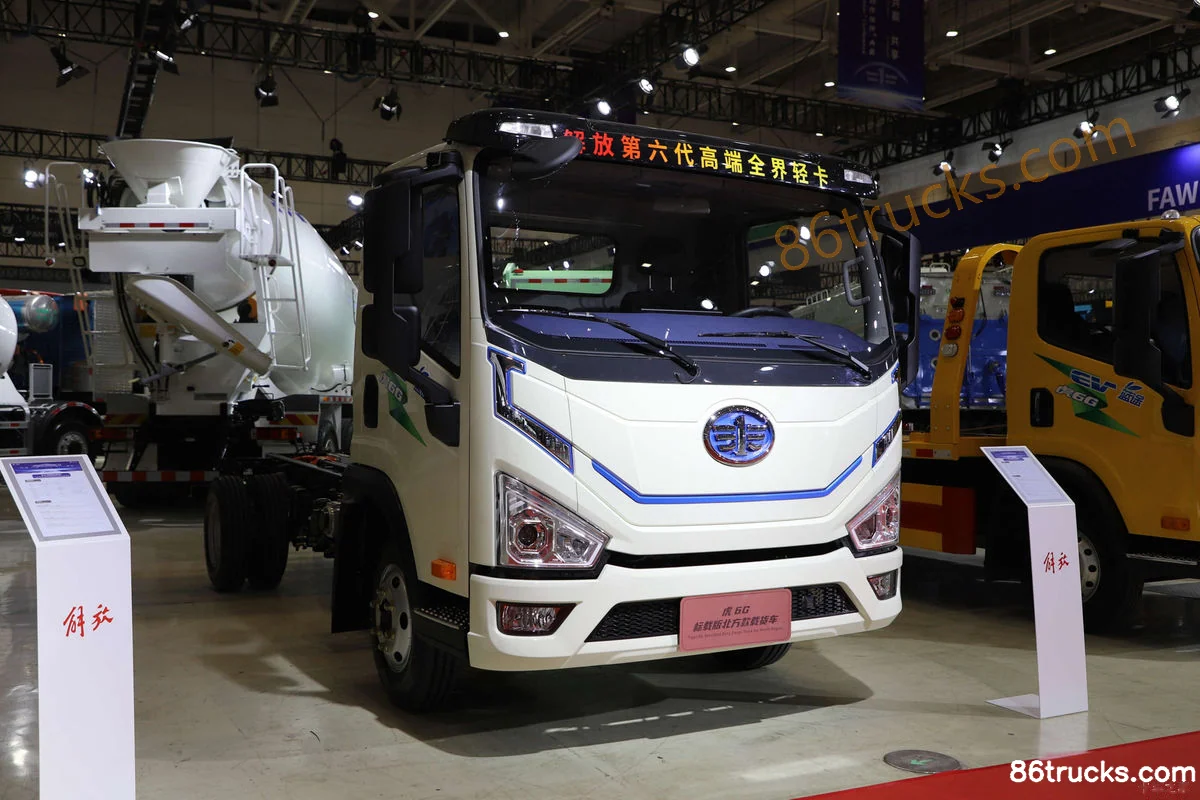

Exterior3

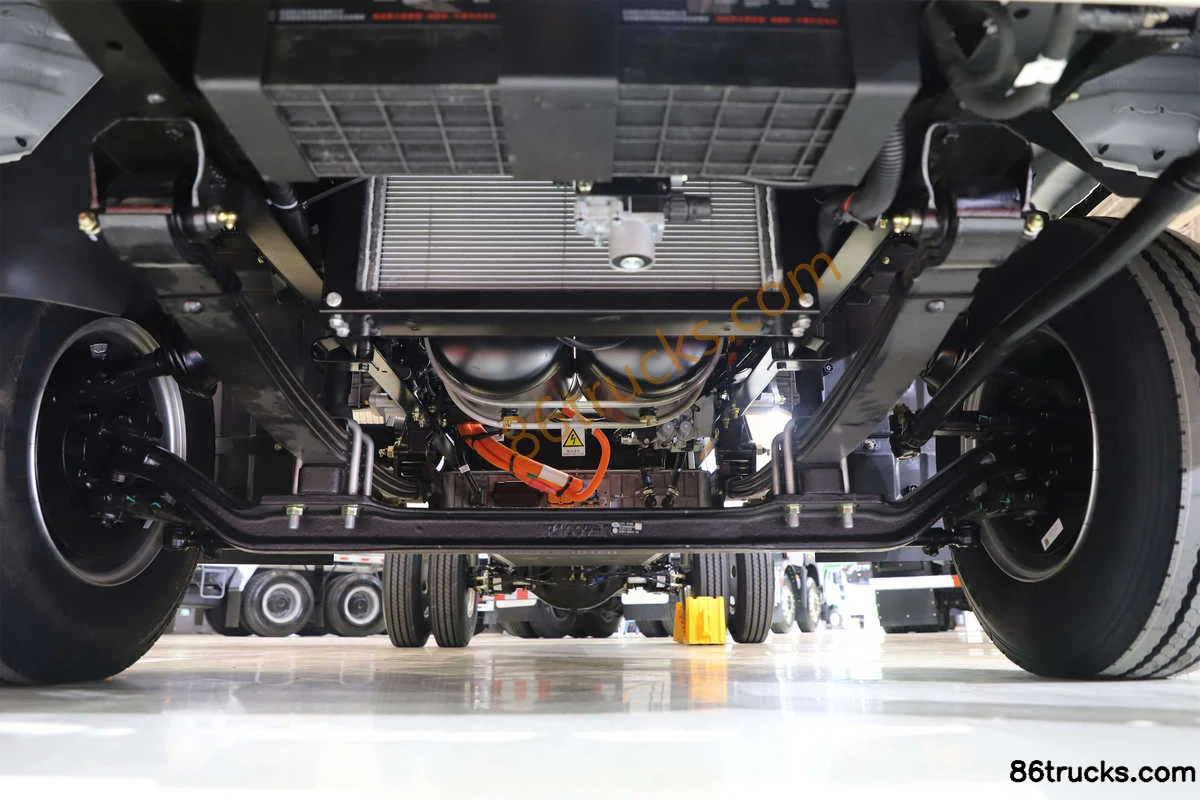

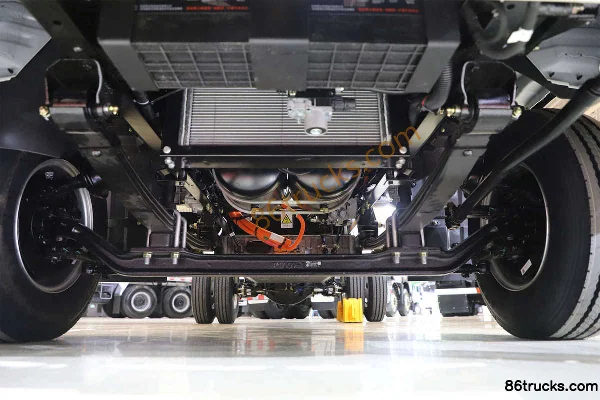

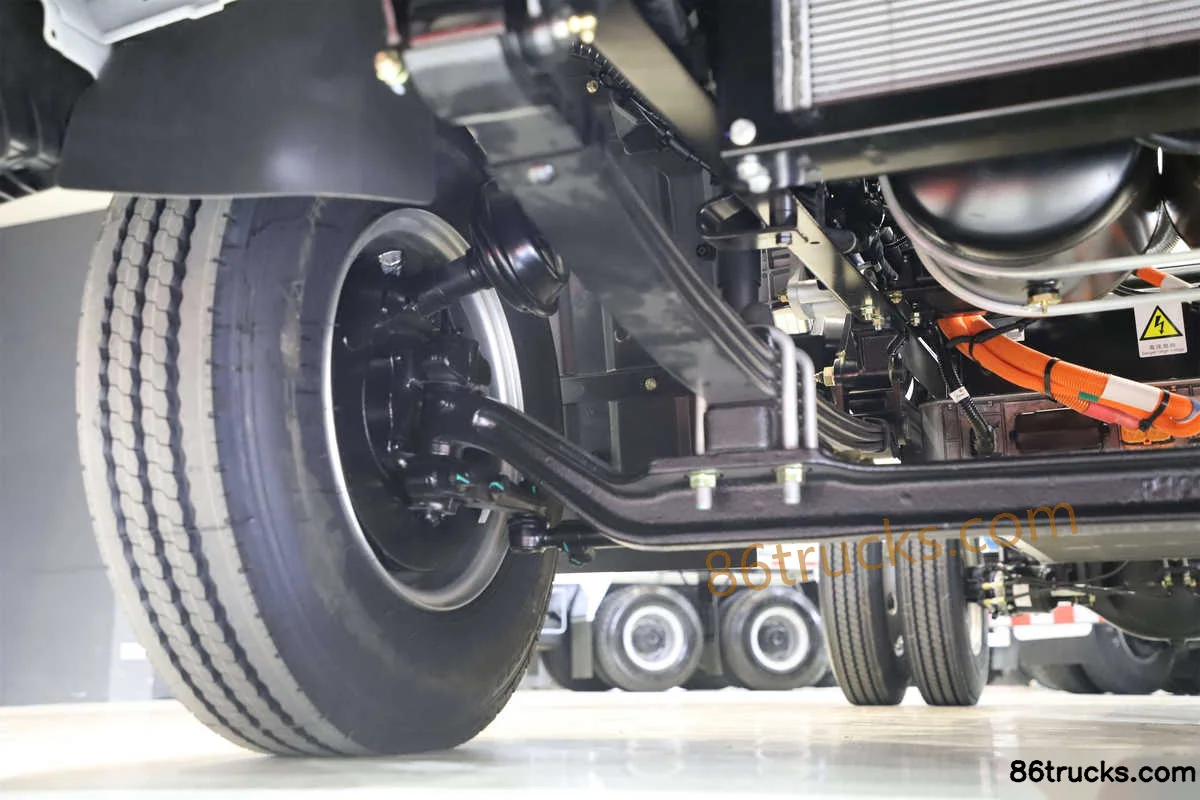

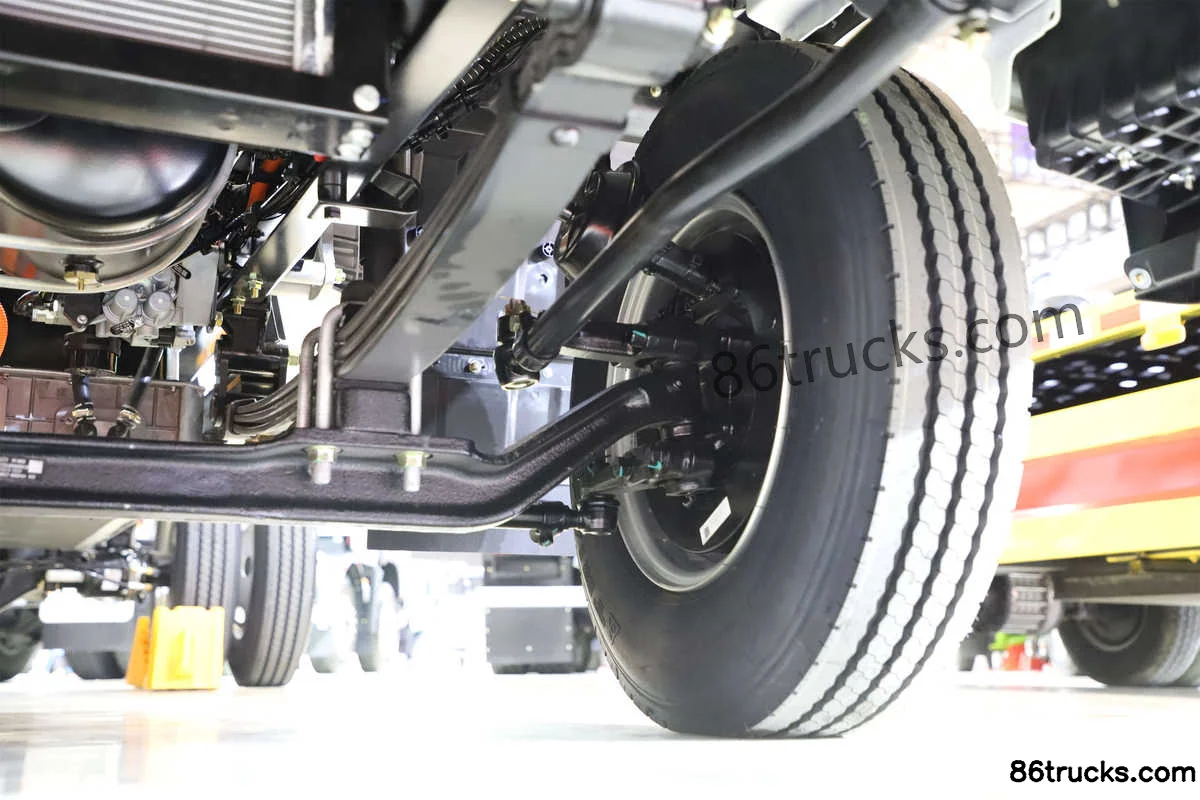

Chassis3

6 photos

FAQ

What are the key specs of FAW Jiefang Tiger 6G Standard Load Northern Version 4.5T 4.16m Single Row Pure Electric Grating Light Truck 100.16kWh 4X2(6 wheels)?

Key specs of FAW Jiefang Tiger 6G Standard Load Northern Version 4.5T 4.16m Single Row Pure Electric Grating Light Truck 100.16kWh 4X2(6 wheels): Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Tiger 6G Standard Load Northern Version 4.5T 4.16m Single Row Pure Electric Grating Light Truck 100.16kWh 4X2(6 wheels) suited for?

FAW Jiefang Tiger 6G Standard Load Northern Version 4.5T 4.16m Single Row Pure Electric Grating Light Truck 100.16kWh 4X2(6 wheels) is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does FAW Jiefang Tiger 6G Standard Load Northern Version 4.5T 4.16m Single Row Pure Electric Grating Light Truck 100.16kWh 4X2(6 wheels) differ from other variants in the same series?

FAW Jiefang Tiger 6G Standard Load Northern Version 4.5T 4.16m Single Row Pure Electric Grating Light Truck 100.16kWh 4X2(6 wheels) belongs to FAW Jiefang Hu 6G (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Tiger 6G Standard Load Northern Version 4.5T 4.16m Single Row Pure Electric Grating Light Truck 100.16kWh 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Tiger 6G Standard Load Northern Version 4.5T 4.16m Single Row Pure Electric Grating Light Truck 100.16kWh 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
