JAC Junling V5 3.0L 129hp 4X2(6 wheels) CNG 4.18m single-row stake truck (8-speed)

Export reference
From $19,278
MSRP ¥13.88M CNY
Horsepower: 129
Emission: China VI
Fuel: Compressed Natural Gas (CNG)
Engine: Yunnei Power3L
Transmission: WLY
Curb Weight:: 2.72ton
Air tank capacity: 180+140L
Rated payload: 1.58ton
Drive 4X2 (6 wheels)
Cargo box type: Stake type

Overview

The JAC Junling V5 3.0L 129hp 4X2(6 wheels) CNG 4.18m single-row stake truck (8-speed) is a Light Truck featuring 4.18m cargo length, Stake type cargo body, 180+140L volume and 1.58t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with a Yunnei Power3L engine, 129 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 129 Compressed Natural Gas (CNG) 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC5045CCYP32N2C7NS
Type: stake truck
Drive type: 4X2
Wheelbase: 3365mm
Box length class: 4.2m
engine: Yunnei PowerYN30NF
transmission: WLYWLY8GS46
Rear Axle Ratio: 4.875
Cab length: 5.995m
Cab width: 2.2m
Cab height: 3.12m
Front track width: 1595mm
rear track: 1560mm
Curb Weight: 2.72ton
Rated payload: 1.58ton
GVWR: 4.495ton
Max. speed: 95km/h
Origin: Suining, Sichuan
tonnage class: Light Truck
Approach angle: 21°
departure angle: 14°
market segment: Building materials, agricultural products
Remarks: Optional ratios: 4.33
Front/rear suspension: 1.075/1.555m
Energy Type: Compressed Natural Gas (CNG)
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerYN30NF
Engine info: Yunnei Power3L
Number of cylinders: 4cylinder
fuel type: Compressed Natural Gas (CNG)
Cylinder arrangement: Inline
Displacement: 2.97L
Emission standard: China VI
Max output power: 95kW
Max hp: 129Horsepower
Max torque: 430N·m
Max torque speed: 1200-2000rpm
Rated speed: 3600rpm
Transmission Parameters
Transmission Model: WLYWLY8GS46
Transmission Brand: WLY
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Housing Material: aluminum alloy
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 4.18m
Cargo box width: 2.1m
*Cargo box interior width: 2.1
fuel tank
Air tank capacity: 180+140L
Cab parameters
Cab width: 1900mm
seating capacity: 3Personnel
Seat rows: Single Row
Chassis Specs
Front axle description: 2T
Front axle allowable load: 1705kg
Frame Dimensions: 180×65×5 -800mm
rear axle description: 4T
rear axle allowable load: 2790kg
Axle ratio: 4.875
Leaf spring count: 4/4+2,4/5+6
Tire
Tire Size: 7.00R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:
Power steering:
clutch booster:
automatic slack adjuster:
interior configuration
Steering Wheel Material: Plastic
steering wheel adjustment: Manual
Multifunction steering wheel:
AC control type: Manual

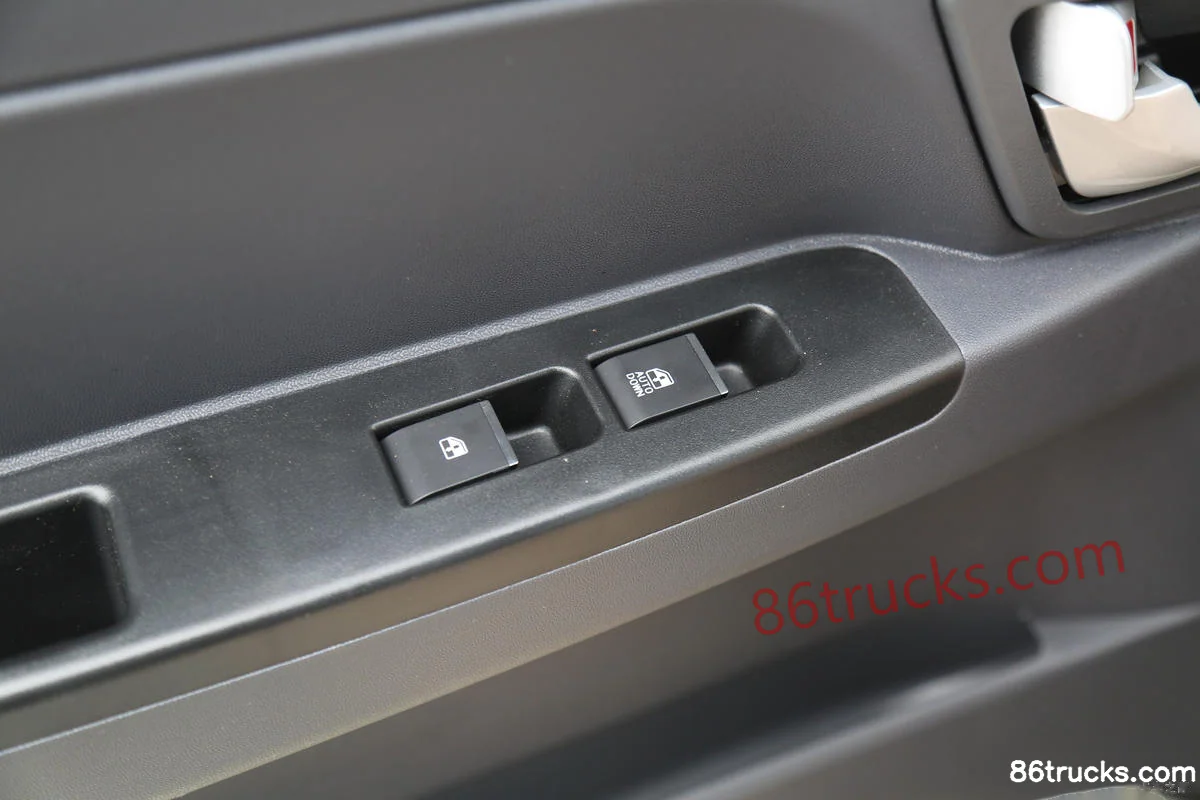

Power Windows:
Electric Heated Rearview Mirror:
Power interface:
Reverse Radar:
Seat material: Fabric
Reverse Camera:
Remote key:
Electronic Central Lock:
Exterior features
Air deflector:
Aluminum air tank:
Wiper type: flat wiper blades
Service brake
Engine brake: none
Brake Type: Air brake
Parking brake: Spring brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
Bluetooth / hands-free calling:
Radio:
standard instrument cluster:
LCD instrument cluster:
lighting configuration
Headlight brand: none
Front fog lamp:
daytime running lights:
Headlight height adjustment:
Halogen Headlights:
smart configuration
Telematics System:
Cruise control (CCS):
maintenance service
24-hour service hotline:
Rescue service:

Photos

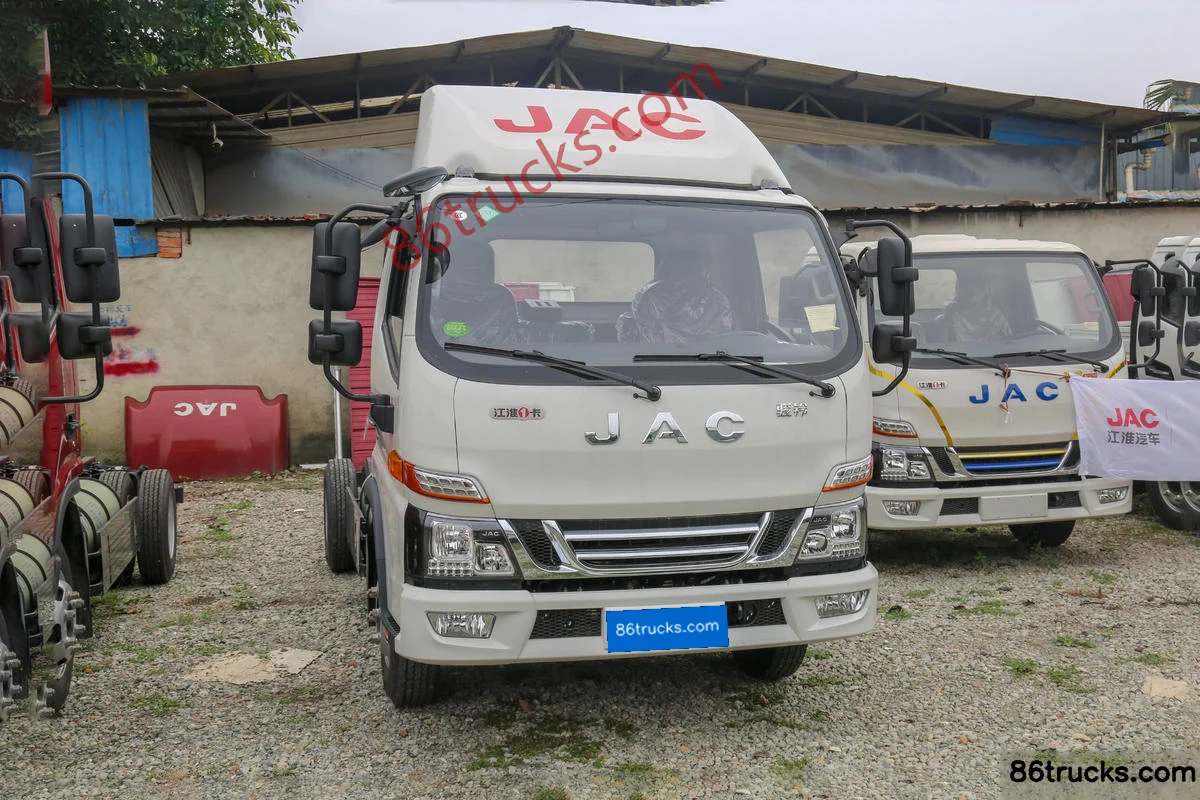

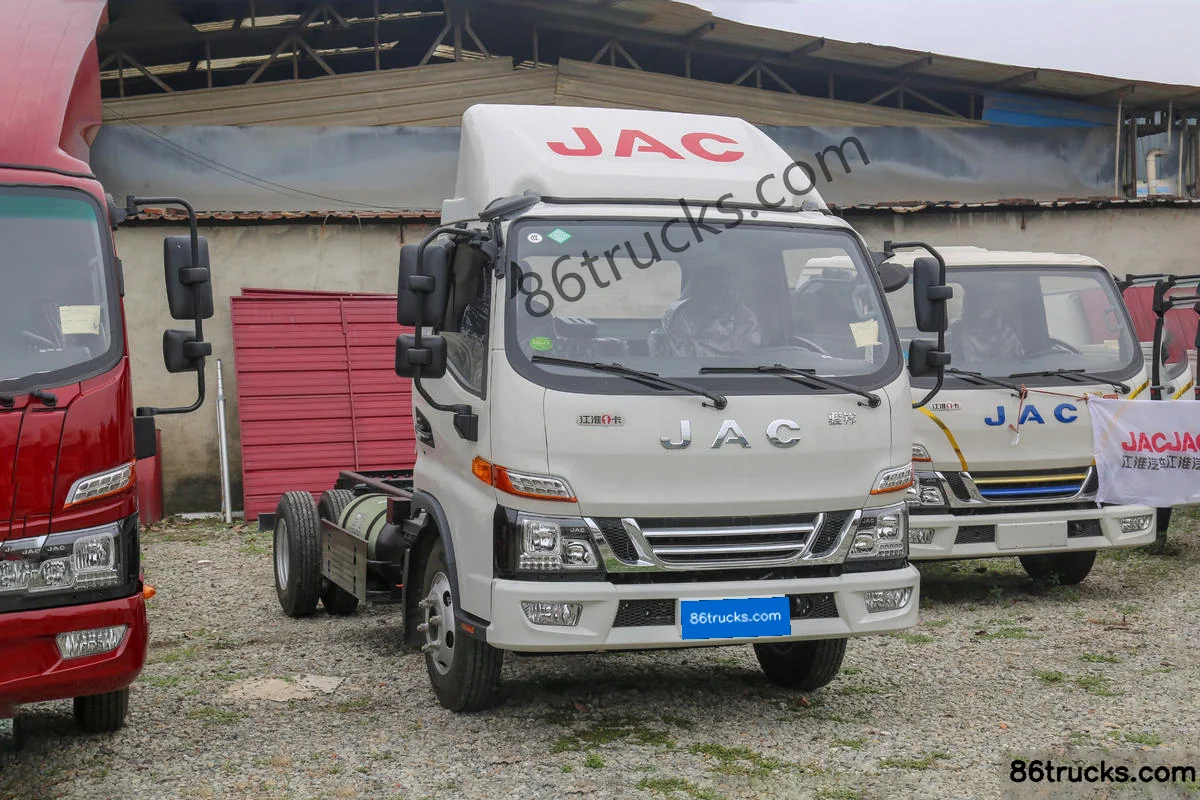

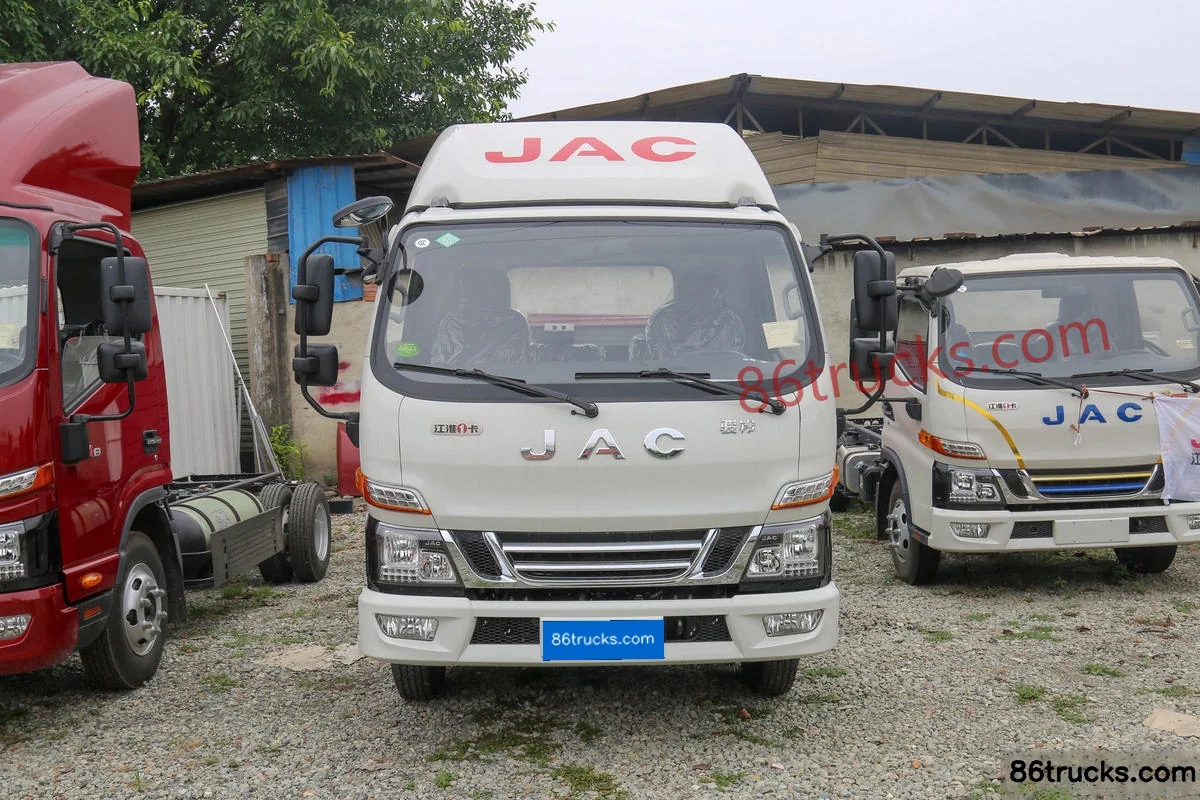

Exterior3

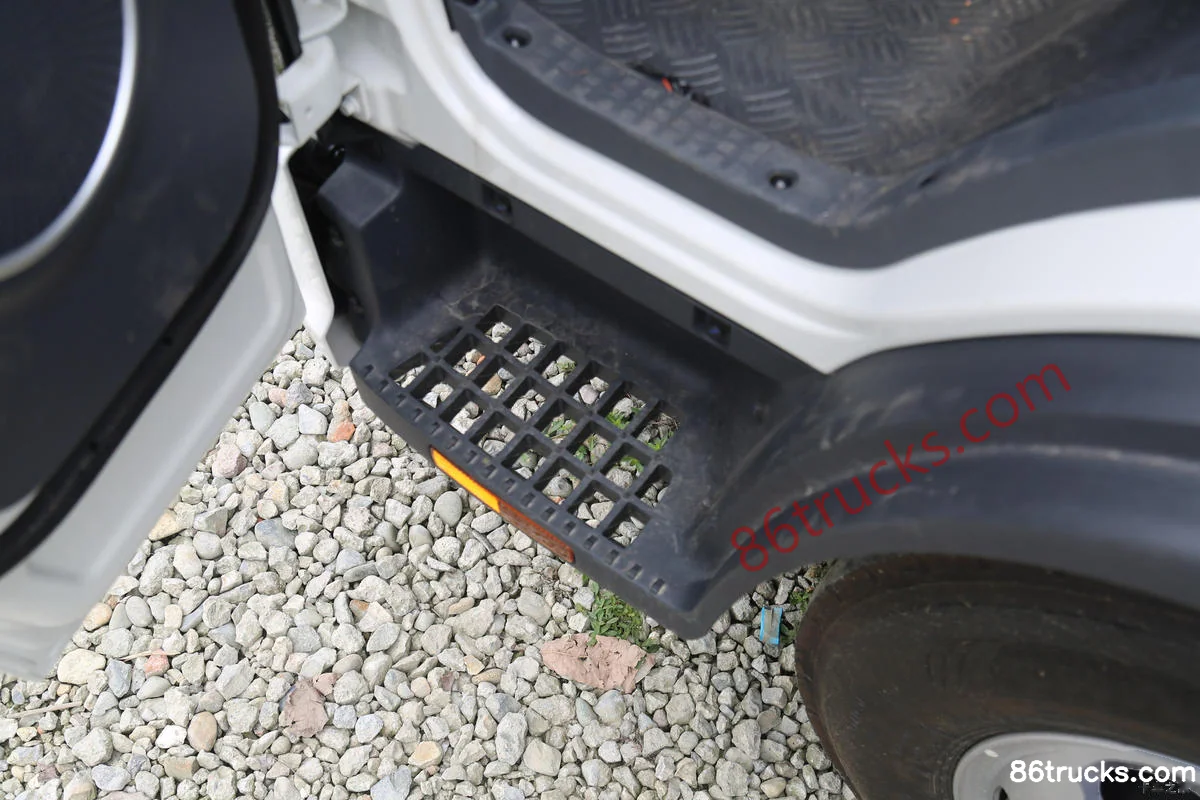

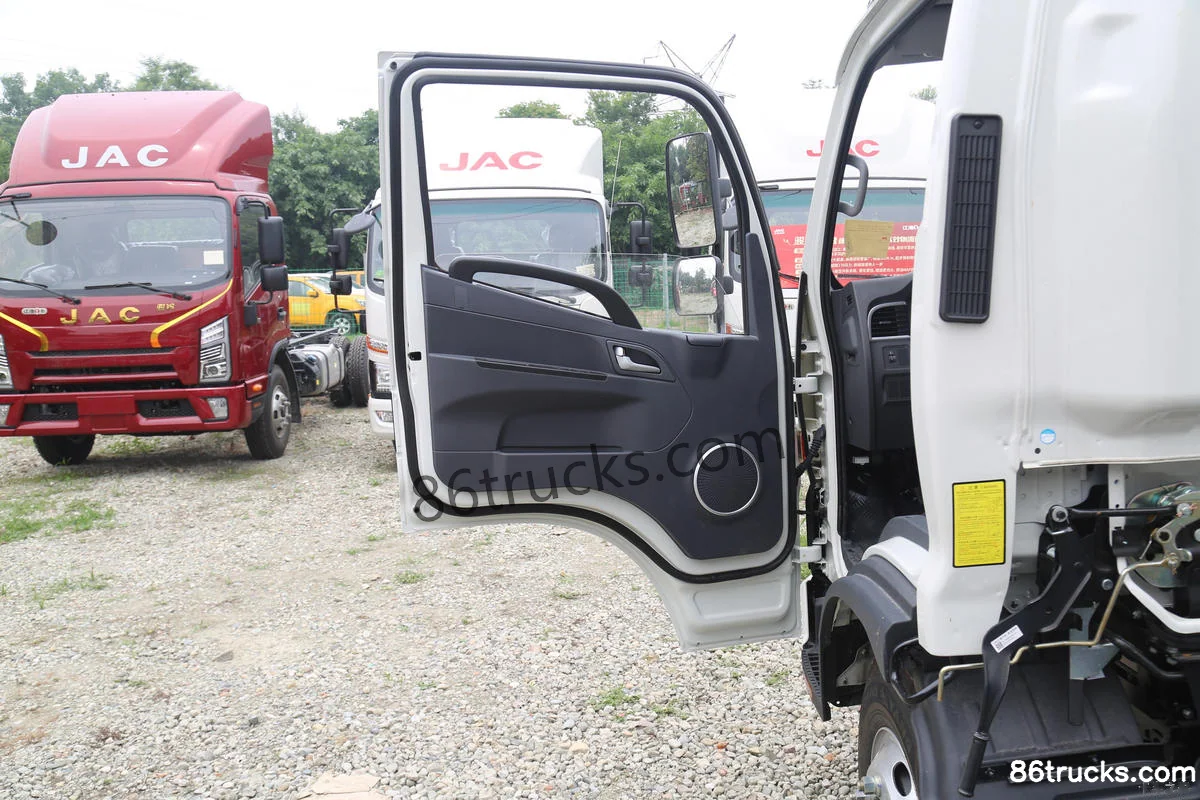

Cab3

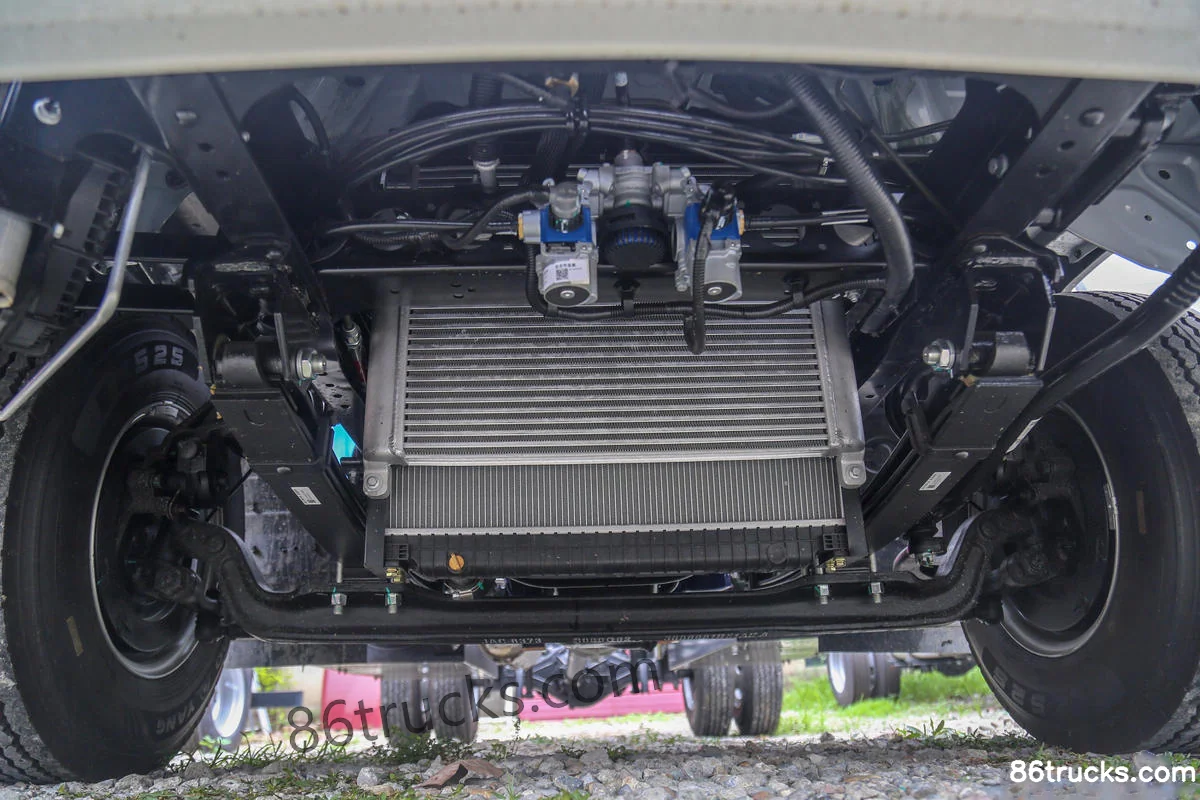

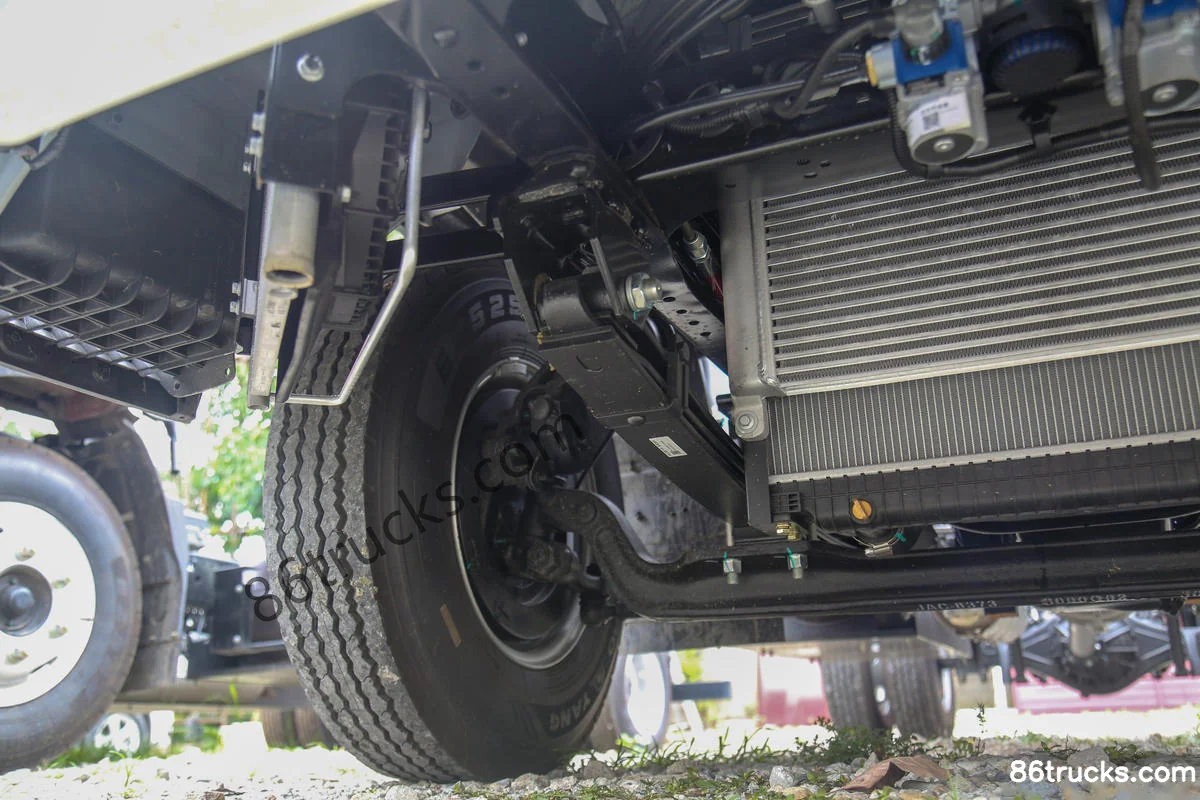

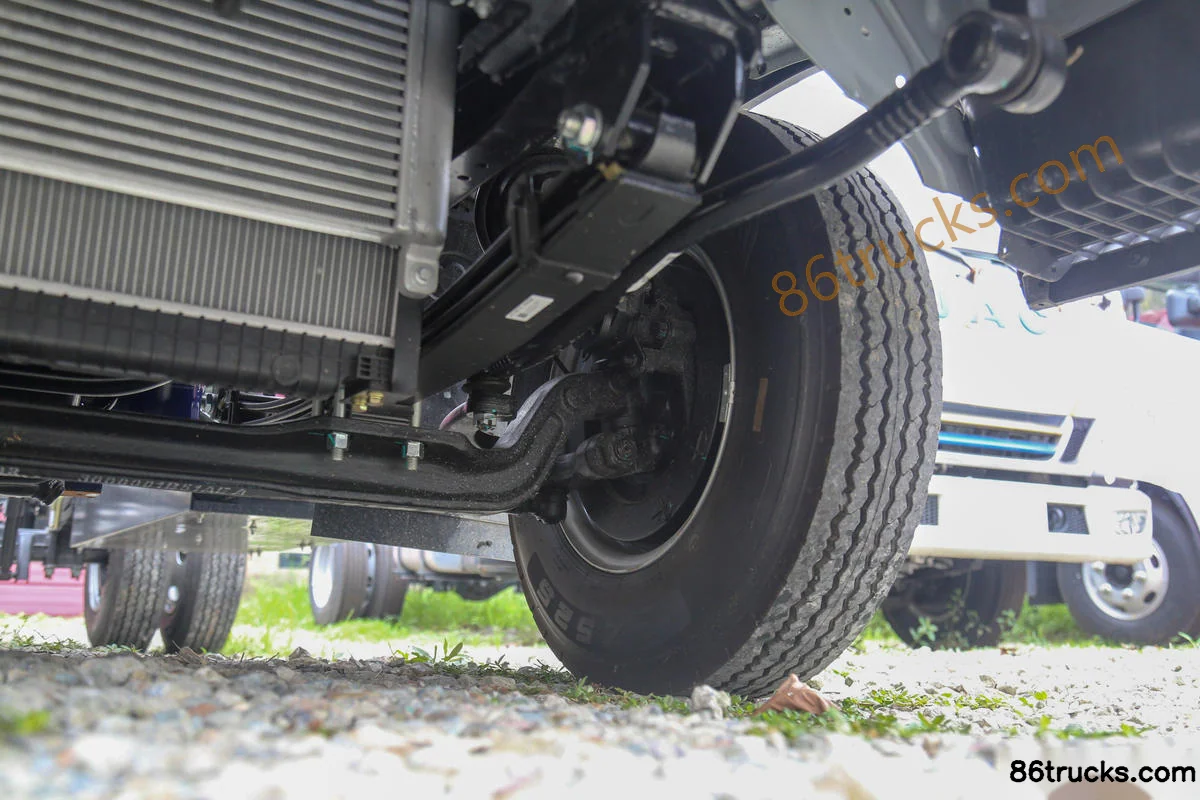

Chassis3

9 photos

FAQ

What is the export price of JAC Junling V5 3.0L 129hp 4X2(6 wheels) CNG 4.18m single-row stake truck (8-speed), and what does it include?

JAC Junling V5 3.0L 129hp 4X2(6 wheels) CNG 4.18m single-row stake truck (8-speed) export reference is about From $19,278; MSRP is ¥13.88M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Junling V5 3.0L 129hp 4X2(6 wheels) CNG 4.18m single-row stake truck (8-speed) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Junling V5 3.0L 129hp 4X2(6 wheels) CNG 4.18m single-row stake truck (8-speed)?

Key specs of JAC Junling V5 3.0L 129hp 4X2(6 wheels) CNG 4.18m single-row stake truck (8-speed): Drive: 4x2; Horsepower: 129 hp; Emission: China VI; Fuel: Compressed Natural Gas (CNG); Engine: Yunnei Power3L; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Junling V5 3.0L 129hp 4X2(6 wheels) CNG 4.18m single-row stake truck (8-speed) suited for?

JAC Junling V5 3.0L 129hp 4X2(6 wheels) CNG 4.18m single-row stake truck (8-speed) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Junling V5 3.0L 129hp 4X2(6 wheels) CNG 4.18m single-row stake truck (8-speed) differ from other variants in the same series?

JAC Junling V5 3.0L 129hp 4X2(6 wheels) CNG 4.18m single-row stake truck (8-speed) belongs to JAC V5 light truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Junling V5 3.0L 129hp 4X2(6 wheels) CNG 4.18m single-row stake truck (8-speed)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Junling V5 3.0L 129hp 4X2(6 wheels) CNG 4.18m single-row stake truck (8-speed)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
