Dongfeng Commercial Vehicle 153 Series 210 hp 6X2(8 wheels) Truck-mounted Crane (XCMG brand)

Export reference
MSRP N/A
Emission: China III / Euro III
Wheelbase:: 2150+5050mm
Cab dimensions:: 11.98×2.49×3.8m
Type:: truck-mounted crane
GVWR:: 24.9ton
Front/rear suspension:: 1.25/3.53m
Lifting capacity: 10ton
Drive 6X2 (8 wheels)
Horsepower 210
Rated mass: 12.455ton

Overview

The Dongfeng Commercial Vehicle 153 Series 210 hp 6X2(8 wheels) Truck-mounted Crane (XCMG brand) is a truck-mounted crane featuring 10ton tank capacity, 24.9t GVW and 6X2 (8 wheels) drive. On the powertrain side, it comes with 210 hp and China III / Euro III emissions.

China III / Euro III 210 6X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 11.98×2.49×3.8m
Type: truck-mounted crane
Drive type: 6X2
Wheelbase: 2150+5050mm
Rated mass: 12.455ton
GVWR: 24.9ton
Front/rear suspension: 1.25/3.53m
Body Parameters
Other special notes: Optional imitation Tianlong cab, optional AC
Crane model: SQ10S
Lifting capacity: 10ton
crane self-weight: 4.2ton
Vehicle certification code: XZJ5250JSQD
Body Brand: XCMG brand
Engine parameters
Engine Brand: Dongfeng
Engine Model: Dongfeng B210 33
Displacement: 5.9L
Emission standard: China III / Euro III
Max output power: 155kW
Max hp: 210Horsepower
Max torque: 700N·m
Max torque speed: 1500rpm
Chassis Specs
Chassis Brand: Dongfeng Commercial Vehicle
Chassis Series: 153 Series
Chassis Model: EQ1252GFJ
rear axle description: 5T/10T
Leaf spring count: 10/10/12+9
Transmission Parameters
Number of gears: 8Gear
Transmission Model: Fast Gear 8JS85E
Tire
Tire Size: 10.00R20
Number of tires: 8pcs

Photos

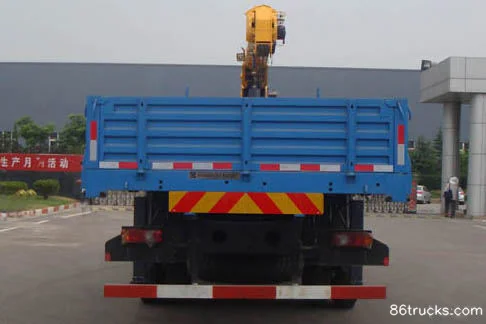

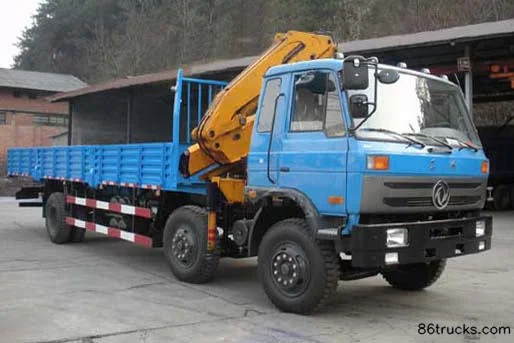

Exterior2
