SHACMAN Commercial Vehicle Xuande Wing 9 Xinrui Edition 156hp 4X2(6 wheels) 4.12m Refrigerated Truck (China VI)

Export reference
MSRP N/A
Emission: China VI
Fuel: Diesel
Curb Weight:: 3.2ton
Wheelbase:: 3300mm
Tire Size:: 7.00R16LT 8PR
Cab dimensions:: 5.99×2.3×3.36m
SHACMAN Commercial Vehicle Xuande Wing 9 Xinrui Edition 156hp 4X2(6 wheels) 4.12m Refrigerated Truck (China VI) exterior
View more photos (12)
Rated payload: 1.165ton
Drive 4X2 (6 wheels)
Cargo box dimensions: 4.12×2.1×2.1m
Horsepower 156

Overview

The SHACMAN Commercial Vehicle Xuande Wing 9 Xinrui Edition 156hp 4X2(6 wheels) 4.12m Refrigerated Truck (China VI) is a Refrigerated Truck featuring 4.12×2.1×2.1m cargo body, 1.165t payload, 5.99×2.3×3.36m cab and 3300mm wheelbase. On the powertrain side, it comes with 156 hp, 4X2 (6 wheels) drive, China VI emissions and Diesel fuel.

China VI 156 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Cab dimensions: 5.99×2.3×3.36m
Truck Type: Refrigerated Truck
Drive type: 4X2
Vehicle origin: Xi'an, Shaanxi
Wheelbase: 3300mm
Front track width: 1680mm
rear track: 1555mm
Curb Weight: 3.2ton
Rated payload: 1.165ton
GVWR: 4.495ton
Max. speed: 105km/h
Front/rear suspension: 1.2/1.495m
Energy Type: Diesel
Engine parameters
Engine Model: FotonF2.8NS6B156
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.78L
Emission standard: China VI
Max output power: 115kW
Max hp: 156Horsepower
Max torque: 440N·m
Rated speed: 2900rpm
Cargo box parameters
Cargo box dimensions: 4.12×2.1×2.1m
Cargo box width: 2.1m
Cargo box height: 2.1m
Body Parameters
Vehicle certification code: SX5040XLCNP6331
Chassis Specs
Chassis Brand: SHACMAN Commercial Vehicle
Chassis Series: Xuande Yi9
Chassis Model: SX1040NP6331
Leaf spring count: 3/3+2,3/3+3
Aluminum wheels:
Maintenance-free wheel end:
Transmission Parameters
Number of gears: 6Gear
Transmission Model: 6-speed transmission
Tire
Tire Size: 7.00R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:
Stability control system:
Power steering:
EBS electronic braking system:
clutch booster:
automatic slack adjuster:
interior configuration
Steering Wheel Material: Plastic
steering wheel adjustment: Manual
Multifunction steering wheel:
AC control type: Automatic
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Power interface:
Reverse Radar:
Seat material: leather
Reverse Camera:
Remote key:
Electronic Central Lock:
lighting configuration
LED headlight:
Front fog lamp:
daytime running lights:
Headlight height adjustment:
Halogen Headlights:
Exterior features
Air deflector:
Aluminum air tank:
Service brake
Engine brake:
Brake Type: Air brake
Exhaust brake:
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
Multimedia features
Center Console Color Screen:
External audio input (AUX/USB/iPod etc.):
Bluetooth / hands-free calling:
Radio:
smart configuration
Telematics System:
Cruise control (CCS):
Tire Pressure Monitoring System (TPMS):
Fatigue driving monitoring:

Photos

Exterior3

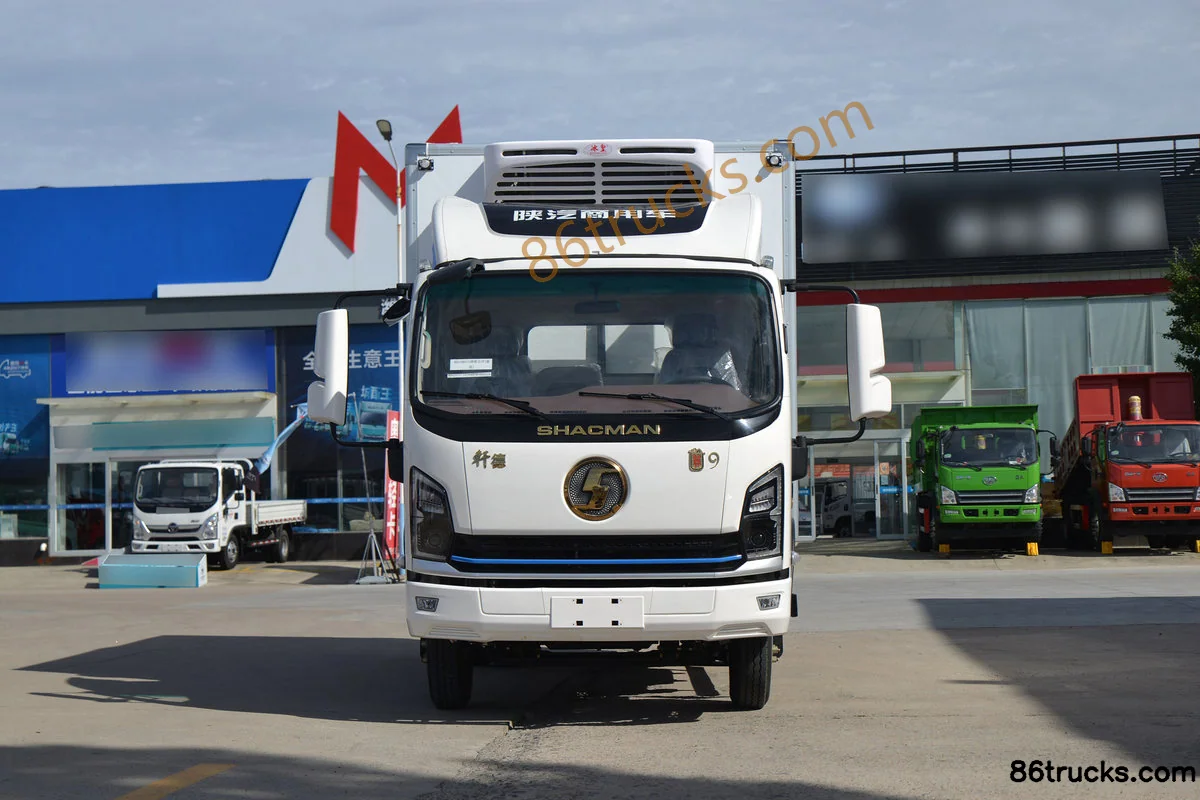

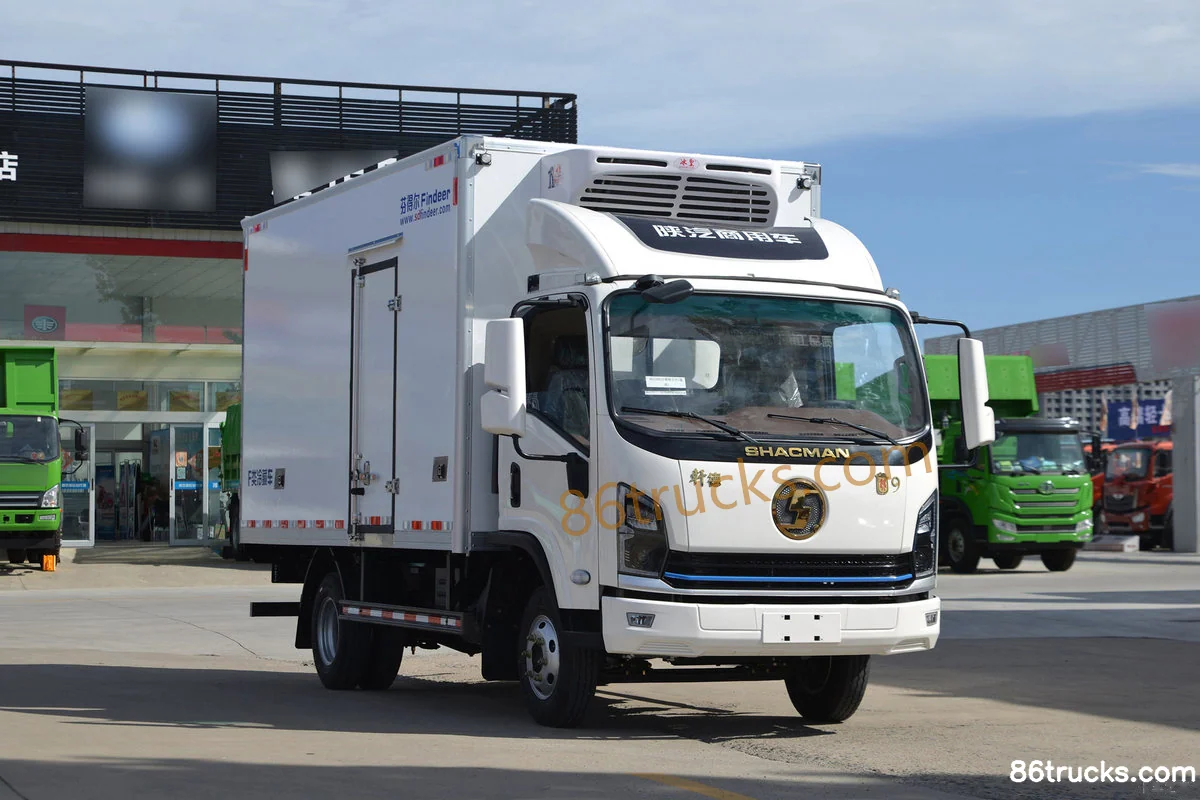

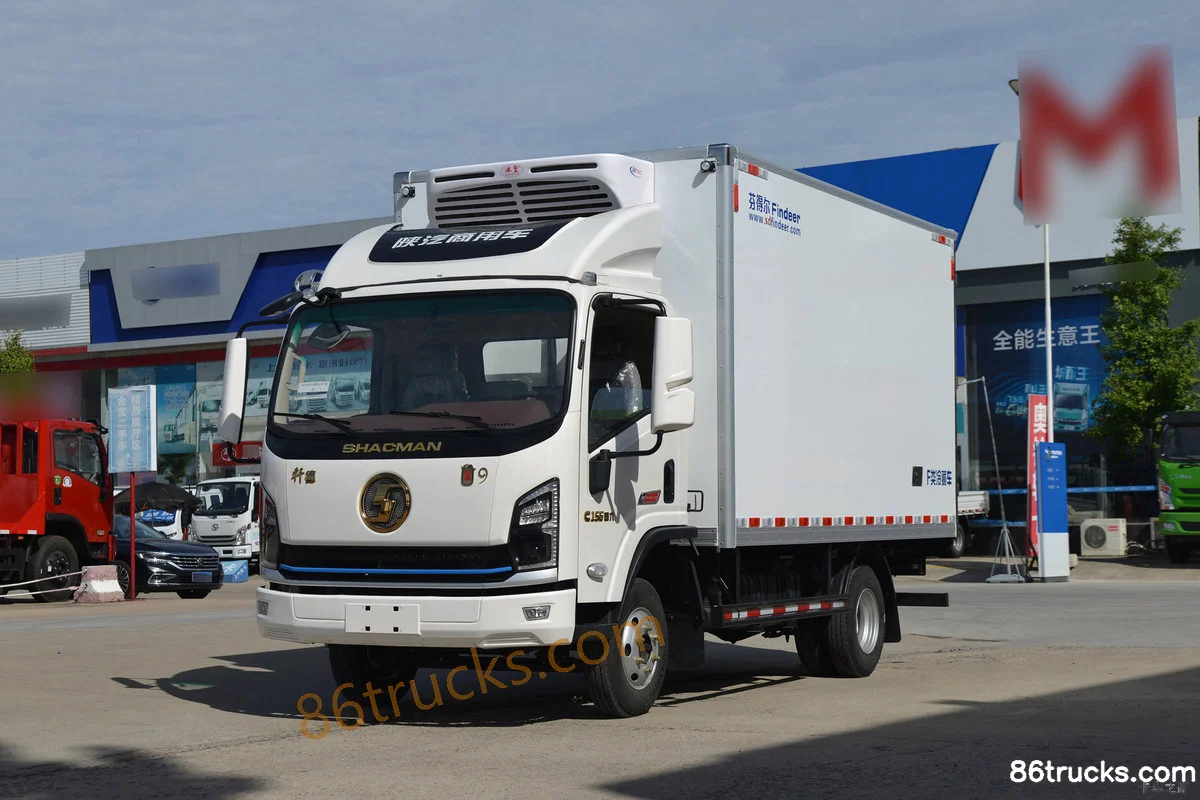

SHACMAN Commercial Vehicle Xuande Wing 9 Xinrui Edition 156hp 4X2(6 wheels) 4.12m Refrigerated Truck (China VI) Exterior (1) | 86Trucks SHACMAN Commercial Vehicle Xuande Wing 9 Xinrui Edition 156hp 4X2(6 wheels) 4.12m Refrigerated Truck (China VI) Exterior (2) | 86Trucks SHACMAN Commercial Vehicle Xuande Wing 9 Xinrui Edition 156hp 4X2(6 wheels) 4.12m Refrigerated Truck (China VI) Exterior (3) | 86Trucks

Cab3

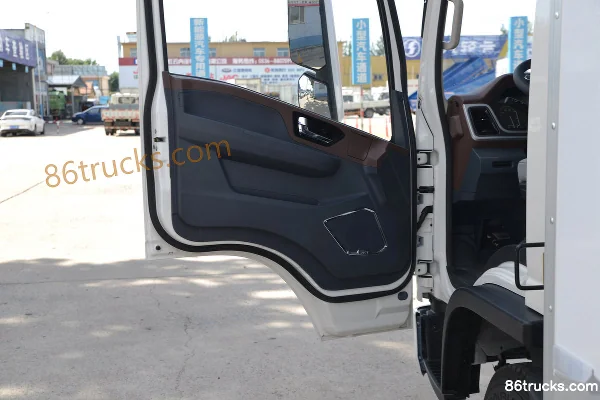

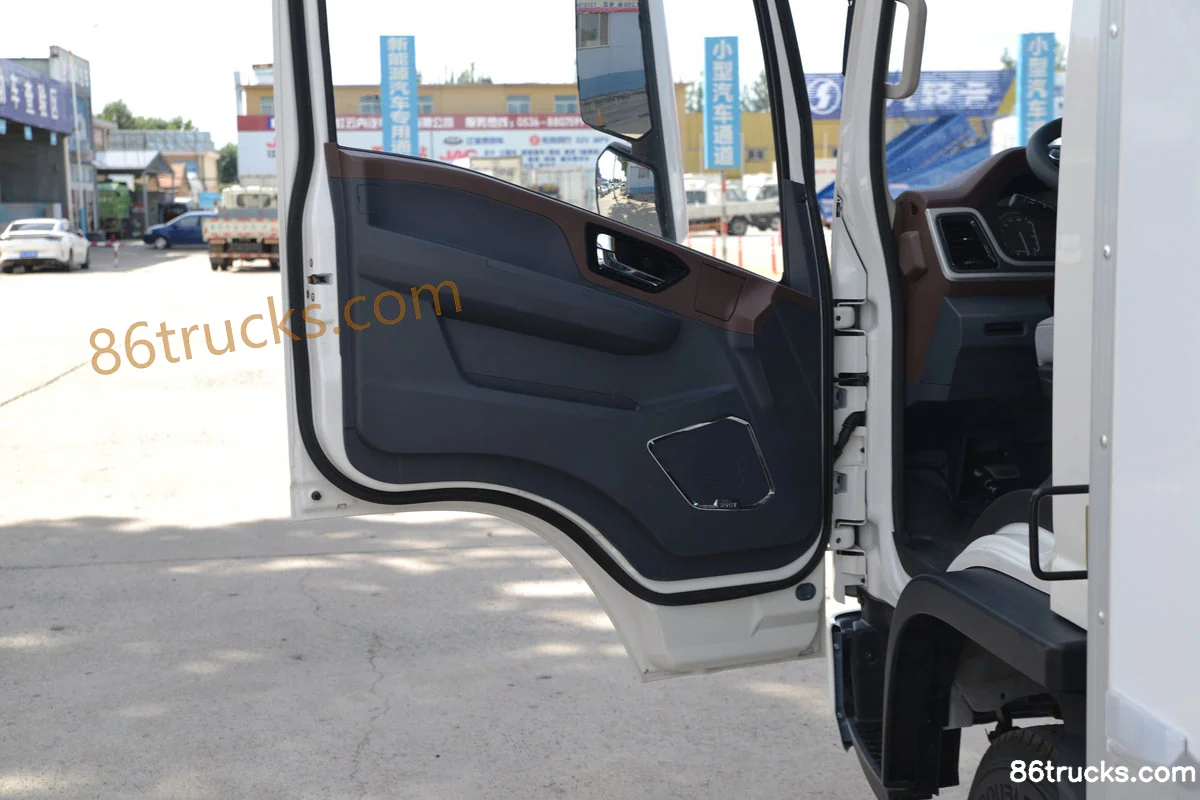

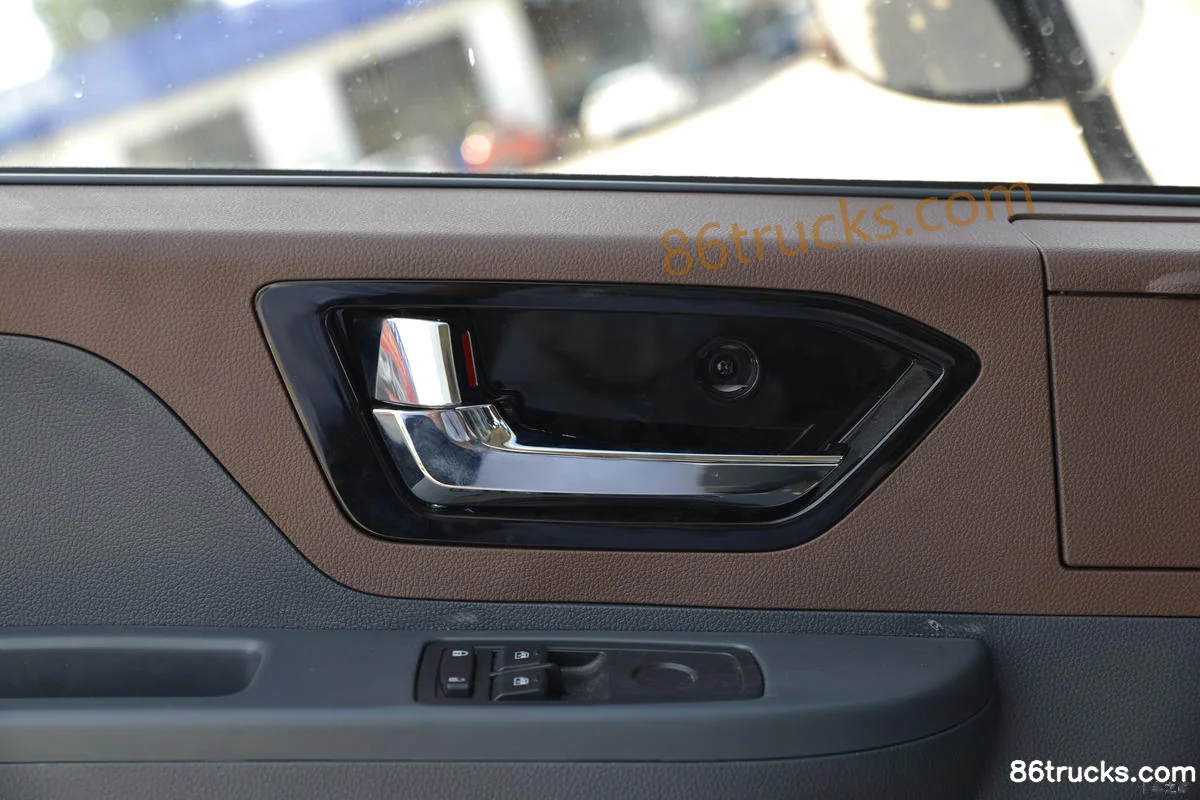

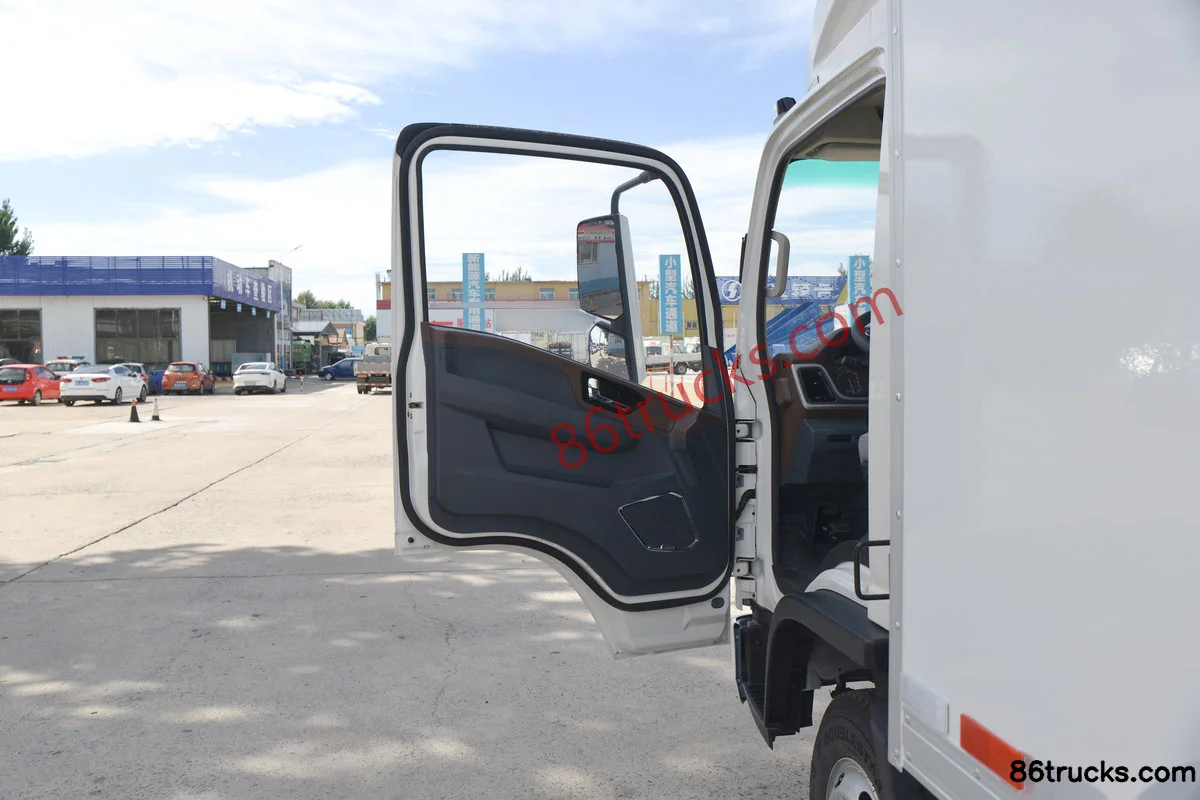

SHACMAN Commercial Vehicle Xuande Wing 9 Xinrui Edition 156hp 4X2(6 wheels) 4.12m Refrigerated Truck (China VI) Cab (1) | 86Trucks SHACMAN Commercial Vehicle Xuande Wing 9 Xinrui Edition 156hp 4X2(6 wheels) 4.12m Refrigerated Truck (China VI) Cab (2) | 86Trucks SHACMAN Commercial Vehicle Xuande Wing 9 Xinrui Edition 156hp 4X2(6 wheels) 4.12m Refrigerated Truck (China VI) Cab (3) | 86Trucks

Chassis3

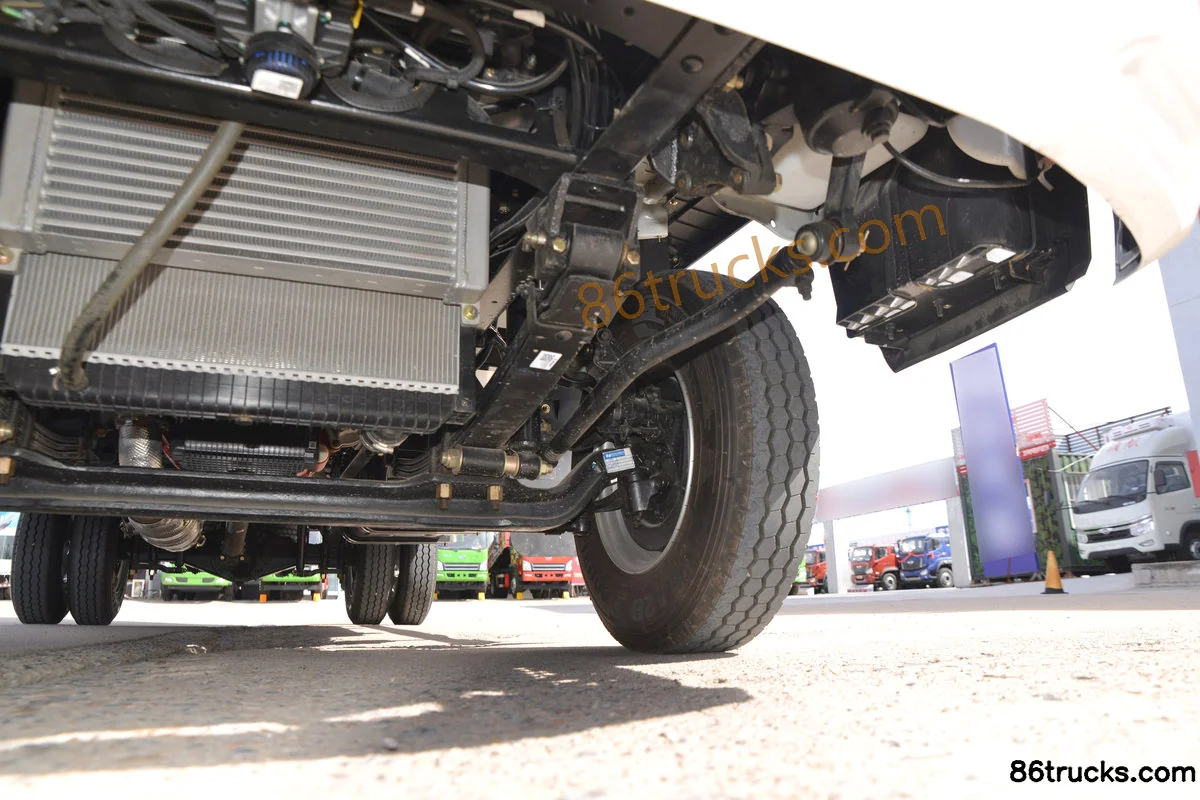

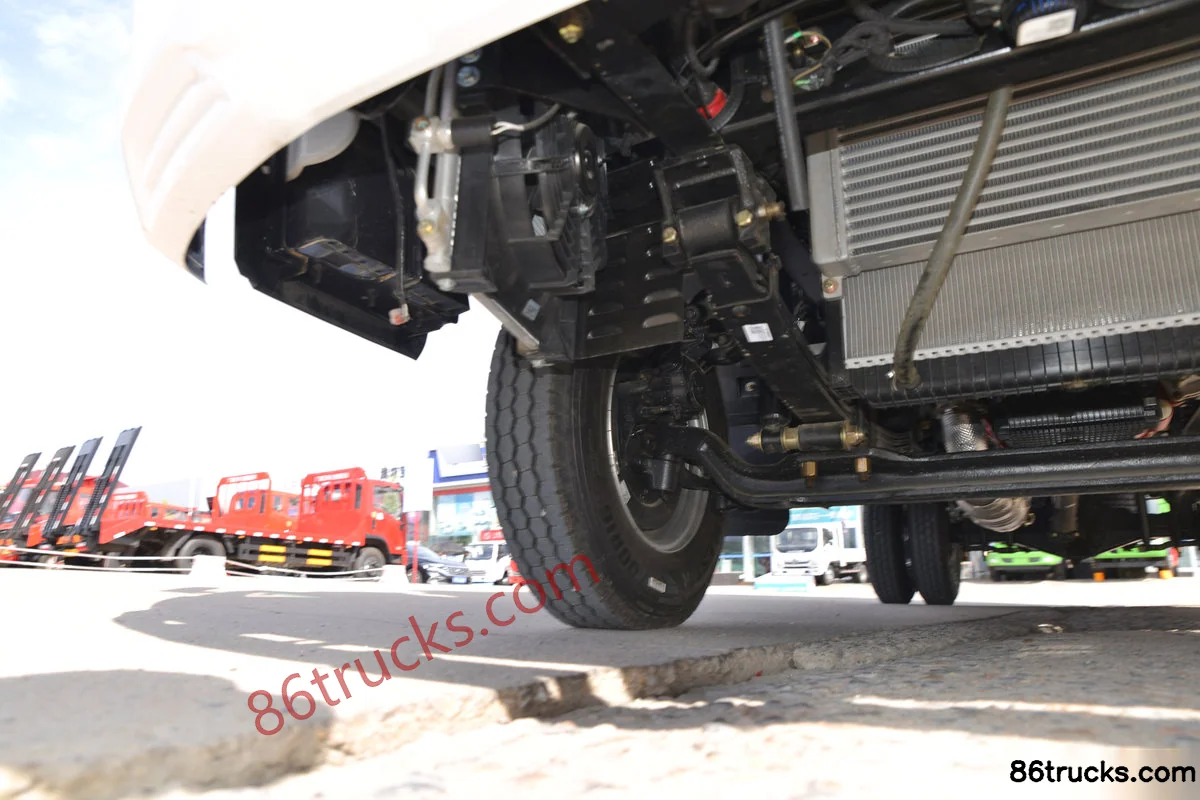

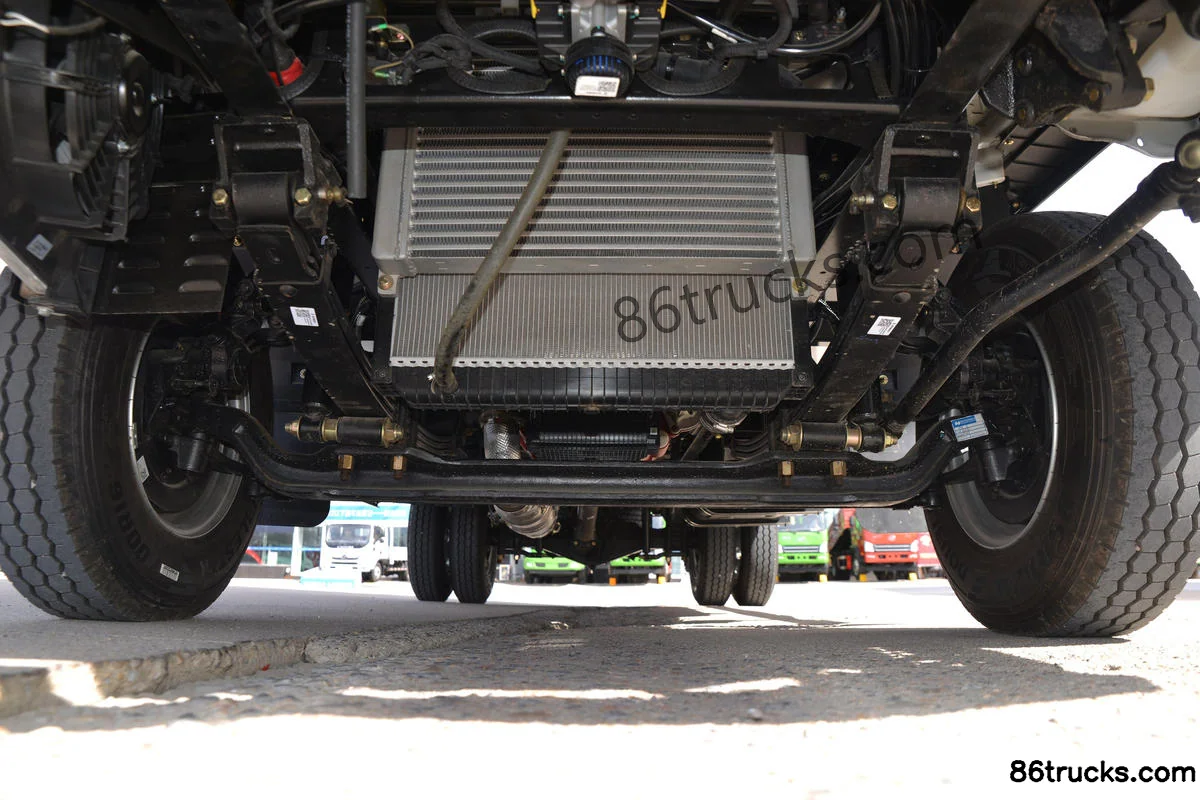

SHACMAN Commercial Vehicle Xuande Wing 9 Xinrui Edition 156hp 4X2(6 wheels) 4.12m Refrigerated Truck (China VI) Chassis (1) | 86Trucks SHACMAN Commercial Vehicle Xuande Wing 9 Xinrui Edition 156hp 4X2(6 wheels) 4.12m Refrigerated Truck (China VI) Chassis (2) | 86Trucks SHACMAN Commercial Vehicle Xuande Wing 9 Xinrui Edition 156hp 4X2(6 wheels) 4.12m Refrigerated Truck (China VI) Chassis (3) | 86Trucks

Body3

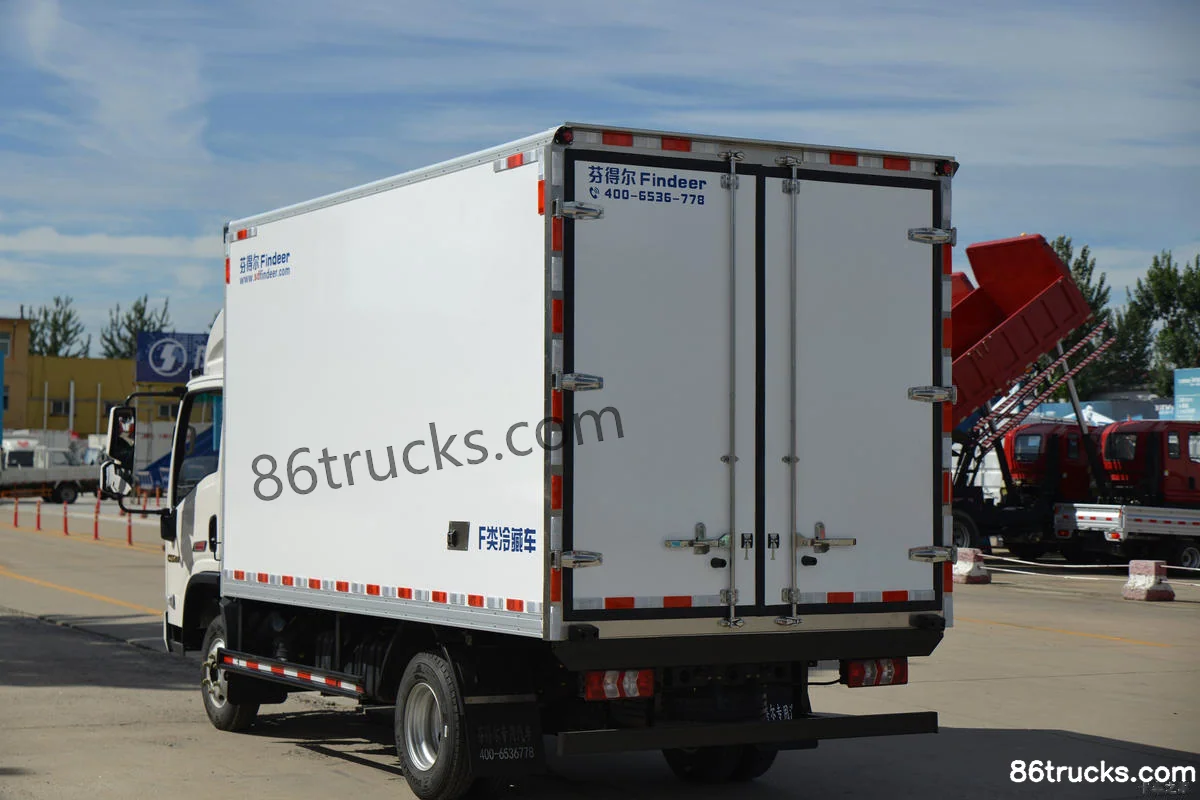

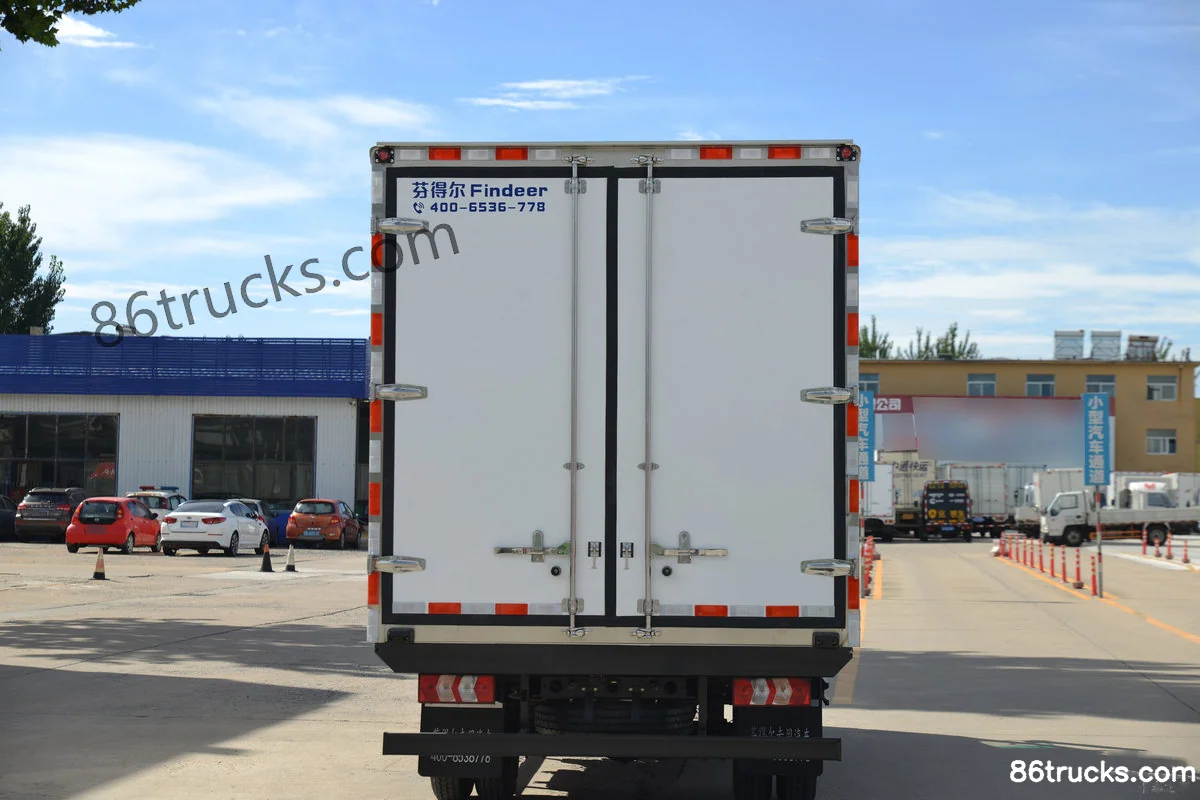

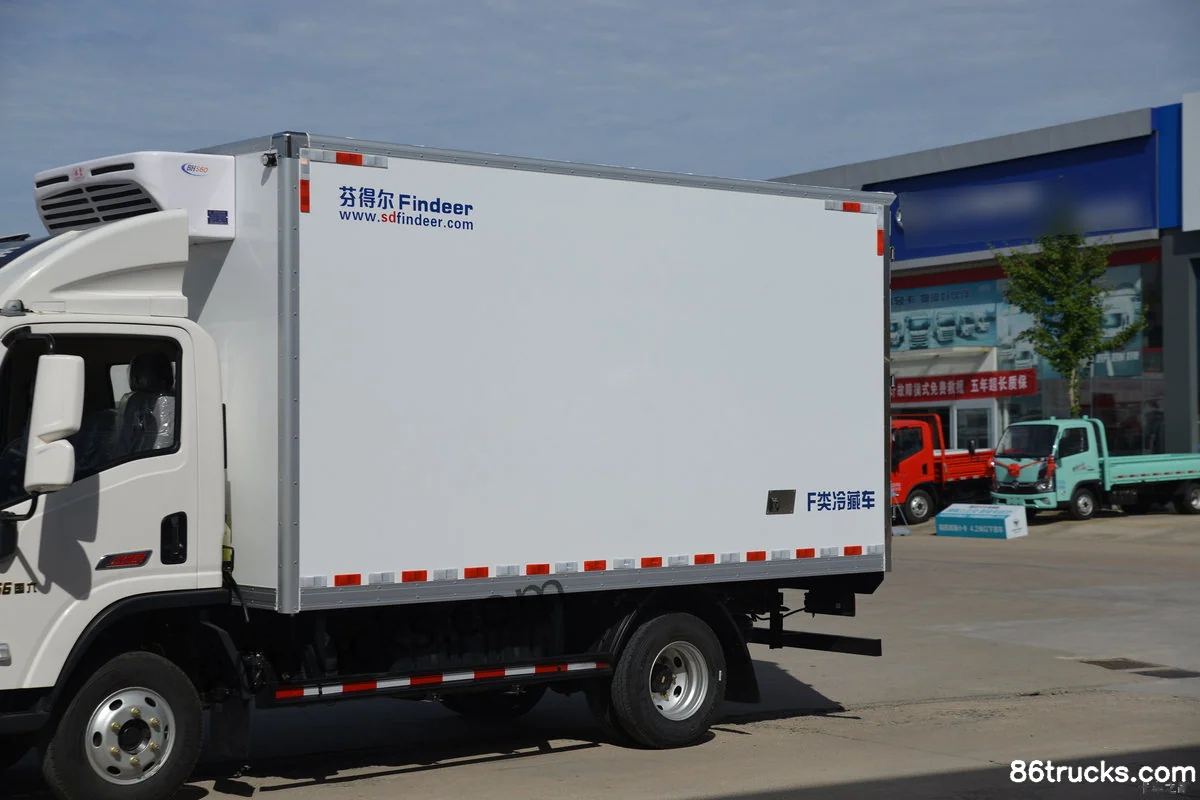

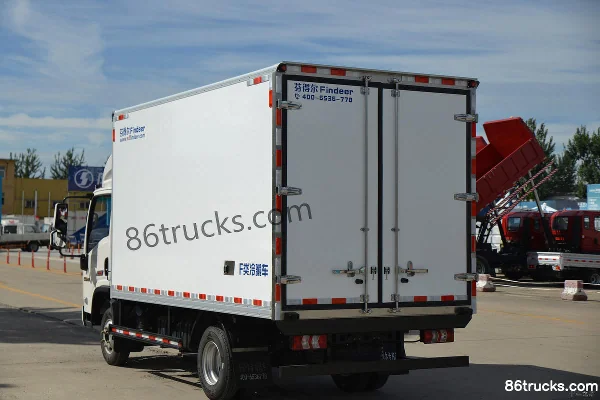

SHACMAN Commercial Vehicle Xuande Wing 9 Xinrui Edition 156hp 4X2(6 wheels) 4.12m Refrigerated Truck (China VI) Body (1) | 86Trucks SHACMAN Commercial Vehicle Xuande Wing 9 Xinrui Edition 156hp 4X2(6 wheels) 4.12m Refrigerated Truck (China VI) Body (2) | 86Trucks SHACMAN Commercial Vehicle Xuande Wing 9 Xinrui Edition 156hp 4X2(6 wheels) 4.12m Refrigerated Truck (China VI) Body (3) | 86Trucks

12 photos

FAQ

What emission standard does SHACMAN Commercial Vehicle Xuande Wing 9 Xinrui Edition 156hp 4X2(6 wheels) 4.12m Refrigerated Truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SHACMAN Commercial Vehicle Xuande Wing 9 Xinrui Edition 156hp 4X2(6 wheels) 4.12m Refrigerated Truck (China VI)?

Key specs of SHACMAN Commercial Vehicle Xuande Wing 9 Xinrui Edition 156hp 4X2(6 wheels) 4.12m Refrigerated Truck (China VI): Drive: 4x2; Horsepower: 156 hp; Emission: China VI; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SHACMAN Commercial Vehicle Xuande Wing 9 Xinrui Edition 156hp 4X2(6 wheels) 4.12m Refrigerated Truck (China VI) suited for?

SHACMAN Commercial Vehicle Xuande Wing 9 Xinrui Edition 156hp 4X2(6 wheels) 4.12m Refrigerated Truck (China VI) is a Refrigerated Truck model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does SHACMAN Commercial Vehicle Xuande Wing 9 Xinrui Edition 156hp 4X2(6 wheels) 4.12m Refrigerated Truck (China VI) differ from other variants in the same series?

SHACMAN Commercial Vehicle Xuande Wing 9 Xinrui Edition 156hp 4X2(6 wheels) 4.12m Refrigerated Truck (China VI) belongs to SHACMAN Commercial Vehicle Xuande Yi 9 Light Truck (Refrigerated Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SHACMAN Commercial Vehicle Xuande Wing 9 Xinrui Edition 156hp 4X2(6 wheels) 4.12m Refrigerated Truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SHACMAN Commercial Vehicle Xuande Wing 9 Xinrui Edition 156hp 4X2(6 wheels) 4.12m Refrigerated Truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
