Dongfeng DF801S 8-ton steering axle

Export reference
MSRP N/A
Applicable Tire:: 12.00-20
Front/rear track width:: 2034-2078mm
Brake:: Air brake actuator
Axle Model: 8-ton steering axle
Brake size: Φ410×180
Axle Type: Steering axle

Overview

The Dongfeng DF801S 8-ton steering axle is a parts product with spec 8-ton steering axle and Φ410×180 size.

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Axle Model: 8-ton steering axle
Axle Type: Steering axle
Applicable Tire: 12.00-20
Rated axle load: 8000ton
Front/rear track width: 2034-2078mm
Brake: Air brake actuator
Brake size: Φ410×180
Rim Used: 8.0-20inch
Wheel Bolts: Φ335-10×M22mm
Remarks: I-beam; kingpin inclination 7°, wheel camber 1°, inner wheel steering angle 42°, outer wheel steering angle 33.8°

Photos

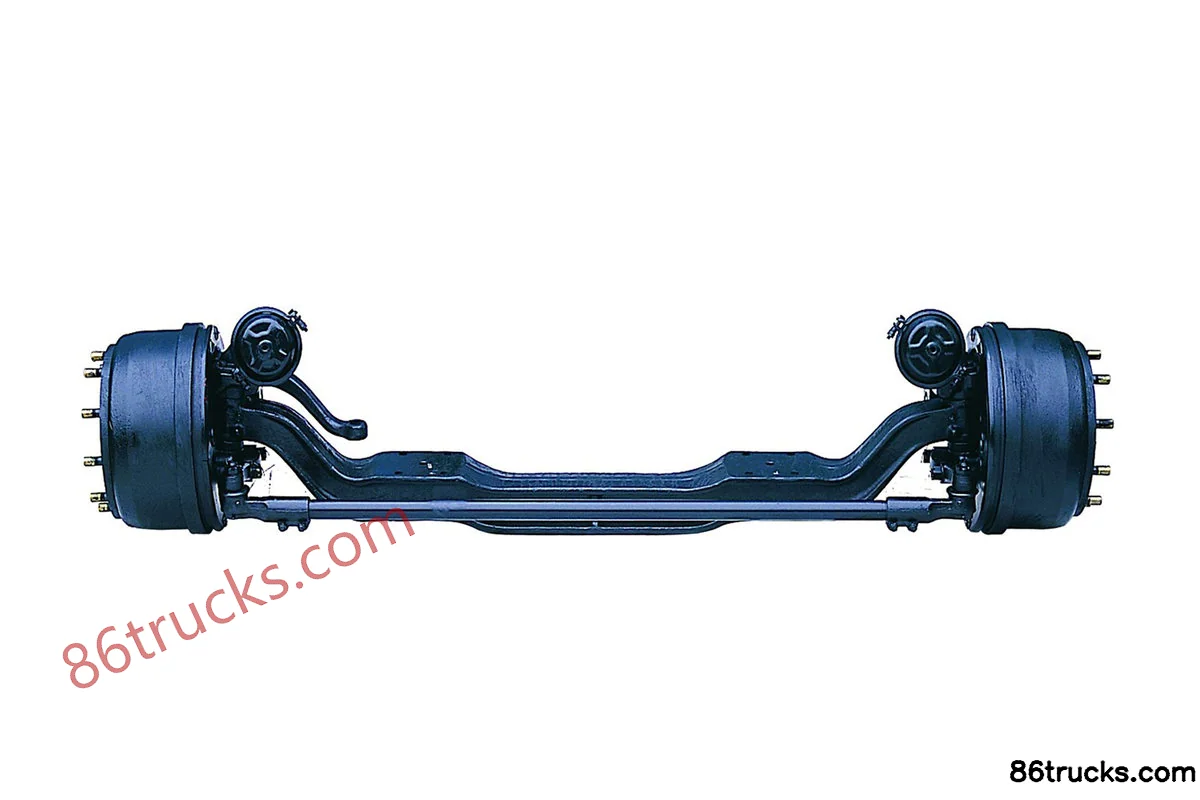

Exterior1
