Foton Xiaojingang Q Edition 122 hp 4X2(6 wheels) 2.7m Dump Truck (China VI)

Export reference
MSRP N/A
Emission: China VI
Fuel: gasoline
Transmission: Dongan
Curb Weight:: 1.63ton
Wheelbase:: 2600mm
Tire Size:: 175R14LT 8PR
Rated payload: 1.735ton
Drive 4X2 (6 wheels)
Horsepower 122
Cargo box type: Dump type

Overview

The Foton Xiaojingang Q Edition 122 hp 4X2(6 wheels) 2.7m Dump Truck (China VI) is a mini truck featuring 1.735t payload, 3.495t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a DonganDAM16KL engine, 122 hp, China VI emissions and Dongan transmission.

China VI 122 gasoline 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ5031ZLJ3JV3-03
Drive type: 4X2
Wheelbase: 2600mm
engine: DonganDAM16KL
transmission: DonganDAT18R
Cab length: 4.595m
Cab width: 1.82m
Cab height: 1.96m
Front track width: 1320mm
rear track: 1280mm
Curb Weight: 1.63ton
Rated payload: 1.735ton
GVWR: 3.495ton
Origin: Shandong Zhucheng
tonnage class: mini truck
Approach angle: 22°
departure angle: 18°
Version: Q cab
Energy Type: gasoline
Engine parameters
Engine Brand: Dongan
Engine Model: DonganDAM16KL
Number of cylinders: 4cylinder
fuel type: gasoline
Displacement: 1.597L
Emission standard: China VI
Max output power: 90kW
Max hp: 122Horsepower
Max torque: 158N·m
Rated speed: 6000rpm
Transmission Parameters
Transmission Model: DonganDAT18R
Transmission Brand: Dongan
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 2.7m
Cargo box width: 1.65m
Cargo box height: 0.4m
Chassis Specs
Front axle allowable load: 1000kg
rear axle allowable load: 2495kg
Leaf spring count: 3/5,2/5
Tire
Tire Size: 175R14LT 8PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

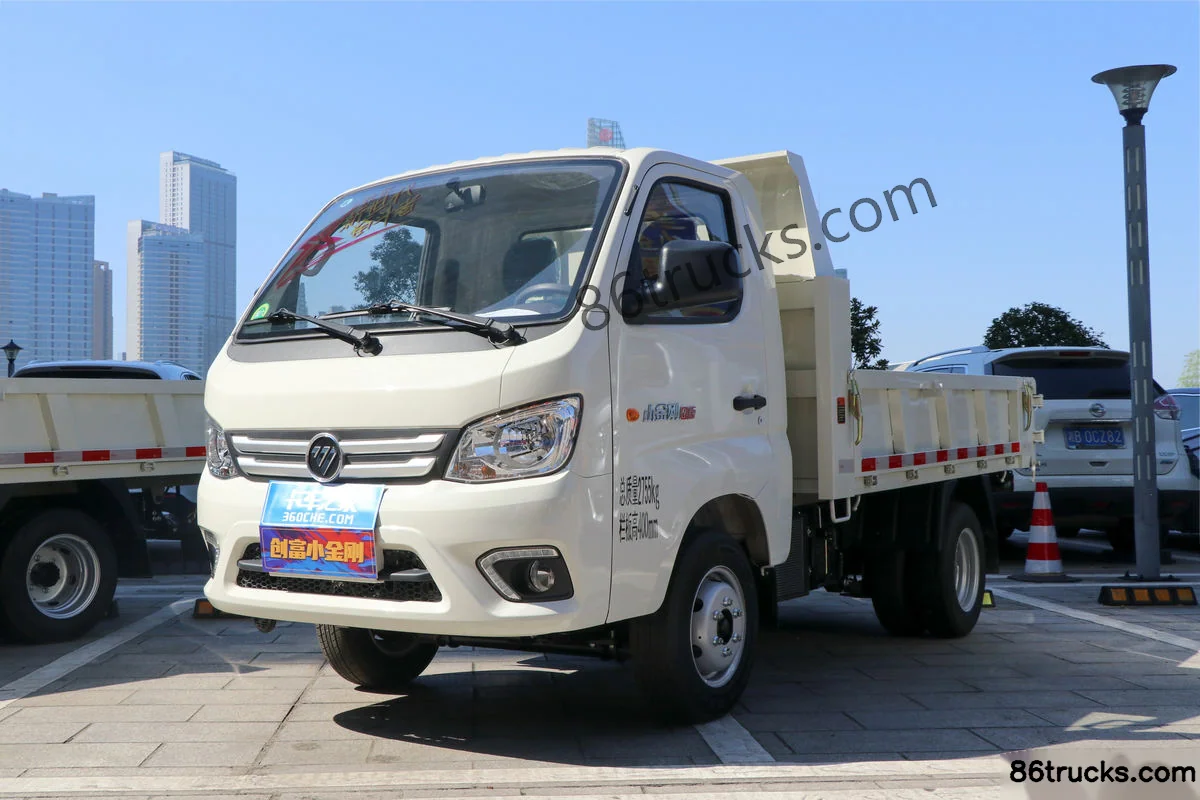

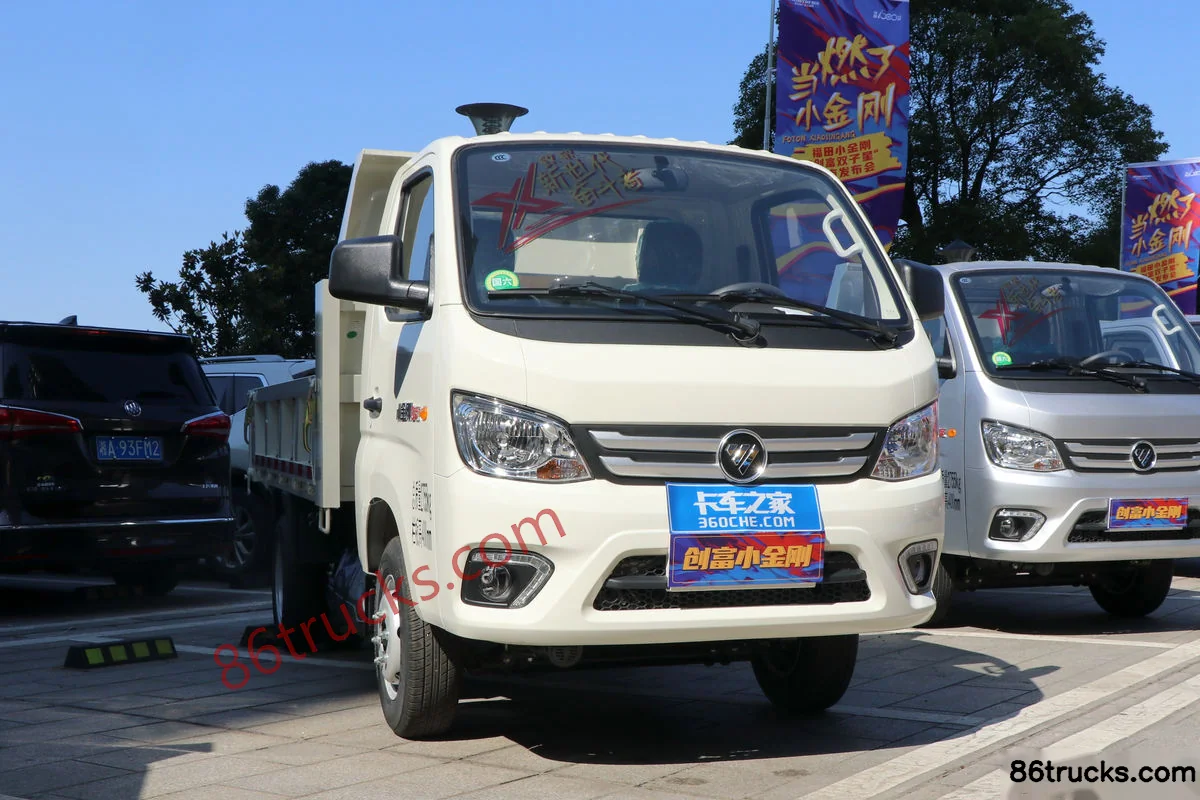

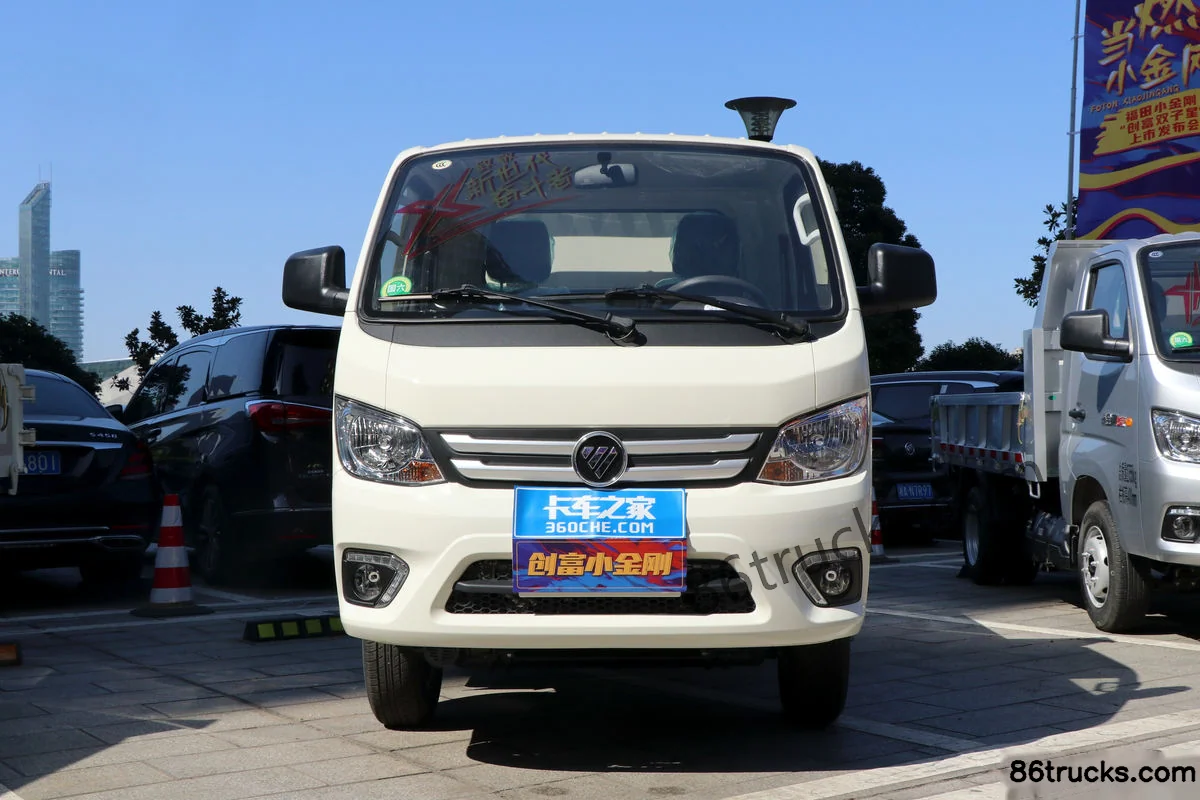

Exterior3

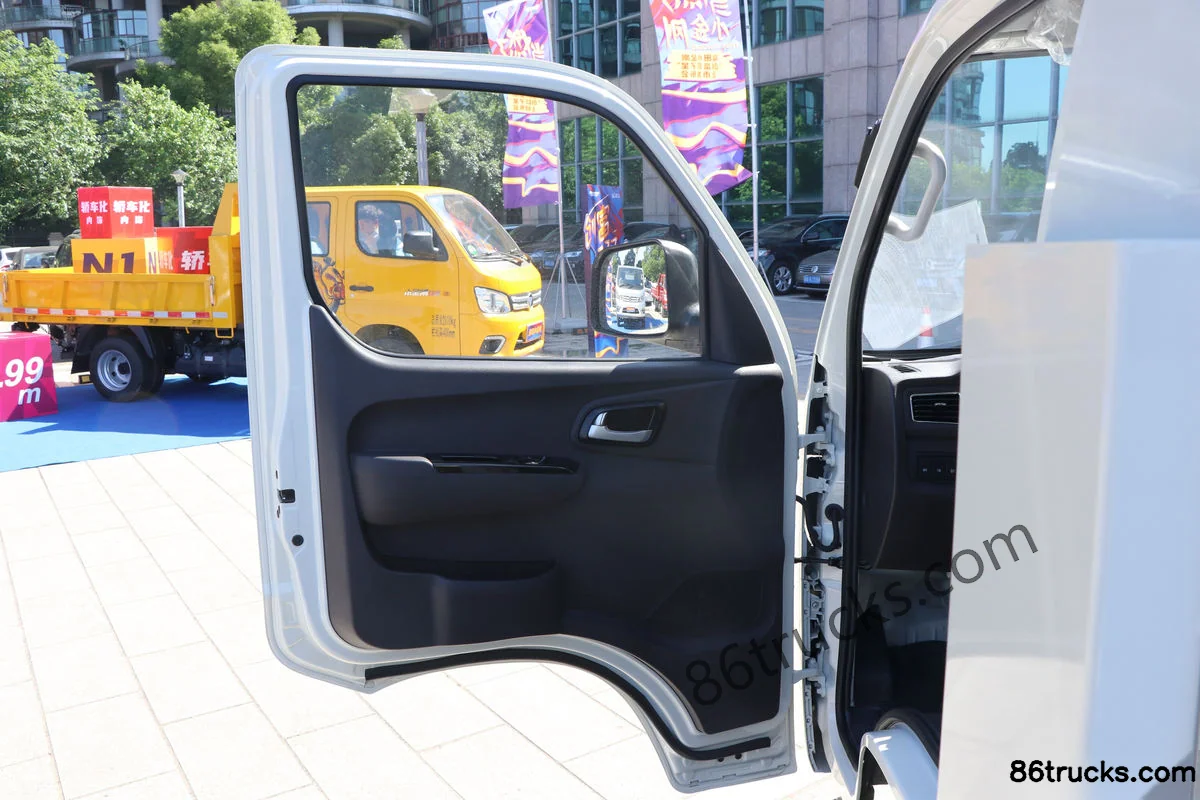

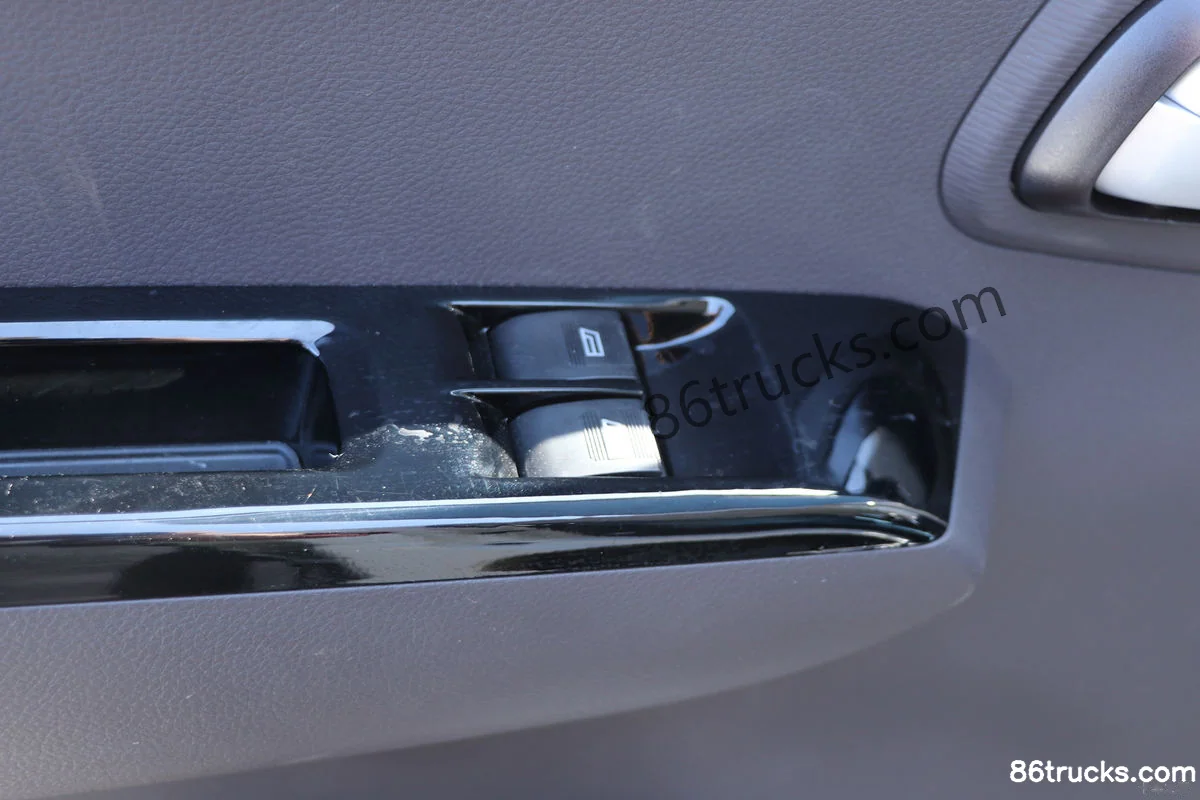

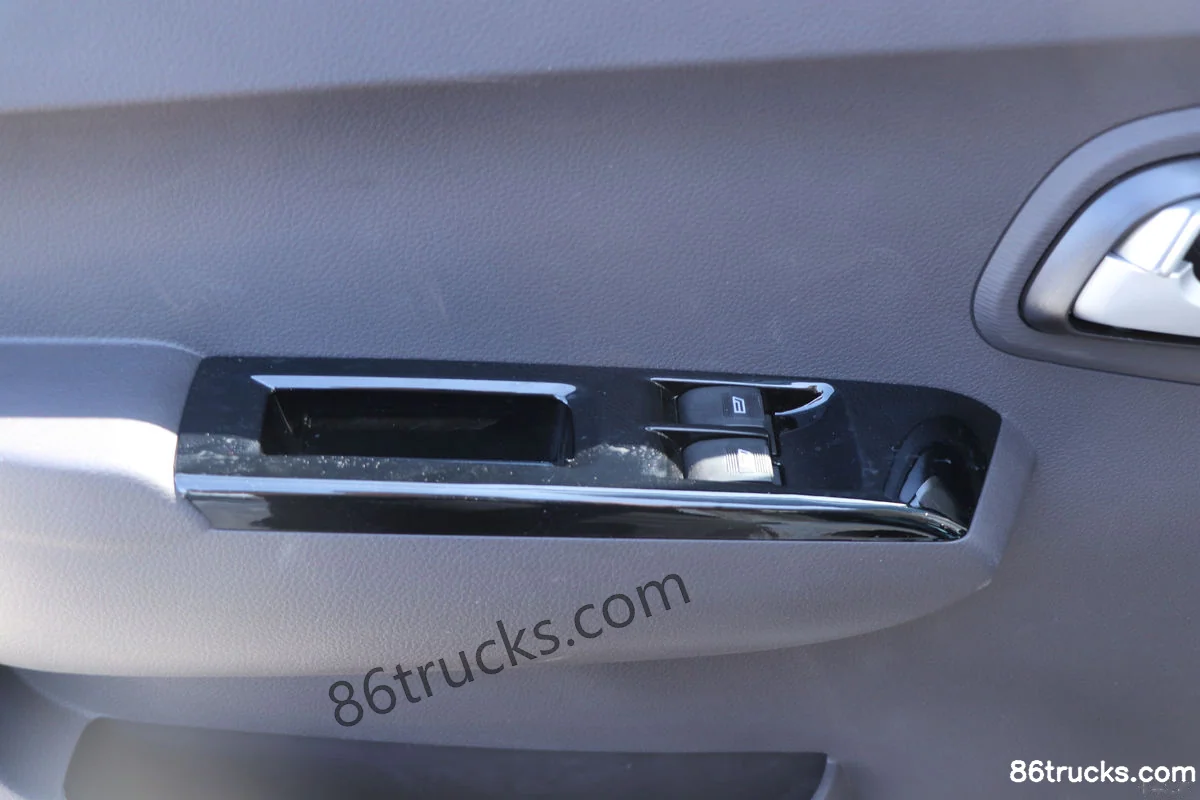

Cab3

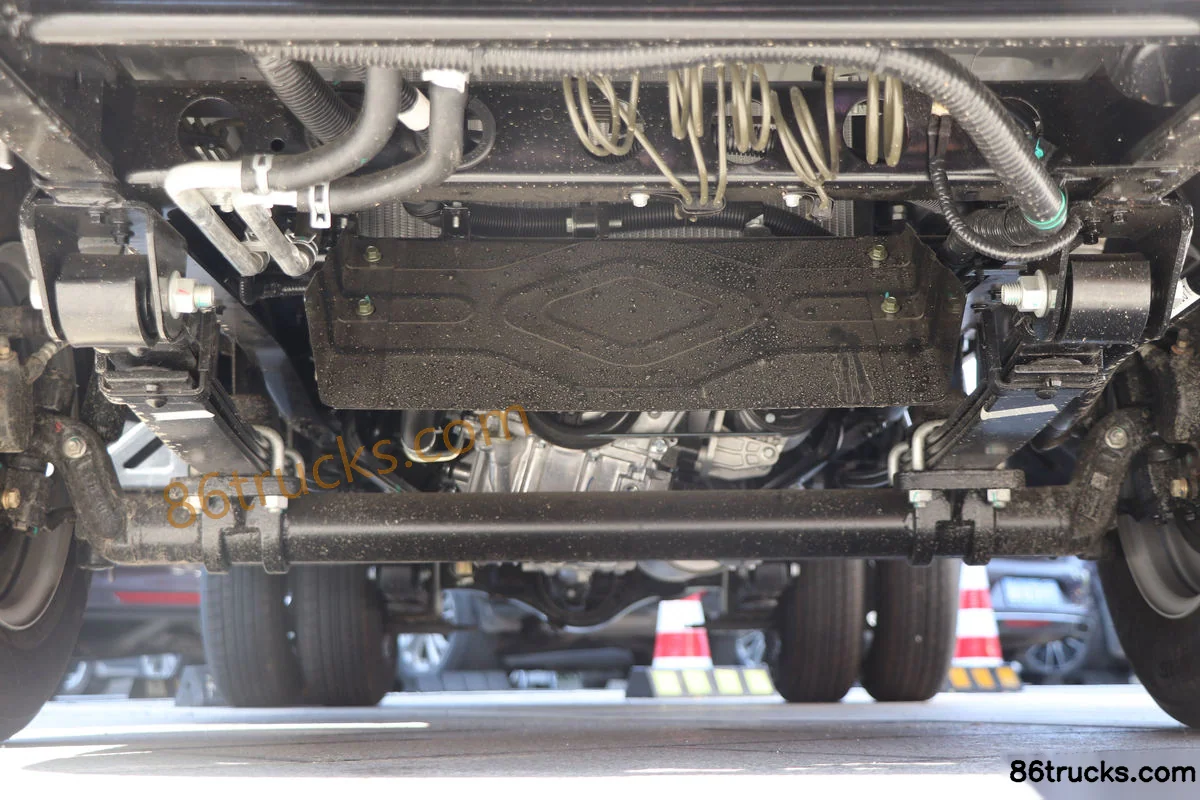

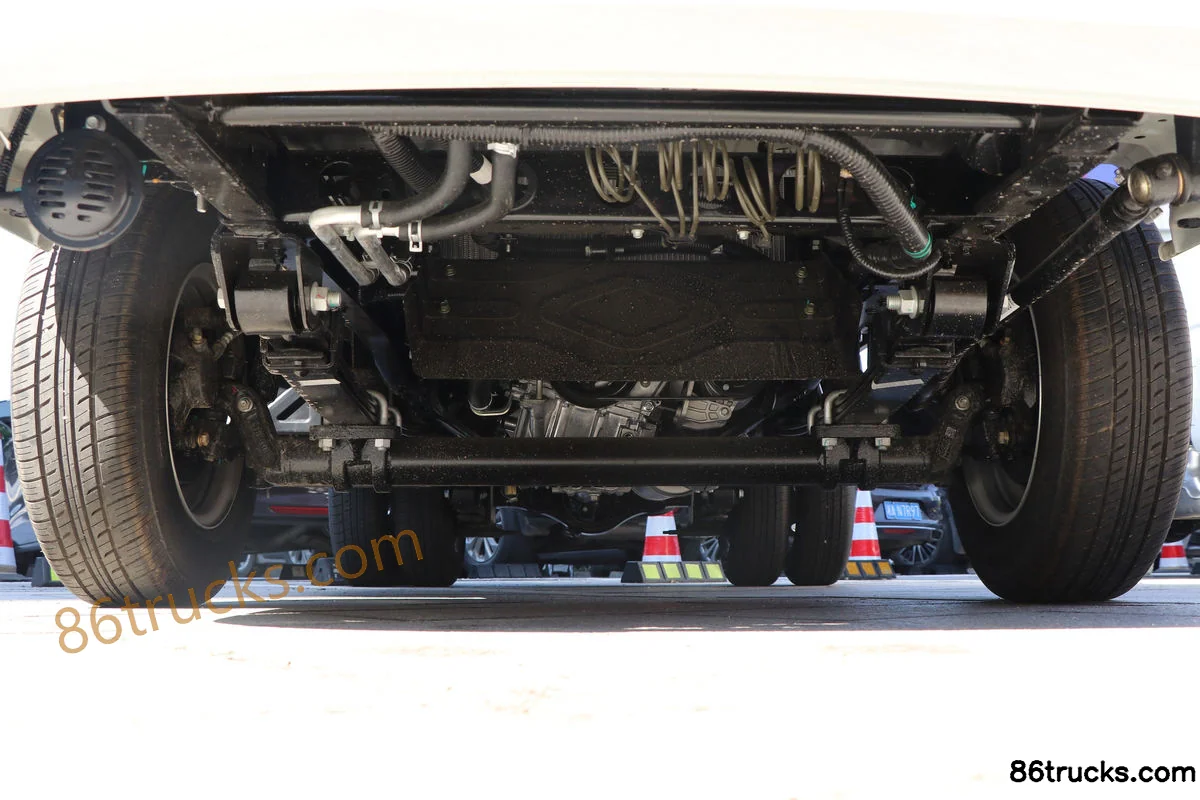

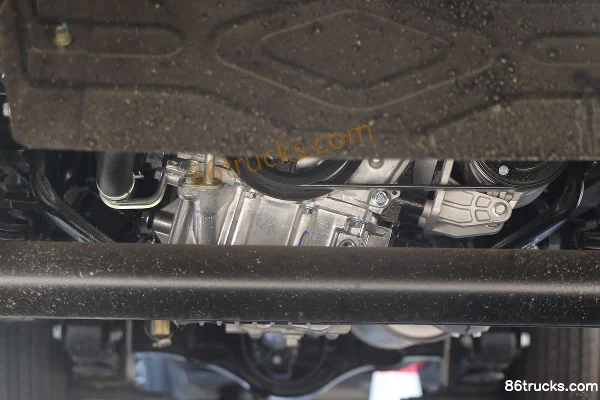

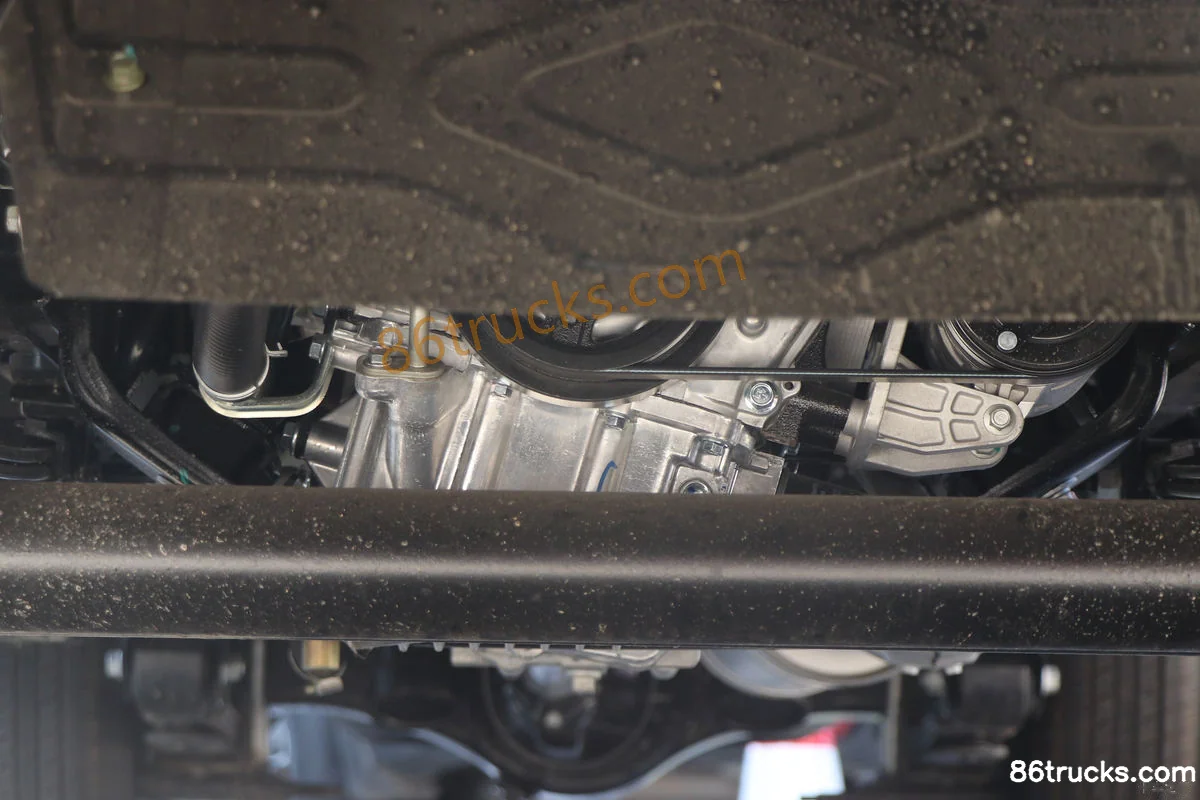

Chassis3

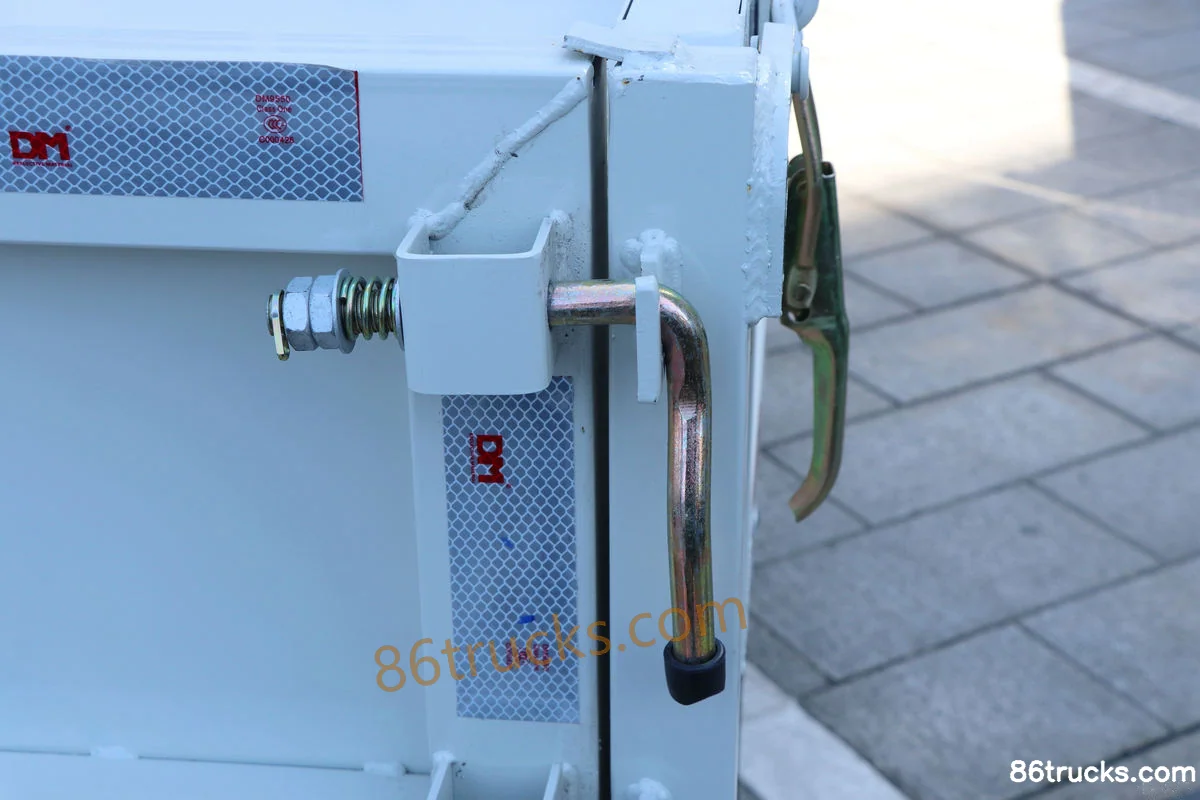

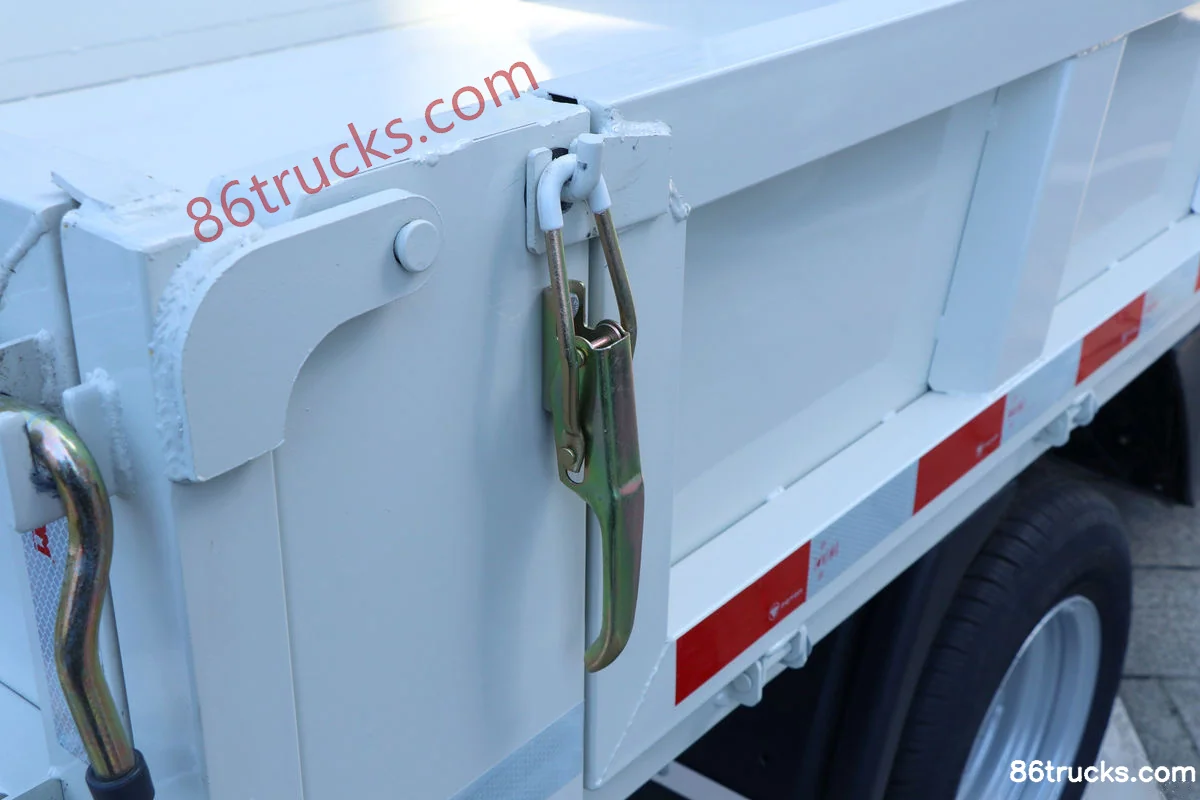

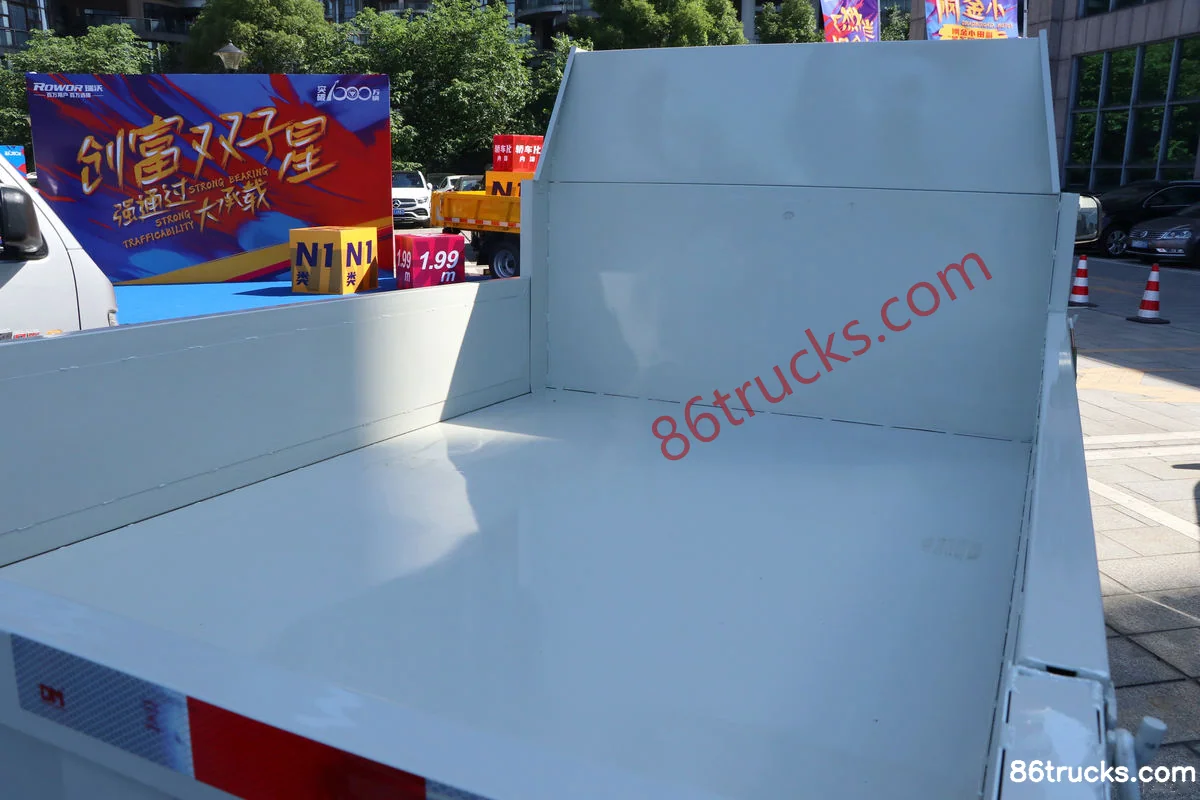

Body3

12 photos

FAQ

What emission standard does Foton Xiaojingang Q Edition 122 hp 4X2(6 wheels) 2.7m Dump Truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Xiaojingang Q Edition 122 hp 4X2(6 wheels) 2.7m Dump Truck (China VI)?

Key specs of Foton Xiaojingang Q Edition 122 hp 4X2(6 wheels) 2.7m Dump Truck (China VI): Drive: 4x2; Horsepower: 122 hp; Emission: China VI; Fuel: gasoline; Transmission: Dongan. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Xiaojingang Q Edition 122 hp 4X2(6 wheels) 2.7m Dump Truck (China VI) suited for?

Foton Xiaojingang Q Edition 122 hp 4X2(6 wheels) 2.7m Dump Truck (China VI) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Foton Xiaojingang Q Edition 122 hp 4X2(6 wheels) 2.7m Dump Truck (China VI) differ from other variants in the same series?

Foton Xiaojingang Q Edition 122 hp 4X2(6 wheels) 2.7m Dump Truck (China VI) belongs to Foton Xiaojingang Mini Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Xiaojingang Q Edition 122 hp 4X2(6 wheels) 2.7m Dump Truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Xiaojingang Q Edition 122 hp 4X2(6 wheels) 2.7m Dump Truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
