Xinchai NB485B 50 hp 2.3L China II Diesel Engine

Export reference
MSRP N/A
Min. fuel consumption at full load:: 200g/kW.h
Compression ratio:: 18:01
Bore × Stroke:: 85x100mm
Suitable Range: Preferred power for 0.5-1 ton light vehicles and 1-1.5 ton forklifts
Engine Model: NB485B
Engine Series: NB485B light truck series

Overview

The Xinchai NB485B 50 hp 2.3L China II Diesel Engine is a parts product with fit for Preferred power for 0.5-1 ton light vehicles and 1-1.5 ton forklifts and spec NB485B.

China I/Euro I 50 Diesel

Model Specs

Legend: ● Standard ○ Optional - N/A

Engine parameters
Engine Series: NB485B light truck series
Engine manufacturer: Zhejiang Xinchai Power
Suitable Range: Preferred power for 0.5-1 ton light vehicles and 1-1.5 ton forklifts
Min. fuel consumption at full load: 200g/kW.h
Engine net weight: 244kg
Engine Dimensions: 700.5×495.5×654mm
Compression ratio: 18:01
Bore × Stroke: 85x100mm
Engine Brand: Xinchai
Engine Model: NB485B
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.27L
Emission standard: China I/Euro I
Max output power: 37kW
Max hp: 50Horsepower
Max torque: 131N·m
Max torque speed: 2000-2200rpm
Rated speed: 3200rpm
Engine Type: Inline, water-cooled, four-stroke

Photos

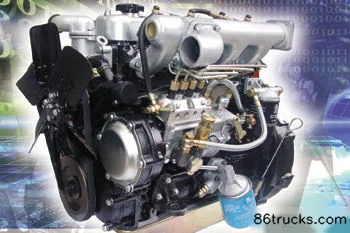

Exterior1

1 photos

FAQ

What emission standard does Xinchai NB485B 50 hp 2.3L China II Diesel Engine use, and can it enter my country?

This model is listed as China I/Euro I. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Xinchai NB485B 50 hp 2.3L China II Diesel Engine?

Key specs of Xinchai NB485B 50 hp 2.3L China II Diesel Engine: Horsepower: 50 hp; Emission: China I/Euro I; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Xinchai NB485B 50 hp 2.3L China II Diesel Engine suited for?

Match Xinchai NB485B 50 hp 2.3L China II Diesel Engine to your job using drive, horsepower and emission on this page. Include use case, destination and quantity in your quote request.

How does Xinchai NB485B 50 hp 2.3L China II Diesel Engine differ from other variants in the same series?

Xinchai NB485B 50 hp 2.3L China II Diesel Engine belongs to Xinchai NB485B Light Truck Series (engine). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Xinchai NB485B 50 hp 2.3L China II Diesel Engine?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Xinchai NB485B 50 hp 2.3L China II Diesel Engine?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
