Yuchai YC4S150-408 150 hp 3.8L China IV Diesel Engine
EXW
Export quote

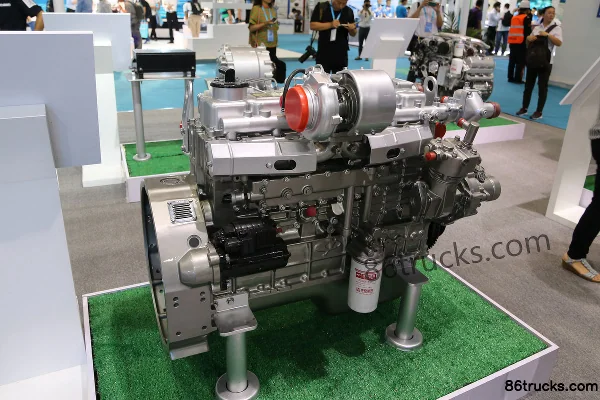

Yuchai YC4S Series engine
Main model photos
22 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Yuchai YC4S150-408 150 hp 3.8L China IV Diesel Engine | 150hp / China IV | ||
| Yuchai YC4S160-48 160 hp 3.8L China IV Diesel Engine | 160hp / China IV | ||
| Yuchai YC4S170-48 170 hp 3.8L China IV Diesel Engine | 170hp / China IV | ||
| Yuchai YC4S130-50 130 hp 3.8L China V Diesel Engine | 130hp / China V | ||
| Yuchai YC4S140-50 140 hp 3.8L China V Diesel Engine | 140hp / China V |
Yuchai YC4S160-48 160 hp 3.8L China IV Diesel Engine
EXW
Export quote
Yuchai YC4S170-48 170 hp 3.8L China IV Diesel Engine
EXW
Export quote
Yuchai YC4S130-50 130 hp 3.8L China V Diesel Engine
EXW
Export quote
Yuchai YC4S140-50 140 hp 3.8L China V Diesel Engine
EXW
Export quote
Series Specs
Engine parameters
Engine Series: YC4S Series
Engine manufacturer: Guangxi Yuchai Machinery Co., Ltd. / Yuchai
Suitable Range: Light-duty truck, GVW 3.8-8 tons / Lightweight standard-load highway truck, bus, school bus, sanitation truck, truck crane / 3.8-8t light-duty cargo truck
Intake type: Turbocharged Air-to-Air Intercooling / High-pressure common rail
Min. fuel consumption at full load: ≤198 / 199 / ≤195g/kW.h
Engine net weight: 370 / 375 / 330kg
Compression ratio: 17.5±0.1：1
noise at 1m: ≤92 / ≤97 / 97dB
Bore × Stroke: 102×115mm
Valves per cylinder: 4pcs
Engine Brand: Yuchai
Engine Model: YC4S150-408 / YC4S160-48 / YC4S170-48 / YC4S130-50 / YC4S140-50 / YC4S150-50 / YC4S160-50 / YC4S170-50 / YC4S120-48 / YC4S140-48 / YC4S150-48 / YC4S160-40 / YC4S150-40 / YC4S140-40 / YC4S120-40
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 3.767 / 3.76L
Emission standard: China IV / China V
Max output power: 110 / 118 / 125 / 96 / 103 / 88 / 102kW
Max hp: 150 / 160 / 170 / 130 / 140 / 120Horsepower
Max torque: 500 / 600 / 430 / 450 / 550 / 380 / 420 / 350N·m
Max torque speed: 1200-1800 / 1300-1800rpm
Rated speed: 2600 / 2800rpm
Engine Type: Vertical, inline, water-cooled, four-stroke / Turbocharged intercooled / high-pressure common rail / inline / High-pressure common rail / BOSCH common rail
FAQ
What kind of truck is Yuchai Yuchai YC4S Series engine?
Yuchai Yuchai YC4S Series is an export-oriented engine lineup with about 15 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does Yuchai YC4S Series engine cover?
Yuchai YC4S Series engine mainly covers: Horsepower: 130 hp / 140 hp / 150 hp / 160 hp / 170 hp; Emission: China IV / China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Yuchai YC4S Series engine?
For Yuchai YC4S Series engine, choose in order: emission → drive → horsepower/fuel → compare price and photos → open a model to quote. Include port and quantity.
What is engine typically used for?
For engine, use drive, horsepower and emission on this page to shortlist, and state use case plus destination in your quote.
How many models does Yuchai YC4S Series engine include?
Yuchai YC4S Series engine currently lists about 15 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Yuchai YC4S Series engine?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
