SHACMAN Tongli 336 hp 6X4(10 wheels) Wide-body Mining Dump Truck (22 tons)

Export reference
MSRP N/A
Drive: 6X4 (10 wheels)
Wheelbase:: 3400+1400mm
Cab dimensions:: 8.1×3.05×3.4m
Model:: STL3401PF344W
Front/rear track width:: Front 2364/Rear 2248mm
Min turning radius:: 11m
Curb Weight: 18ton
Horsepower 336
Max output power: 247kW
Emission China II/Euro II

Overview

The SHACMAN Tongli 336 hp 6X4(10 wheels) Wide-body Mining Dump Truck (22 tons) is a off-highway mining dump truck featuring 40t GVW, 336 hp, 247kW power and 6X4 (10 wheels) drive. On the powertrain side, it comes with China II/Euro II emissions.

China II/Euro II 336 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 8.1×3.05×3.4m
Model: STL3401PF344W
Drive type: 6X4
Wheelbase: 3400+1400mm
Front/rear track width: Front 2364/Rear 2248mm
Min turning radius: 11m
Max climbing ability: 40%
Approach/departure angle: 17/43°
Min ground clearance: 286cm
Curb Weight: 18ton
Rated payload: 22ton
GVWR: 40ton
Max. speed: 42km/h
Body Parameters
Truck Brand: SHACMAN Tongli brand
Other special notes: Brake system: dual-circuit air control with exhaust brake; single-wire 24V electrical system; desert-grade three-stage air filter; 380L fuel tank; frame: double-layer frame (10+8), material 610L; cargo box plate thickness: floor 12mm, side 8mm. Material: entire vehicle 16Mn steel.
Max dump angle: 51°
Cargo box lifting time: ≤25S
Lifting type: Front lift
Chassis Specs
Front/rear axle load: 10T/18T×2ton
Engine parameters
Engine Model: Weichai WD12G336E211
Displacement: 9.726L
Emission standard: China II/Euro II
Max output power: 247kW
Max hp: 336Horsepower
Max torque speed: 1350/1100-1600rpm
Cargo box parameters
Cargo box dimensions: 5.4×2.8×1.4m
Transmission Parameters
Number of gears: 9Gear
Transmission Model: Fast Gear RTD11509C
Tire
Tire Size: 12.00-20
Number of tires: 10pcs

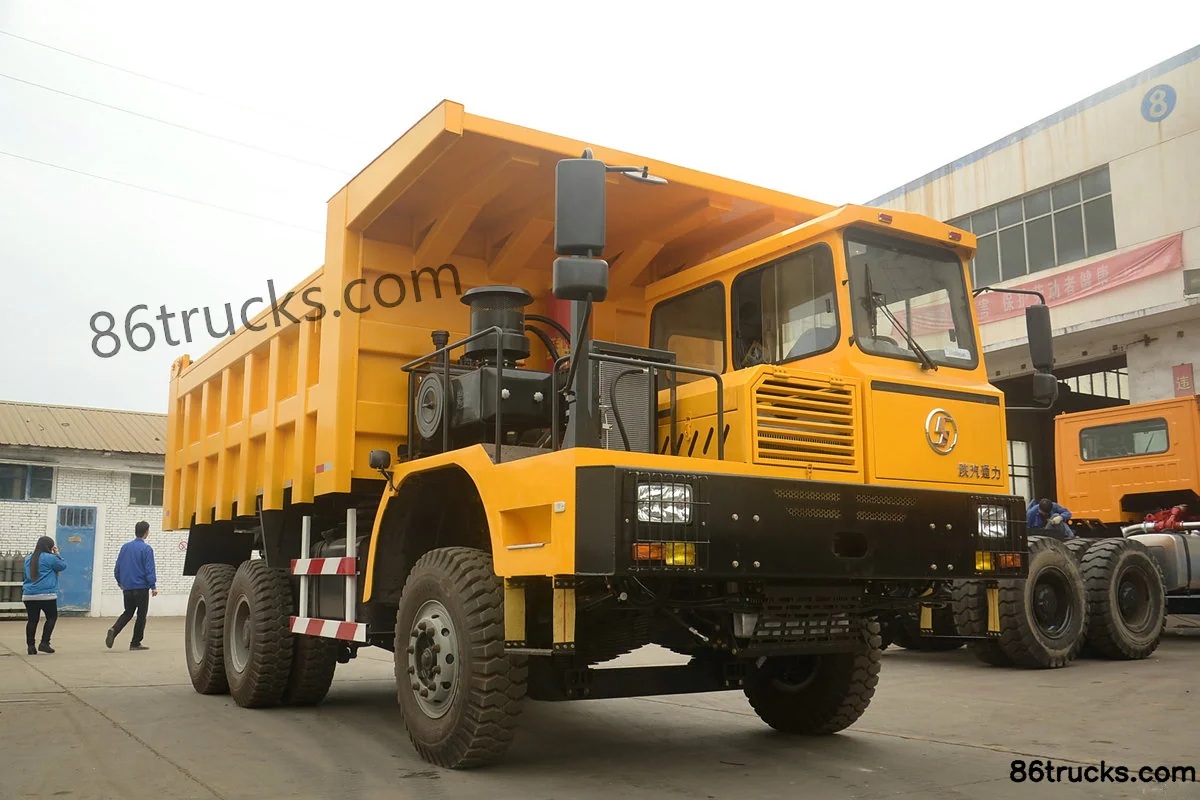

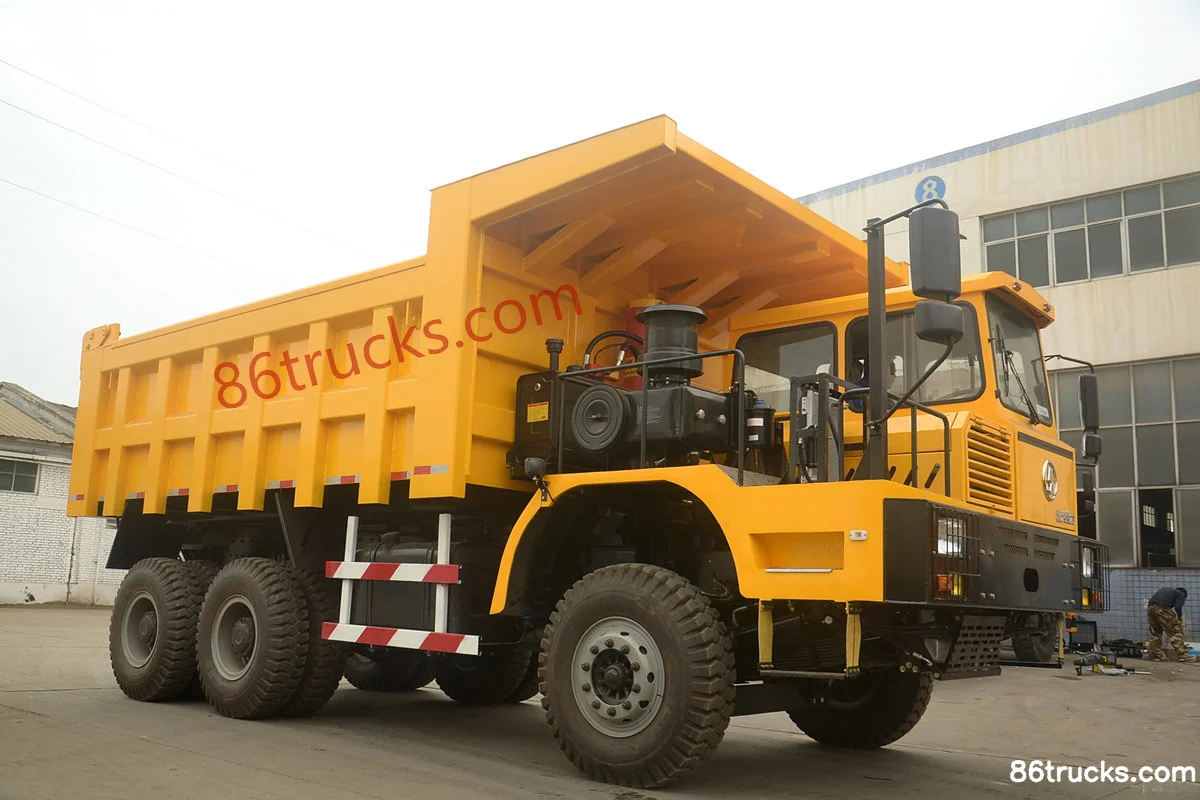

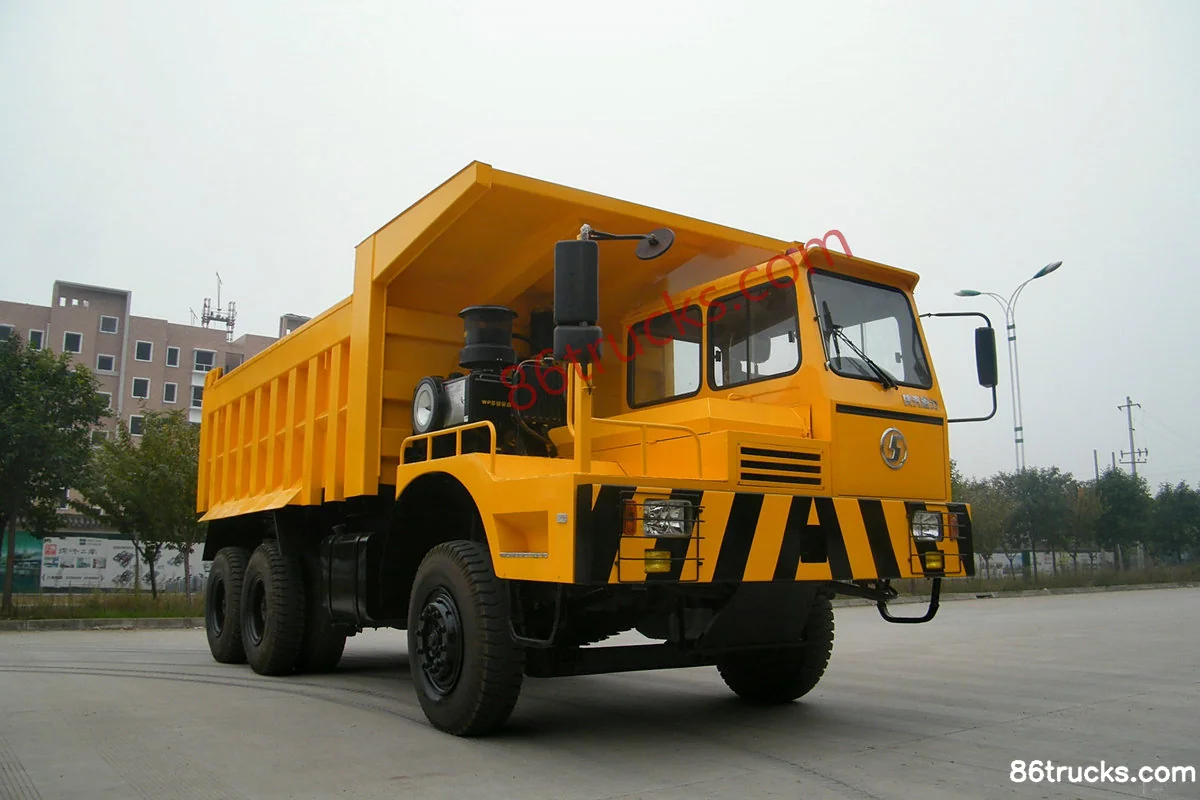

Photos

Exterior3

3 photos

FAQ

What emission standard does SHACMAN Tongli 336 hp 6X4(10 wheels) Wide-body Mining Dump Truck (22 tons) use, and can it enter my country?

This model is listed as China II/Euro II. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SHACMAN Tongli 336 hp 6X4(10 wheels) Wide-body Mining Dump Truck (22 tons)?

Key specs of SHACMAN Tongli 336 hp 6X4(10 wheels) Wide-body Mining Dump Truck (22 tons): Drive: 6x4; Horsepower: 336 hp; Emission: China II/Euro II. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SHACMAN Tongli 336 hp 6X4(10 wheels) Wide-body Mining Dump Truck (22 tons) suited for?

SHACMAN Tongli 336 hp 6X4(10 wheels) Wide-body Mining Dump Truck (22 tons) is a off-highway mining dump truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does SHACMAN Tongli 336 hp 6X4(10 wheels) Wide-body Mining Dump Truck (22 tons) differ from other variants in the same series?

SHACMAN Tongli 336 hp 6X4(10 wheels) Wide-body Mining Dump Truck (22 tons) belongs to SHACMAN Tongli (off-highway mining dump truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SHACMAN Tongli 336 hp 6X4(10 wheels) Wide-body Mining Dump Truck (22 tons)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SHACMAN Tongli 336 hp 6X4(10 wheels) Wide-body Mining Dump Truck (22 tons)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
