Dongfeng Duolika D7 156 hp 4X2(6 wheels) 4.35m truck-mounted crane

Export reference
From $22,361
MSRP ¥16.1M CNY
Emission: China V
Fuel: Diesel
Wheelbase:: 3800mm
Cab dimensions:: 7.07×2.335×3.25m
Type:: Truck with crane
GVWR:: 8.25ton
Lifting capacity: 3.2ton
Drive 4X2 (6 wheels)
Horsepower 156
Rated mass: 3.02ton

Overview

The Dongfeng Duolika D7 156 hp 4X2(6 wheels) 4.35m truck-mounted crane is a truck-mounted crane featuring 3.2ton tank capacity, 8.25t GVW and 4X2 (6 wheels) drive. On the powertrain side, it comes with 156 hp, China V emissions and Diesel fuel.

China V 156 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 7.07×2.335×3.25m
Type: Truck with crane
Drive type: 4X2
Wheelbase: 3800mm
Rated mass: 3.02ton
GVWR: 8.25ton
Front/rear suspension: 1.07/2.2m
Energy Type: Diesel
Body Parameters
Crane model: SQ3.2S
Lifting capacity: 3.2ton
crane self-weight: 1.15ton
Vehicle certification code: EQ5082JSQL
Body Brand: Dongfeng
Engine parameters
Engine Brand: Chaochai
Engine Model: ChaochaiCY4SK251
fuel type: Diesel
Displacement: 3.856L
Emission standard: China V
Max output power: 115kW
Max hp: 156Horsepower
Max torque: 500N·m
Max torque speed: 1200-2200rpm
Rated speed: 2800rpm
Chassis Specs
Chassis Brand: Dongfeng
Chassis Series: Dolika D7
Chassis Model: EQ1082GLJ2
rear axle description: 6T
Leaf spring count: 8/9+5,8/10+7,9/10+8
Transmission Parameters
Number of gears: 6Gear
Transmission Model: Dongfeng 6-speed
Tire
Tire Size: 8.25-16LT 12PR,8.25R16LT 12PR,8.25R16LT 14PR
Number of tires: 6pcs

Photos

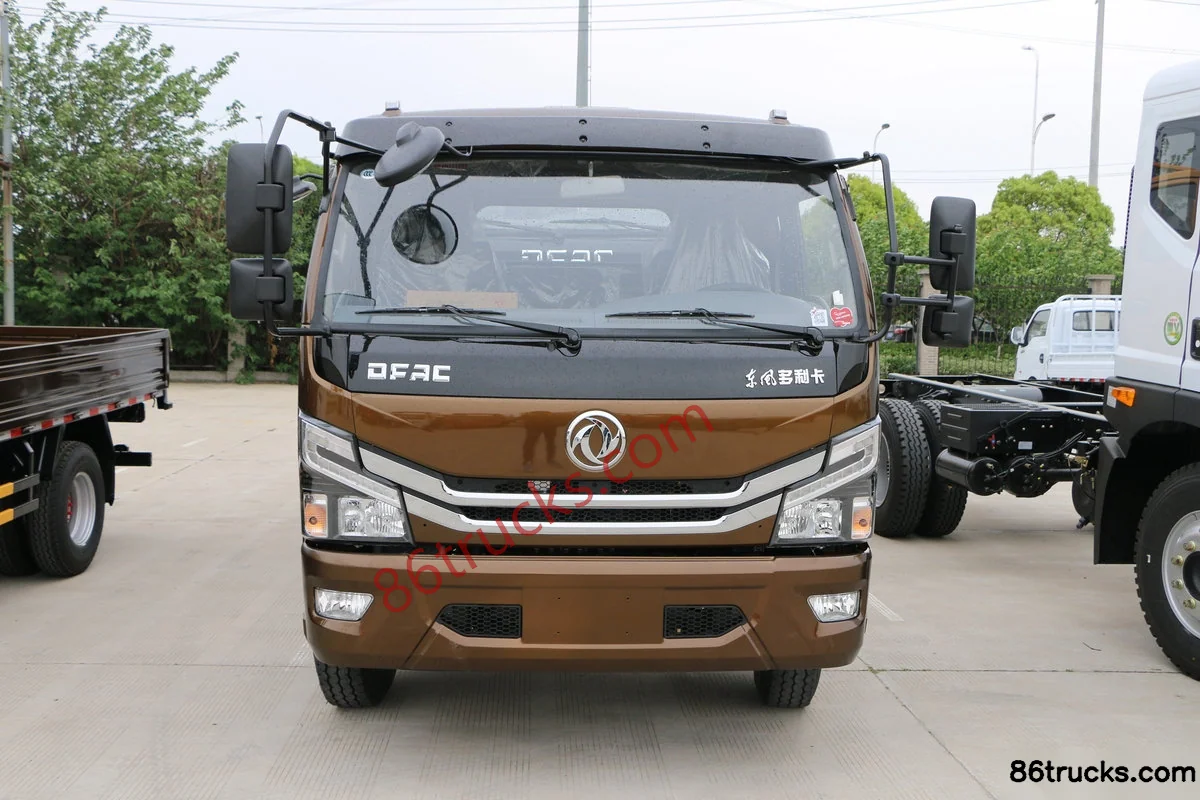

Exterior1

1 photos

FAQ

What is the export price of Dongfeng Duolika D7 156 hp 4X2(6 wheels) 4.35m truck-mounted crane, and what does it include?

Dongfeng Duolika D7 156 hp 4X2(6 wheels) 4.35m truck-mounted crane export reference is about From $22,361; MSRP is ¥16.1M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Dongfeng Duolika D7 156 hp 4X2(6 wheels) 4.35m truck-mounted crane use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng Duolika D7 156 hp 4X2(6 wheels) 4.35m truck-mounted crane?

Key specs of Dongfeng Duolika D7 156 hp 4X2(6 wheels) 4.35m truck-mounted crane: Drive: 4x2; Horsepower: 156 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Duolika D7 156 hp 4X2(6 wheels) 4.35m truck-mounted crane suited for?

Dongfeng Duolika D7 156 hp 4X2(6 wheels) 4.35m truck-mounted crane is a truck-mounted crane model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Dongfeng Duolika D7 156 hp 4X2(6 wheels) 4.35m truck-mounted crane differ from other variants in the same series?

Dongfeng Duolika D7 156 hp 4X2(6 wheels) 4.35m truck-mounted crane belongs to Dongfeng D7 Light Truck (truck-mounted crane). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Duolika D7 156 hp 4X2(6 wheels) 4.35m truck-mounted crane?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Duolika D7 156 hp 4X2(6 wheels) 4.35m truck-mounted crane?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
