JAC Kangling H3 120hp 4X2(6 wheels) 4.1m refrigerated truck (Chengliwei brand)

Export reference
From $15,278
MSRP ¥11M CNY
Emission: China V
Fuel: Diesel
Curb Weight:: 3.21ton
Wheelbase:: 3308mm
Tire Size:: 6.50-16LT 10PR,6.50R16LT 10PR,7.00R16LT 8PR,7.00-16LT 8PR
Cab dimensions:: 5.995×1.95×2.96m
Rated payload: 1.155ton
Drive 4X2 (6 wheels)
Cargo box dimensions: 4.1×1.76×1.81m
Horsepower 120

Overview

The JAC Kangling H3 120hp 4X2(6 wheels) 4.1m refrigerated truck (Chengliwei brand) is a Refrigerated Truck featuring 4.1×1.76×1.81m cargo body, 1.155t payload, 5.995×1.95×2.96m cab and 3308mm wheelbase. On the powertrain side, it comes with 120 hp, 4X2 (6 wheels) drive, China V emissions and Diesel fuel.

China V 120 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 5.995×1.95×2.96m
Truck Type: Refrigerated Truck
Drive type: 4X2
Wheelbase: 3308mm
Vehicle origin: Suizhou, Hubei
Front track width: 1440mm
rear track: 1395mm
Curb Weight: 3.21ton
Rated payload: 1.155ton
Max. speed: 90km/h
Front/rear suspension: 1.08/1.55m
Energy Type: Diesel
Engine parameters
Engine Model: JACHFC4DA1-2D
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.771L
Emission standard: China V
Max output power: 88kW
Max hp: 120Horsepower
Max torque: 285N·m
Rated speed: 3200rpm
Engine Type: Electronically controlled strong-cooling EGR
Cargo box parameters
Cargo box dimensions: 4.1×1.76×1.81m
Cargo box width: 1.76m
Cargo box height: 1.81m
Body Parameters
Vehicle certification code: CLW5043XLCH5
Body Brand: Chengliwei
Chassis Specs
Chassis Brand: JAC
Chassis Series: Kangling H3
Chassis Model: HFC1041P93K4C2ZV
rear axle description: 4T
Leaf spring count: 11/9+7,7/4+6
Transmission Parameters
Number of gears: 5Gear
Transmission Model: 5-speed
Tire
Tire Size: 6.50-16LT 10PR,6.50R16LT 10PR,7.00R16LT 8PR,7.00-16LT 8PR
Number of tires: 6pcs

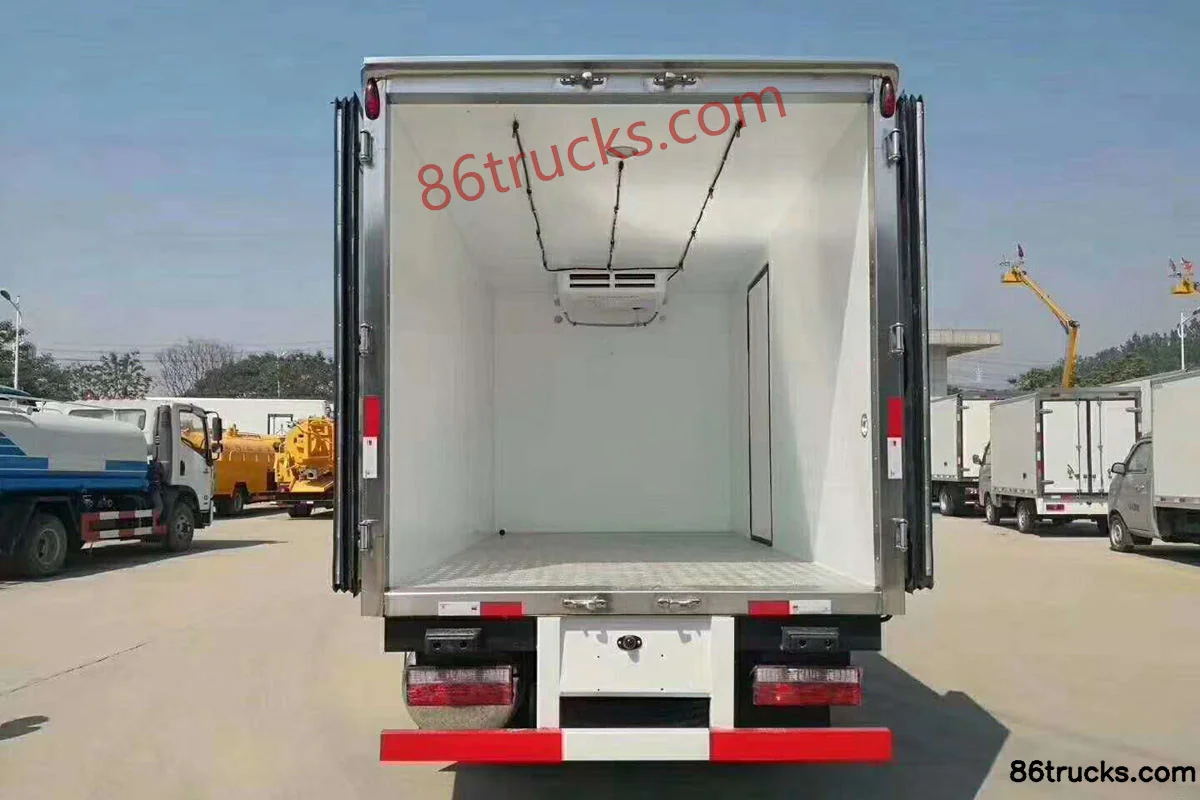

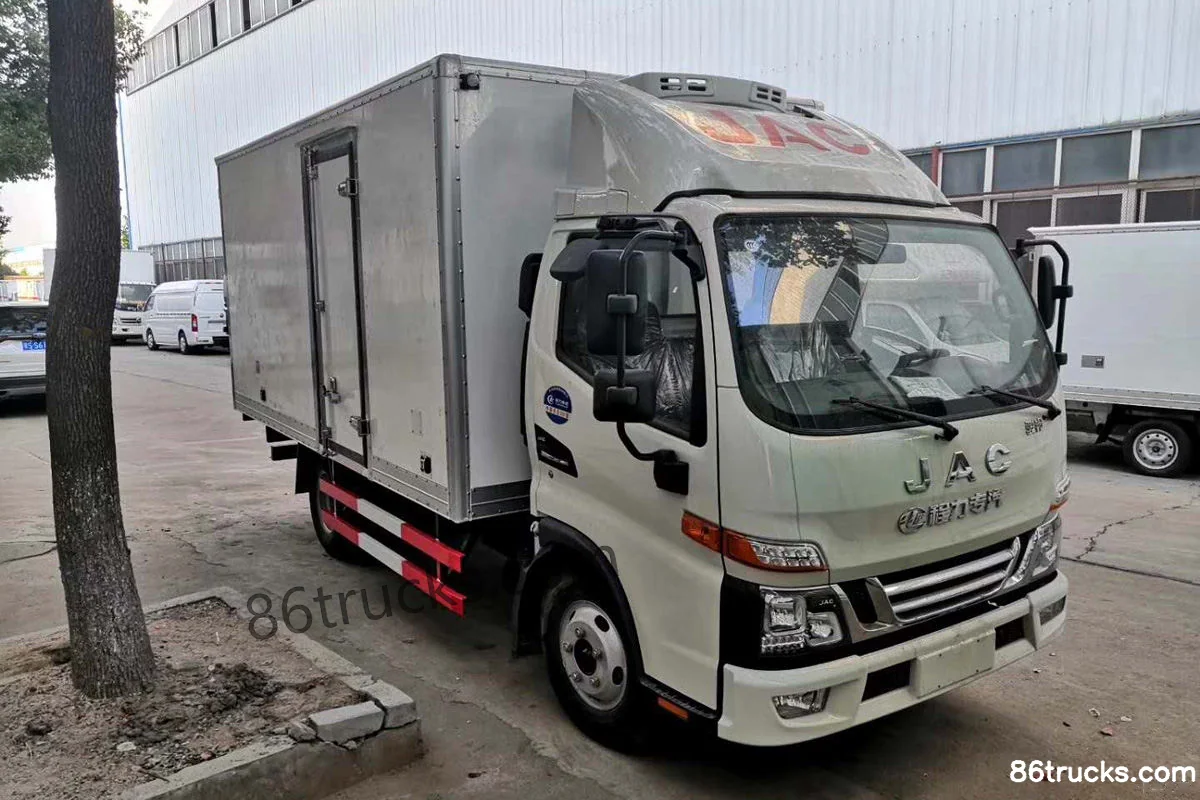

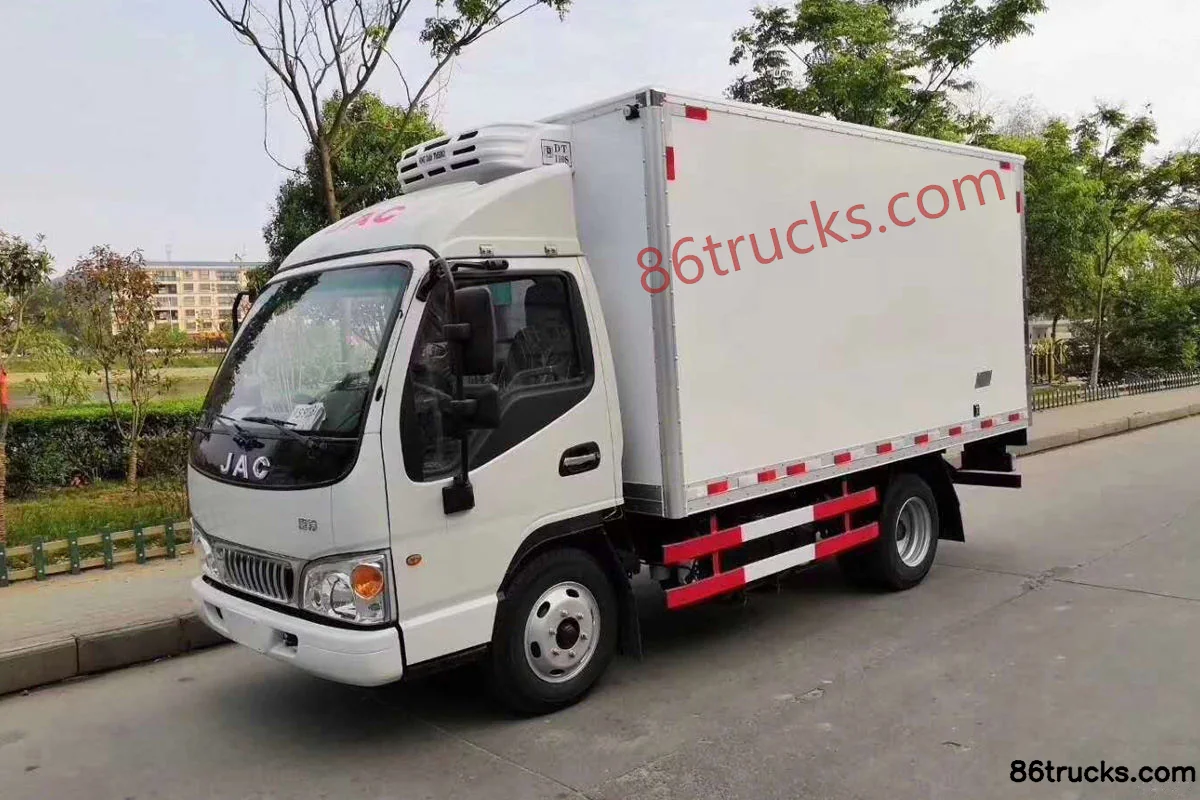

Photos

Exterior3

3 photos

FAQ

What is the export price of JAC Kangling H3 120hp 4X2(6 wheels) 4.1m refrigerated truck (Chengliwei brand), and what does it include?

JAC Kangling H3 120hp 4X2(6 wheels) 4.1m refrigerated truck (Chengliwei brand) export reference is about From $15,278; MSRP is ¥11M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Kangling H3 120hp 4X2(6 wheels) 4.1m refrigerated truck (Chengliwei brand) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Kangling H3 120hp 4X2(6 wheels) 4.1m refrigerated truck (Chengliwei brand)?

Key specs of JAC Kangling H3 120hp 4X2(6 wheels) 4.1m refrigerated truck (Chengliwei brand): Drive: 4x2; Horsepower: 120 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Kangling H3 120hp 4X2(6 wheels) 4.1m refrigerated truck (Chengliwei brand) suited for?

JAC Kangling H3 120hp 4X2(6 wheels) 4.1m refrigerated truck (Chengliwei brand) is a Refrigerated Truck model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Kangling H3 120hp 4X2(6 wheels) 4.1m refrigerated truck (Chengliwei brand) differ from other variants in the same series?

JAC Kangling H3 120hp 4X2(6 wheels) 4.1m refrigerated truck (Chengliwei brand) belongs to Chengliwei JAC Chassis (Refrigerated Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Kangling H3 120hp 4X2(6 wheels) 4.1m refrigerated truck (Chengliwei brand)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Kangling H3 120hp 4X2(6 wheels) 4.1m refrigerated truck (Chengliwei brand)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
