Union Truck U430 430 hp 8X4(12 wheels) 8m dump truck

Export reference
MSRP N/A
Emission: China V
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 14.845ton
Wheelbase:: 1950+4350+1350mm
Tire Size:: 12.00R20 18PR
Union Truck U430 430 hp 8X4(12 wheels) 8m dump truck exterior
View more photos (9)
Rated payload: 16.025ton
Drive 8X4 (12 wheels)
Horsepower 430
Cargo box type: Dump type

Overview

The Union Truck U430 430 hp 8X4(12 wheels) 8m dump truck is a Heavy truck featuring 16.025t payload, 31t GVW, Dump type cargo body and 8X4 (12 wheels) drive. On the powertrain side, it comes with a WeichaiWP12.430E50 engine, 430 hp, China V emissions and Fast Gear transmission.

China V 430 Diesel 8X4

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): QCC3312D656-6
Drive type: 8X4
Wheelbase: 1950+4350+1350mm
engine: WeichaiWP12.430E50
transmission: Fast Gear12JSD200T-B
Rear Axle Ratio: 5.92
Cab length: 11.02m
Cab width: 2.55m
Cab height: 3.65m
Front track width: 2040/2040mm
rear track: 1860/1860mm
Curb Weight: 14.845ton
Rated payload: 16.025ton
GVWR: 31ton
Origin: Wuhu, Anhui
tonnage class: Heavy truck
Approach angle: 23°
departure angle: 24°
Remarks: Rear axle ratio optional 5.26
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP12.430E50
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 11.596L
Emission standard: China V
Max output power: 316kW
Max hp: 430Horsepower
Max torque: 2060N·m
Max torque speed: 1000-1400rpm
Rated speed: 1900rpm
Engine Type: Inline 6-cylinder, electronically controlled high-pressure common rail + SCR
Transmission Parameters
Transmission Model: Fast Gear12JSD200T-B
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 8m
Cargo box width: 2.35m
Cargo box height: 1.5m
Chassis Specs
Front axle allowable load: 6500/6500kg
rear axle description: Pengxiang LC300
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 5.92
Leaf spring count: 12/12/13
Tire
Tire Size: 12.00R20 18PR
Number of tires: 12pcs
Control configuration
ABS:

Photos

Exterior3

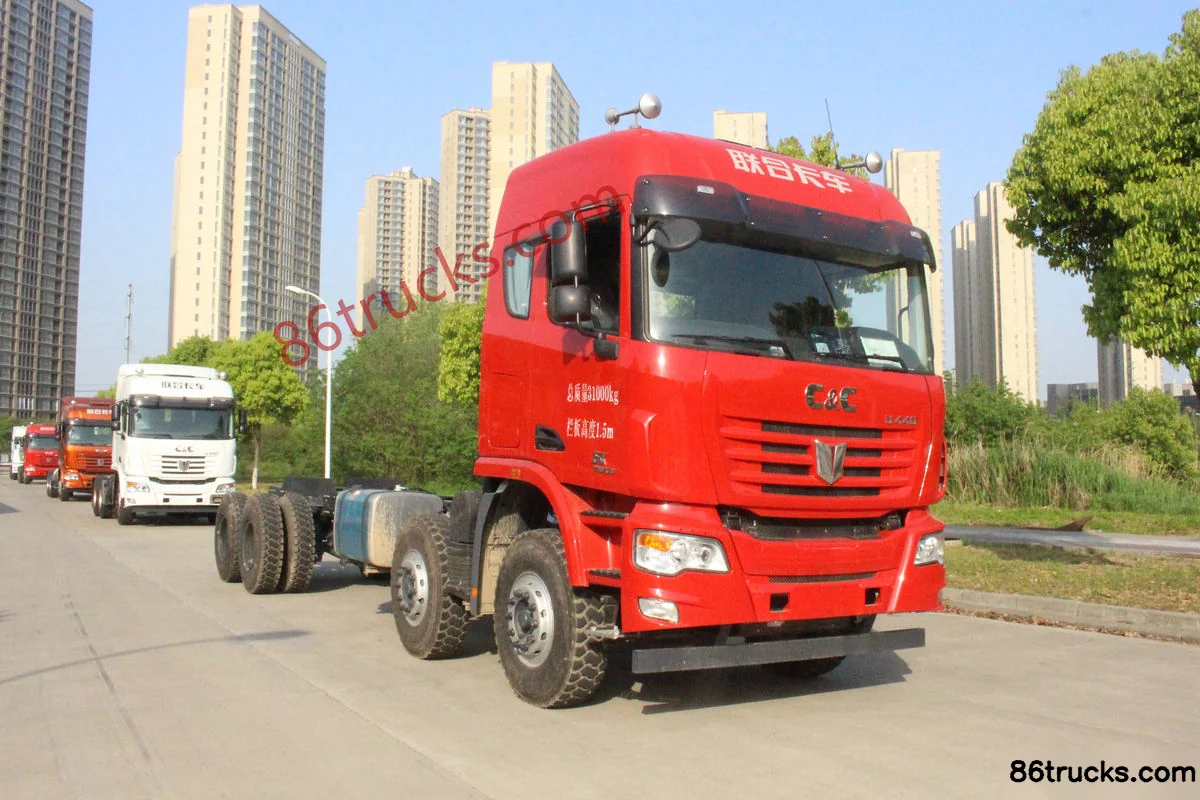

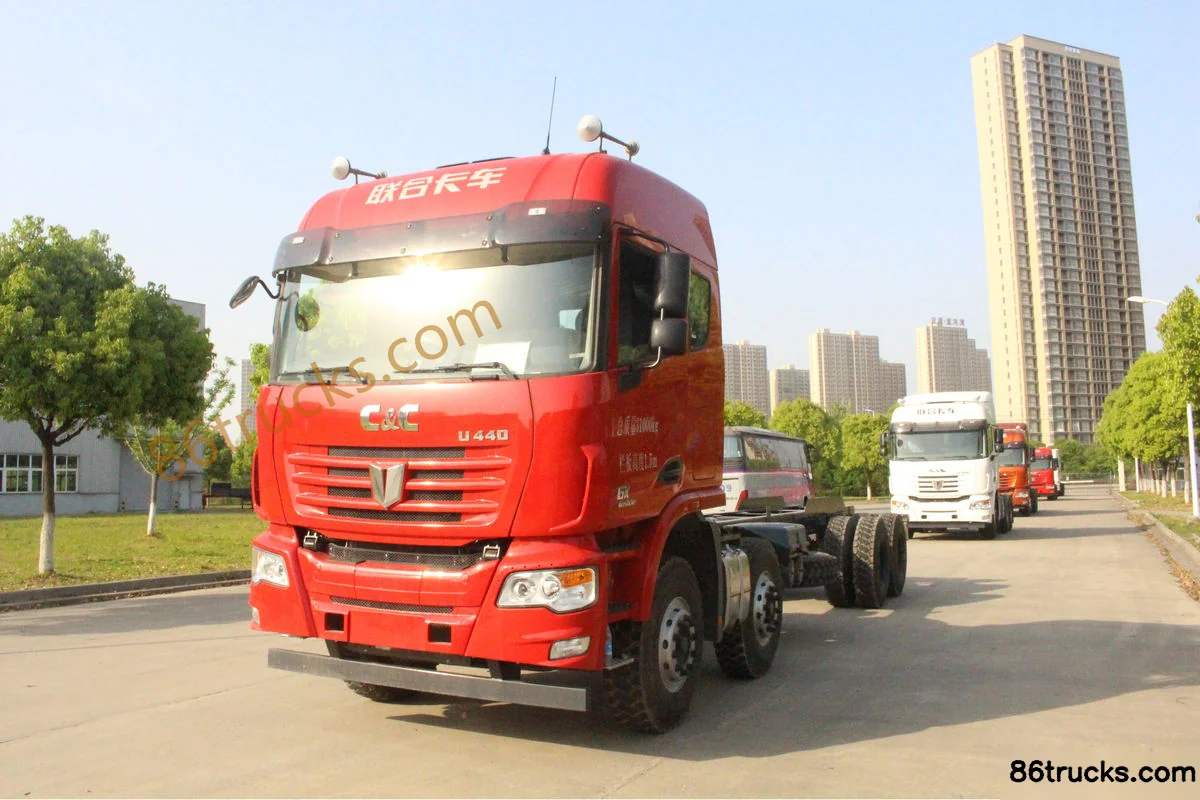

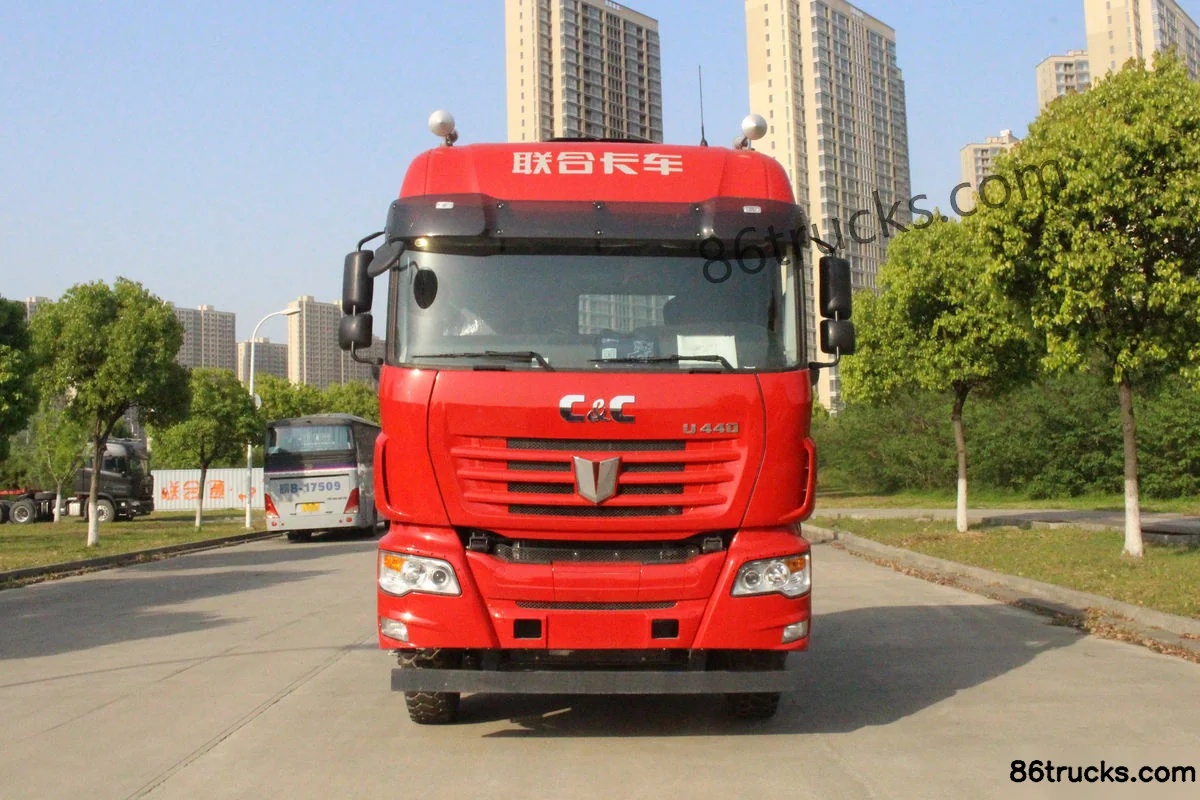

Union Truck U430 430 hp 8X4(12 wheels) 8m dump truck Exterior (1) | 86Trucks Union Truck U430 430 hp 8X4(12 wheels) 8m dump truck Exterior (2) | 86Trucks Union Truck U430 430 hp 8X4(12 wheels) 8m dump truck Exterior (3) | 86Trucks

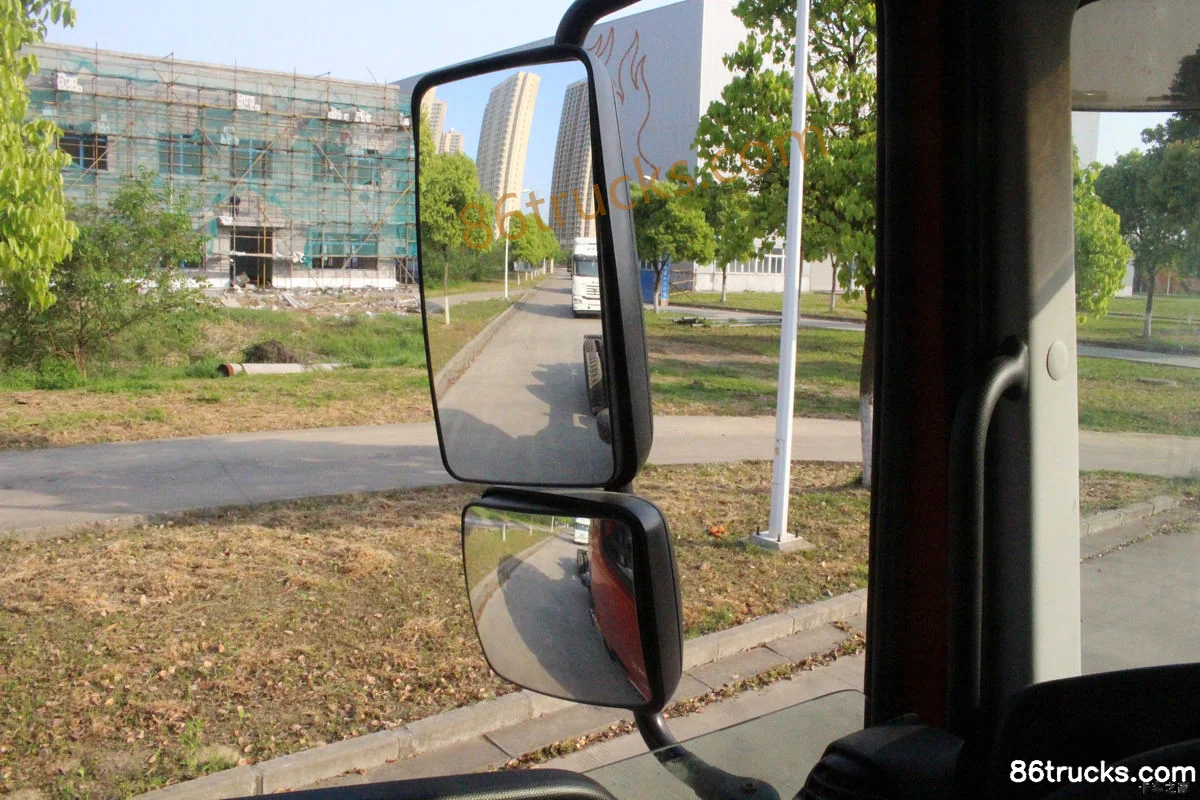

Cab3

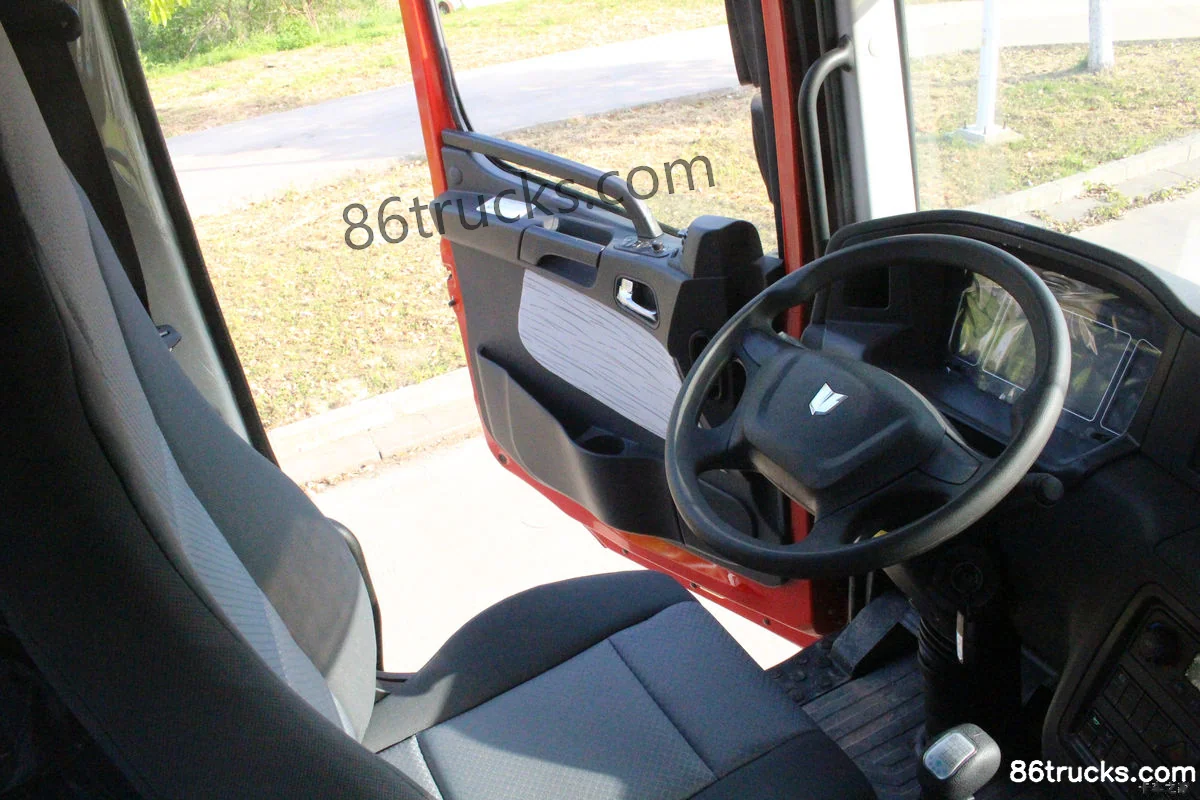

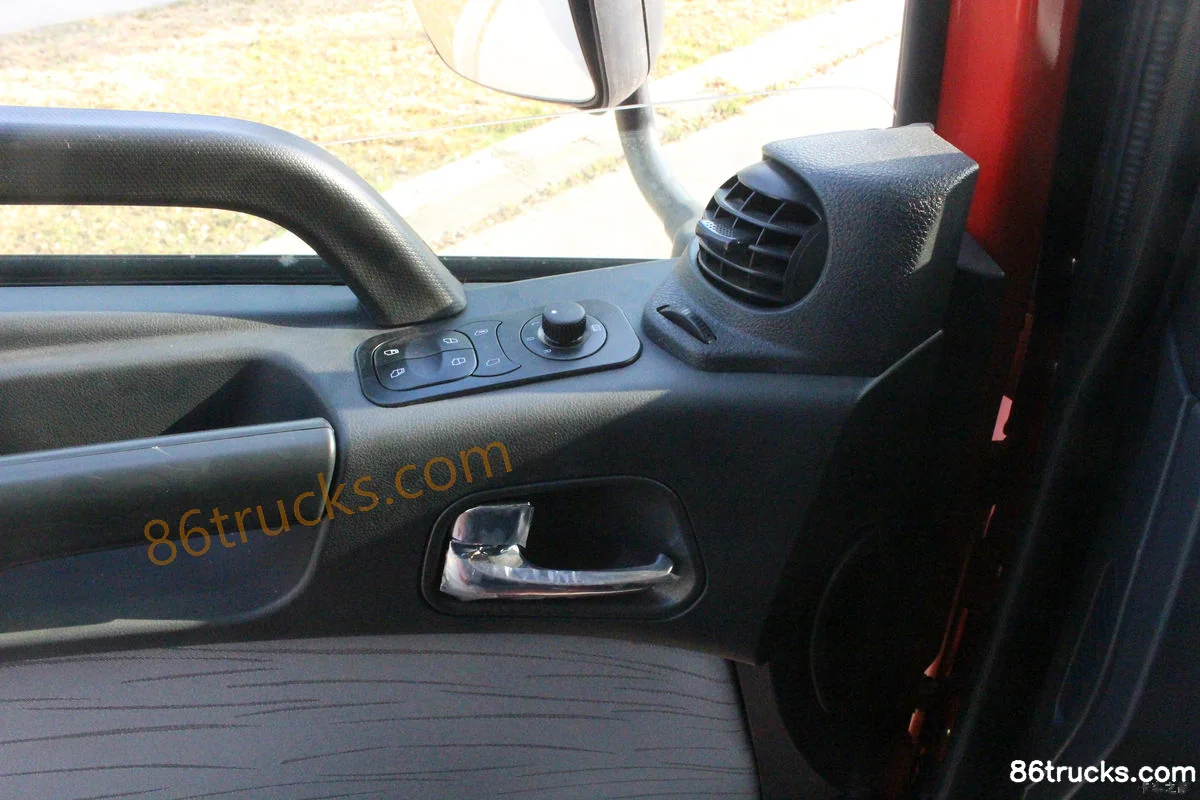

Union Truck U430 430 hp 8X4(12 wheels) 8m dump truck Cab (1) | 86Trucks Union Truck U430 430 hp 8X4(12 wheels) 8m dump truck Cab (2) | 86Trucks Union Truck U430 430 hp 8X4(12 wheels) 8m dump truck Cab (3) | 86Trucks

Chassis3

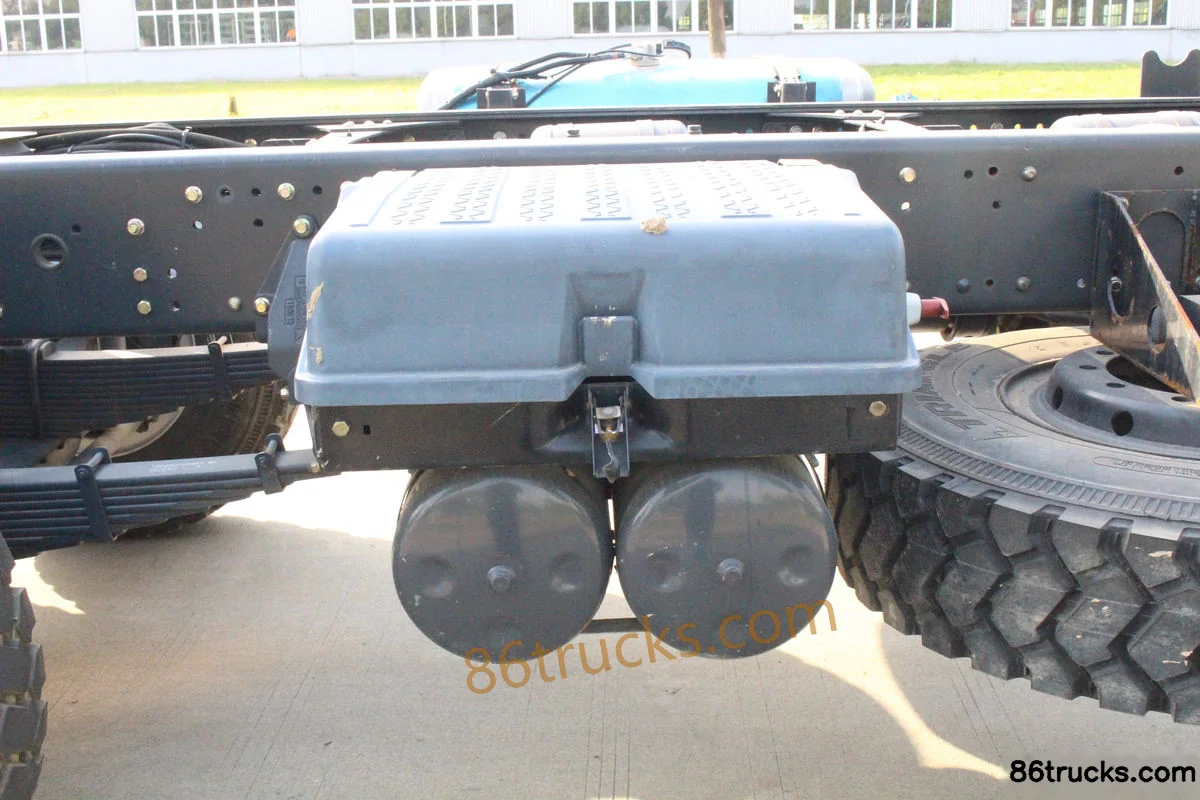

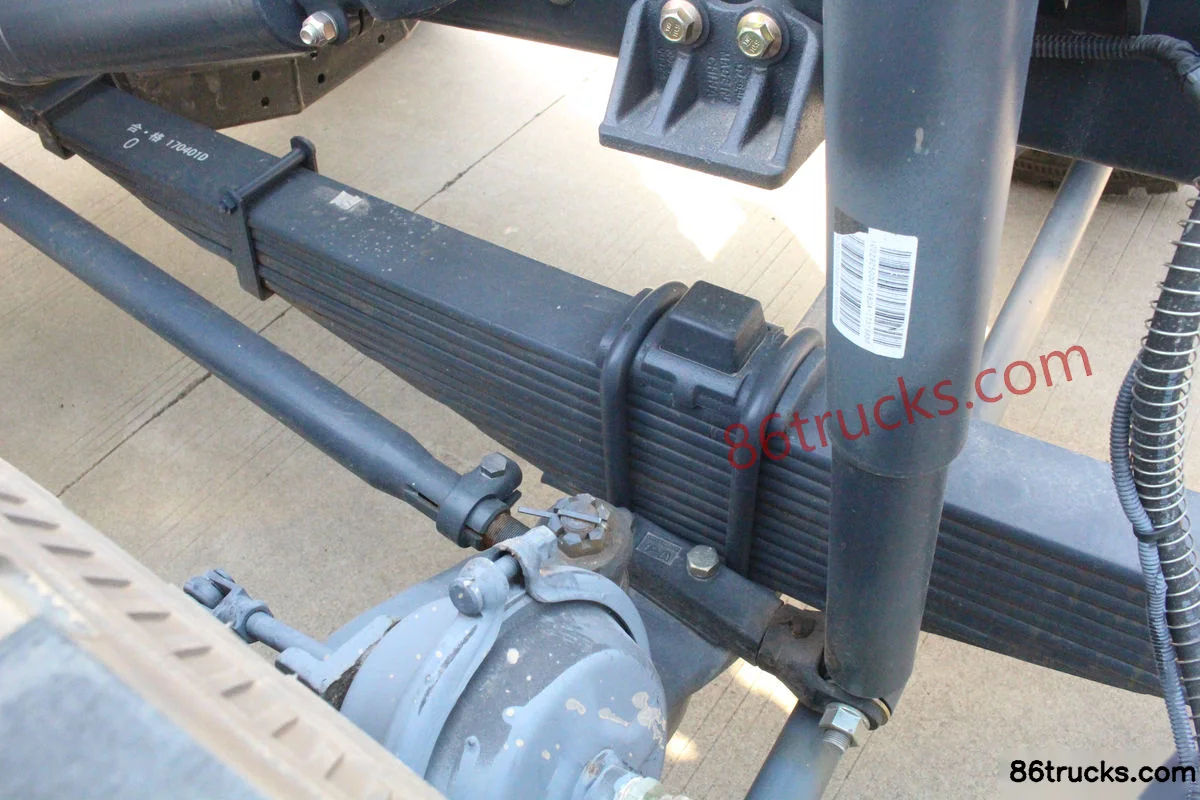

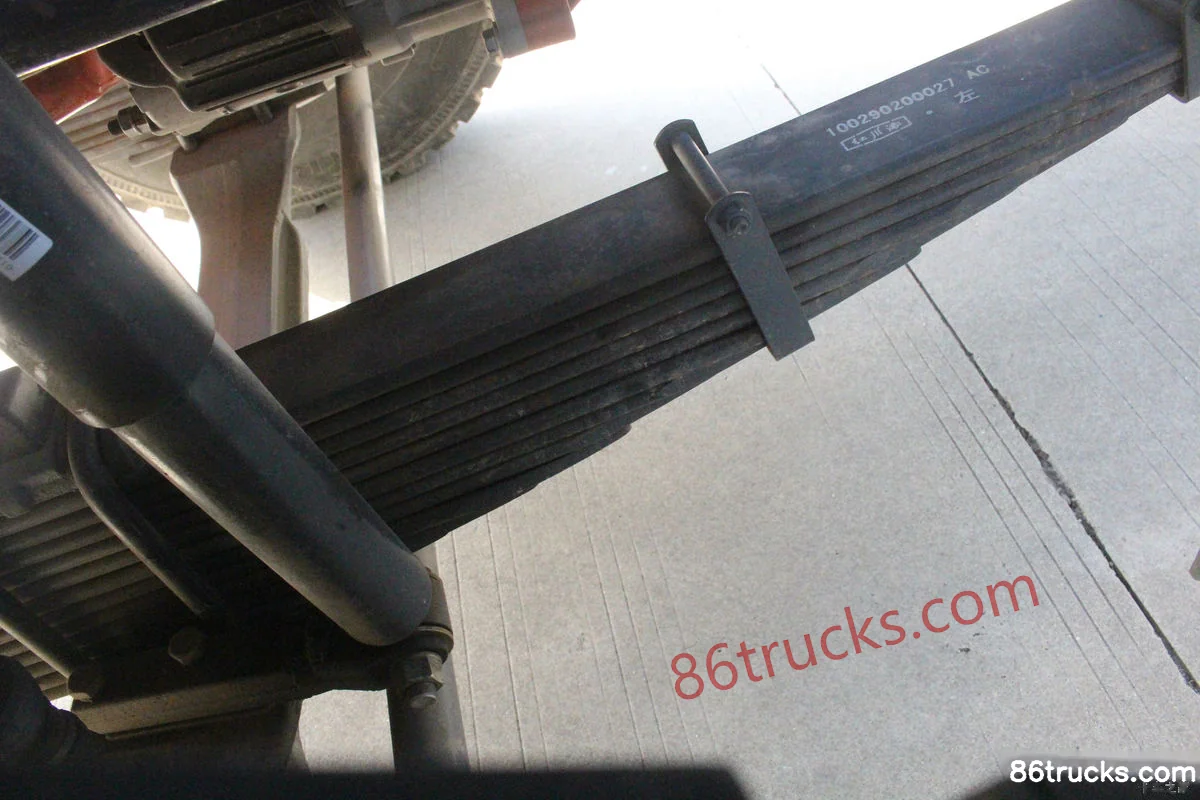

Union Truck U430 430 hp 8X4(12 wheels) 8m dump truck Chassis (1) | 86Trucks Union Truck U430 430 hp 8X4(12 wheels) 8m dump truck Chassis (2) | 86Trucks Union Truck U430 430 hp 8X4(12 wheels) 8m dump truck Chassis (3) | 86Trucks

9 photos

FAQ

What emission standard does Union Truck U430 430 hp 8X4(12 wheels) 8m dump truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Union Truck U430 430 hp 8X4(12 wheels) 8m dump truck?

Key specs of Union Truck U430 430 hp 8X4(12 wheels) 8m dump truck: Drive: 8x4; Horsepower: 430 hp; Emission: China V; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Union Truck U430 430 hp 8X4(12 wheels) 8m dump truck suited for?

Union Truck U430 430 hp 8X4(12 wheels) 8m dump truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Union Truck U430 430 hp 8X4(12 wheels) 8m dump truck differ from other variants in the same series?

Union Truck U430 430 hp 8X4(12 wheels) 8m dump truck belongs to Union Truck U-Series Heavy Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Union Truck U430 430 hp 8X4(12 wheels) 8m dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Union Truck U430 430 hp 8X4(12 wheels) 8m dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
