Dachai CA4DK1-16E5 160 hp 4.76L China V Diesel Engine

Export reference
MSRP N/A
Min. fuel consumption at full load:: ≤193g/kW.h
noise at 1m:: ≤91dB
Bore × Stroke:: 108x130mm
Dachai CA4DK1-16E5 160 hp 4.76L China V Diesel Engine exterior
View more photos (3)
Engine Model: CA4DK1-16E5
Engine Series: CA4DK1 Series
Intake type: Turbocharged Air-to-Air Intercooling

Overview

The Dachai CA4DK1-16E5 160 hp 4.76L China V Diesel Engine is a parts product with spec CA4DK1-16E5.

China V 160 Diesel

Model Specs

Legend: ● Standard　○ Optional　- N/A

Engine parameters
Engine Series: CA4DK1 Series
Engine manufacturer: FAW Group Corporation
Intake type: Turbocharged Air-to-Air Intercooling
Min. fuel consumption at full load: ≤193g/kW.h
Engine net weight: 520kg
Engine Dimensions: 973×794×1055mm
noise at 1m: ≤91dB
Bore × Stroke: 108x130mm
Valves per cylinder: 4pcs
Engine Brand: Dachai
Engine Model: CA4DK1-16E5
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 4.764L
Emission standard: China V
Max output power: 121kW
Max hp: 160Horsepower
Max torque: 650N·m
Max torque speed: 1200-1700rpm
Rated speed: 2300rpm
Engine Type: 4-cylinder, inline, turbocharged with intercooler, high-pressure common rail, SCR

Photos

Exterior3

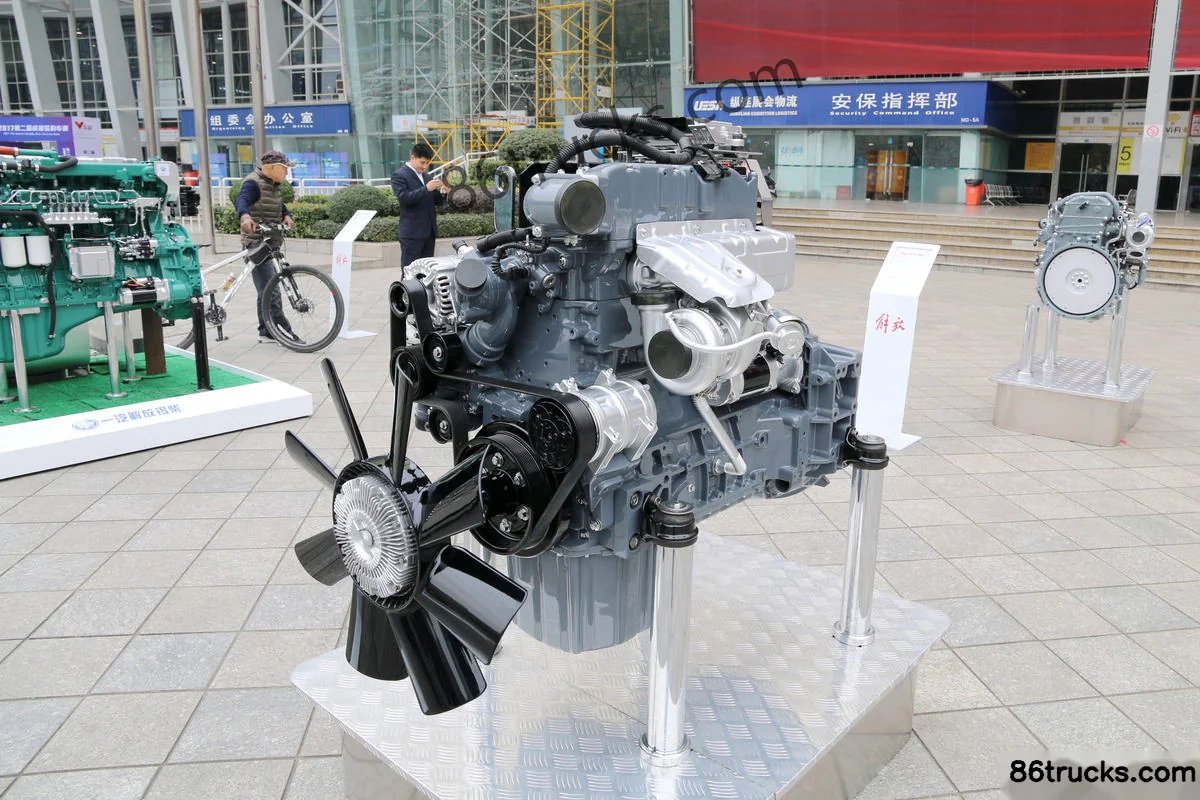

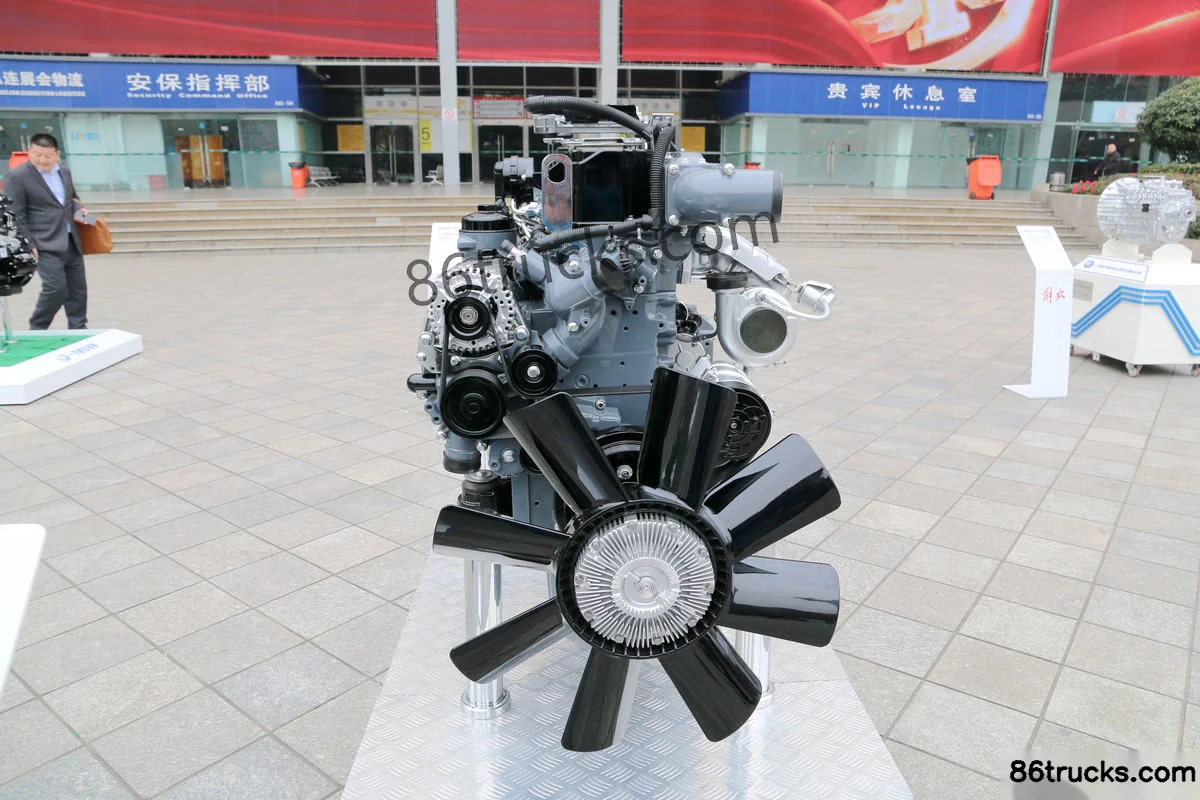

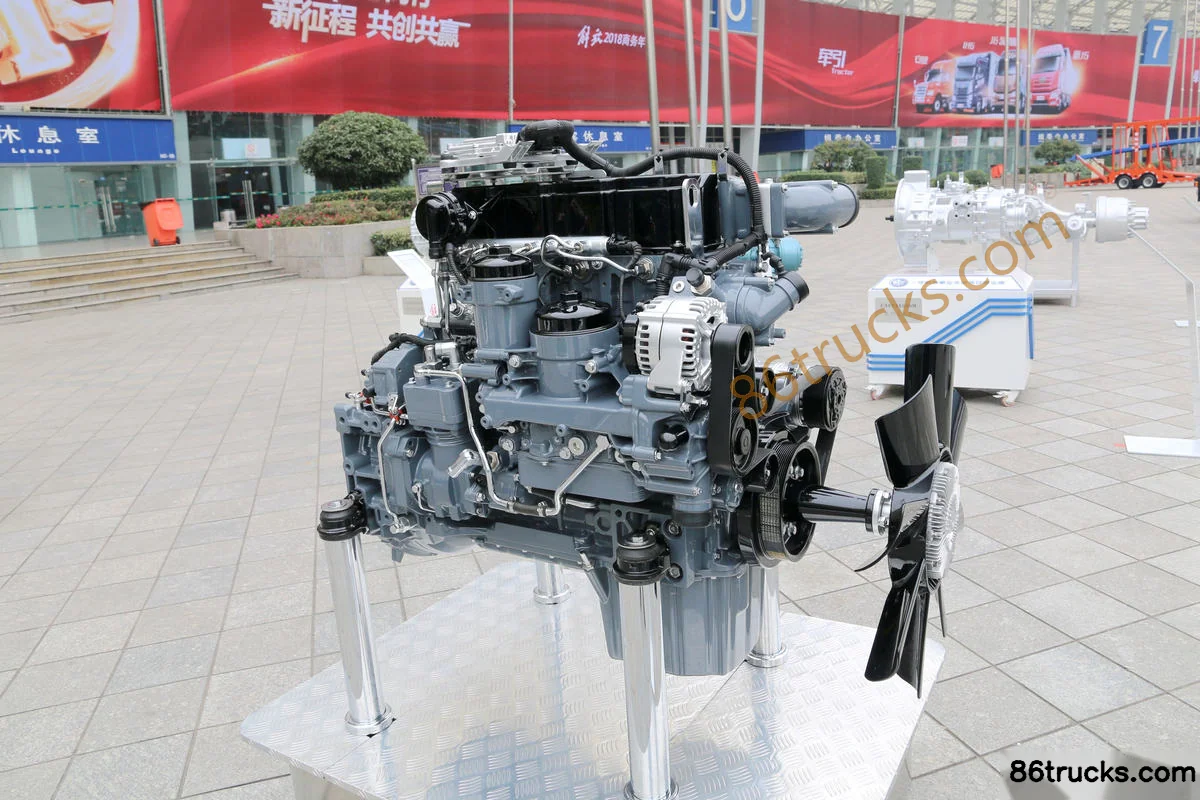

Dachai CA4DK1-16E5 160 hp 4.76L China V Diesel Engine Exterior (1) | 86Trucks Dachai CA4DK1-16E5 160 hp 4.76L China V Diesel Engine Exterior (2) | 86Trucks Dachai CA4DK1-16E5 160 hp 4.76L China V Diesel Engine Exterior (3) | 86Trucks

3 photos

FAQ

What emission standard does Dachai CA4DK1-16E5 160 hp 4.76L China V Diesel Engine use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dachai CA4DK1-16E5 160 hp 4.76L China V Diesel Engine?

Key specs of Dachai CA4DK1-16E5 160 hp 4.76L China V Diesel Engine: Horsepower: 160 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dachai CA4DK1-16E5 160 hp 4.76L China V Diesel Engine suited for?

Match Dachai CA4DK1-16E5 160 hp 4.76L China V Diesel Engine to your job using drive, horsepower and emission on this page. Include use case, destination and quantity in your quote request.

How does Dachai CA4DK1-16E5 160 hp 4.76L China V Diesel Engine differ from other variants in the same series?

Dachai CA4DK1-16E5 160 hp 4.76L China V Diesel Engine belongs to Dachai CA4DK1 Series (engine). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dachai CA4DK1-16E5 160 hp 4.76L China V Diesel Engine?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dachai CA4DK1-16E5 160 hp 4.76L China V Diesel Engine?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
