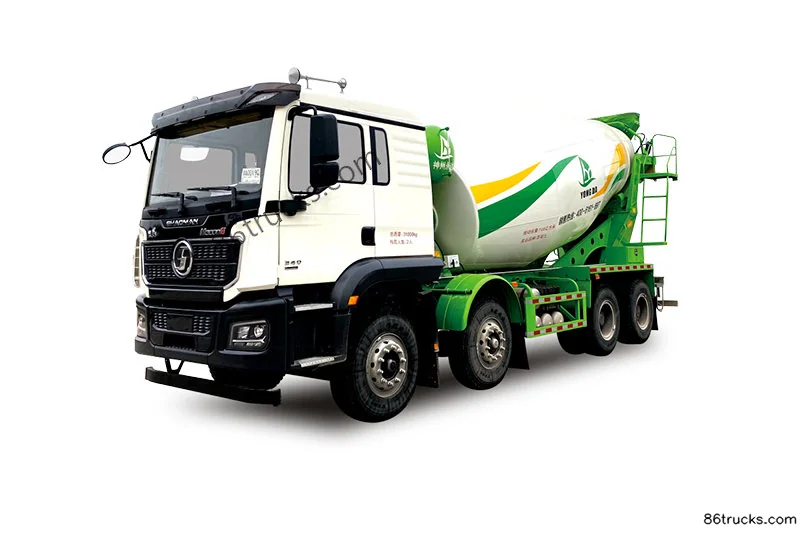

SHACMAN Delong M3000S 350hp 8X4(12 wheels) 7.6m³ Concrete Mixer Truck (Shenzhou Yongda) (China VI) (AYD5318GJBSX30)

Export reference
From $74,306
MSRP ¥53.5M CNY
Fuel: Diesel
Curb Weight:: 14.21ton
Wheelbase:: 1800+3000+1400mm
Tire Size:: 11.00R20 radial tire
Cab dimensions:: 10.3×2.55×3.995m
Truck Type:: concrete mixer truck
Rated payload: 16.66ton
Drive 8X4 (12 wheels)
Horsepower 350
Emission China VI

Overview

The SHACMAN Delong M3000S 350hp 8X4(12 wheels) 7.6m³ Concrete Mixer Truck (Shenzhou Yongda) (China VI) (AYD5318GJBSX30) is a concrete mixer truck featuring 16.66t payload, 14.21ton GVW, 8X4 (12 wheels) drive and Extended semi-high roof cab cab. On the powertrain side, it comes with 350 hp, China VI emissions and Diesel fuel.

China VI 350 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 10.3×2.55×3.995m
Drive type: 8X4
Truck Type: concrete mixer truck
Vehicle origin: Pingdingshan, Henan
Front/rear track width: Front: 2011/2011mm; Rear: 1860/1860
Wheelbase: 1800+3000+1400mm
Curb Weight: 14.21ton
Rated payload: 16.66ton
Max. speed: 89km/h
Front/rear suspension: 1.525/2.575m
Body Parameters
Mixing drum capacity: 7.6m³
Vehicle certification code: AYD5318GJBSX30
Body Brand: Shenzhou Yongda
Engine parameters
Engine Model: WeichaiWP8.350E61
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 7.8L
Emission standard: China VI
Max output power: 257kW
Max hp: 350Horsepower
Rated speed: 2100rpm
Engine Type: Inline 6-cylinder, water-cooled, 4-stroke, high-pressure common rail, turbocharged intercooled, EGR
Chassis Specs
Chassis Series: Delong M3000S
Chassis Model: SX1319MB6F1
Front axle description: MAN 5.5T drum brake front axle
rear axle description: 16T HDS dual reduction cast axle
Axle ratio: 5.73
Transmission Parameters
Number of gears: 10Gear
Transmission Model: Fast Gear10JSD120T
Cab parameters
Cab: Extended semi-high roof cab
Tire
Tire Size: 11.00R20 radial tire
Number of tires: 12pcs

Photos

Exterior1

1 photos

FAQ

What is the export price of SHACMAN Delong M3000S 350hp 8X4(12 wheels) 7.6m³ Concrete Mixer Truck (Shenzhou Yongda) (China VI) (AYD5318GJBSX30), and what does it include?

SHACMAN Delong M3000S 350hp 8X4(12 wheels) 7.6m³ Concrete Mixer Truck (Shenzhou Yongda) (China VI) (AYD5318GJBSX30) export reference is about From $74,306; MSRP is ¥53.5M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does SHACMAN Delong M3000S 350hp 8X4(12 wheels) 7.6m³ Concrete Mixer Truck (Shenzhou Yongda) (China VI) (AYD5318GJBSX30) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SHACMAN Delong M3000S 350hp 8X4(12 wheels) 7.6m³ Concrete Mixer Truck (Shenzhou Yongda) (China VI) (AYD5318GJBSX30)?

Key specs of SHACMAN Delong M3000S 350hp 8X4(12 wheels) 7.6m³ Concrete Mixer Truck (Shenzhou Yongda) (China VI) (AYD5318GJBSX30): Drive: 8x4; Horsepower: 350 hp; Emission: China VI; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SHACMAN Delong M3000S 350hp 8X4(12 wheels) 7.6m³ Concrete Mixer Truck (Shenzhou Yongda) (China VI) (AYD5318GJBSX30) suited for?

SHACMAN Delong M3000S 350hp 8X4(12 wheels) 7.6m³ Concrete Mixer Truck (Shenzhou Yongda) (China VI) (AYD5318GJBSX30) is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does SHACMAN Delong M3000S 350hp 8X4(12 wheels) 7.6m³ Concrete Mixer Truck (Shenzhou Yongda) (China VI) (AYD5318GJBSX30) differ from other variants in the same series?

SHACMAN Delong M3000S 350hp 8X4(12 wheels) 7.6m³ Concrete Mixer Truck (Shenzhou Yongda) (China VI) (AYD5318GJBSX30) belongs to Shenzhou Yongda (Shenzhou Yongda) SHACMAN Chassis (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SHACMAN Delong M3000S 350hp 8X4(12 wheels) 7.6m³ Concrete Mixer Truck (Shenzhou Yongda) (China VI) (AYD5318GJBSX30)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SHACMAN Delong M3000S 350hp 8X4(12 wheels) 7.6m³ Concrete Mixer Truck (Shenzhou Yongda) (China VI) (AYD5318GJBSX30)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
