FAW Jiefang New J6P Heavy Truck 380 hp 6X4(10 wheels) 6.4m Dump Truck (China VI)(CA3250P66K24LT1E6)

Export reference

MSRP N/A

Emission: China VI

Fuel: Diesel

Transmission: FAW Jiefang

Curb Weight:: 12.5ton

Wheelbase:: 4800+1350mm

Tire Size:: 12.00R20 16PR

FAW Jiefang New J6P Heavy Truck 380 hp 6X4(10 wheels) 6.4m Dump Truck (China VI)(CA3250P66K24LT1E6) exterior

View more photos (9)

Rated payload: 12.37ton

Drive 6X4 (10 wheels)

Horsepower 380

Cargo box type: Dump type

Overview

The FAW Jiefang New J6P Heavy Truck 380 hp 6X4(10 wheels) 6.4m Dump Truck (China VI)(CA3250P66K24LT1E6) is a Heavy truck featuring 12.37t payload, 25t GVW, Dump type cargo body and 6X4 (10 wheels) drive. On the powertrain side, it comes with a XichaiCA6DL6-38E6 engine, 380 hp, China VI emissions and FAW Jiefang transmission.

China VI 380 Diesel 6X4

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info

Model code (announced): CA3250P66K24LT1E6

Drive type: 6X4

Wheelbase: 4800+1350mm

engine: XichaiCA6DL6-38E6

transmission: FAW JiefangCA10TA190M

Rear Axle Ratio: 5.263

Cab length: 9.78m

Cab width: 2.55m

Cab height: 3.4m

Front track width: 2020mm

rear track: 1878/1878mm

Curb Weight: 12.5ton

Rated payload: 12.37ton

GVWR: 25ton

Origin: Changchun/Qingdao/Chengdu

tonnage class: Heavy truck

Approach angle: 24°

departure angle: 25°

Remarks: Digital instrument cluster, manual mirrors, driver seat with ventilation and lumbar support, single-DIN Beidou-compatible telematics system, front marker lights, metal bumper, integrated steel-shell oil-bath air filter, aluminum radiator, cab rear two-point coil spring suspension, hydraulic lift support, rear overhang 900mm, 150Ah battery, FARIZON financing function, ZF reaction rod, dual fuel filter, VOSS fittings, new J6 cable shift mechanism, right-turn audio alert, overspeed alarm, seatbelt reminder, brake lining wear warning, T-box 1.5, reserved smart terminal wiring, 50L urea tank, engine dual-point mount, speed limited to 89 km/h.

Energy Type: Diesel

Engine parameters

Engine Brand: Xichai

Engine Model: XichaiCA6DL6-38E6

Number of cylinders: 6cylinder

fuel type: Diesel

Displacement: 8.6L

Emission standard: China VI

Max output power: 283kW

Max hp: 380Horsepower

Max torque: 1750N·m

Max torque speed: 1200-1500rpm

Rated speed: 1900rpm

Engine Type: 4-cylinder, inline, turbocharged with intercooler

Transmission Parameters

Transmission Model: FAW JiefangCA10TA190M

Transmission Brand: FAW Jiefang

Forward gears: 10Gear

Number of Reverse Gears: 2pcs

Cargo box parameters

Unloading Type: Dump type

Cargo box type: Dump type

Cargo box length: 6.4m

Cargo box width: 2.3m

Cargo box height: 1.5m

Body Parameters

Lifting type: Electric hydraulic lift device

Cab parameters

Cab: New J6P Flat Roof Cab

fuel tank

Fuel tank material: aluminum alloy

Fuel tank capacity: 400L

Chassis Specs

Front axle description: 2020 front axle

Front axle allowable load: 7000kg

Frame Dimensions: 300×80×(8+5)mm

rear axle description: 290 drive axle

rear axle allowable load: 18000 (tandem axle group)kg

Axle ratio: 5.263

Leaf spring count: 10/10

Tire

Tire Size: 12.00R20 16PR

Number of tires: 10pcs

Control configuration

ABS:

Stability control system:

EBS electronic braking system:

ASR traction control:

Inter-axle Differential Lock:

interior configuration

Steering Wheel Material: Plastic

steering wheel adjustment: Manual

Multifunction steering wheel:

AC control type: Automatic

Onboard Refrigerator:

Independent Heater:

Power Windows:

Power Mirrors:

Electric Heated Rearview Mirror:

Power interface:

Reverse Camera:

Remote key:

Electronic Central Lock:

Exterior features

side skirt:

Aluminum air tank:

Diesel primary filter heating:

Service brake

Engine brake:

Parking brake: Spring brake

Front wheel brake: Drum Type

Rear Wheel Brake: Drum Type

Multimedia features

Center Console Color Screen:

GPS/Beidou driving recorder:

External audio input (AUX/USB/iPod etc.):

Bluetooth / hands-free calling:

Radio:

lighting configuration

Headlight brand: none

Front fog lamp:

daytime running lights:

Headlight height adjustment:

LED taillight:

smart configuration

Telematics System:

Cruise control (CCS):

Emergency Brake Assist (EBA):

Tire Pressure Monitoring System (TPMS):

Photos

Exterior3

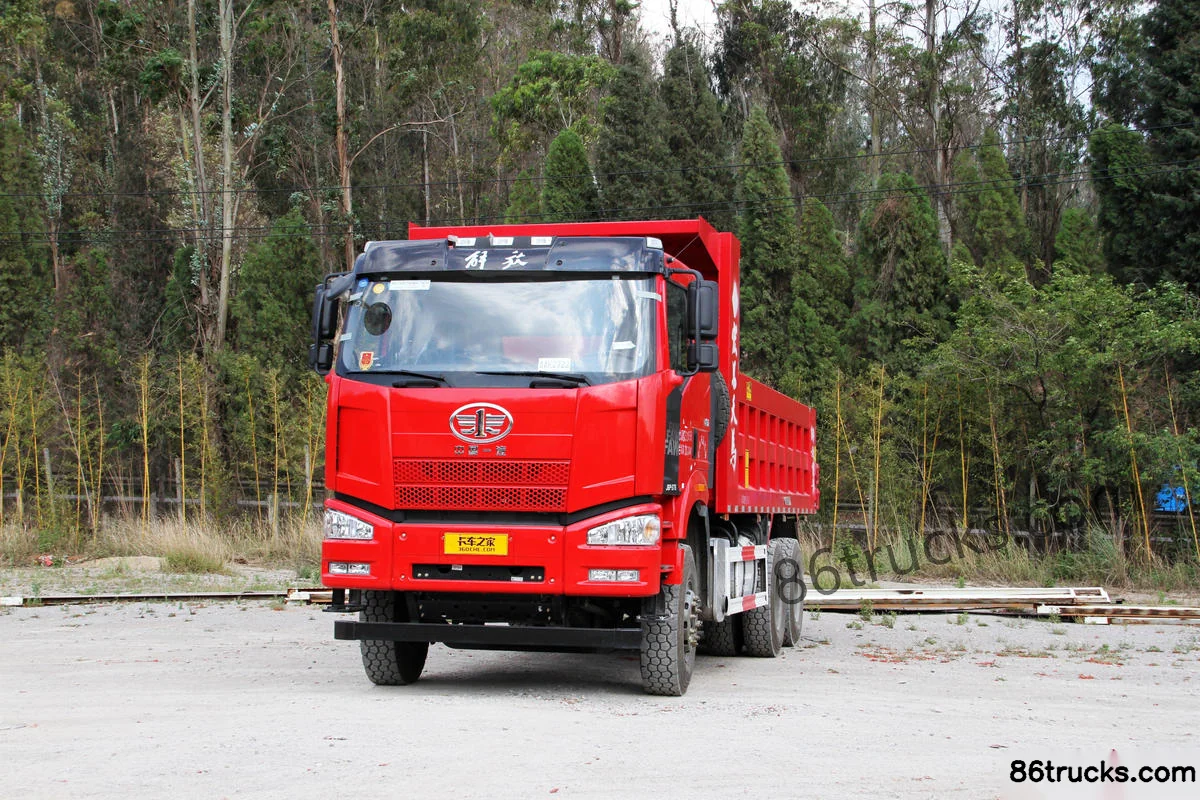

FAW Jiefang New J6P Heavy Truck 380 hp 6X4(10 wheels) 6.4m Dump Truck (China VI)(CA3250P66K24LT1E6) Exterior (1) | 86Trucks

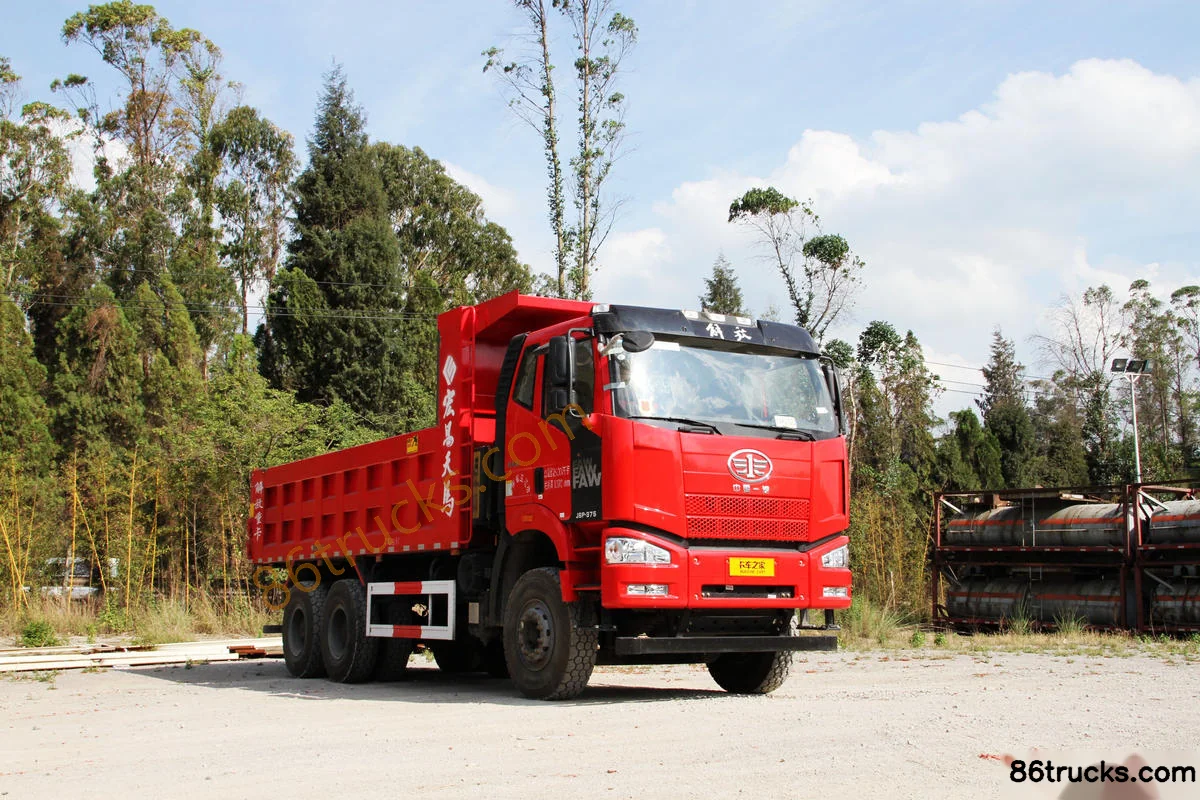

FAW Jiefang New J6P Heavy Truck 380 hp 6X4(10 wheels) 6.4m Dump Truck (China VI)(CA3250P66K24LT1E6) Exterior (2) | 86Trucks

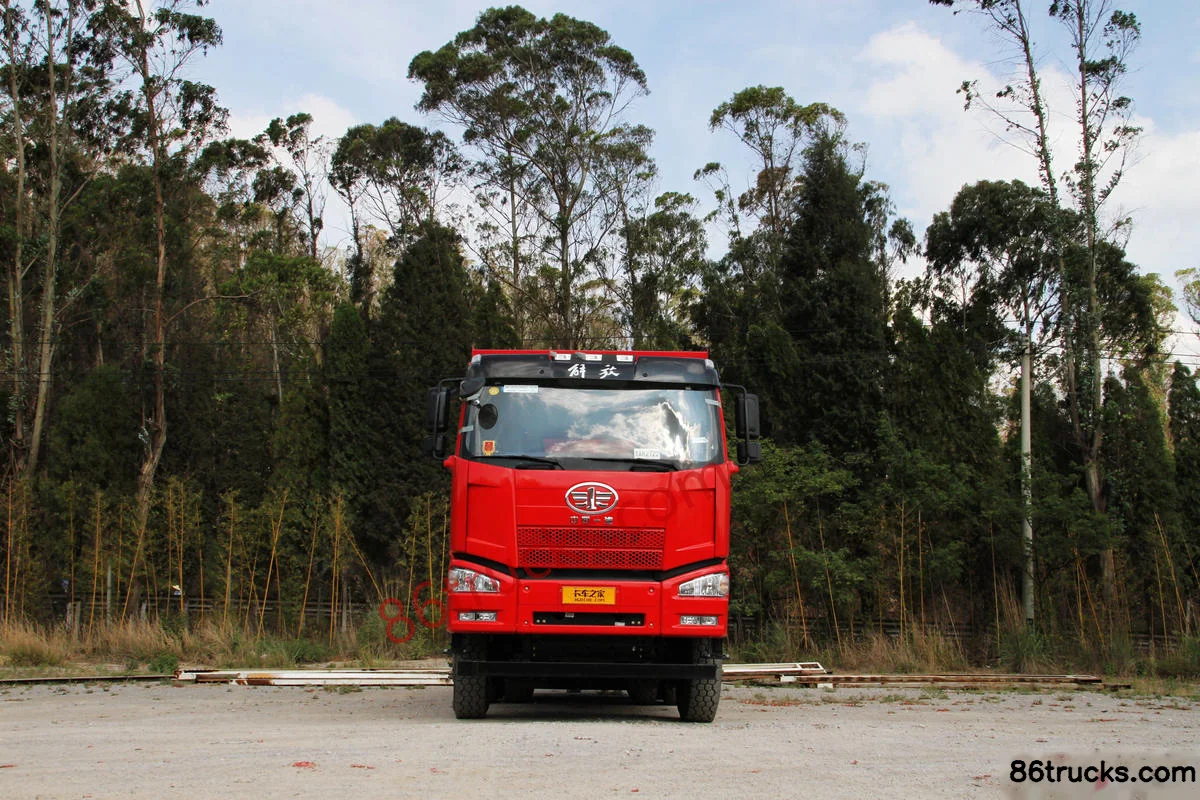

FAW Jiefang New J6P Heavy Truck 380 hp 6X4(10 wheels) 6.4m Dump Truck (China VI)(CA3250P66K24LT1E6) Exterior (3) | 86Trucks

Cab3

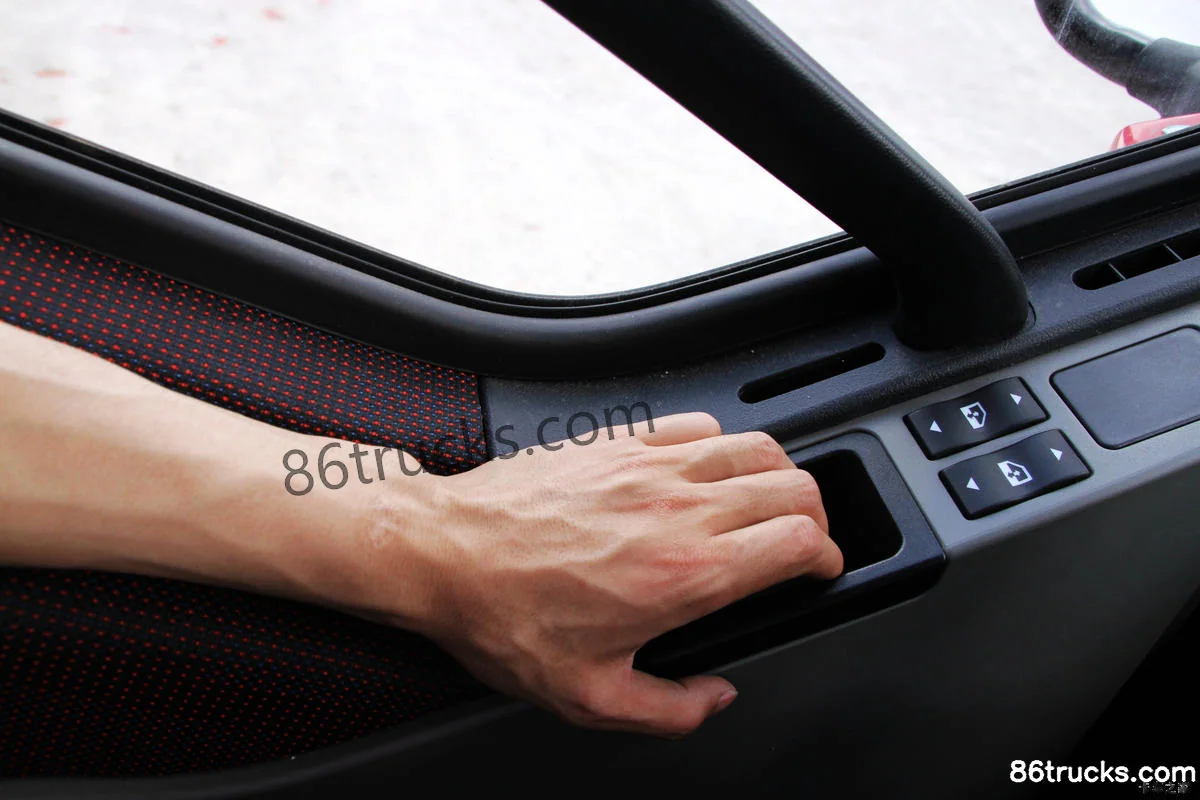

FAW Jiefang New J6P Heavy Truck 380 hp 6X4(10 wheels) 6.4m Dump Truck (China VI)(CA3250P66K24LT1E6) Cab (1) | 86Trucks

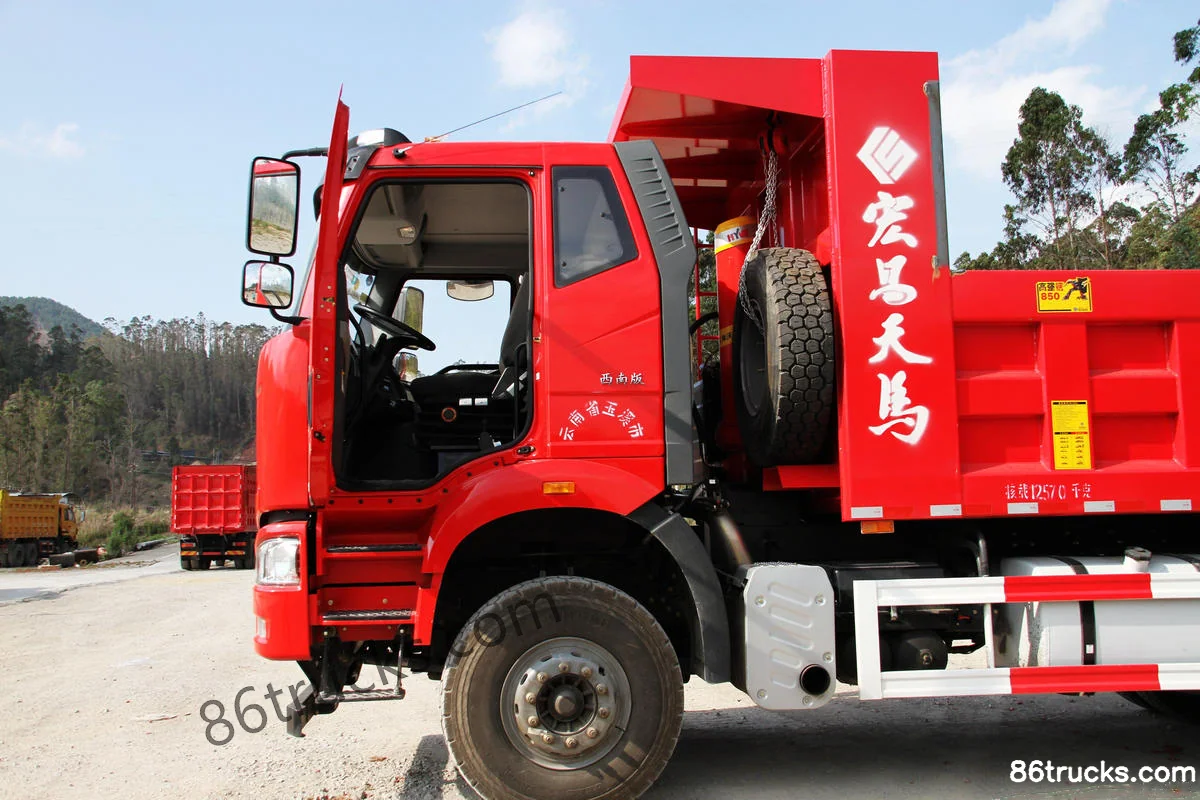

FAW Jiefang New J6P Heavy Truck 380 hp 6X4(10 wheels) 6.4m Dump Truck (China VI)(CA3250P66K24LT1E6) Cab (2) | 86Trucks

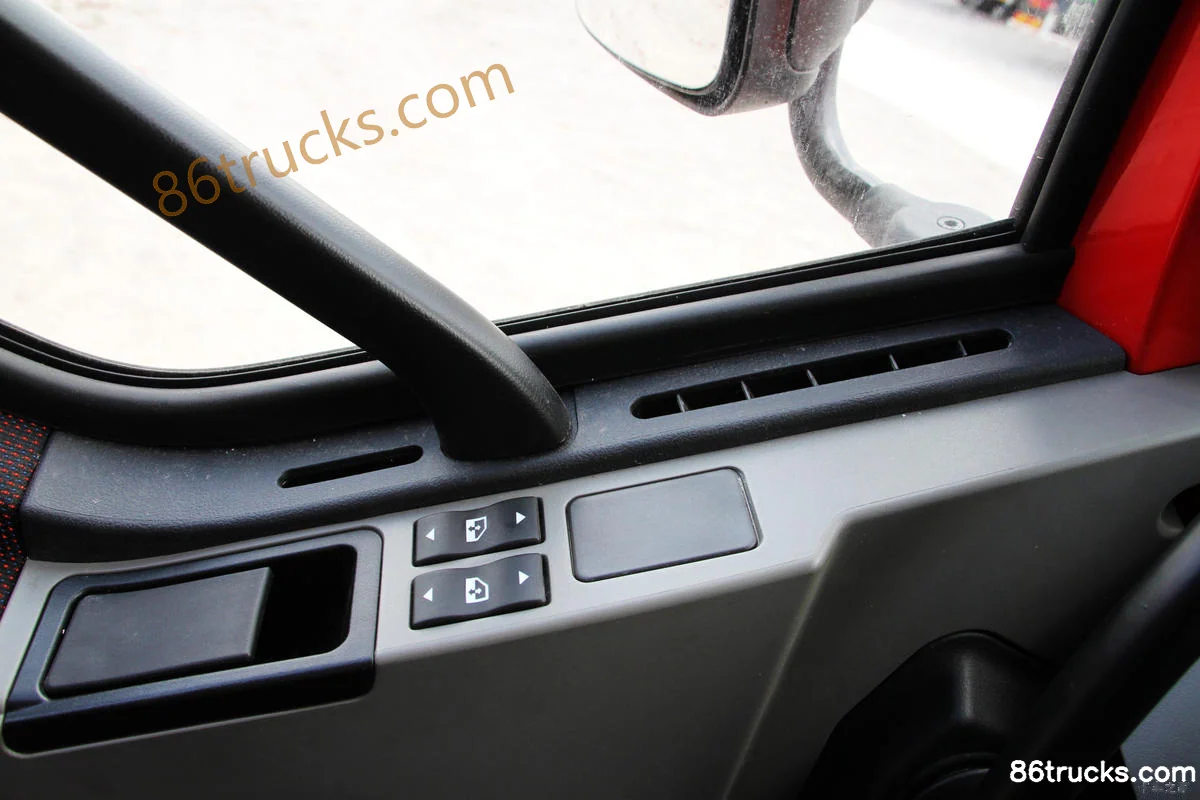

FAW Jiefang New J6P Heavy Truck 380 hp 6X4(10 wheels) 6.4m Dump Truck (China VI)(CA3250P66K24LT1E6) Cab (3) | 86Trucks

Chassis3

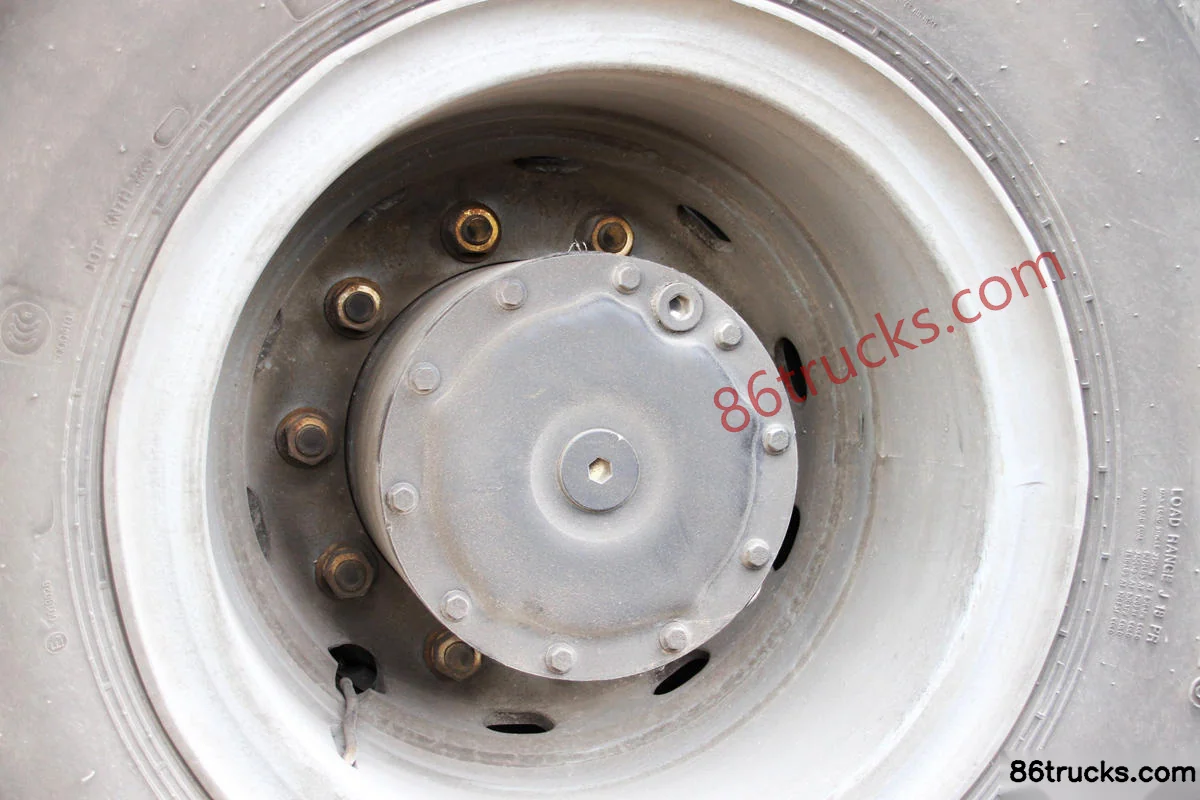

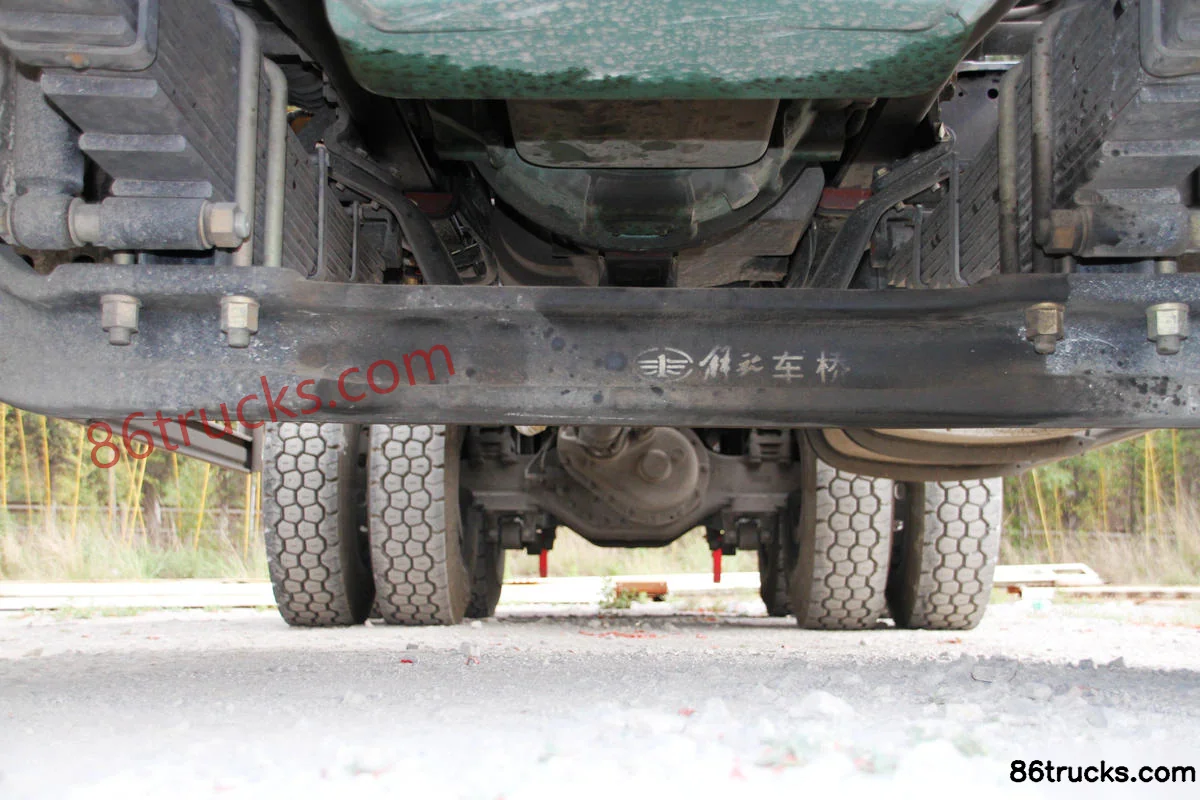

FAW Jiefang New J6P Heavy Truck 380 hp 6X4(10 wheels) 6.4m Dump Truck (China VI)(CA3250P66K24LT1E6) Chassis (1) | 86Trucks

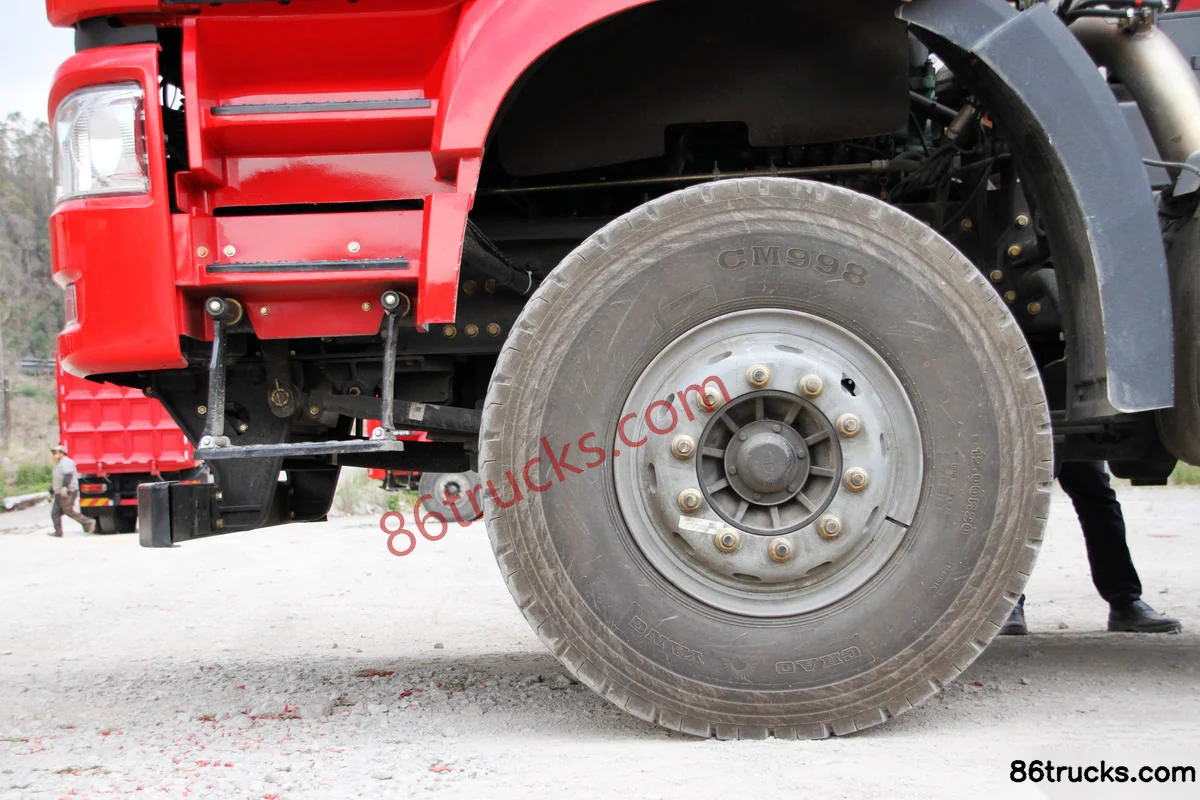

FAW Jiefang New J6P Heavy Truck 380 hp 6X4(10 wheels) 6.4m Dump Truck (China VI)(CA3250P66K24LT1E6) Chassis (2) | 86Trucks

FAW Jiefang New J6P Heavy Truck 380 hp 6X4(10 wheels) 6.4m Dump Truck (China VI)(CA3250P66K24LT1E6) Chassis (3) | 86Trucks

9 photos

FAQ

What emission standard does FAW Jiefang New J6P Heavy Truck 380 hp 6X4(10 wheels) 6.4m Dump Truck (China VI)(CA3250P66K24LT1E6) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang New J6P Heavy Truck 380 hp 6X4(10 wheels) 6.4m Dump Truck (China VI)(CA3250P66K24LT1E6)?

Key specs of FAW Jiefang New J6P Heavy Truck 380 hp 6X4(10 wheels) 6.4m Dump Truck (China VI)(CA3250P66K24LT1E6): Drive: 6x4; Horsepower: 380 hp; Emission: China VI; Fuel: Diesel; Transmission: FAW Jiefang. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang New J6P Heavy Truck 380 hp 6X4(10 wheels) 6.4m Dump Truck (China VI)(CA3250P66K24LT1E6) suited for?

FAW Jiefang New J6P Heavy Truck 380 hp 6X4(10 wheels) 6.4m Dump Truck (China VI)(CA3250P66K24LT1E6) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does FAW Jiefang New J6P Heavy Truck 380 hp 6X4(10 wheels) 6.4m Dump Truck (China VI)(CA3250P66K24LT1E6) differ from other variants in the same series?

FAW Jiefang New J6P Heavy Truck 380 hp 6X4(10 wheels) 6.4m Dump Truck (China VI)(CA3250P66K24LT1E6) belongs to FAW Jiefang J6P Heavy Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang New J6P Heavy Truck 380 hp 6X4(10 wheels) 6.4m Dump Truck (China VI)(CA3250P66K24LT1E6)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang New J6P Heavy Truck 380 hp 6X4(10 wheels) 6.4m Dump Truck (China VI)(CA3250P66K24LT1E6)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
