XCMG XE80 Crawler Excavator

Export reference
MSRP N/A
Model:: XE80
Engine Model:: crawler excavator
Tonnage:: 8ton
Bucket capacity:: 0.34cubic meter
boom length:: 3710mm
Arm Length:: 1650mm
XCMG XE80 Crawler Excavator exterior
View more photos (3)
Operating weight: 7.425ton
Bucket type: backhoe
Fuel Tank Capacity: 127L
Product power: Conventional Power

Overview

The XCMG XE80 Crawler Excavator is a excavator featuring 7.425ton GVW, backhoe bucket capacity, 127L tank capacity and Conventional Power power. On the powertrain side, it comes with a crawler excavator engine.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model: XE80
Engine Model: crawler excavator
Product power: Conventional Power
Bucket type: backhoe
Tonnage: 8ton
Bucket capacity: 0.34cubic meter
Operating weight: 7.425ton
boom length: 3710mm
Arm Length: 1650mm
Machine dimensions: 6.155×2.22×2.61mm
Track shoe width: 450mm
Track gauge: 1700mm
Counterweight ground clearance: 786mm
Min ground clearance: 392cm
Rear Overhang Radius: 1770mm
hydraulic system
Max flow of main pump: 1*198+21L/min
travel hydraulic circuit: 27.4Mpa
Swing Hydraulic Circuit: 20.6Mpa
Oil capacity
Fuel Tank Capacity: 127L
hydraulic oil tank: 124L
Engine Oil Capacity: 7L
performance specs
Travel speed: 4.2/2.7km/h
Bucket digging force: 53.6kN
Arm Digging Force: 39.2kN
Operating Range
Max digging radius: 6375mm
Max digging depth: 4140mm
Max digging height: 7167mm
Max unloading height: 5100mm
Max vertical digging depth: 3218mm
Engine parameters
Engine Model: CumminsCummins B3.3
Max output power: 60kW

Photos

Exterior3

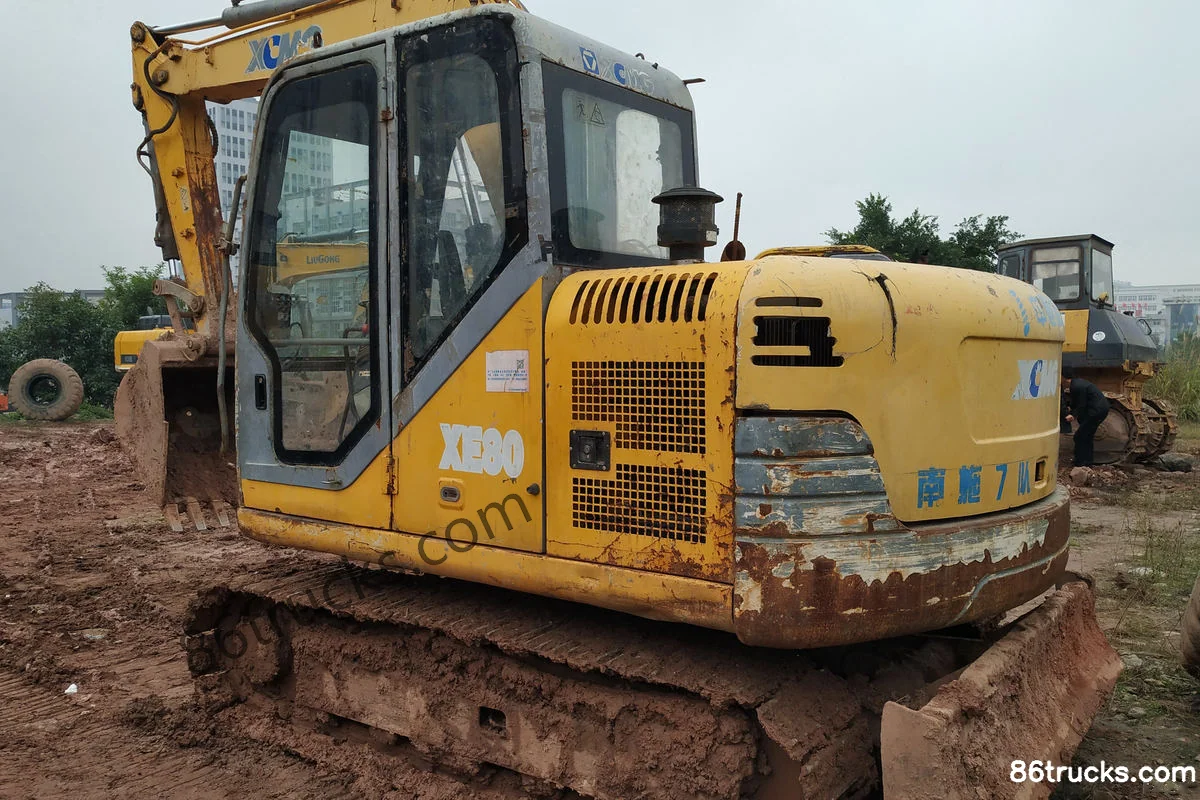

XCMG XE80 Crawler Excavator Exterior (1) | 86Trucks XCMG XE80 Crawler Excavator Exterior (2) | 86Trucks XCMG XE80 Crawler Excavator Exterior (3) | 86Trucks

3 photos

FAQ

What transport jobs is XCMG XE80 Crawler Excavator suited for?

XCMG XE80 Crawler Excavator is a excavator model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does XCMG XE80 Crawler Excavator differ from other variants in the same series?

XCMG XE80 Crawler Excavator belongs to XCMG Crawler Excavator (excavator). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for XCMG XE80 Crawler Excavator?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export XCMG XE80 Crawler Excavator?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
