XCMG Hanfeng P5 8X4(12 wheels) 6.86m³ pure electric concrete mixer truck 350.1kWh

Export reference
MSRP N/A
Wheelbase:: 1950+3400+1350mm
Tire Size:: 11.00R20 18PR,12R22.5 18PR,12.00R20 16PR
Cab dimensions:: 11x2.55x3.96m
Truck Type:: electric concrete mixer transport truck
Vehicle origin:: Xuzhou, Jiangsu
Front/rear track width:: Front: 2020/2020; Rear: 1860/1860mm
Rated payload: 15.9ton
Drive 8X4 (12 wheels)
Fuel Electric
Curb Weight: 14.97ton

Overview

The XCMG Hanfeng P5 8X4(12 wheels) 6.86m³ pure electric concrete mixer truck 350.1kWh is a concrete mixer truck featuring 15.9t payload, 14.97ton GVW, 8X4 (12 wheels) drive and P5LD cab. On the powertrain side, it comes with Electric fuel.

Electric 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 11x2.55x3.96m
Drive type: 8X4
Truck Type: electric concrete mixer transport truck
Vehicle origin: Xuzhou, Jiangsu
Wheelbase: 1950+3400+1350mm
Front/rear track width: Front: 2020/2020; Rear: 1860/1860mm
Curb Weight: 14.97ton
Rated payload: 15.9ton
Max. speed: 80km/h
Front/rear suspension: 1.46/2.84m
electric motor
Motor 1 Brand: XCMG new energy
Motor 1 Model: TZ460XS-270XGEV
Motor Type: Permanent magnet synchronous motor
total rated power: 270kW
Peak power: 405kW
Body Parameters
Mixing drum capacity: 6.86m³
Vehicle certification code: XGA5311GJBBEVNEGC
Body Brand: XCMG Truck
Engine parameters
fuel type: Electric
Chassis Specs
Chassis Series: Hanfeng P5
Chassis Model: XGA1311BEVNEGX
Front axle description: 6.5t
rear axle description: 13t
Leaf spring count: 3/3/4
Transmission Parameters
Number of gears: 4Gear
Transmission Model: J4S240
Cab parameters
Cab: P5LD
Tire
Tire Size: 11.00R20 18PR,12R22.5 18PR,12.00R20 16PR
Number of tires: 12pcs

Photos

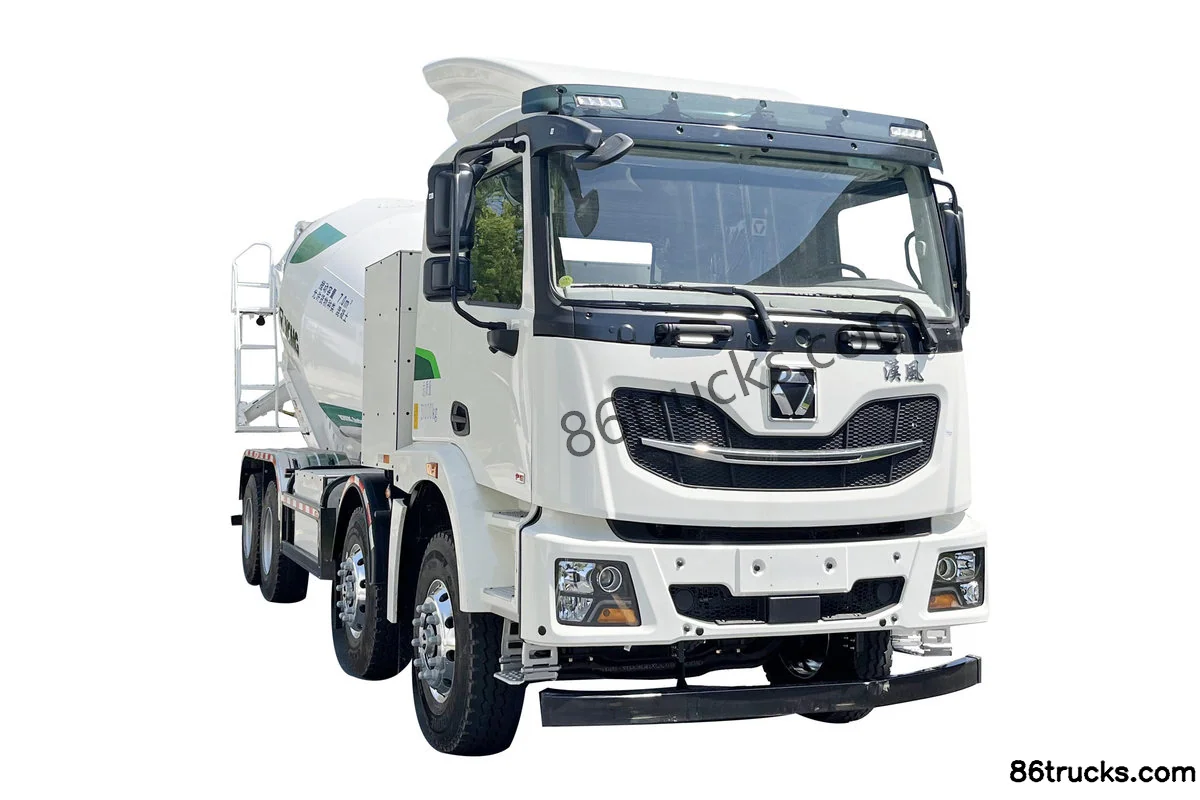

Exterior1

1 photos

FAQ

What are the key specs of XCMG Hanfeng P5 8X4(12 wheels) 6.86m³ pure electric concrete mixer truck 350.1kWh?

Key specs of XCMG Hanfeng P5 8X4(12 wheels) 6.86m³ pure electric concrete mixer truck 350.1kWh: Drive: 8x4; Fuel: Electric. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is XCMG Hanfeng P5 8X4(12 wheels) 6.86m³ pure electric concrete mixer truck 350.1kWh suited for?

XCMG Hanfeng P5 8X4(12 wheels) 6.86m³ pure electric concrete mixer truck 350.1kWh is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does XCMG Hanfeng P5 8X4(12 wheels) 6.86m³ pure electric concrete mixer truck 350.1kWh differ from other variants in the same series?

XCMG Hanfeng P5 8X4(12 wheels) 6.86m³ pure electric concrete mixer truck 350.1kWh belongs to XCMG Truck Hanfeng XG2M (formerly Hanfeng P5) (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for XCMG Hanfeng P5 8X4(12 wheels) 6.86m³ pure electric concrete mixer truck 350.1kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export XCMG Hanfeng P5 8X4(12 wheels) 6.86m³ pure electric concrete mixer truck 350.1kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
