FAW Jiefang Qingdao Hanwei (J5M) 280 hp 8X4(12 wheels) Liquefied Gas Transport Truck (Chengliwei Brand)

Export reference
MSRP N/A
Emission: China III / Euro III
Fuel: Diesel
Wheelbase:: 1900+4500+1350;2000+4700+1350;1950+4550+1350mm
Cab dimensions:: 11.7×2.49×3.69m
Truck Type:: liquefied gas transport truck
Front/rear track width:: Front track: 1928/1928; 2020/2020; 1950/1950 Rear track: 1847/1847; 1830/1830; 1847/1847mm
Tank Size: 8.96×2.374m
Rated payload: 14.91ton
Drive 8X4 (12 wheels)
Horsepower 280

Overview

The FAW Jiefang Qingdao Hanwei (J5M) 280 hp 8X4(12 wheels) Liquefied Gas Transport Truck (Chengliwei Brand) is a liquefied gas transport truck featuring 8.96×2.374m tank capacity, 14.91t payload, 35.5m³ volume and 31t GVW. On the powertrain side, it comes with 280 hp, 8X4 (12 wheels) drive, China III / Euro III emissions and Diesel fuel.

China III / Euro III 280 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 11.7×2.49×3.69m
Truck Type: liquefied gas transport truck
Drive type: 8X4
Front/rear track width: Front track: 1928/1928; 2020/2020; 1950/1950 Rear track: 1847/1847; 1830/1830; 1847/1847mm
Wheelbase: 1900+4500+1350;2000+4700+1350;1950+4550+1350mm
Rated payload: 14.91ton
GVWR: 31ton
Max. speed: 80km/h
Front/rear suspension: 1.375/2.575m
Energy Type: Diesel
Body Parameters
Other special notes: Unit volume filling mass: 0.42 t/m³. Cab optional with chassis. Guard material: Q235 carbon steel; connection method: left and right sides and rear lower guard all welded; rear guard section dimensions (mm): 100×50×5; rear guard ground clearance (mm): 540.
Tank Size: 8.96×2.374m
Tank Volume: 35.5m3
Transport medium: liquefied petroleum gas (propane)
Vehicle certification code: CLW5311GYQ
Body Brand: Chengliwei
Engine parameters
Engine Brand: Dachai
Engine Model: Dachai BF6M1013-28E3
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 7.146L
Emission standard: China III / Euro III
Max output power: 216kW
Max hp: 280Horsepower
Max torque: 1050N·m
Max torque speed: 1100-1400rpm
Rated speed: 2300rpm
Chassis Specs
Chassis Brand: FAW Jiefang Qingdao
Chassis Series: Hanwei J5M
Chassis Model: CA1313P7K1L11T4E
Leaf spring count: 12/12/10,9/9/12
Transmission Parameters
Number of gears: 9Gear
Transmission Model: Fast Gear 9JS119
Tire
Tire Size: 10.00-20,10.00R20,11.00-20,11.00R20
Number of tires: 12pcs

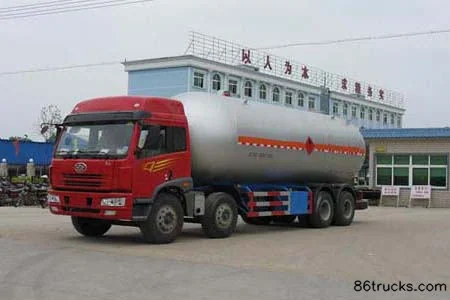

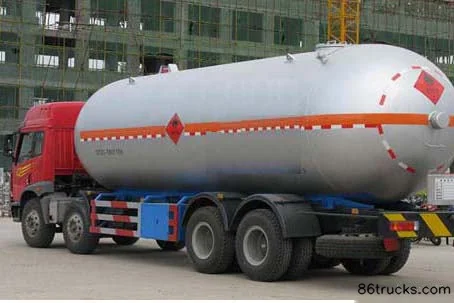

Photos

Exterior2

2 photos

FAQ

What emission standard does FAW Jiefang Qingdao Hanwei (J5M) 280 hp 8X4(12 wheels) Liquefied Gas Transport Truck (Chengliwei Brand) use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Qingdao Hanwei (J5M) 280 hp 8X4(12 wheels) Liquefied Gas Transport Truck (Chengliwei Brand)?

Key specs of FAW Jiefang Qingdao Hanwei (J5M) 280 hp 8X4(12 wheels) Liquefied Gas Transport Truck (Chengliwei Brand): Drive: 8x4; Horsepower: 280 hp; Emission: China III / Euro III; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Qingdao Hanwei (J5M) 280 hp 8X4(12 wheels) Liquefied Gas Transport Truck (Chengliwei Brand) suited for?

FAW Jiefang Qingdao Hanwei (J5M) 280 hp 8X4(12 wheels) Liquefied Gas Transport Truck (Chengliwei Brand) is a liquefied gas transport truck model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does FAW Jiefang Qingdao Hanwei (J5M) 280 hp 8X4(12 wheels) Liquefied Gas Transport Truck (Chengliwei Brand) differ from other variants in the same series?

FAW Jiefang Qingdao Hanwei (J5M) 280 hp 8X4(12 wheels) Liquefied Gas Transport Truck (Chengliwei Brand) belongs to Chengliwei FAW Jiefang Qingdao chassis (liquefied gas transport truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Qingdao Hanwei (J5M) 280 hp 8X4(12 wheels) Liquefied Gas Transport Truck (Chengliwei Brand)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Qingdao Hanwei (J5M) 280 hp 8X4(12 wheels) Liquefied Gas Transport Truck (Chengliwei Brand)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
