Dongfeng Furuika R7 143hp 4X2(6 wheels) 5.1m dump truck

Export reference
From $20,139
MSRP ¥14.5M CNY
Emission: China V
Fuel: Diesel
Transmission: WLY
Curb Weight:: 5.865ton
Wheelbase:: 4050mm
Tire Size:: 8.25R20
Rated payload: 8ton
Drive 4X2 (6 wheels)
Horsepower 140
Cargo box type: Dump type

Overview

The Dongfeng Furuika R7 143hp 4X2(6 wheels) 5.1m dump truck is a Medium-duty truck featuring 8t payload, 14.06t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a Xichai4DX23-140E5 engine, 140 hp, China V emissions and WLY transmission.

China V 140 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HCQ3140ZPE5
Drive type: 4X2
Wheelbase: 4050mm
engine: Xichai4DX23-140E5
transmission: WLYWLY145H
Rear Axle Ratio: 5.833
Cab length: 7.4m
Cab width: 2.4m
Cab height: 2.9m
Front track width: 1738mm
rear track: 1650mm
Curb Weight: 5.865ton
Rated payload: 8ton
GVWR: 14.06ton
Origin: Suizhou, Hubei
tonnage class: Medium-duty truck
Approach angle: 20°
departure angle: 13°
Energy Type: Diesel
Engine parameters
Engine Brand: Xichai
Engine Model: Xichai4DX23-140E5
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 3.857L
Emission standard: China V
Max output power: 105kW
Max hp: 140Horsepower
Max torque: 450N·m
Max torque speed: 1600-2000rpm
Rated speed: 2800rpm
Engine Type: 4-cylinder inline, direct injection, turbocharged & intercooled, electronic common rail
Transmission Parameters
Transmission Model: WLYWLY145H
Transmission Brand: WLY
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 5.1m
Cargo box width: 2.2m
Cargo box height: 0.6m
Cab parameters
Cab: Sleeper cab
Cab width: 2030mm
Chassis Specs
Front axle description: 2.1T
Front axle allowable load: 4860kg
Frame Dimensions: 230×(7+4+5) partial triple-layermm
rear axle description: 7.5T
rear axle allowable load: 9200kg
Axle ratio: 5.833
Leaf spring count: 12/12+9
Tire
Tire Size: 8.25R20
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Power Windows:
Electronic Central Lock:
Service brake
Parking brake: Spring brake
Exhaust brake:

Photos

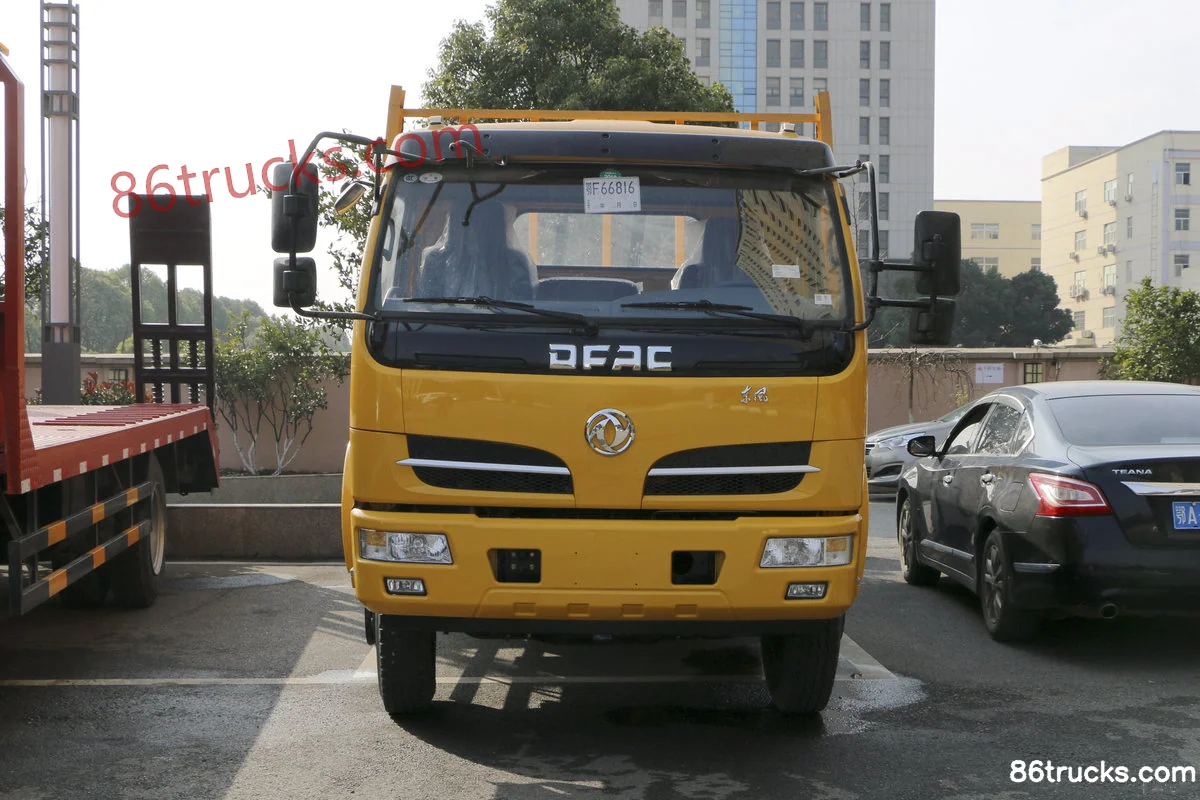

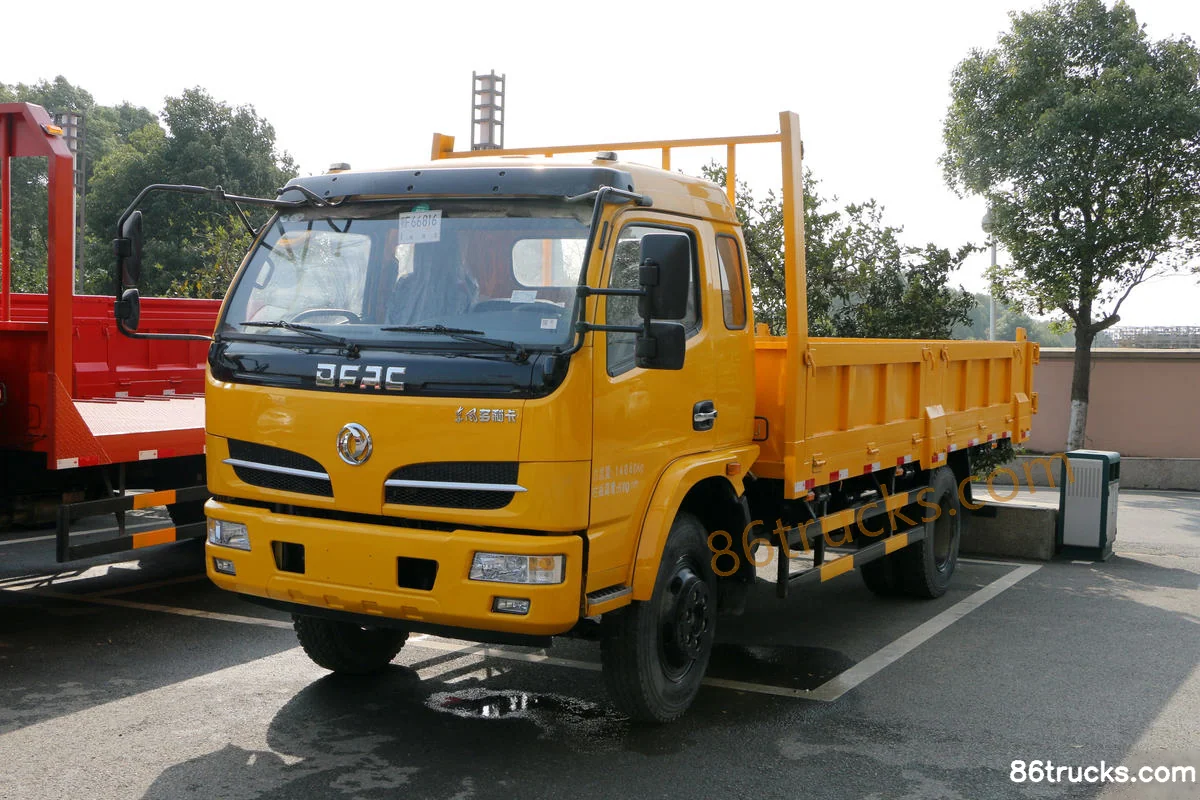

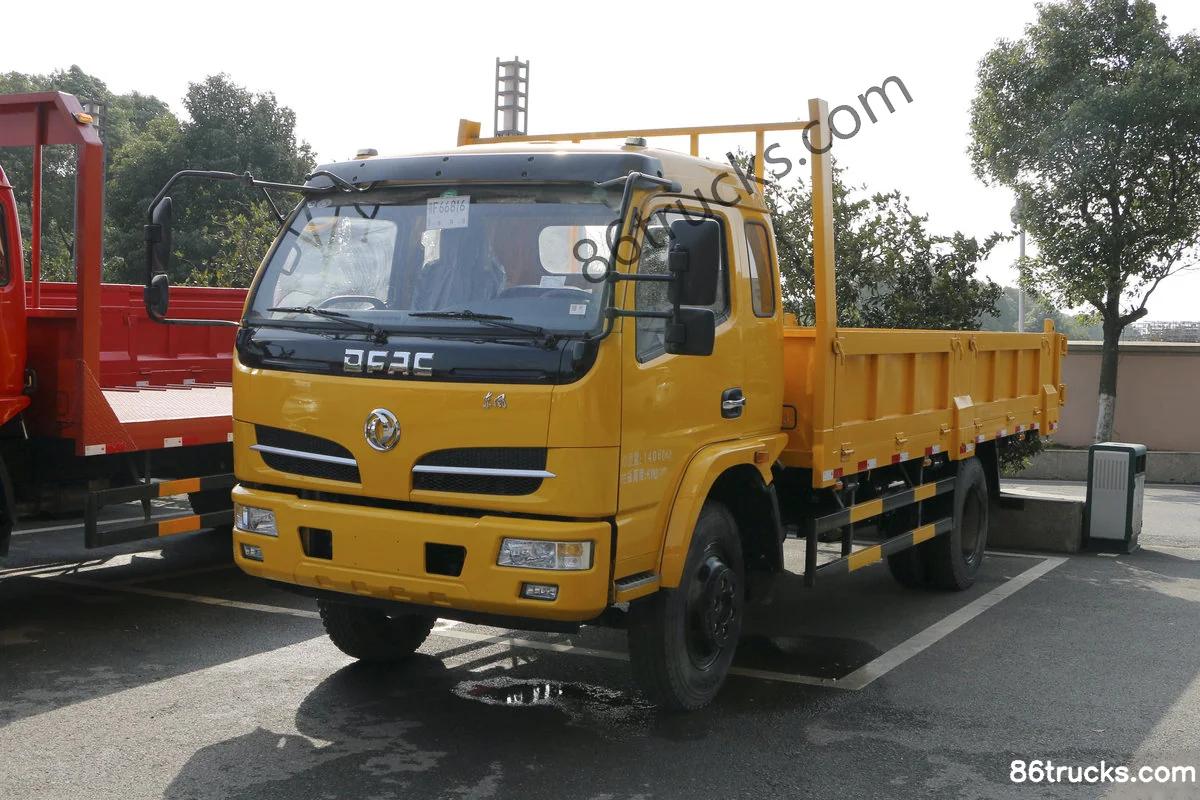

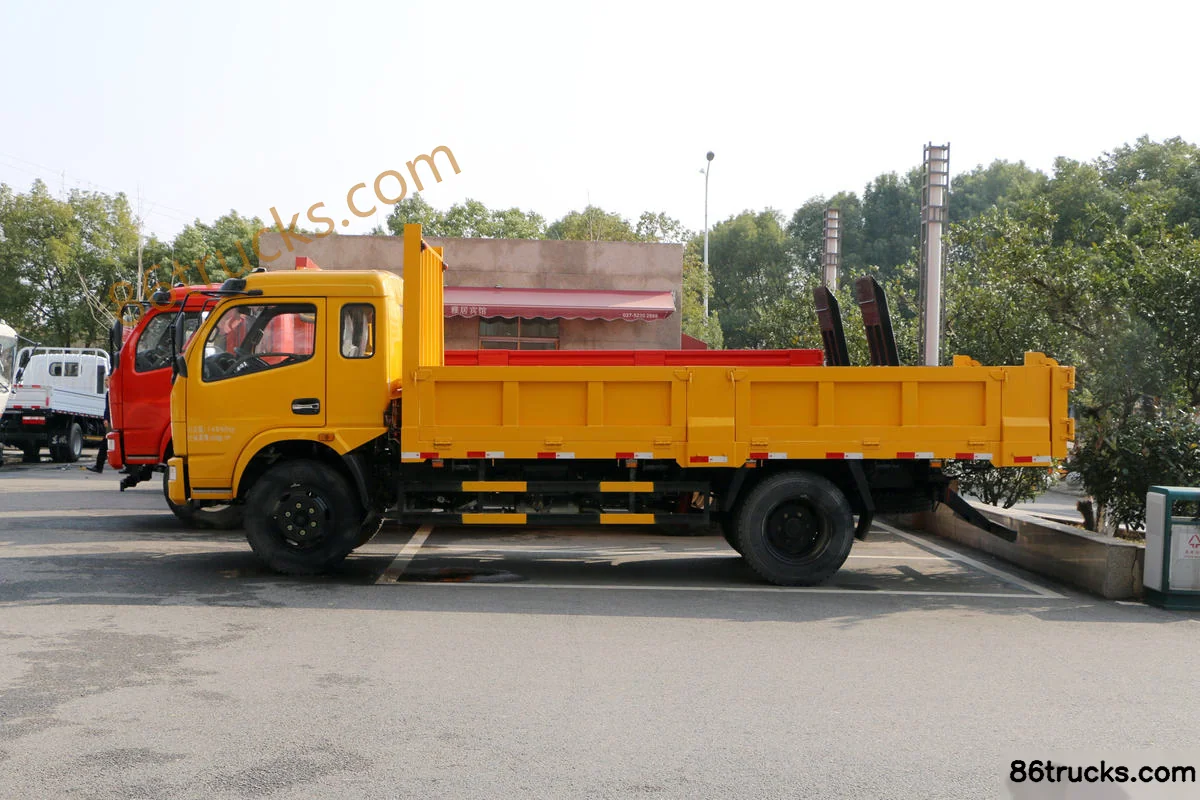

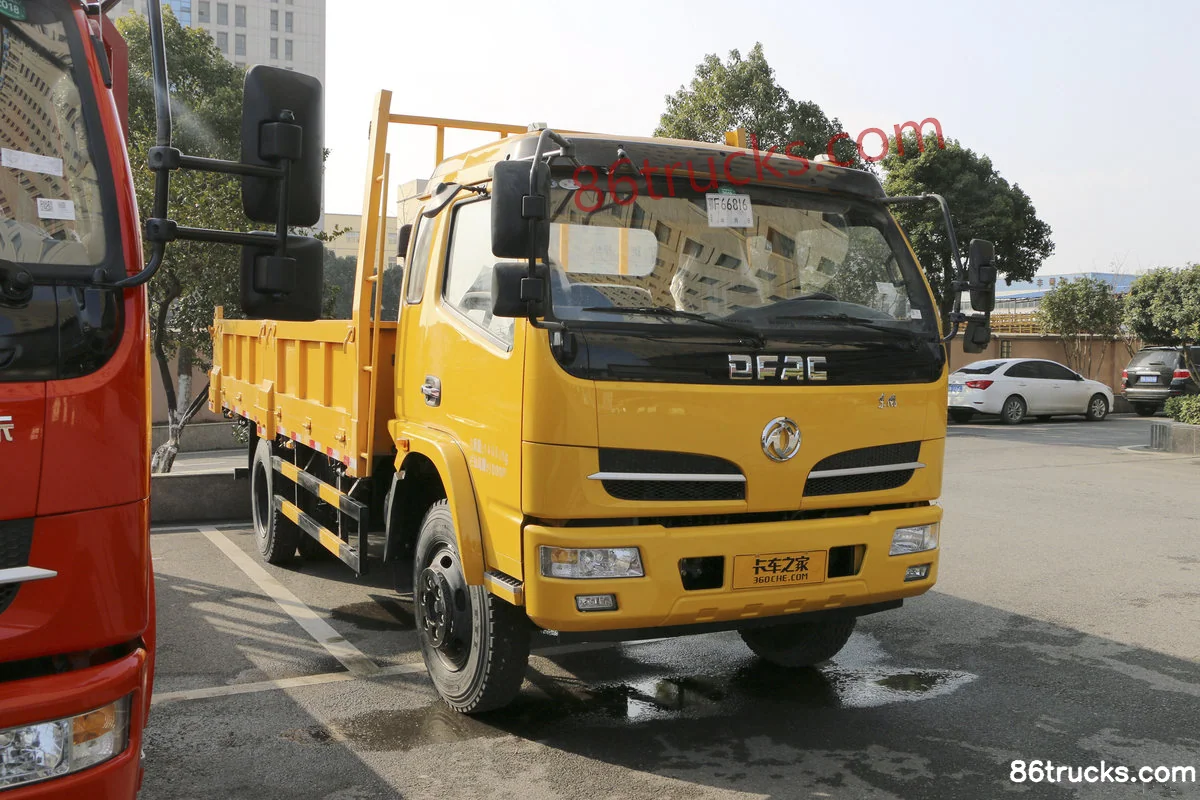

Exterior3

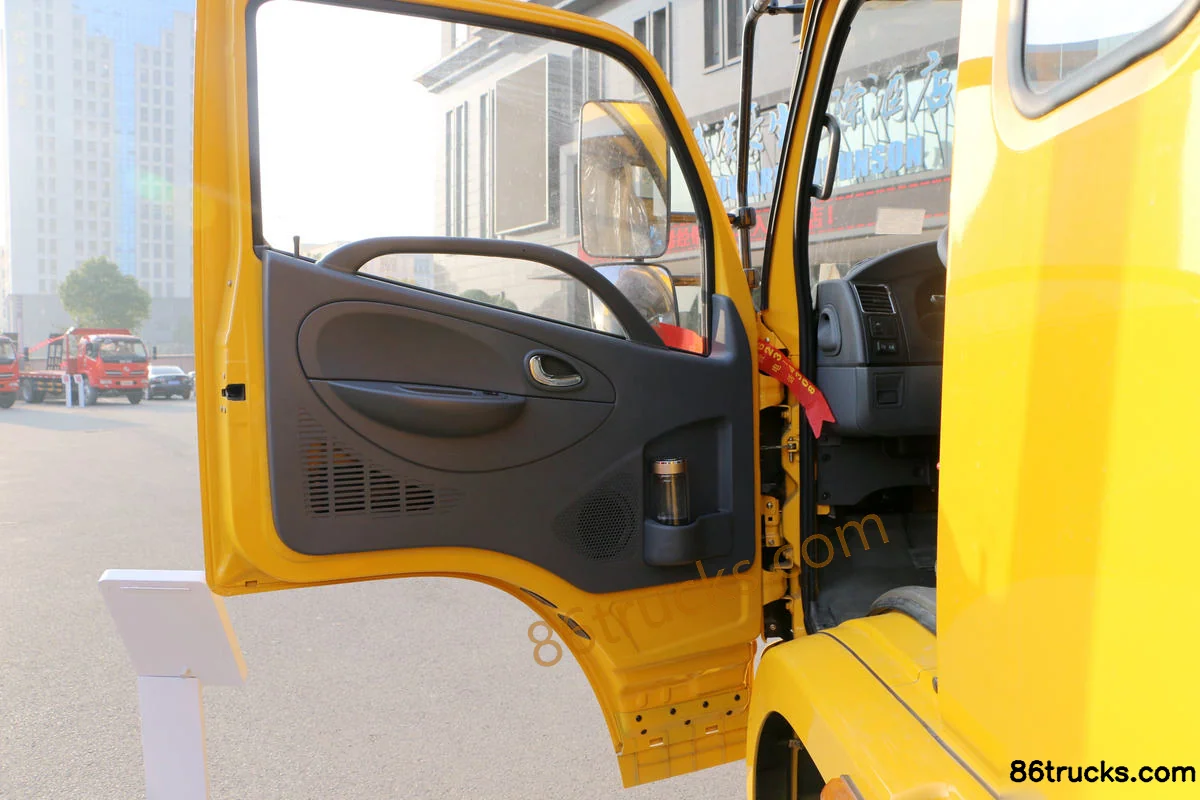

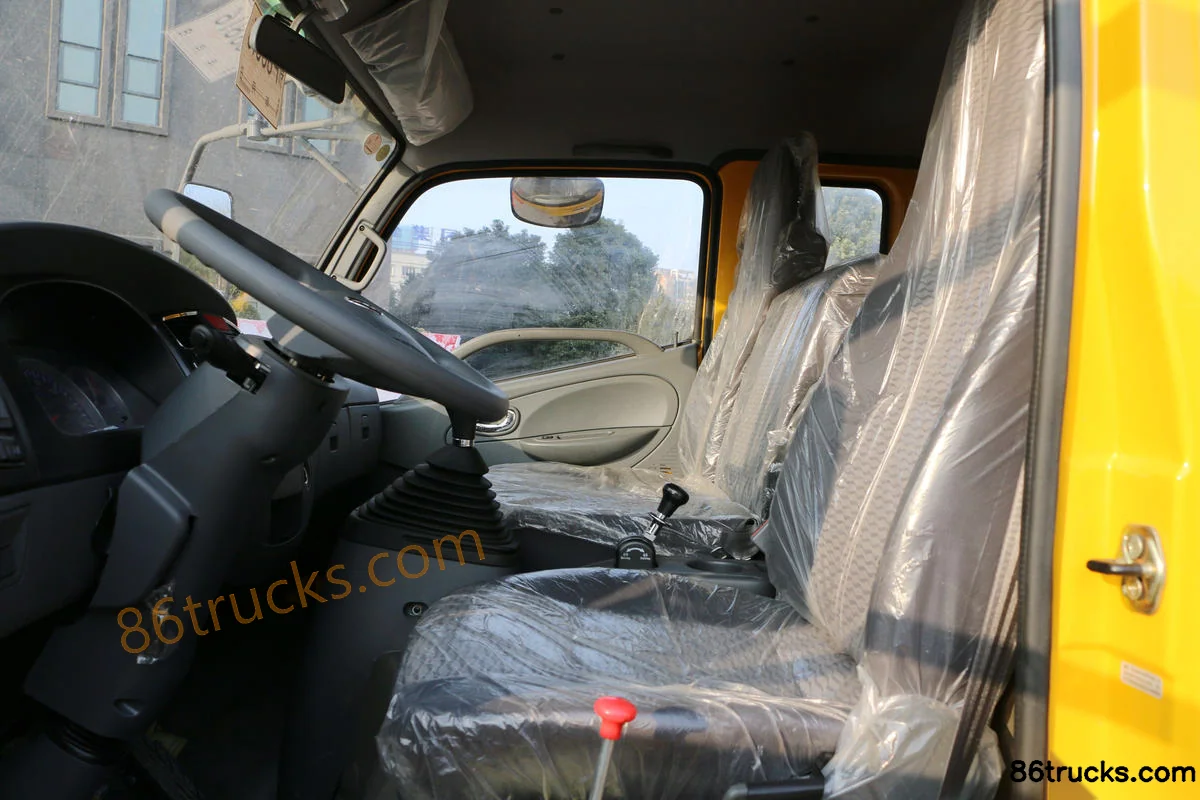

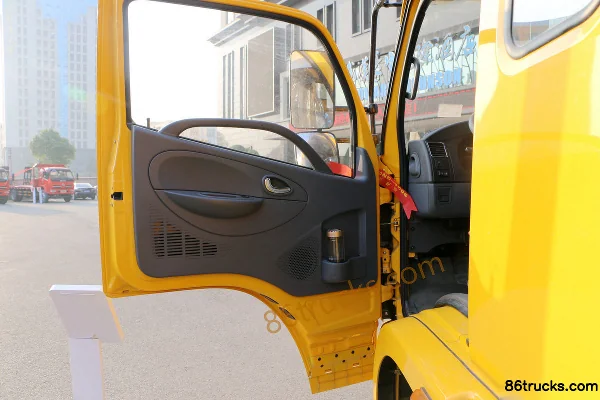

Cab3

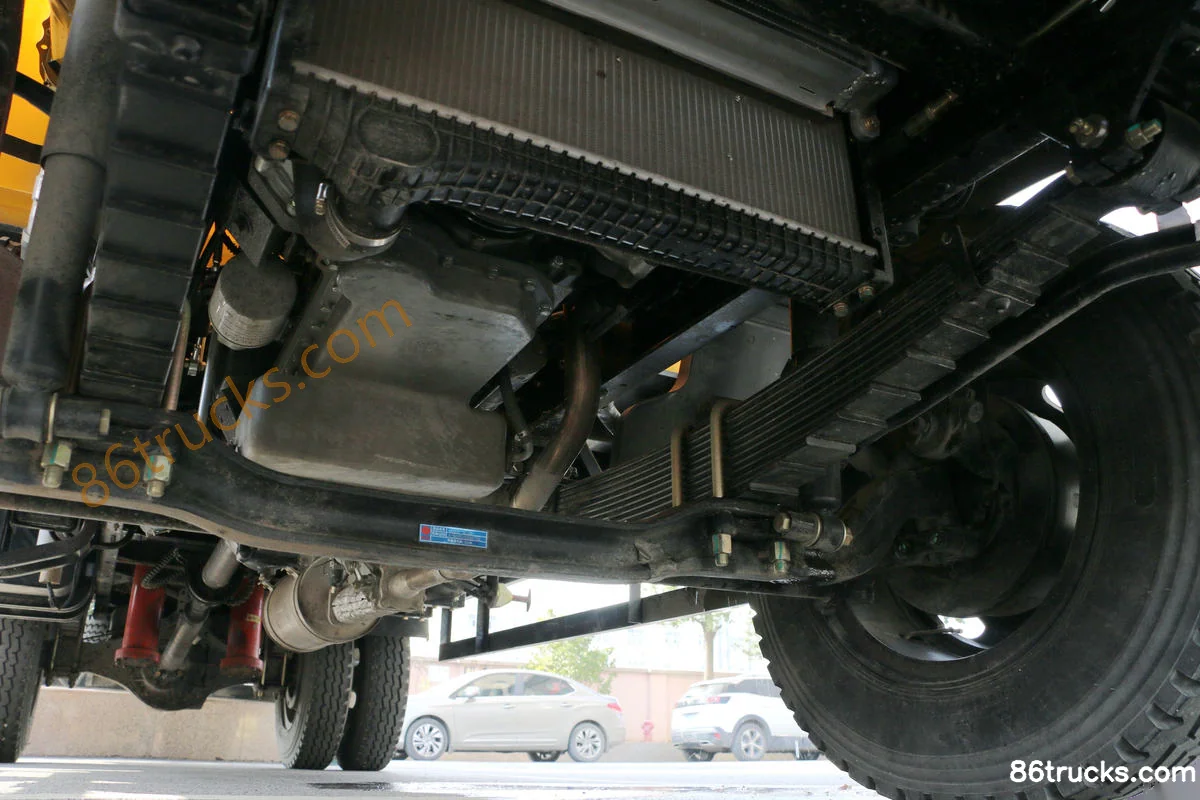

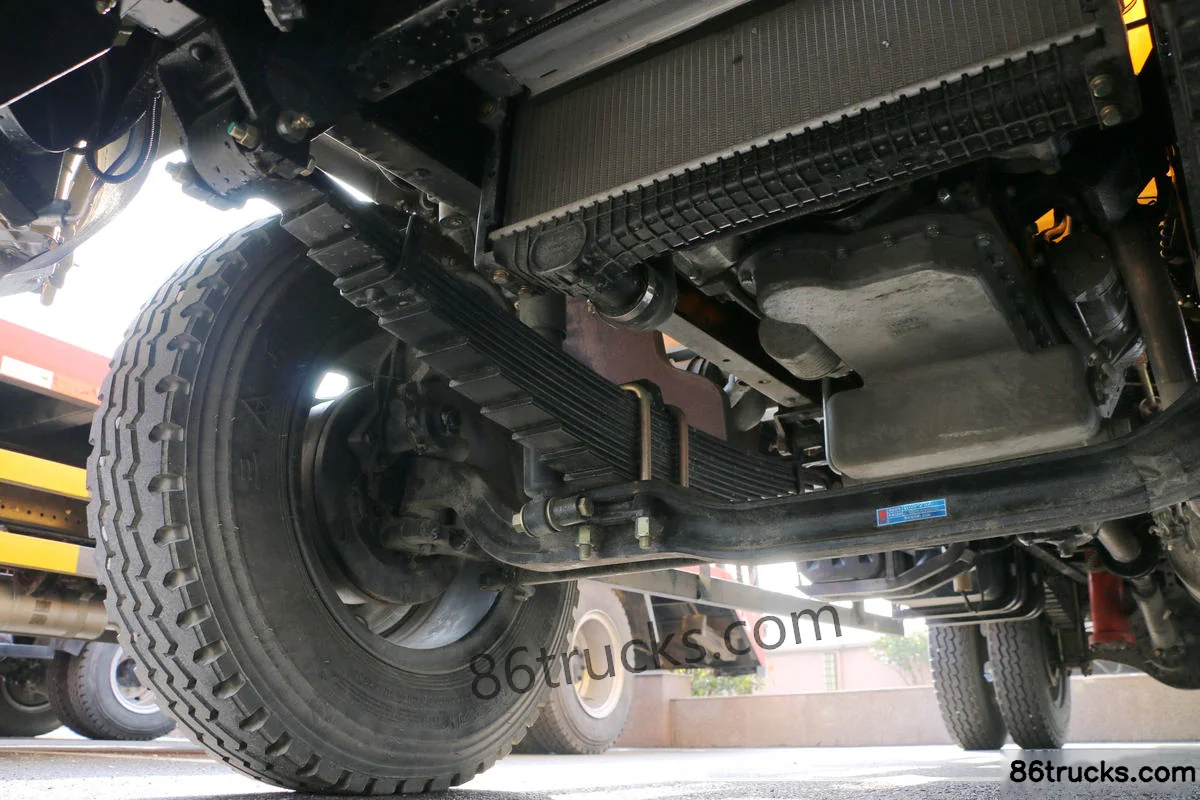

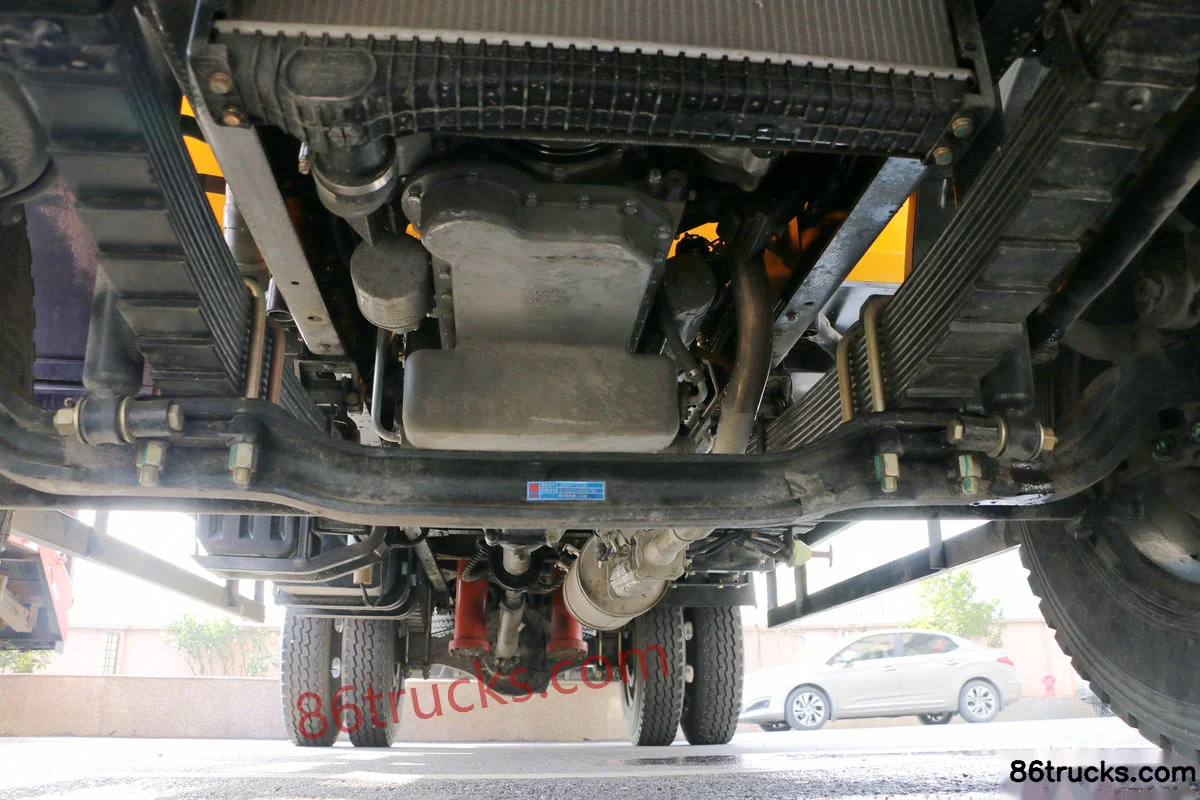

Chassis3

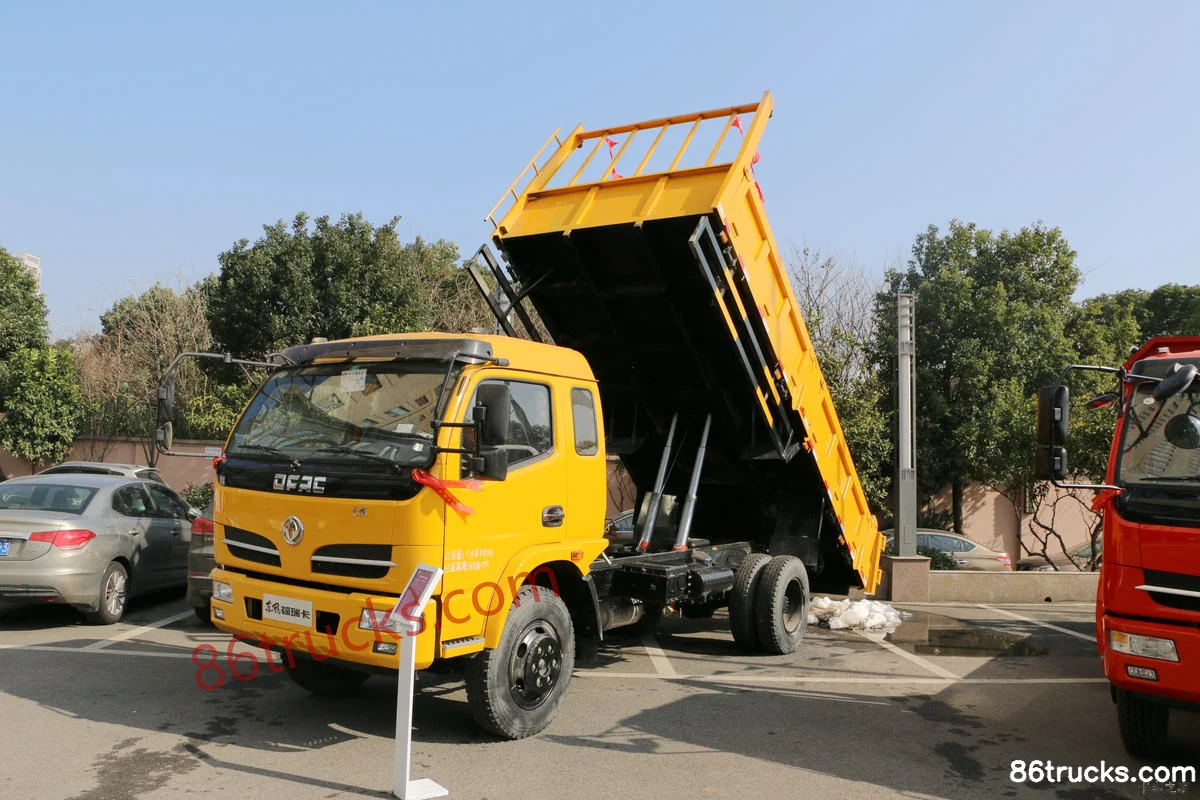

Body3

12 photos

FAQ

What is the export price of Dongfeng Furuika R7 143hp 4X2(6 wheels) 5.1m dump truck, and what does it include?

Dongfeng Furuika R7 143hp 4X2(6 wheels) 5.1m dump truck export reference is about From $20,139; MSRP is ¥14.5M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Dongfeng Furuika R7 143hp 4X2(6 wheels) 5.1m dump truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng Furuika R7 143hp 4X2(6 wheels) 5.1m dump truck?

Key specs of Dongfeng Furuika R7 143hp 4X2(6 wheels) 5.1m dump truck: Drive: 4x2; Horsepower: 140 hp; Emission: China V; Fuel: Diesel; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Furuika R7 143hp 4X2(6 wheels) 5.1m dump truck suited for?

Dongfeng Furuika R7 143hp 4X2(6 wheels) 5.1m dump truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Dongfeng Furuika R7 143hp 4X2(6 wheels) 5.1m dump truck differ from other variants in the same series?

Dongfeng Furuika R7 143hp 4X2(6 wheels) 5.1m dump truck belongs to DongfengR7 (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Furuika R7 143hp 4X2(6 wheels) 5.1m dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Furuika R7 143hp 4X2(6 wheels) 5.1m dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
