Feidi T1 Series 2023 Model 110hp 4X2(6 wheels) 3.2m dump truck (China VI)

Export reference
From $15,972
MSRP ¥11.5M CNY
Emission: China VI
Fuel: Diesel
Transmission: WLY
Curb Weight:: 2.72ton
Wheelbase:: 2860mm
Tire Size:: 7.00R16LT 8PR/245/70R19.5 12PR
Rated payload: 1.639ton
Drive 4X2 (6 wheels)
Horsepower 110
Cargo box thickness: side1 bottom1, side2 bottom3, side3 bottom5, etc.

Overview

The Feidi T1 Series 2023 Model 110hp 4X2(6 wheels) 3.2m dump truck (China VI) is a Light Truck featuring 1.639t payload, 4.489t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a XichaiCA4DB1-11E6 engine, 110 hp, China VI emissions and WLY transmission.

China VI 110 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): FD3048W16K6-2
Drive type: 4X2
Wheelbase: 2860mm
engine: XichaiCA4DB1-11E6
transmission: WLYWLY10H35
Rear Axle Ratio: 6.617
Cab length: 4.995m
Cab width: 2m
Cab height: 2.145m
Front track width: 1485mm
rear track: 1545mm
Curb Weight: 2.72ton
Rated payload: 1.639ton
GVWR: 4.489ton
Origin: Hangzhou, Zhejiang
tonnage class: Light Truck
Approach angle: 22°
departure angle: 18°
Remarks: Standard: clutch booster, power steering, digital instrument cluster, halogen headlights
Version: 2023 Model
Energy Type: Diesel
Engine parameters
Engine Brand: Xichai
Engine Model: XichaiCA4DB1-11E6
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.2L
Emission standard: China VI
Max output power: 81kW
Max hp: 110Horsepower
Max torque: 280N·m
Max torque speed: 1600-2400rpm
Rated speed: 3200rpm
Transmission Parameters
Transmission Model: WLYWLY10H35
Transmission Brand: WLY
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
hydraulic cylinder brand & model: 100、110
Cargo box thickness: side1 bottom1, side2 bottom3, side3 bottom5, etc.
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 3.2m
Cargo box width: 1.8m
Cargo box height: 0.65m
Cargo box material: Q235A, CR780/980MS, etc.
Body Parameters
Lifting type: Tilt cab
Cab parameters
Cab: Aochi T1
Cab width: 1730mm
seating capacity: 2Personnel
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 80L
Chassis Specs
Front axle description: 2T
Front axle allowable load: 1849kg
rear axle description: 4T
rear axle allowable load: 2640kg
Axle ratio: 6.617
Leaf spring count: 5/7+6
Aluminum wheels:
Tire
Tire Size: 7.00R16LT 8PR/245/70R19.5 12PR
Number of tires: 4pcs
Control configuration
ABS:
interior configuration
steering wheel adjustment: Manual
AC control type: Manual

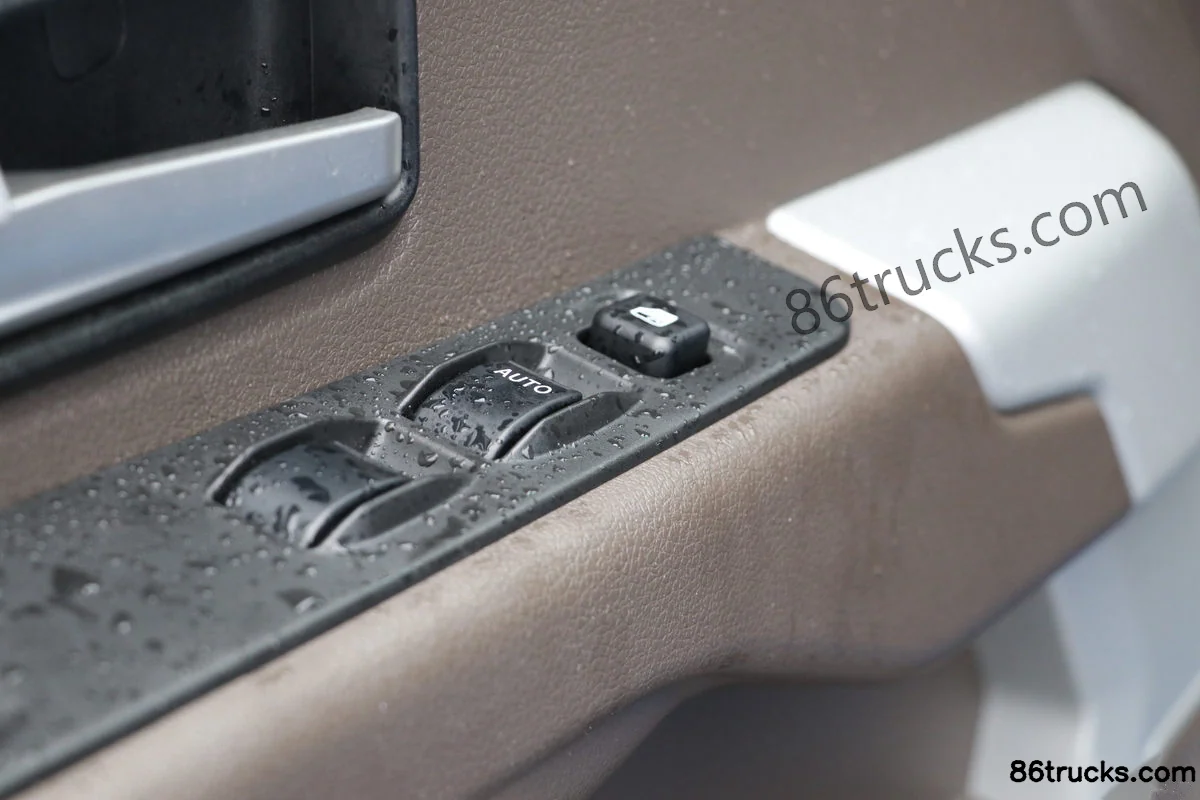

Power Windows:
Electronic Central Lock:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
Radio:
lighting configuration
Front fog lamp:
daytime running lights:
Headlight height adjustment:
Service brake
Parking brake: Spring brake

Photos

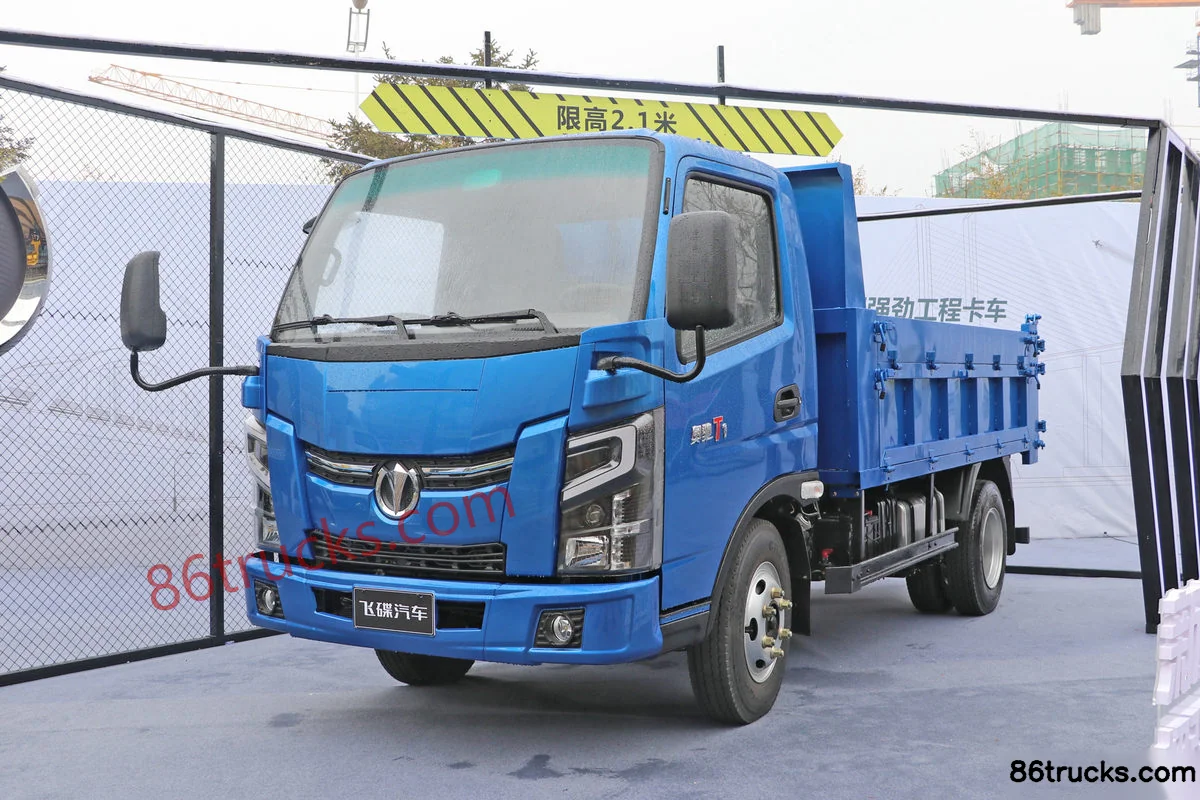

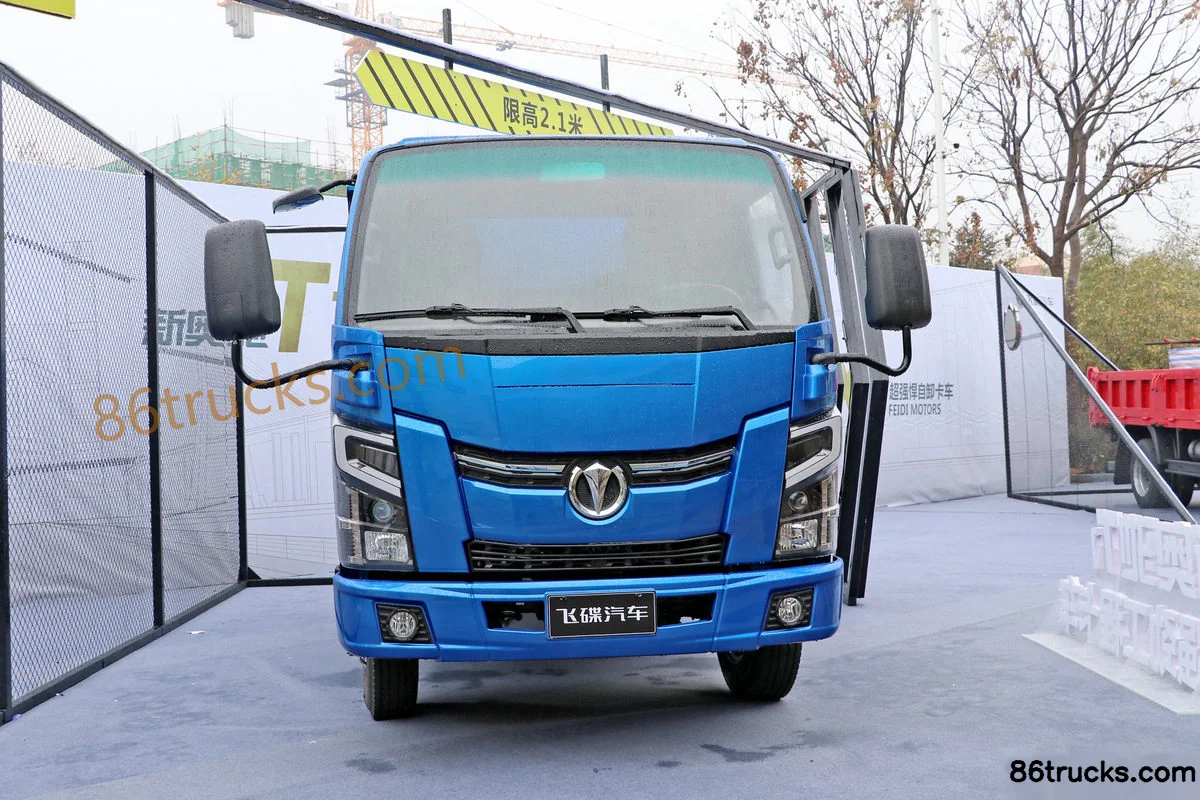

Exterior3

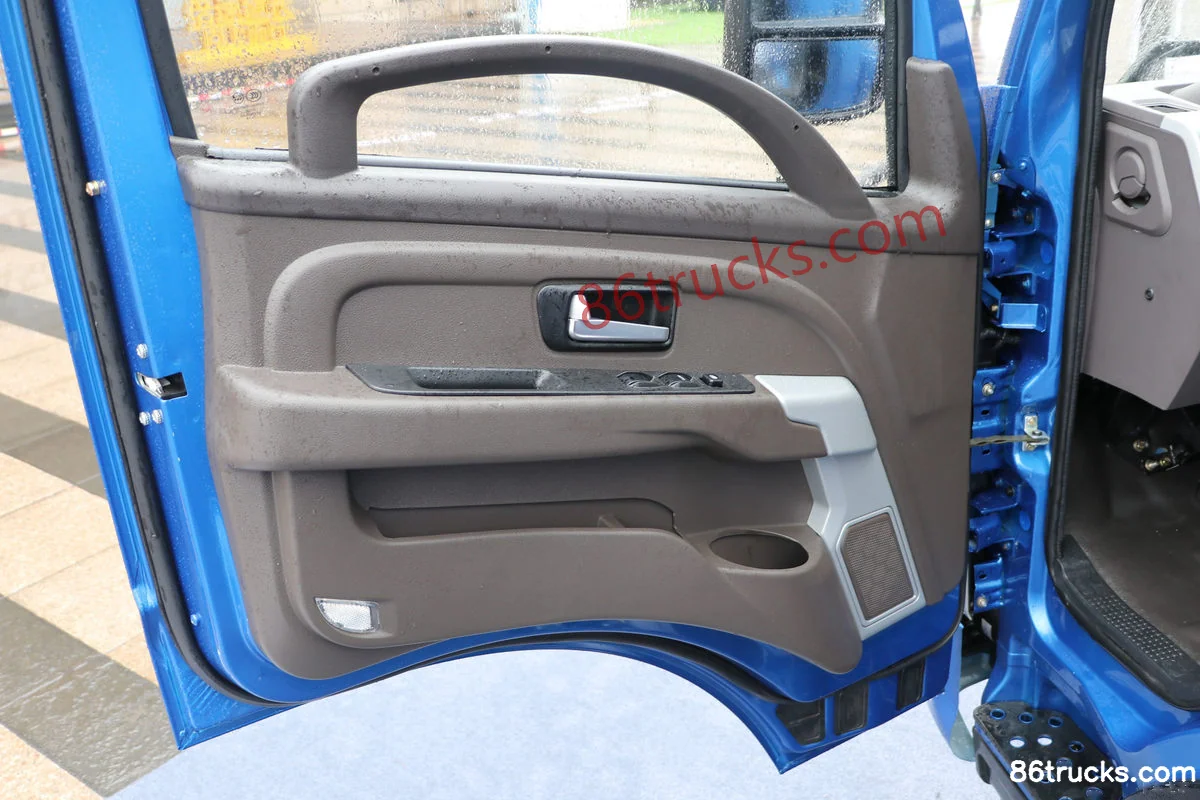

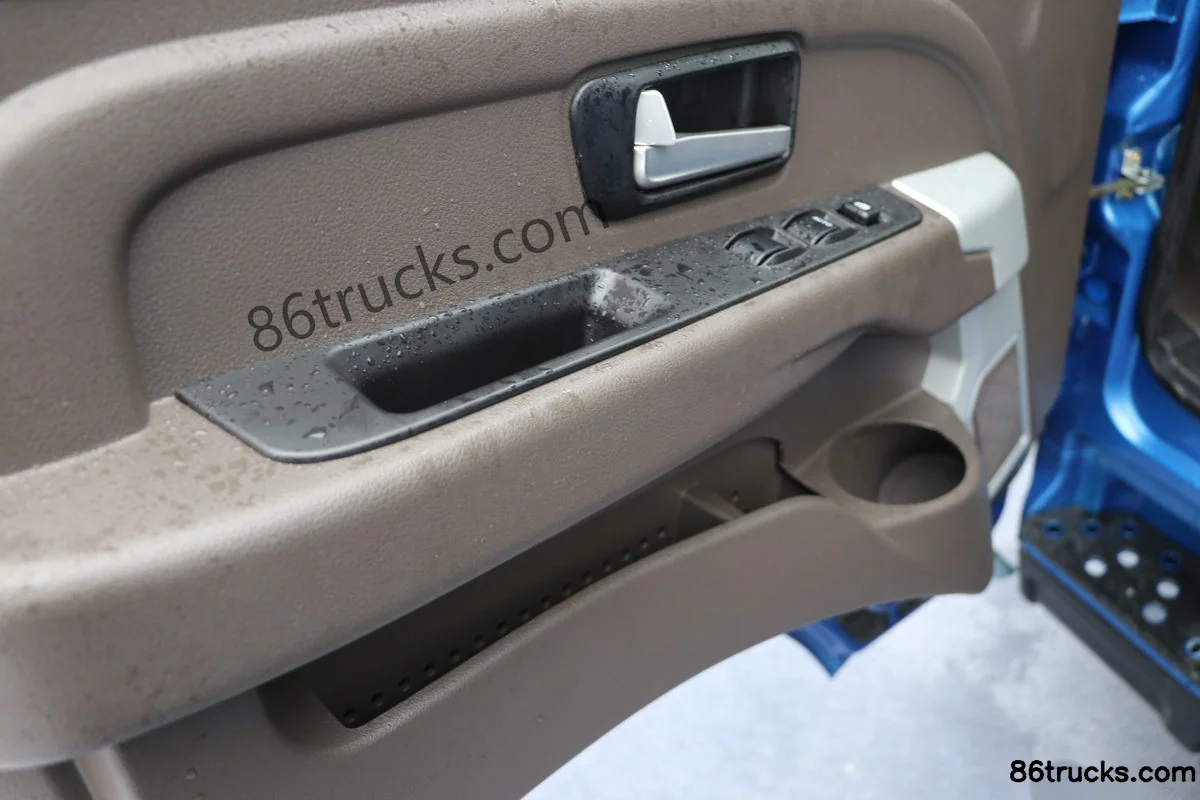

Cab3

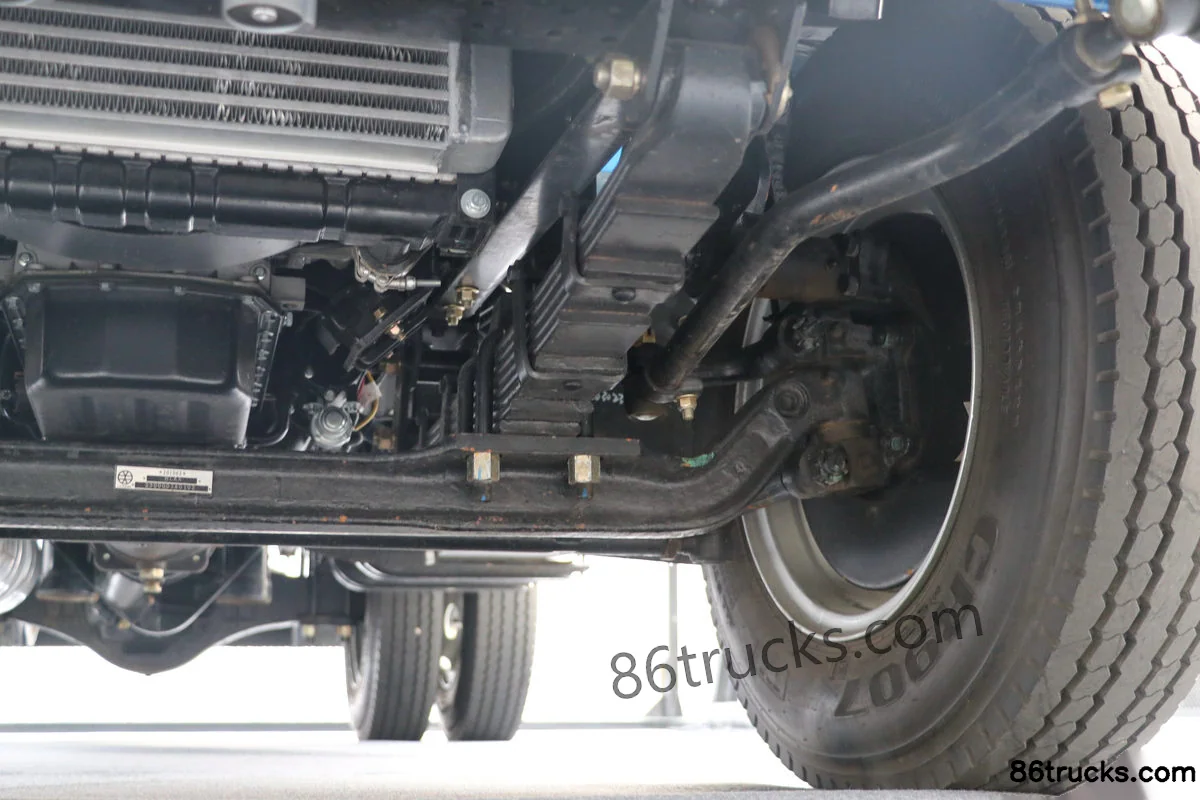

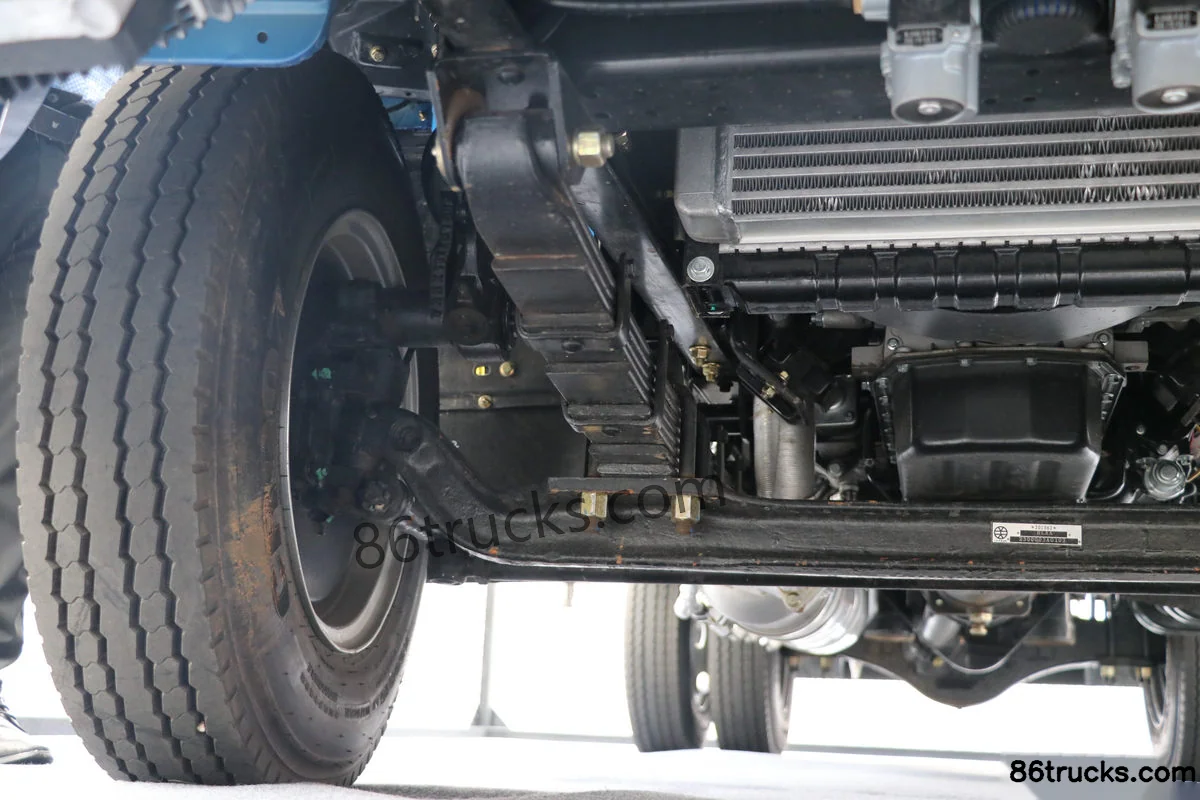

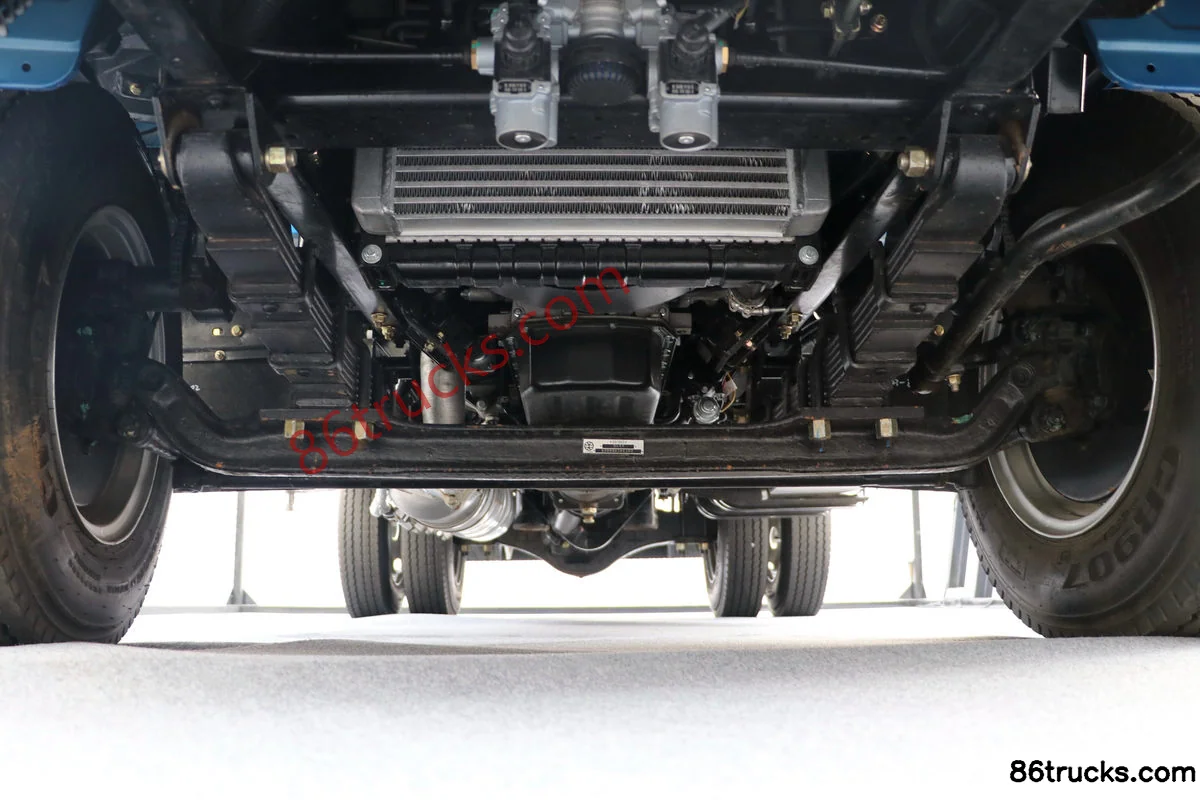

Chassis3

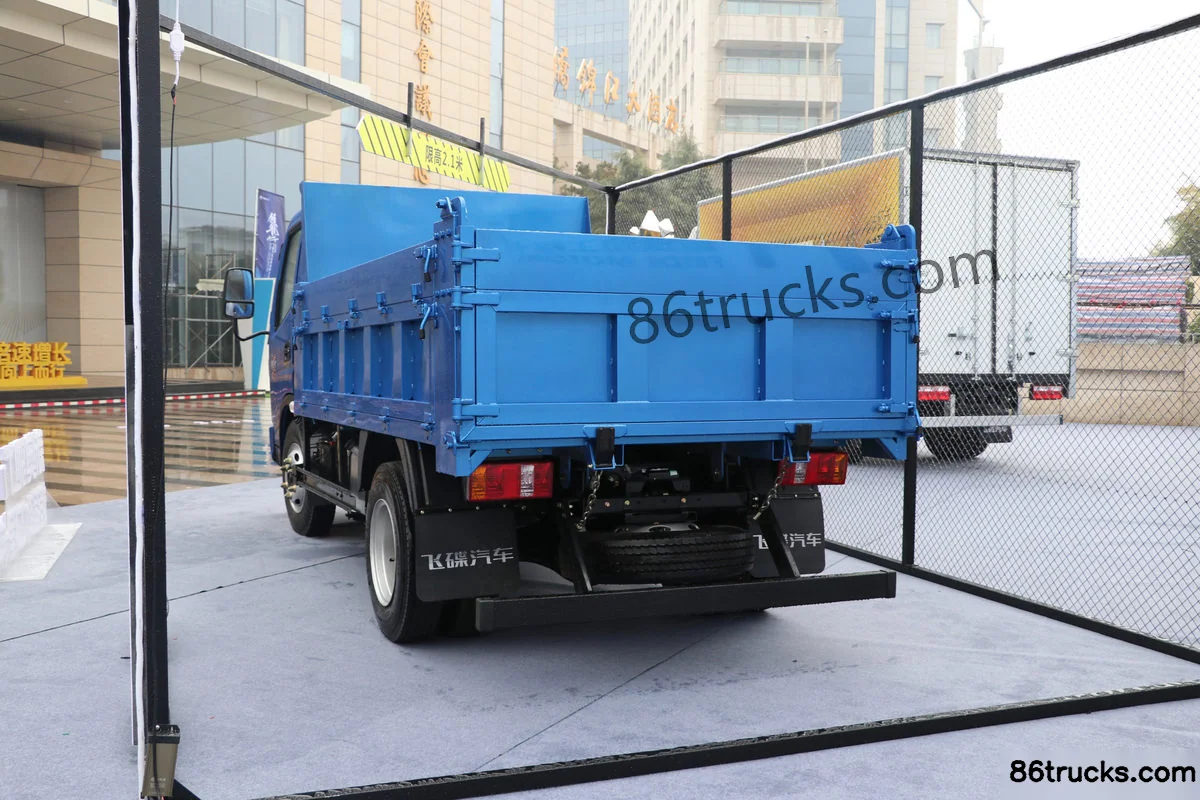

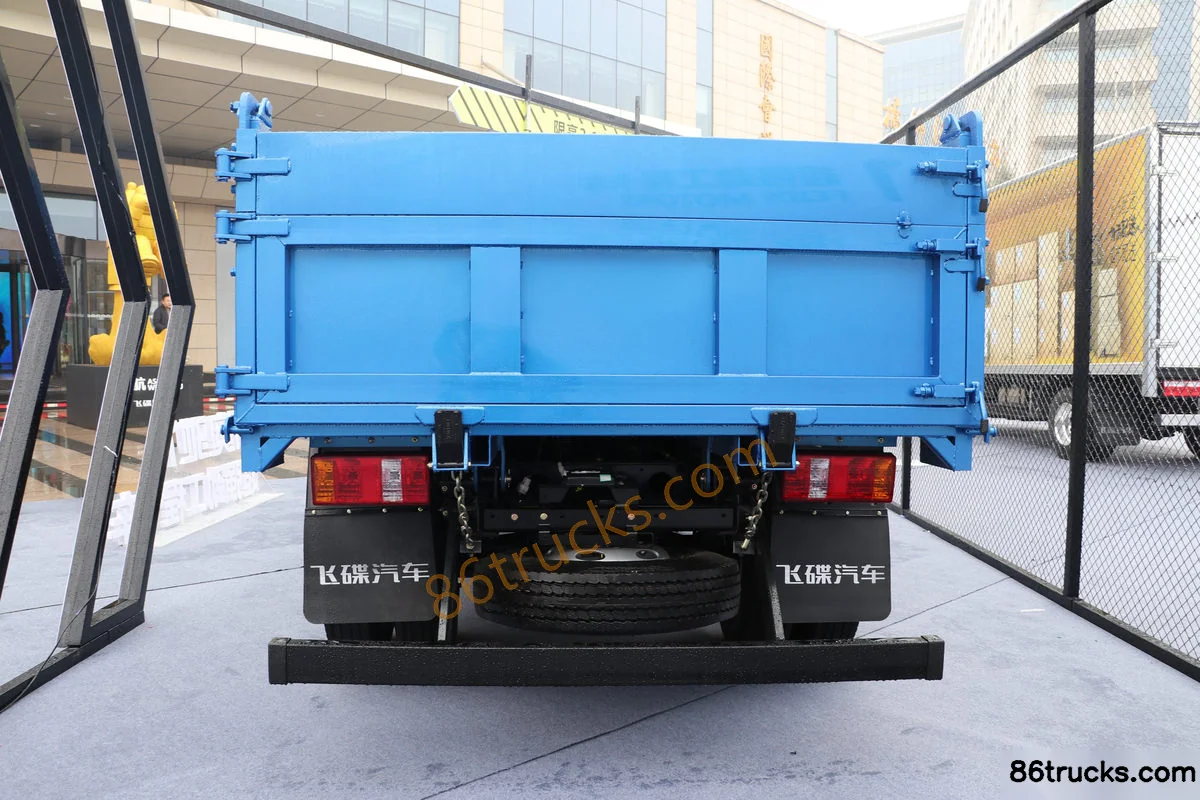

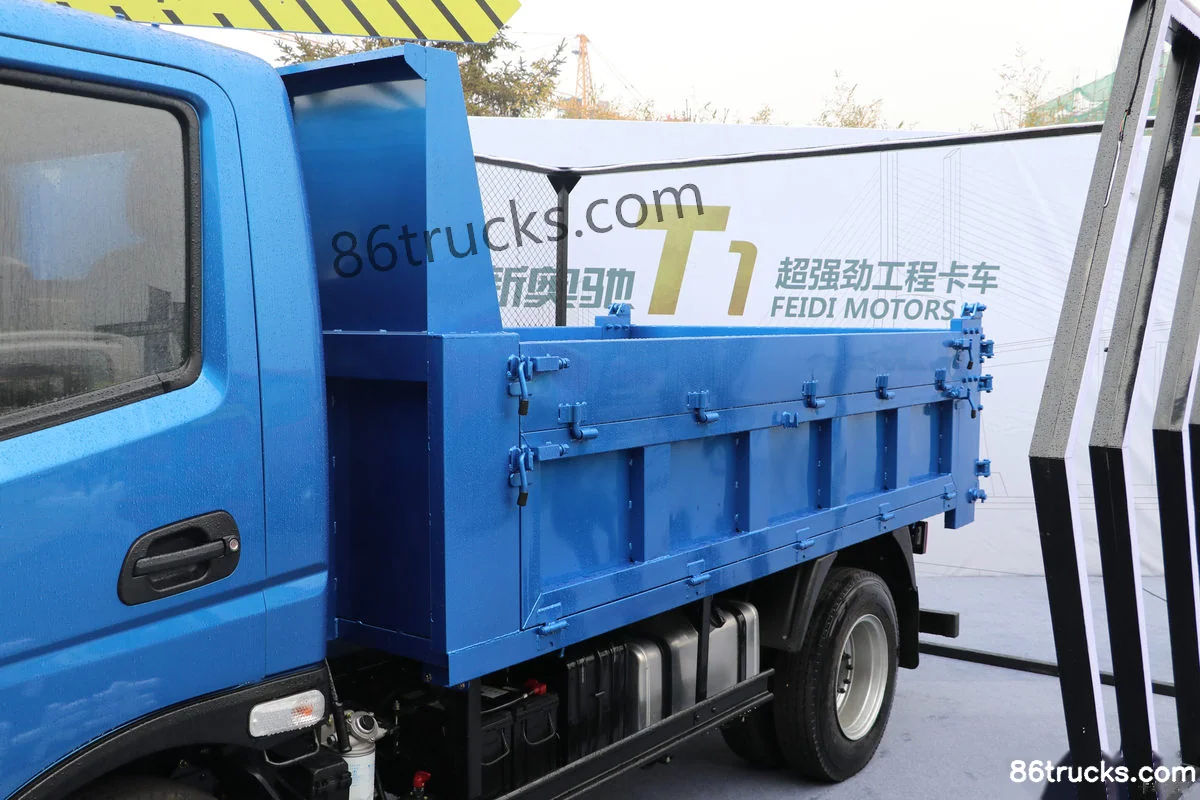

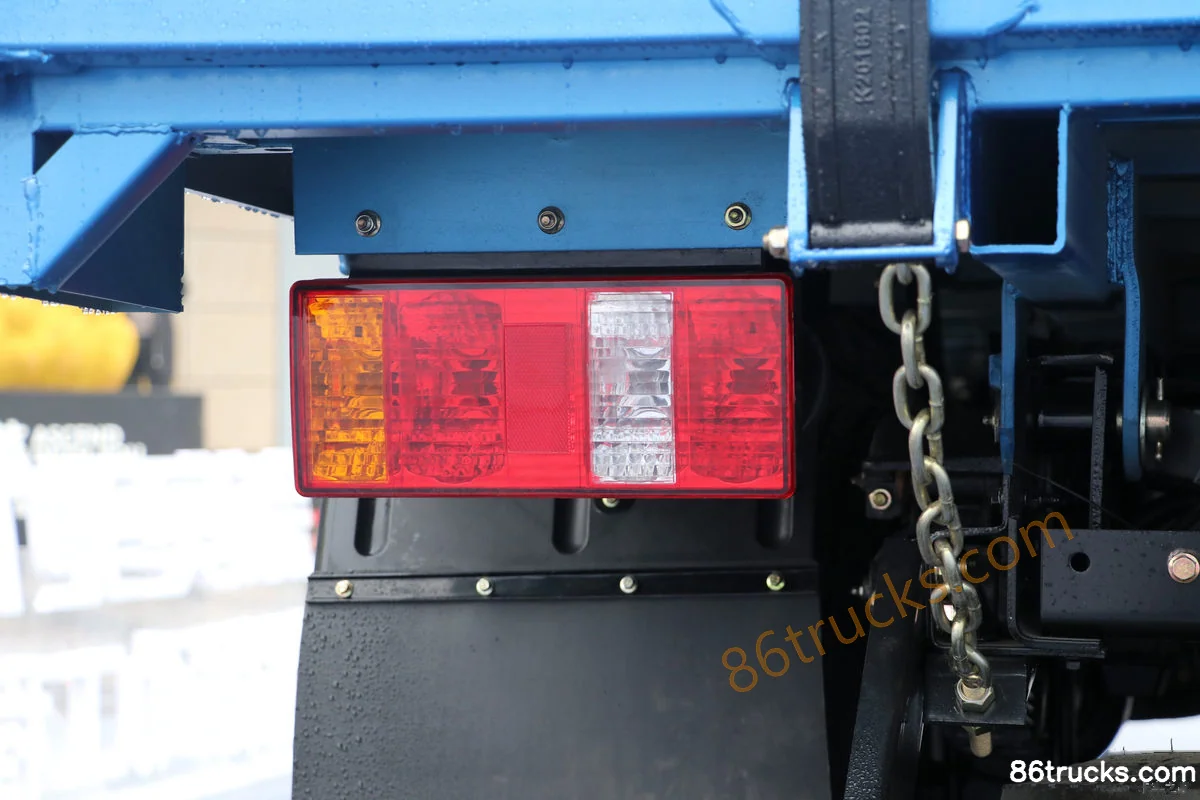

Body3

12 photos

FAQ

What is the export price of Feidi T1 Series 2023 Model 110hp 4X2(6 wheels) 3.2m dump truck (China VI), and what does it include?

Feidi T1 Series 2023 Model 110hp 4X2(6 wheels) 3.2m dump truck (China VI) export reference is about From $15,972; MSRP is ¥11.5M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Feidi T1 Series 2023 Model 110hp 4X2(6 wheels) 3.2m dump truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Feidi T1 Series 2023 Model 110hp 4X2(6 wheels) 3.2m dump truck (China VI)?

Key specs of Feidi T1 Series 2023 Model 110hp 4X2(6 wheels) 3.2m dump truck (China VI): Drive: 4x2; Horsepower: 110 hp; Emission: China VI; Fuel: Diesel; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Feidi T1 Series 2023 Model 110hp 4X2(6 wheels) 3.2m dump truck (China VI) suited for?

Feidi T1 Series 2023 Model 110hp 4X2(6 wheels) 3.2m dump truck (China VI) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Feidi T1 Series 2023 Model 110hp 4X2(6 wheels) 3.2m dump truck (China VI) differ from other variants in the same series?

Feidi T1 Series 2023 Model 110hp 4X2(6 wheels) 3.2m dump truck (China VI) belongs to Feidi Jinniu X3 (formerly Aochi T series) light truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Feidi T1 Series 2023 Model 110hp 4X2(6 wheels) 3.2m dump truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Feidi T1 Series 2023 Model 110hp 4X2(6 wheels) 3.2m dump truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
