GAC HINO 700 Series 350 hp 6X4(10 wheels) Concrete Mixer Truck (CIMC Brand)

Export reference
MSRP N/A
Curb Weight:: 14.38ton
Wheelbase:: 3640+1410mm
Tire Size:: 11.00-20,11.00R20
Cab dimensions:: 9.23×2.5×3.85m
Truck Type:: concrete mixer truck
Front/rear track width:: Front track: 2060, Rear track: 1855/1855mm
Rated payload: 10.49ton
Drive 6X4 (10 wheels)
Horsepower 350
Emission China III / Euro III

Overview

The GAC HINO 700 Series 350 hp 6X4(10 wheels) Concrete Mixer Truck (CIMC Brand) is a concrete mixer truck featuring 10.49t payload, 14.38ton GVW, 6X4 (10 wheels) drive and 9.23×2.5×3.85m cab. On the powertrain side, it comes with 350 hp and China III / Euro III emissions.

China III / Euro III 350 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 9.23×2.5×3.85m
Drive type: 6X4
Truck Type: concrete mixer truck
Wheelbase: 3640+1410mm
Front/rear track width: Front track: 2060, Rear track: 1855/1855mm
Vehicle origin: Henan
Curb Weight: 14.38ton
Rated payload: 10.49ton
Max. speed: 90km/h
Front/rear suspension: 1.41/2.86m
Body Parameters
Water tank capacity: 450L
Feed rate: ≥3m³/min
Discharge speed: ≥2m³/min
Discharge residue rate: ≤0.5%
water supply method: Air pressure water supply
Vehicle certification code: ZJV5250GJBLYYC1
Body Brand: CIMC brand
Others: Max Gradeability 25%
Engine parameters
Engine Model: Shanghai Hino P11C-UJ
Number of cylinders: 6cylinder
Displacement: 10.52L
Emission standard: China III / Euro III
Max output power: 259kW
Max hp: 350Horsepower
Engine Type: Denso electronic common rail, turbocharged intercooled
Chassis Specs
Chassis Series: GAC HINO 700 Series
Chassis Model: YC1250FS2PM
Leaf spring count: 10/13,11/13,10/14,11/14
Tire
Tire Size: 11.00-20,11.00R20
Number of tires: 10pcs

Photos

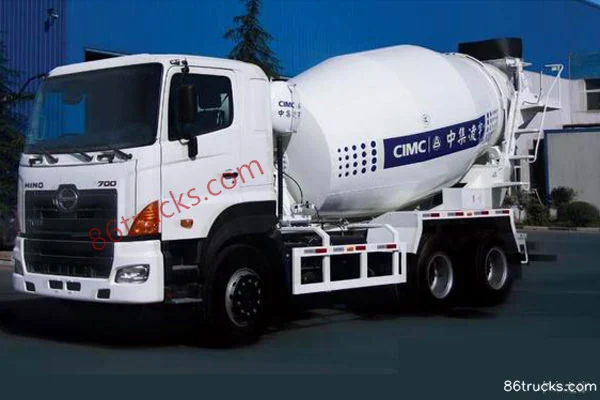

Exterior1

1 photos

FAQ

What emission standard does GAC HINO 700 Series 350 hp 6X4(10 wheels) Concrete Mixer Truck (CIMC Brand) use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of GAC HINO 700 Series 350 hp 6X4(10 wheels) Concrete Mixer Truck (CIMC Brand)?

Key specs of GAC HINO 700 Series 350 hp 6X4(10 wheels) Concrete Mixer Truck (CIMC Brand): Drive: 6x4; Horsepower: 350 hp; Emission: China III / Euro III. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is GAC HINO 700 Series 350 hp 6X4(10 wheels) Concrete Mixer Truck (CIMC Brand) suited for?

GAC HINO 700 Series 350 hp 6X4(10 wheels) Concrete Mixer Truck (CIMC Brand) is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does GAC HINO 700 Series 350 hp 6X4(10 wheels) Concrete Mixer Truck (CIMC Brand) differ from other variants in the same series?

GAC HINO 700 Series 350 hp 6X4(10 wheels) Concrete Mixer Truck (CIMC Brand) belongs to CIMC GAC HINO Chassis (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for GAC HINO 700 Series 350 hp 6X4(10 wheels) Concrete Mixer Truck (CIMC Brand)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export GAC HINO 700 Series 350 hp 6X4(10 wheels) Concrete Mixer Truck (CIMC Brand)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
