JAC Kangling G6 156hp 4X2(6 wheels) 4.15m dump truck

Export reference
MSRP N/A
Emission: China V
Fuel: Diesel
Curb Weight:: 2.6ton
Wheelbase:: 3400mm
Tire Size:: 8.25R16LT 6PR
Model code (announced):: HFC3046P91K2C9V
Rated payload: 1.495ton
Drive 4X2 (6 wheels)
Horsepower 156
Cargo box type: Dump type

Overview

The JAC Kangling G6 156hp 4X2(6 wheels) 4.15m dump truck is a Light Truck featuring 1.495t payload, 4.29t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a Yunnei PowerD30TCIE1 engine, 156 hp, China V emissions and 5-speed transmission transmission.

China V 156 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC3046P91K2C9V
Drive type: 4X2
Wheelbase: 3400mm
engine: Yunnei PowerD30TCIE1
transmission: 5-speed transmission
Rear Axle Ratio: 4.875
Cab length: 5.995m
Cab width: 2.285m
Cab height: 2.4m
Front track width: 1695mm
rear track: 1705mm
Curb Weight: 2.6ton
Rated payload: 1.495ton
GVWR: 4.29ton
Origin: Hefei, Anhui
tonnage class: Light Truck
Approach angle: 22°
departure angle: 18°
Remarks: Fuel tank optional aluminum
Version: Transport type
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerD30TCIE1
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.977L
Emission standard: China V
Max output power: 115kW
Max hp: 156Horsepower
Max torque: 400N·m
Max torque speed: 1500-2700rpm
Rated speed: 3200rpm
Engine Type: 4-cylinder inline, 16-valve, DOHC, turbocharged intercooled, high-pressure common rail fuel injection
Transmission Parameters
Transmission Model: 5-speed transmission
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 4.15m
Cargo box width: 2.11m
Cargo box height: 0.55m
Cab parameters
Cab: G6
fuel tank
Fuel tank material: Iron
Fuel tank capacity: 120L
Chassis Specs
Front axle allowable load: 1540kg
rear axle allowable load: 2750kg
Axle ratio: 4.875
Leaf spring count: 9/10+8
Tire
Tire Size: 8.25R16LT 6PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

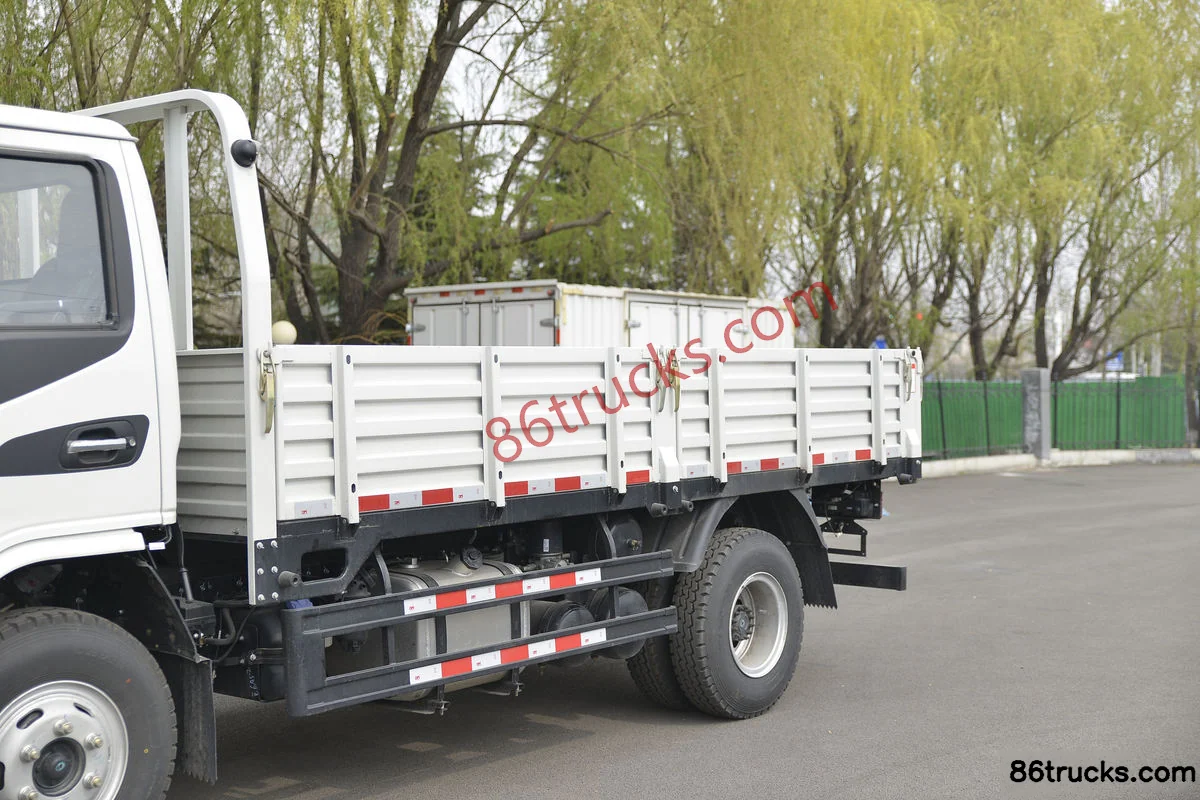

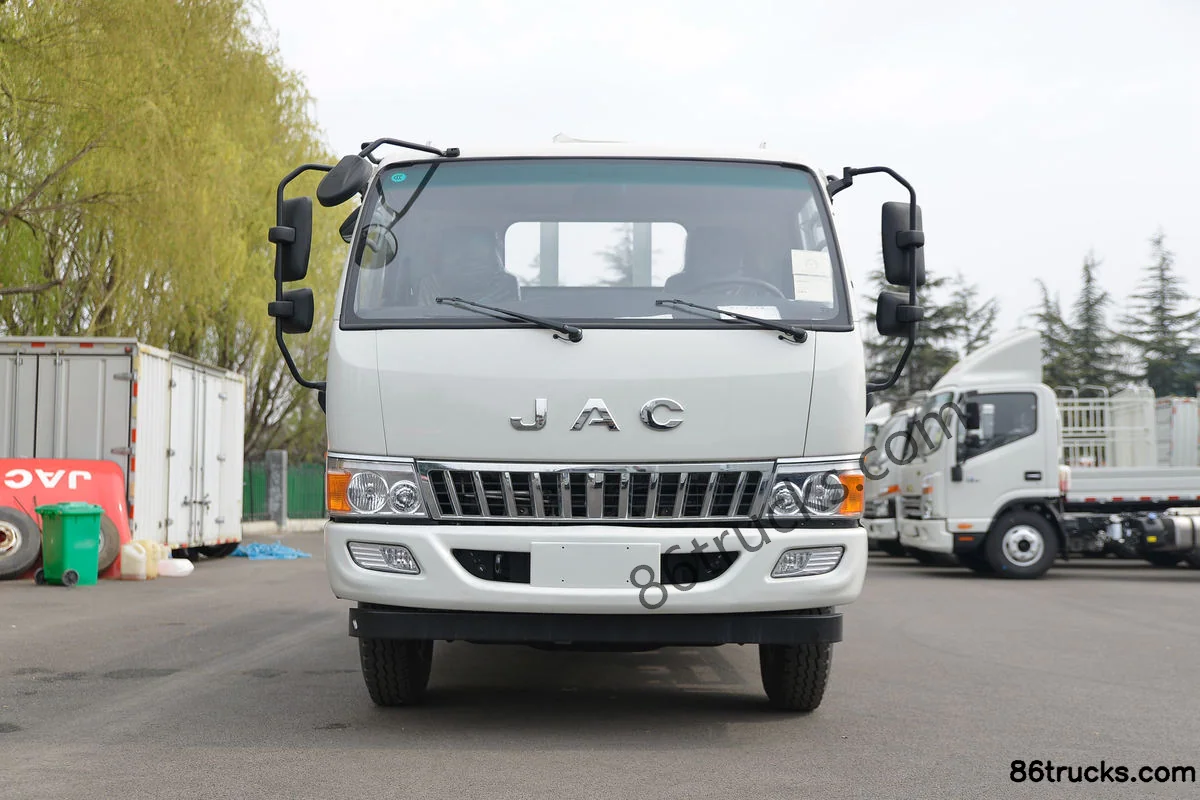

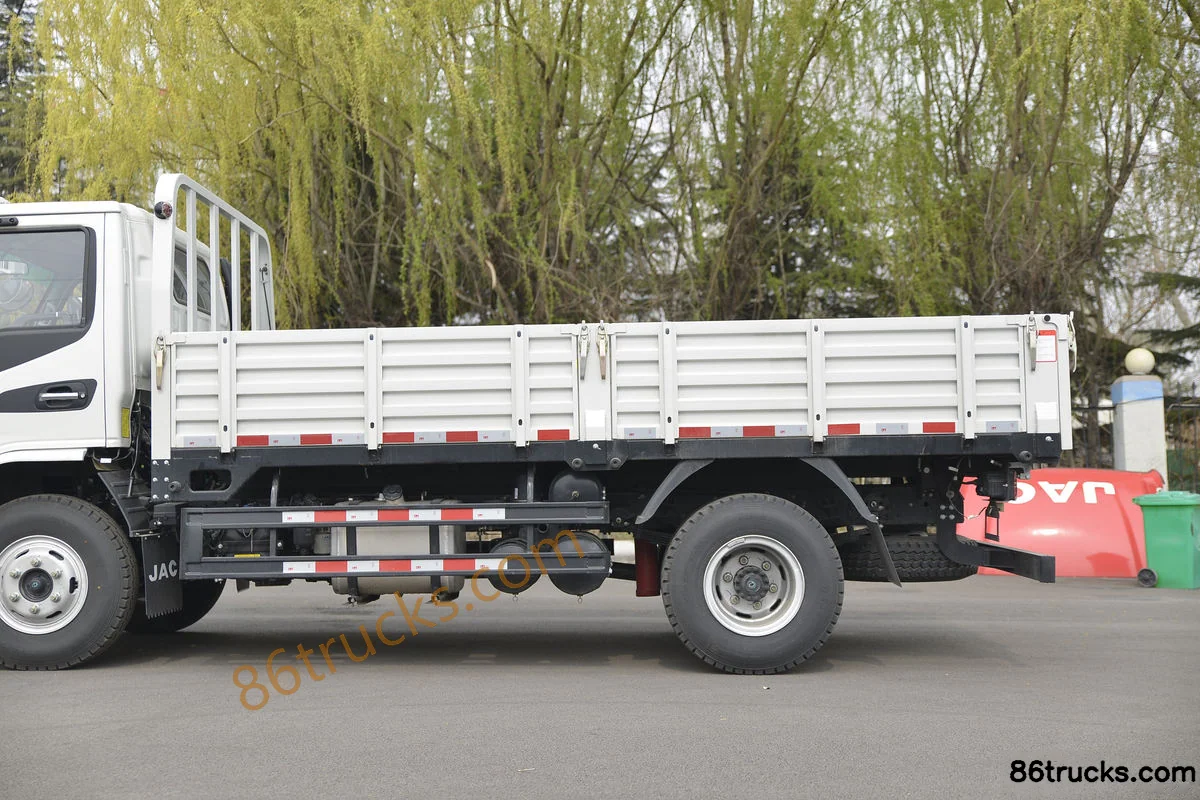

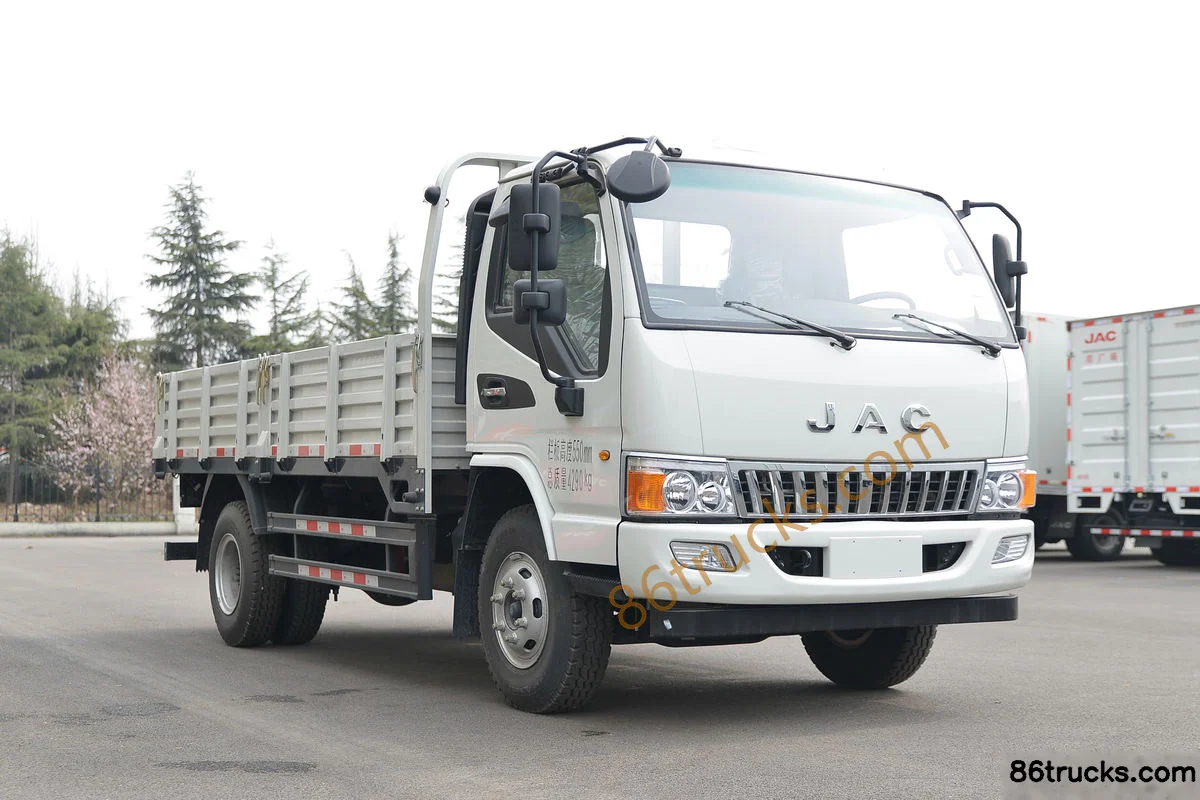

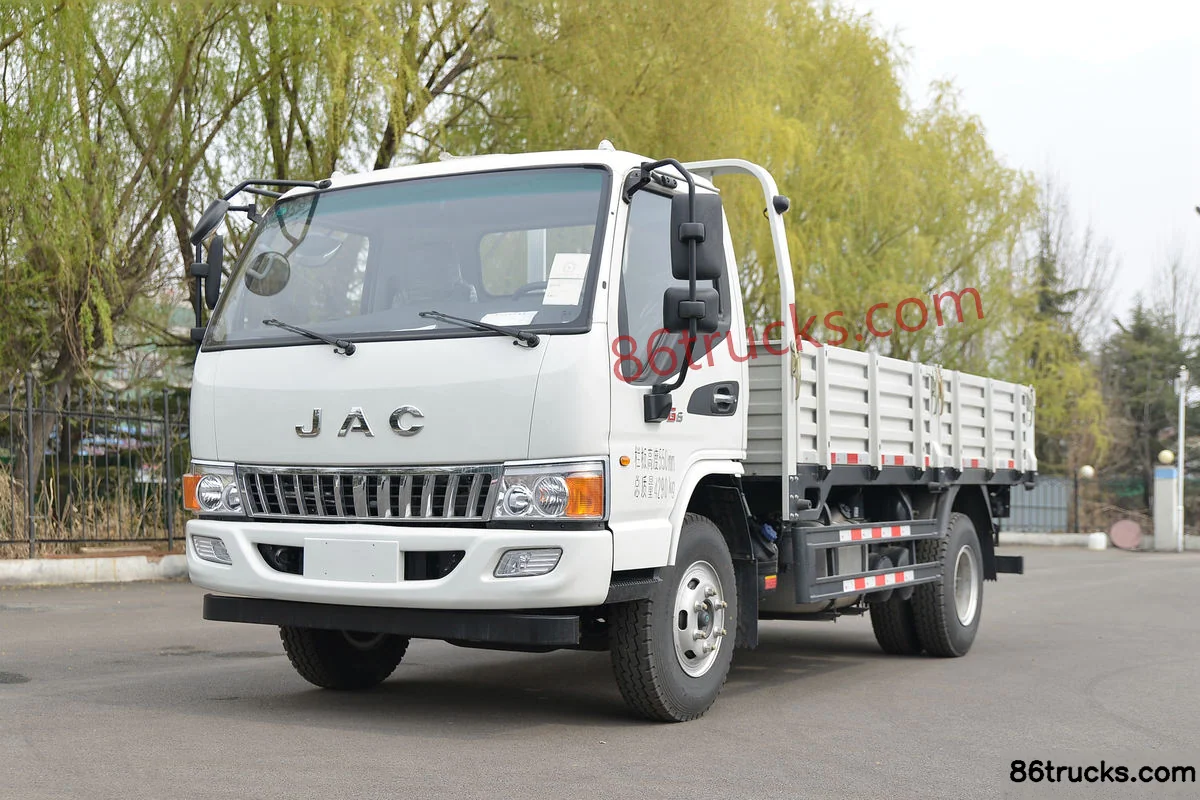

Exterior3

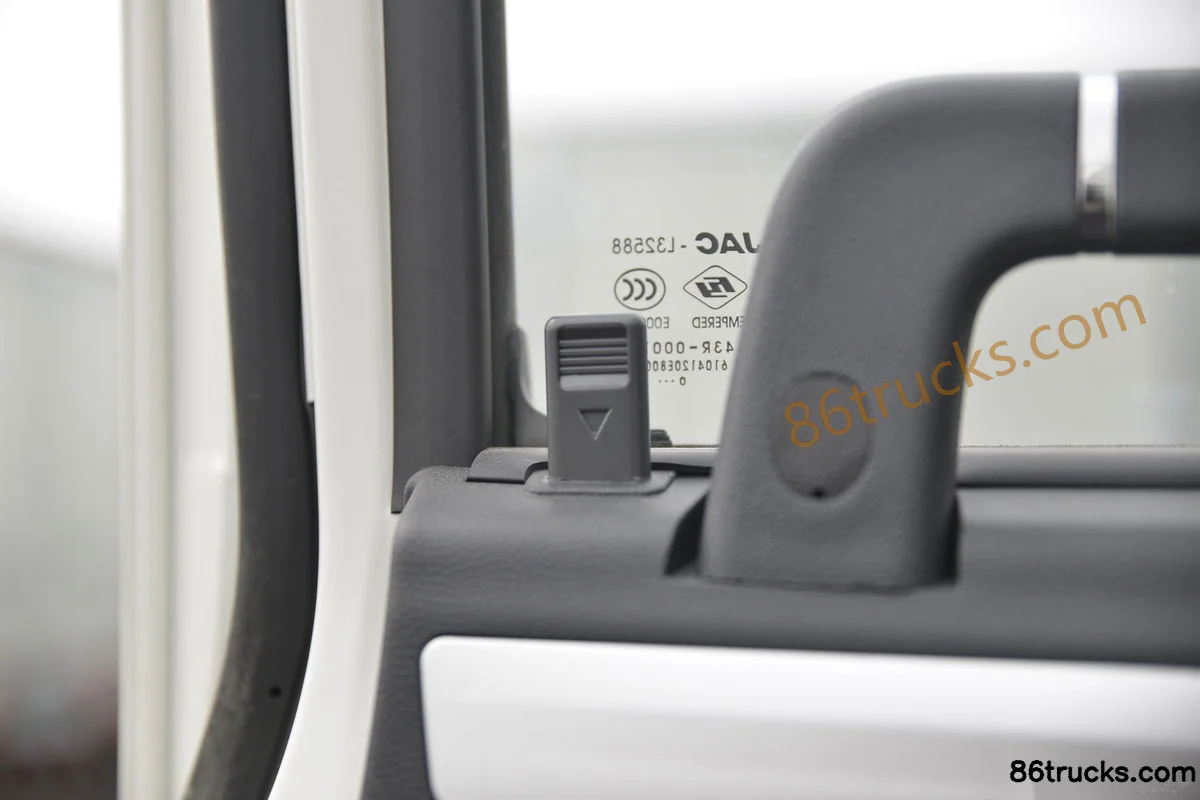

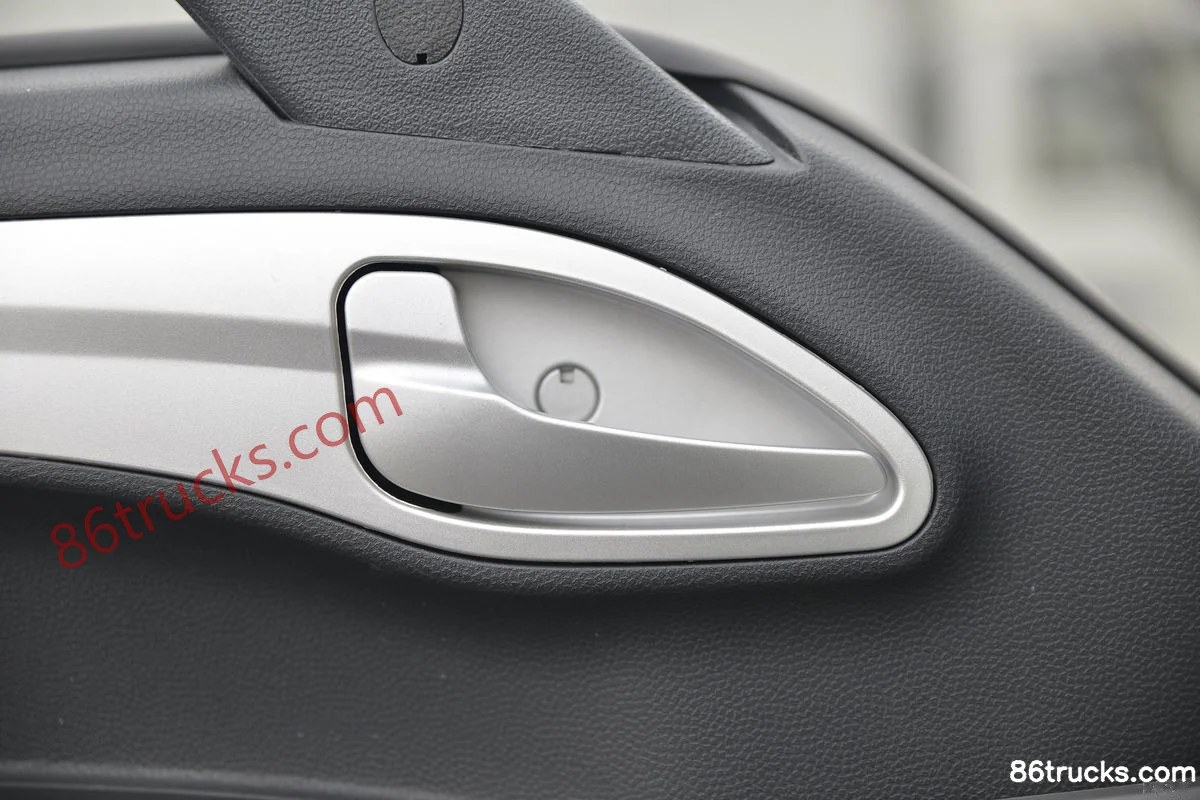

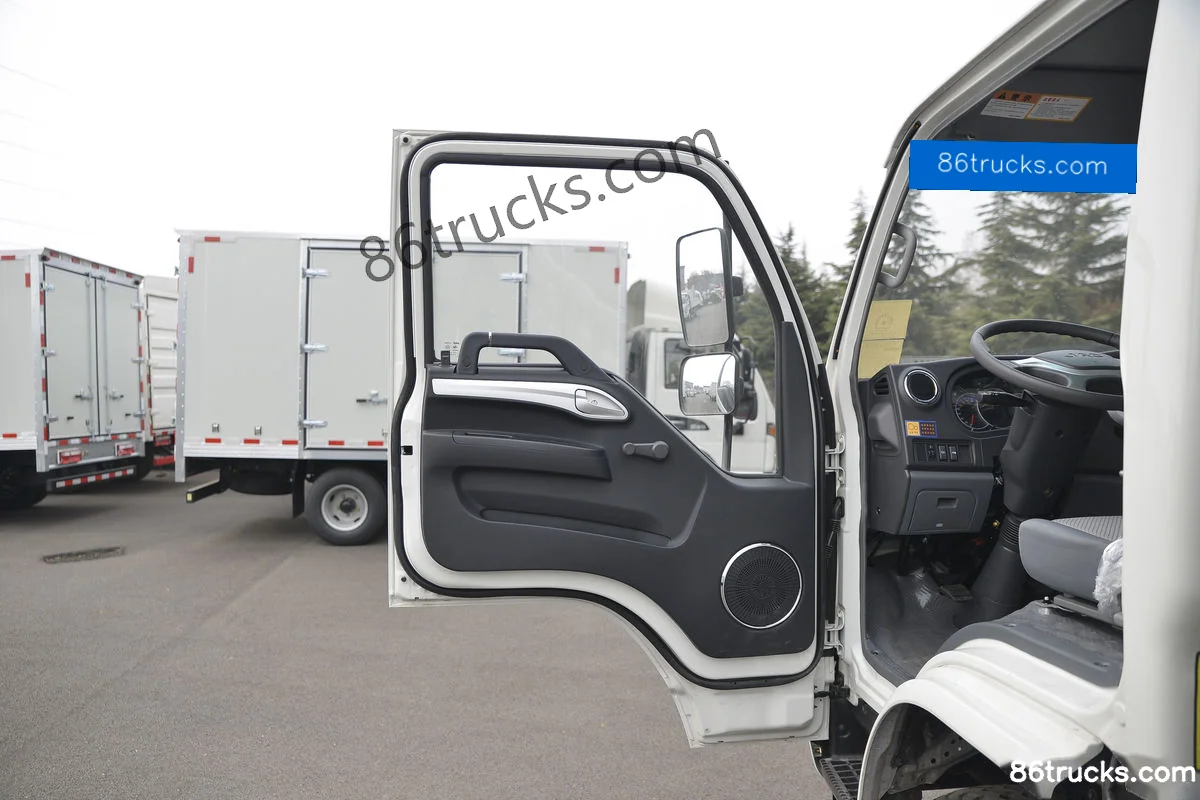

Cab3

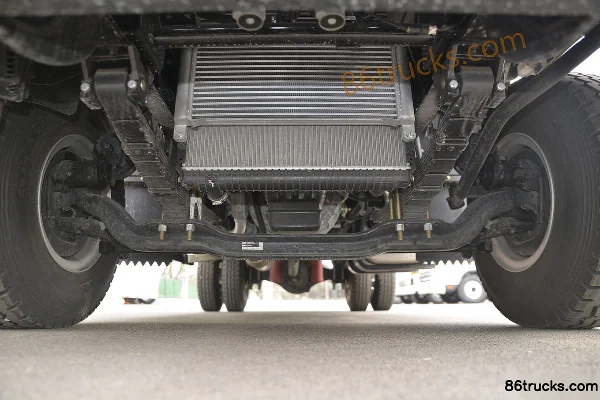

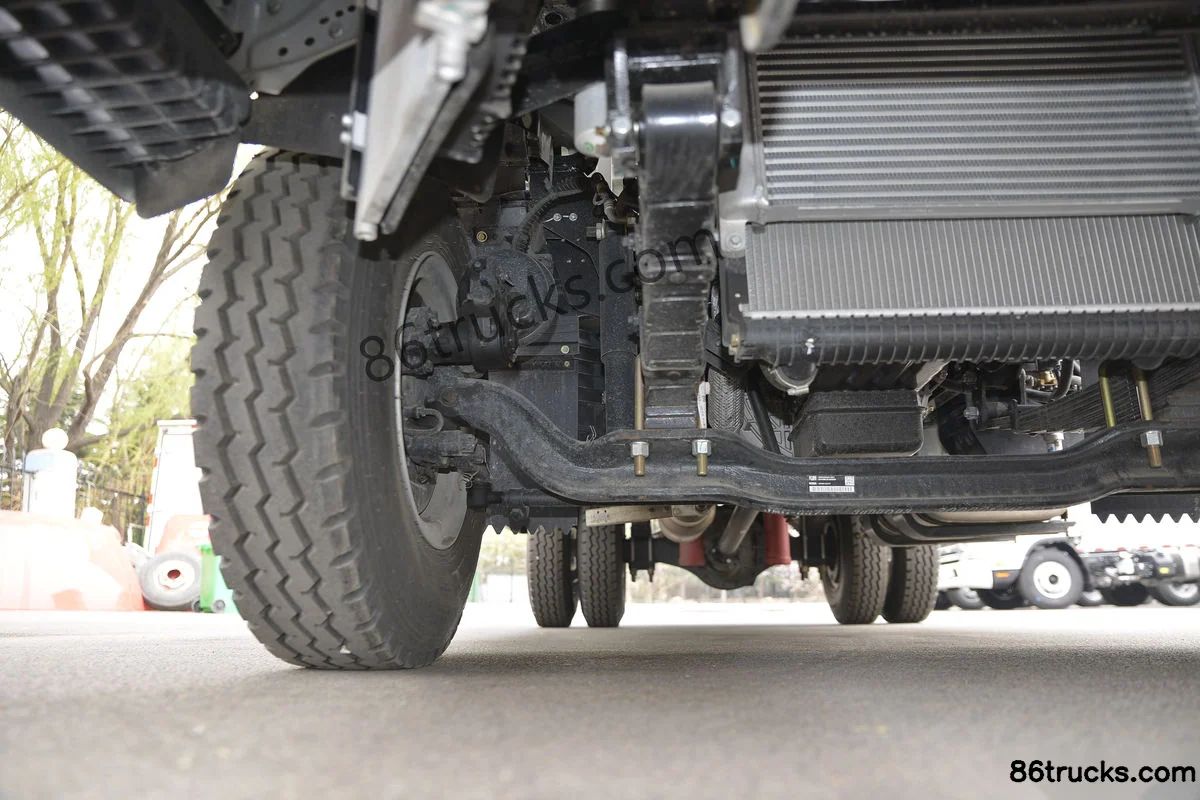

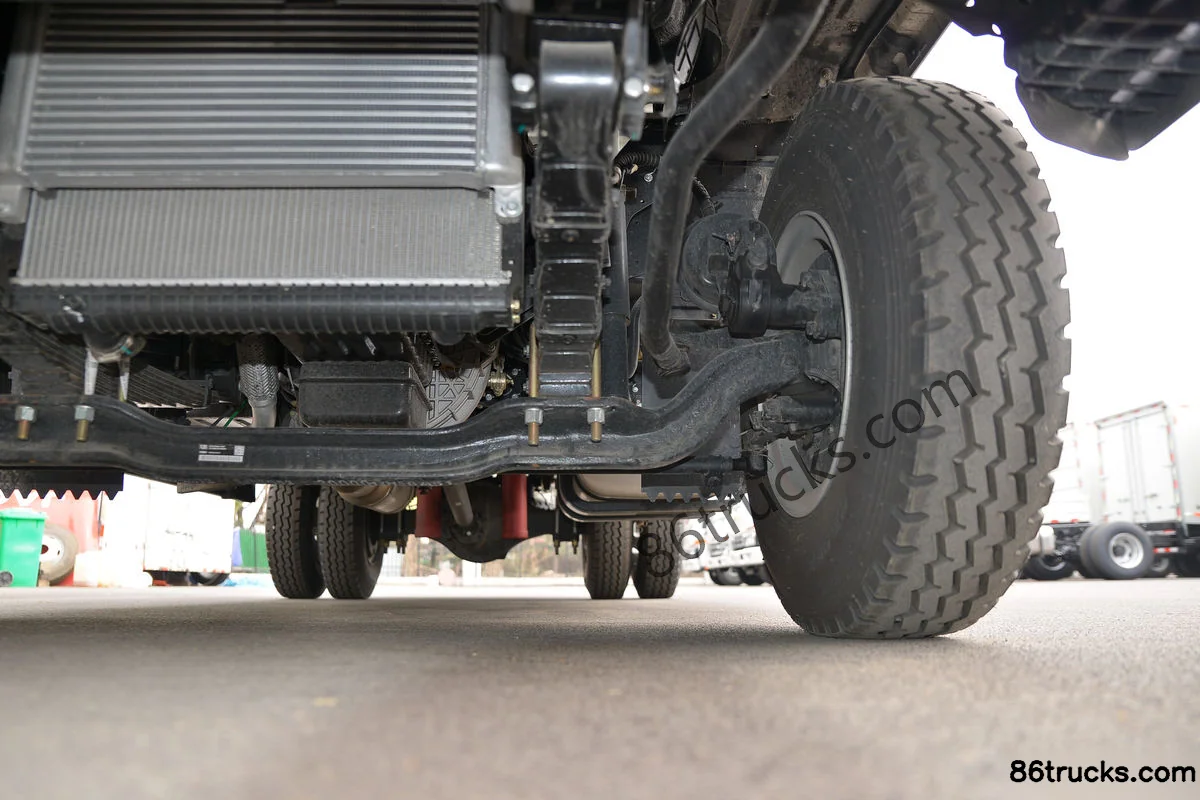

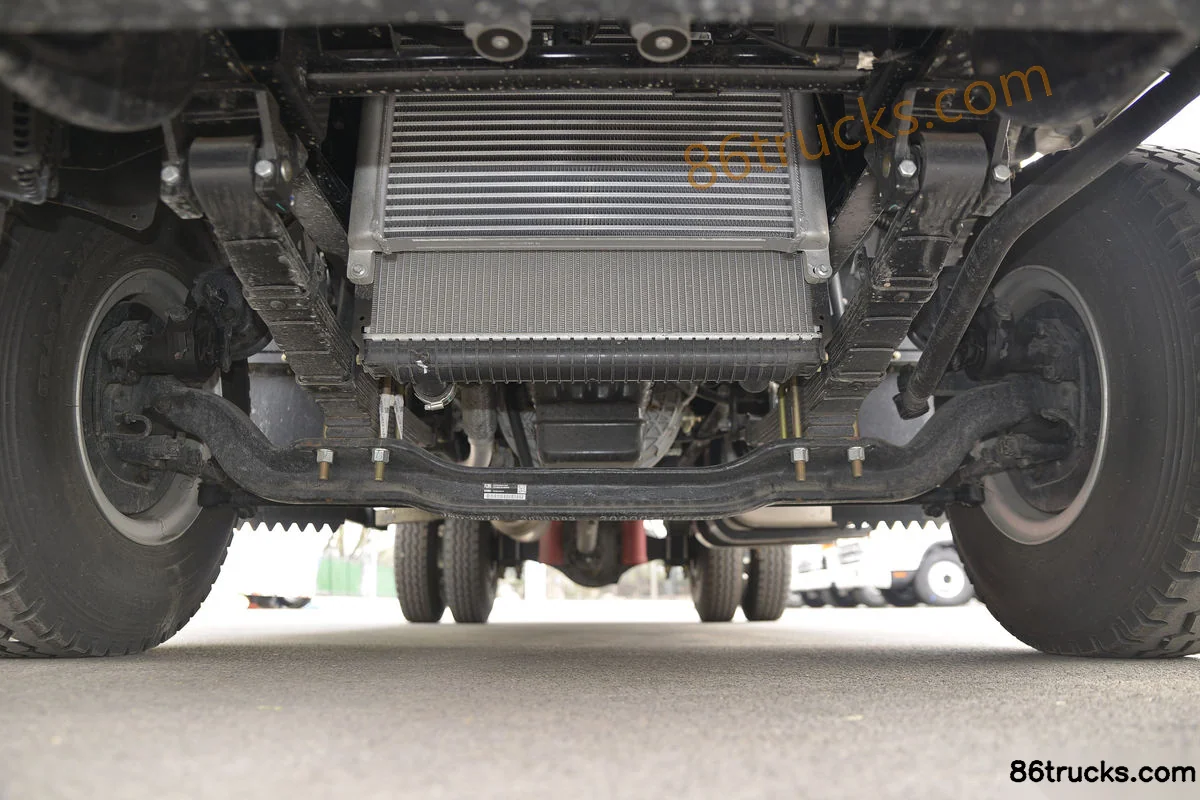

Chassis3

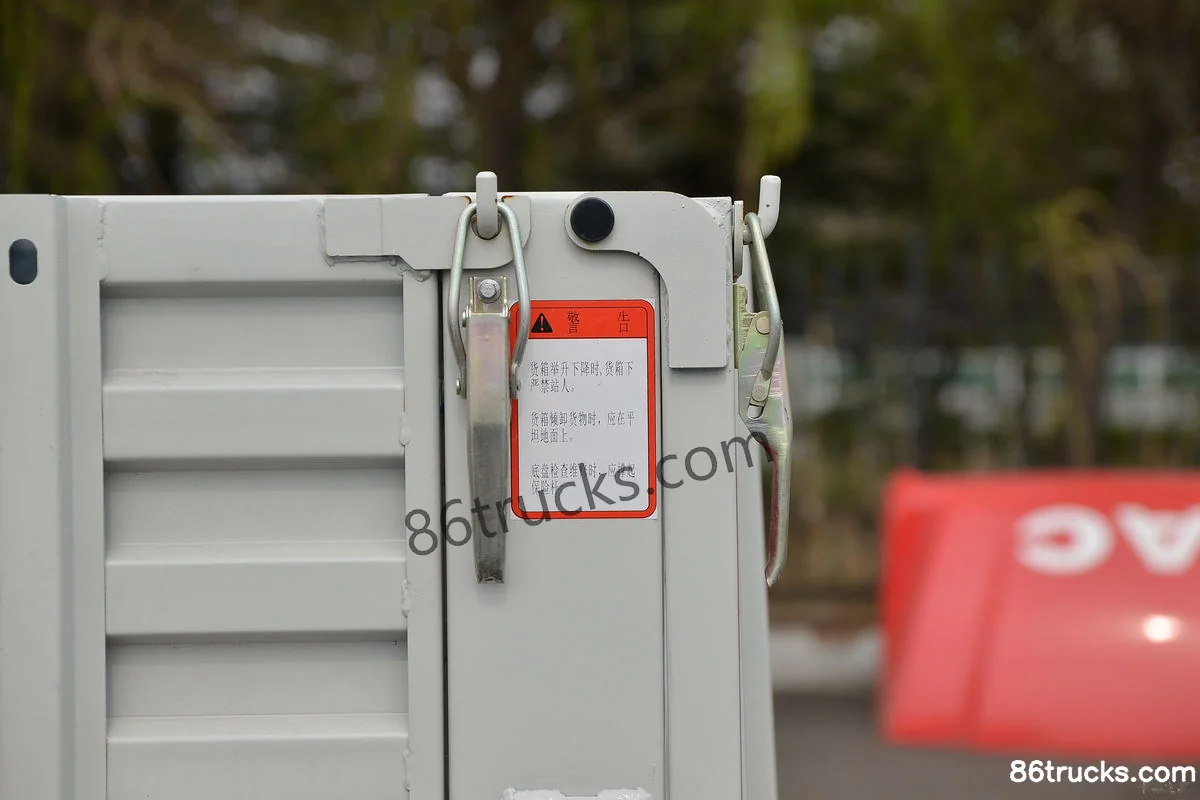

Body3

12 photos

FAQ

What emission standard does JAC Kangling G6 156hp 4X2(6 wheels) 4.15m dump truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Kangling G6 156hp 4X2(6 wheels) 4.15m dump truck?

Key specs of JAC Kangling G6 156hp 4X2(6 wheels) 4.15m dump truck: Drive: 4x2; Horsepower: 156 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Kangling G6 156hp 4X2(6 wheels) 4.15m dump truck suited for?

JAC Kangling G6 156hp 4X2(6 wheels) 4.15m dump truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does JAC Kangling G6 156hp 4X2(6 wheels) 4.15m dump truck differ from other variants in the same series?

JAC Kangling G6 156hp 4X2(6 wheels) 4.15m dump truck belongs to JAC G light truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Kangling G6 156hp 4X2(6 wheels) 4.15m dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Kangling G6 156hp 4X2(6 wheels) 4.15m dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
