Sinotruk New Huanghe 240 hp 8X4(12 wheels) stake truck

Export reference
From $31,944
MSRP ¥23M CNY
Horsepower: 240
Emission: China III / Euro III
Fuel: Diesel
Engine: Yuchai7.3L
Transmission: Sinotruk
Curb Weight:: 17.7ton
seating capacity: 3Personnel
Rated payload: 19.615ton
Drive 8X4 (12 wheels)
Cargo box type: Stake type

Overview

The Sinotruk New Huanghe 240 hp 8X4(12 wheels) stake truck is a Heavy-duty cargo trucks featuring 9.6m cargo length, Stake type cargo body, 3Personnel volume and 19.615t payload. Its segment focus covers Construction material transport, agricultural byproduct transport and energy minerals, matching those duty cycles. On the powertrain side, it comes with a Yuchai7.3L engine, 240 hp, 8X4 (12 wheels) drive and China III / Euro III emissions.

China III / Euro III 240 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ5314CCYK4766C1
Type: stake truck
Drive type: 8X4
Wheelbase: 1800+4800+1350mm
engine: YuchaiYC6A240-33
transmission: SinotrukHW90510C
Rear Axle Ratio: 4.875
Cab length: 11.95m
Cab width: 2.496m
Cab height: 3.98m
Front track width: 2020/2020mm
rear track: 1860/1860mm
Curb Weight: 17.7ton
Rated payload: 19.615ton
GVWR: 31ton
Max. speed: 95km/h
Origin: Jinan, Shandong
tonnage class: Heavy-duty cargo trucks
market segment: Construction material transport, agricultural byproduct transport, energy minerals
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC6A240-33
Engine info: Yuchai7.3L
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 7.255L
Emission standard: China III / Euro III
Max output power: 177kW
Max hp: 240Horsepower
Max torque: 900N·m
Max torque speed: 1400-1600rpm
Rated speed: 2300rpm
Engine Type: Vertical, inline, water-cooled, four-stroke, electronically controlled direct injection
Transmission Parameters
Transmission Model: SinotrukHW90510C
Transmission Brand: Sinotruk
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 9.6m
Cargo box width: 2.4m
Cargo box height: 0.55m
*Cargo box interior width: 2.4000000953674
Cab parameters
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 300L
Chassis Specs
Front axle allowable load: 6500/7000kg
rear axle description: Tandem axle
rear axle allowable load: 17500kg
Axle ratio: 4.875
Leaf spring count: 10/10/10
Tire
Tire Size: 10.00-2018PR,10.00R2018PR,11.00-2018PR,11.00R2018PR
Number of tires: 12pcs

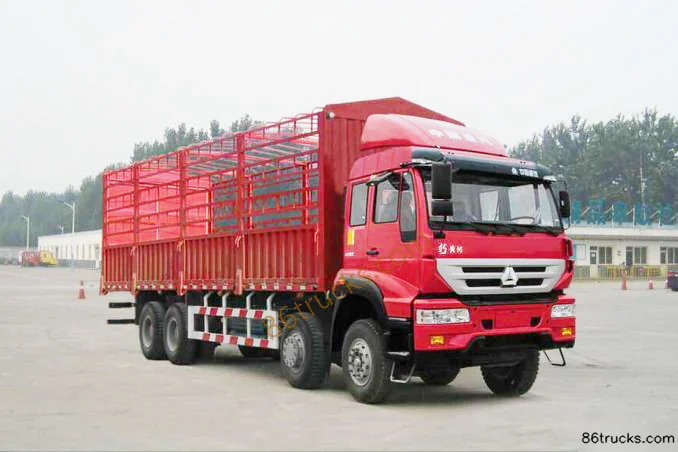

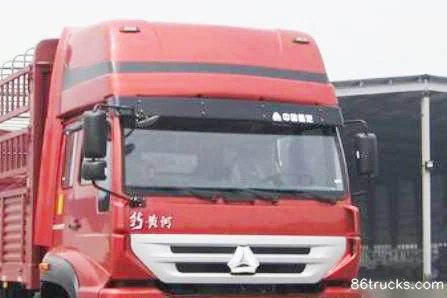

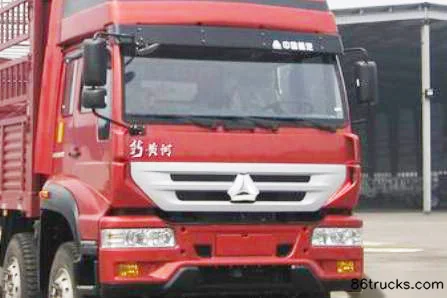

Photos

Exterior3

3 photos

FAQ

What is the export price of Sinotruk New Huanghe 240 hp 8X4(12 wheels) stake truck, and what does it include?

Sinotruk New Huanghe 240 hp 8X4(12 wheels) stake truck export reference is about From $31,944; MSRP is ¥23M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk New Huanghe 240 hp 8X4(12 wheels) stake truck use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk New Huanghe 240 hp 8X4(12 wheels) stake truck?

Key specs of Sinotruk New Huanghe 240 hp 8X4(12 wheels) stake truck: Drive: 8x4; Horsepower: 240 hp; Emission: China III / Euro III; Fuel: Diesel; Engine: Yuchai7.3L; Transmission: Sinotruk. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk New Huanghe 240 hp 8X4(12 wheels) stake truck suited for?

Sinotruk New Huanghe 240 hp 8X4(12 wheels) stake truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Sinotruk New Huanghe 240 hp 8X4(12 wheels) stake truck differ from other variants in the same series?

Sinotruk New Huanghe 240 hp 8X4(12 wheels) stake truck belongs to Sinotruk New Yellow River Medium Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk New Huanghe 240 hp 8X4(12 wheels) stake truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk New Huanghe 240 hp 8X4(12 wheels) stake truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
