FAW Jiefang J6M heavy truck 280 hp 8X4(12 wheels) 6.2m dump truck chassis

Export reference
From $41,389
MSRP ¥29.8M CNY
Emission: China V
Fuel: Diesel
Transmission: FAW Jiefang
Curb Weight:: 8.8ton
Wheelbase:: 1950+2600+1350mm
Tire Size:: 11.00R20,12R22.5,295/80R22.5
Rated payload: 18.07ton
Drive 8X4 (12 wheels)
Horsepower 280
Cargo box type: Dump type

Overview

The FAW Jiefang J6M heavy truck 280 hp 8X4(12 wheels) 6.2m dump truck chassis is a Heavy truck featuring 18.07t payload, 31t GVW, Dump type cargo body and 8X4 (12 wheels) drive. On the powertrain side, it comes with a DachaiCA6DK1-28E5 engine, 280 hp, China V emissions and FAW Jiefang transmission.

China V 280 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA3310P63K1LBT4E5
Drive type: 8X4
Wheelbase: 1950+2600+1350mm
engine: DachaiCA6DK1-28E5
transmission: FAW JiefangCA10TA130M
Rear Axle Ratio: 4.875
Cab length: 8.39m
Cab width: 2.528m
Cab height: 2.99m
Front track width: 1950/1950mm
rear track: 1860/1860,1878/1878mm
Curb Weight: 8.8ton
Rated payload: 18.07ton
GVWR: 31ton
tonnage class: Heavy truck
Approach angle: 21°
departure angle: 39°
Remarks: Power windows, manual mirrors, driver air-suspension seat, single-DIN Beidou-compatible infotainment system
Energy Type: Diesel
Engine parameters
Engine Brand: Dachai
Engine Model: DachaiCA6DK1-28E5
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 7.146L
Emission standard: China V
Max output power: 209kW
Max hp: 280Horsepower
Max torque: 1100N·m
Max torque speed: 1200-1700rpm
Rated speed: 2300rpm
Engine Type: 6-cylinder inline, direct injection, turbocharged intercooled, electronic common rail
Transmission Parameters
Transmission Model: FAW JiefangCA10TA130M
Transmission Brand: FAW Jiefang
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 6.2m
Cab parameters
Cab: 2017 J6M Full-floating Flat Roof Half-row Cab
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 350L
Chassis Specs
Front axle allowable load: 6500/6500kg
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 4.875
Leaf spring count: 3/3/4,9/9/10
Tire
Tire Size: 11.00R20,12R22.5,295/80R22.5
Number of tires: 12pcs
Control configuration
ABS:

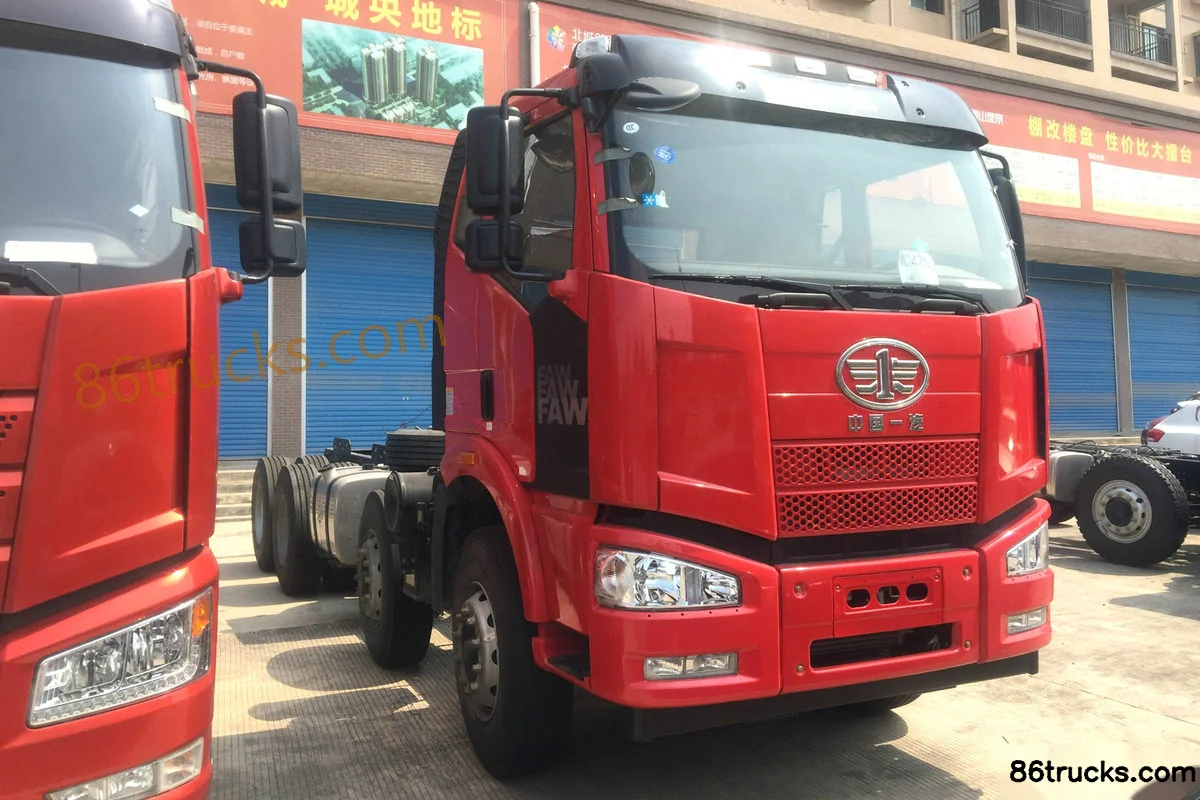

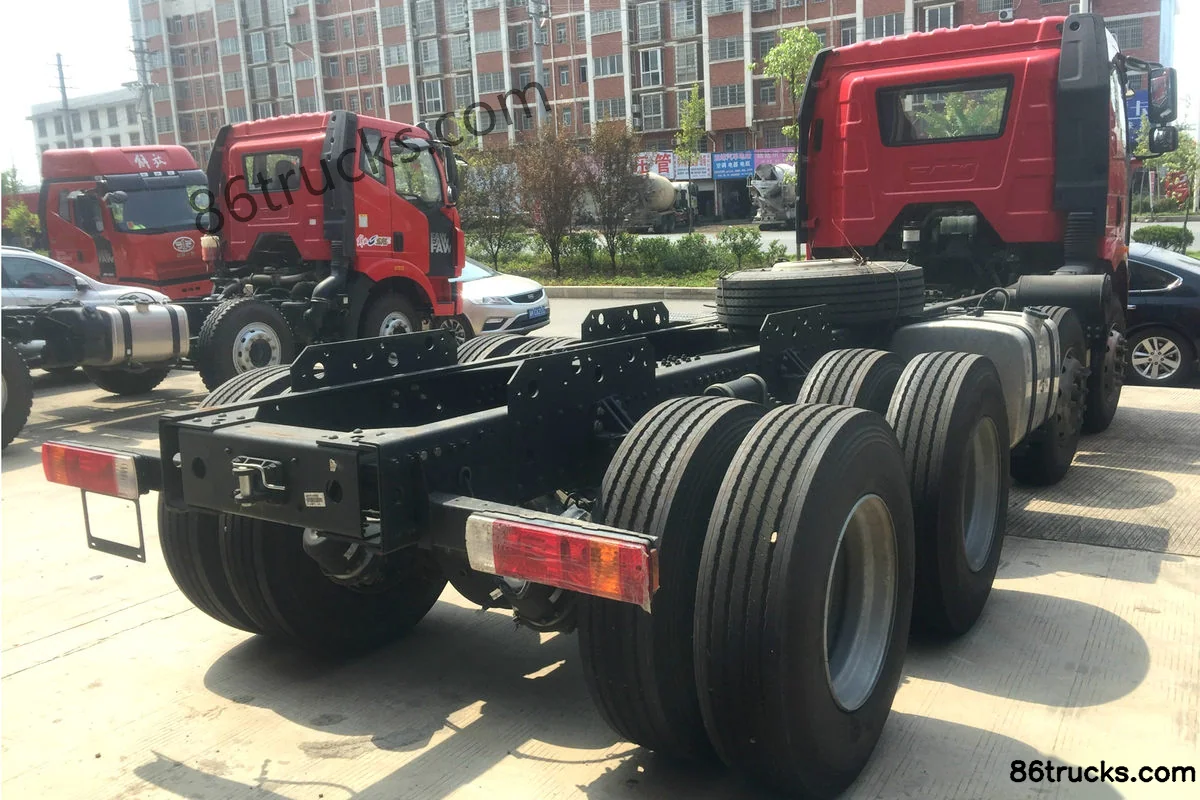

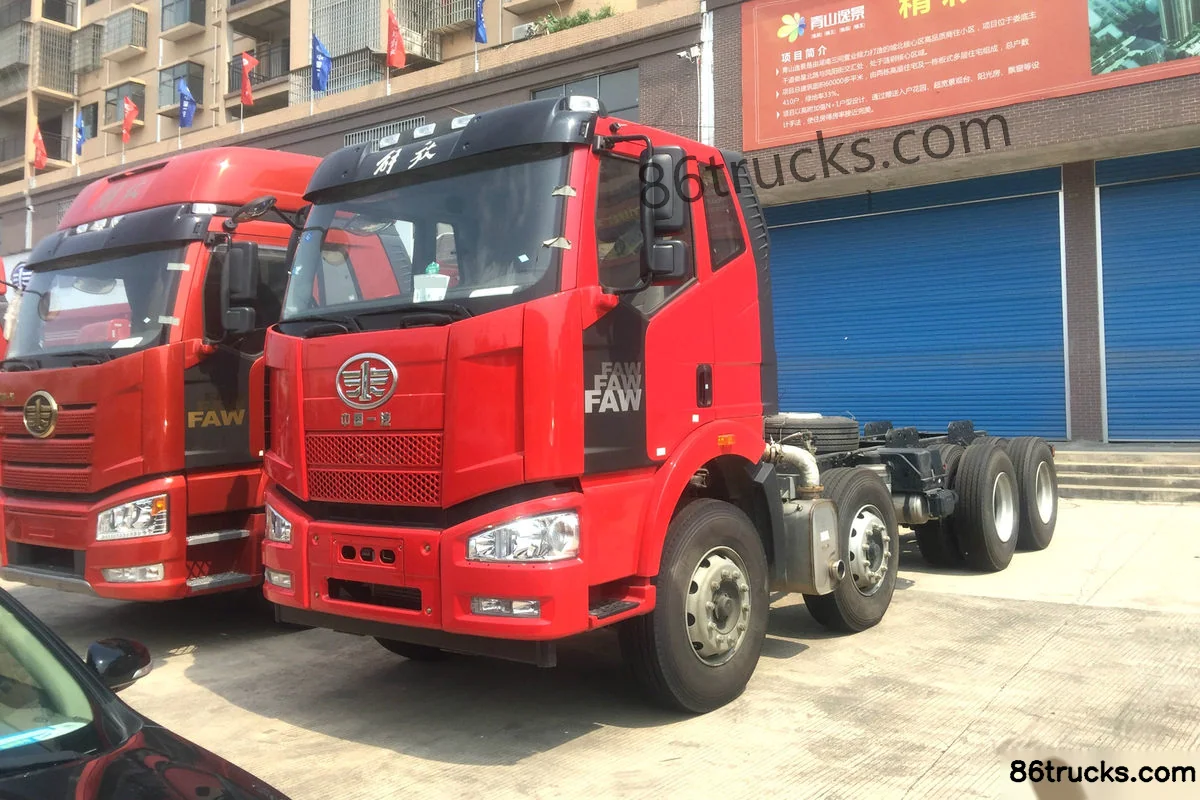

Photos

Exterior3

3 photos

FAQ

What is the export price of FAW Jiefang J6M heavy truck 280 hp 8X4(12 wheels) 6.2m dump truck chassis, and what does it include?

FAW Jiefang J6M heavy truck 280 hp 8X4(12 wheels) 6.2m dump truck chassis export reference is about From $41,389; MSRP is ¥29.8M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FAW Jiefang J6M heavy truck 280 hp 8X4(12 wheels) 6.2m dump truck chassis use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang J6M heavy truck 280 hp 8X4(12 wheels) 6.2m dump truck chassis?

Key specs of FAW Jiefang J6M heavy truck 280 hp 8X4(12 wheels) 6.2m dump truck chassis: Drive: 8x4; Horsepower: 280 hp; Emission: China V; Fuel: Diesel; Transmission: FAW Jiefang. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang J6M heavy truck 280 hp 8X4(12 wheels) 6.2m dump truck chassis suited for?

FAW Jiefang J6M heavy truck 280 hp 8X4(12 wheels) 6.2m dump truck chassis is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does FAW Jiefang J6M heavy truck 280 hp 8X4(12 wheels) 6.2m dump truck chassis differ from other variants in the same series?

FAW Jiefang J6M heavy truck 280 hp 8X4(12 wheels) 6.2m dump truck chassis belongs to FAW Jiefang J6M Near-Heavy Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang J6M heavy truck 280 hp 8X4(12 wheels) 6.2m dump truck chassis?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang J6M heavy truck 280 hp 8X4(12 wheels) 6.2m dump truck chassis?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
