Caterpillar 323D2L Crawler Excavator

Export reference
MSRP N/A
Model:: 323D2L
Engine Model:: crawler excavator
Tonnage:: 23ton
Bucket capacity:: 1.19cubic meter
boom length:: 5700mm
Arm Length:: 2900mm
Caterpillar 323D2L Crawler Excavator exterior
View more photos (3)
Operating weight: 23.3ton
Bucket type: backhoe
Fuel Tank Capacity: 410L
Product power: Conventional Power

Overview

The Caterpillar 323D2L Crawler Excavator is a excavator featuring 23.3ton GVW, backhoe bucket capacity, 410L tank capacity and Conventional Power power. On the powertrain side, it comes with a crawler excavator engine.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model: 323D2L
Engine Model: crawler excavator
Product power: Conventional Power
Bucket type: backhoe
Tonnage: 23ton
Operating weight: 23.3ton
Bucket capacity: 1.19cubic meter
boom length: 5700mm
Arm Length: 2900mm
Machine dimensions: 9.46×2.98×3.03mm
Track shoe width: 600mm
Track gauge: 2380mm
Counterweight ground clearance: 1020mm
Min ground clearance: 450cm
Rear Overhang Radius: 2750mm
hydraulic system
Max flow of main pump: 214×2L/min
Working hydraulic circuit: 35
travel hydraulic circuit: 35Mpa
Swing Hydraulic Circuit: 25Mpa
Oil capacity
Fuel Tank Capacity: 410L
coolant: 25L
hydraulic oil tank: 138L
Engine Oil Capacity: 22L
performance specs
Travel speed: 3.5/5.6km/h
Bucket digging force: 140kN
Arm Digging Force: 107kN
Max tractive force: 205kN
Operating Range
Max digging radius: 9860mm
Max digging depth: 6720mm
Max digging height: 9490mm
Max unloading height: 6490mm
Max vertical digging depth: 5690mm
Engine parameters
Engine Model: Cat C7.1 ACERT
Max output power: 118kW

Photos

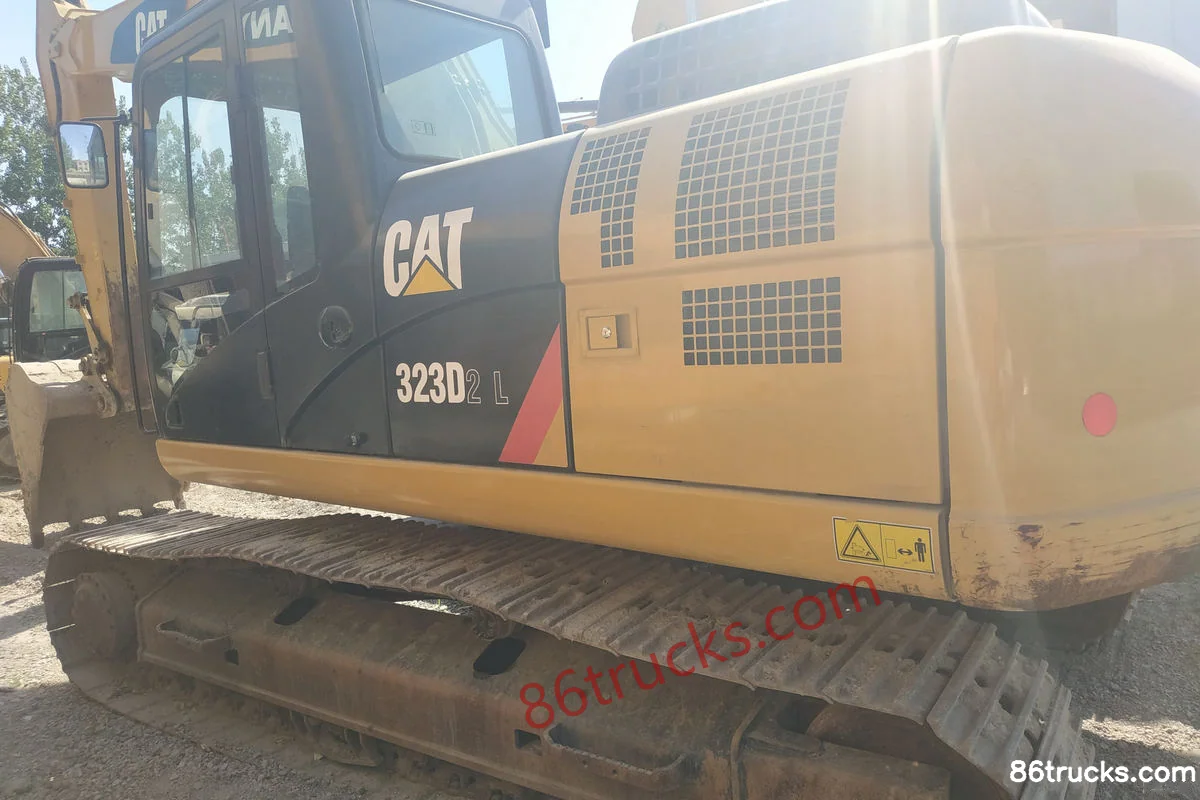

Exterior3

Caterpillar 323D2L Crawler Excavator Exterior (1) | 86Trucks Caterpillar 323D2L Crawler Excavator Exterior (2) | 86Trucks Caterpillar 323D2L Crawler Excavator Exterior (3) | 86Trucks

3 photos

FAQ

What transport jobs is Caterpillar 323D2L Crawler Excavator suited for?

Caterpillar 323D2L Crawler Excavator is a excavator model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Caterpillar 323D2L Crawler Excavator differ from other variants in the same series?

Caterpillar 323D2L Crawler Excavator belongs to Caterpillar Caterpillar crawler excavator (excavator). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Caterpillar 323D2L Crawler Excavator?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Caterpillar 323D2L Crawler Excavator?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
