Fast Gear 5J100T 5-Speed Manual Transmission

Export reference
MSRP N/A
Matching Range:: Suitable for buses, cargo trucks, and various special vehicles with input torque of 900-1000 Nm
Max input torque:: 1000N·m
1st gear ratio:: 6.62
Fast Gear 5J100T 5-Speed Manual Transmission exterior
View more photos (1)
Transmission Model: Fast Gear 5J100T
Transmission Brand: Fast Gear
Features: Mechanical 5-speed manual transmission, reverse gear with sliding mesh, 2nd/3rd gear with double-cone synchronizer, 4th/5th gear with single-cone lock-ring synchronizer; can be fitted with side PTO or rear PTO

Overview

The Fast Gear 5J100T 5-Speed Manual Transmission is a parts product with spec Fast Gear 5J100T.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Transmission Parameters
Transmission Brand: Fast Gear
Transmission series: 5-speed series
Features: Mechanical 5-speed manual transmission, reverse gear with sliding mesh, 2nd/3rd gear with double-cone synchronizer, 4th/5th gear with single-cone lock-ring synchronizer; can be fitted with side PTO or rear PTO
Matching Range: Suitable for buses, cargo trucks, and various special vehicles with input torque of 900-1000 Nm
Max input torque: 1000N·m
1st gear ratio: 6.62
synchronizer: Yes
2nd gear ratio: 3.99
3rd gear ratio: 2.47
4th gear ratio: 1.55
5th gear ratio:
Reverse Gear 1 Ratio: 6.48
Transmission weight: 190kg
Transmission oil capacity: 10.5L
Control type: Supports multiple types of remote operation
Number of gears: 5Gear
shift type: Manual
Transmission Model: Fast Gear 5J100T
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:

Photos

Exterior1

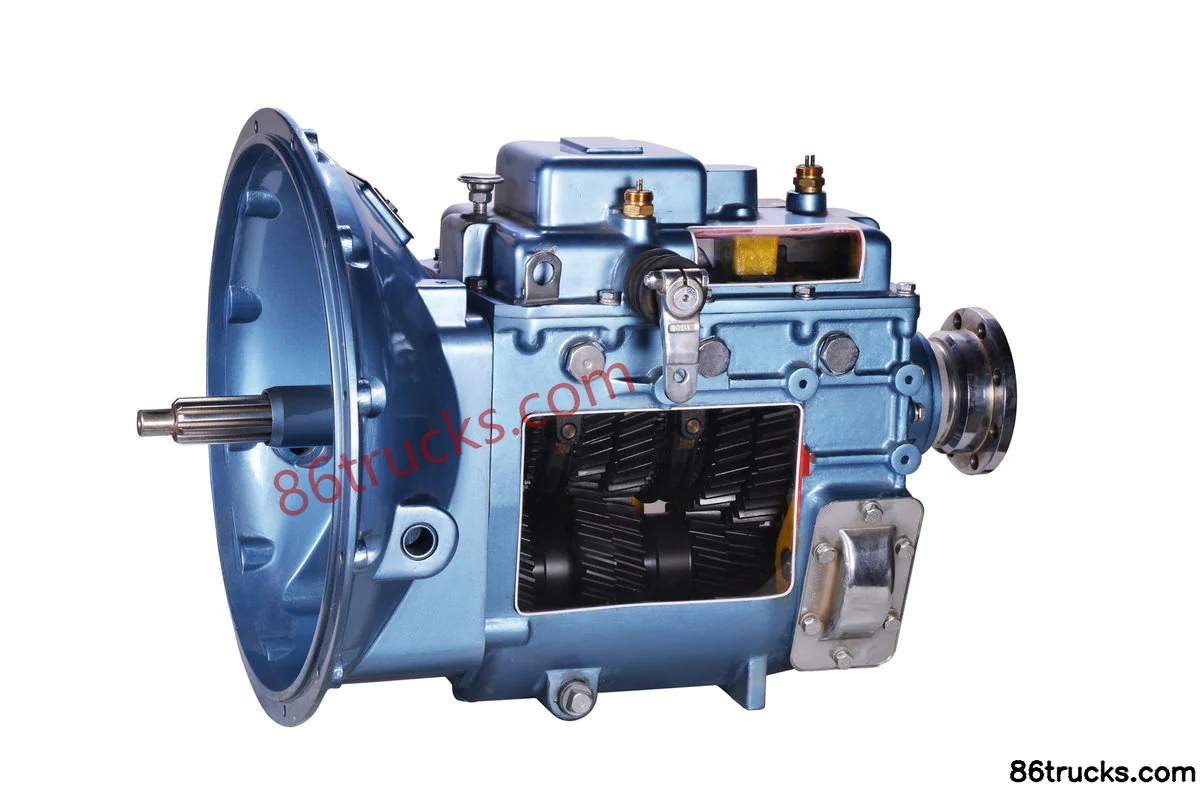

Fast Gear 5J100T 5-Speed Manual Transmission Exterior (1) | 86Trucks

1 photos
