Foton ISF4.5L210 210hp 4.5L China IV Diesel Engine

Export reference
MSRP N/A
Intake type:: Turbocharged Air-to-Air Intercooling
Min. fuel consumption at full load:: 195g/kW.h
Compression ratio:: 17.2:1
Foton ISF4.5L210 210hp 4.5L China IV Diesel Engine exterior
View more photos (3)
Suitable Range: For light trucks, mid-size buses, mid-size city buses
Engine Model: ISF4.5L210
Engine Series: ISF4.5 Series

Overview

The Foton ISF4.5L210 210hp 4.5L China IV Diesel Engine is a parts product with fit for For light trucks, mid-size buses, mid-size city buses and spec ISF4.5L210.

China IV 210 Diesel

Model Specs

Legend: ● Standard　○ Optional　- N/A

Engine parameters
Engine Series: ISF4.5 Series
Engine manufacturer: Foton Engine Co., Ltd., Beijing
Suitable Range: For light trucks, mid-size buses, mid-size city buses
Intake type: Turbocharged Air-to-Air Intercooling
Min. fuel consumption at full load: 195g/kW.h
Engine net weight: 335kg
Engine Dimensions: 888x818x700mm
Compression ratio: 17.2:1
Bore × Stroke: 107 x 124mm
Valves per cylinder: 4pcs
firing order: 1-3-4-2
Engine Brand: Foton
Engine Model: ISF4.5L210
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 4.5L
Emission standard: China IV
Max output power: 157kW
Max hp: 210Horsepower
Max torque: 760N·m
Max torque speed: 1200rpm
Rated speed: 2500rpm
Engine Type: Turbocharged Air-to-Air Intercooling Bosch High-Pressure Common Rail Direct Injection

Photos

Exterior3

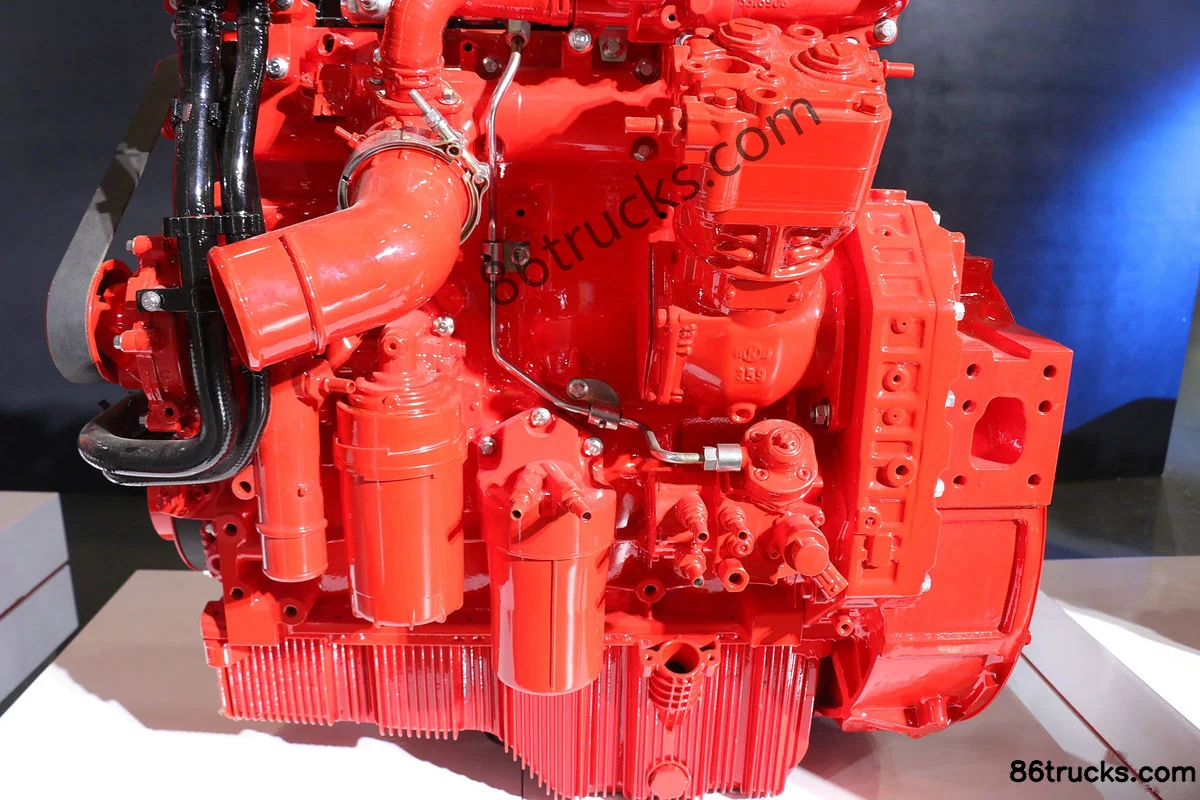

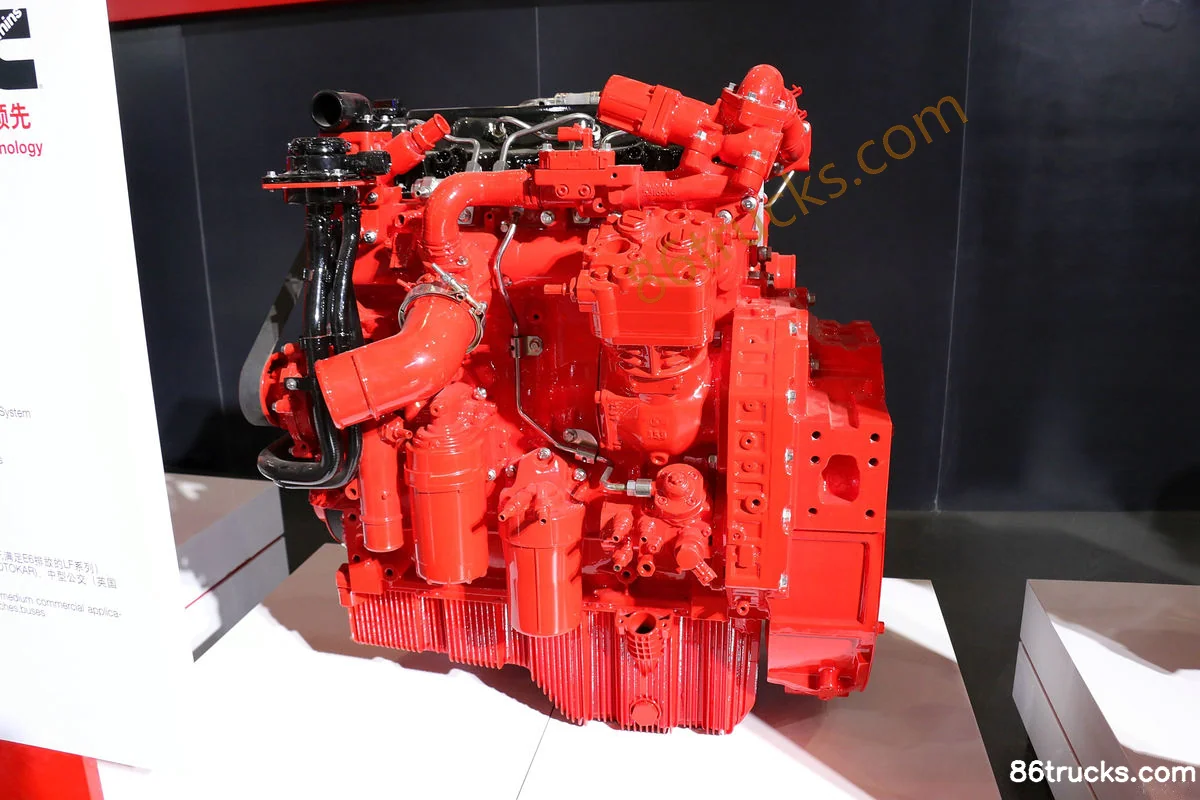

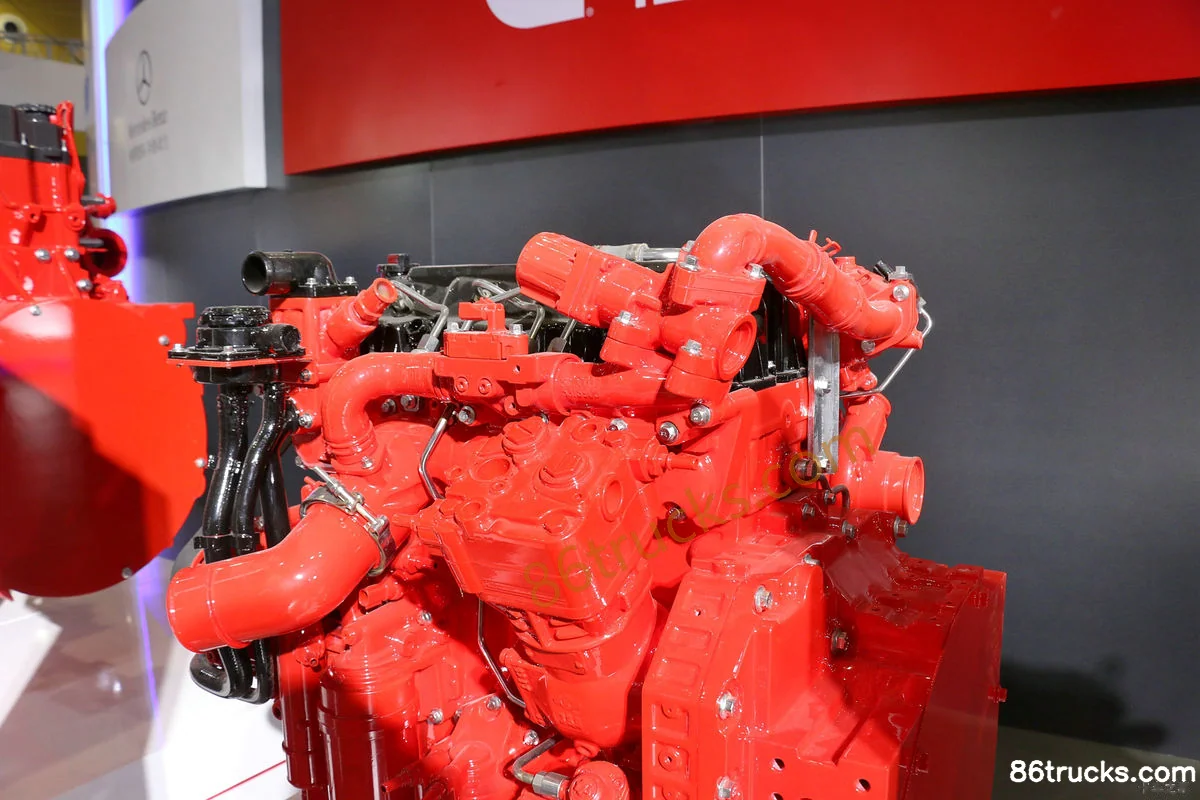

Foton ISF4.5L210 210hp 4.5L China IV Diesel Engine Exterior (1) | 86Trucks Foton ISF4.5L210 210hp 4.5L China IV Diesel Engine Exterior (2) | 86Trucks Foton ISF4.5L210 210hp 4.5L China IV Diesel Engine Exterior (3) | 86Trucks

3 photos

FAQ

What emission standard does Foton ISF4.5L210 210hp 4.5L China IV Diesel Engine use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton ISF4.5L210 210hp 4.5L China IV Diesel Engine?

Key specs of Foton ISF4.5L210 210hp 4.5L China IV Diesel Engine: Horsepower: 210 hp; Emission: China IV; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton ISF4.5L210 210hp 4.5L China IV Diesel Engine suited for?

Match Foton ISF4.5L210 210hp 4.5L China IV Diesel Engine to your job using drive, horsepower and emission on this page. Include use case, destination and quantity in your quote request.

How does Foton ISF4.5L210 210hp 4.5L China IV Diesel Engine differ from other variants in the same series?

Foton ISF4.5L210 210hp 4.5L China IV Diesel Engine belongs to Foton ISF4.5 Series (engine). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton ISF4.5L210 210hp 4.5L China IV Diesel Engine?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton ISF4.5L210 210hp 4.5L China IV Diesel Engine?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
