JMC Classic Shunda 110 hp 4X2(6 wheels) 10m Aerial Work Truck

Export reference
From $20,111
MSRP ¥14.48M CNY
Wheelbase:: 3360mm
Cab dimensions:: 6.98X1.98X3.08m
Type:: aerial work truck
Front/rear track width:: 1385/1425mm
GVWR:: 3.875ton
Front/rear suspension:: 1065/2155m
Drive 4X2 (6 wheels)
Horsepower 109
Curb Weight: 3.55ton
Emission China IV

Overview

The JMC Classic Shunda 110 hp 4X2(6 wheels) 10m Aerial Work Truck is a aerial work truck featuring 3.875t GVW and 4X2 (6 wheels) drive. On the powertrain side, it comes with 109 hp and China IV emissions.

China IV 109 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 6.98X1.98X3.08m
Type: aerial work truck
Drive type: 4X2
Wheelbase: 3360mm
Front/rear track width: 1385/1425mm
Curb Weight: 3.55ton
GVWR: 3.875ton
Front/rear suspension: 1065/2155m
Body Parameters
Max working height: 10m
Other special notes: For installation, maintenance and repair of aerial equipment (facilities) in telecommunications, communications, traffic police, street lighting, power, electricity supply, urban management, landscaping, property management, and public security industries.
Vehicle certification code: JX5045JGKXSG2
Body Brand: JMC
Engine parameters
Engine Model: Nanchang JMC JX493ZLQ4
Displacement: 2.771L
Emission standard: China IV
Max output power: 80kW
Max hp: 109Horsepower
Chassis Specs
Chassis Brand: JMC
Chassis Series: Classic Shunda
Chassis Model: JX1061TSGA24
rear axle description: 2t front axle / 4t rear axle
Leaf spring count: 7/5+5
Transmission Parameters
Number of gears: 5Gear
Transmission Model: Getrag 5-speed
Tire
Tire Size: 7.00R16LT
Number of tires: 6pcs

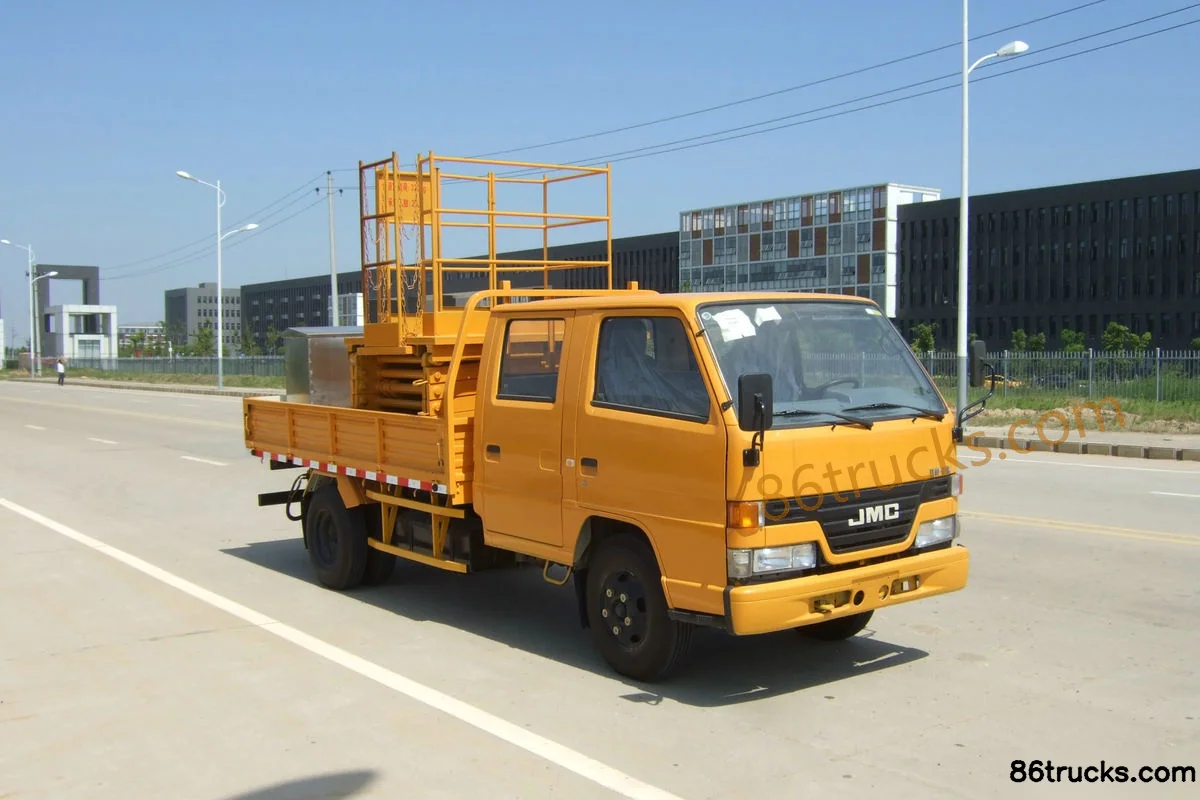

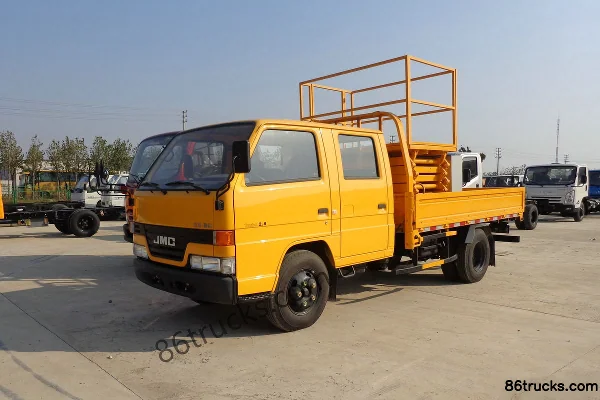

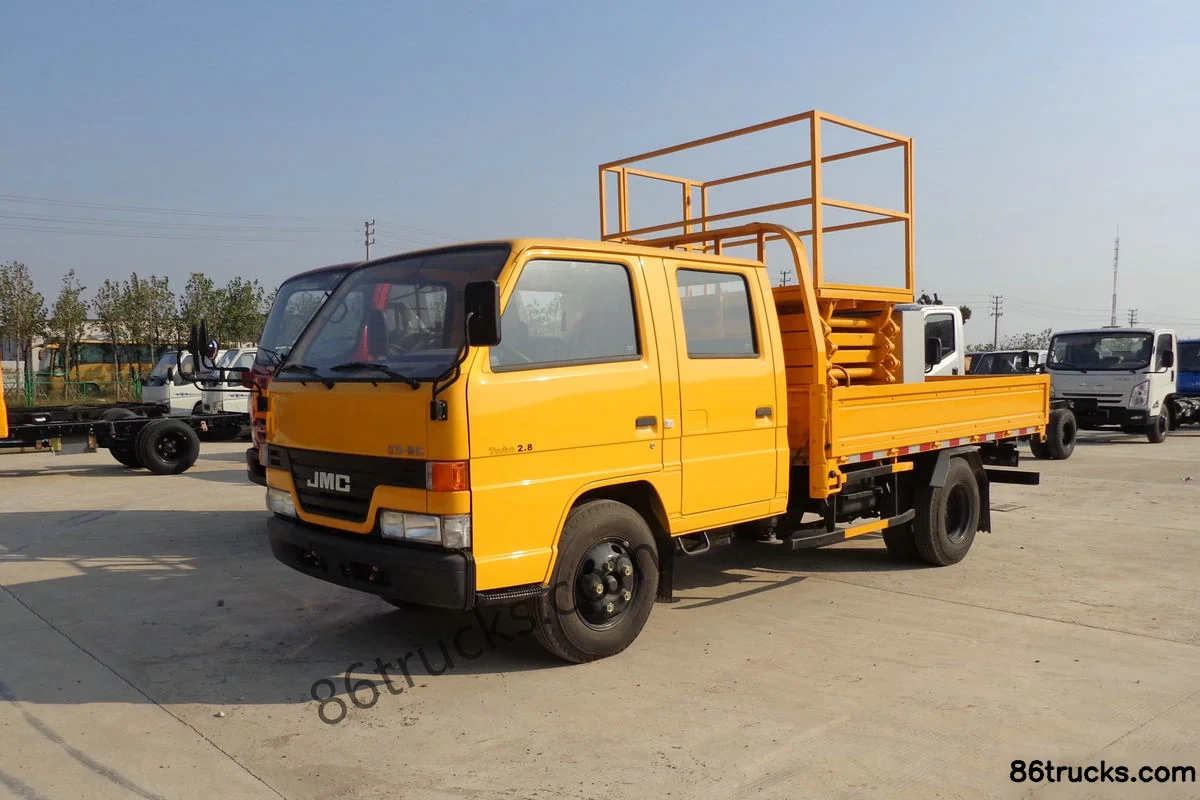

Photos

Exterior2

2 photos

FAQ

What is the export price of JMC Classic Shunda 110 hp 4X2(6 wheels) 10m Aerial Work Truck, and what does it include?

JMC Classic Shunda 110 hp 4X2(6 wheels) 10m Aerial Work Truck export reference is about From $20,111; MSRP is ¥14.48M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JMC Classic Shunda 110 hp 4X2(6 wheels) 10m Aerial Work Truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JMC Classic Shunda 110 hp 4X2(6 wheels) 10m Aerial Work Truck?

Key specs of JMC Classic Shunda 110 hp 4X2(6 wheels) 10m Aerial Work Truck: Drive: 4x2; Horsepower: 109 hp; Emission: China IV. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JMC Classic Shunda 110 hp 4X2(6 wheels) 10m Aerial Work Truck suited for?

JMC Classic Shunda 110 hp 4X2(6 wheels) 10m Aerial Work Truck is a aerial work truck model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does JMC Classic Shunda 110 hp 4X2(6 wheels) 10m Aerial Work Truck differ from other variants in the same series?

JMC Classic Shunda 110 hp 4X2(6 wheels) 10m Aerial Work Truck belongs to JMC Classic Shunda Light Truck (aerial work truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JMC Classic Shunda 110 hp 4X2(6 wheels) 10m Aerial Work Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JMC Classic Shunda 110 hp 4X2(6 wheels) 10m Aerial Work Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
