Dayun Yuntu 220 hp 4X2(6 wheels) Grapple Crane Truck

Export reference
MSRP N/A
Emission: China VI
Fuel: Diesel
Wheelbase:: 4500mm
Cab dimensions:: 7.995×2.4×3.56m
Type:: truck-mounted crane
GVWR:: 11.2ton
Lifting capacity: 4ton
Drive 4X2 (6 wheels)
Horsepower 220
Rated mass: 3.205ton

Overview

The Dayun Yuntu 220 hp 4X2(6 wheels) Grapple Crane Truck is a truck-mounted crane featuring 4ton tank capacity, 11.2t GVW and 4X2 (6 wheels) drive. On the powertrain side, it comes with 220 hp, China VI emissions and Diesel fuel.

China VI 220 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 7.995×2.4×3.56m
Type: truck-mounted crane
Drive type: 4X2
Wheelbase: 4500mm
Rated mass: 3.205ton
GVWR: 11.2ton
Front/rear suspension: 1.23/2.265m
Energy Type: Diesel
Body Parameters
Crane model: SQS4.0
Lifting capacity: 4ton
crane self-weight: 2.1ton
Vehicle certification code: CGC5110JSQHDF45F
Body Brand: Dayun
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerD45TCIF1
fuel type: Diesel
Displacement: 4.46L
Emission standard: China VI
Max output power: 162kW
Max hp: 220Horsepower
Max torque: 810N·m
Max torque speed: 1200-1800rpm
Rated speed: 2300rpm
Chassis Specs
Chassis Brand: Dayun
Chassis Series: Yuntu
Chassis Model: CGC1110HDF44F
Leaf spring count: 1/1+1,4/3+3,8/10+8,9/11+8,9/9+6,3/5+3
Transmission Parameters
Number of gears: 8Gear
Transmission Model: 8-speed
Tire
Tire Size: 8.25R20
Number of tires: 6pcs

Photos

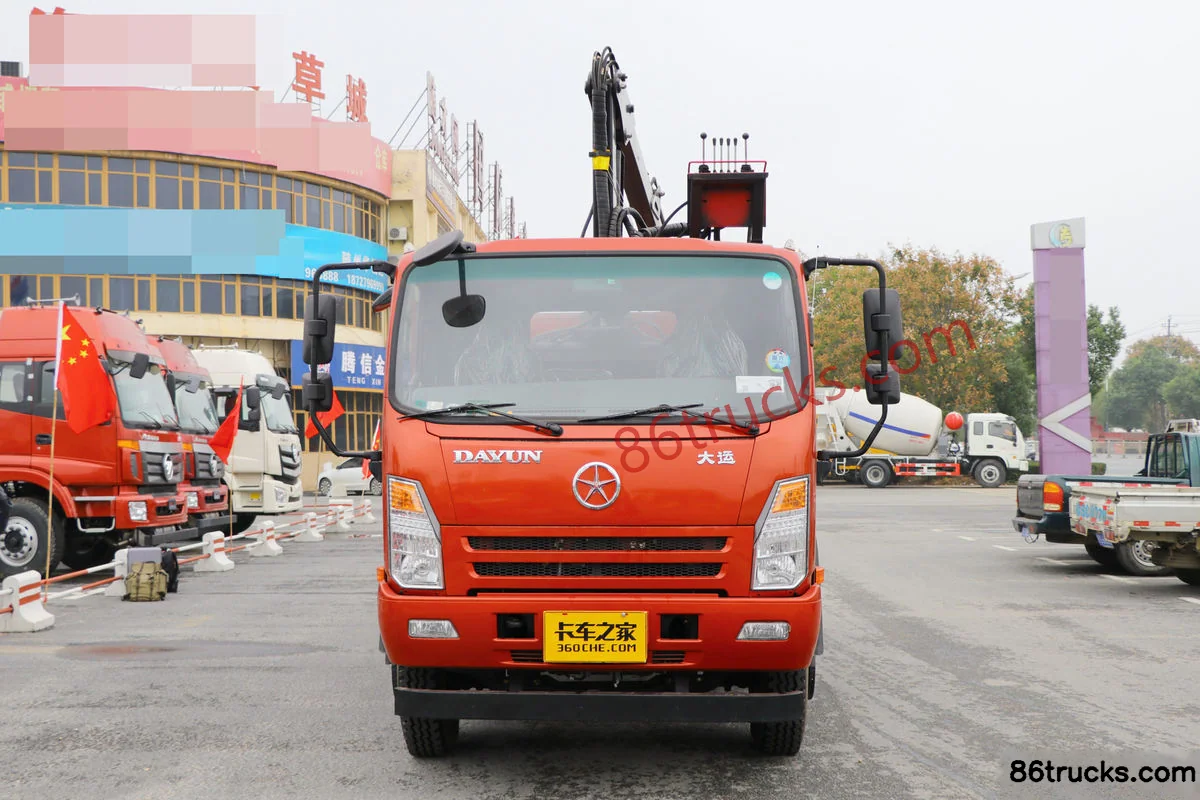

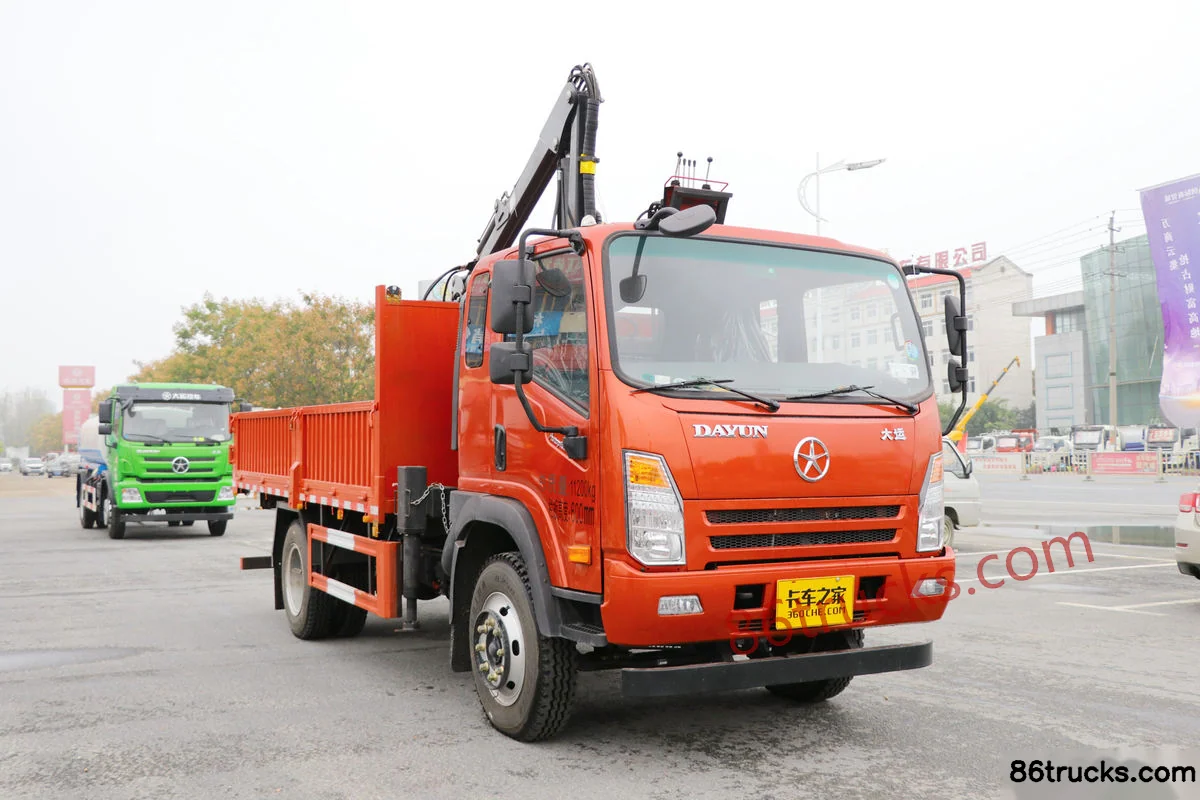

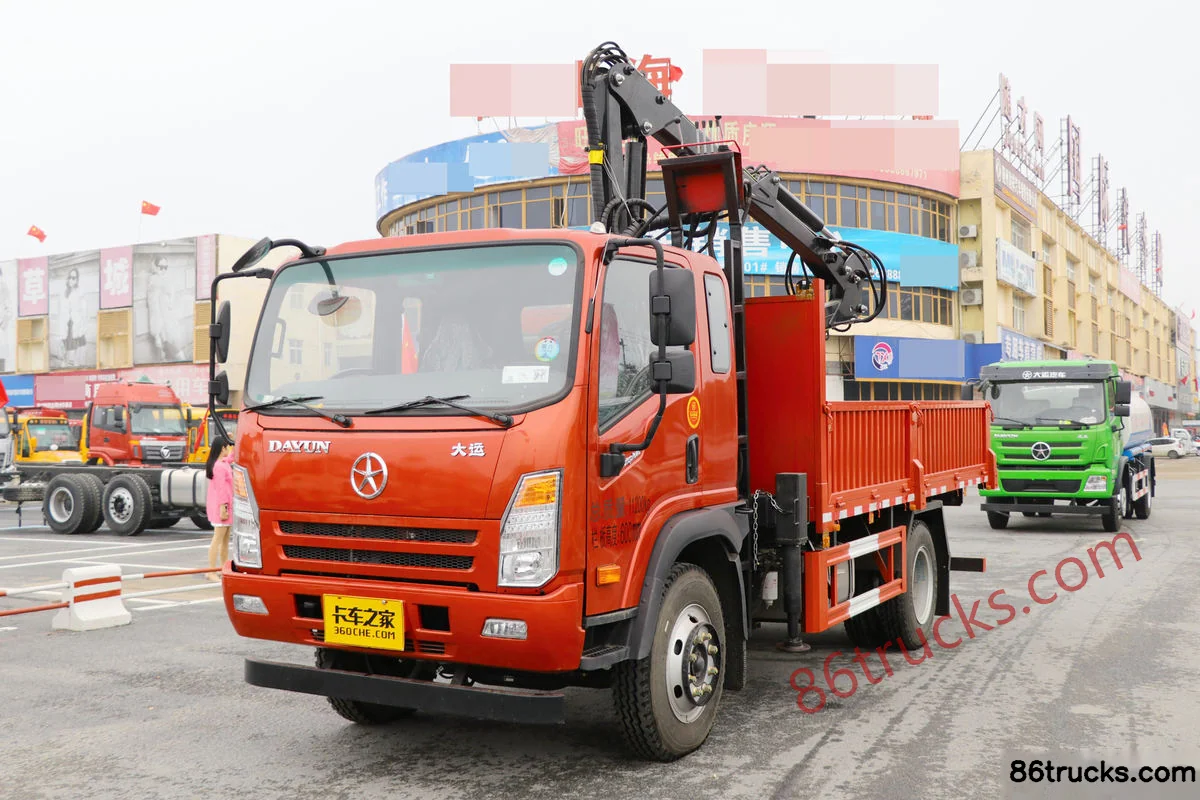

Exterior3

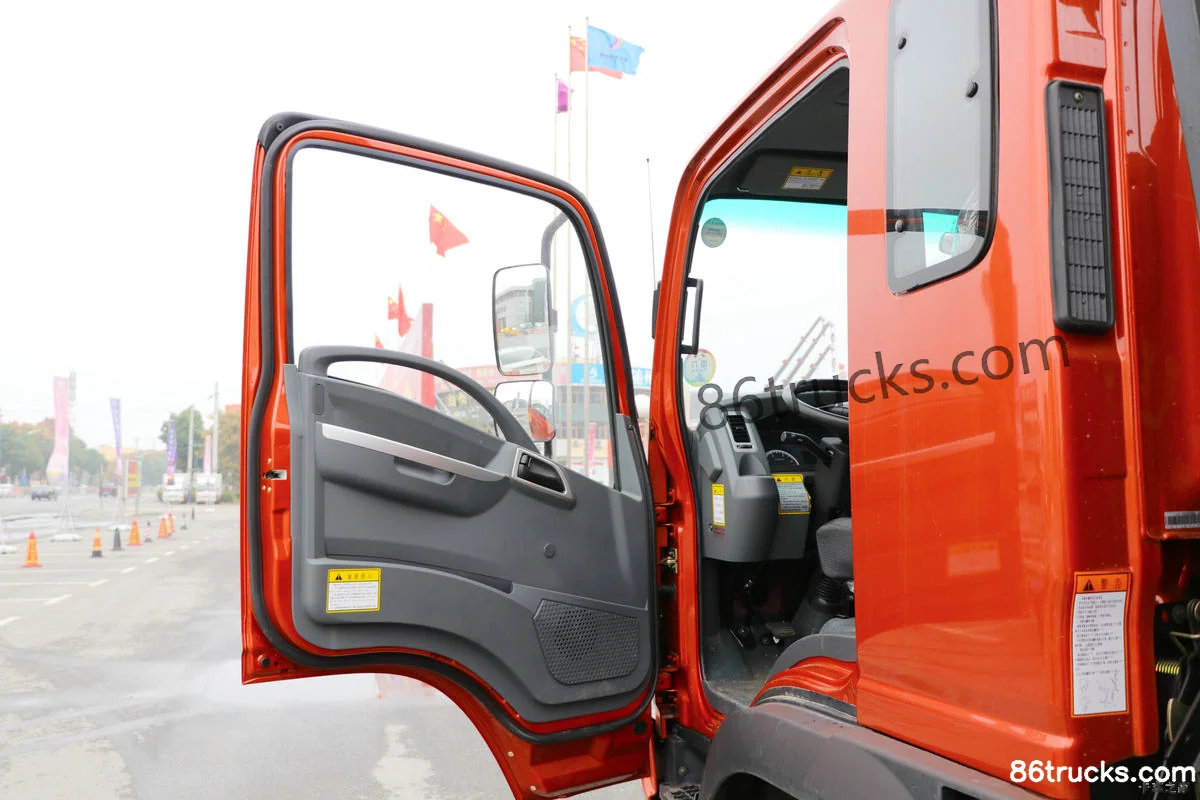

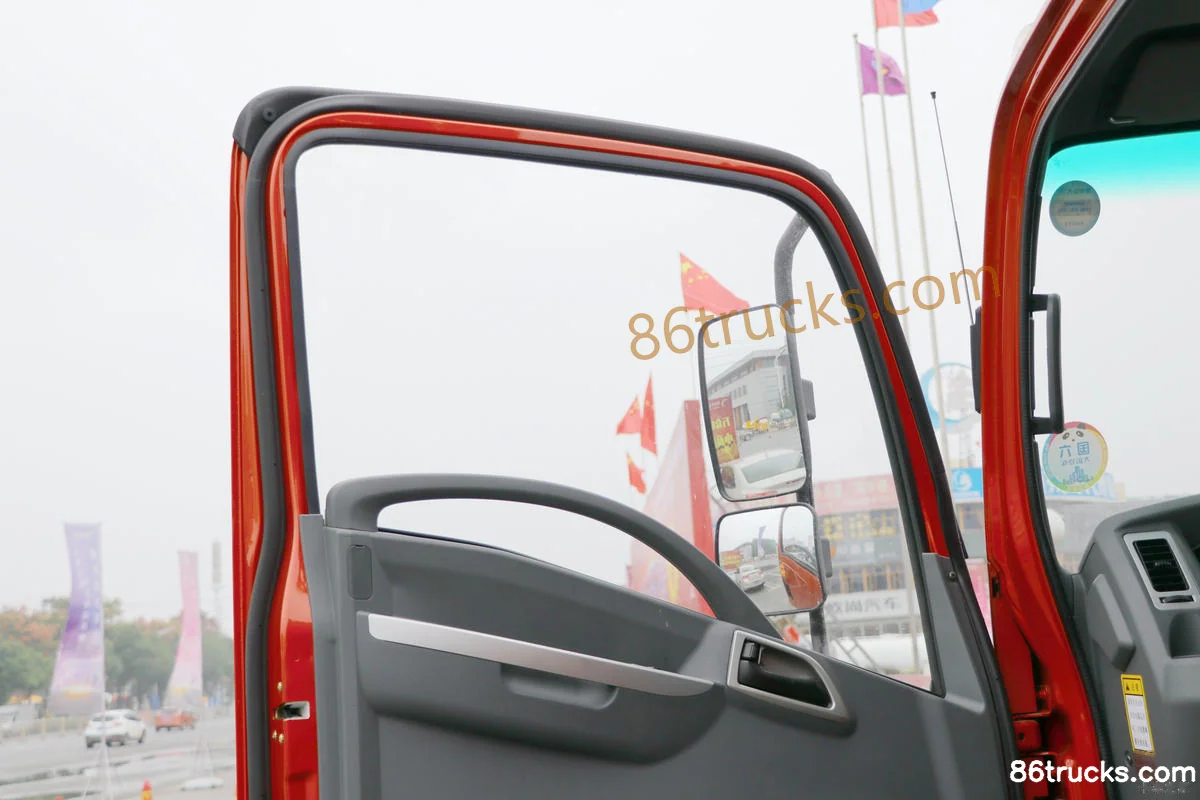

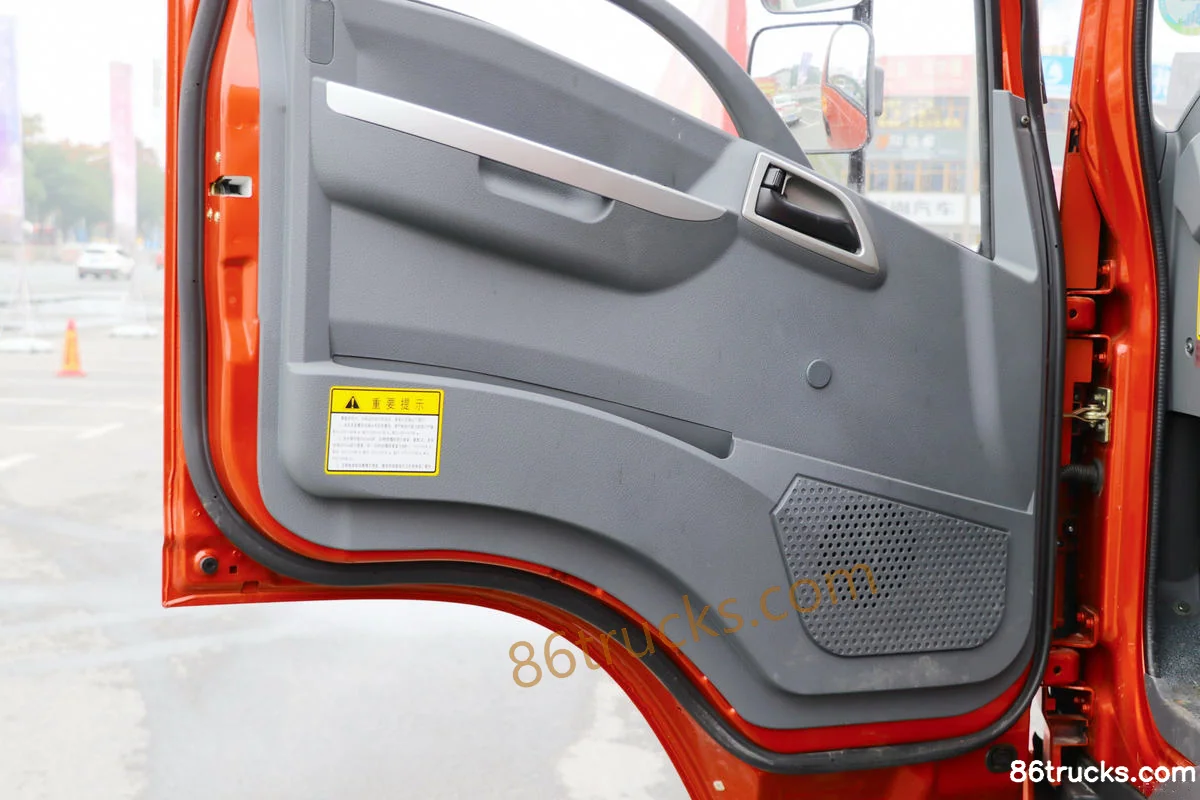

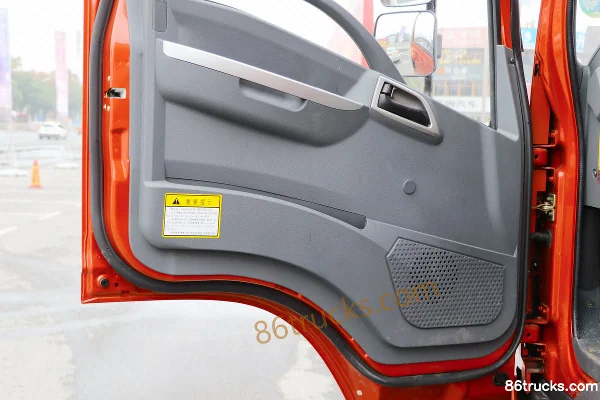

Cab3

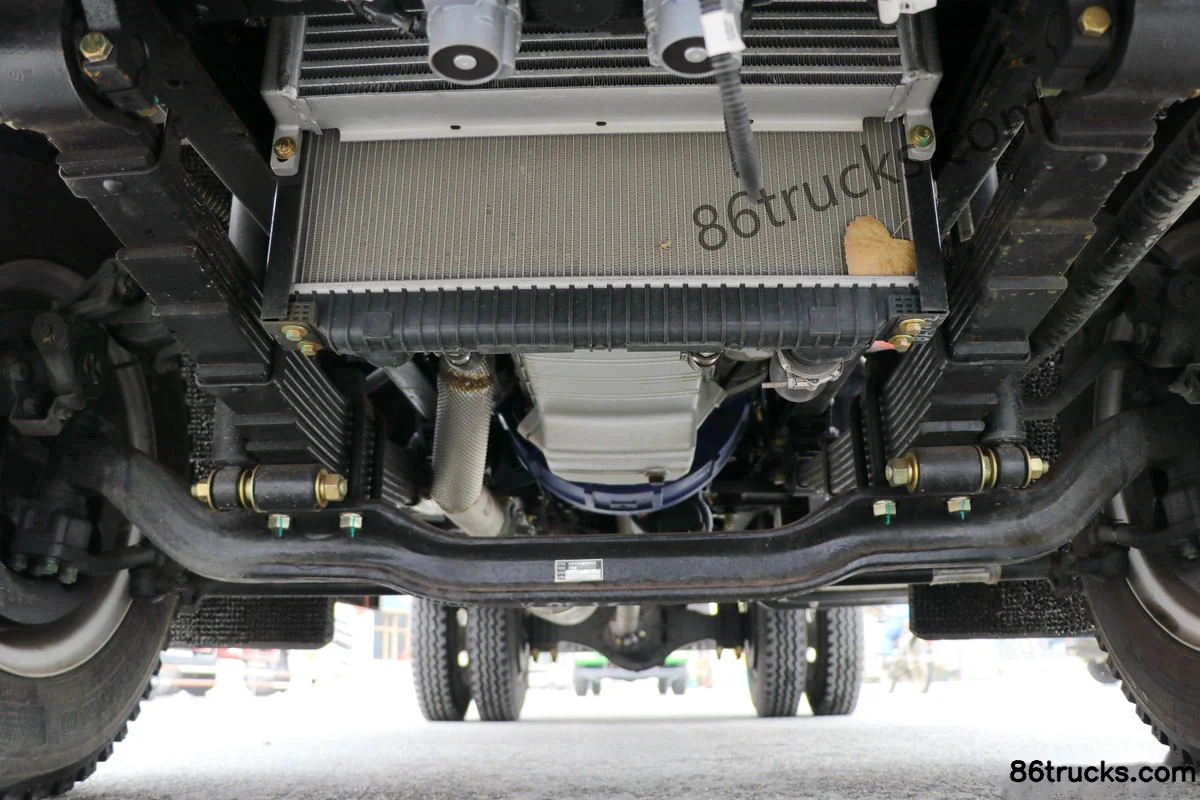

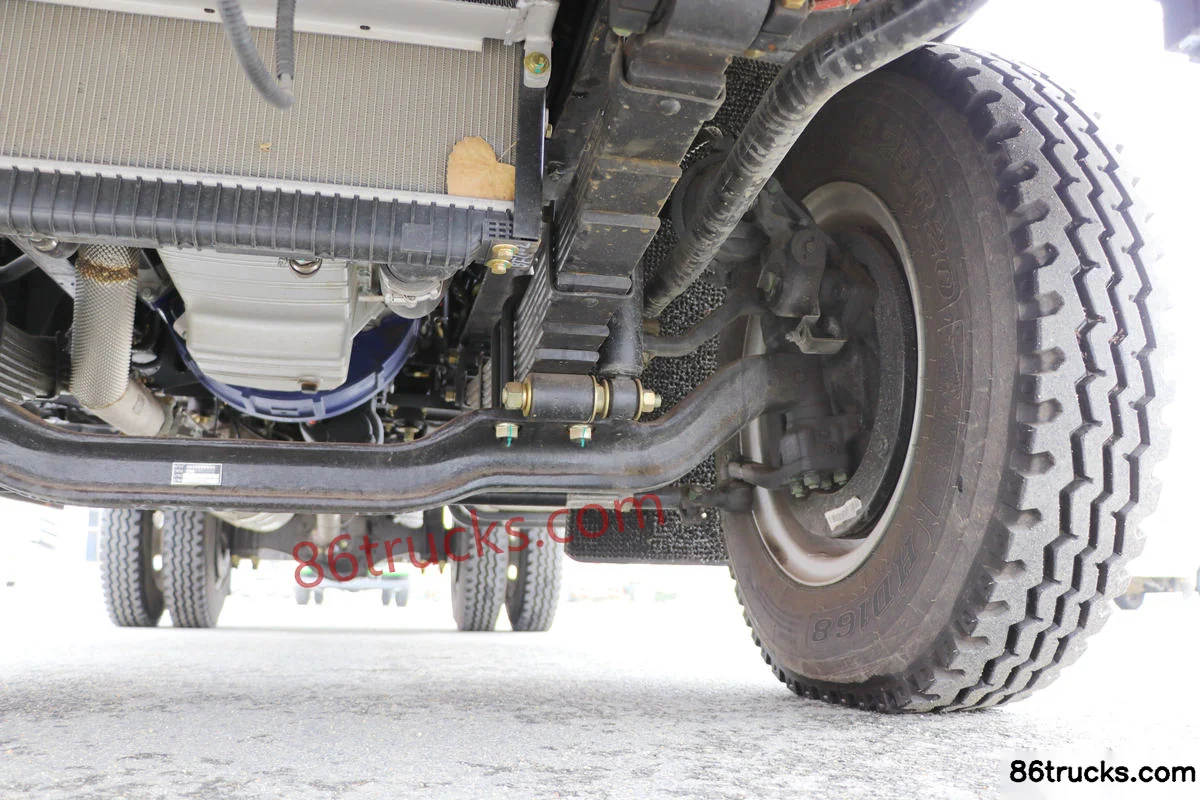

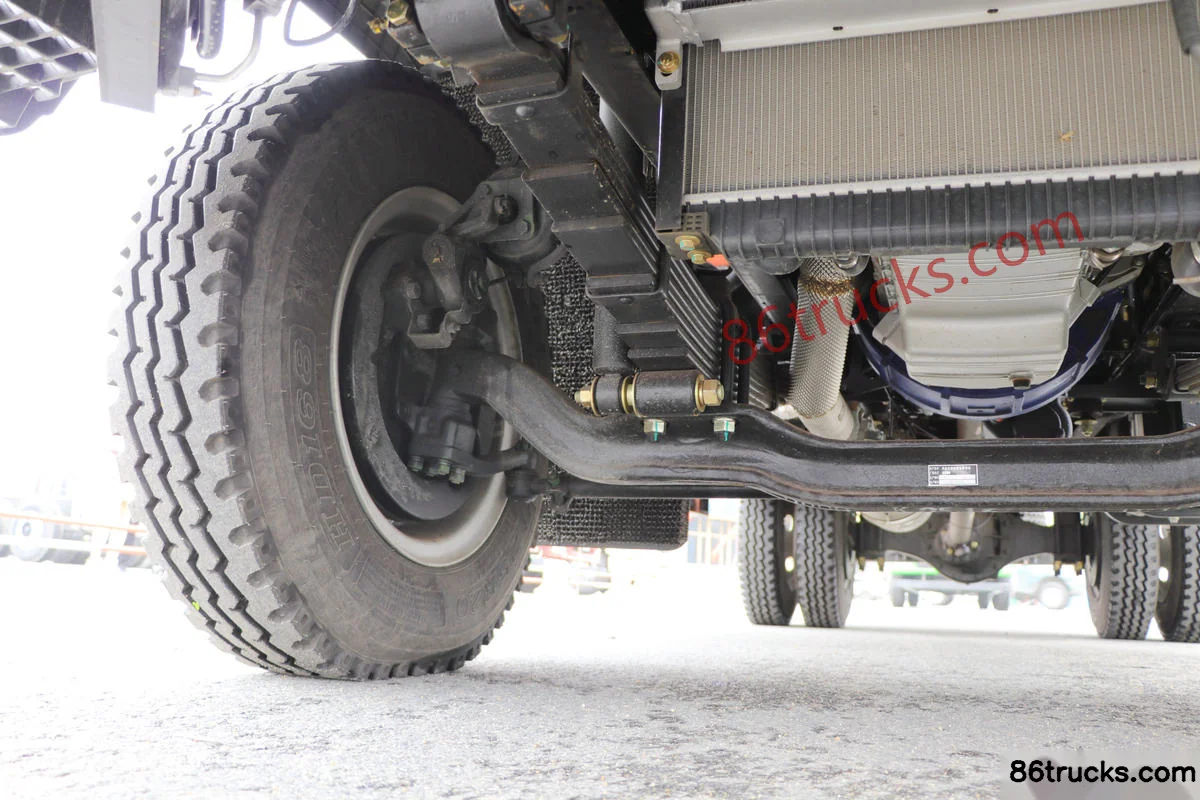

Chassis3

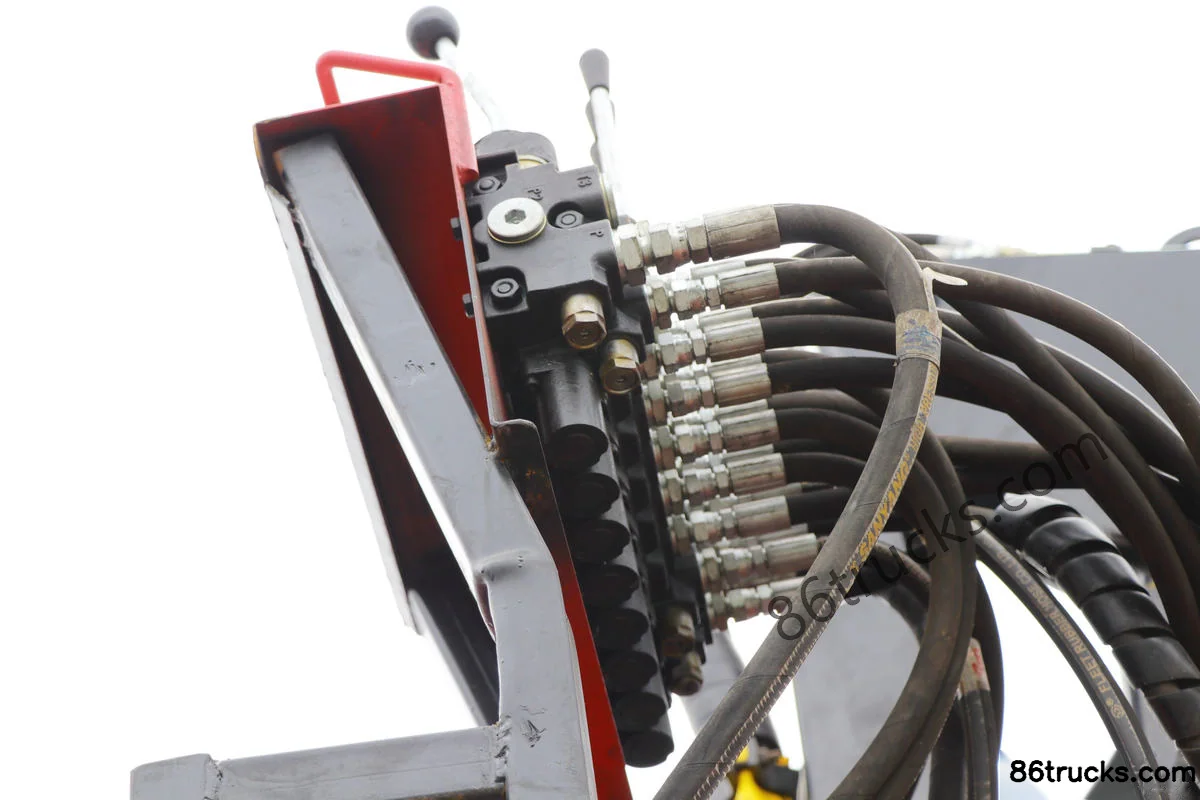

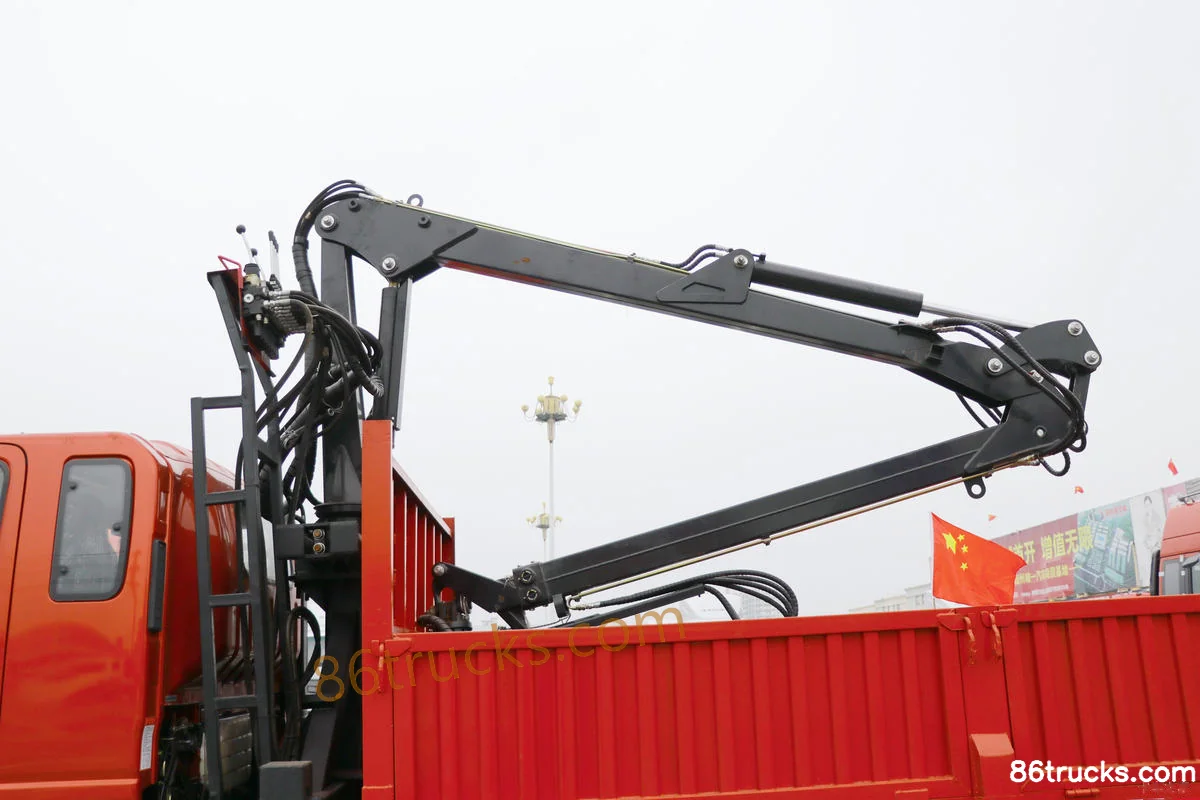

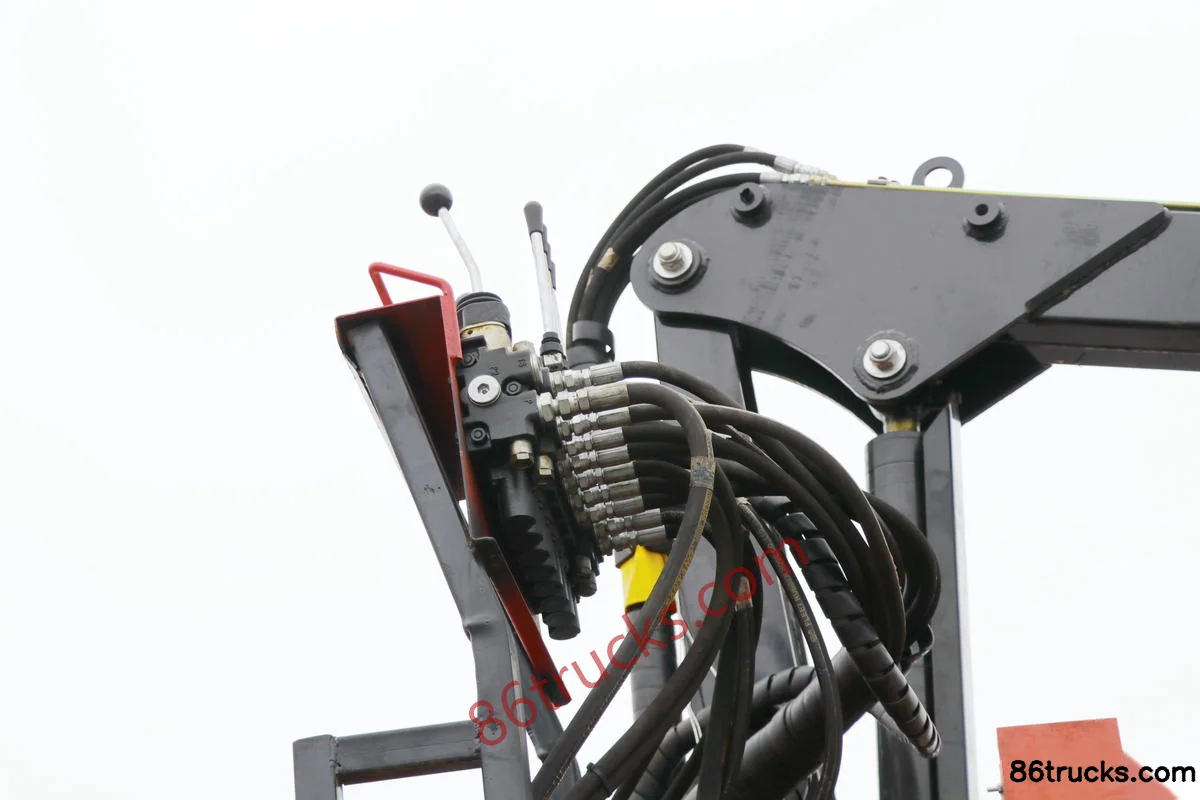

Body3

12 photos

FAQ

What emission standard does Dayun Yuntu 220 hp 4X2(6 wheels) Grapple Crane Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dayun Yuntu 220 hp 4X2(6 wheels) Grapple Crane Truck?

Key specs of Dayun Yuntu 220 hp 4X2(6 wheels) Grapple Crane Truck: Drive: 4x2; Horsepower: 220 hp; Emission: China VI; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dayun Yuntu 220 hp 4X2(6 wheels) Grapple Crane Truck suited for?

Dayun Yuntu 220 hp 4X2(6 wheels) Grapple Crane Truck is a truck-mounted crane model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Dayun Yuntu 220 hp 4X2(6 wheels) Grapple Crane Truck differ from other variants in the same series?

Dayun Yuntu 220 hp 4X2(6 wheels) Grapple Crane Truck belongs to Dayun Yuntu medium-duty truck (truck-mounted crane). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dayun Yuntu 220 hp 4X2(6 wheels) Grapple Crane Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dayun Yuntu 220 hp 4X2(6 wheels) Grapple Crane Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
