Sinotruk HOWO TX-W Heavy Truck Luxury Edition 340hp 8X4(12 wheels) 7.68m³ Concrete Mixer Truck (Shenzhou Yongda Brand)(Sinotruk)(AYD5315GJBZZ30)

Export reference
From $76,389
MSRP ¥55M CNY
Fuel: Diesel
Curb Weight:: 14.1ton
Wheelbase:: 1800+3050+1350mm
Tire Size:: 11.00R20 18PR
Cab dimensions:: 10.3x2.55x3.995m
Truck Type:: Concrete mixer truck
Rated payload: 16.77ton
Drive 8X4 (12 wheels)
Horsepower 340
Emission China V

Overview

The Sinotruk HOWO TX-W Heavy Truck Luxury Edition 340hp 8X4(12 wheels) 7.68m³ Concrete Mixer Truck (Shenzhou Yongda Brand)(Sinotruk)(AYD5315GJBZZ30) is a concrete mixer truck featuring 16.77t payload, 14.1ton GVW, 8X4 (12 wheels) drive and 10.3x2.55x3.995m cab. On the powertrain side, it comes with 340 hp, China V emissions and Diesel fuel.

China V 340 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 10.3x2.55x3.995m
Truck Type: Concrete mixer truck
Drive type: 8X4
Vehicle origin: Pingdingshan, Henan
Front/rear track width: Front: 2015/2015mm, Rear: 1850/1850
Wheelbase: 1800+3050+1350mm
Curb Weight: 14.1ton
Rated payload: 16.77ton
Max. speed: 82km/h
Front/rear suspension: 1.43/2.67m
Body Parameters
Mixing drum capacity: 7.68m³
Vehicle certification code: AYD5315GJBZZ30
Body Brand: Shenzhou Yongda
Engine parameters
Engine Model: SinotrukMC07.34-50
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 6.87L
Emission standard: China V
Max output power: 248kW
Max hp: 340Horsepower
Rated speed: 2300rpm
Engine Type: Inline, water-cooled, 4-stroke, turbocharged with intercooler
Chassis Specs
Chassis Series: HOWO TX-W
Chassis Model: ZZ1317N306GE1
Frame Dimensions: (8+5/300) Double-Layer Framemm
rear axle description: MAT16ZG drive axle
Axle ratio: 5.73
Leaf spring count: 11/11/12
Transmission Parameters
Number of gears: 10Gear
Transmission Model: SinotrukHW15710L
Tire
Tire Size: 11.00R20 18PR
Number of tires: 12pcs

Photos

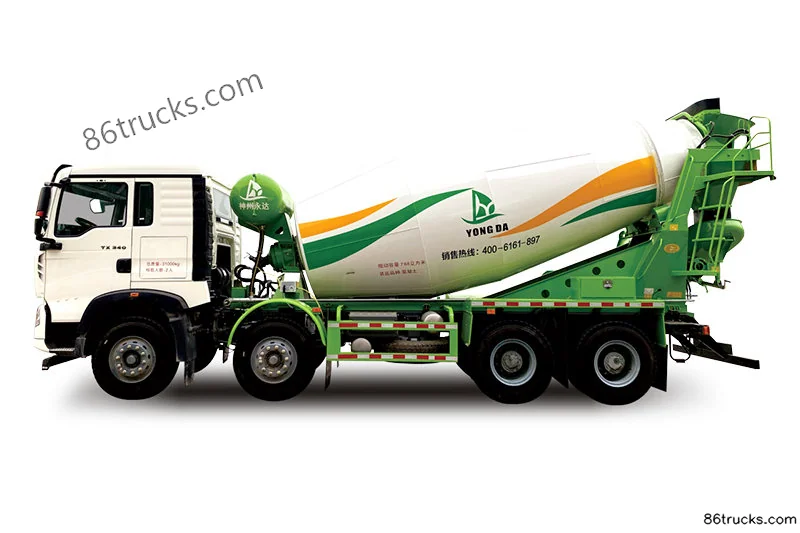

Exterior1

1 photos

FAQ

What is the export price of Sinotruk HOWO TX-W Heavy Truck Luxury Edition 340hp 8X4(12 wheels) 7.68m³ Concrete Mixer Truck (Shenzhou Yongda Brand)(Sinotruk)(AYD5315GJBZZ30), and what does it include?

Sinotruk HOWO TX-W Heavy Truck Luxury Edition 340hp 8X4(12 wheels) 7.68m³ Concrete Mixer Truck (Shenzhou Yongda Brand)(Sinotruk)(AYD5315GJBZZ30) export reference is about From $76,389; MSRP is ¥55M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk HOWO TX-W Heavy Truck Luxury Edition 340hp 8X4(12 wheels) 7.68m³ Concrete Mixer Truck (Shenzhou Yongda Brand)(Sinotruk)(AYD5315GJBZZ30) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk HOWO TX-W Heavy Truck Luxury Edition 340hp 8X4(12 wheels) 7.68m³ Concrete Mixer Truck (Shenzhou Yongda Brand)(Sinotruk)(AYD5315GJBZZ30)?

Key specs of Sinotruk HOWO TX-W Heavy Truck Luxury Edition 340hp 8X4(12 wheels) 7.68m³ Concrete Mixer Truck (Shenzhou Yongda Brand)(Sinotruk)(AYD5315GJBZZ30): Drive: 8x4; Horsepower: 340 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk HOWO TX-W Heavy Truck Luxury Edition 340hp 8X4(12 wheels) 7.68m³ Concrete Mixer Truck (Shenzhou Yongda Brand)(Sinotruk)(AYD5315GJBZZ30) suited for?

Sinotruk HOWO TX-W Heavy Truck Luxury Edition 340hp 8X4(12 wheels) 7.68m³ Concrete Mixer Truck (Shenzhou Yongda Brand)(Sinotruk)(AYD5315GJBZZ30) is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk HOWO TX-W Heavy Truck Luxury Edition 340hp 8X4(12 wheels) 7.68m³ Concrete Mixer Truck (Shenzhou Yongda Brand)(Sinotruk)(AYD5315GJBZZ30) differ from other variants in the same series?

Sinotruk HOWO TX-W Heavy Truck Luxury Edition 340hp 8X4(12 wheels) 7.68m³ Concrete Mixer Truck (Shenzhou Yongda Brand)(Sinotruk)(AYD5315GJBZZ30) belongs to Shenzhou Yongda (Shenzhou Yongda) Sinotruk HOWO Chassis (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk HOWO TX-W Heavy Truck Luxury Edition 340hp 8X4(12 wheels) 7.68m³ Concrete Mixer Truck (Shenzhou Yongda Brand)(Sinotruk)(AYD5315GJBZZ30)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk HOWO TX-W Heavy Truck Luxury Edition 340hp 8X4(12 wheels) 7.68m³ Concrete Mixer Truck (Shenzhou Yongda Brand)(Sinotruk)(AYD5315GJBZZ30)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
