Dongfeng H5 4X2(6 wheels) 5.3m Semi-Cab Electric Dump Truck CATL 310.66kWh

Export reference
From $69,444
MSRP ¥50M CNY
Rated payload:: 6.105ton
Wheelbase:: 4500mm
Cargo box length:: 5.3m
Model code (announced):: LZ3180H5AZBEV01
Cab length:: 7.975m
GVWR:: 18ton
Drive 4X2 (6 wheels)
Battery Brand: CATL
Motor 1 Brand: Fast Gear
Curb Weight: 11.7ton

Overview

The Dongfeng H5 4X2(6 wheels) 5.3m Semi-Cab Electric Dump Truck CATL 310.66kWh is a Medium-duty truck featuring CATL battery/range, Fast Gear motor, 4X2 (6 wheels) drive and 6.105t payload. On the powertrain side, it comes with Fast Gear transmission.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): LZ3180H5AZBEV01
Drive type: 4X2
Wheelbase: 4500mm
Cab length: 7.975m
Cab width: 2.545m
Cab height: 3.3m
Curb Weight: 11.7ton
Rated payload: 6.105ton
GVWR: 18ton
Max. speed: 89km/h
Origin: Liuzhou, Guangxi
tonnage class: Medium-duty truck
Remarks: Battery side-mounted
Energy Type: Electric
electric motor
Motor 1 Brand: Fast Gear
Motor 1 Model: TZ375XSSF-SZF601
Motor Type: Permanent magnet synchronous motor
total rated power: 262kW
Peak power: 405kW
Motor 1 Peak Power: 405kW
Battery/Charging
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 310.66kWh
Transmission Parameters
Number of gears: 6Gear
shift type: AMT manual/auto
Transmission Model: Fast Gear 6E240
Transmission Brand: Fast Gear
Forward gears: 6Gear
Cargo box parameters
Cargo box length: 5.3m
Cargo box width: 2.35m
Cargo box height: 0.8m
Cab parameters
Cab: H52 (mid floor)
seating capacity: 2Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 6500kg
rear axle description: 25T hub reduction axle
rear axle allowable load: 11500kg
Tire
Tire Size: 11.00R20 18PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Reverse Camera:
Remote key:
Electronic Central Lock:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
Service brake
Brake Type: Air brake
Parking brake: Spring brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

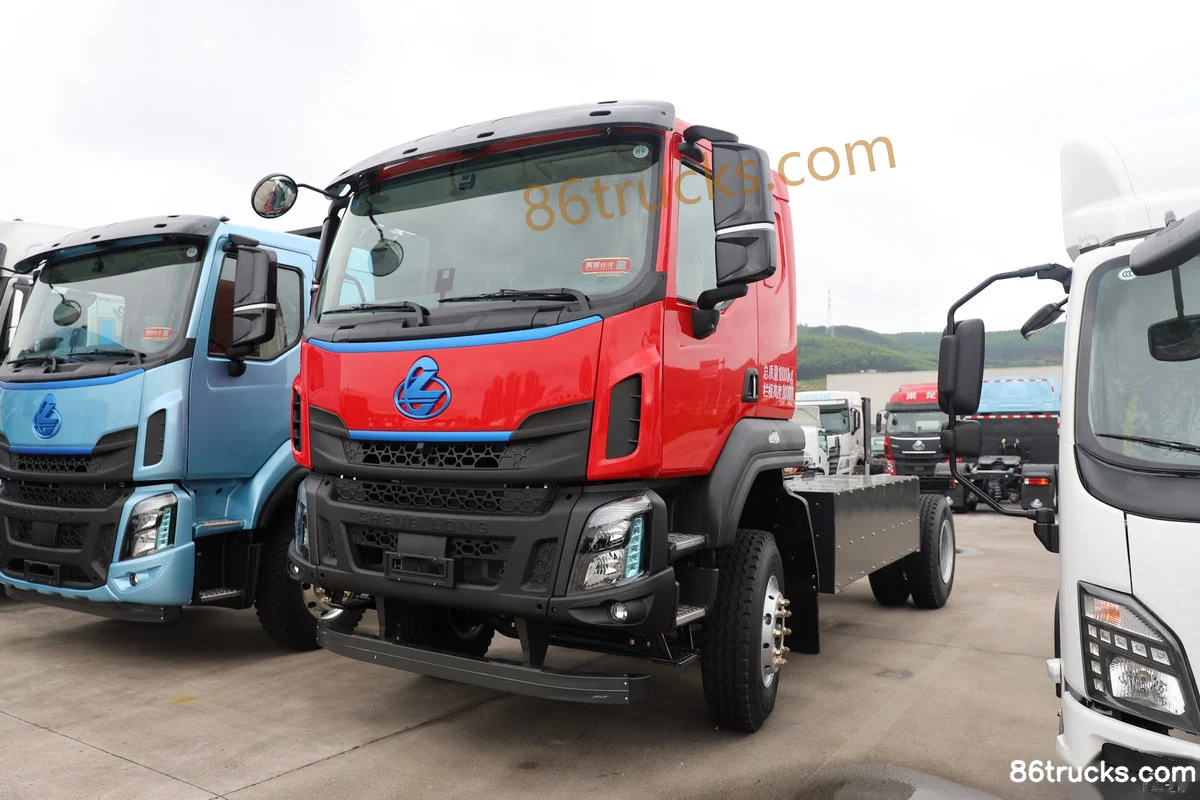

Photos

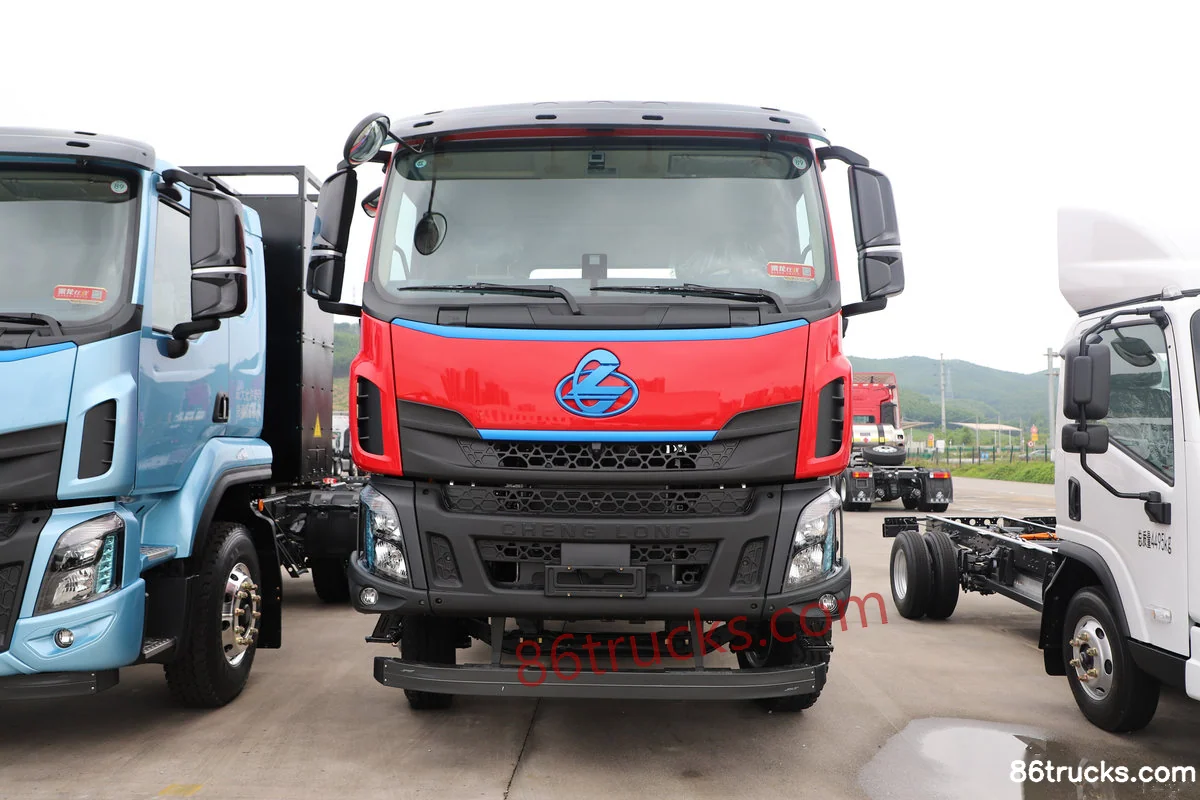

Exterior3

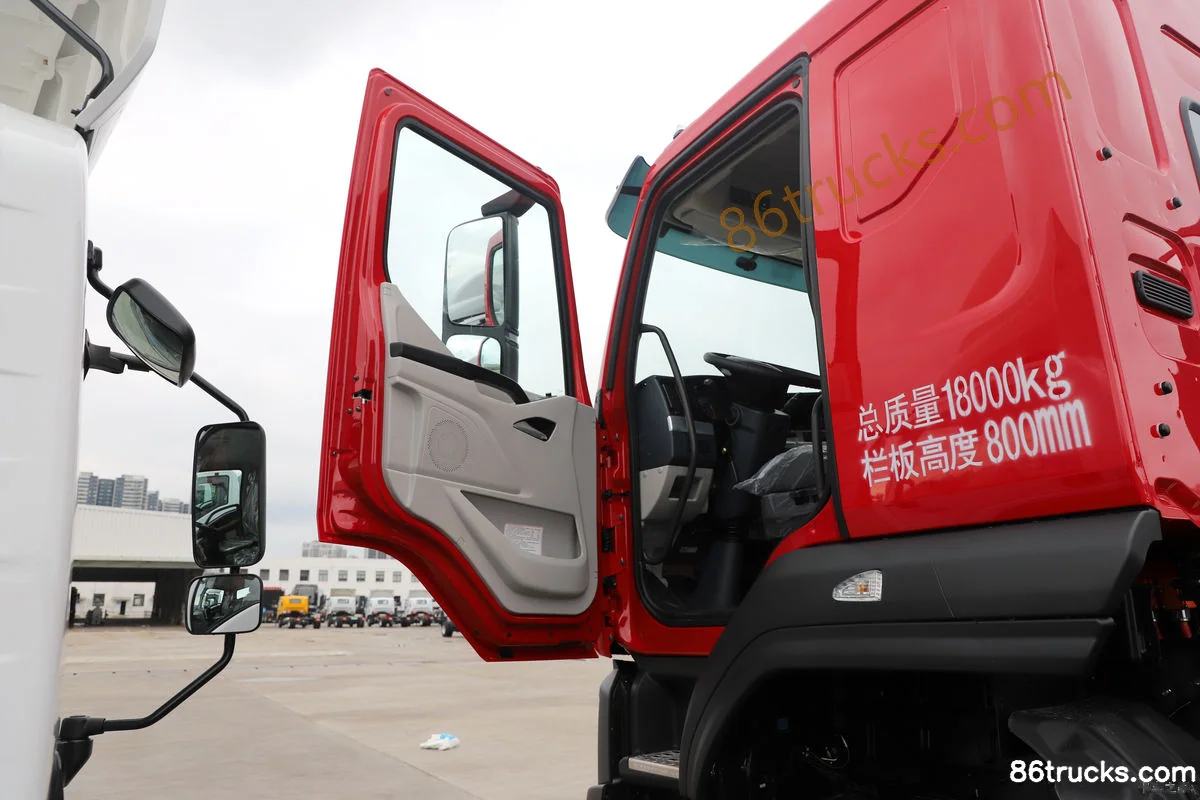

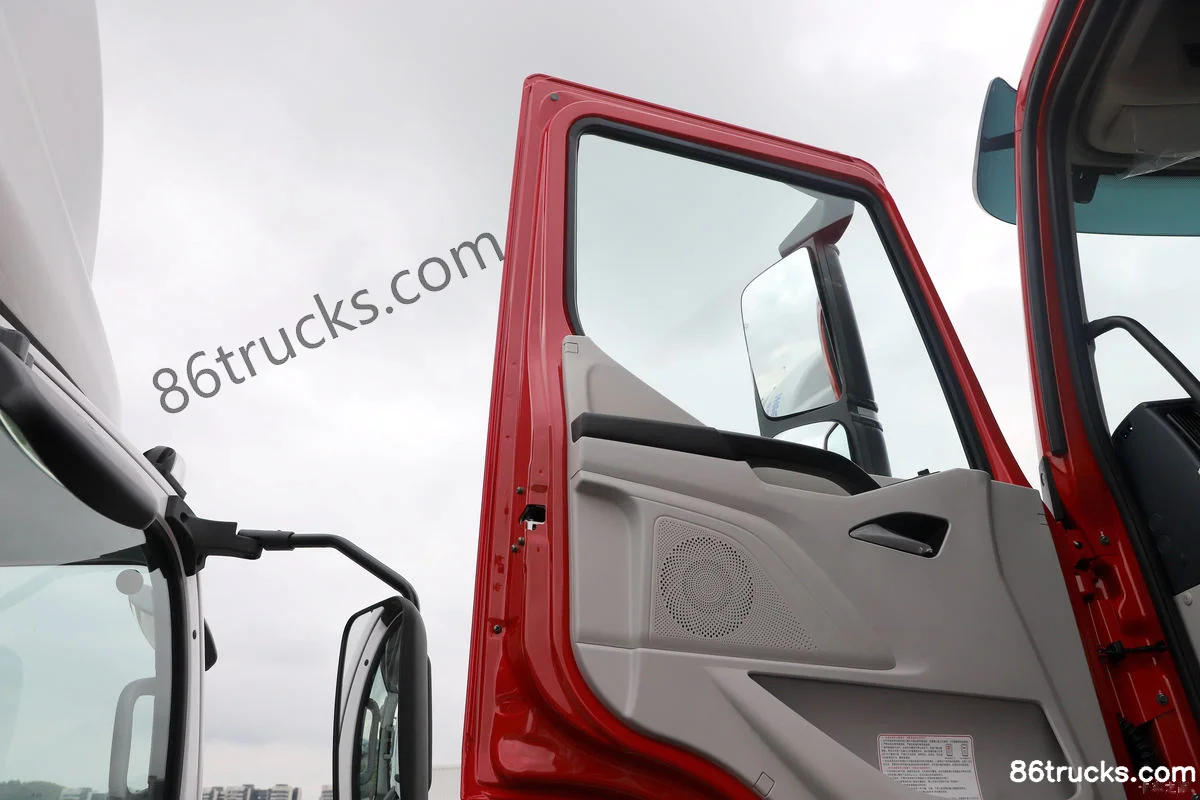

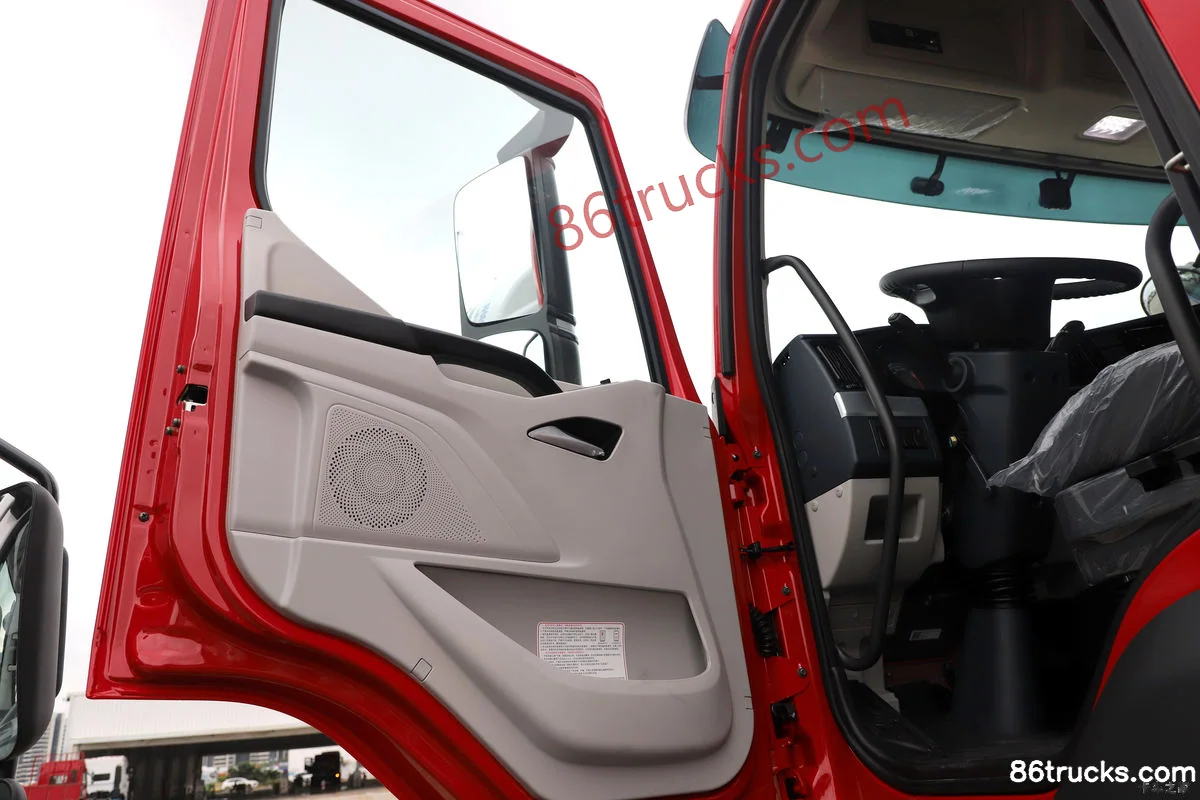

Cab3

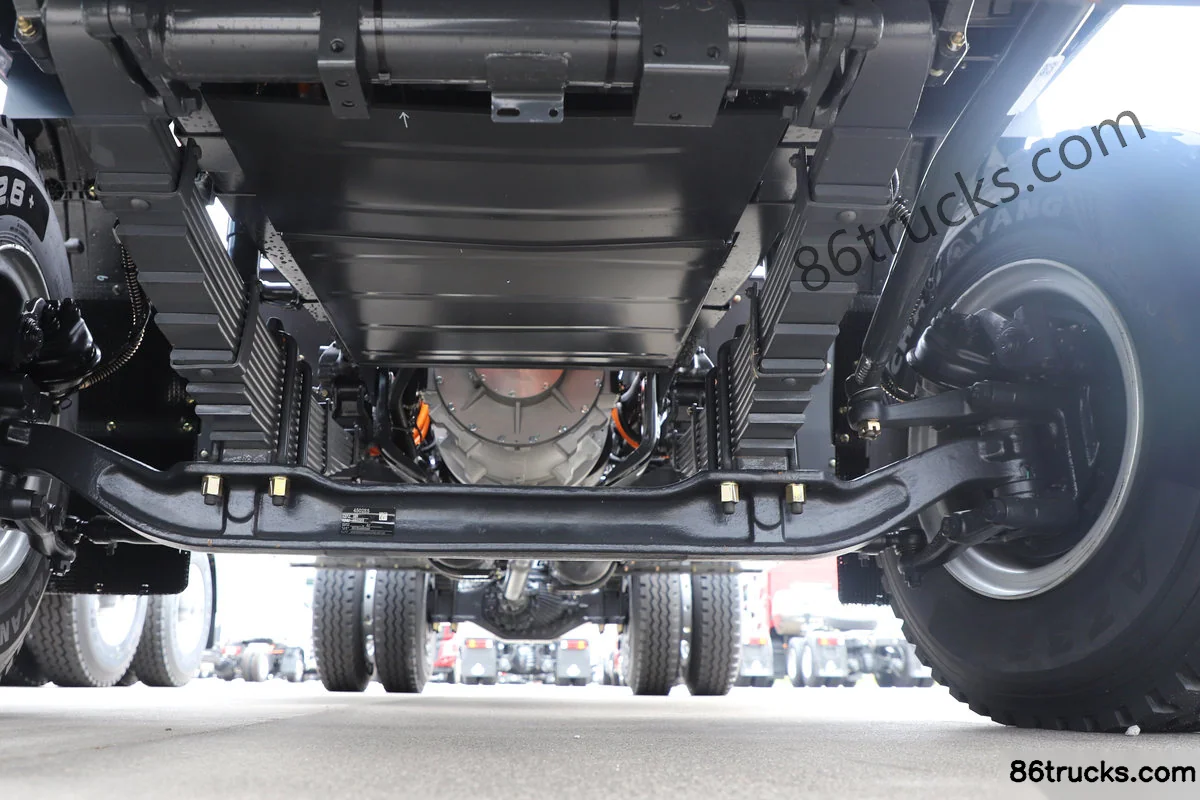

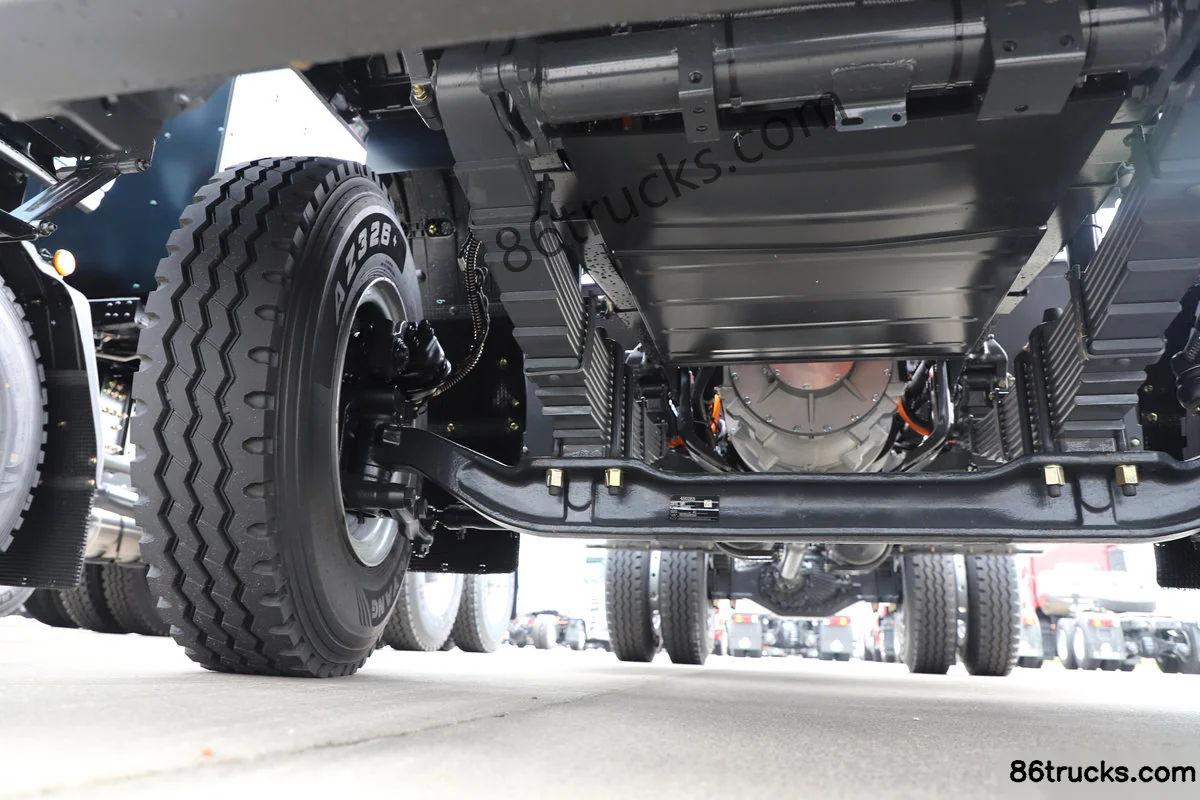

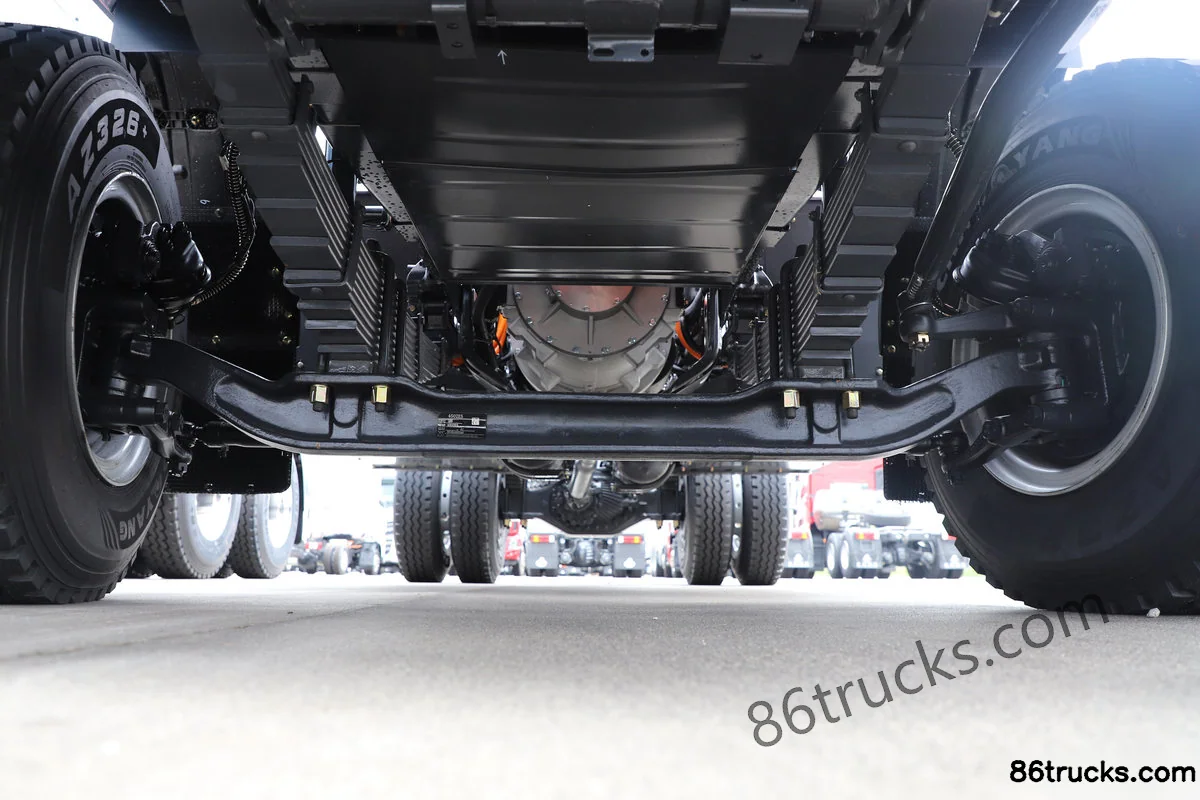

Chassis3

9 photos

FAQ

What is the export price of Dongfeng H5 4X2(6 wheels) 5.3m Semi-Cab Electric Dump Truck CATL 310.66kWh, and what does it include?

Dongfeng H5 4X2(6 wheels) 5.3m Semi-Cab Electric Dump Truck CATL 310.66kWh export reference is about From $69,444; MSRP is ¥50M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What are the key specs of Dongfeng H5 4X2(6 wheels) 5.3m Semi-Cab Electric Dump Truck CATL 310.66kWh?

Key specs of Dongfeng H5 4X2(6 wheels) 5.3m Semi-Cab Electric Dump Truck CATL 310.66kWh: Drive: 4x2; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng H5 4X2(6 wheels) 5.3m Semi-Cab Electric Dump Truck CATL 310.66kWh suited for?

Dongfeng H5 4X2(6 wheels) 5.3m Semi-Cab Electric Dump Truck CATL 310.66kWh is a electric dump truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Dongfeng H5 4X2(6 wheels) 5.3m Semi-Cab Electric Dump Truck CATL 310.66kWh differ from other variants in the same series?

Dongfeng H5 4X2(6 wheels) 5.3m Semi-Cab Electric Dump Truck CATL 310.66kWh belongs to Dongfeng H5 Heavy Truck (electric dump truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng H5 4X2(6 wheels) 5.3m Semi-Cab Electric Dump Truck CATL 310.66kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng H5 4X2(6 wheels) 5.3m Semi-Cab Electric Dump Truck CATL 310.66kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
