Sanhuan Shitong T3 Chuangke 110 hp 4X2(6 wheels) 3.3m Dump Truck

Export reference
MSRP N/A
Emission: China V
Fuel: Diesel
Curb Weight:: 2.6ton
Wheelbase:: 3000mm
Tire Size:: 7.50-16LT 6PR,7.50R16LT 6PR,8.25R16LT 6PR
Model code (announced):: STQ3041L01Y1N5
Rated payload: 1.495ton
Drive 4X2 (6 wheels)
Horsepower 110
Cargo box type: Dump type

Overview

The Sanhuan Shitong T3 Chuangke 110 hp 4X2(6 wheels) 3.3m Dump Truck is a Light Truck featuring 1.495t payload, 4.29t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a WeichaiWP2.3Q110E50 engine, 110 hp, China V emissions and 5-speed transmission transmission.

China V 110 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): STQ3041L01Y1N5
Drive type: 4X2
Wheelbase: 3000mm
engine: WeichaiWP2.3Q110E50
transmission: 5-speed transmission
Rear Axle Ratio: 4.875
Cab length: 5.49m
Cab width: 2.17m
Cab height: 2.2m
Front track width: 1770mm
rear track: 1650mm
Curb Weight: 2.6ton
Rated payload: 1.495ton
GVWR: 4.29ton
Origin: Shiyan, Hubei
tonnage class: Light Truck
Approach angle: 30°
departure angle: 16°
Remarks: Power steering, clutch booster, air dryer
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP2.3Q110E50
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.29L
Emission standard: China V
Max output power: 81kW
Max hp: 110Horsepower
Max torque: 280N·m
Max torque speed: 1700-2300rpm
Rated speed: 3200rpm
Engine Type: Common Rail+SCR
Transmission Parameters
Transmission Model: 5-speed transmission
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 3.3m
Cargo box width: 1.9m
Cargo box height: 0.6m
Chassis Specs
Front axle allowable load: 1850kg
rear axle allowable load: 2440kg
Axle ratio: 4.875
Leaf spring count: 8/11+8,8/10+7,5/7+5
Tire
Tire Size: 7.50-16LT 6PR,7.50R16LT 6PR,8.25R16LT 6PR
Number of tires: 6pcs
Control configuration
ABS:
Service brake
Parking brake: Spring brake

Photos

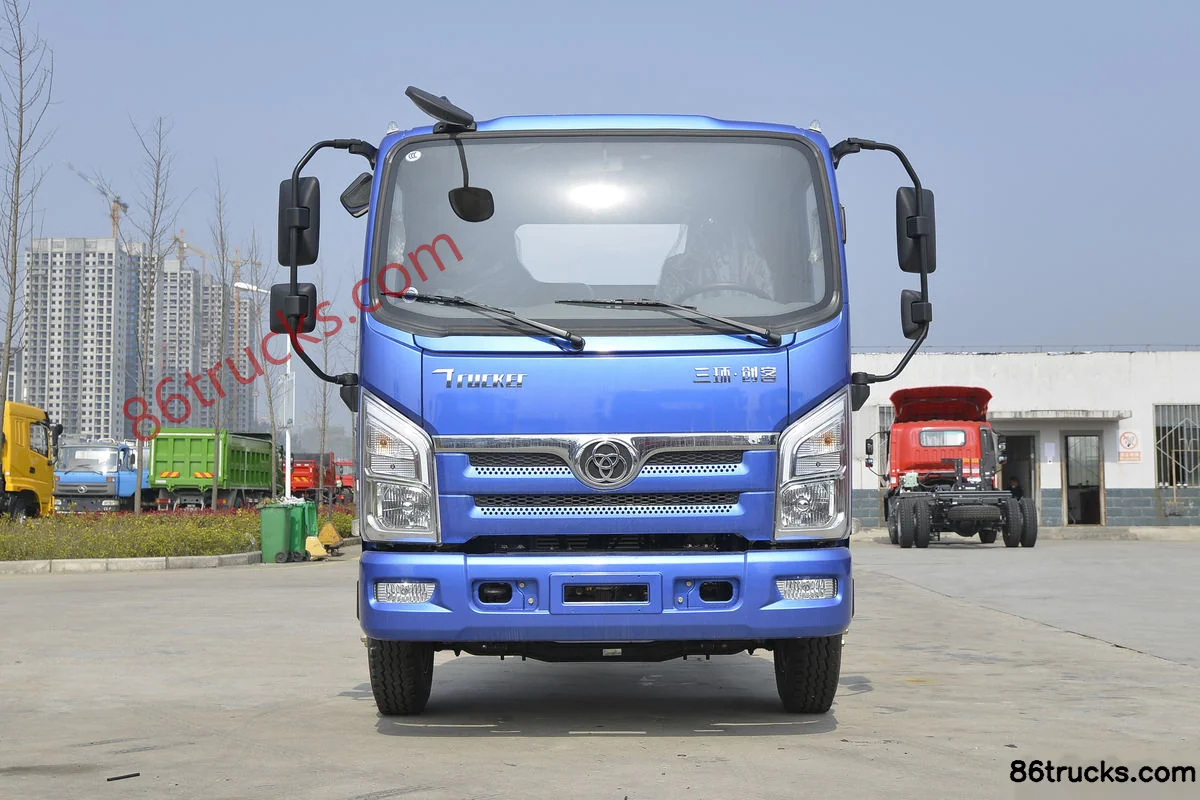

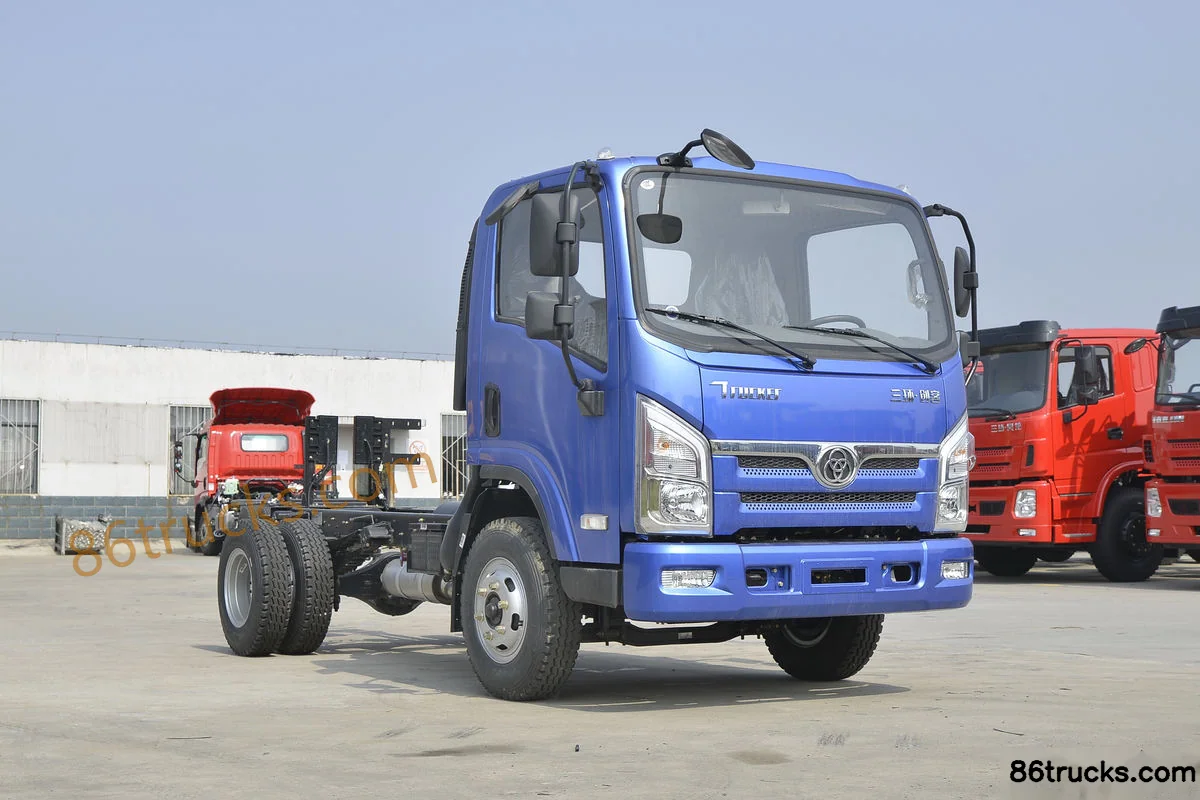

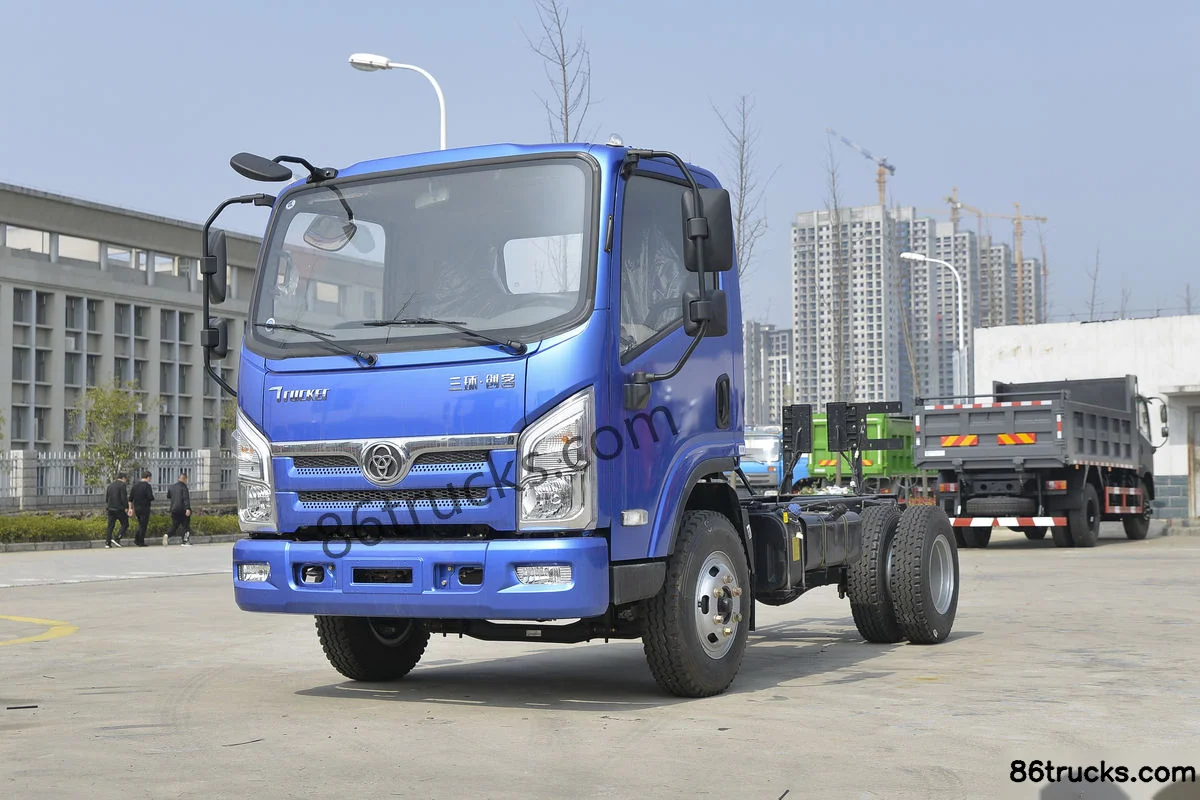

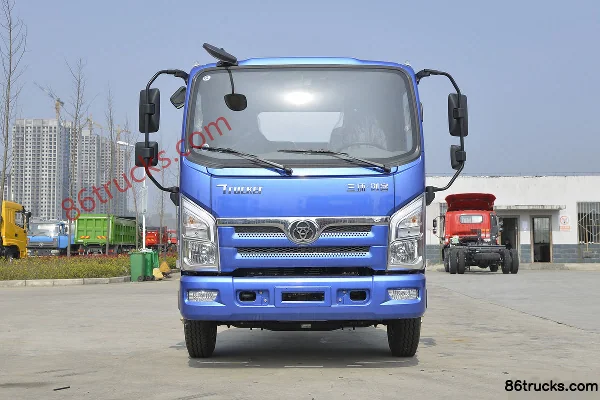

Exterior3

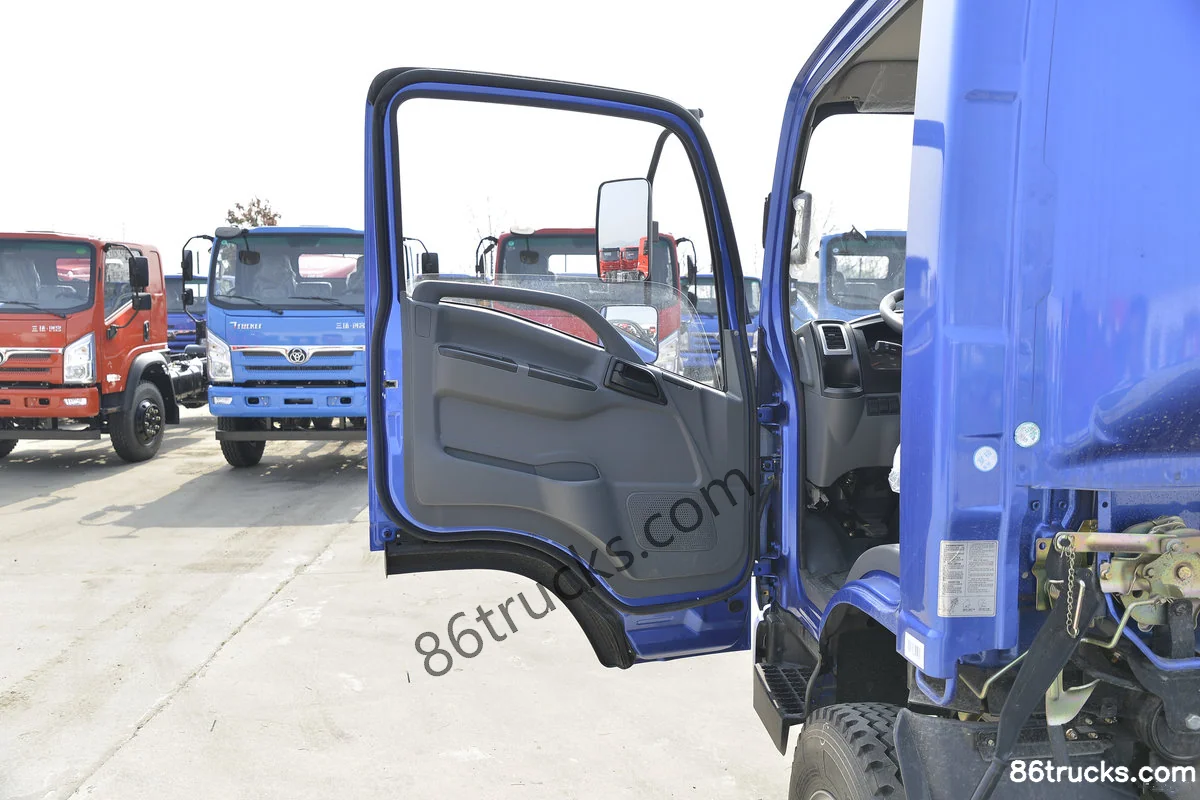

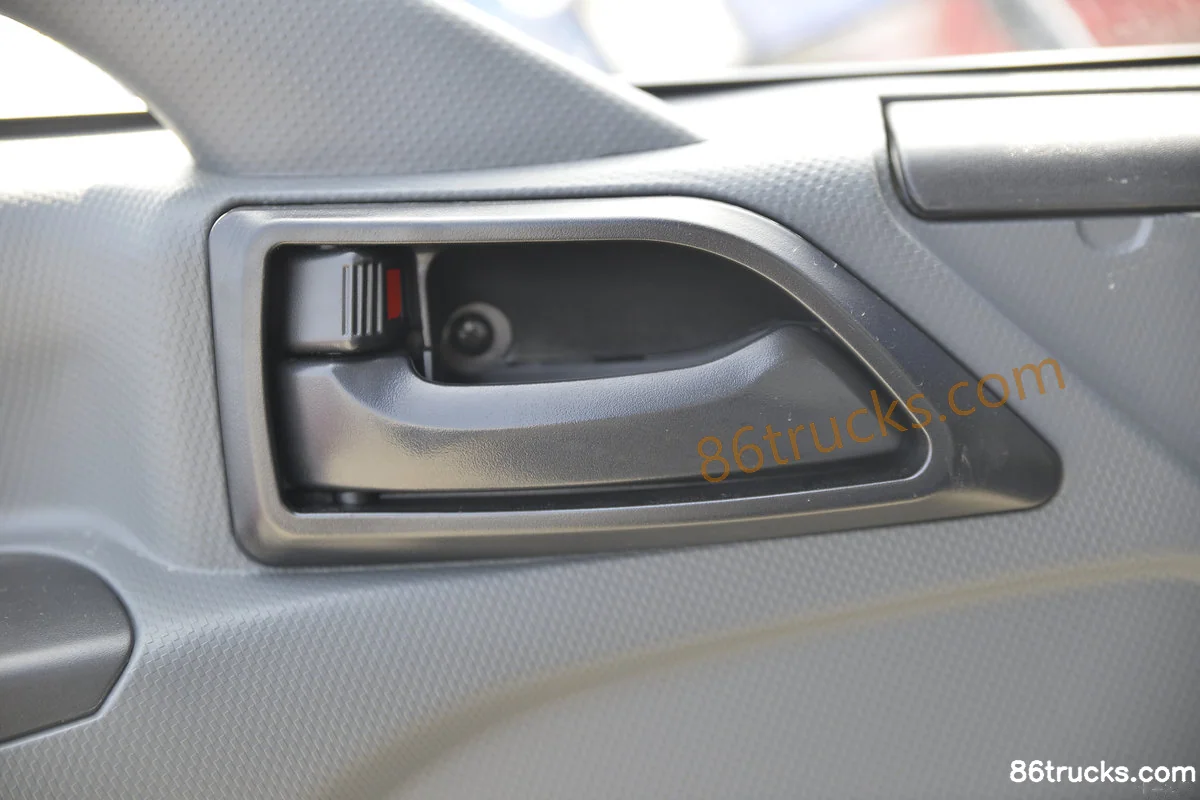

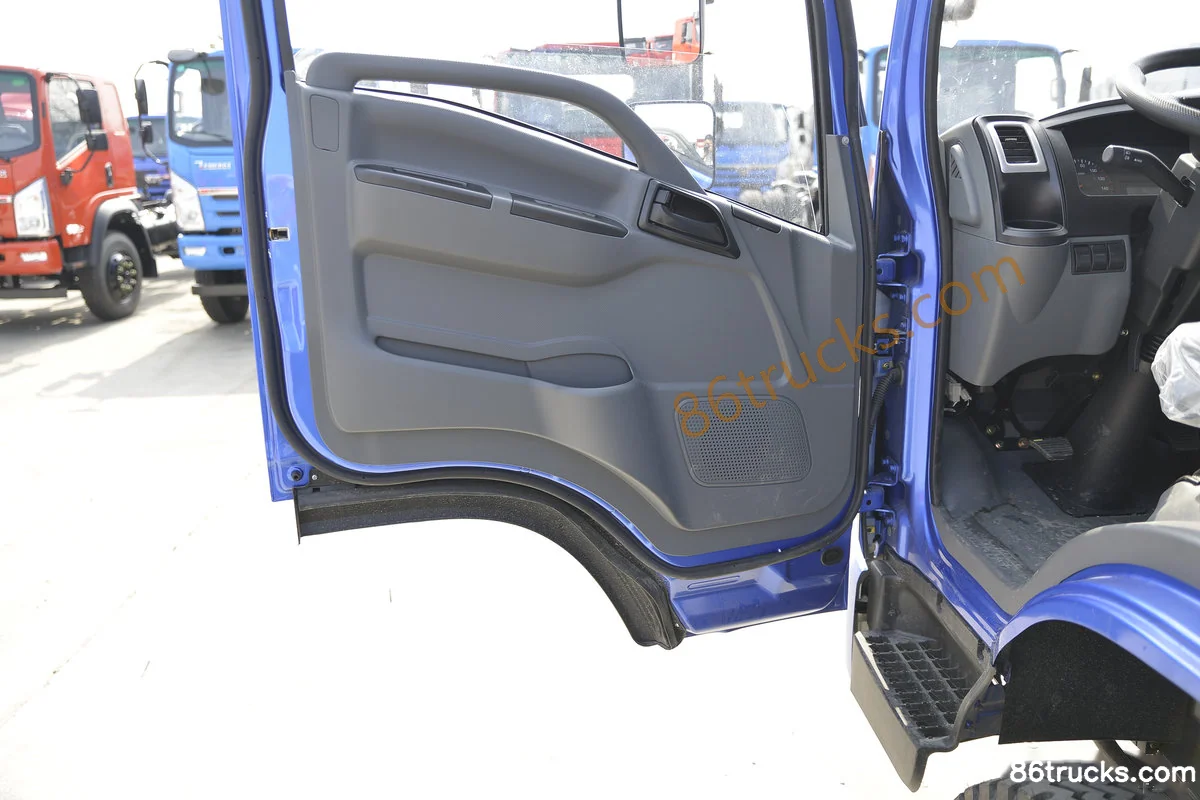

Cab3

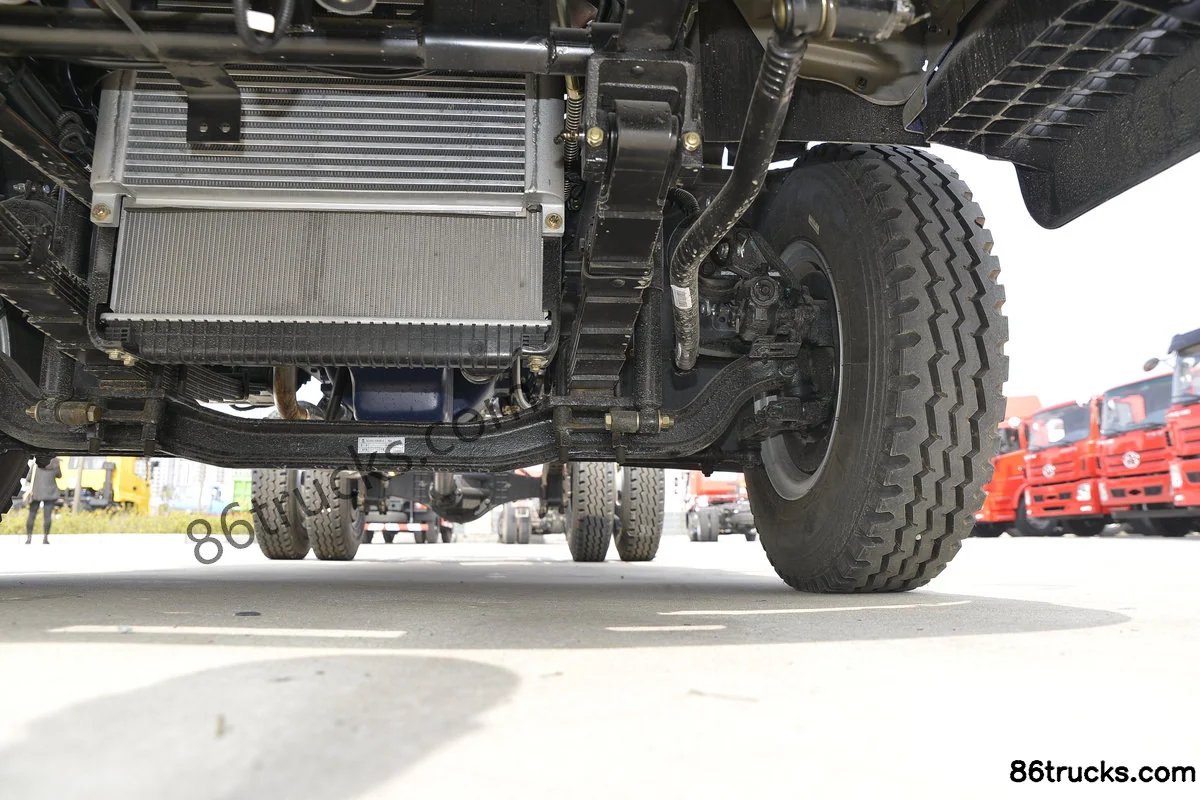

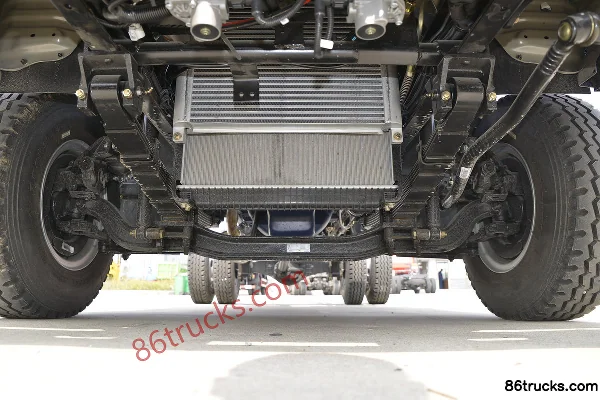

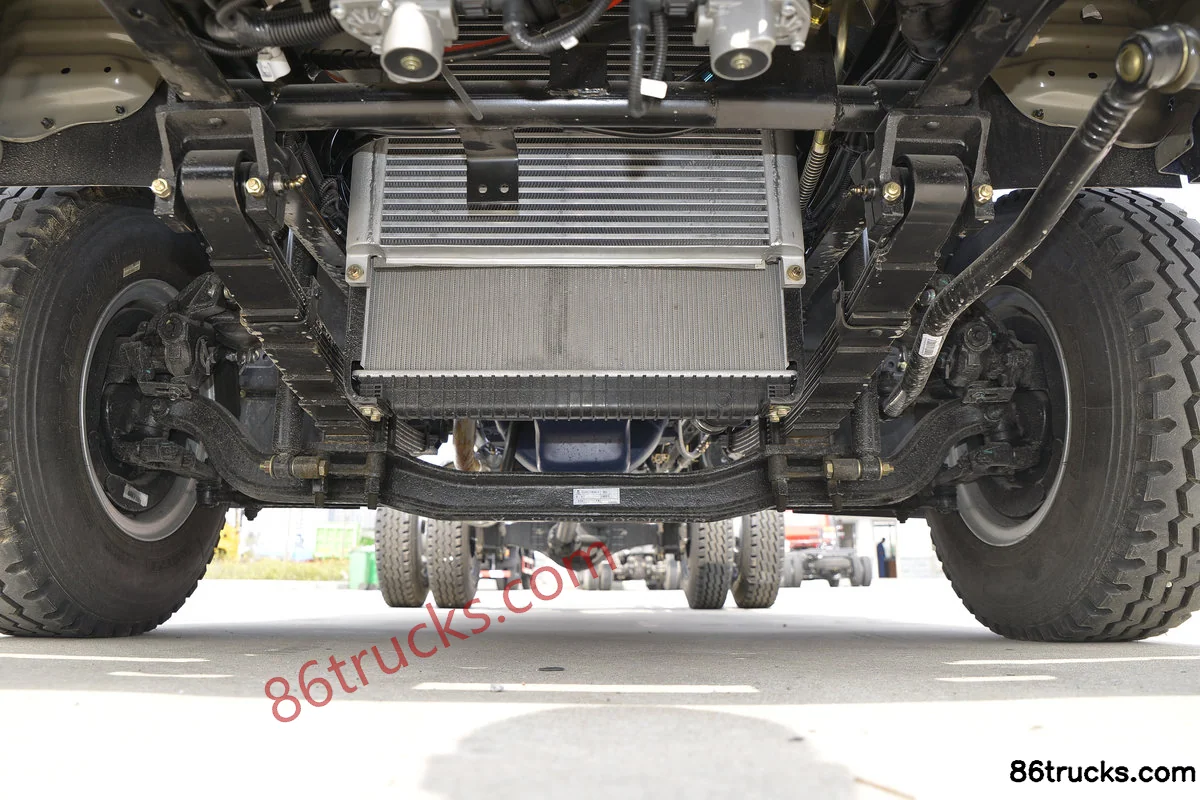

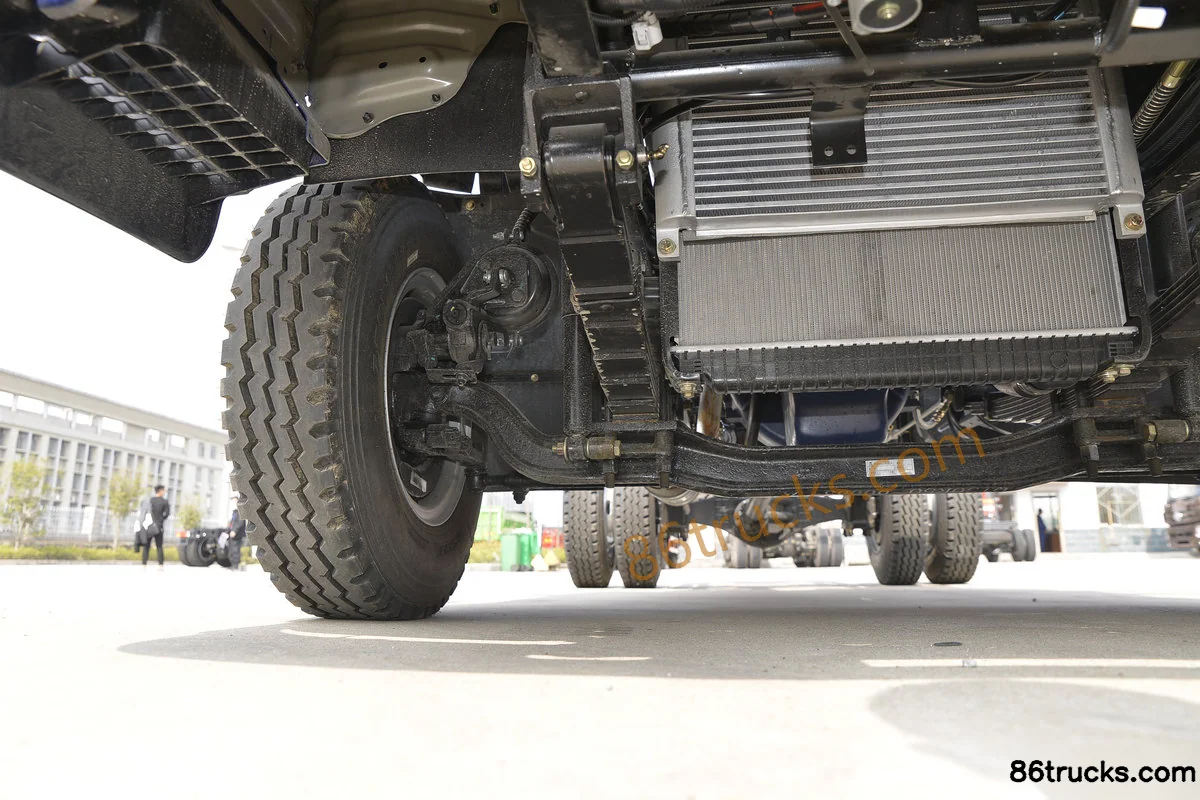

Chassis3

9 photos

FAQ

What emission standard does Sanhuan Shitong T3 Chuangke 110 hp 4X2(6 wheels) 3.3m Dump Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sanhuan Shitong T3 Chuangke 110 hp 4X2(6 wheels) 3.3m Dump Truck?

Key specs of Sanhuan Shitong T3 Chuangke 110 hp 4X2(6 wheels) 3.3m Dump Truck: Drive: 4x2; Horsepower: 110 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sanhuan Shitong T3 Chuangke 110 hp 4X2(6 wheels) 3.3m Dump Truck suited for?

Sanhuan Shitong T3 Chuangke 110 hp 4X2(6 wheels) 3.3m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sanhuan Shitong T3 Chuangke 110 hp 4X2(6 wheels) 3.3m Dump Truck differ from other variants in the same series?

Sanhuan Shitong T3 Chuangke 110 hp 4X2(6 wheels) 3.3m Dump Truck belongs to Sanhuan Shitong Chuanke Light Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sanhuan Shitong T3 Chuangke 110 hp 4X2(6 wheels) 3.3m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sanhuan Shitong T3 Chuangke 110 hp 4X2(6 wheels) 3.3m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
