Sinotruk HOWO Hanjun 102 hp 4X2(6 wheels) 3.2m double-row flatbed light truck

Export reference
MSRP N/A
Horsepower: 102
Emission: China IV
Fuel: Diesel
Engine: Yunnei 4100
Transmission: WLY
Curb Weight:: 2.425ton
seating capacity: 5Personnel
Rated payload: 1.495ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Sinotruk HOWO Hanjun 102 hp 4X2(6 wheels) 3.2m double-row flatbed light truck is a Light Truck featuring 3.24m cargo length, stake body cargo body, 5Personnel volume and 1.495t payload. On the powertrain side, it comes with a Yunnei 4100 engine, 102 hp, 4X2 (6 wheels) drive and China IV emissions.

China IV 102 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ1047D3413D542
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 3.2m
engine: Yunnei PowerYN33CRD2
transmission: WLYWLY535
Rear Axle Ratio: 5.571
Cab length: 5.995m
Cab width: 2m
Cab height: 2.45m
Front track width: 1625mm
rear track: 1525mm
Curb Weight: 2.425ton
Rated payload: 1.495ton
GVWR: 4.245ton
Max. speed: 90km/h
Origin: Jinan, Shandong
tonnage class: Light Truck
Approach angle: 18°
departure angle: 18°
Front/rear suspension: 1.16/1.475m
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerYN33CRD2
Engine info: Yunnei 4100
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 3.298L
Emission standard: China IV
Max output power: 75kW
Max hp: 102Horsepower
Max torque: 265N·m
Max torque speed: 1600-2400rpm
Rated speed: 3200rpm
Engine Type: Electronic high-pressure common rail diesel engine
Transmission Parameters
Transmission Model: WLYWLY535
Transmission Brand: WLY
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 3.24m
Cargo box width: 1.88m
Cargo box height: 0.45m
*Cargo box interior width: 1.8799999952316
Cab parameters
seating capacity: 5Personnel
Seat rows: Double cab
Chassis Specs
Front axle allowable load: 1690kg
rear axle description: 2555
rear axle allowable load: 2555kg
Axle ratio: 5.571
Leaf spring count: 11/9+7
Tire
Tire Size: 7.00R16LT
Number of tires: 6pcs
Control configuration
ABS:

Photos

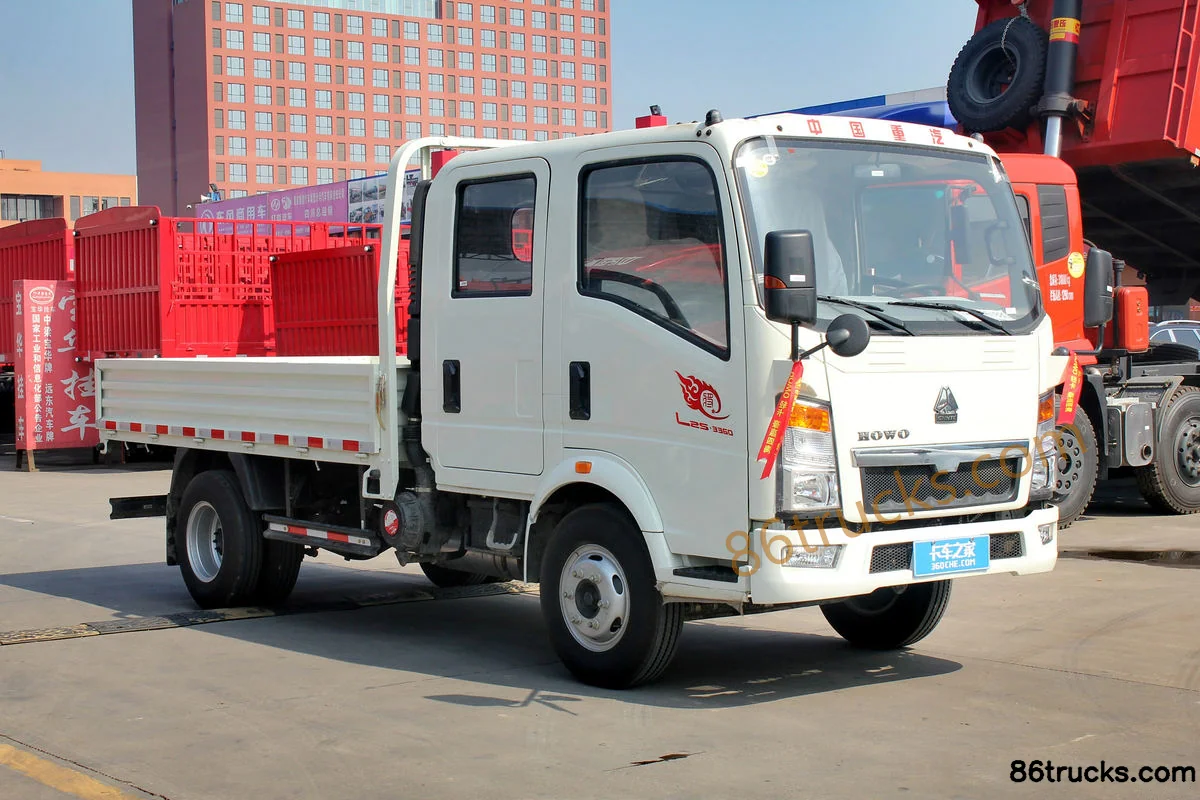

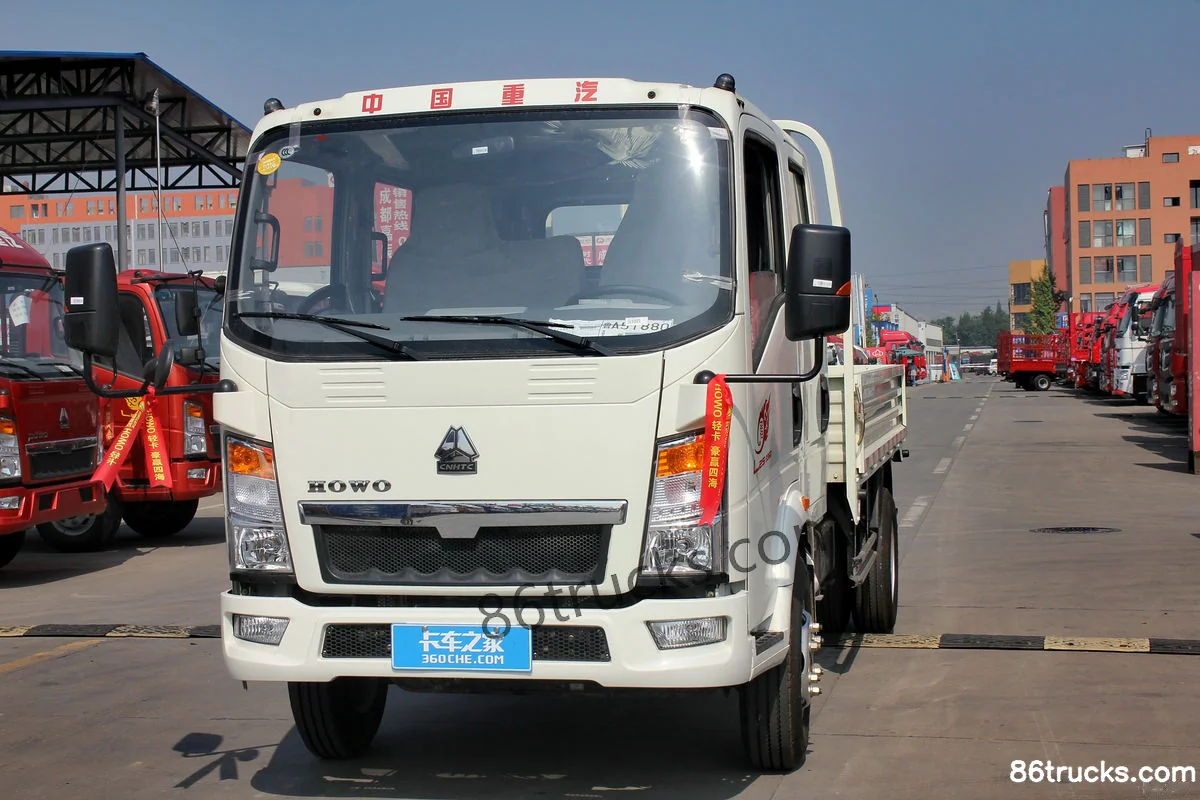

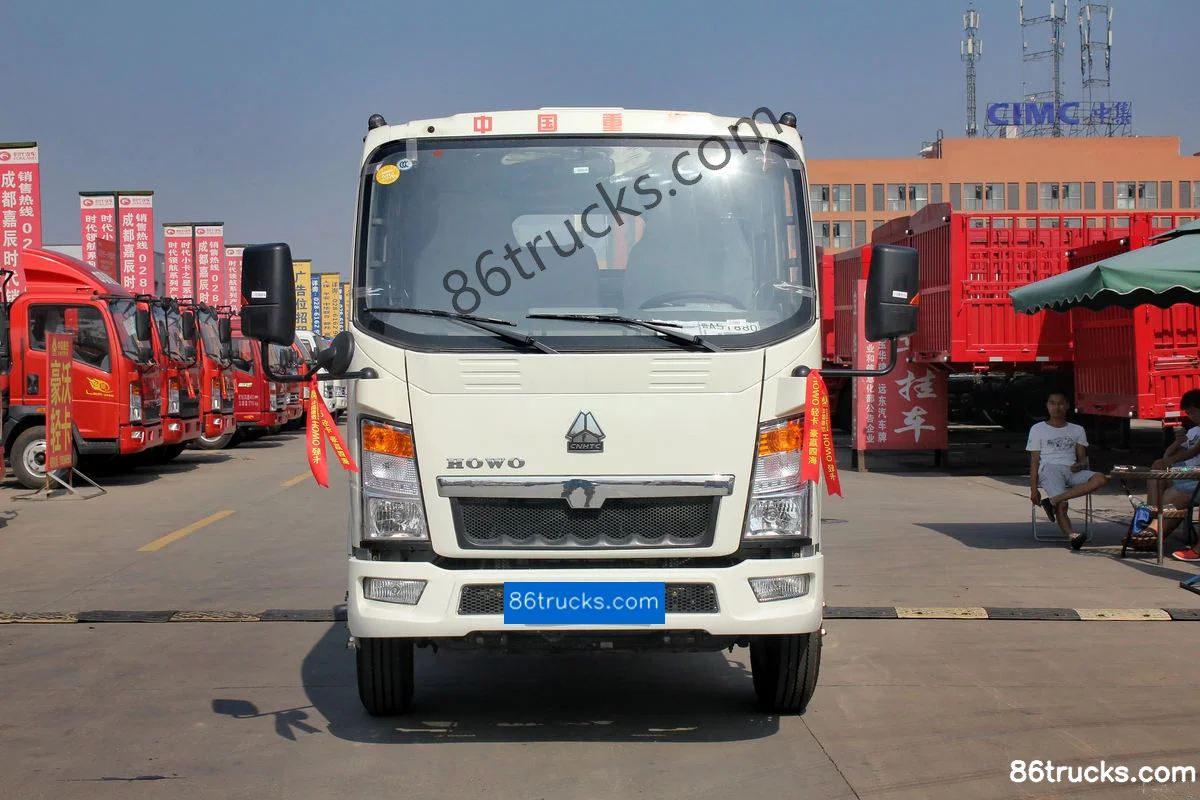

Exterior3

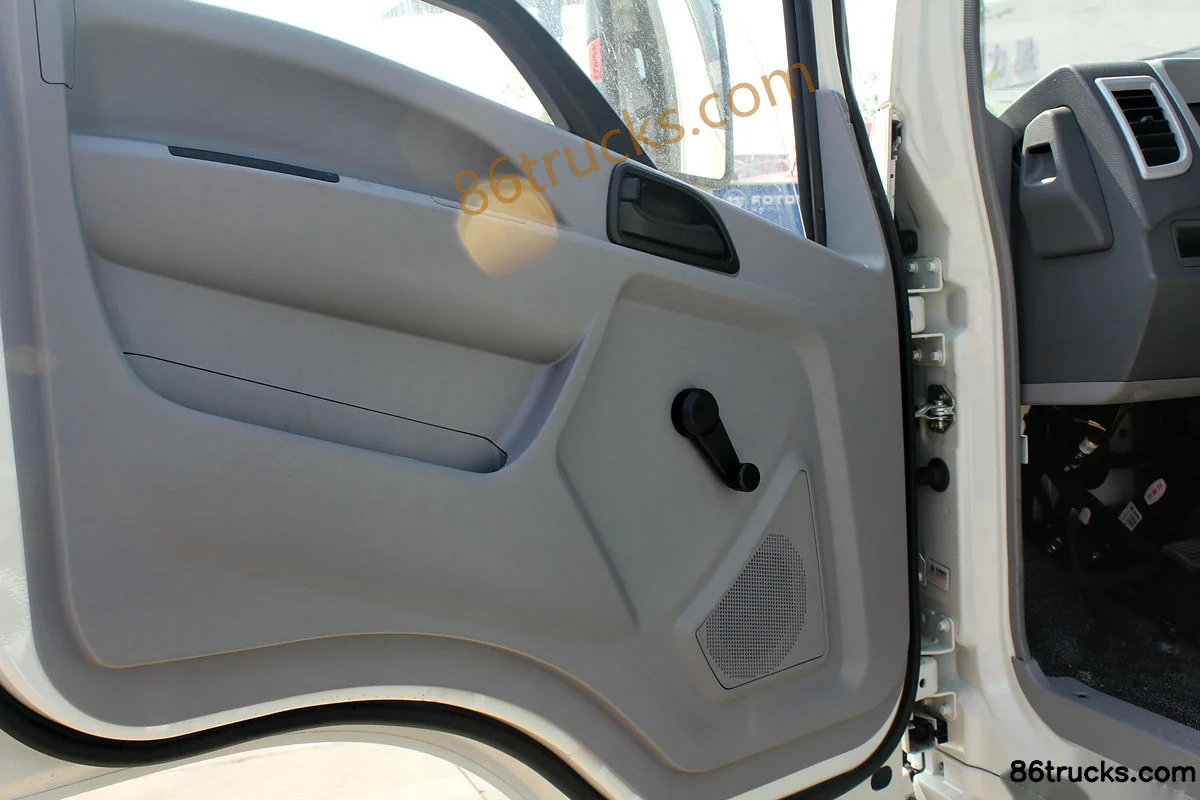

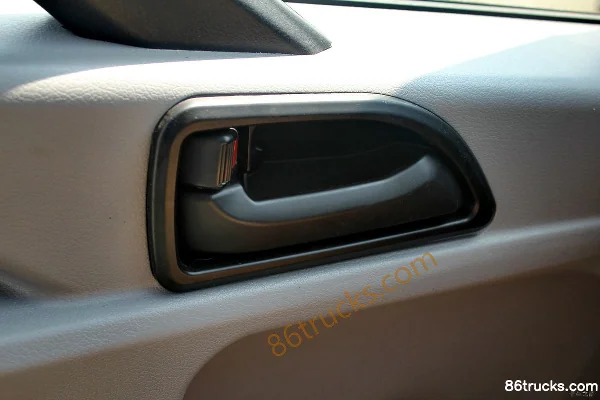

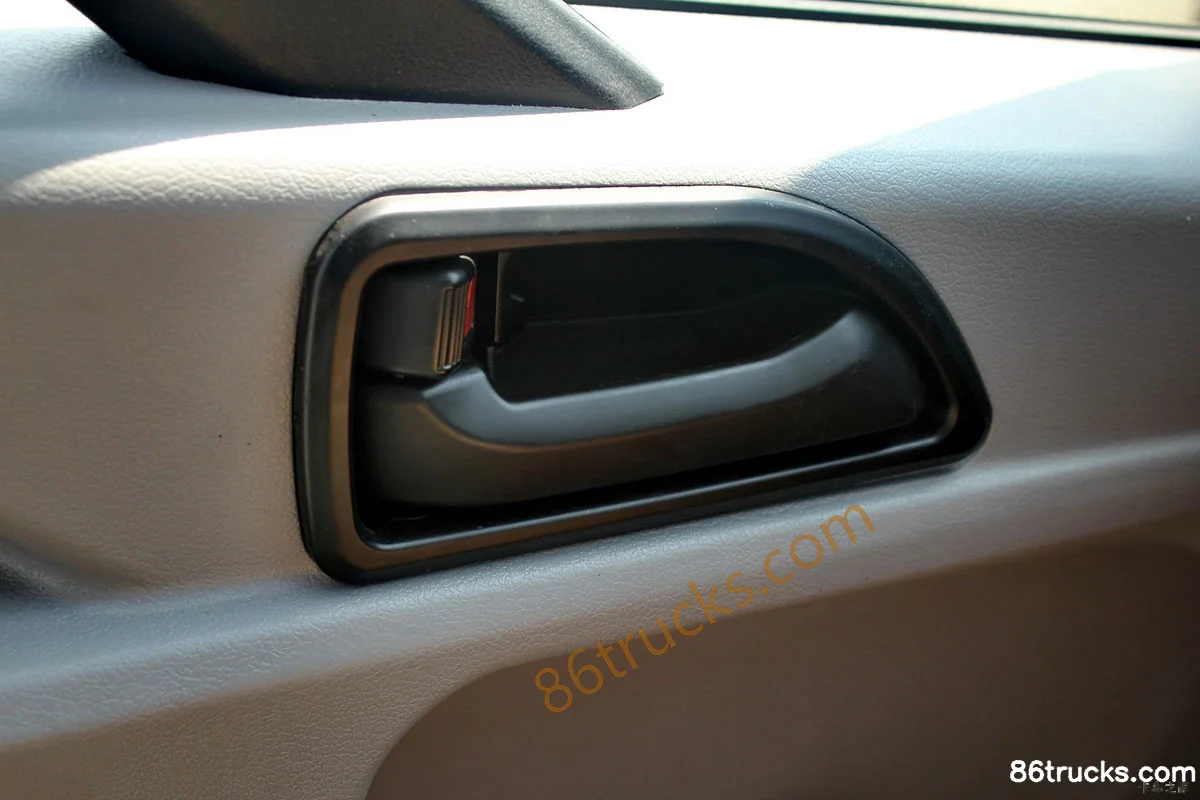

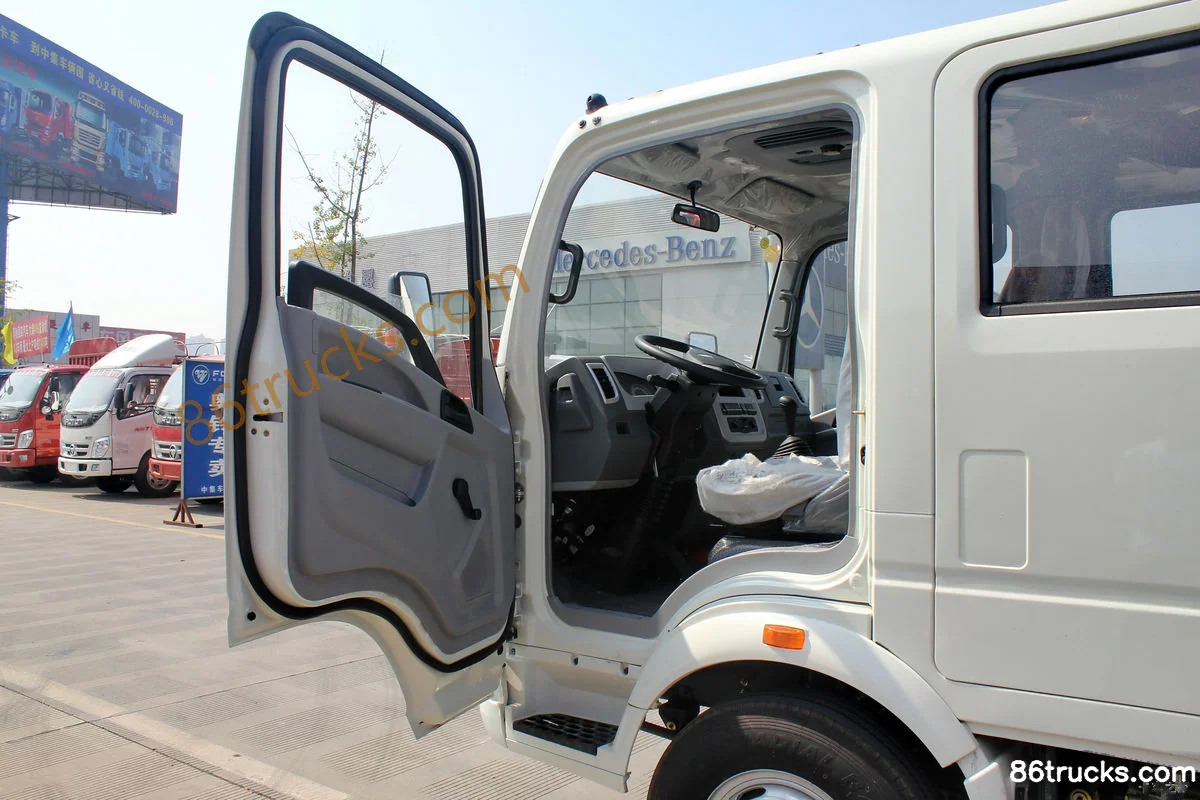

Cab3

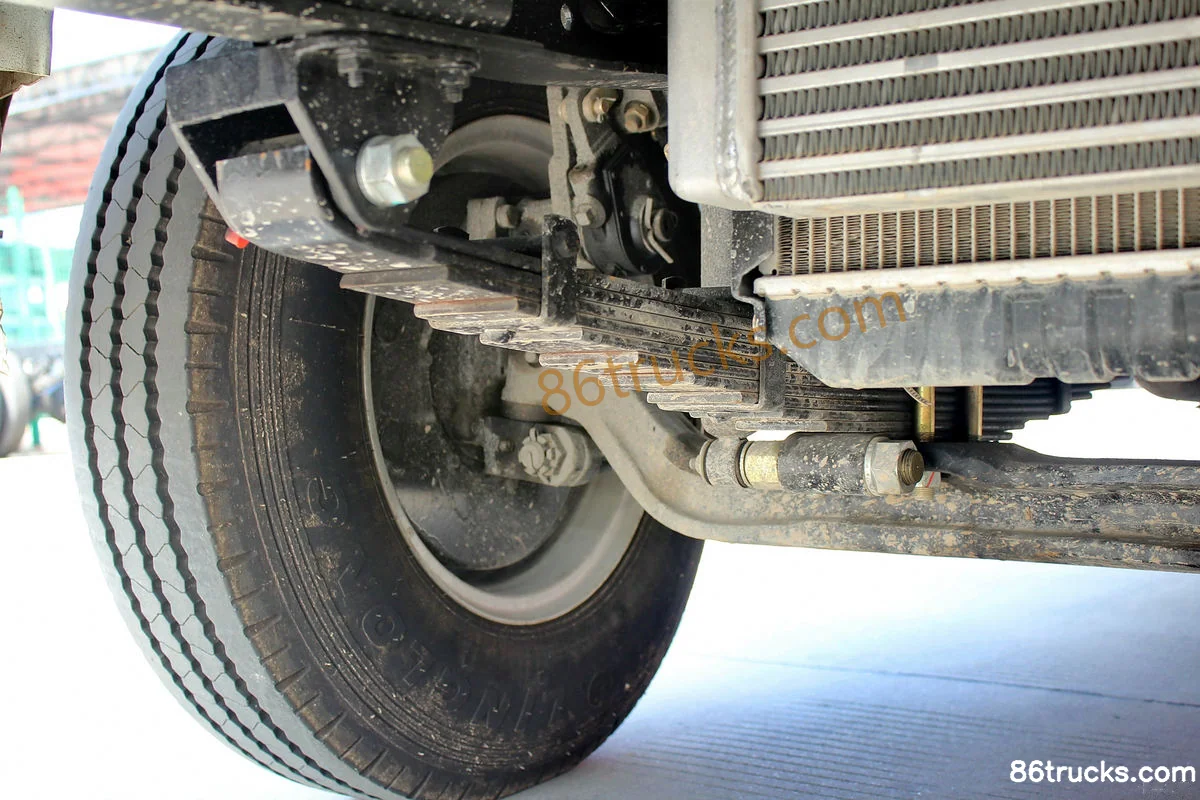

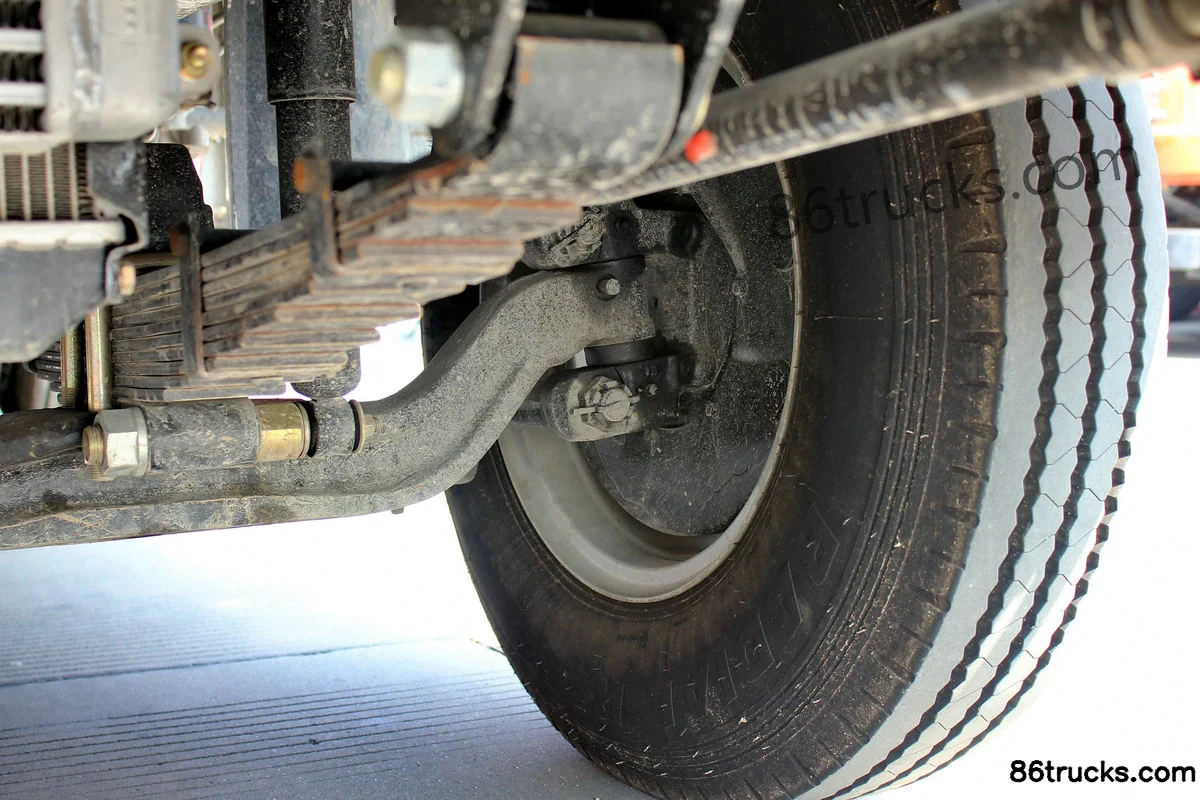

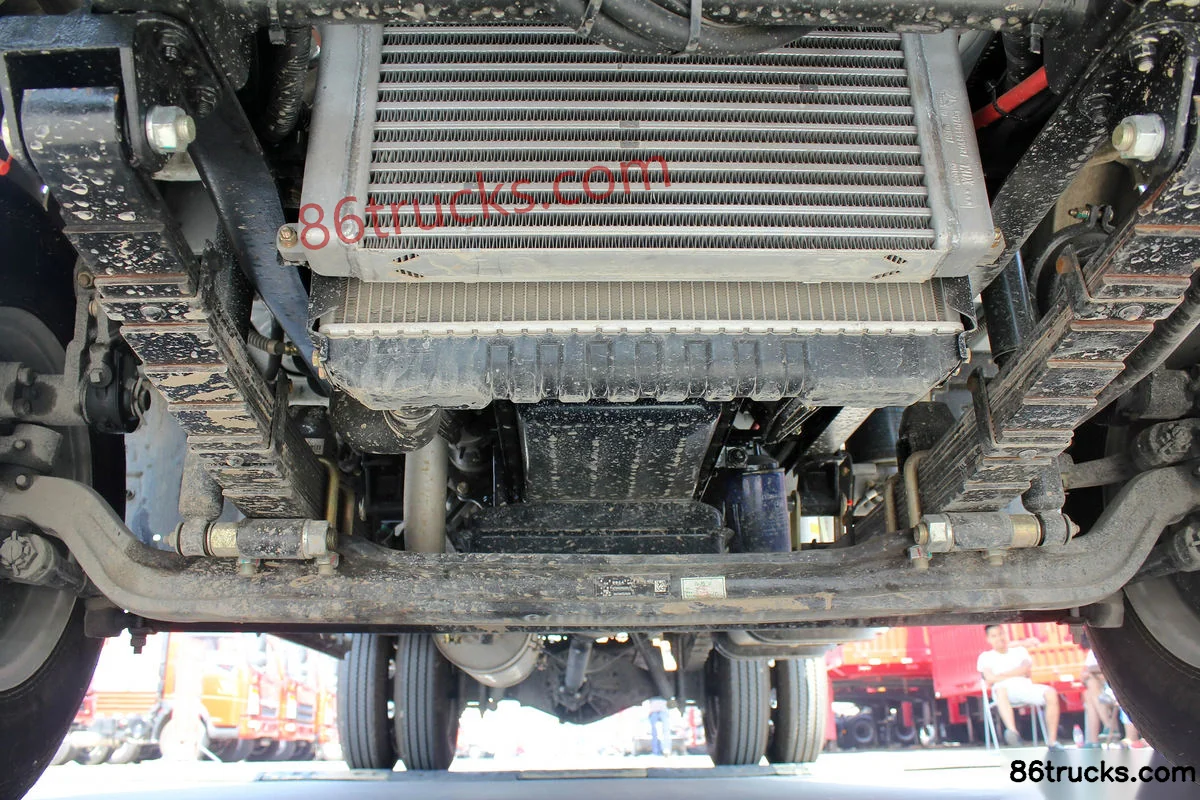

Chassis3

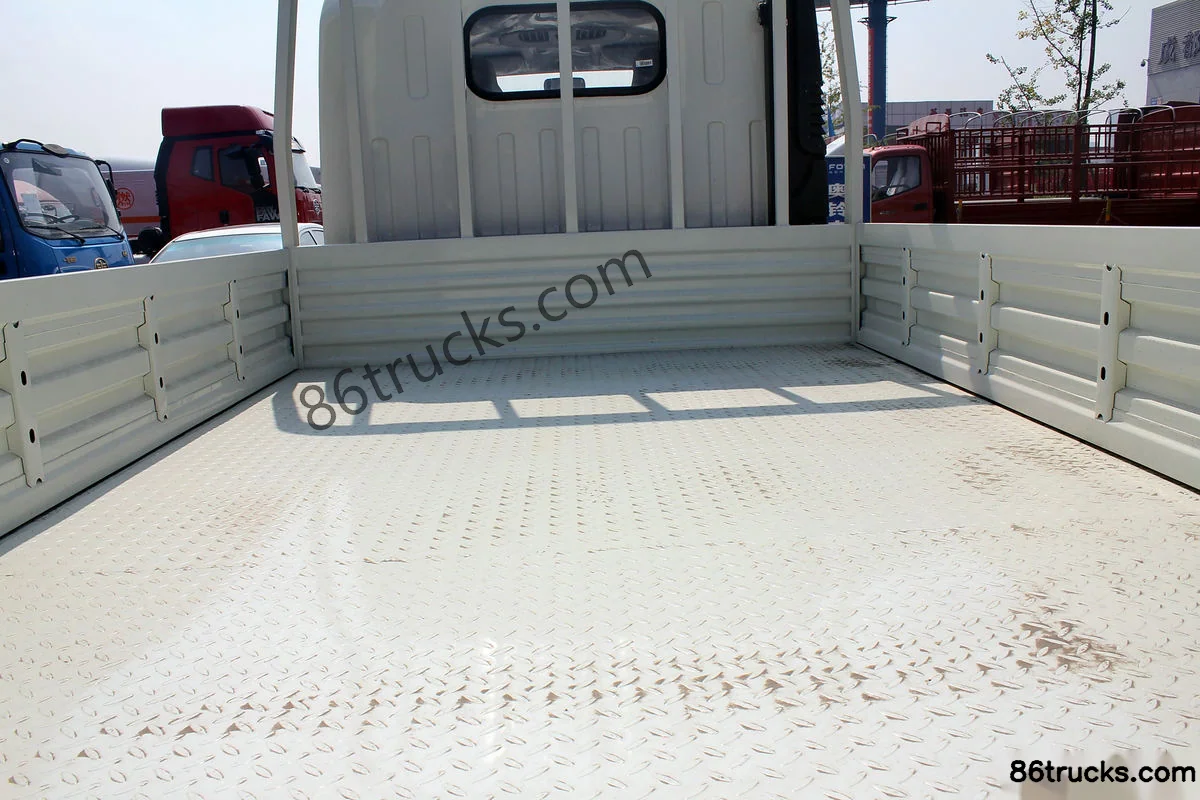

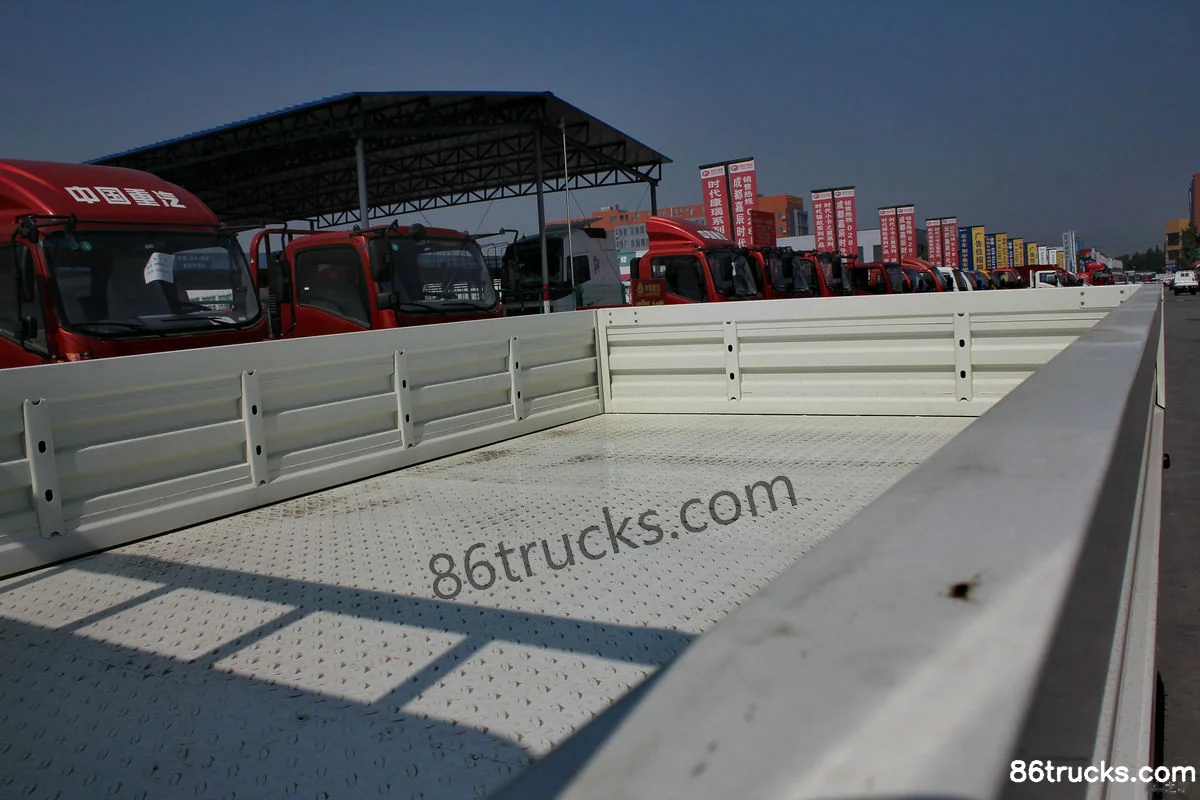

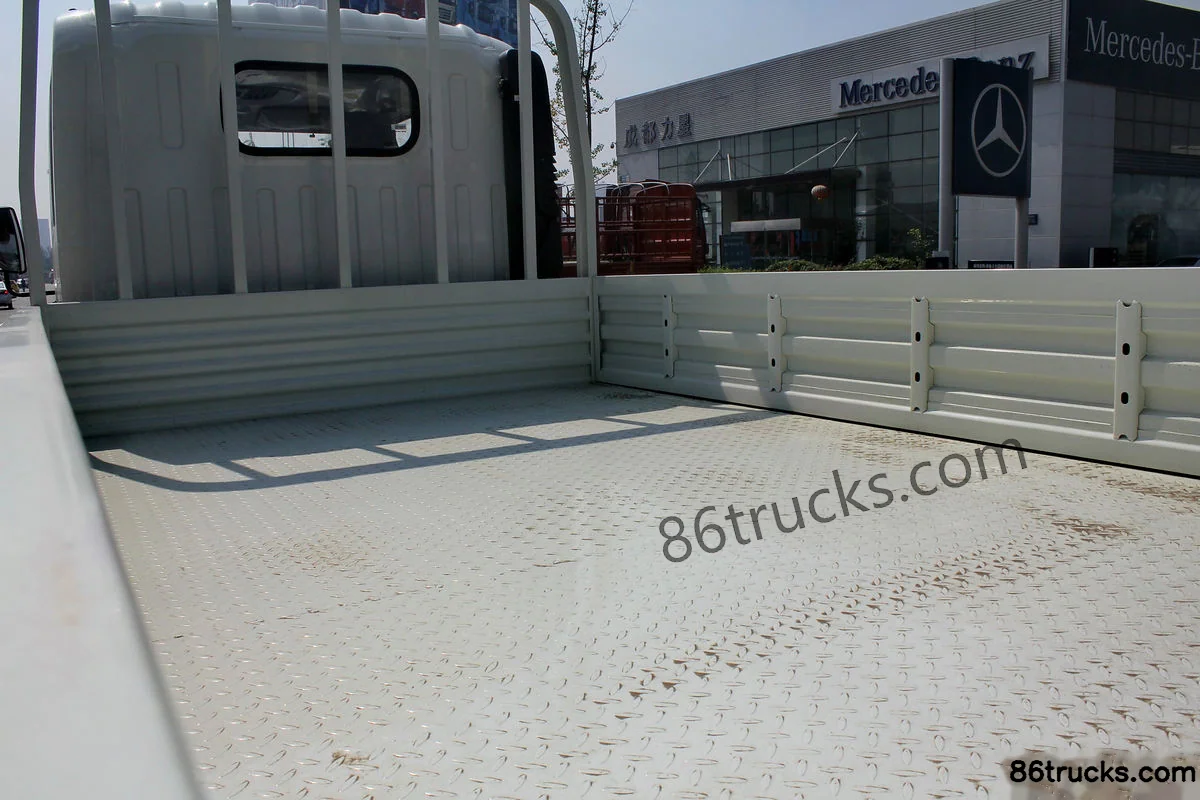

Body3

12 photos

FAQ

What emission standard does Sinotruk HOWO Hanjun 102 hp 4X2(6 wheels) 3.2m double-row flatbed light truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk HOWO Hanjun 102 hp 4X2(6 wheels) 3.2m double-row flatbed light truck?

Key specs of Sinotruk HOWO Hanjun 102 hp 4X2(6 wheels) 3.2m double-row flatbed light truck: Drive: 4x2; Horsepower: 102 hp; Emission: China IV; Fuel: Diesel; Engine: Yunnei 4100; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk HOWO Hanjun 102 hp 4X2(6 wheels) 3.2m double-row flatbed light truck suited for?

Sinotruk HOWO Hanjun 102 hp 4X2(6 wheels) 3.2m double-row flatbed light truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Sinotruk HOWO Hanjun 102 hp 4X2(6 wheels) 3.2m double-row flatbed light truck differ from other variants in the same series?

Sinotruk HOWO Hanjun 102 hp 4X2(6 wheels) 3.2m double-row flatbed light truck belongs to Sinotruk Hanjiang Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk HOWO Hanjun 102 hp 4X2(6 wheels) 3.2m double-row flatbed light truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk HOWO Hanjun 102 hp 4X2(6 wheels) 3.2m double-row flatbed light truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
