KamaGK3 2L Diesel 140hp 4X2(6 wheels) Fast Gear 8-speed 3m Dump Truck

Export reference
From $13,861
MSRP ¥9.98M CNY
Emission: China VI
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 2.7ton
Wheelbase:: 2450mm
Tire Size:: 6.50R16LT 10PR/245/70R17.5 18PR
Rated payload: 1.665ton
Drive 4X2 (6 wheels)
Horsepower 140
Cargo box type: Dump type

Overview

The KamaGK3 2L Diesel 140hp 4X2(6 wheels) Fast Gear 8-speed 3m Dump Truck is a Light Truck featuring 1.665t payload, 4.495t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a Yunnei PowerD20TCIF61 engine, 140 hp, China VI emissions and Fast Gear transmission.

China VI 140 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): KMC3040K3B245D6
Drive type: 4X2
Wheelbase: 2450mm
engine: Yunnei PowerD20TCIF61
transmission: Fast Gear 8-speed
Rear Axle Ratio: 6.142
Cab length: 4.82m
Cab width: 1.96m
Cab height: 2.15m
Front track width: 1405mm
rear track: 1390mm
Curb Weight: 2.7ton
Rated payload: 1.665ton
GVWR: 4.495ton
Origin: Shouguang, Shandong
tonnage class: Light Truck
Approach angle: 16°
departure angle: 22°
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: D20TCIF61
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 1.999L
Emission standard: China VI
Max output power: 103kW
Max hp: 140Horsepower
Transmission Parameters
Transmission Model: Fast Gear 8-speed
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 3m
Cargo box width: 1.8m
Cargo box height: 0.6m
Cab parameters
Cab: Single Row
Cab width: 1580mm
seating capacity: 2Personnel
Driver seat type: Rigid connection seat
Chassis Specs
Front axle allowable load: 1860kg
Frame Dimensions: 200mm
rear axle description: 1068 air-brake
rear axle allowable load: 2635kg
Axle ratio: 6.142
Leaf spring count: 3/8+5
Tire

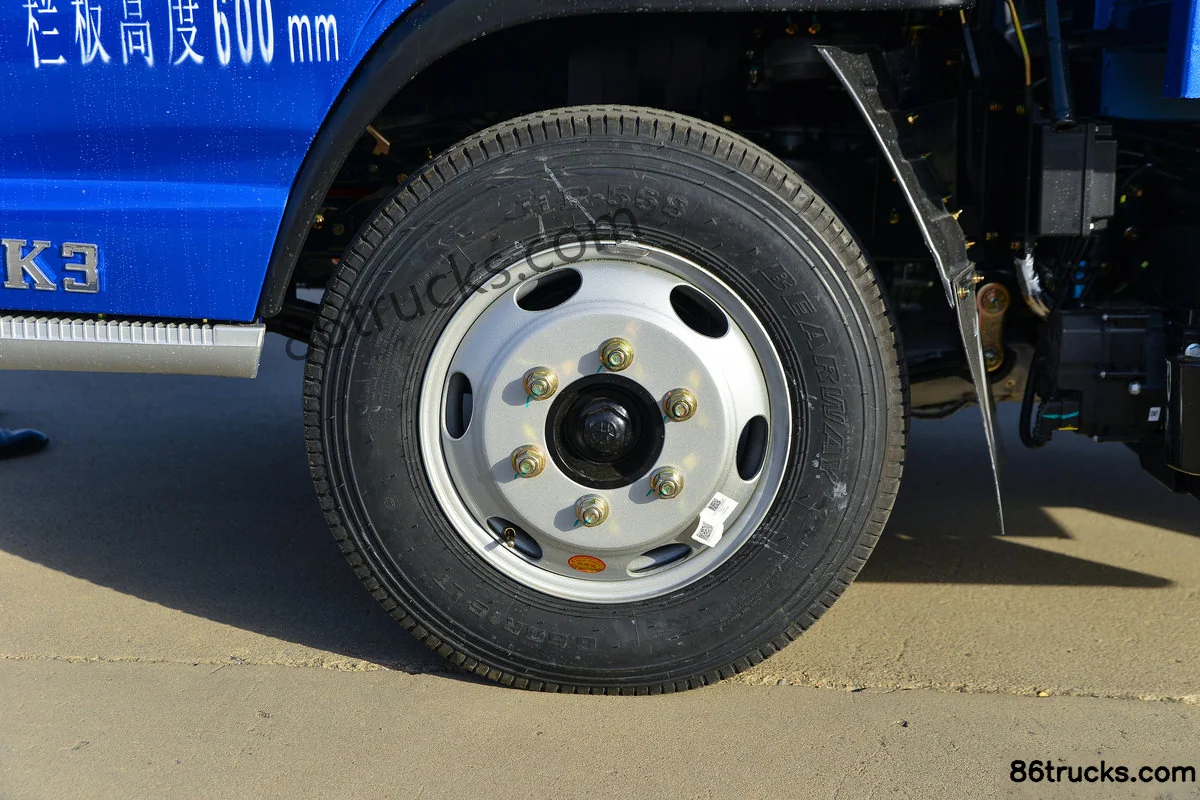

Tire Size: 6.50R16LT 10PR/245/70R17.5 18PR
Number of tires: 4pcs
Control configuration
ABS:
EBS electronic braking system:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Reverse Camera:
Remote key:
Electronic Central Lock:
Multimedia features
Center Console Color Screen:
External audio input (AUX/USB/iPod etc.):
Radio:
lighting configuration
Front fog lamp:
daytime running lights:
Headlight height adjustment:
smart configuration
Cruise control (CCS):

Photos

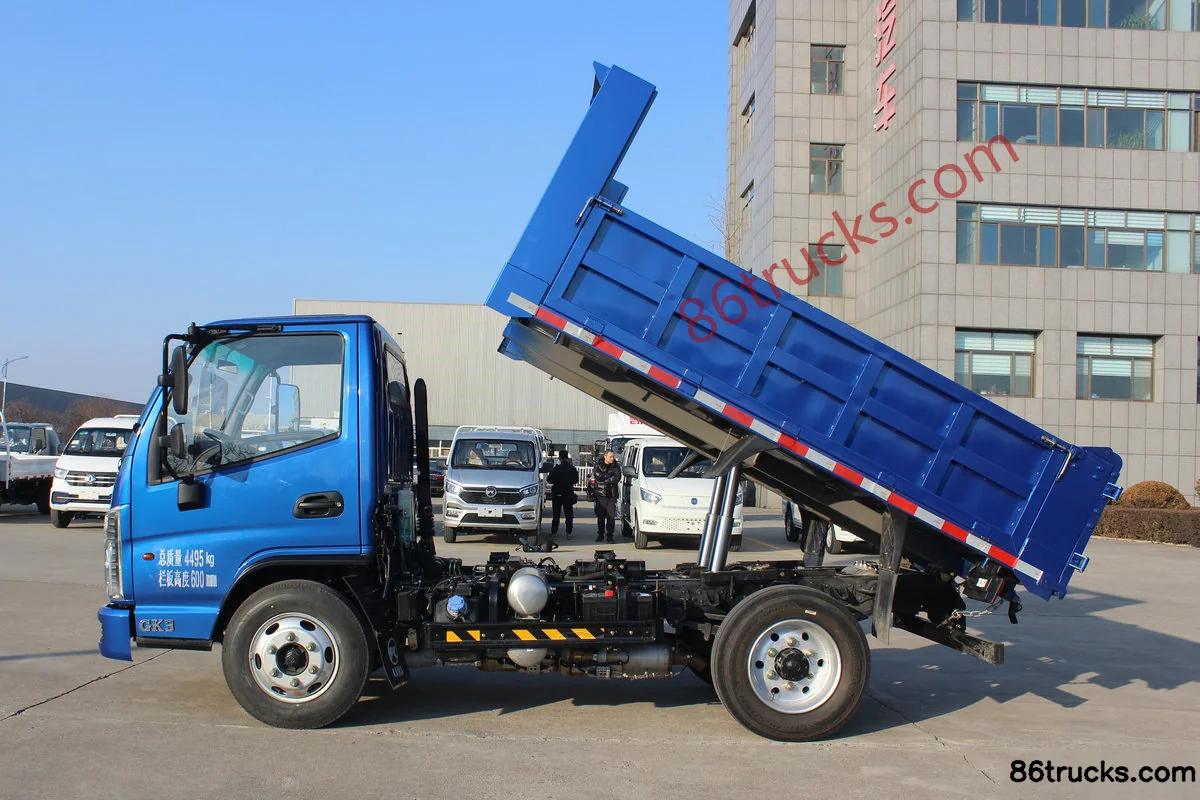

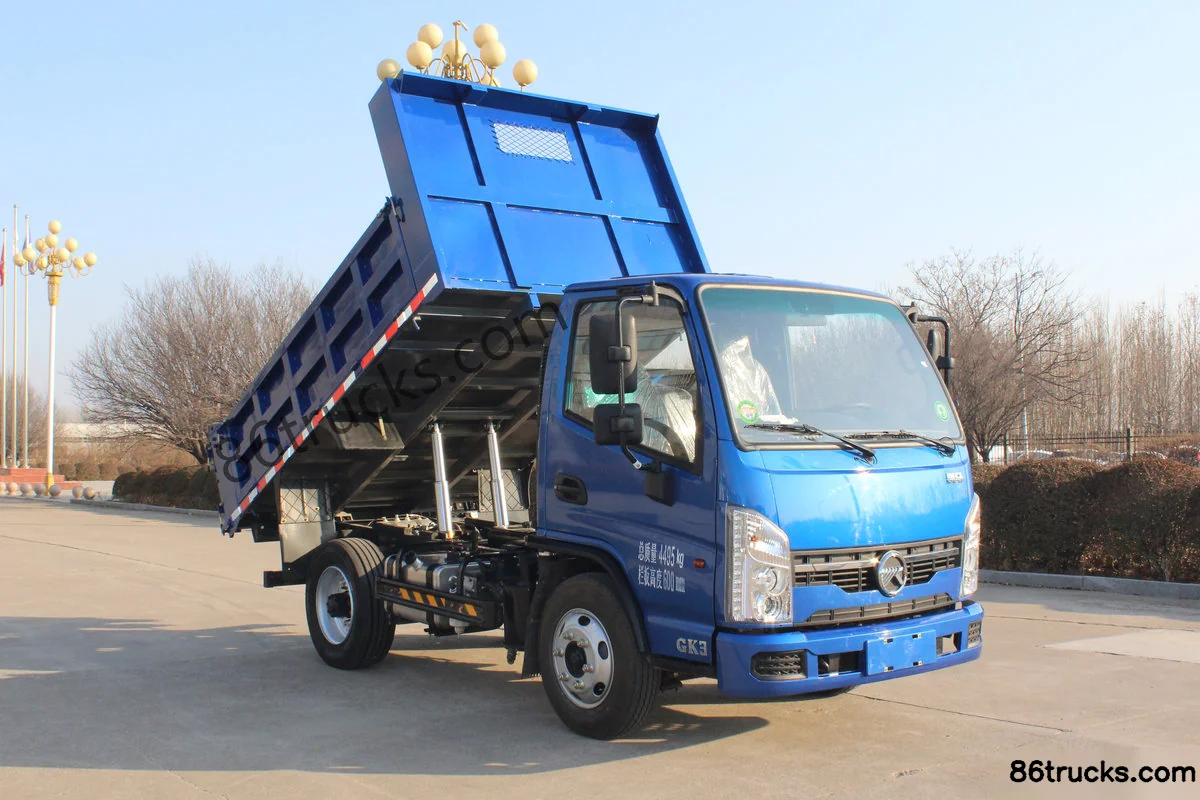

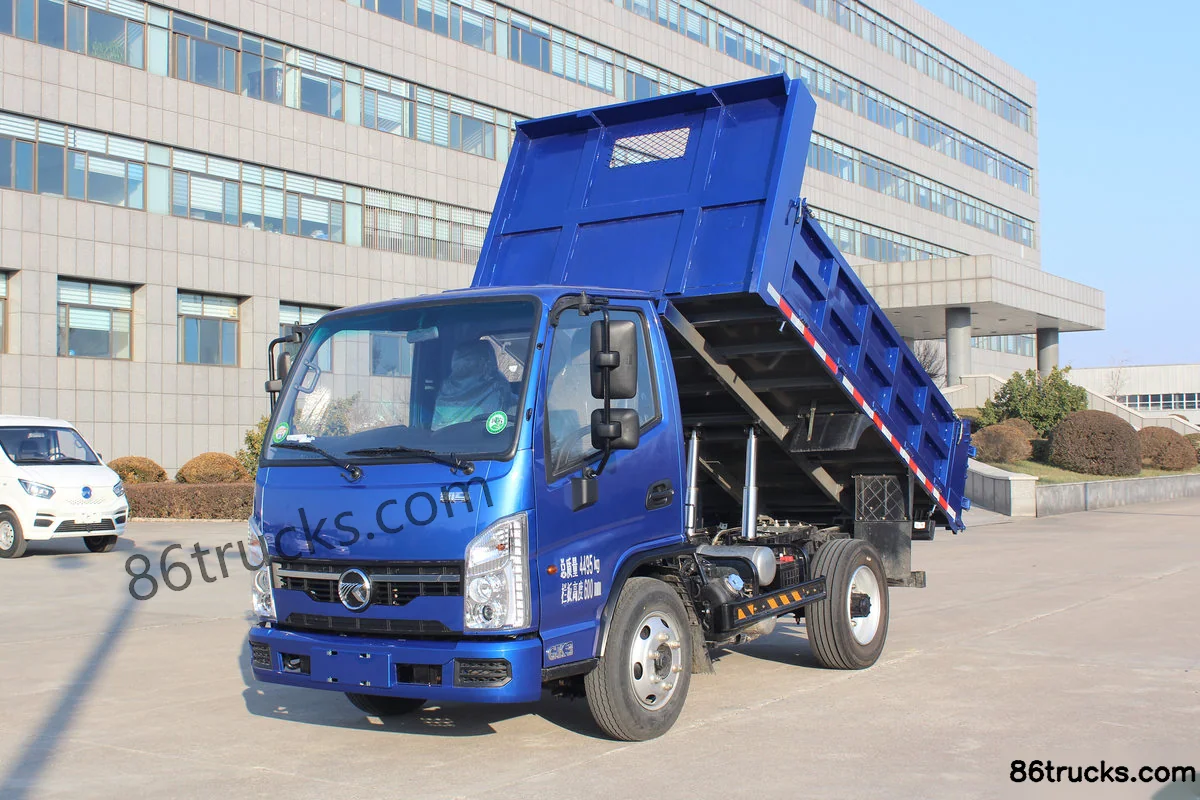

Exterior3

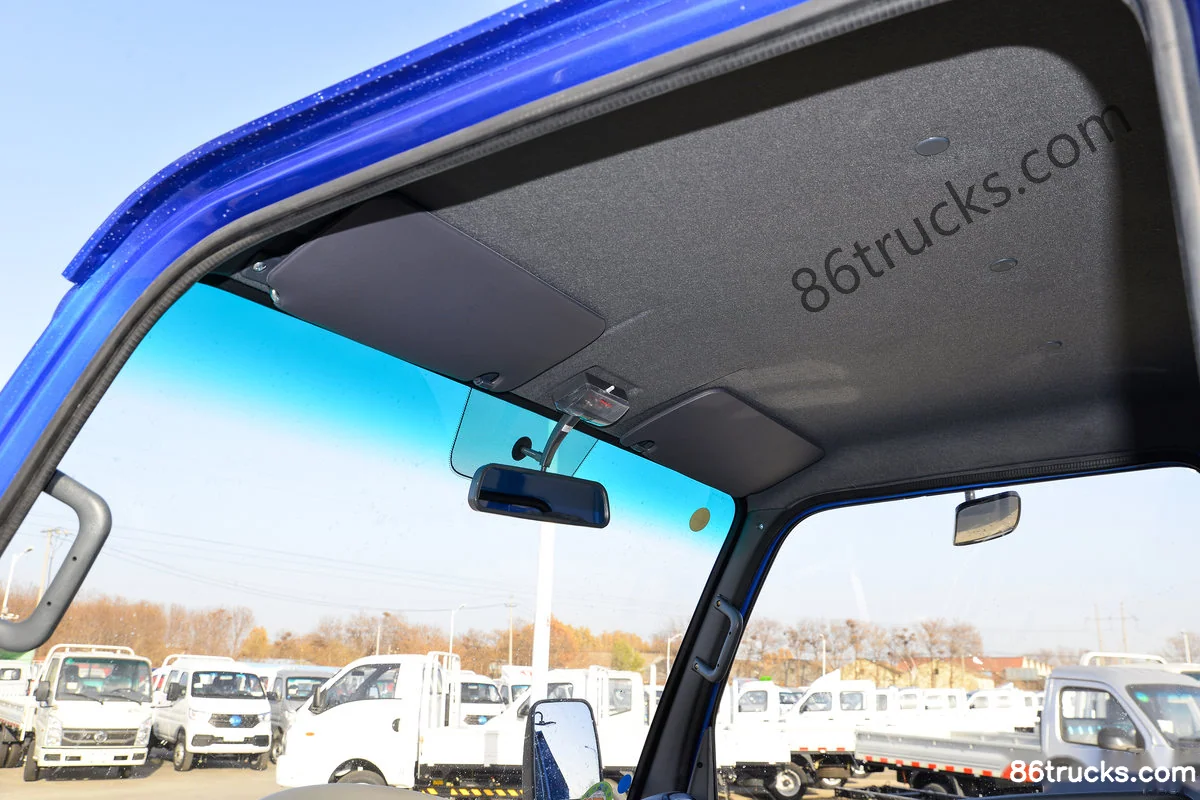

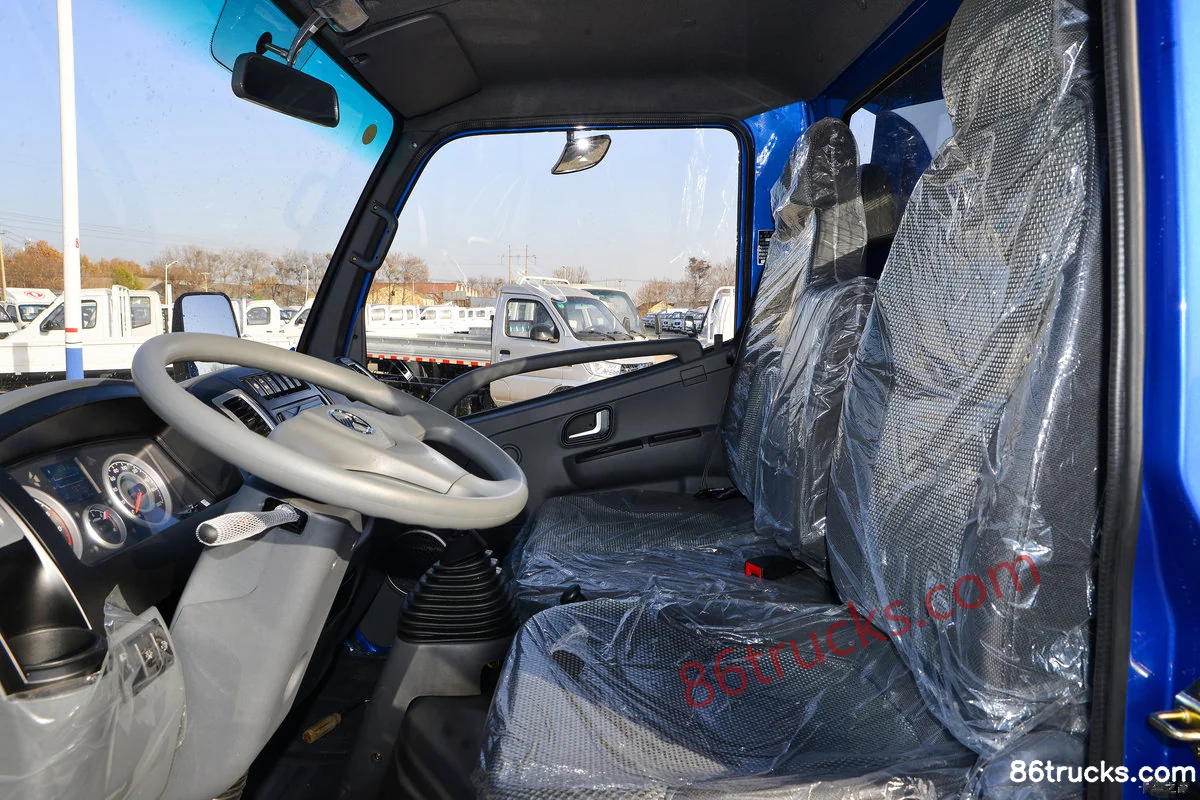

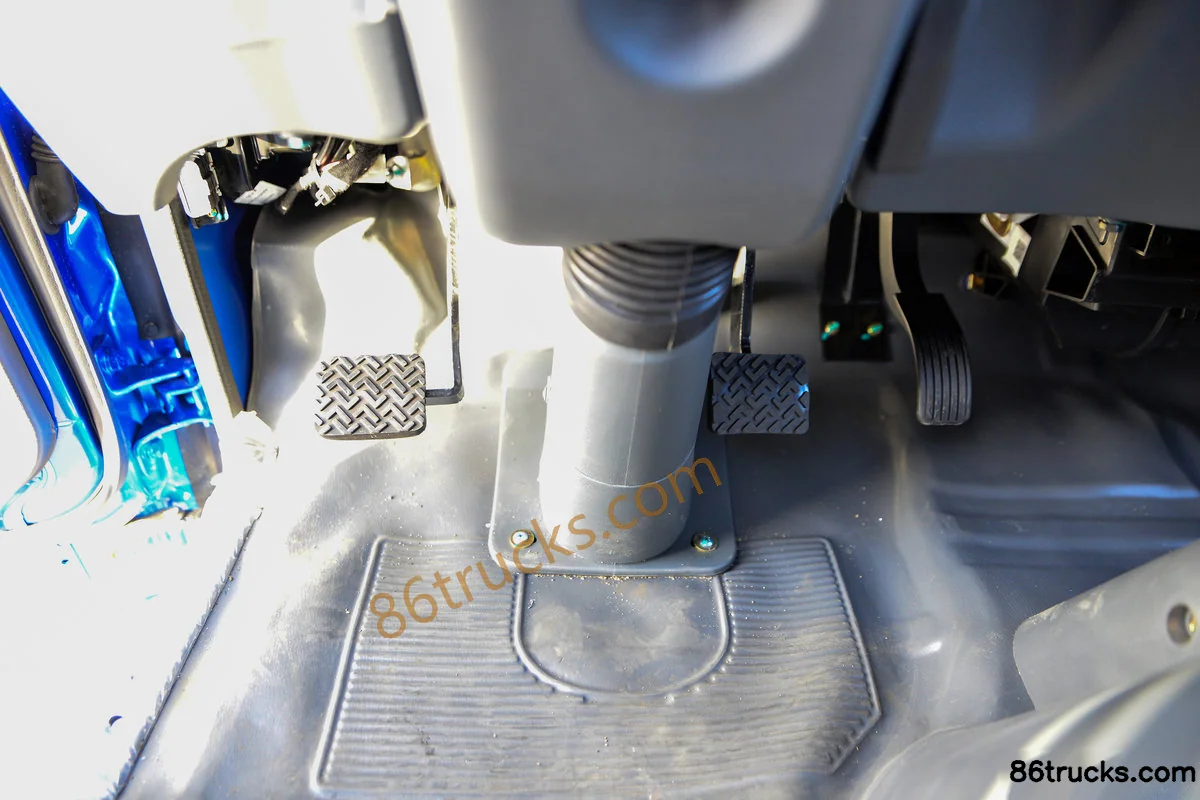

Cab3

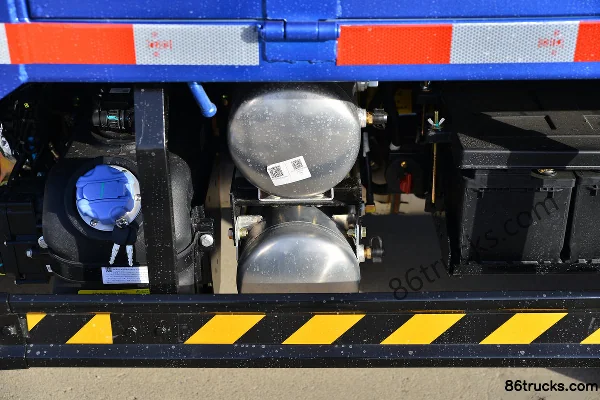

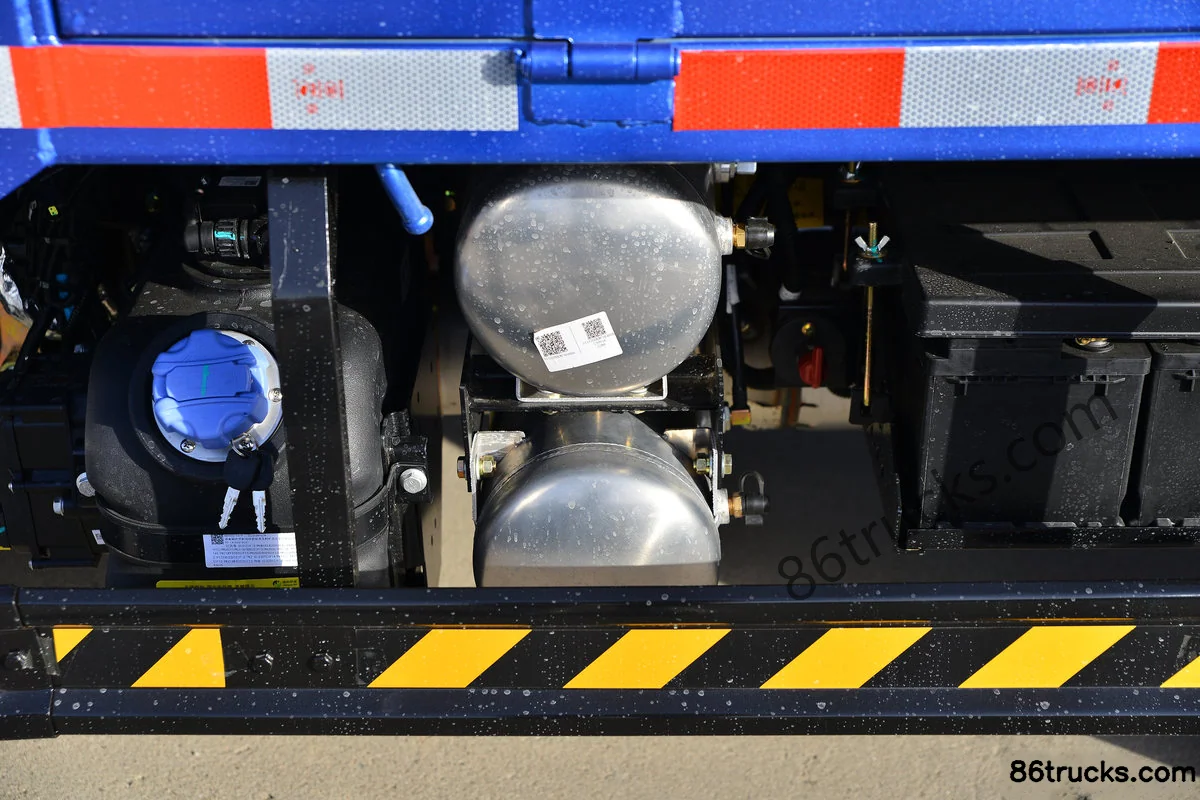

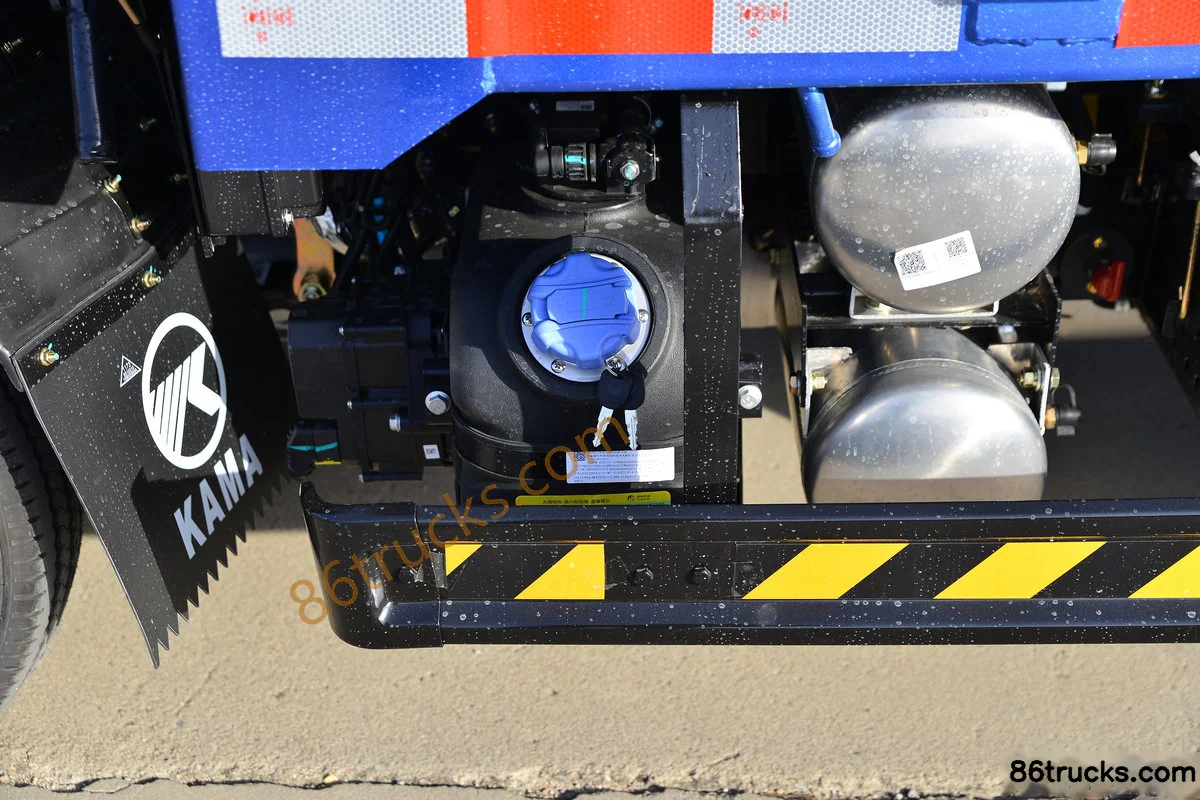

Chassis3

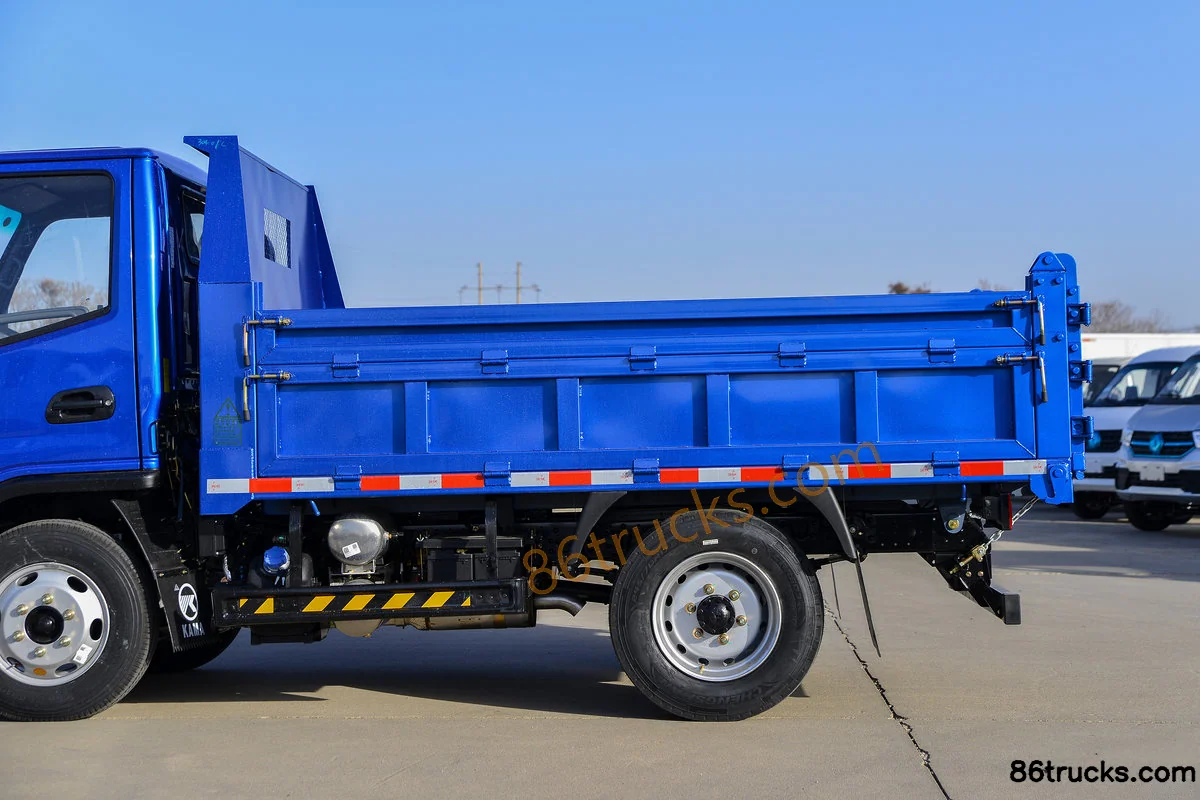

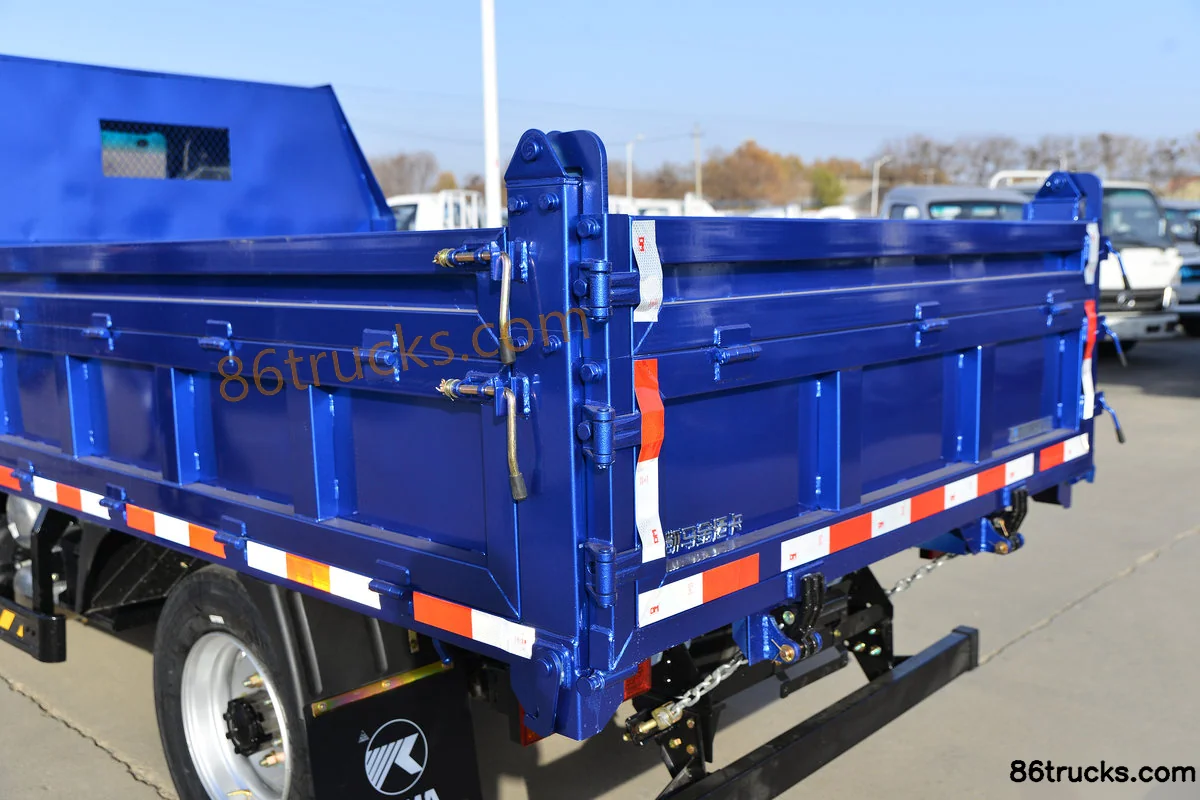

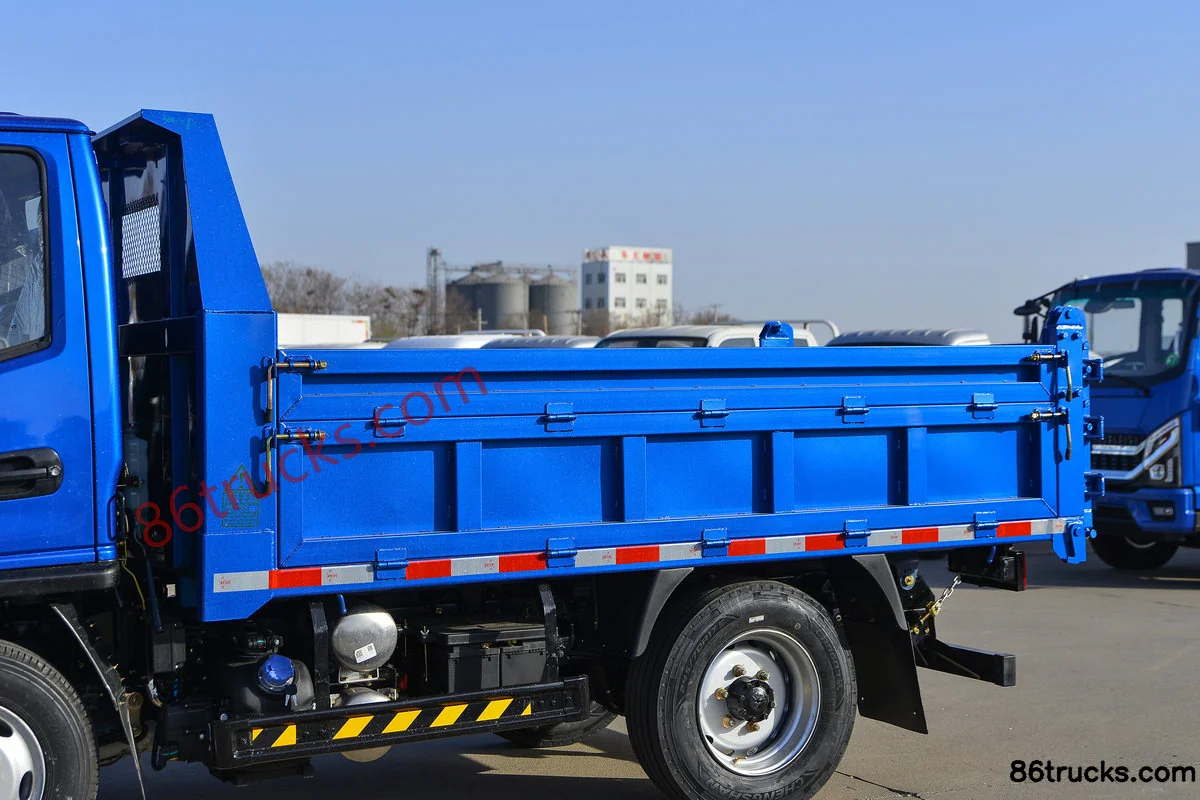

Body3

12 photos

FAQ

What is the export price of KamaGK3 2L Diesel 140hp 4X2(6 wheels) Fast Gear 8-speed 3m Dump Truck, and what does it include?

KamaGK3 2L Diesel 140hp 4X2(6 wheels) Fast Gear 8-speed 3m Dump Truck export reference is about From $13,861; MSRP is ¥9.98M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does KamaGK3 2L Diesel 140hp 4X2(6 wheels) Fast Gear 8-speed 3m Dump Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of KamaGK3 2L Diesel 140hp 4X2(6 wheels) Fast Gear 8-speed 3m Dump Truck?

Key specs of KamaGK3 2L Diesel 140hp 4X2(6 wheels) Fast Gear 8-speed 3m Dump Truck: Drive: 4x2; Horsepower: 140 hp; Emission: China VI; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is KamaGK3 2L Diesel 140hp 4X2(6 wheels) Fast Gear 8-speed 3m Dump Truck suited for?

KamaGK3 2L Diesel 140hp 4X2(6 wheels) Fast Gear 8-speed 3m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does KamaGK3 2L Diesel 140hp 4X2(6 wheels) Fast Gear 8-speed 3m Dump Truck differ from other variants in the same series?

KamaGK3 2L Diesel 140hp 4X2(6 wheels) Fast Gear 8-speed 3m Dump Truck belongs to Kama GK3 Light Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for KamaGK3 2L Diesel 140hp 4X2(6 wheels) Fast Gear 8-speed 3m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export KamaGK3 2L Diesel 140hp 4X2(6 wheels) Fast Gear 8-speed 3m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
