Hongyan New Dakang Heavy Truck 290 hp 6X4(10 wheels) 7.6m Dump Truck (7.6m Body Length)

Export reference
From $51,667
MSRP ¥37.2M CNY
Emission: China III / Euro III
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 12.37ton
Wheelbase:: 3825+1350mm
Tire Size:: 12.00-20,11.00-20
Rated payload: 12.5ton
Drive 6X4 (10 wheels)
Horsepower 290
Cargo box type: Dump type

Overview

The SAIC Hongyan Hongyan New Dakang Heavy Truck 290 hp 6X4(10 wheels) 7.6m Dump Truck (7.6m Body Length) is a Heavy truck featuring 12.5t payload, 25t GVW, Dump type cargo body and 6X4 (10 wheels) drive. On the powertrain side, it comes with a WeichaiWP10.290 engine, 290 hp, China III / Euro III emissions and Fast Gear transmission.

China III / Euro III 290 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CQ3254TMG384
Drive type: 6X4
Wheelbase: 3825+1350mm
engine: WeichaiWP10.290
transmission: Fast Gear9JS119
Rear Axle Ratio: 5.73
Cab length: 8.3m
Cab width: 2.5m
Cab height: 3.5m
Front track width: 2006mm
rear track: 1850/1850mm
Curb Weight: 12.37ton
Rated payload: 12.5ton
GVWR: 25ton
Origin: Chongqing
tonnage class: Heavy truck
Approach angle: 26°
departure angle: 21°
Remarks: 1. Optional T-shaped cab; 2. Optional mining dump body; 3. Cargo body can have side doors, top cover optional, cover weight 400 kg; 4. WP10.290 and SC9DK290Q3 engines have max net power 211 kW; 5. This model is equipped with a tachograph. Dump body unloads by rear tipping; 6. Without top cover, when body length is 5800mm or 5850mm, max body height is 1100mm. When body length is 6200mm, body height is 1000mm. With top cover, when body length is 5400mm or 5800mm, max body height is 1100mm. When body length is 6200mm or 5850mm, body height is 1000mm.
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP10.290
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 9.726L
Emission standard: China III / Euro III
Max output power: 213kW
Max hp: 290Horsepower
Max torque: 1160N·m
Max torque speed: 1200-1600rpm
Rated speed: 2200rpm
Engine Type: Water-cooled, four-stroke, with exhaust brake, direct injection, turbocharged intercooled
Transmission Parameters
Transmission Model: Fast Gear9JS119
Transmission Brand: Fast Gear
Forward gears: 9Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 7.6m
Cargo box width: 2.3m
Cargo box height: 1.5m
Chassis Specs
rear axle allowable load: 18000kg
Axle ratio: 5.73
Leaf spring count: 9/12
Tire
Tire Size: 12.00-20,11.00-20
Number of tires: 10pcs

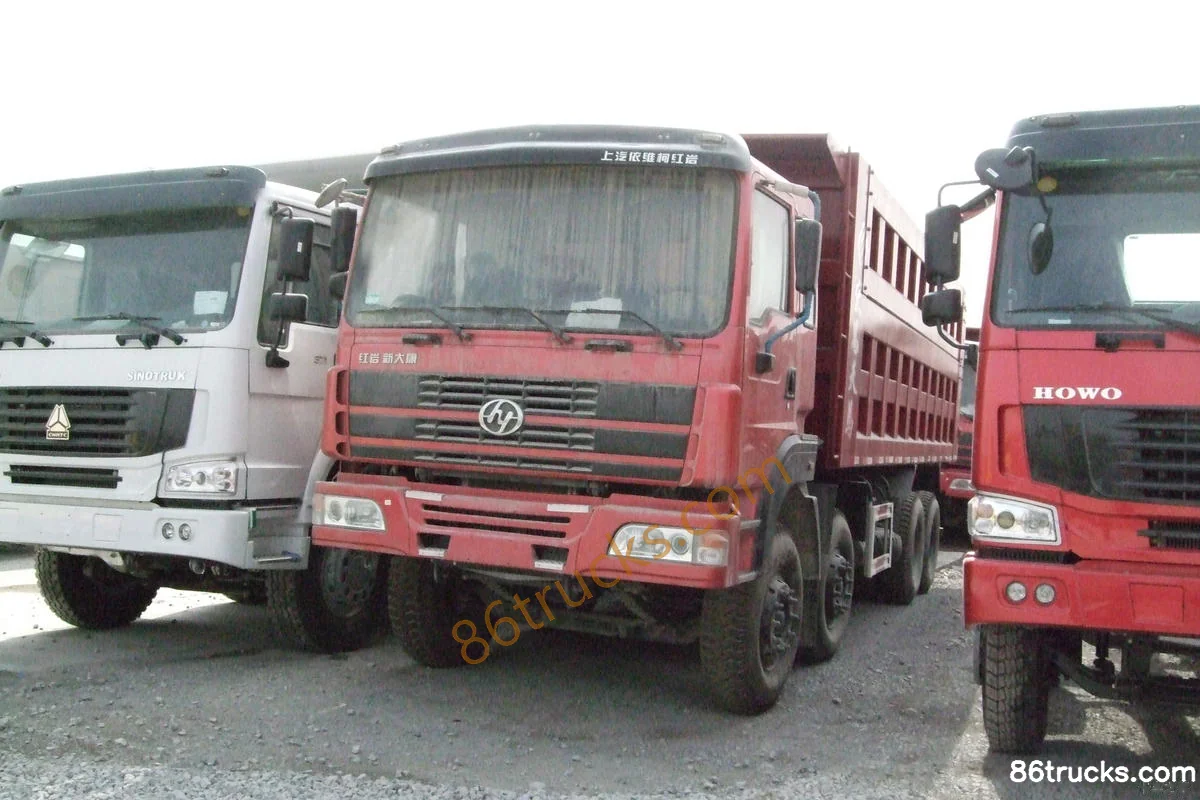

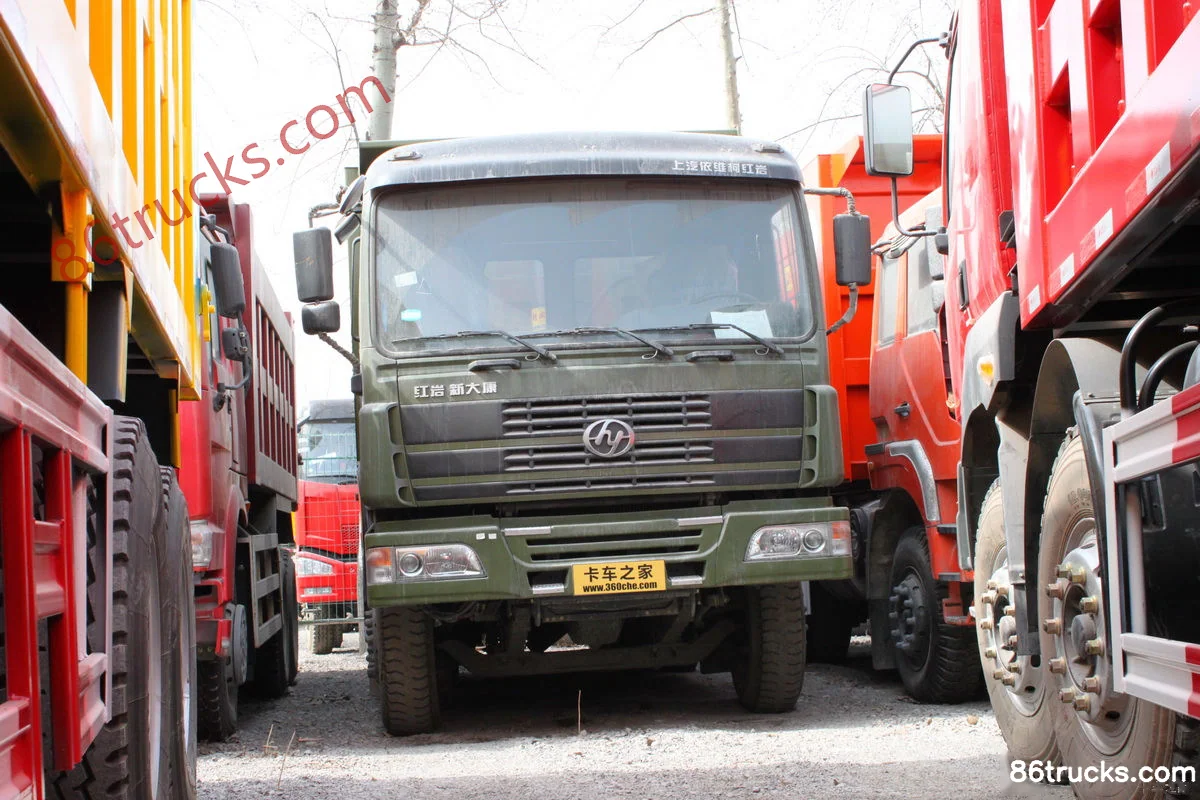

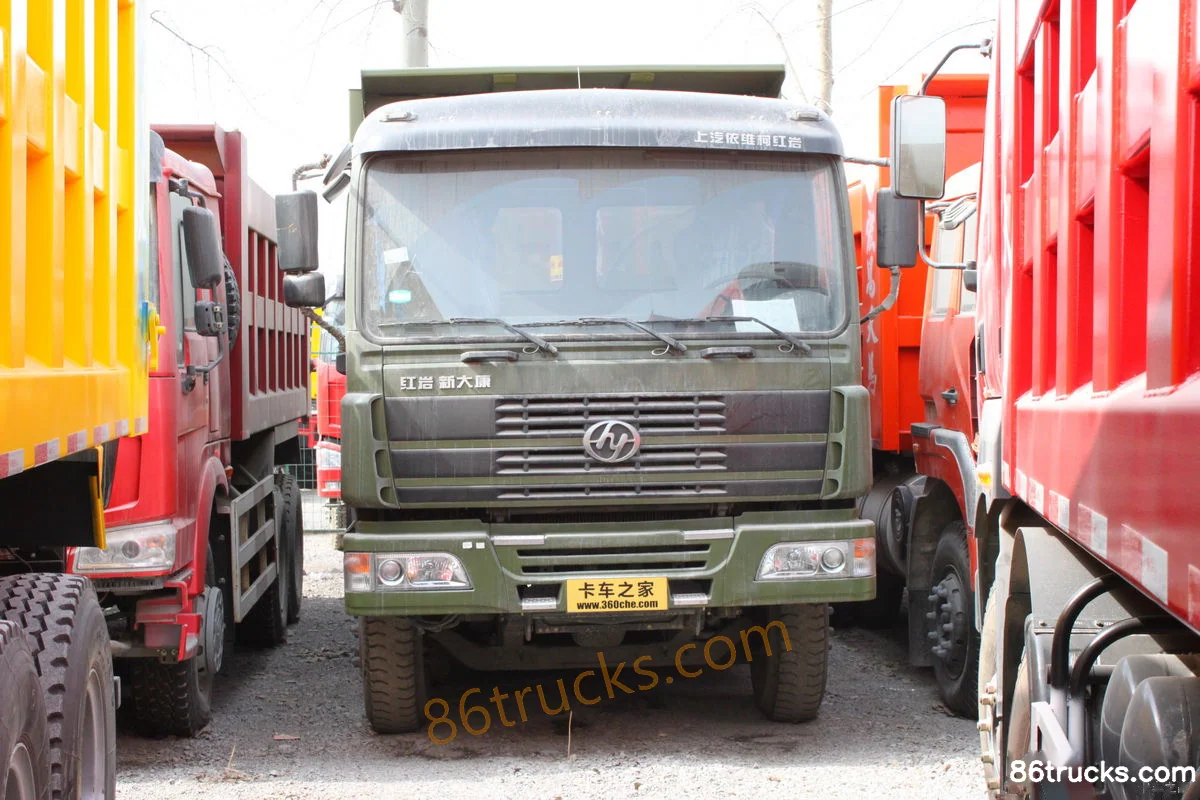

Photos

Exterior3

3 photos

FAQ

What is the export price of Hongyan New Dakang Heavy Truck 290 hp 6X4(10 wheels) 7.6m Dump Truck (7.6m Body Length), and what does it include?

Hongyan New Dakang Heavy Truck 290 hp 6X4(10 wheels) 7.6m Dump Truck (7.6m Body Length) export reference is about From $51,667; MSRP is ¥37.2M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Hongyan New Dakang Heavy Truck 290 hp 6X4(10 wheels) 7.6m Dump Truck (7.6m Body Length) use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Hongyan New Dakang Heavy Truck 290 hp 6X4(10 wheels) 7.6m Dump Truck (7.6m Body Length)?

Key specs of Hongyan New Dakang Heavy Truck 290 hp 6X4(10 wheels) 7.6m Dump Truck (7.6m Body Length): Drive: 6x4; Horsepower: 290 hp; Emission: China III / Euro III; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Hongyan New Dakang Heavy Truck 290 hp 6X4(10 wheels) 7.6m Dump Truck (7.6m Body Length) suited for?

Hongyan New Dakang Heavy Truck 290 hp 6X4(10 wheels) 7.6m Dump Truck (7.6m Body Length) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Hongyan New Dakang Heavy Truck 290 hp 6X4(10 wheels) 7.6m Dump Truck (7.6m Body Length) differ from other variants in the same series?

Hongyan New Dakang Heavy Truck 290 hp 6X4(10 wheels) 7.6m Dump Truck (7.6m Body Length) belongs to SAIC Hongyan New Dakang Heavy Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Hongyan New Dakang Heavy Truck 290 hp 6X4(10 wheels) 7.6m Dump Truck (7.6m Body Length)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Hongyan New Dakang Heavy Truck 290 hp 6X4(10 wheels) 7.6m Dump Truck (7.6m Body Length)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
