FAW Jiefang Qingdao Hanwei(J5M) 180 hp 4X2(6 wheels) Tank Truck (Chusheng brand)

Export reference
MSRP N/A
Curb Weight:: 8.805ton
Emission: China III / Euro III
Wheelbase:: 4500mm
Cab dimensions:: 7.86×2.49×3.25m
Truck Type:: fuel tanker truck
Vehicle origin:: Suizhou, Hubei
Tank Size: 4.9×2.25×1.22m
Rated payload: 7ton
Drive 4X2 (6 wheels)
Horsepower 180

Overview

The FAW Jiefang Qingdao Hanwei(J5M) 180 hp 4X2(6 wheels) Tank Truck (Chusheng brand) is a fuel tanker truck featuring 4.9×2.25×1.22m tank capacity, 7t payload, 11m³ volume and 8.805ton GVW. On the powertrain side, it comes with 180 hp, 4X2 (6 wheels) drive and China III / Euro III emissions.

China III / Euro III 180 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 7.86×2.49×3.25m
Truck Type: fuel tanker truck
Drive type: 4X2
Vehicle origin: Suizhou, Hubei
Wheelbase: 4500mm
Front track width: 1914mm
rear track: 1860mm
Curb Weight: 8.805ton
Rated payload: 7ton
Max. speed: 90km/h
Front/rear suspension: 1.375/1.985m
Body Parameters
Tank Size: 4.9×2.25×1.22m
Tank Volume: 11m3
Transport medium: gasoline
Medium Density: 0.7ton/cubic meter
Vehicle certification code: CSC5161GJYC3
Body Brand: Chusheng Brand
Others: Rear guard cross-section height 280mm, width 50mm, ground clearance 540mm
Engine parameters
Engine Brand: Xichai
Engine Model: Xichai CA6DF3-18E3
Number of cylinders: 6cylinder
Displacement: 6.74L
Emission standard: China III / Euro III
Max output power: 136kW
Max hp: 180Horsepower
Max torque: 680N·m
Max torque speed: 1100-1400rpm
Engine Type: Inline
Chassis Specs
Chassis Brand: FAW Jiefang Qingdao
Chassis Series: Hanwei
Chassis Model: CA1163P7K2L2E
rear axle description: 435 rear axle
Leaf spring count: 4/4+3,10/12+8
Transmission Parameters
Number of gears: 6Gear
Tire
Tire Size: 9.00R20,9.00-20,10.00R20,10.00-20
Number of tires: 6pcs

Photos

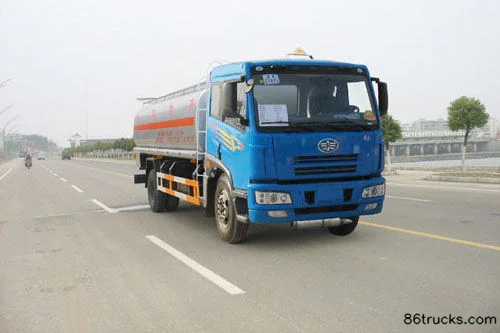

Exterior1

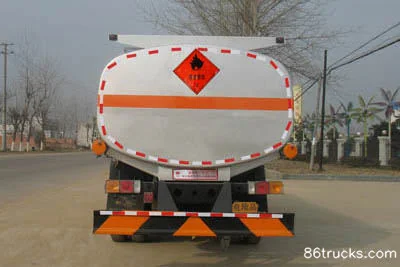

Cab1

2 photos
