FAW Jiefang Qingdao HanV 320hp 8X4(12 wheels) Fuel Tank Truck (Chusheng Brand)(Dachai)
EXW
From $42,778
Export quote
Chusheng FAW Jiefang Qingdao chassis fuel tanker
Main model photos
21 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| FAW Jiefang Qingdao HanV 320hp 8X4(12 wheels) Fuel Tank Truck (Chusheng Brand)(Dachai) | 8x4 / 320hp / China V | From $42,778 | |
| FAW Jiefang Qingdao HanV 320hp 8X4(12 wheels) Fuel Tank Truck (Chusheng Brand) | 8x4 / 320hp / China V | From $44,167 | |
| FAW Jiefang Qingdao HanV 320hp 8X4(12 wheels) Fuel Tank Truck (Chusheng Brand)(Dachai) | 8x4 / 320hp / China V | From $42,778 | |
| FAW Jiefang Qingdao HanV 320hp 8X4(12 wheels) Fuel Tank Truck (Chusheng Brand) | 8x4 / 320hp / China V | From $44,167 | |
| FAW Jiefang Qingdao Han V 260 hp 8X2(10 wheels) fuel tanker truck (Chusheng brand) | 8x2 / 260hp / China V | From $35,444 |
FAW Jiefang Qingdao HanV 320hp 8X4(12 wheels) Fuel Tank Truck (Chusheng Brand)
EXW
From $44,167
Export quote
FAW Jiefang Qingdao HanV 320hp 8X4(12 wheels) Fuel Tank Truck (Chusheng Brand)(Dachai)
EXW
From $42,778
Export quote
FAW Jiefang Qingdao HanV 320hp 8X4(12 wheels) Fuel Tank Truck (Chusheng Brand)
EXW
From $44,167
Export quote

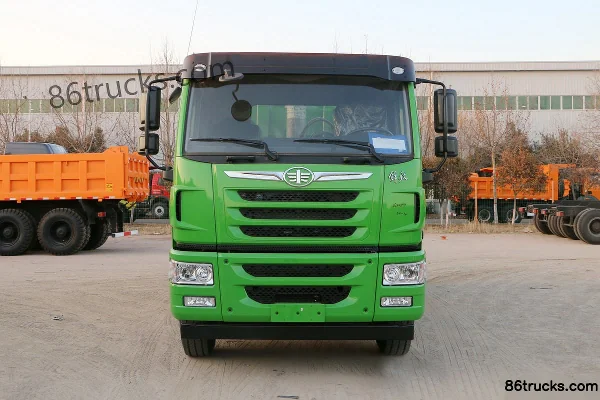

FAW Jiefang Qingdao Han V 260 hp 8X2(10 wheels) fuel tanker truck (Chusheng brand)
EXW
From $35,444
Export quote
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| FAW Jiefang Qingdao Hanwei(J5M) 180 hp 4X2(6 wheels) Tank Truck (Chusheng brand) | 4x2 / 180hp / China III / Euro III |
Series Specs
Basic Info
Cab dimensions: 11.8×2.5×3.3 / 11.2×2.49×3.4 / 11.2×2.5×3.4 / 7.86×2.49×3.25m
Truck Type: aluminum fuel tanker truck / Fuel tanker truck
Drive type: 8X4 / 8X2 / 4X2
Wheelbase: 1900+4500+1350 / 1900+4160+1350 / 4500mm
Vehicle origin: Suizhou, Hubei
Front track width: 1964/1964 / 1914mm
rear track: 1860/1860 / 1960/1847 / 1860mm
Curb Weight: 11.25 / 11.53 / 13.8 / 13.175 / 10.645 / 8.805ton
Rated payload: 20.62 / 20.34 / 17.07 / 17.695 / 20.225 / 7ton
Max. speed: 79 / 90km/h
Front/rear suspension: 1.375/2.675 / 1.375/2.415 / 1.375/1.985m
Energy Type: Diesel
Body Parameters
Tank Size: 9.1×2.3×1.6 / 9.2×2.45×1.75 / 8.5×2.48×1.8 / 8.5×2.4×1.63 / 8.4×2.4×1.7 / 4.9×2.25×1.22m
Tank Volume: 26 / 30.4 / 25.5 / 22.3 / 11m3
Transport medium: gasoline
Medium Density: 0.7ton/cubic meter
Vehicle certification code: CSC5320GYYLCAA / CSC5320GYYLCAB / CSC5310GYYCAB / CSC5310GYYCAA / CSC5310GYYLCAA / CSC5161GJYC3
Body Brand: Chusheng Brand
Others: Rear guard cross-section height 280mm, width 50mm, ground clearance 540mm
Engine parameters
Engine Brand: Dachai / Xichai
Engine Model: DachaiCA6DK1-32E5 / XichaiCA6DL1-32E5 / XichaiCA6DL1-26E5 / Xichai CA6DF3-18E3
Number of cylinders: 6cylinder
Displacement: 7.146 / 7.7 / 6.74L
Emission standard: China V / China III / Euro III
Max output power: 239 / 238 / 195 / 136kW
Max hp: 320 / 260 / 180Horsepower
Max torque: 1200 / 1250 / 1050 / 680N·m
Max torque speed: 1200-1700 / 1300-1700 / 1300-1600 / 1100-1400rpm
Rated speed: 2300rpm
Engine Type: Inline
Chassis Specs
Chassis Brand: FAW Jiefang Qingdao
Chassis Series: HanV / Hanwei
Chassis Model: CA1320P1K2L7T4BE5A80 / CA1311P1K2L6T10BE5A80 / CA1163P7K2L2E
Front axle description: A5S
Frame Dimensions: 280*80*8 / 280*80*(8+5)mm
rear axle description: 435 stamped-welded axle / 457 stamped-welded axle / 435 rear axle
Axle ratio: 4.111 / 4.444 / 4.875
Transmission Parameters
Number of gears: 8 / 9 / 6Gear
Transmission Model: Fast Gear8JS125TA / Fast Gear9JSD135A / Fast Gear9JS119
Cab parameters
Cab: HanV flat-floor high-roof / HanV flat floor flat roof
FAQ
What kind of truck is Chusheng Chusheng FAW Jiefang Qingdao chassis fuel tanker truck?
Chusheng Chusheng FAW Jiefang Qingdao chassis is an export-oriented fuel tanker truck lineup with about 8 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Chusheng FAW Jiefang Qingdao chassis fuel tanker?
Chusheng FAW Jiefang Qingdao chassis fuel tanker export reference is about $35,444 – $44,167. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Chusheng FAW Jiefang Qingdao chassis fuel tanker cover?
Chusheng FAW Jiefang Qingdao chassis fuel tanker mainly covers: Drive: 4x2 / 8x2 / 8x4; Horsepower: 180 hp / 260 hp / 320 hp; Emission: China III / Euro III / China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Chusheng FAW Jiefang Qingdao chassis fuel tanker?
For Chusheng FAW Jiefang Qingdao chassis fuel tanker: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is fuel tanker truck typically used for?
fuel tanker truck specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does Chusheng FAW Jiefang Qingdao chassis fuel tanker include?
Chusheng FAW Jiefang Qingdao chassis fuel tanker currently lists about 8 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Chusheng FAW Jiefang Qingdao chassis fuel tanker?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
