Dongfeng Liuqi Chenglong H7 336 hp 6X4(10 wheels) 5.6m dump truck chassis

Export reference
From $50,000
MSRP ¥36M CNY
Emission: China IV
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 11.9ton
Wheelbase:: 3800+1350mm
Tire Size:: 11.00-20 18PR
Rated payload: 12.835ton
Drive 6X4 (10 wheels)
Horsepower 336
Cargo box type: Dump type

Overview

The Dongfeng Liuqi Chenglong H7 336 hp 6X4(10 wheels) 5.6m dump truck chassis is a Heavy truck featuring 12.835t payload, 24.98t GVW, Dump type cargo body and 6X4 (10 wheels) drive. On the powertrain side, it comes with a WeichaiWP10.336E40 engine, 336 hp, China IV emissions and Fast Gear transmission.

China IV 336 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): LZ3251QDJA
Drive type: 6X4
Wheelbase: 3800+1350mm
engine: WeichaiWP10.336E40
transmission: Fast Gear10JSD160
Rear Axle Ratio: 5.262
Cab length: 8.312m
Cab width: 2.495m
Cab height: 3.52m
Front track width: 2010mm
rear track: 1860/1860mm
Curb Weight: 11.9ton
Rated payload: 12.835ton
GVWR: 24.98ton
Origin: Liuzhou, Guangxi
tonnage class: Heavy truck
Approach angle: 20°
departure angle: 22°
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP10.336E40
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 9.726L
Emission standard: China IV
Max output power: 247kW
Max hp: 336Horsepower
Max torque: 1500N·m
Max torque speed: 1300-1600rpm
Rated speed: 1900rpm
Engine Type: Water-cooled, four-stroke, with exhaust brake, direct injection, turbocharged intercooled
Transmission Parameters
Transmission Model: Fast Gear10JSD160
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 5.6m
Cargo box width: 2.3m
Cargo box height: 1.2m
Cab parameters
Cab: H72S
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 350L
Chassis Specs
Front axle allowable load: 6990kg
rear axle description: 2x16T Balong 300 cast steel
rear axle allowable load: 17990 (tandem axle)kg
Axle ratio: 5.262
Leaf spring count: 11/13
Tire
Tire Size: 11.00-20 18PR
Number of tires: 10pcs
Control configuration
ABS:

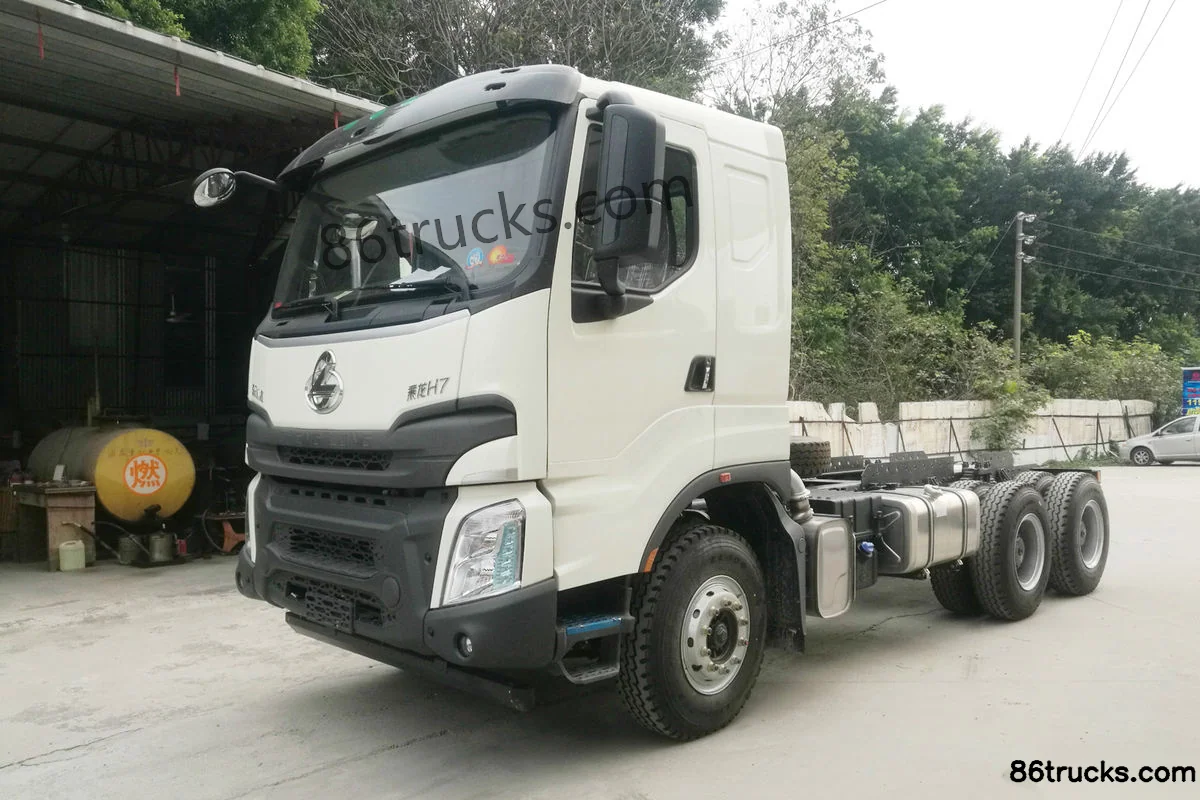

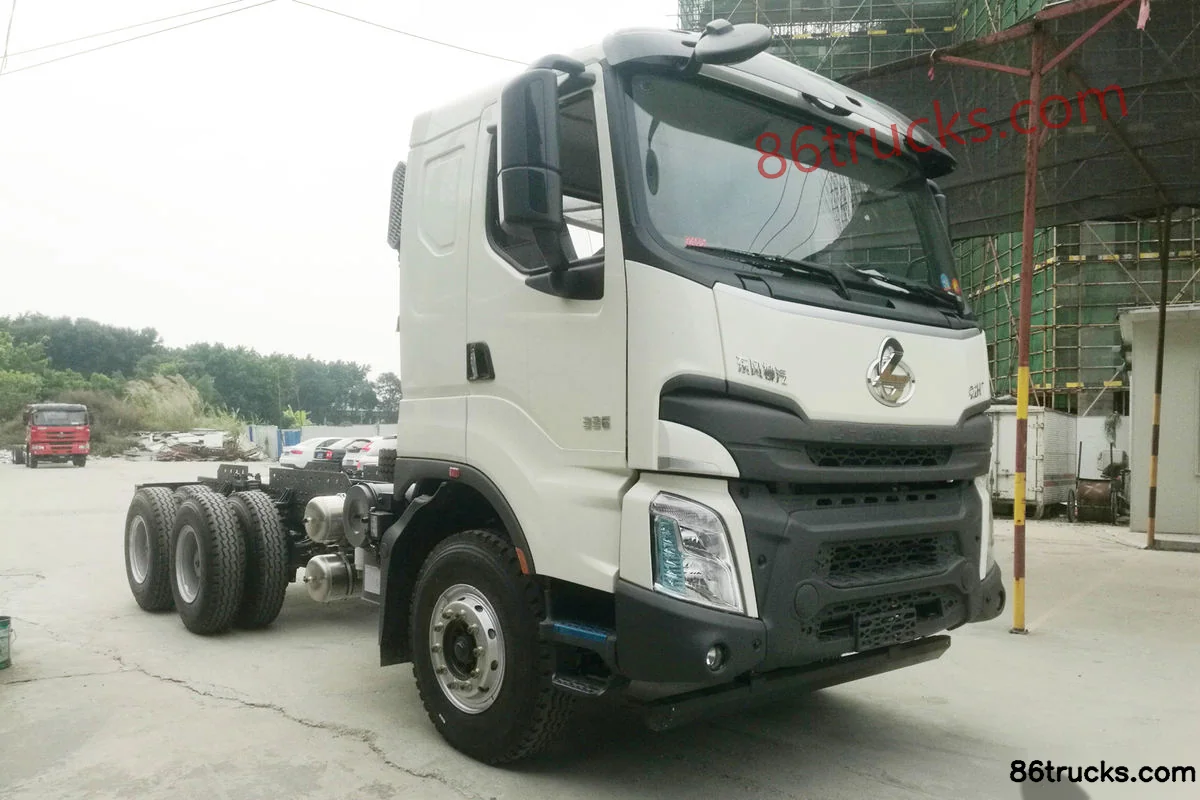

Photos

Exterior2

2 photos

FAQ

What is the export price of Dongfeng Liuqi Chenglong H7 336 hp 6X4(10 wheels) 5.6m dump truck chassis, and what does it include?

Dongfeng Liuqi Chenglong H7 336 hp 6X4(10 wheels) 5.6m dump truck chassis export reference is about From $50,000; MSRP is ¥36M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Dongfeng Liuqi Chenglong H7 336 hp 6X4(10 wheels) 5.6m dump truck chassis use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng Liuqi Chenglong H7 336 hp 6X4(10 wheels) 5.6m dump truck chassis?

Key specs of Dongfeng Liuqi Chenglong H7 336 hp 6X4(10 wheels) 5.6m dump truck chassis: Drive: 6x4; Horsepower: 336 hp; Emission: China IV; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Liuqi Chenglong H7 336 hp 6X4(10 wheels) 5.6m dump truck chassis suited for?

Dongfeng Liuqi Chenglong H7 336 hp 6X4(10 wheels) 5.6m dump truck chassis is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Dongfeng Liuqi Chenglong H7 336 hp 6X4(10 wheels) 5.6m dump truck chassis differ from other variants in the same series?

Dongfeng Liuqi Chenglong H7 336 hp 6X4(10 wheels) 5.6m dump truck chassis belongs to Dongfeng Chenglong H7 Heavy Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Liuqi Chenglong H7 336 hp 6X4(10 wheels) 5.6m dump truck chassis?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Liuqi Chenglong H7 336 hp 6X4(10 wheels) 5.6m dump truck chassis?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
