Foton Auman Planet 31T 8X4(12 wheels) 6.86m³ Pure Electric Concrete Mixer Truck 350kWh

Export reference
MSRP N/A
Tire Size:: 11.00R20 18PR
Cab dimensions:: 10.64×2.53×3.98m
Truck Type:: electric concrete mixer truck
Vehicle origin:: Beijing
Front/rear track width:: Front track: 2040/2040, Rear track: 1865/1865mm
Max. speed:: 85km/h
Foton Auman Planet 31T 8X4(12 wheels) 6.86m³ Pure Electric Concrete Mixer Truck 350kWh exterior
View more photos (12)
Rated payload: 14.97ton
Drive 8X4 (12 wheels)
Curb Weight: 15.9ton
Wheelbase: 2000+3000+1400mm

Overview

The Foton Auman Planet 31T 8X4(12 wheels) 6.86m³ Pure Electric Concrete Mixer Truck 350kWh is a concrete mixer truck featuring 14.97t payload, 15.9ton GVW, 8X4 (12 wheels) drive and 10.64×2.53×3.98m cab.

8X4

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Cab dimensions: 10.64×2.53×3.98m
Drive type: 8X4
Truck Type: electric concrete mixer truck
Vehicle origin: Beijing
Front/rear track width: Front track: 2040/2040, Rear track: 1865/1865mm
Wheelbase: 2000+3000+1400mm
Curb Weight: 15.9ton
Rated payload: 14.97ton
Max. speed: 85km/h
Front/rear suspension: 1.32/2.52m
electric motor
Motor 1 Brand: Zhide Motor
Motor 1 Model: TZ400XSTPG46
Motor Type: Permanent magnet synchronous motor
total rated power: 260kW
Peak power: 400kW
Body Parameters
Mixing drum capacity: 6.86m³
Vehicle certification code: BJ5311GJBEVGRF-01
Body Brand: FotonAuman
Chassis Specs
Chassis Series: Auman Xingxing
Chassis Model: BJ5311GJBEVGRF-01
Axle ratio: 6.733
Leaf spring count: 9/9/12
Transmission Parameters
Number of gears: 4Gear
Transmission Model: AMTTS-0425C
Tire
Tire Size: 11.00R20 18PR
Number of tires: 12pcs

Photos

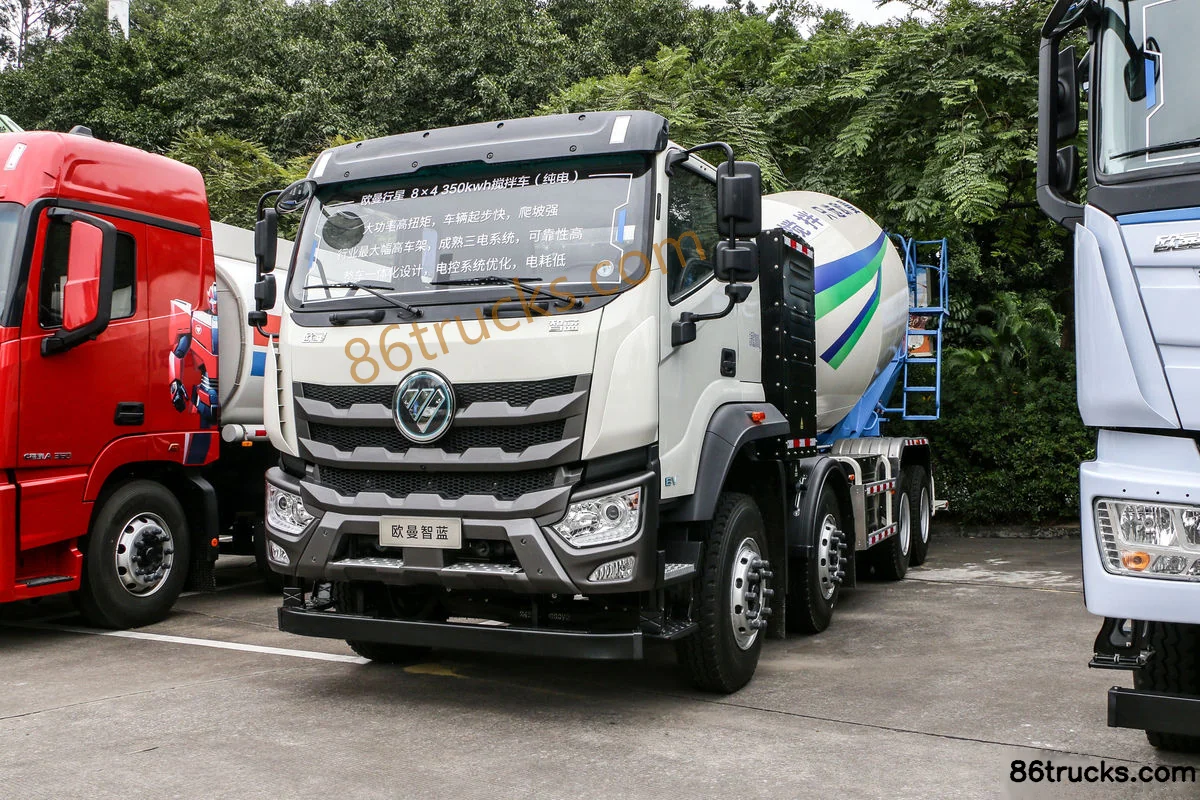

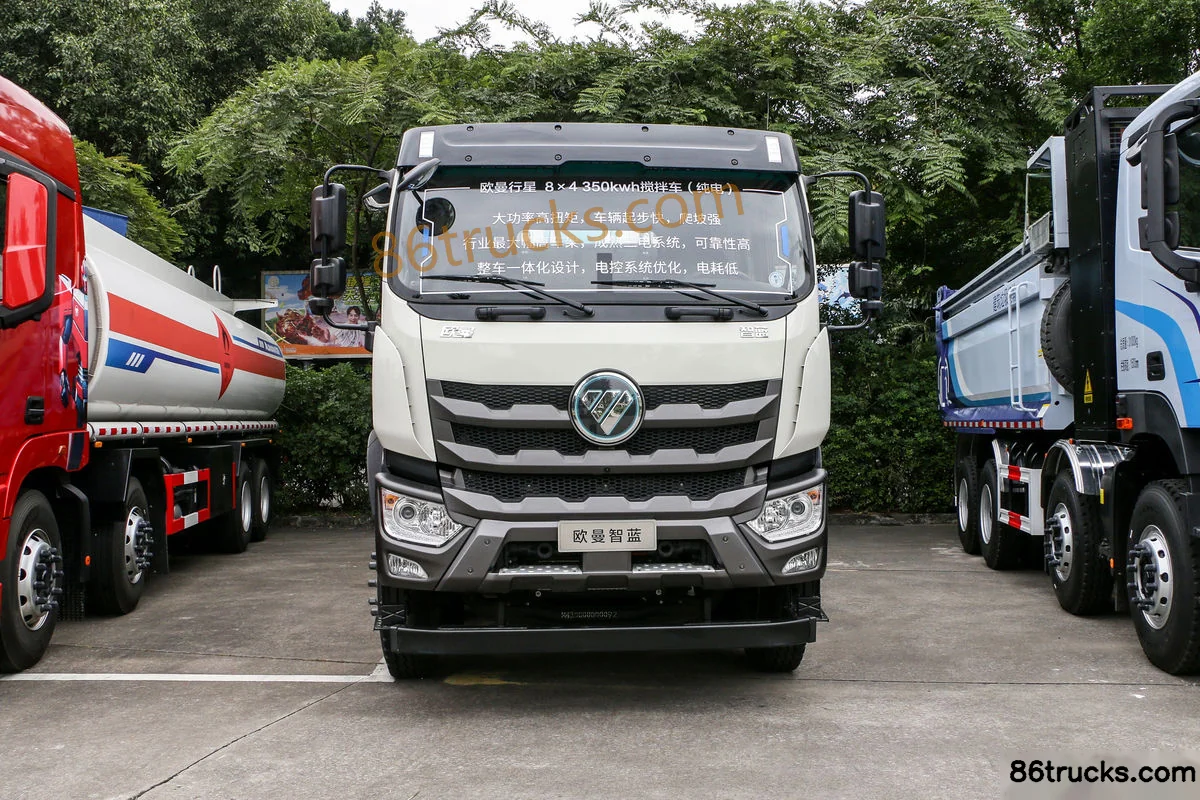

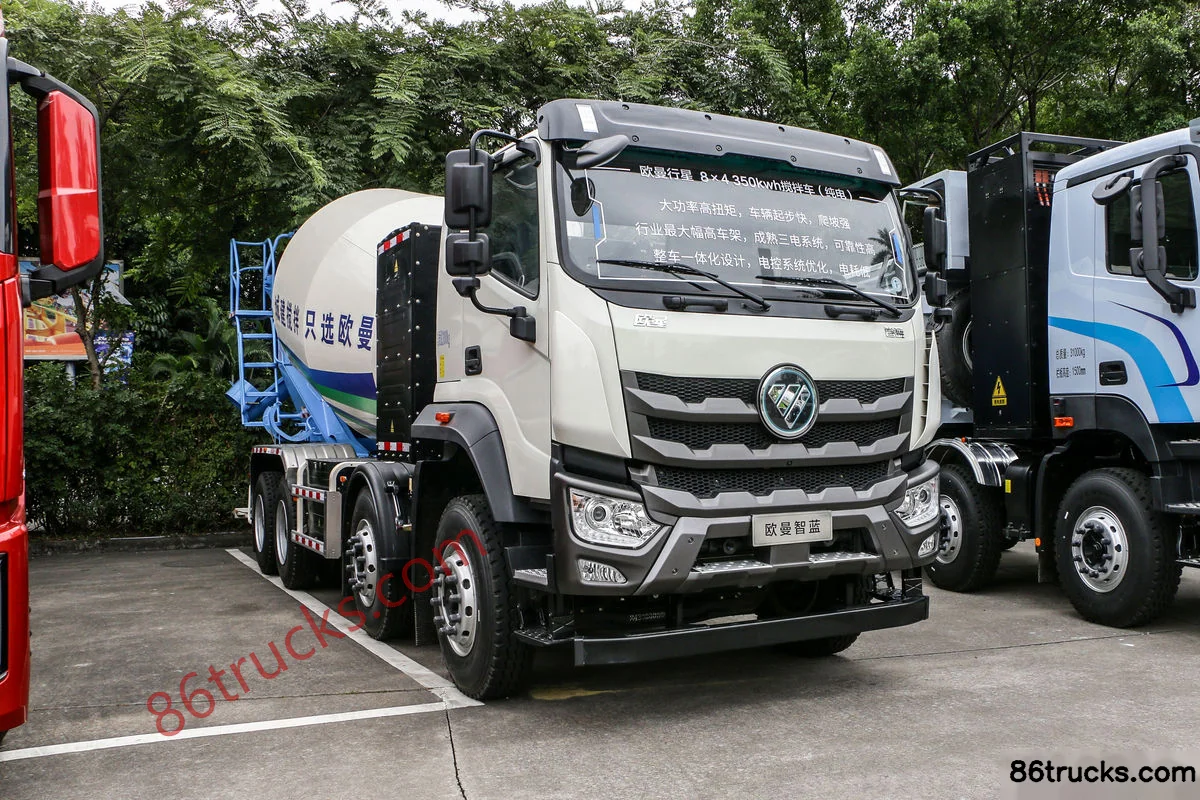

Exterior3

Foton Auman Planet 31T 8X4(12 wheels) 6.86m³ Pure Electric Concrete Mixer Truck 350kWh Exterior (1) | 86Trucks Foton Auman Planet 31T 8X4(12 wheels) 6.86m³ Pure Electric Concrete Mixer Truck 350kWh Exterior (2) | 86Trucks Foton Auman Planet 31T 8X4(12 wheels) 6.86m³ Pure Electric Concrete Mixer Truck 350kWh Exterior (3) | 86Trucks

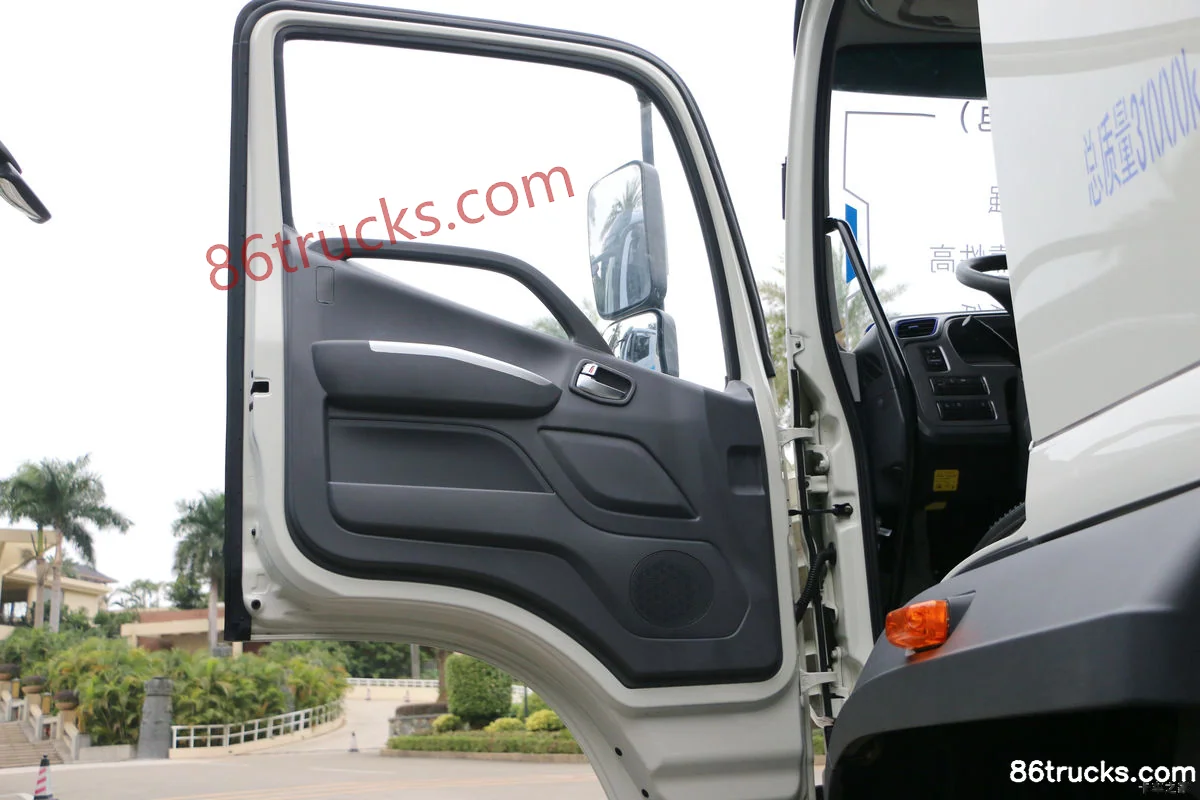

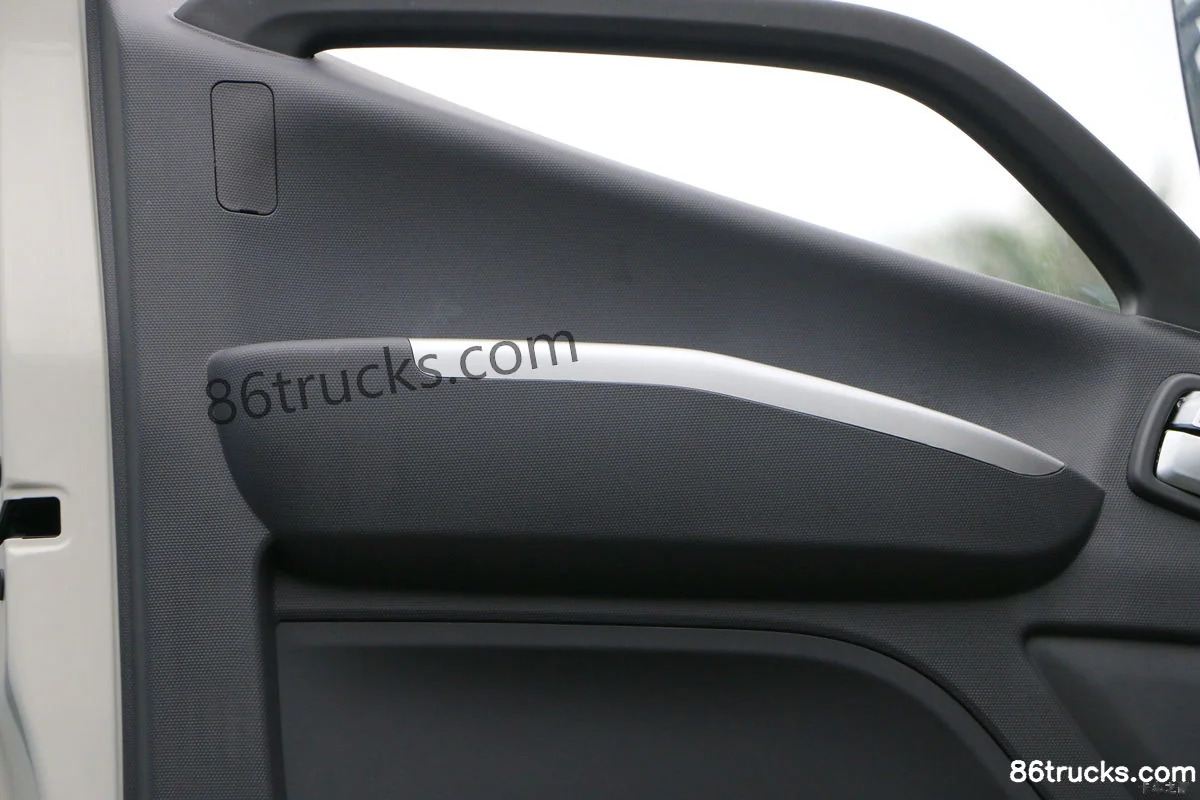

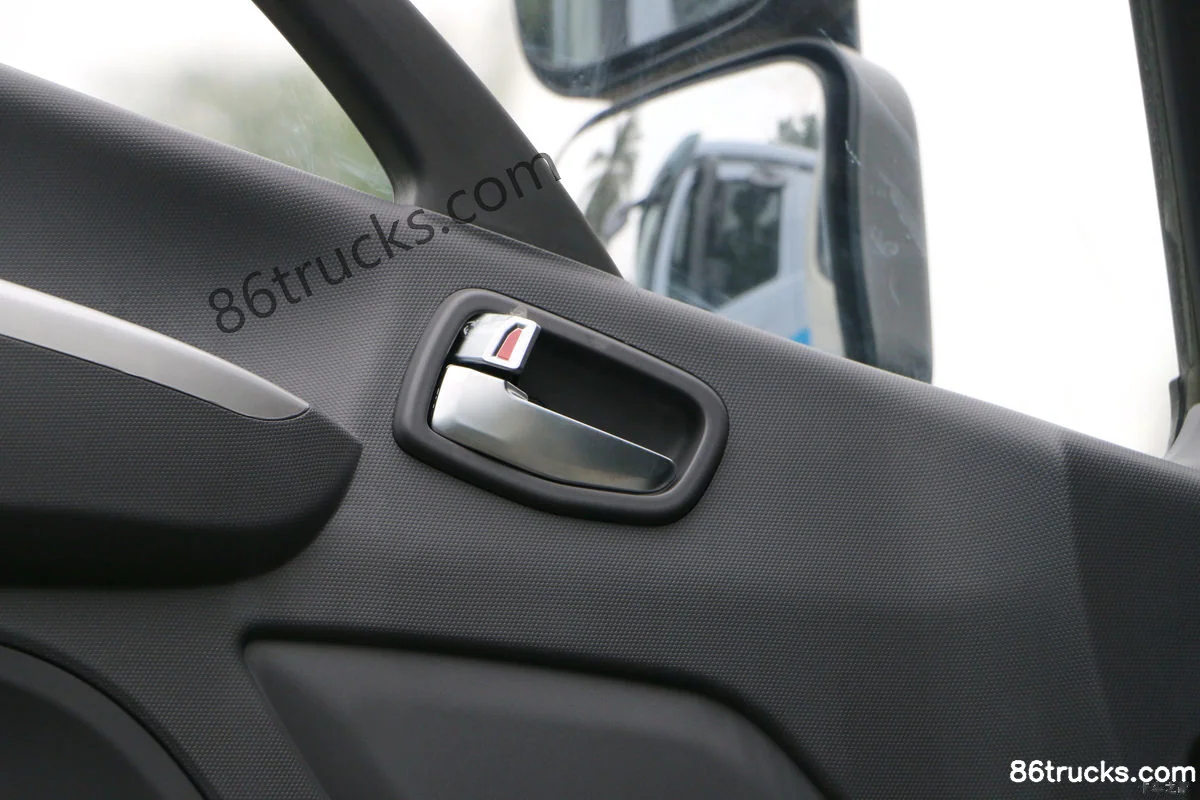

Cab3

Foton Auman Planet 31T 8X4(12 wheels) 6.86m³ Pure Electric Concrete Mixer Truck 350kWh Cab (1) | 86Trucks Foton Auman Planet 31T 8X4(12 wheels) 6.86m³ Pure Electric Concrete Mixer Truck 350kWh Cab (2) | 86Trucks Foton Auman Planet 31T 8X4(12 wheels) 6.86m³ Pure Electric Concrete Mixer Truck 350kWh Cab (3) | 86Trucks

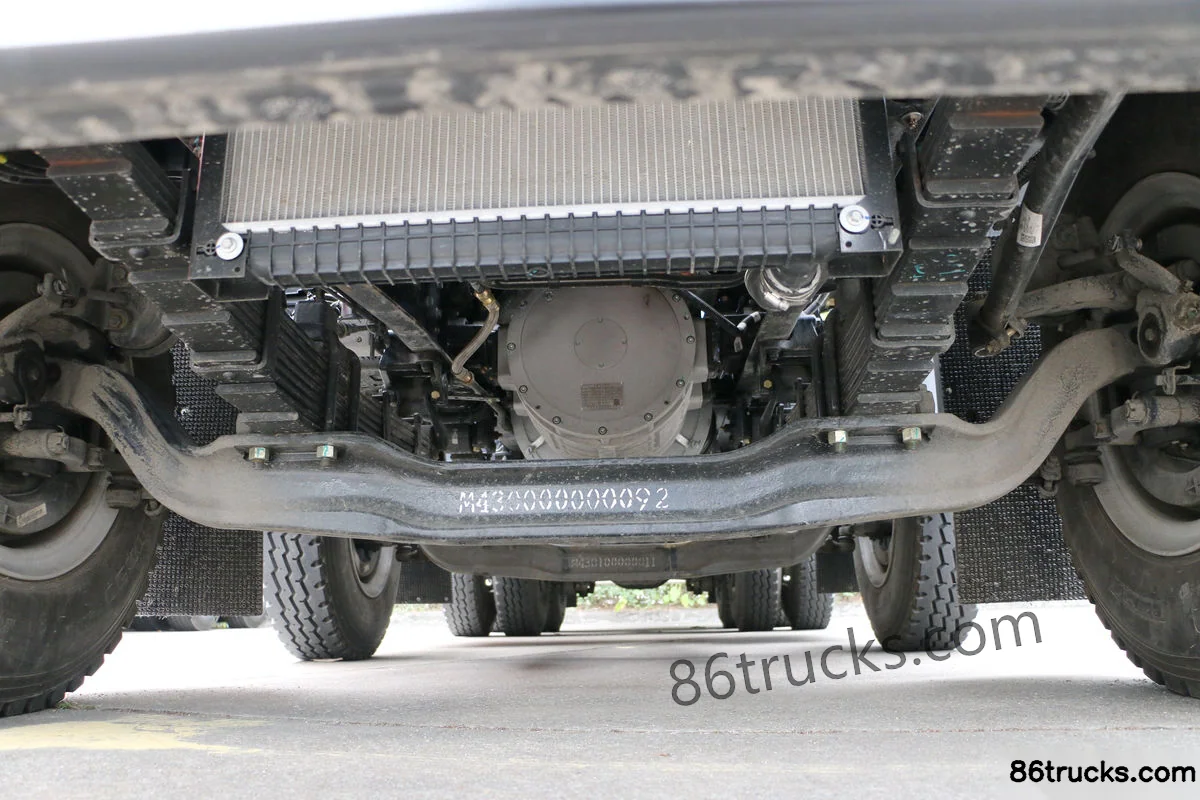

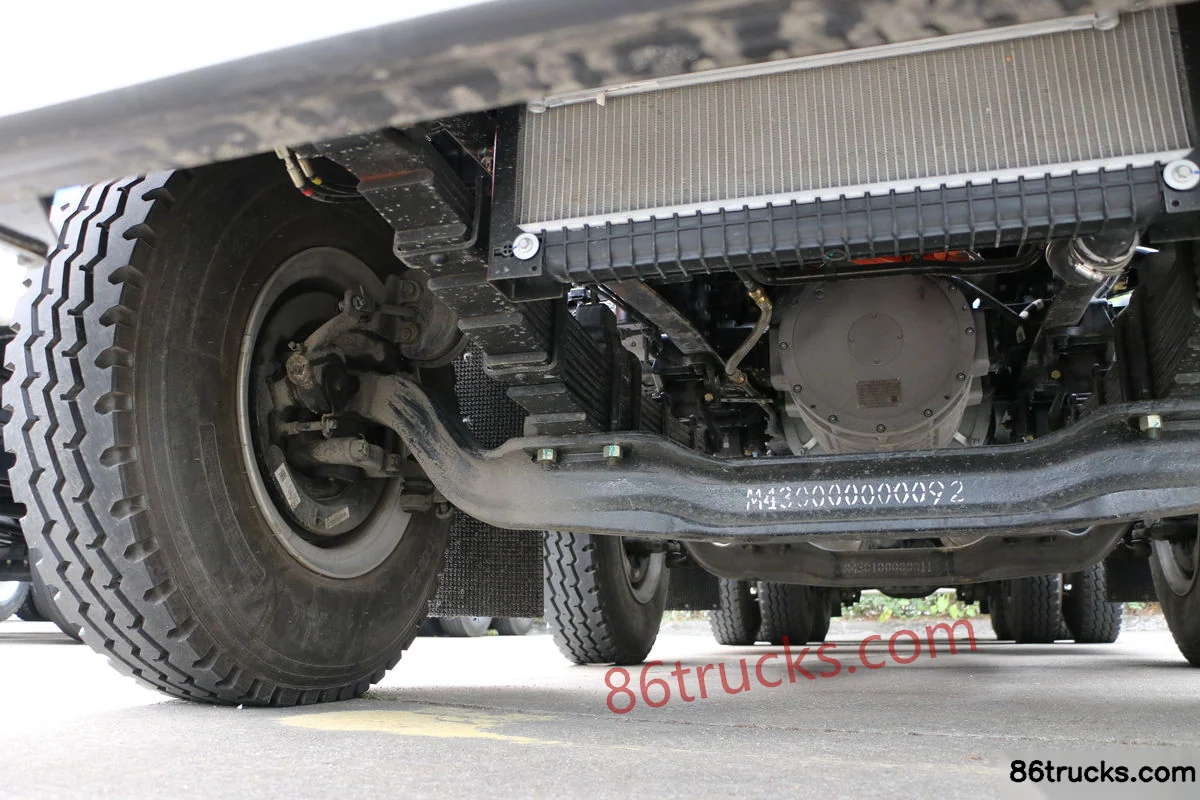

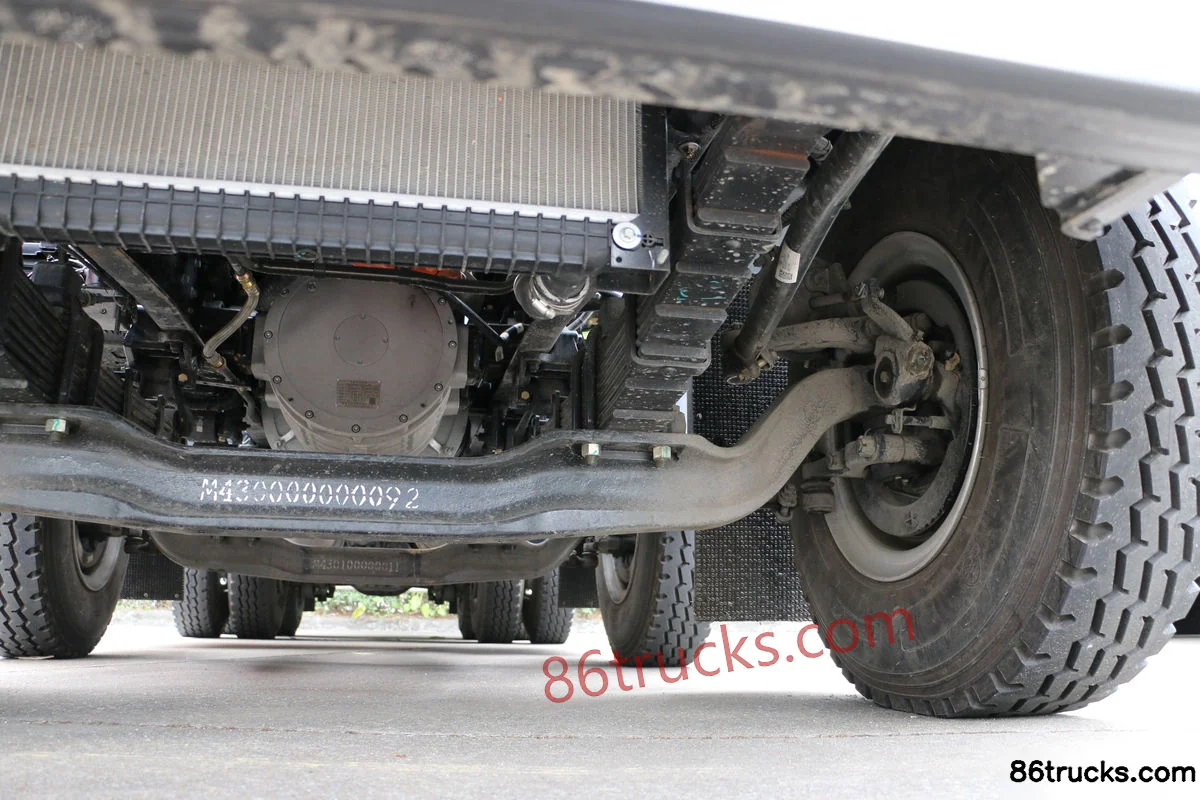

Chassis3

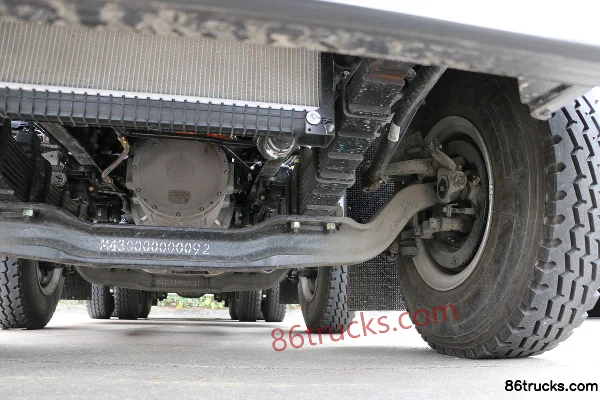

Foton Auman Planet 31T 8X4(12 wheels) 6.86m³ Pure Electric Concrete Mixer Truck 350kWh Chassis (1) | 86Trucks Foton Auman Planet 31T 8X4(12 wheels) 6.86m³ Pure Electric Concrete Mixer Truck 350kWh Chassis (2) | 86Trucks Foton Auman Planet 31T 8X4(12 wheels) 6.86m³ Pure Electric Concrete Mixer Truck 350kWh Chassis (3) | 86Trucks

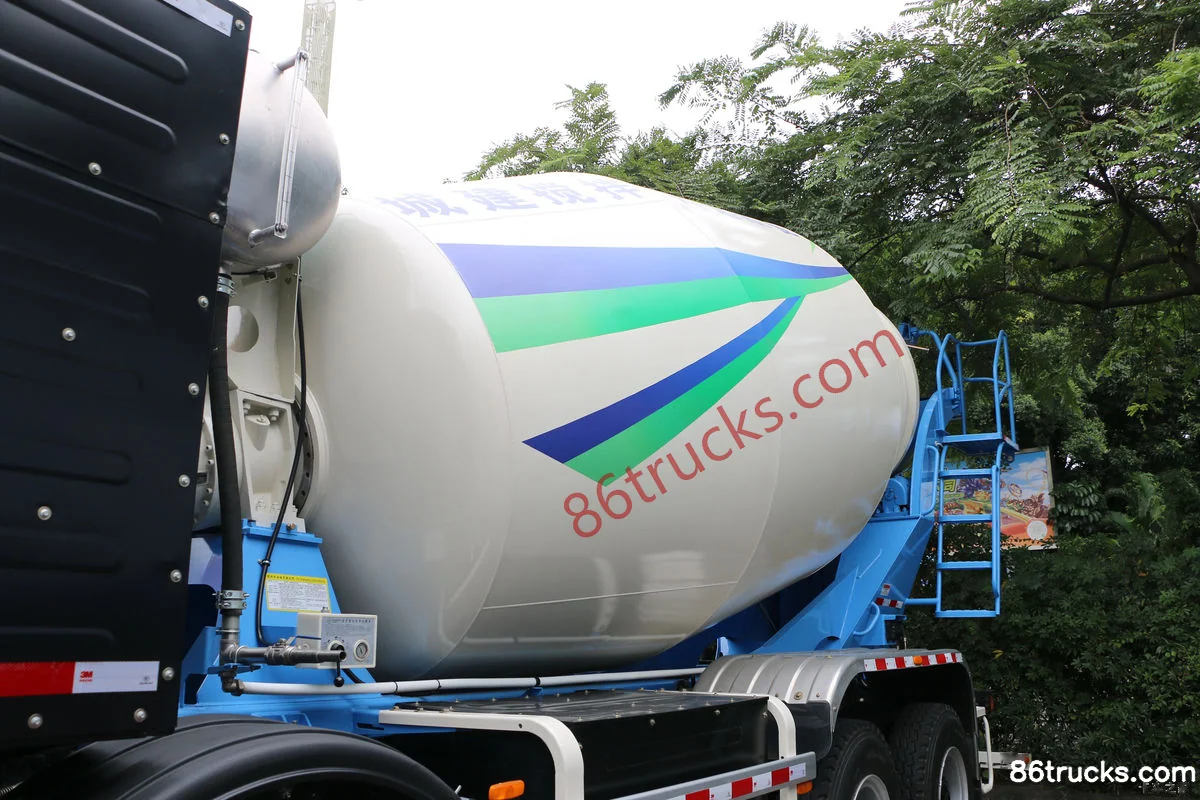

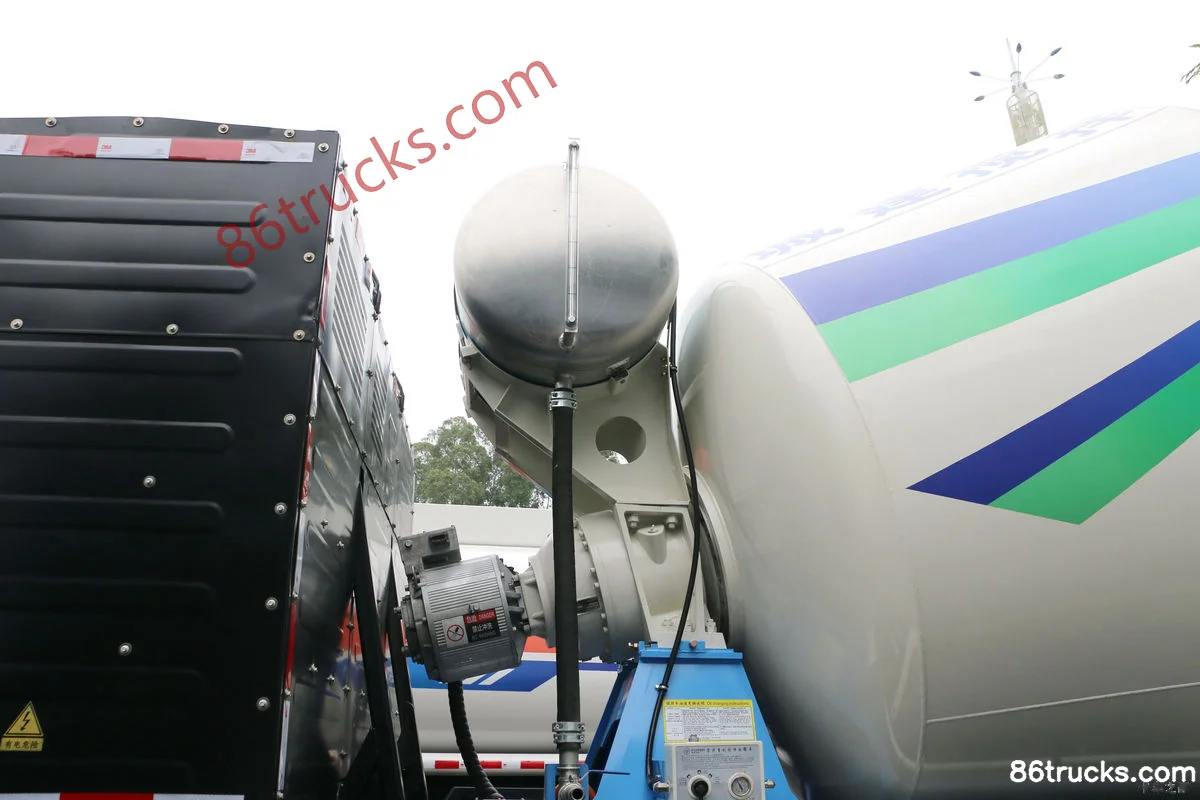

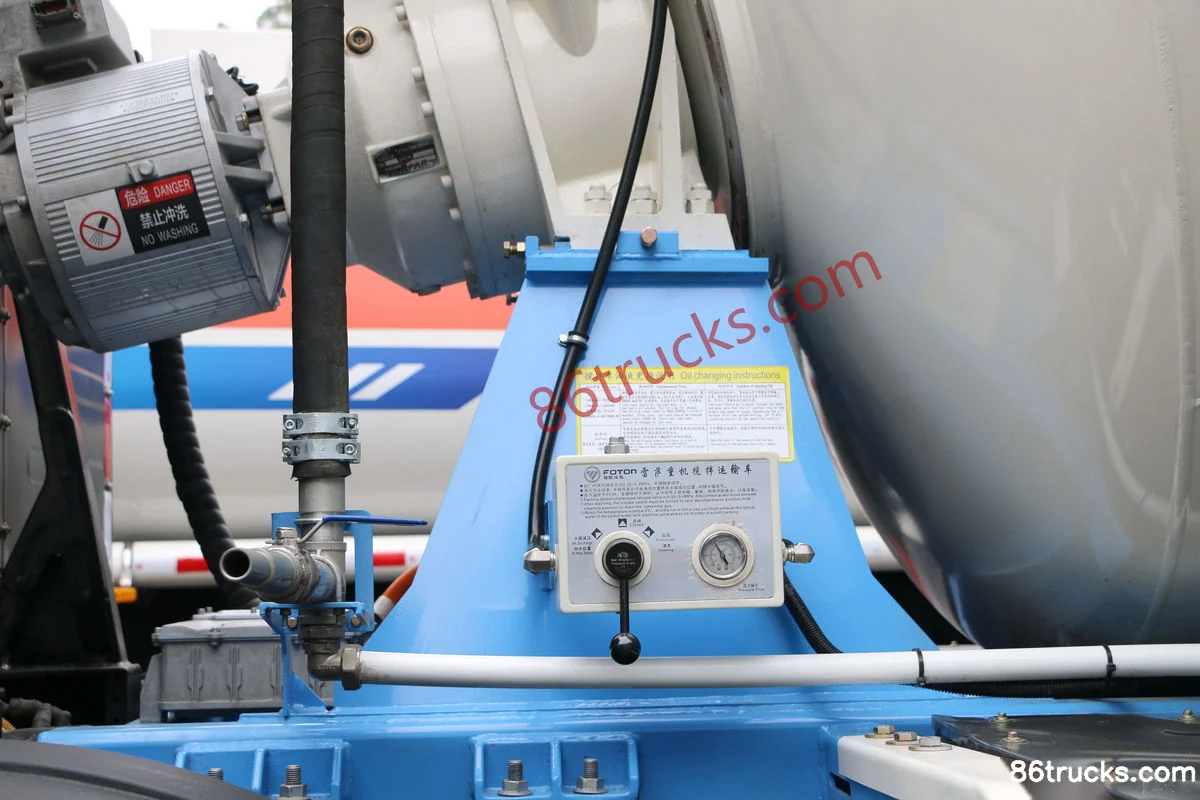

Body3

Foton Auman Planet 31T 8X4(12 wheels) 6.86m³ Pure Electric Concrete Mixer Truck 350kWh Body (1) | 86Trucks Foton Auman Planet 31T 8X4(12 wheels) 6.86m³ Pure Electric Concrete Mixer Truck 350kWh Body (2) | 86Trucks Foton Auman Planet 31T 8X4(12 wheels) 6.86m³ Pure Electric Concrete Mixer Truck 350kWh Body (3) | 86Trucks

12 photos

FAQ

What are the key specs of Foton Auman Planet 31T 8X4(12 wheels) 6.86m³ Pure Electric Concrete Mixer Truck 350kWh?

Key specs of Foton Auman Planet 31T 8X4(12 wheels) 6.86m³ Pure Electric Concrete Mixer Truck 350kWh: Drive: 8x4. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Auman Planet 31T 8X4(12 wheels) 6.86m³ Pure Electric Concrete Mixer Truck 350kWh suited for?

Foton Auman Planet 31T 8X4(12 wheels) 6.86m³ Pure Electric Concrete Mixer Truck 350kWh is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Foton Auman Planet 31T 8X4(12 wheels) 6.86m³ Pure Electric Concrete Mixer Truck 350kWh differ from other variants in the same series?

Foton Auman Planet 31T 8X4(12 wheels) 6.86m³ Pure Electric Concrete Mixer Truck 350kWh belongs to Foton Auman Planet Heavy Truck (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Auman Planet 31T 8X4(12 wheels) 6.86m³ Pure Electric Concrete Mixer Truck 350kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Auman Planet 31T 8X4(12 wheels) 6.86m³ Pure Electric Concrete Mixer Truck 350kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
