FAW Jiefang J6P heavy truck 350hp 6X4(10 wheels) 5.8m dump truck (cab-over)

Export reference
From $43,056
MSRP ¥31M CNY
Emission: China III / Euro III
Fuel: Diesel
Transmission: FAW Jiefang
Curb Weight:: 12ton
Wheelbase:: 3800+1350mm
Tire Size:: 12.00R20
Rated payload: 12.805ton
Drive 6X4 (10 wheels)
Horsepower 350
Cargo box type: Dump type

Overview

The FAW Jiefang J6P heavy truck 350hp 6X4(10 wheels) 5.8m dump truck (cab-over) is a Heavy truck featuring 12.805t payload, 25t GVW, Dump type cargo body and 6X4 (10 wheels) drive. On the powertrain side, it comes with a XichaiCA6DL2-35E3F engine, 350 hp, China III / Euro III emissions and FAW Jiefang transmission.

China III / Euro III 350 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA3250P66K2L1T1A1E
Drive type: 6X4
Wheelbase: 3800+1350mm
engine: XichaiCA6DL2-35E3F
transmission: FAW JiefangCA10TA130M
Rear Axle Ratio: 5.769
Cab length: 8.48m
Cab width: 2.495m
Cab height: 3.3m
Front track width: 2050mm
rear track: 1830/1830mm
Curb Weight: 12ton
Rated payload: 12.805ton
GVWR: 25ton
Origin: Changchun, Jilin
tonnage class: Heavy truck
Approach angle: 24°
departure angle: 24°
Remarks: Optional eco-friendly top cover, dump body rear-dump type, rated payload 12805 corresponds to 3-person cab, rated payload 12870 corresponds to 2-person cab, length relationships: 8080=1470+3800+1350+1460 (body length: 5400, body height: 1240), 8280=1470+3800+1350+1660 (body length: 5600, body height: 1200), 8480=1470+3800+1350+1860 (body length: 5800, body height: 1160)
Energy Type: Diesel
Engine parameters
Engine Brand: Xichai
Engine Model: XichaiCA6DL2-35E3F
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 8.57L
Emission standard: China III / Euro III
Max output power: 261kW
Max hp: 350Horsepower
Max torque: 1500N·m
Max torque speed: 1300-1500rpm
Rated speed: 2100rpm
Engine Type: 6-cylinder inline, direct injection, turbocharged intercooled, inline pump EGR
Transmission Parameters
Transmission Model: FAW JiefangCA10TA130M
Transmission Brand: FAW Jiefang
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 5.8m
Cargo box width: 2.3m
Cargo box height: 1.165m
fuel tank
Fuel tank capacity: 300L
Chassis Specs
rear axle description: 300
rear axle allowable load: 18000kg
Axle ratio: 5.769
Leaf spring count: 12/12
Tire
Tire Size: 12.00R20
Number of tires: 10pcs

Photos

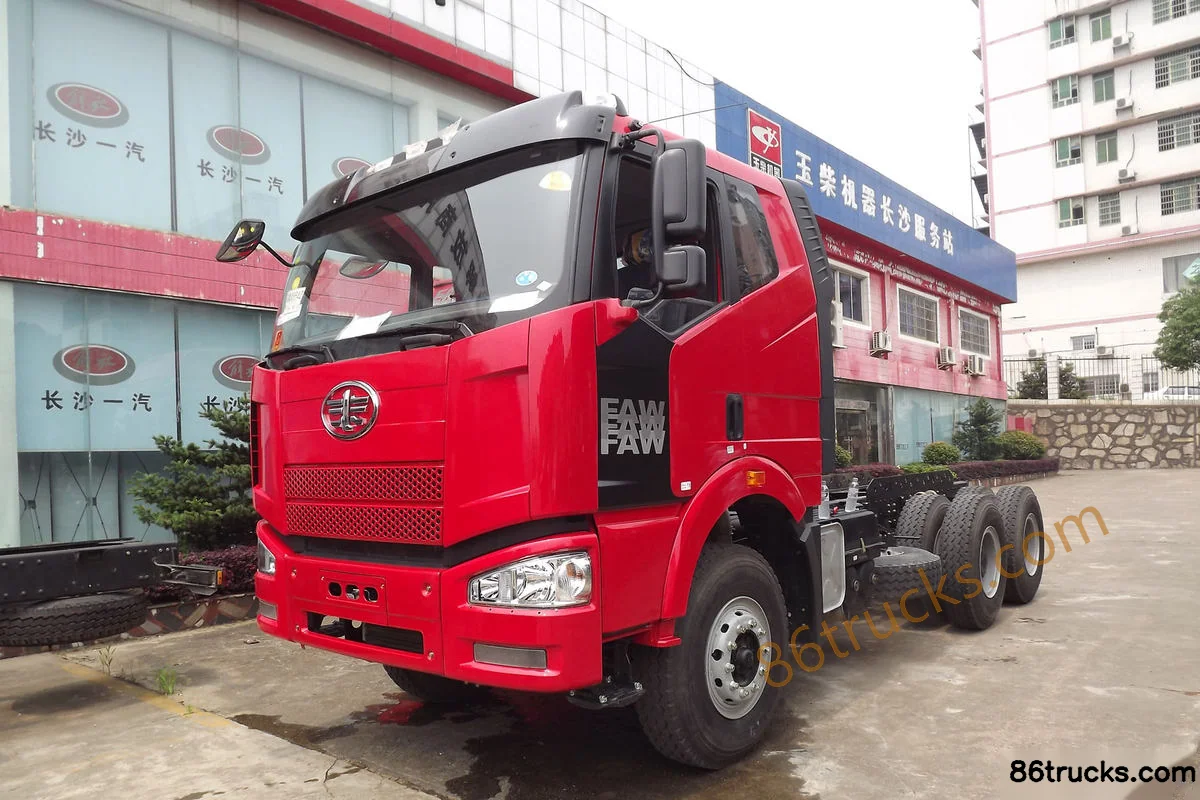

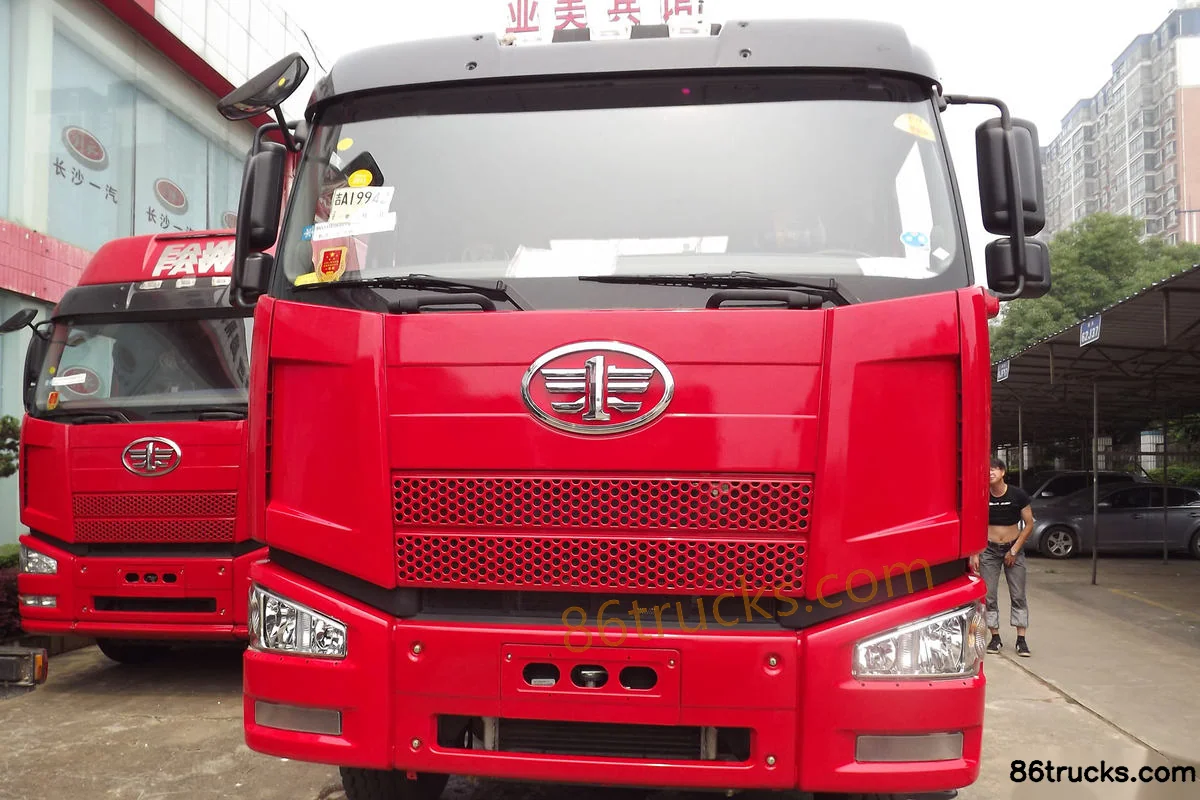

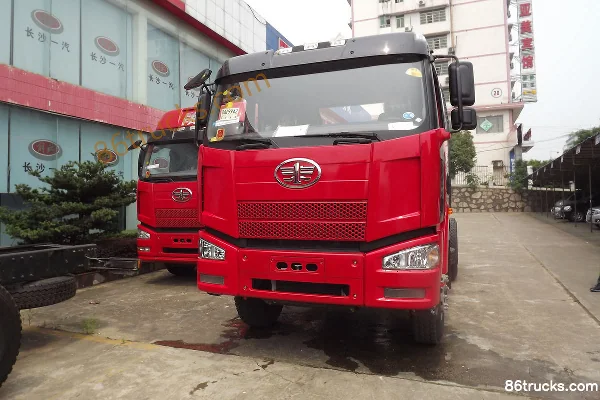

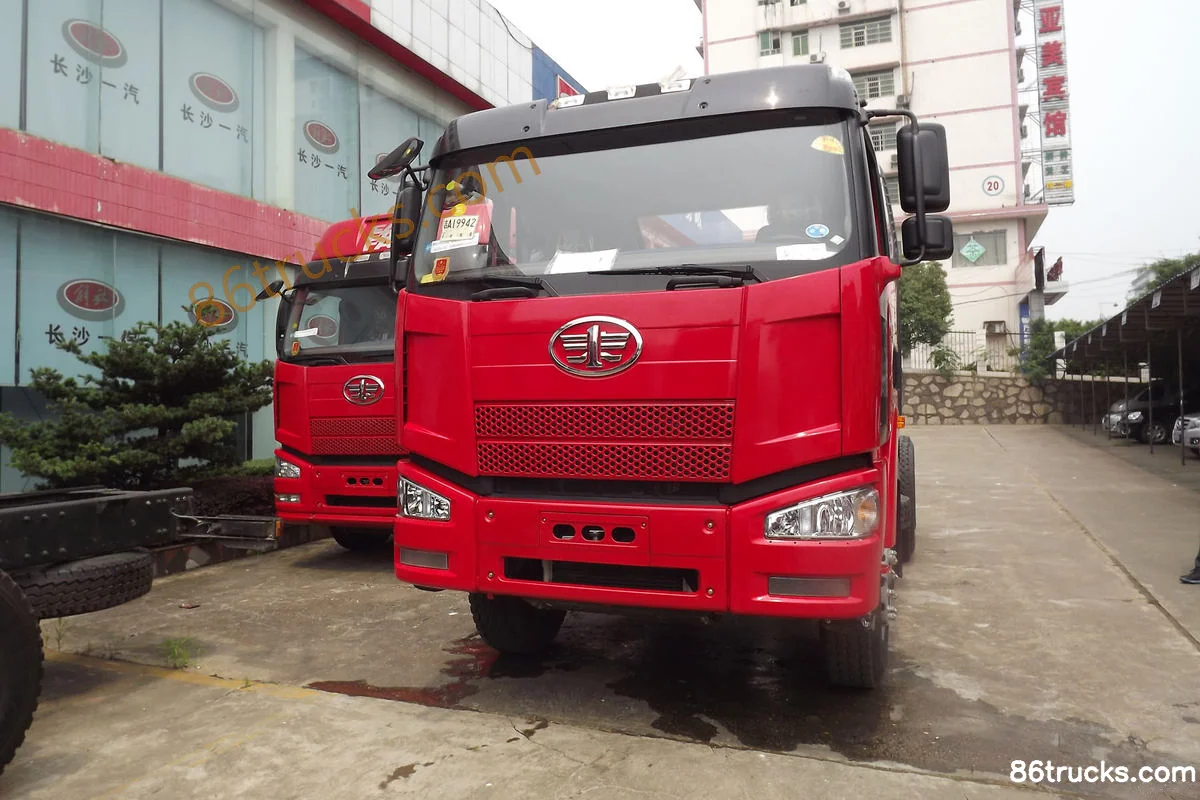

Exterior3

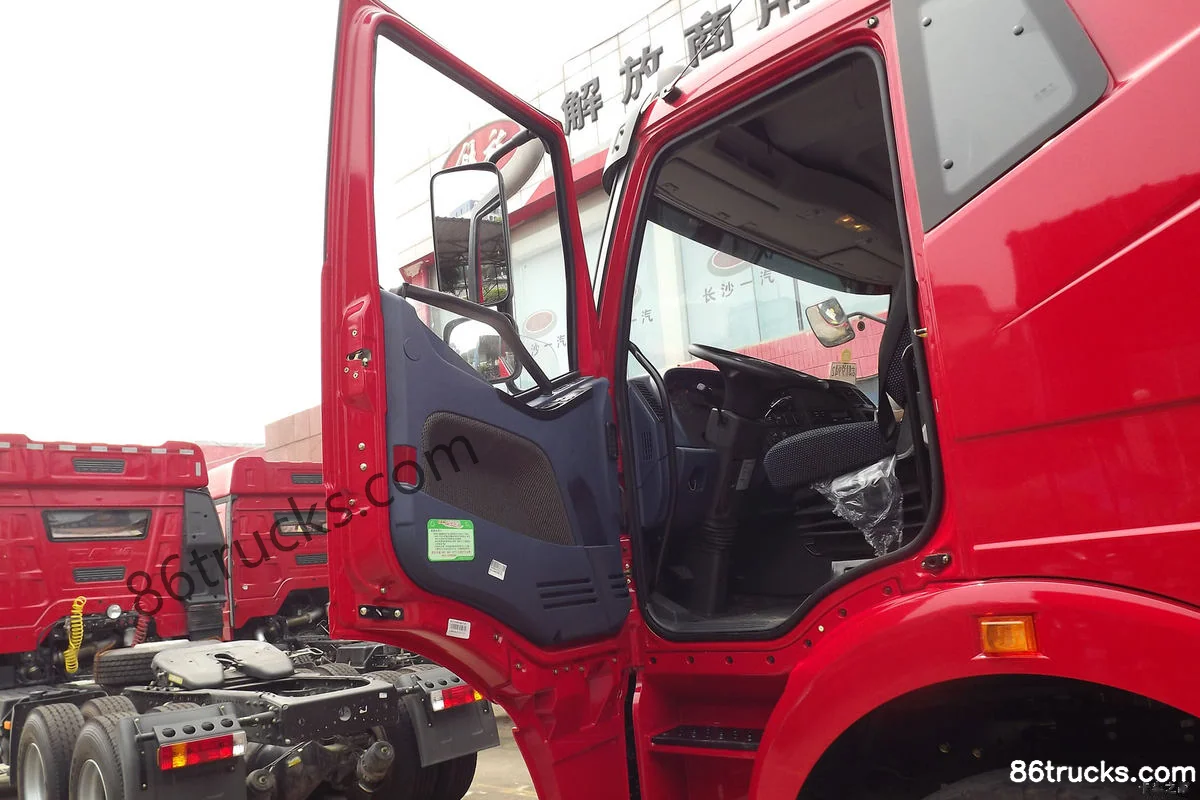

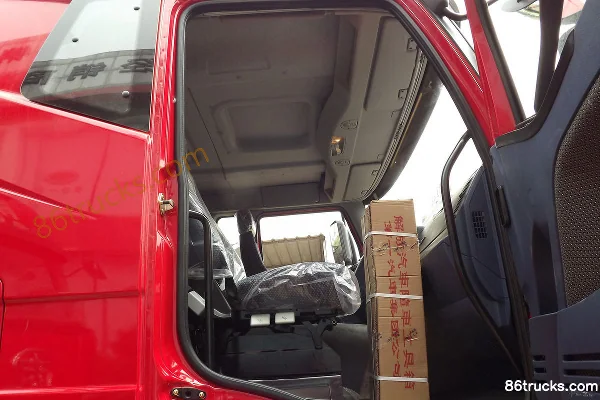

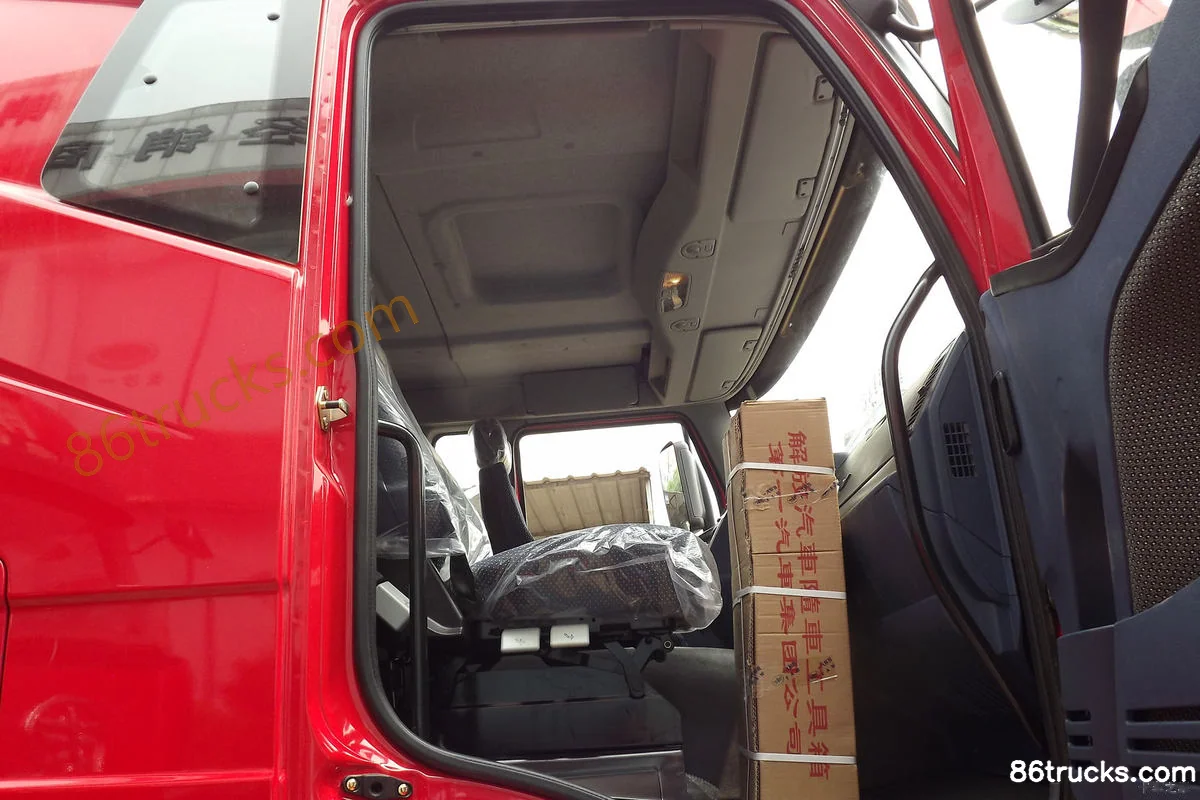

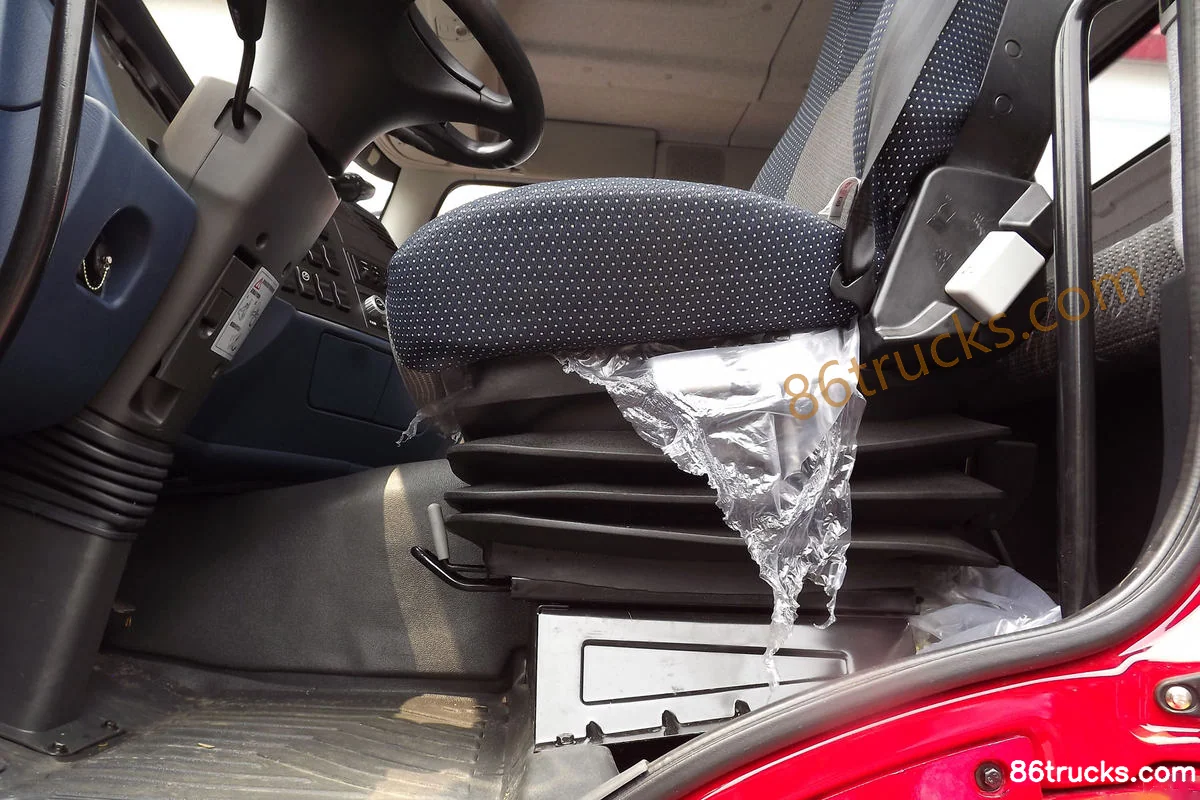

Cab3

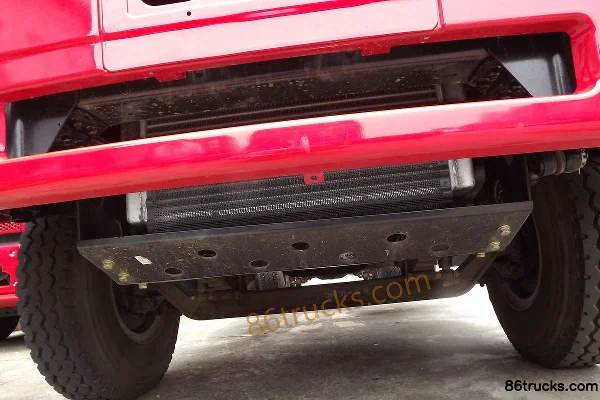

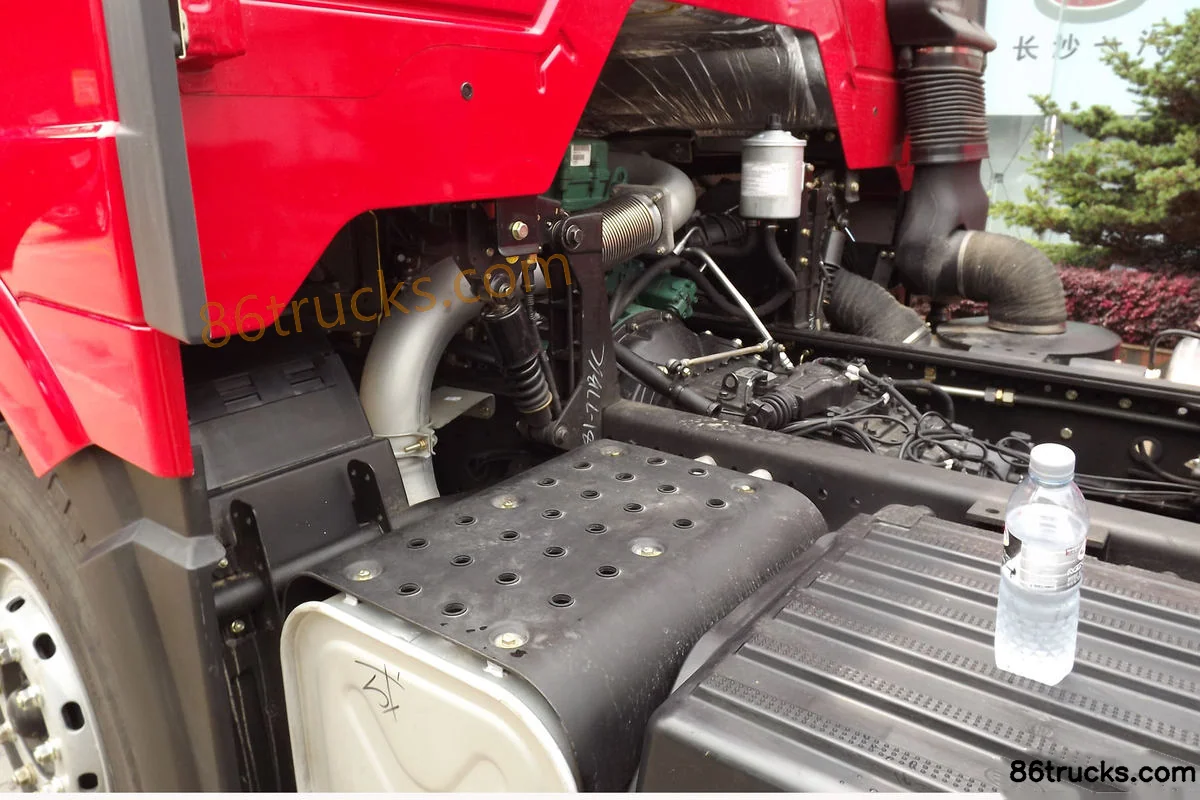

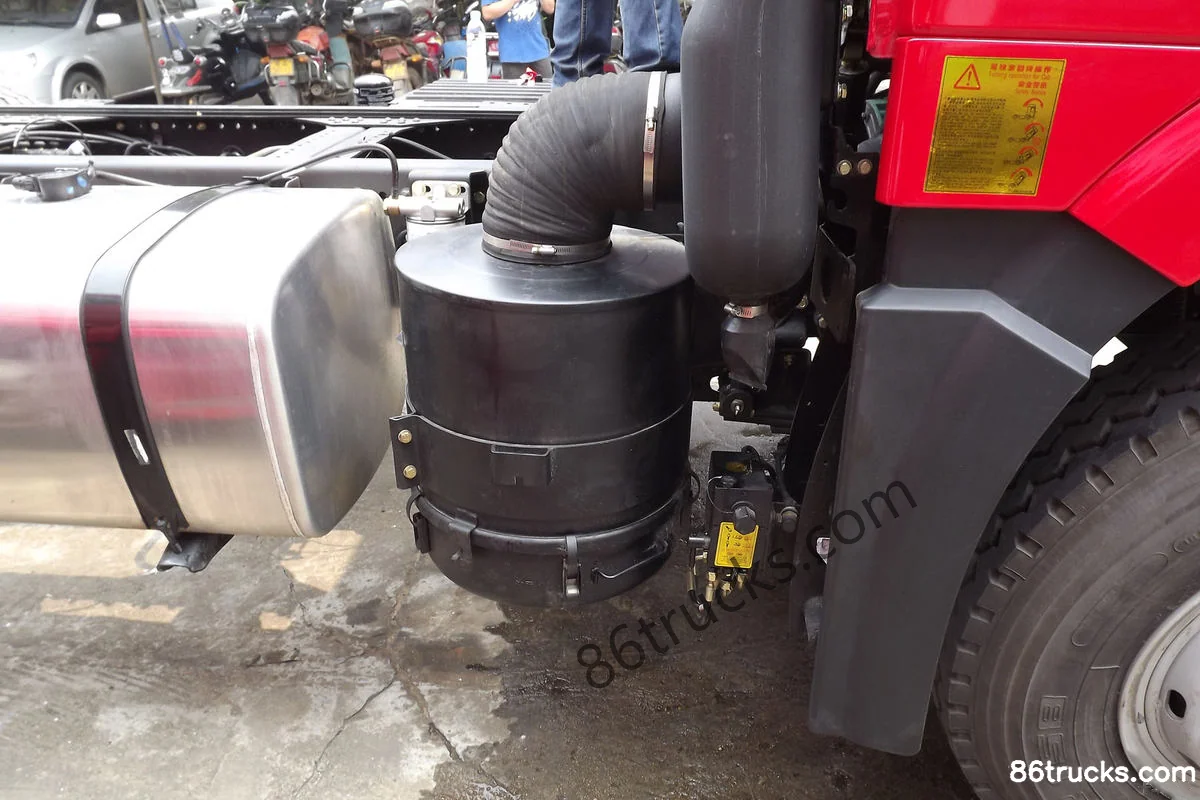

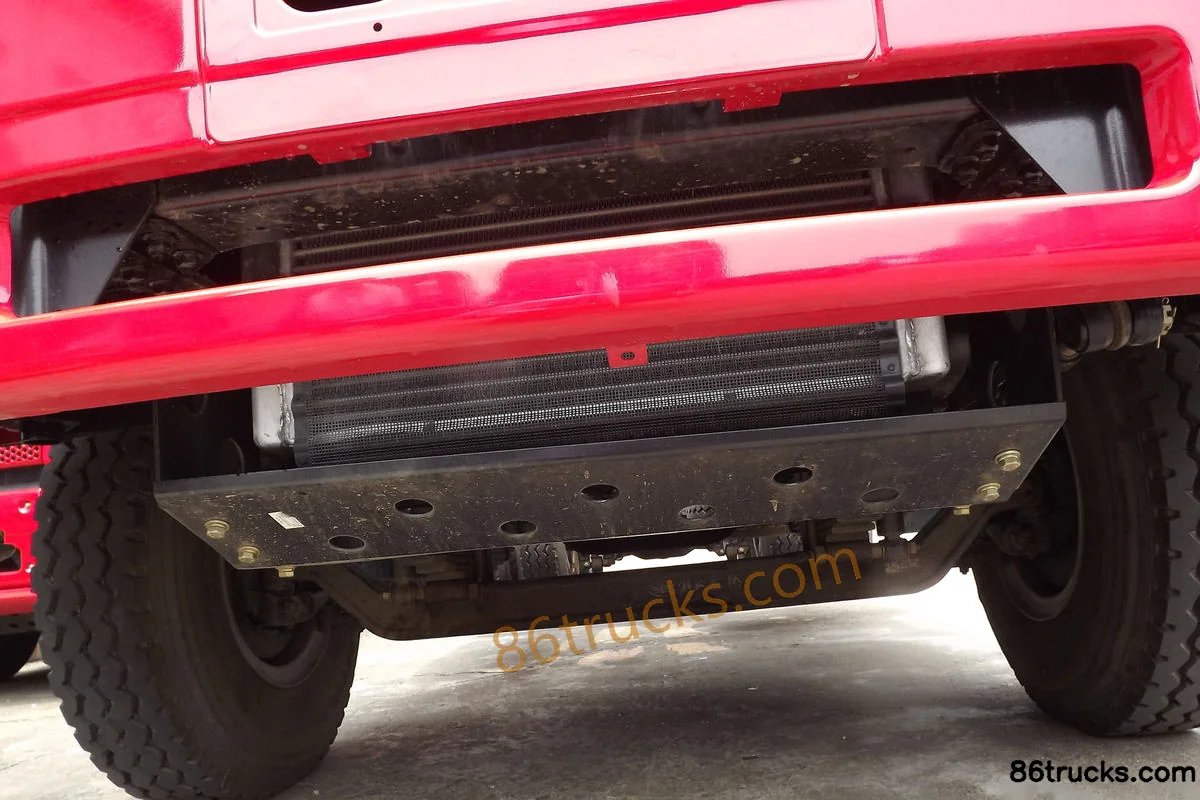

Chassis3

9 photos

FAQ

What is the export price of FAW Jiefang J6P heavy truck 350hp 6X4(10 wheels) 5.8m dump truck (cab-over), and what does it include?

FAW Jiefang J6P heavy truck 350hp 6X4(10 wheels) 5.8m dump truck (cab-over) export reference is about From $43,056; MSRP is ¥31M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FAW Jiefang J6P heavy truck 350hp 6X4(10 wheels) 5.8m dump truck (cab-over) use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang J6P heavy truck 350hp 6X4(10 wheels) 5.8m dump truck (cab-over)?

Key specs of FAW Jiefang J6P heavy truck 350hp 6X4(10 wheels) 5.8m dump truck (cab-over): Drive: 6x4; Horsepower: 350 hp; Emission: China III / Euro III; Fuel: Diesel; Transmission: FAW Jiefang. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang J6P heavy truck 350hp 6X4(10 wheels) 5.8m dump truck (cab-over) suited for?

FAW Jiefang J6P heavy truck 350hp 6X4(10 wheels) 5.8m dump truck (cab-over) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does FAW Jiefang J6P heavy truck 350hp 6X4(10 wheels) 5.8m dump truck (cab-over) differ from other variants in the same series?

FAW Jiefang J6P heavy truck 350hp 6X4(10 wheels) 5.8m dump truck (cab-over) belongs to FAW Jiefang J6P Heavy Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang J6P heavy truck 350hp 6X4(10 wheels) 5.8m dump truck (cab-over)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang J6P heavy truck 350hp 6X4(10 wheels) 5.8m dump truck (cab-over)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
