Foton Ollin Jiyun 95hp 4X2(6 wheels) 3.2m double-row flatbed light truck

Export reference
MSRP N/A
Horsepower: 95
Emission: China IV
Fuel: Diesel
Engine: Quanchai490
Transmission: WLY
Curb Weight:: 2.5ton
Foton Ollin Jiyun 95hp 4X2(6 wheels) 3.2m double-row flatbed light truck exterior
View more photos (12)
seating capacity: 5Personnel
Rated payload: 1.67ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Foton Ollin Jiyun 95hp 4X2(6 wheels) 3.2m double-row flatbed light truck is a Light Truck featuring 3.22m cargo length, stake body cargo body, 5Personnel volume and 1.67t payload. On the powertrain side, it comes with a Quanchai490 engine, 95 hp, 4X2 (6 wheels) drive and China IV emissions.

China IV 95 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): BJ1043V9AEA-A
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 3.2m
engine: Quanchai4B2-95C40
transmission: WLYWLY5T92
Cab length: 5.995m
Cab width: 2.02m
Cab height: 2.3m
Front track width: 1730mm
rear track: 1590mm
Curb Weight: 2.5ton
Rated payload: 1.67ton
GVWR: 4.495ton
Max. speed: 95km/h
Origin: Beijing
tonnage class: Light Truck
Approach angle: 23°
departure angle: 19°
Front/rear suspension: 1.085/1.55m
Energy Type: Diesel
Engine parameters
Engine Brand: Quanchai
Engine Model: Quanchai4B2-95C40
Engine info: Quanchai490
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.545L
Emission standard: China IV
Max output power: 70kW
Max hp: 95Horsepower
Max torque: 270N·m
Max torque speed: 2000rpm
Rated speed: 3200rpm
Engine Type: Electronic control EGR
Transmission Parameters
Transmission Model: WLYWLY5T92
Transmission Brand: WLY
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 3.22m
Cargo box width: 1.9m
Cargo box height: 0.4m
*Cargo box interior width: 1.8999999761581
Cab parameters
seating capacity: 5Personnel
Seat rows: Double cab
Chassis Specs
Front axle allowable load: 1710kg
rear axle description: 2785
rear axle allowable load: 2785kg
Leaf spring count: 4/6+7
Tire
Tire Size: 7.00R16
Number of tires: 6pcs
Control configuration
ABS:

Photos

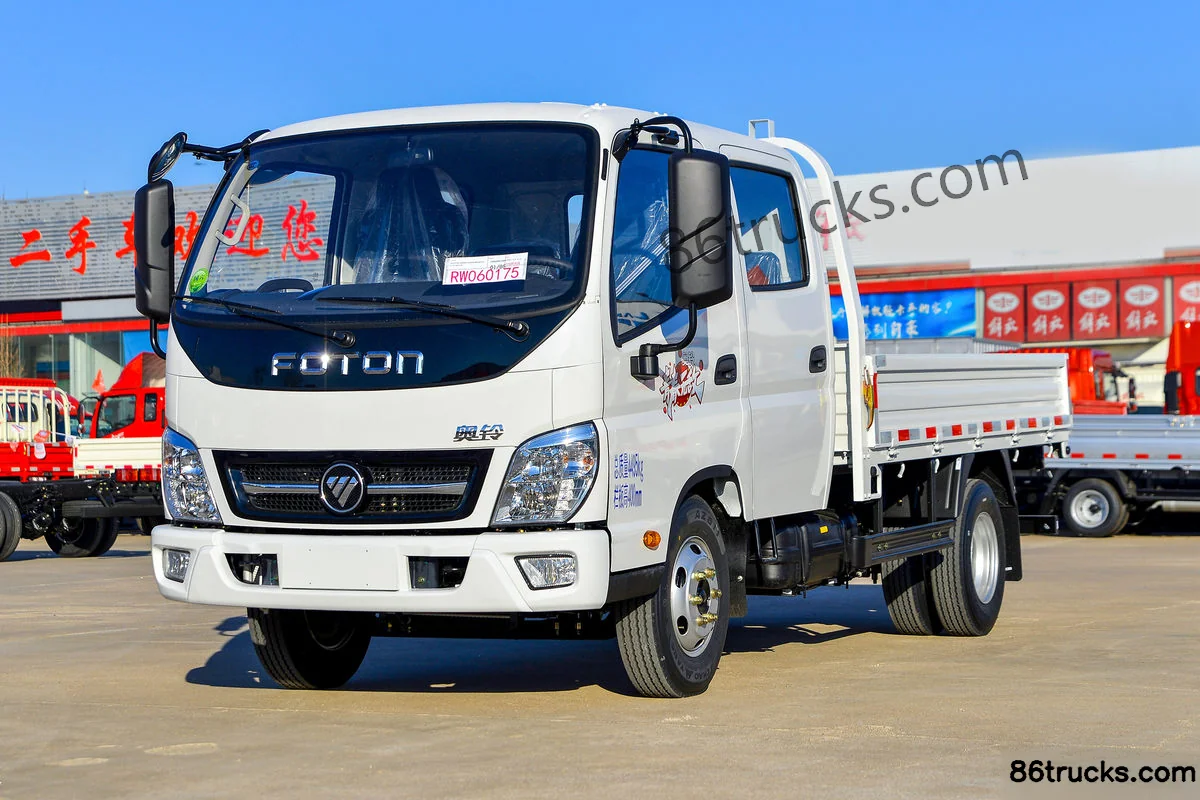

Exterior3

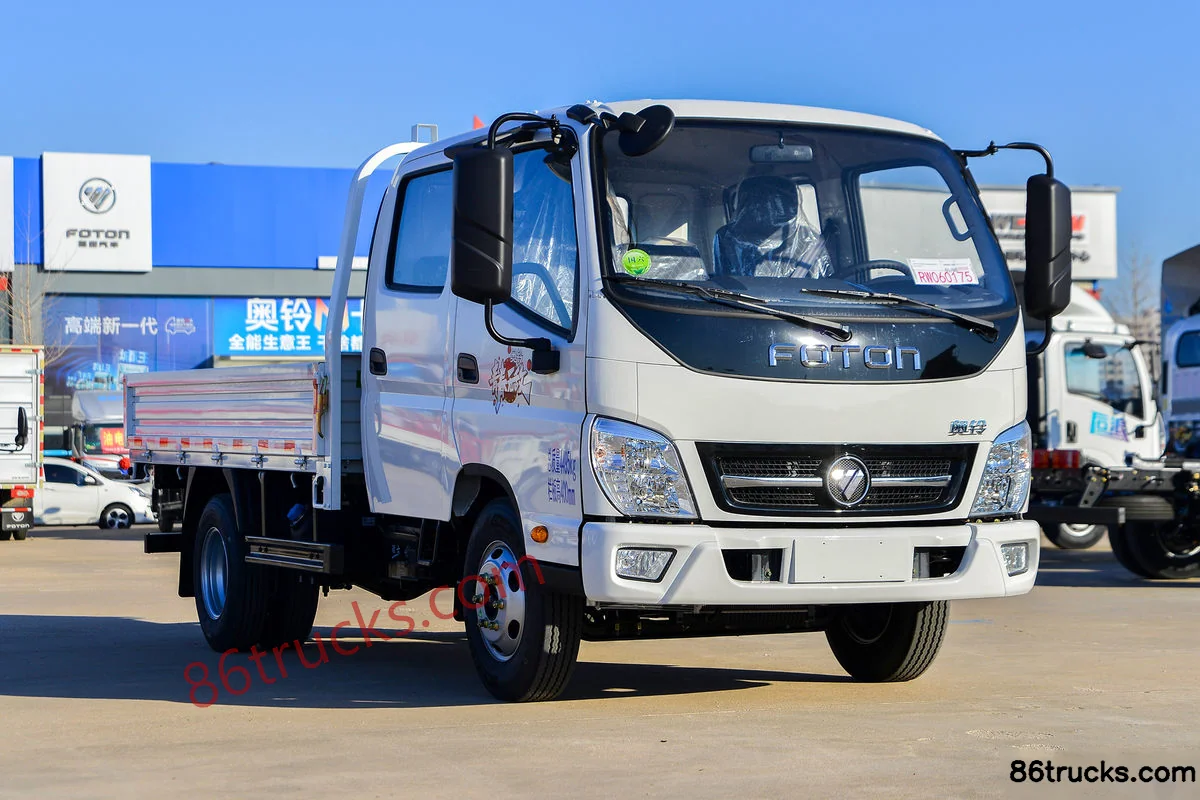

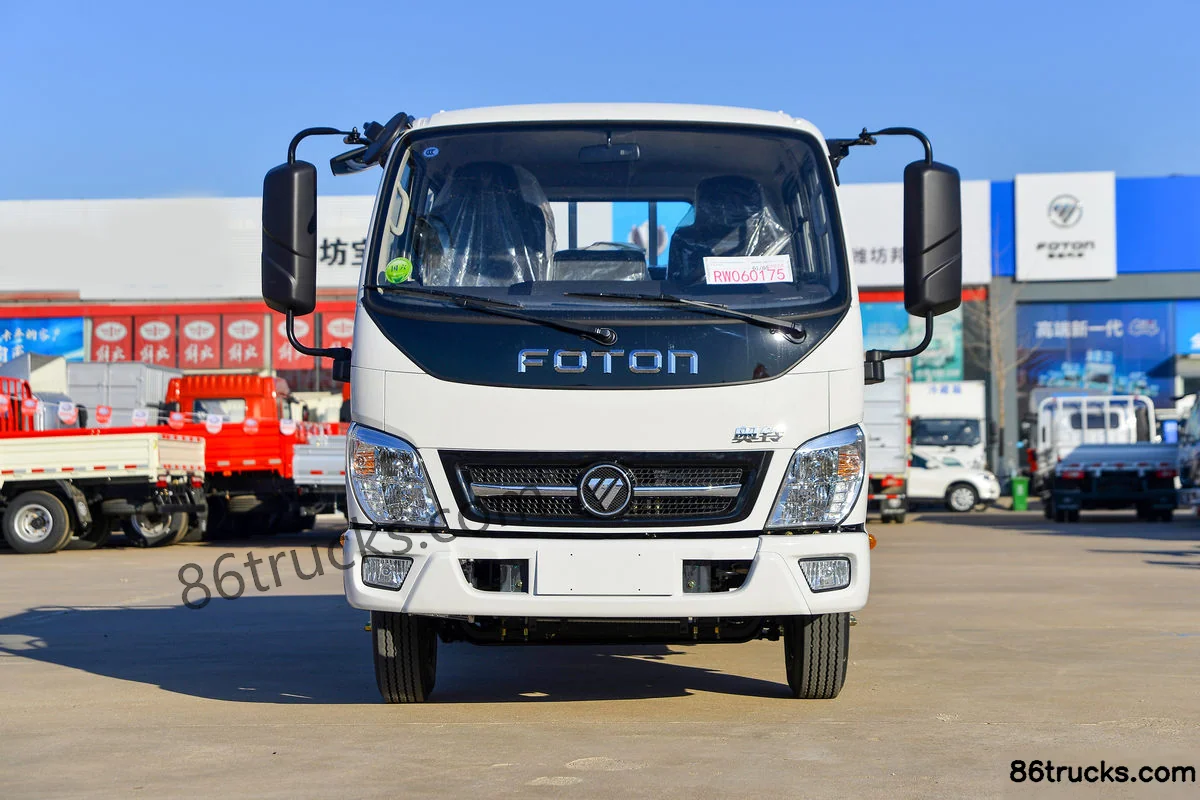

Foton Ollin Jiyun 95hp 4X2(6 wheels) 3.2m double-row flatbed light truck Exterior (1) | 86Trucks Foton Ollin Jiyun 95hp 4X2(6 wheels) 3.2m double-row flatbed light truck Exterior (2) | 86Trucks Foton Ollin Jiyun 95hp 4X2(6 wheels) 3.2m double-row flatbed light truck Exterior (3) | 86Trucks

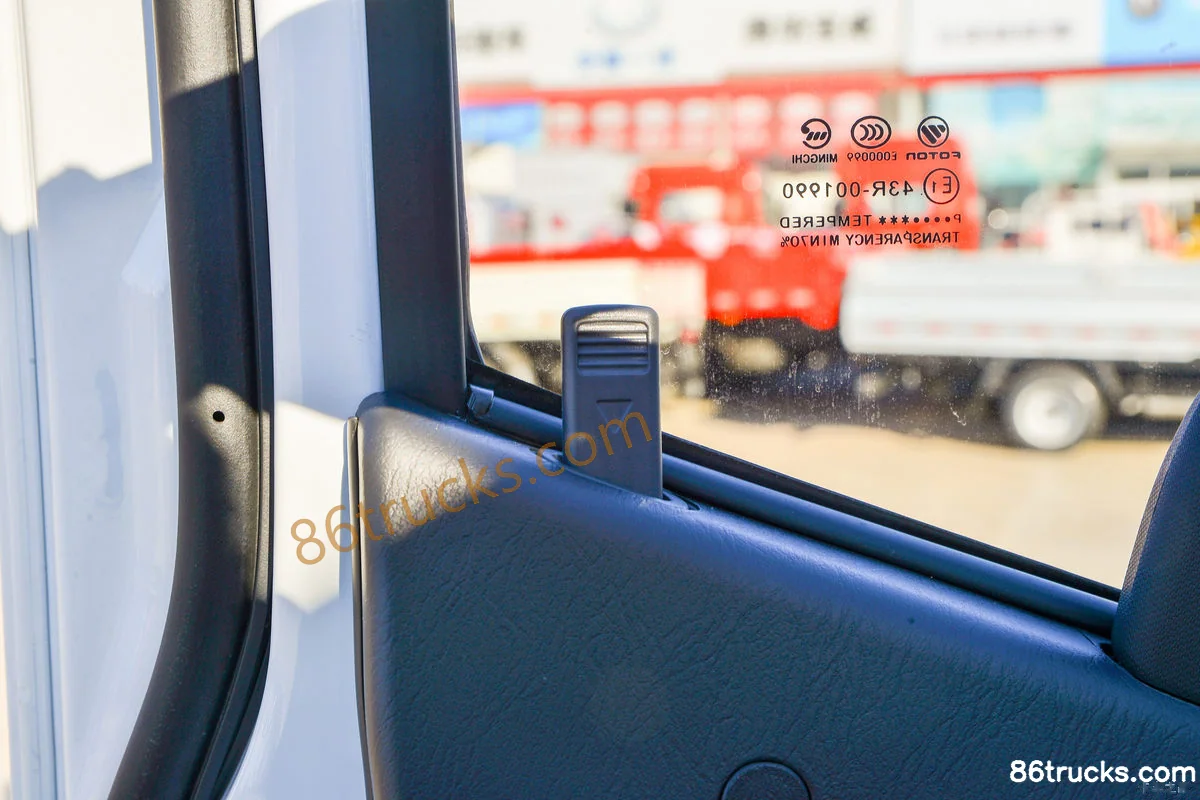

Cab3

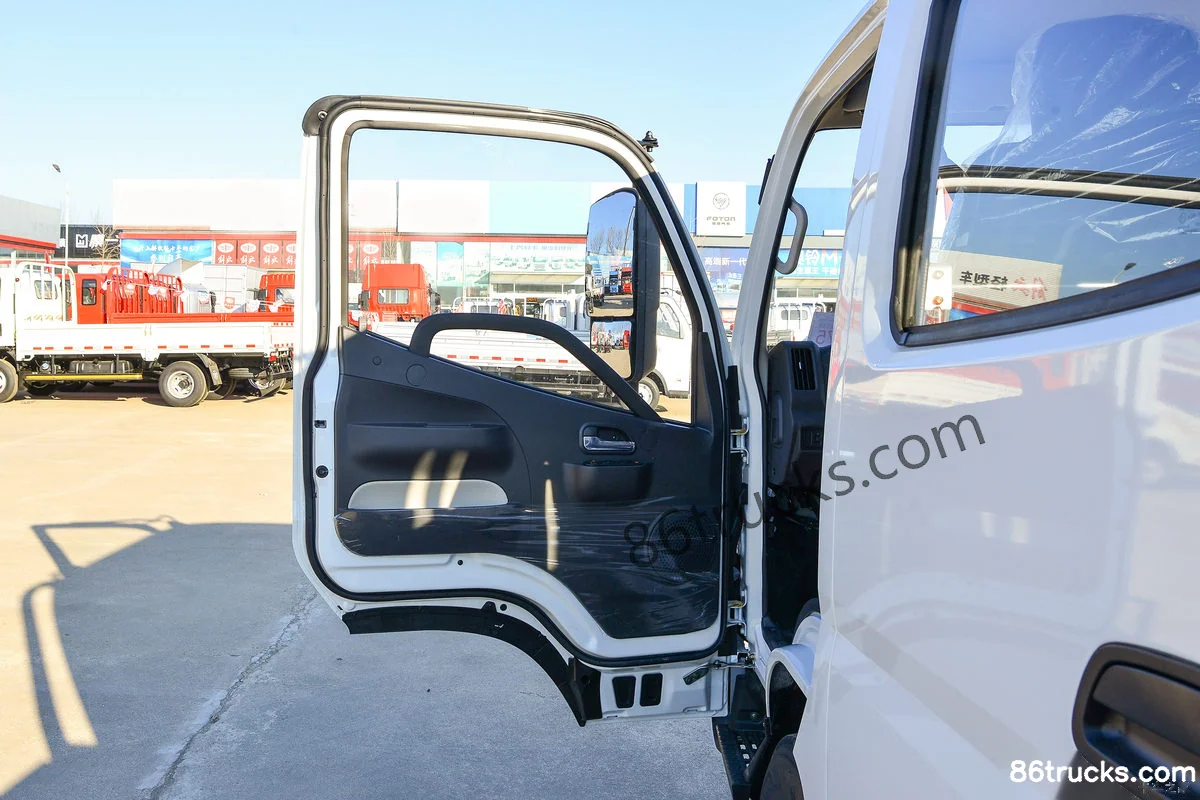

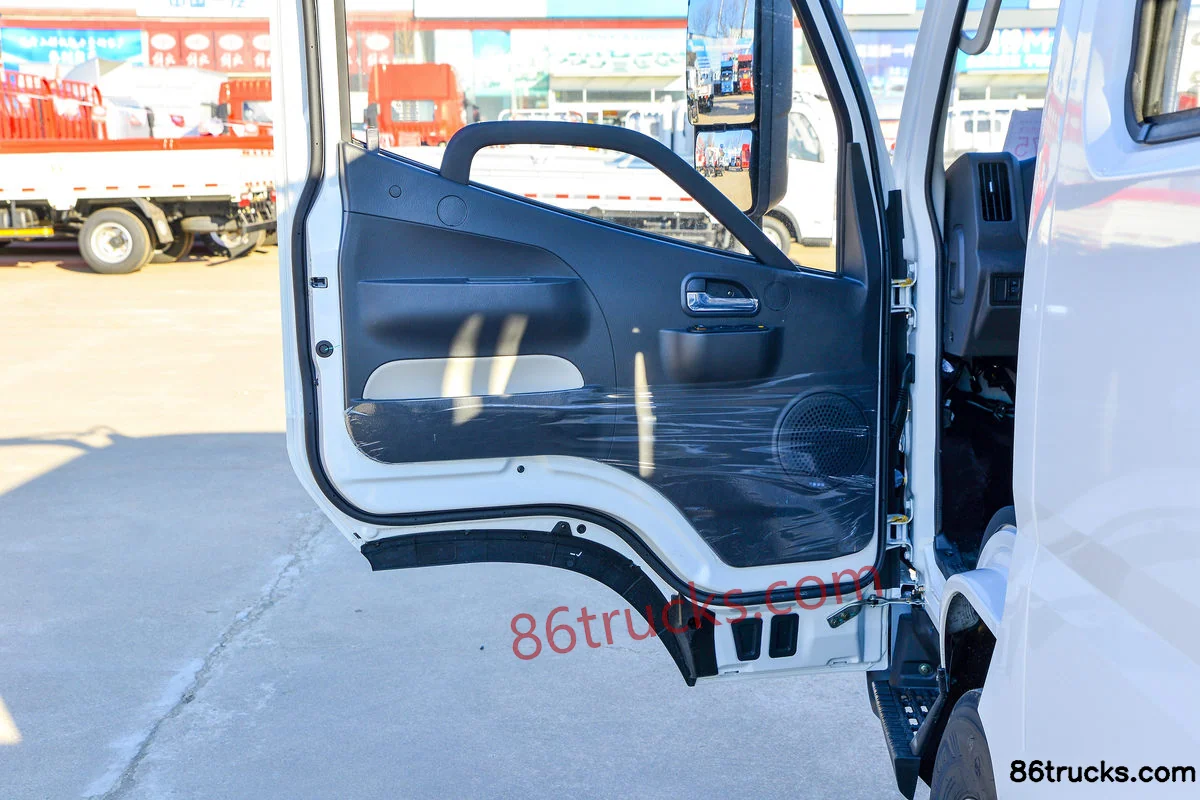

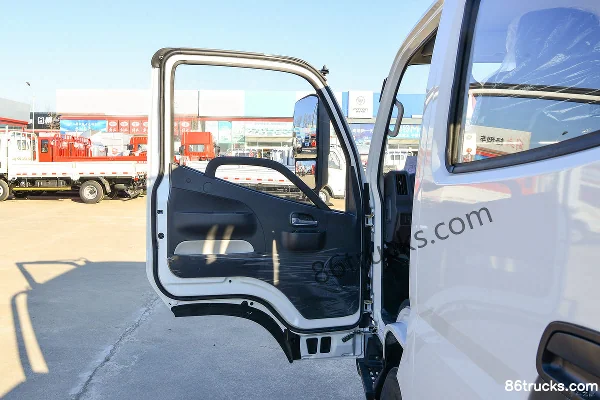

Foton Ollin Jiyun 95hp 4X2(6 wheels) 3.2m double-row flatbed light truck Cab (1) | 86Trucks Foton Ollin Jiyun 95hp 4X2(6 wheels) 3.2m double-row flatbed light truck Cab (2) | 86Trucks Foton Ollin Jiyun 95hp 4X2(6 wheels) 3.2m double-row flatbed light truck Cab (3) | 86Trucks

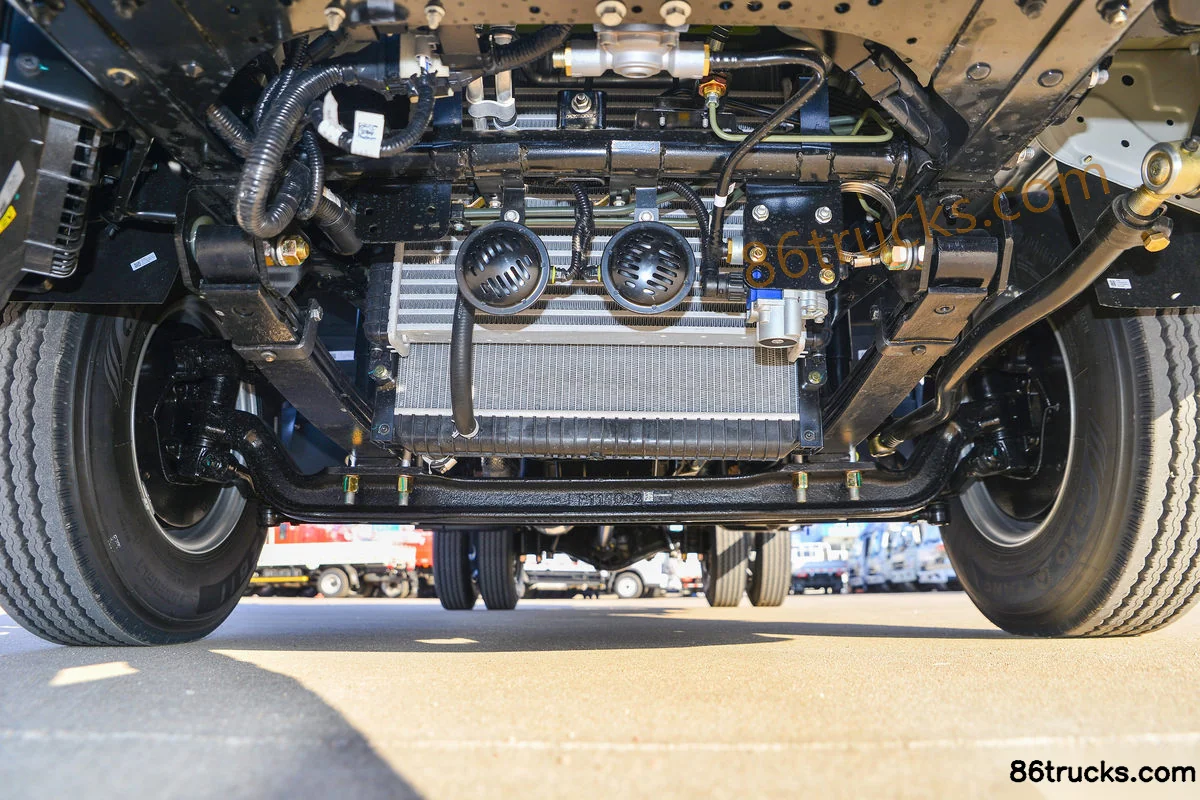

Chassis3

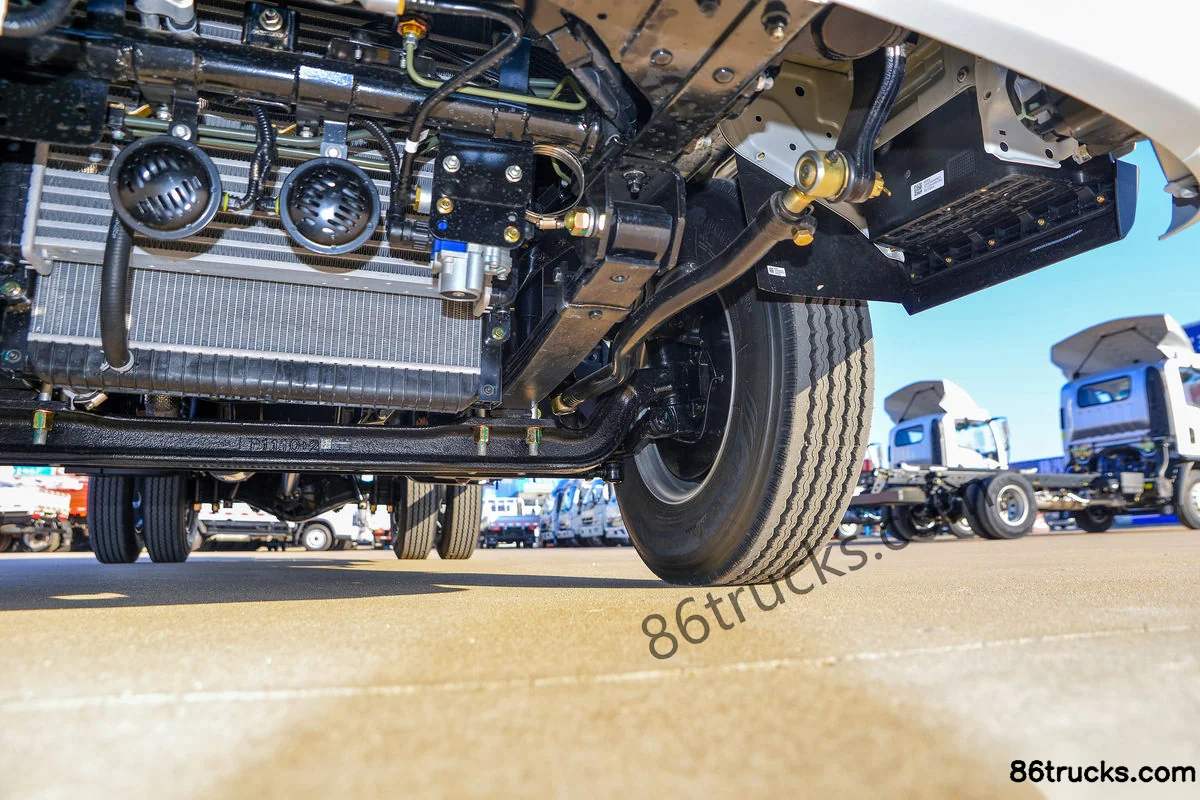

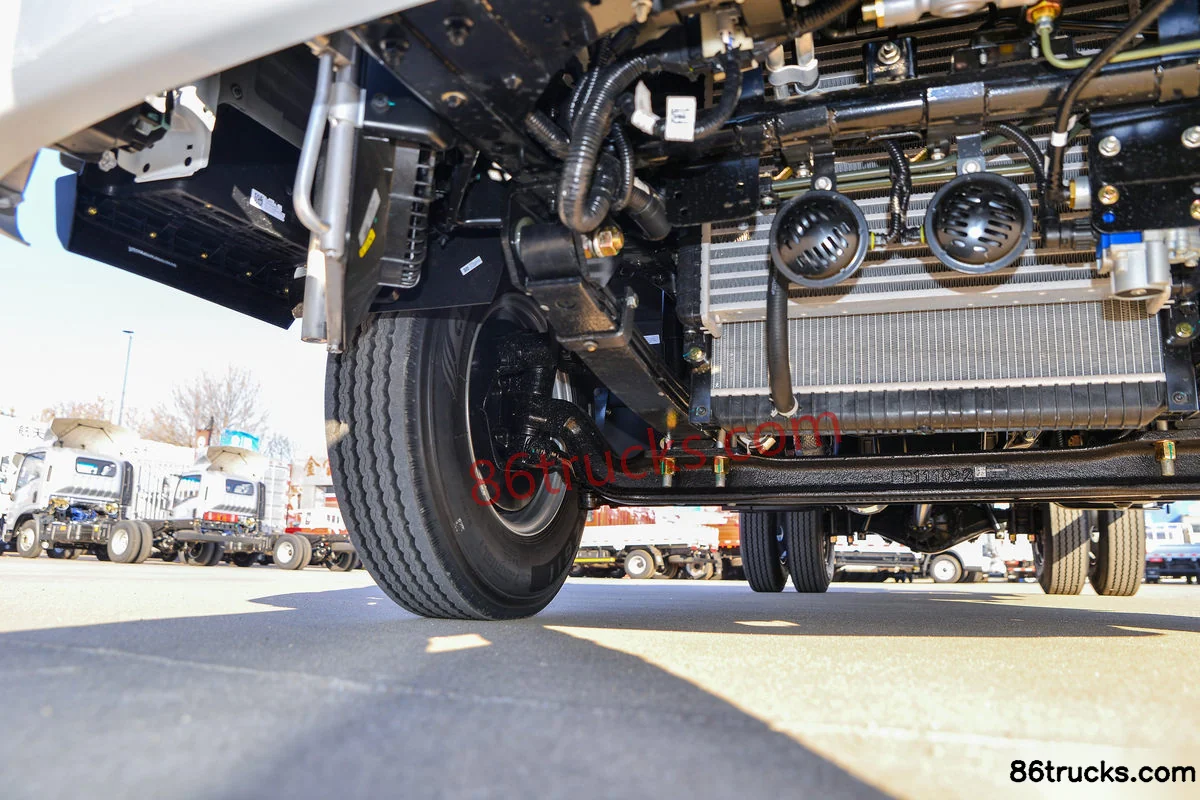

Foton Ollin Jiyun 95hp 4X2(6 wheels) 3.2m double-row flatbed light truck Chassis (1) | 86Trucks Foton Ollin Jiyun 95hp 4X2(6 wheels) 3.2m double-row flatbed light truck Chassis (2) | 86Trucks Foton Ollin Jiyun 95hp 4X2(6 wheels) 3.2m double-row flatbed light truck Chassis (3) | 86Trucks

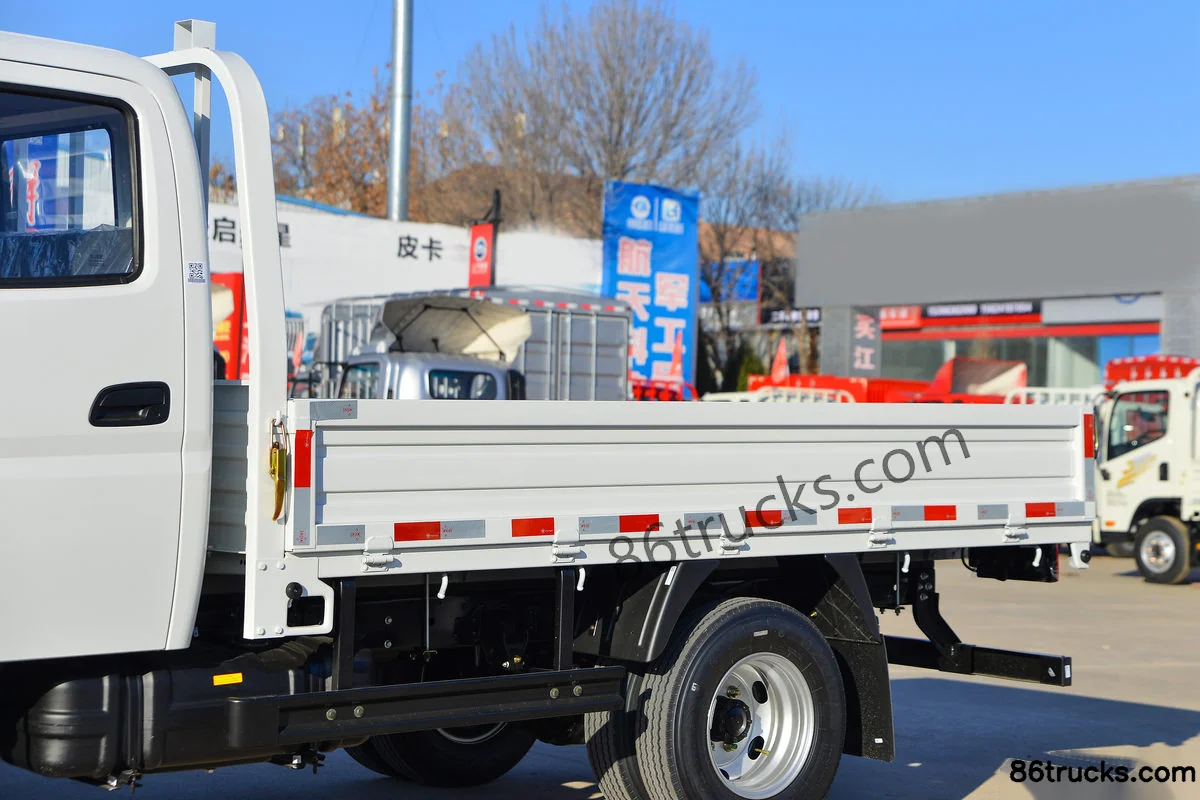

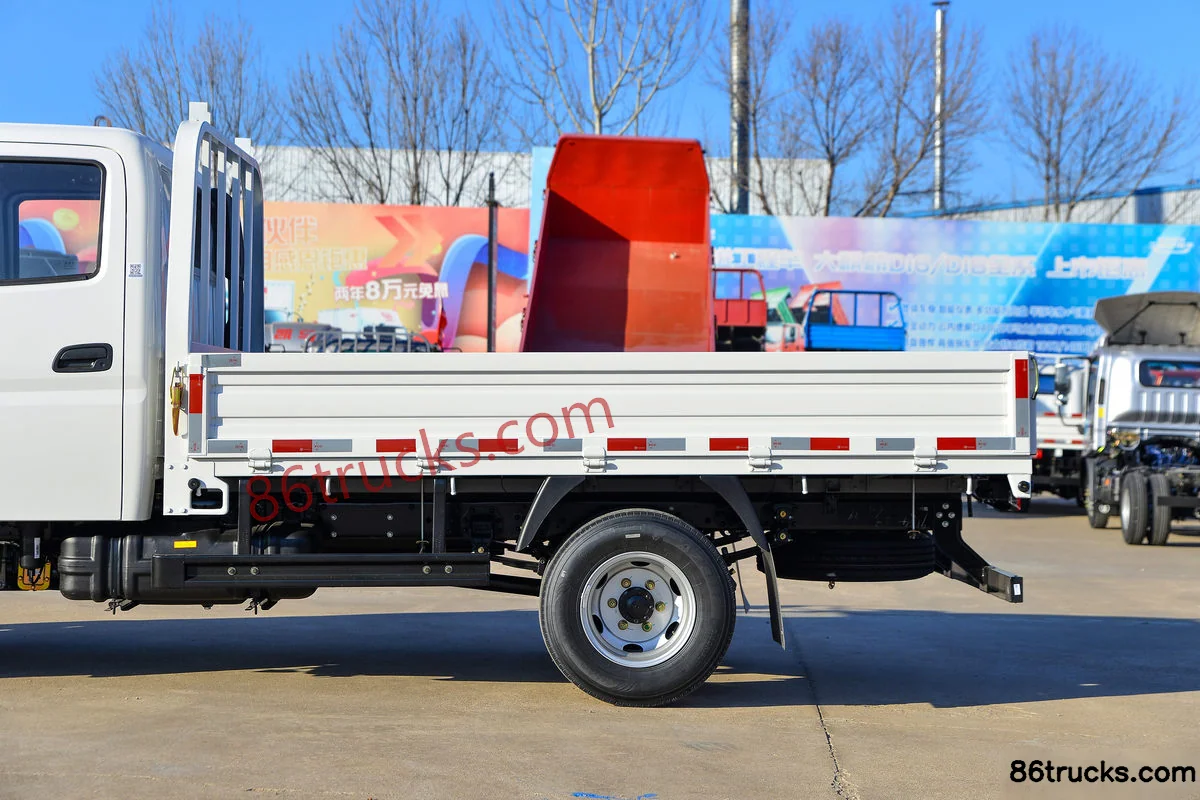

Body3

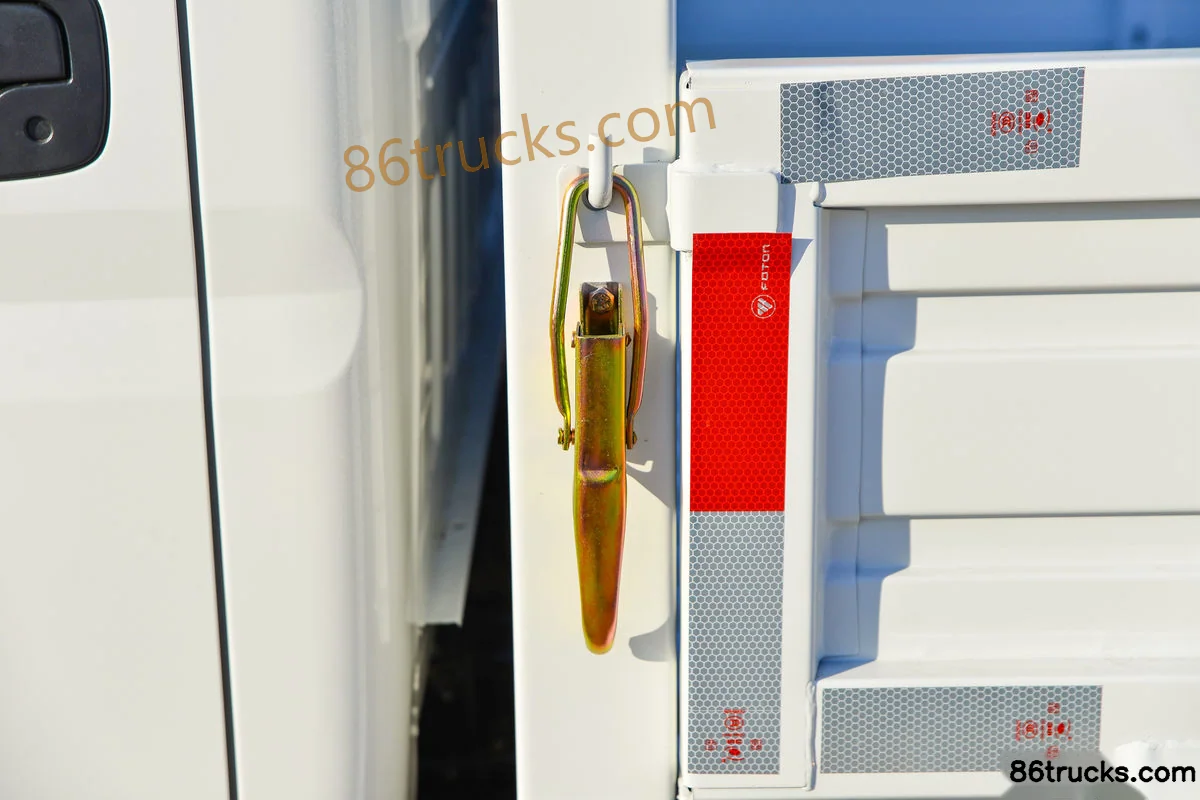

Foton Ollin Jiyun 95hp 4X2(6 wheels) 3.2m double-row flatbed light truck Body (1) | 86Trucks Foton Ollin Jiyun 95hp 4X2(6 wheels) 3.2m double-row flatbed light truck Body (2) | 86Trucks Foton Ollin Jiyun 95hp 4X2(6 wheels) 3.2m double-row flatbed light truck Body (3) | 86Trucks

12 photos

FAQ

What emission standard does Foton Ollin Jiyun 95hp 4X2(6 wheels) 3.2m double-row flatbed light truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Ollin Jiyun 95hp 4X2(6 wheels) 3.2m double-row flatbed light truck?

Key specs of Foton Ollin Jiyun 95hp 4X2(6 wheels) 3.2m double-row flatbed light truck: Drive: 4x2; Horsepower: 95 hp; Emission: China IV; Fuel: Diesel; Engine: Quanchai490; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Ollin Jiyun 95hp 4X2(6 wheels) 3.2m double-row flatbed light truck suited for?

Foton Ollin Jiyun 95hp 4X2(6 wheels) 3.2m double-row flatbed light truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Foton Ollin Jiyun 95hp 4X2(6 wheels) 3.2m double-row flatbed light truck differ from other variants in the same series?

Foton Ollin Jiyun 95hp 4X2(6 wheels) 3.2m double-row flatbed light truck belongs to Foton Jieyun Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Ollin Jiyun 95hp 4X2(6 wheels) 3.2m double-row flatbed light truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Ollin Jiyun 95hp 4X2(6 wheels) 3.2m double-row flatbed light truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
