NanJun Xinxiangkang 2022 163hp 4X4(6 wheels) 4.1m Off-Road Dump Truck

Export reference
From $23,333
MSRP ¥16.8M CNY
Emission: China VI
Fuel: Diesel
Transmission: WLY
Curb Weight:: 5.6ton
Wheelbase:: 3300mm
Tire Size:: 8.25R16LT 18PR
Rated payload: 5.47ton
Drive 4X4 (6 wheels)
Horsepower 163
Cargo box thickness: floor 5 side 3

Overview

The NanJun Xinxiangkang 2022 163hp 4X4(6 wheels) 4.1m Off-Road Dump Truck is a Light Truck featuring 5.47t payload, 11.2t GVW, Rear-dump body cargo body and 4X4 (6 wheels) drive. On the powertrain side, it comes with a Yunnei PowerD30TCIF2 engine, 163 hp, China VI emissions and WLY transmission.

China VI 163 Diesel 4X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): NJA2110EDH33A
Drive type: 4X4
Wheelbase: 3300mm
engine: Yunnei PowerD30TCIF2
transmission: WLY6-55CY2KQ
Rear Axle Ratio: 6.83
Cab length: 6.06m
Cab width: 2.15m
Cab height: 2.495m
Front track width: 1680mm
rear track: 1635mm
Curb Weight: 5.6ton
Rated payload: 5.47ton
GVWR: 11.2ton
Origin: Ziyang, Sichuan
tonnage class: Light Truck
Approach angle: 35°
departure angle: 15°

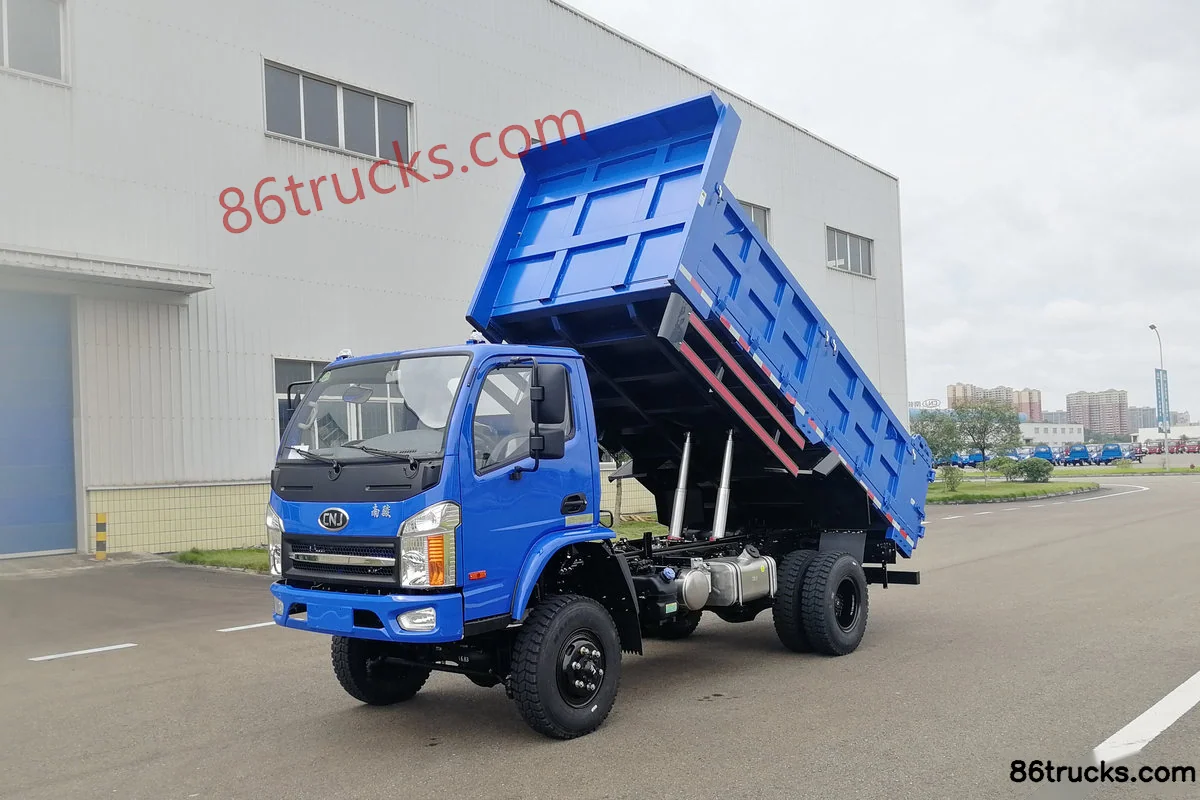

Remarks: dual lift cylinders.
Version: 2022 Model
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerD30TCIF2
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.977L
Emission standard: China VI
Max output power: 120kW
Max hp: 163Horsepower
Max torque: 450N·m
Max torque speed: 1200-2200rpm
Rated speed: 2800rpm
Transmission Parameters
Transmission Model: WLY6-55CY2KQ
Transmission Brand: WLY
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
hydraulic cylinder brand & model: 3TG-110×330
Cargo box thickness: floor 5 side 3
Unloading Type: Rear-dump body
Cargo box type: Rear-dump body
Cargo box length: 4.1m
Cargo box width: 2m
Cargo box height: 0.8m
Cab parameters
Cab: New Xiangkang
Cab width: 1730mm
fuel tank
Fuel tank capacity: 90L
Chassis Specs
Front axle description: 3.5T
Front axle allowable load: 4000kg
Frame Dimensions: Height 245mm
rear axle description: 6.5T
rear axle allowable load: 7200kg
Axle ratio: 6.83
Leaf spring count: 4/10+8
Tire
Tire Size: 8.25R16LT 18PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

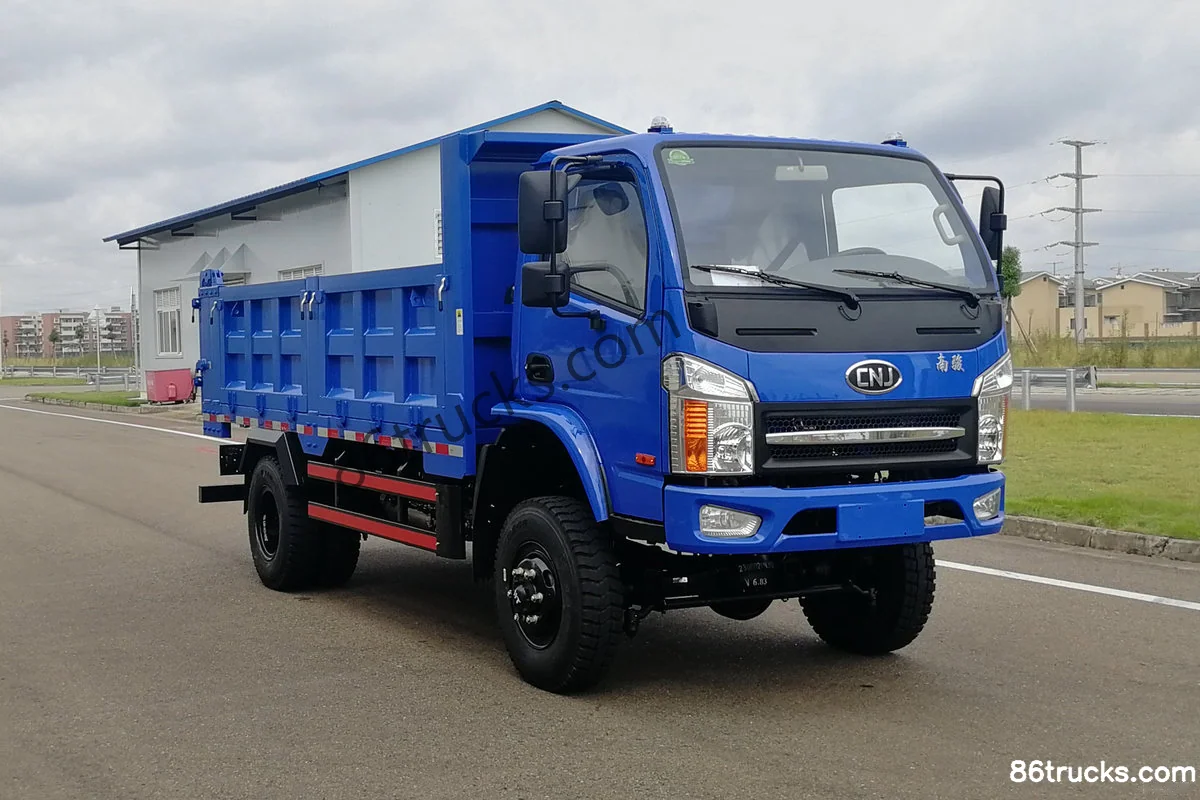

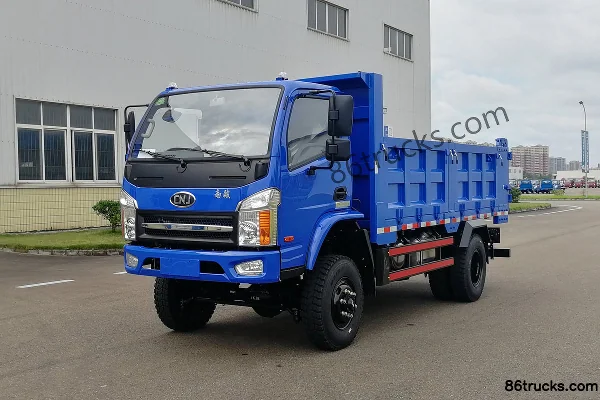

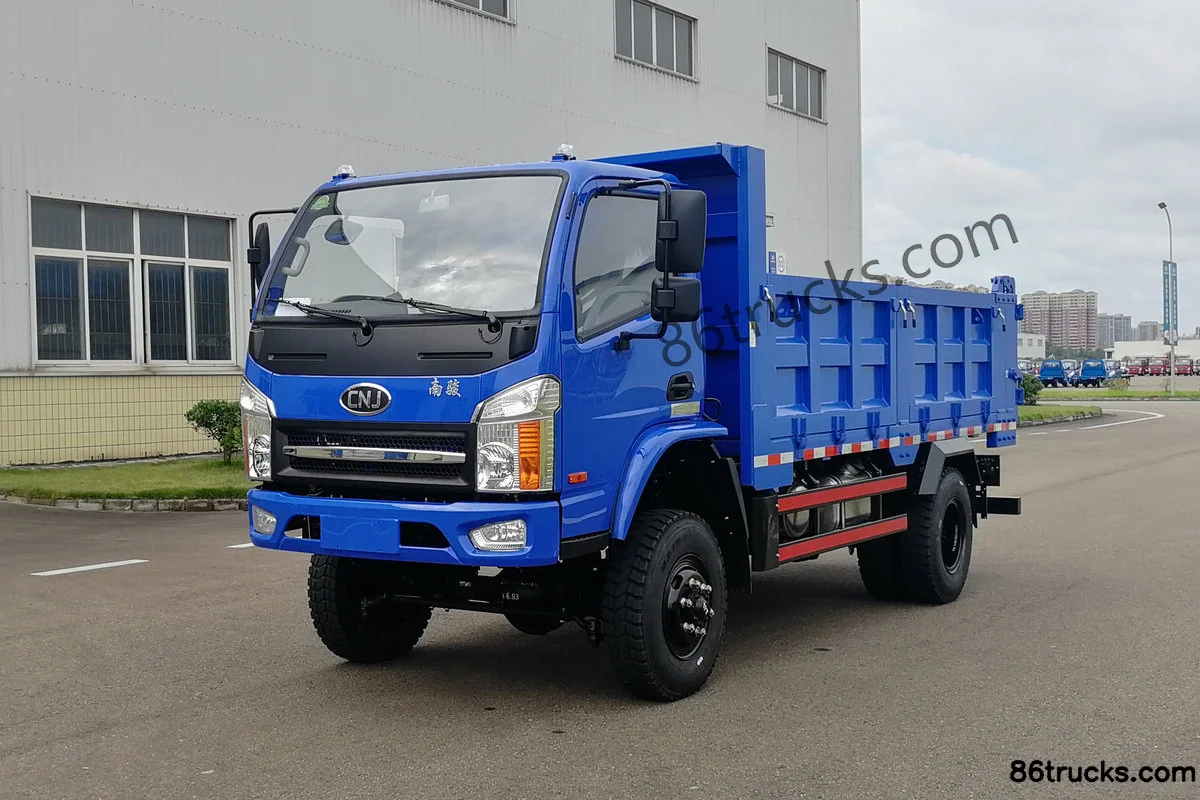

Exterior3

3 photos

FAQ

What is the export price of NanJun Xinxiangkang 2022 163hp 4X4(6 wheels) 4.1m Off-Road Dump Truck, and what does it include?

NanJun Xinxiangkang 2022 163hp 4X4(6 wheels) 4.1m Off-Road Dump Truck export reference is about From $23,333; MSRP is ¥16.8M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does NanJun Xinxiangkang 2022 163hp 4X4(6 wheels) 4.1m Off-Road Dump Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of NanJun Xinxiangkang 2022 163hp 4X4(6 wheels) 4.1m Off-Road Dump Truck?

Key specs of NanJun Xinxiangkang 2022 163hp 4X4(6 wheels) 4.1m Off-Road Dump Truck: Drive: 4x4; Horsepower: 163 hp; Emission: China VI; Fuel: Diesel; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is NanJun Xinxiangkang 2022 163hp 4X4(6 wheels) 4.1m Off-Road Dump Truck suited for?

NanJun Xinxiangkang 2022 163hp 4X4(6 wheels) 4.1m Off-Road Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does NanJun Xinxiangkang 2022 163hp 4X4(6 wheels) 4.1m Off-Road Dump Truck differ from other variants in the same series?

NanJun Xinxiangkang 2022 163hp 4X4(6 wheels) 4.1m Off-Road Dump Truck belongs to NanJun Xiangkang Light Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for NanJun Xinxiangkang 2022 163hp 4X4(6 wheels) 4.1m Off-Road Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export NanJun Xinxiangkang 2022 163hp 4X4(6 wheels) 4.1m Off-Road Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
