Foton Auman GTL 400 hp 6X4(10 wheels) L9 47m Concrete Pump Truck (Leisa Brand)

Export reference
MSRP N/A
Emission: China V
Fuel: Diesel
Drive: 6X4 (10 wheels)
Wheelbase:: 4600+1350mm
Model code (announced):: BJ5339THB-XD
Overall Dimensions: L×W×H:: 12x2.53x4m
Curb Weight: 33ton
Water tank capacity: 400L
Horsepower 400
Max output power: 294kW

Overview

The Loxa Heavy Machinery Foton Auman GTL 400 hp 6X4(10 wheels) L9 47m Concrete Pump Truck (Leisa Brand) is a concrete pump truck featuring 33ton GVW, 400L tank capacity, 400 hp and 294kW power. On the powertrain side, it comes with 6X4 (10 wheels) drive, China V emissions and Diesel fuel.

China V 400 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ5339THB-XD
Drive type: 6X4
Wheelbase: 4600+1350mm
Overall Dimensions: L×W×H: 12x2.53x4m
Max. travel speed: 80km/h
Curb Weight: 33ton
Body Parameters
Water tank capacity: 400L
Chassis Specs
Axle Count: 3
Chassis Series: AumanGTL
Chassis Model: BJ5339THB-AA
Pumping system
Pumping displacement (low/high): 200m³/h
Pumping pressure (low/high): 8.8
Pumping strokes (low/high): 33Times/min
Delivery cylinder: bore × stroke: 260mm
Oil pressure: 35Mpa
Delivery pipe diameter: 125mm
Boom Outriggers
Boom Vertical Height: 47m
Boom Horizontal Length: 42.7m
Boom Vertical Depth: 33.4m
Min unfolded length: 10.3m
Turntable Rotation Angle: 360°
Engine parameters
Engine Model: FotonISGe5-400
fuel type: Diesel
Displacement: 11.8L
Emission standard: China V
Max output power: 294kW
Max hp: 400Horsepower
Rated speed: 1900rpm
Transmission Parameters
Number of gears: 9Gear
Transmission Model: Fast Gear9JSD220TA
Cab parameters
Cab: GTL
Tire
Tire Size: Front 385/65R22.5 18PR / Rear 315/80R22.5 18PR

Photos

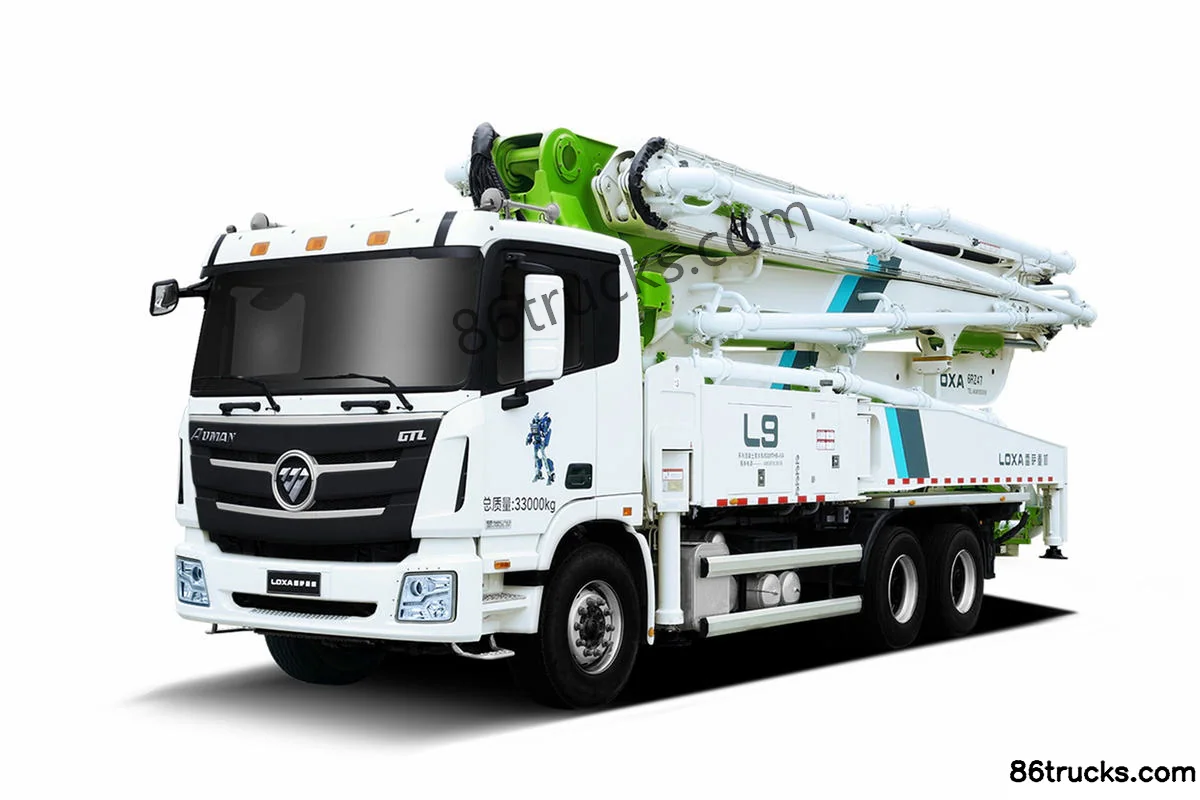

Exterior1

1 photos

FAQ

What emission standard does Foton Auman GTL 400 hp 6X4(10 wheels) L9 47m Concrete Pump Truck (Leisa Brand) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Auman GTL 400 hp 6X4(10 wheels) L9 47m Concrete Pump Truck (Leisa Brand)?

Key specs of Foton Auman GTL 400 hp 6X4(10 wheels) L9 47m Concrete Pump Truck (Leisa Brand): Drive: 6x4; Horsepower: 400 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Auman GTL 400 hp 6X4(10 wheels) L9 47m Concrete Pump Truck (Leisa Brand) suited for?

Foton Auman GTL 400 hp 6X4(10 wheels) L9 47m Concrete Pump Truck (Leisa Brand) is a concrete pump truck model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Foton Auman GTL 400 hp 6X4(10 wheels) L9 47m Concrete Pump Truck (Leisa Brand) differ from other variants in the same series?

Foton Auman GTL 400 hp 6X4(10 wheels) L9 47m Concrete Pump Truck (Leisa Brand) belongs to Loxa Heavy Machinery Foton Auman Chassis (concrete pump truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Auman GTL 400 hp 6X4(10 wheels) L9 47m Concrete Pump Truck (Leisa Brand)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Auman GTL 400 hp 6X4(10 wheels) L9 47m Concrete Pump Truck (Leisa Brand)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
