Foton Auman EST 470 hp 8X4(12 wheels) L10 62m Concrete Pump Truck (China VI) (Laisa Brand)
EXW
Export quote
Loxa Heavy Machinery Foton Auman Chassis concrete
Main model photos
238 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Foton Auman EST 470 hp 8X4(12 wheels) L10 62m Concrete Pump Truck (China VI) (Laisa Brand) | 8x4 / 470hp / China VI | ||
| Foton AumanEST 470hp 8X4(12 wheels) L10 62m concrete pump truck (Leisa brand) | 8x4 / 470hp / China VI | ||
| Foton AumanEST 470hp 8X4(12 wheels) L9 61m concrete pump truck (Leisa brand) | 8x4 / 470hp / China VI | ||
| Foton AumanEST 430hp 8X4(12 wheels) L9 61m concrete pump truck (Leisa brand)(ZF) | 8x4 / 430hp / China V | ||

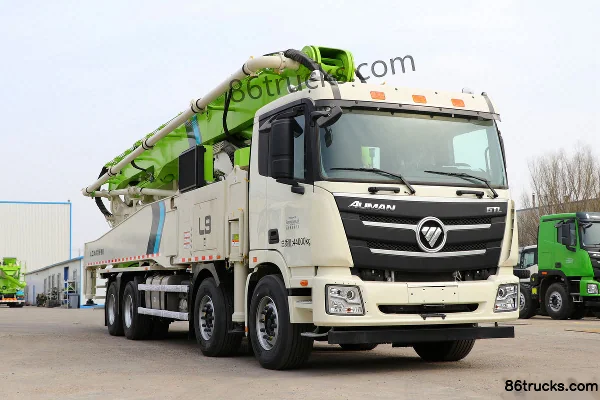

| Foton AumanGTL 430hp 8X4(12 wheels) L9 61m concrete pump truck (Leisa brand) | 8x4 / 430hp / China V |

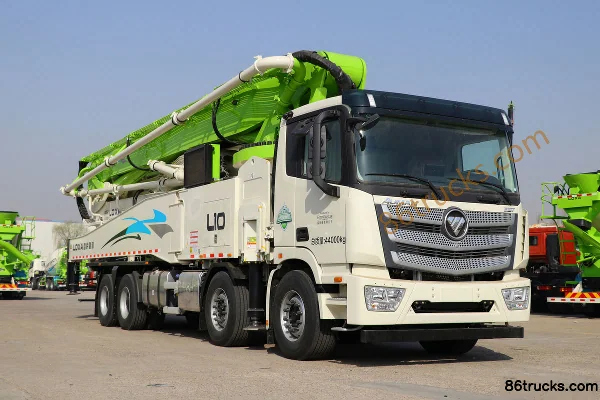

Foton AumanEST 470hp 8X4(12 wheels) L10 62m concrete pump truck (Leisa brand)
EXW
Export quote
Foton AumanEST 470hp 8X4(12 wheels) L9 61m concrete pump truck (Leisa brand)
EXW
Export quote
Foton AumanEST 430hp 8X4(12 wheels) L9 61m concrete pump truck (Leisa brand)(ZF)
EXW
Export quote
Foton AumanGTL 430hp 8X4(12 wheels) L9 61m concrete pump truck (Leisa brand)
EXW
Export quote
Series Specs
Basic Info
Model code (announced): BJ5448THB-XF / BJ5449THB-XF / BJ5449THB-XD / BJ5339THB-XD / BJ5289THB-XD / BJ5359THB-XF / BJ5358THB-XF / BJ5289THB-XF
Max pumping height: 62m
Drive type: 8X4 / 6X4
Wheelbase: 2100+4300+1350 / 2100+4300+1400 / 4600+1350 / 4600+1400mm
Overall Dimensions: L×W×H: 14.08×2.53×4 / 12.64x2.53x4 / 12x2.53x4 / 11.55x2.53x3.9 / 12.5x2.53x3.9 / 12.605x2.53x4 / 12.x2.53x4 / 11.55×2.53×3.93m
Max. travel speed: 89 / 80km/h
Curb Weight: 44 / 33 / 28.49 / 35 / 43.87 / 34.87 / 28.36ton
Body Parameters
Water tank capacity: 500 / 400L
Chassis Specs
Axle Count: 4 / 3
Chassis Series: EST / AumanEST / AumanGTL
Chassis Model: BJ5449Y6GRL-01 / BJ5449THB-AA / BJ5339THB-AA / BJ5359Y6DPL-01
rear axle description: 16TMercedes-Benz
Axle ratio: 4.76
Pumping system
Pumping displacement (low/high): 180 / 200 / 145m³/h
Pumping pressure (low/high): 10 / 8.8 / 7.5
Pumping strokes (low/high): 27 / 30 / 33 / 24 / 29Times/min
Oil pressure: 35Mpa
Delivery cylinder: bore × stroke: 260×2100 / 260mm
Delivery pipe diameter: 125mm
Engine parameters
Injection System: Common Rail
Engine Model: FotonX12NS6B470 / FotonISGe5-430 / FotonISGe5-400 / FotonX12NS6B440
fuel type: Diesel
Displacement: 11.8L
Emission standard: China VI / China V
Max output power: 346 / 316 / 294 / 324kW
Max hp: 470 / 430 / 400 / 440Horsepower
Rated speed: 1900rpm
Boom Outriggers
Boom Vertical Height: 62 / 60.6 / 57.1 / 56 / 51.3 / 49.3 / 47 / 39.9 / 38 / 57.2 / 50m
Boom Horizontal Length: 55.6 / 52.1 / 50.9 / 46.3 / 44.3 / 42.7 / 35.6 / 33.5 / 52.2 / 51 / 45m
Boom Section Count: 8RZ
Boom Vertical Depth: 44.3 / 41.2 / 40.1 / 36.6 / 35 / 33.4 / 26.2 / 23.7 / 41.3 / 35.3m
Min unfolded length: 14.9 / 15.8 / 11 / 10.6 / 10.3 / 7.7 / 9.1 / 13m
Turntable Rotation Angle: 360°
Transmission Parameters
Number of gears: 12 / 16 / 9Gear
Transmission Model: ZF12-speed transmission / ZFZF16S2230TO / Fast Gear9JSD220TA / ZF16S2230TO
Cab parameters
Cab: EST / GTL / EST flat roof standard floor
Tire
Tire Size: 385/65R22.5 20PR/315/80R22.5 20PR / Front axles 1-2: 385/65R22.5 20PR; Rear axles 3-4: 315/80R22.5 18PR / Front 385/65R22.5 18PR / Rear 315/80R22.5 18PR / 12.00R20 20PR / 385/65R22.5 20PR / 385/65R22.5 20PR/315/80R22.5 18PR
FAQ
What kind of truck is Loxa Heavy Machinery Loxa Heavy Machinery Foton Auman Chassis concrete pump truck?
Loxa Heavy Machinery Loxa Heavy Machinery Foton Auman Chassis is an export-oriented concrete pump truck lineup with about 24 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Loxa Heavy Machinery Foton Auman Chassis concrete?
Loxa Heavy Machinery Foton Auman Chassis concrete export reference is about $53,972 – $57,083. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Loxa Heavy Machinery Foton Auman Chassis concrete cover?
Loxa Heavy Machinery Foton Auman Chassis concrete mainly covers: Drive: 8x4; Horsepower: 430 hp / 470 hp; Emission: China V / China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Loxa Heavy Machinery Foton Auman Chassis concrete?
For Loxa Heavy Machinery Foton Auman Chassis concrete: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is concrete pump truck typically used for?
concrete pump truck specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does Loxa Heavy Machinery Foton Auman Chassis concrete include?
Loxa Heavy Machinery Foton Auman Chassis concrete currently lists about 24 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Loxa Heavy Machinery Foton Auman Chassis concrete?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
