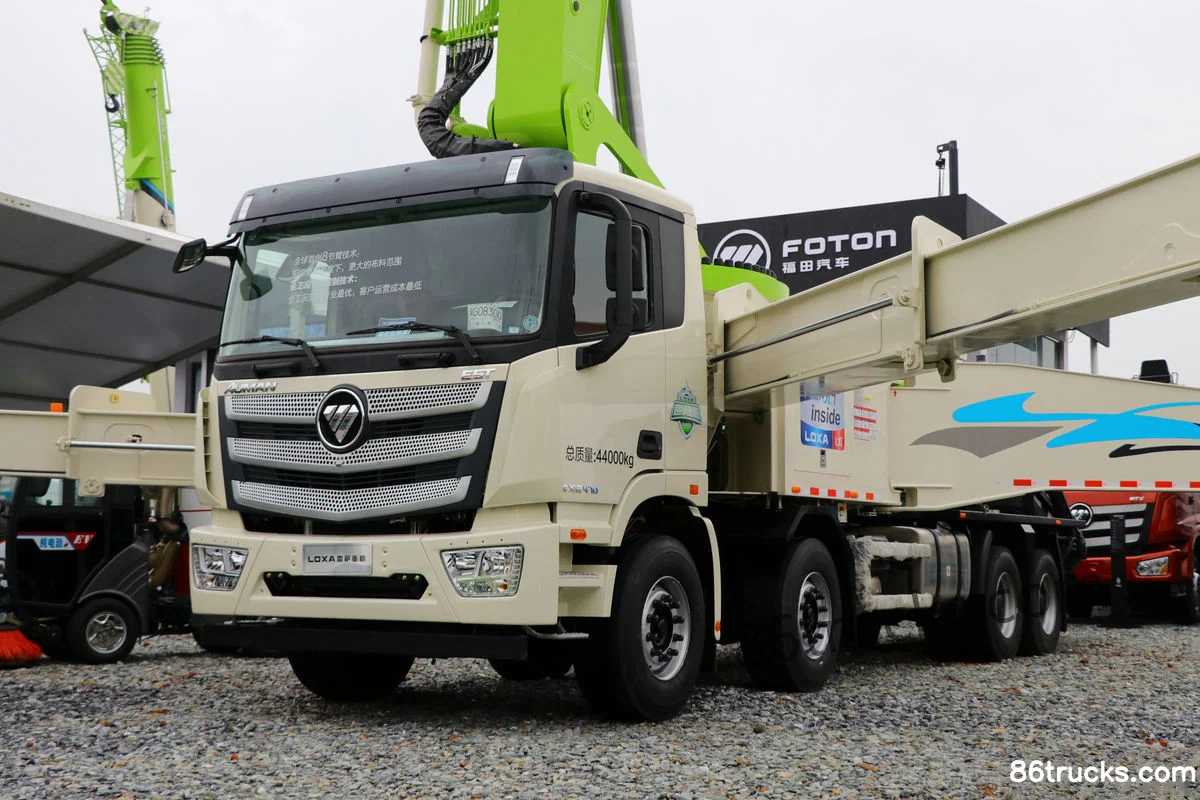

Foton Auman EST 470 hp 8X4(12 wheels) L10 62m Concrete Pump Truck (China VI) (Laisa Brand)

Export reference
MSRP N/A
Fuel: Diesel
Drive: 8X4 (12 wheels)
Wheelbase:: 2100+4300+1350mm
Model code (announced):: BJ5448THB-XF
Max pumping height:: 62m
Overall Dimensions: L×W×H:: 14.08×2.53×4m
Curb Weight: 44ton
Horsepower 470
Max output power: 346kW
Emission China VI

Overview

The Loxa Heavy Machinery Foton Auman EST 470 hp 8X4(12 wheels) L10 62m Concrete Pump Truck (China VI) (Laisa Brand) is a concrete pump truck featuring 44ton GVW, 470 hp, 346kW power and 8X4 (12 wheels) drive. On the powertrain side, it comes with China VI emissions and Diesel fuel.

China VI 470 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ5448THB-XF
Drive type: 8X4
Max pumping height: 62m
Wheelbase: 2100+4300+1350mm
Overall Dimensions: L×W×H: 14.08×2.53×4m
Max. travel speed: 89km/h
Curb Weight: 44ton
Chassis Specs
Axle Count: 4
Chassis Series: EST
Chassis Model: BJ5449Y6GRL-01

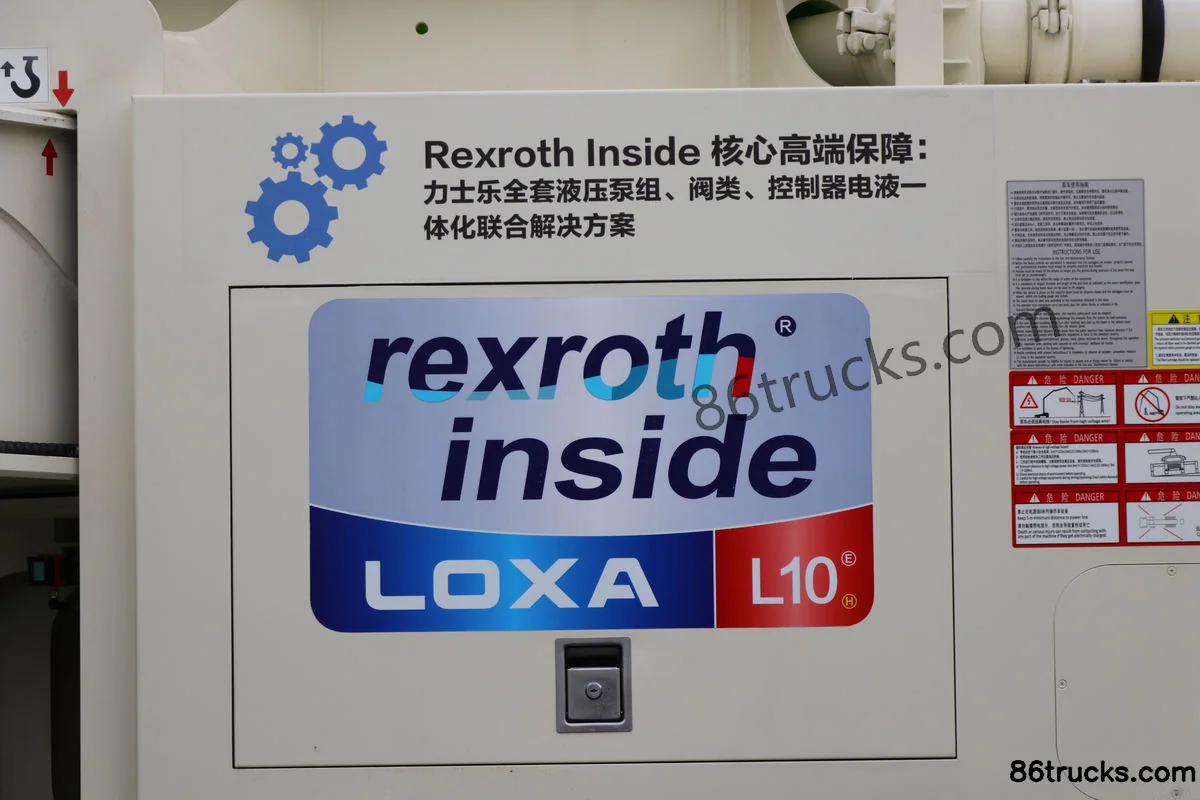

Pumping system
Delivery cylinder: bore × stroke: 260×2100mm
Delivery pipe diameter: 125mm
Boom Outriggers
Boom Vertical Height: 62m
Boom Section Count: 8RZ
Engine parameters
Engine Model: FotonX12NS6B470
fuel type: Diesel
Displacement: 11.8L
Emission standard: China VI
Max output power: 346kW
Max hp: 470Horsepower
Rated speed: 1900rpm
Transmission Parameters
Number of gears: 12Gear
Transmission Model: ZF12-speed transmission
Cab parameters
Cab: EST
Tire
Tire Size: 385/65R22.5 20PR/315/80R22.5 20PR

Photos

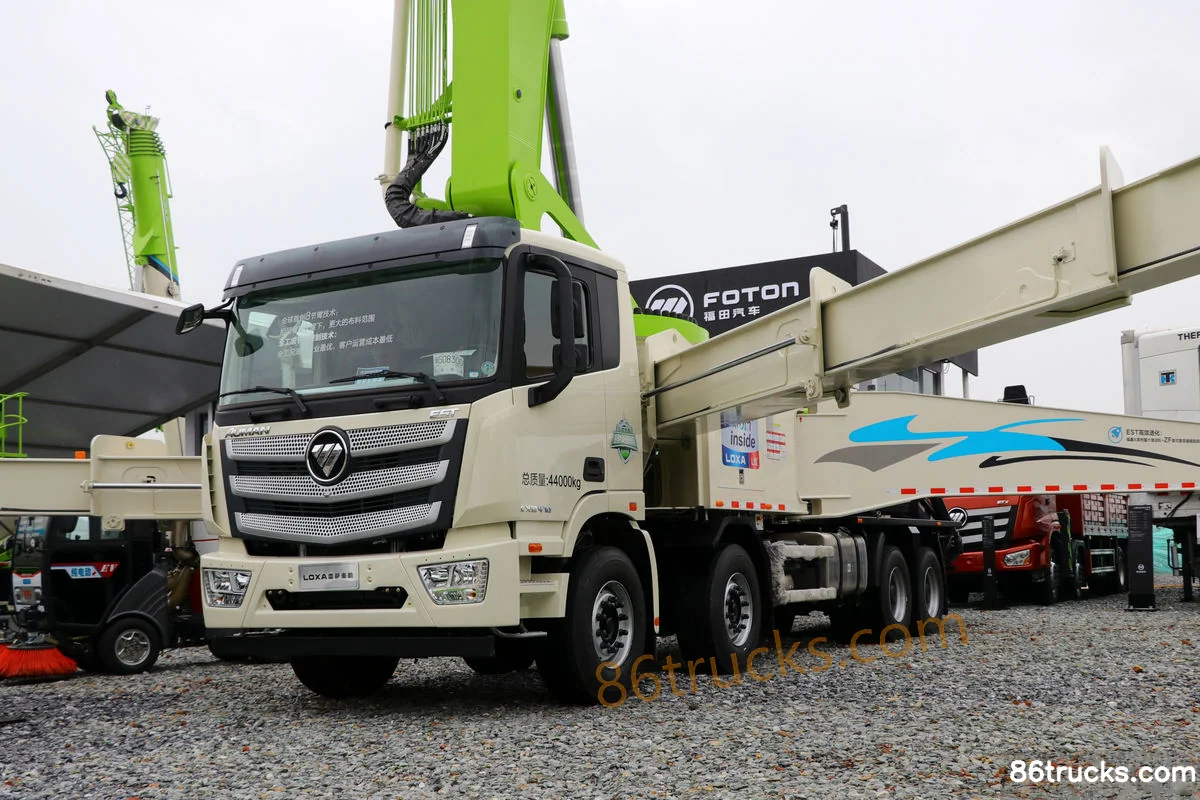

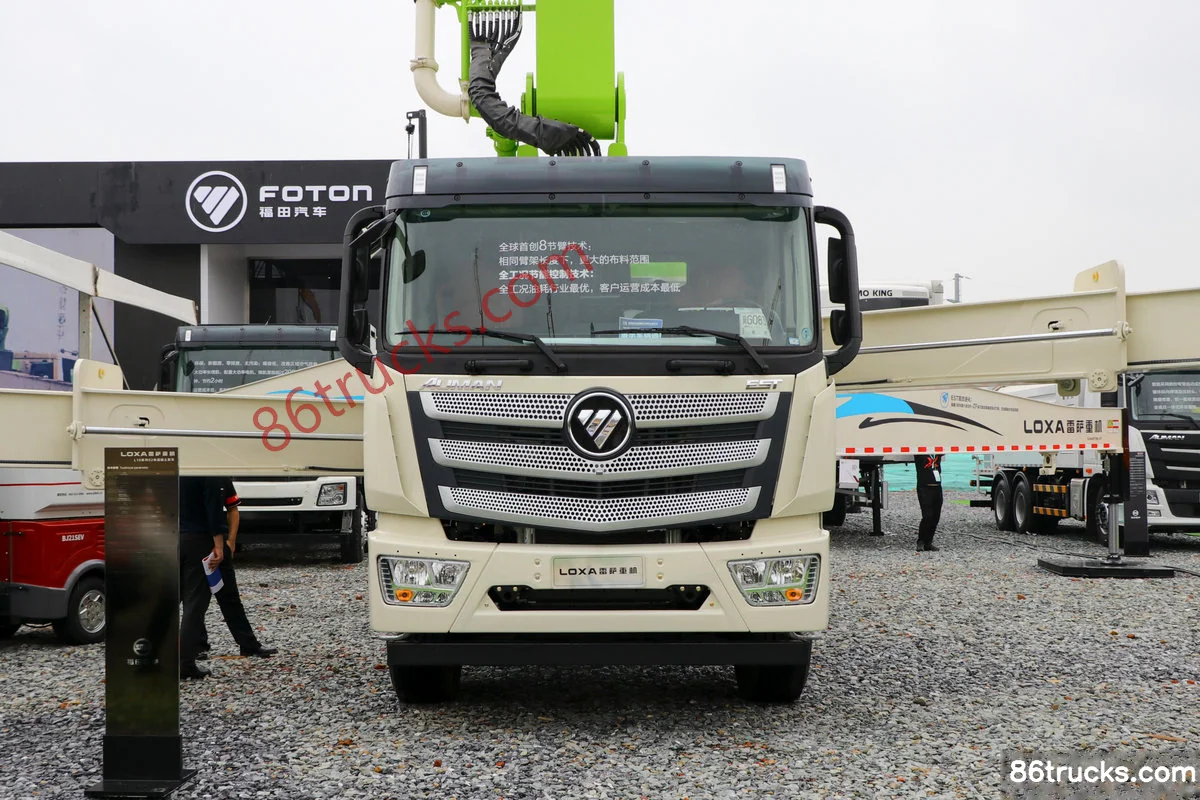

Exterior3

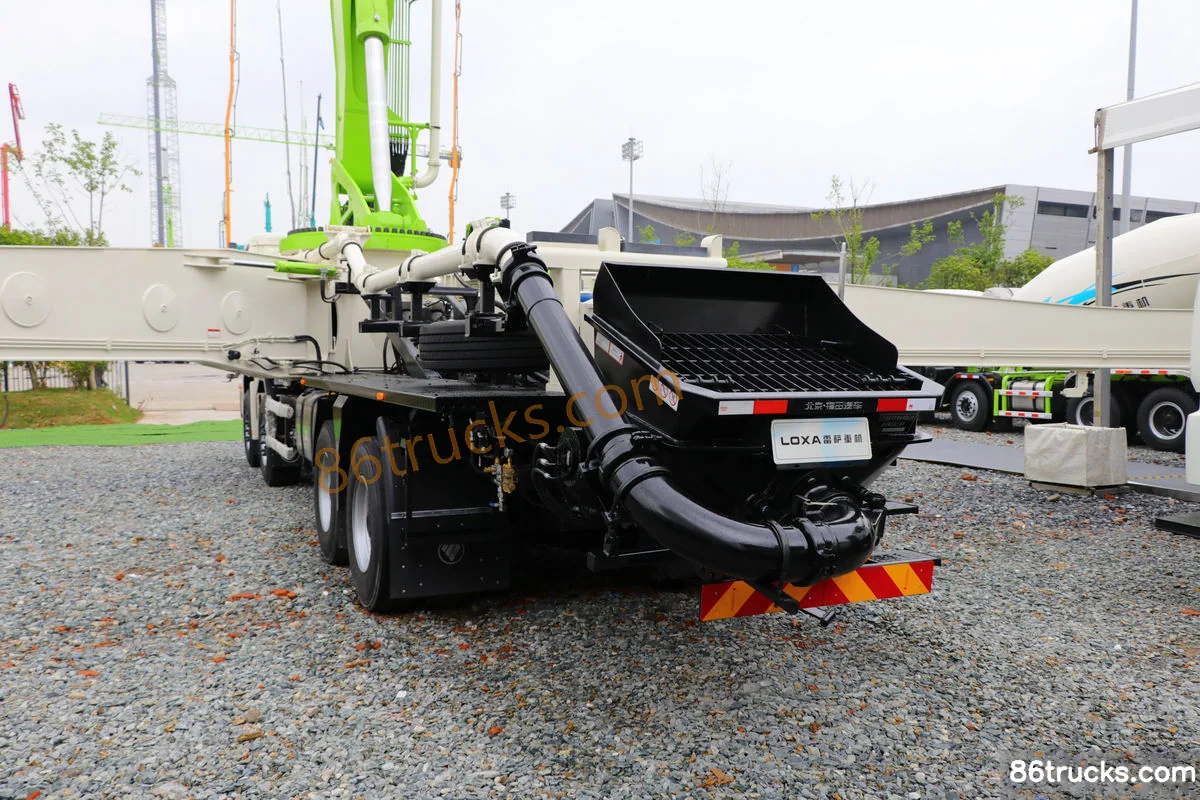

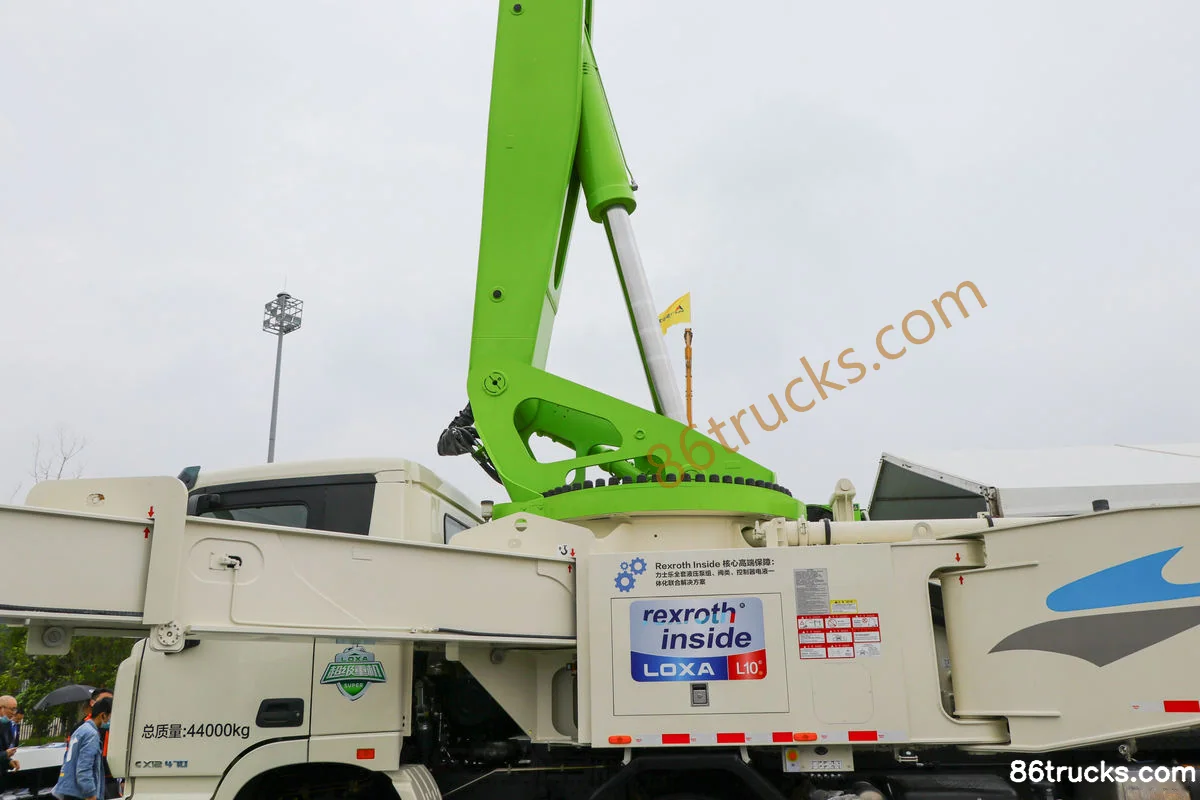

Body3

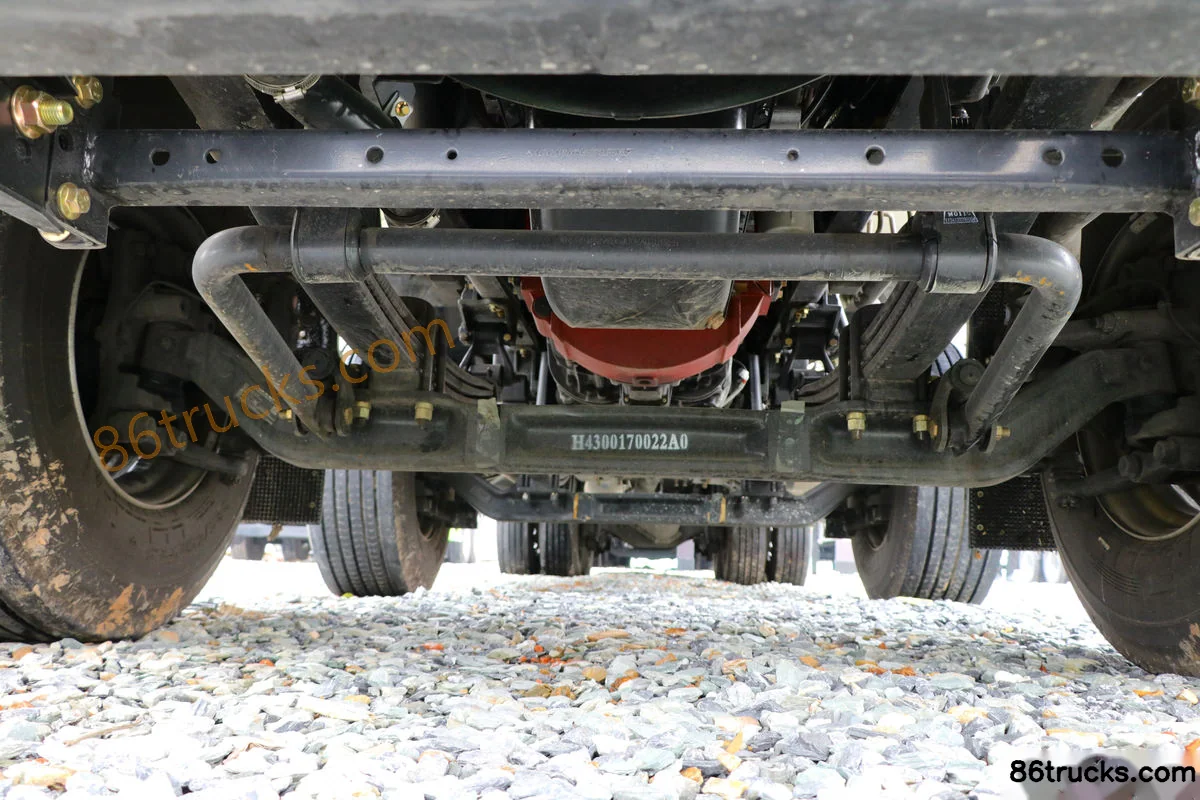

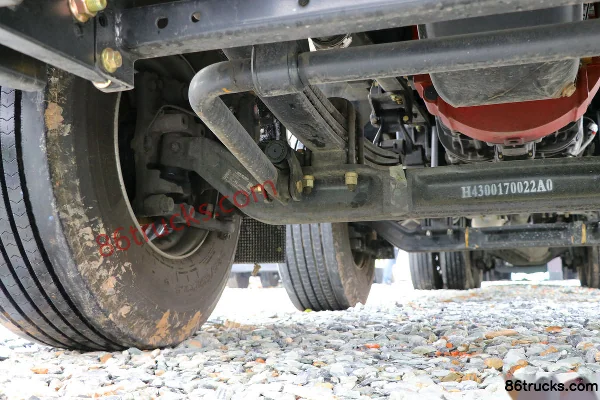

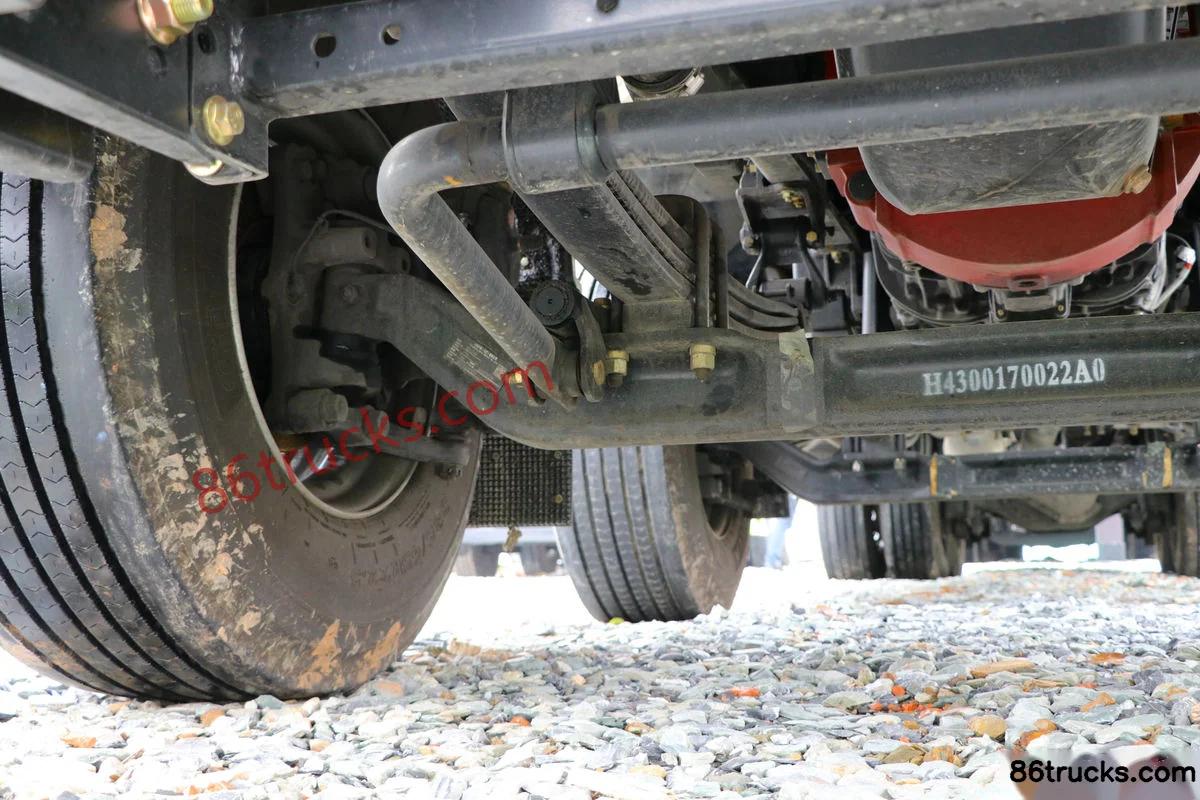

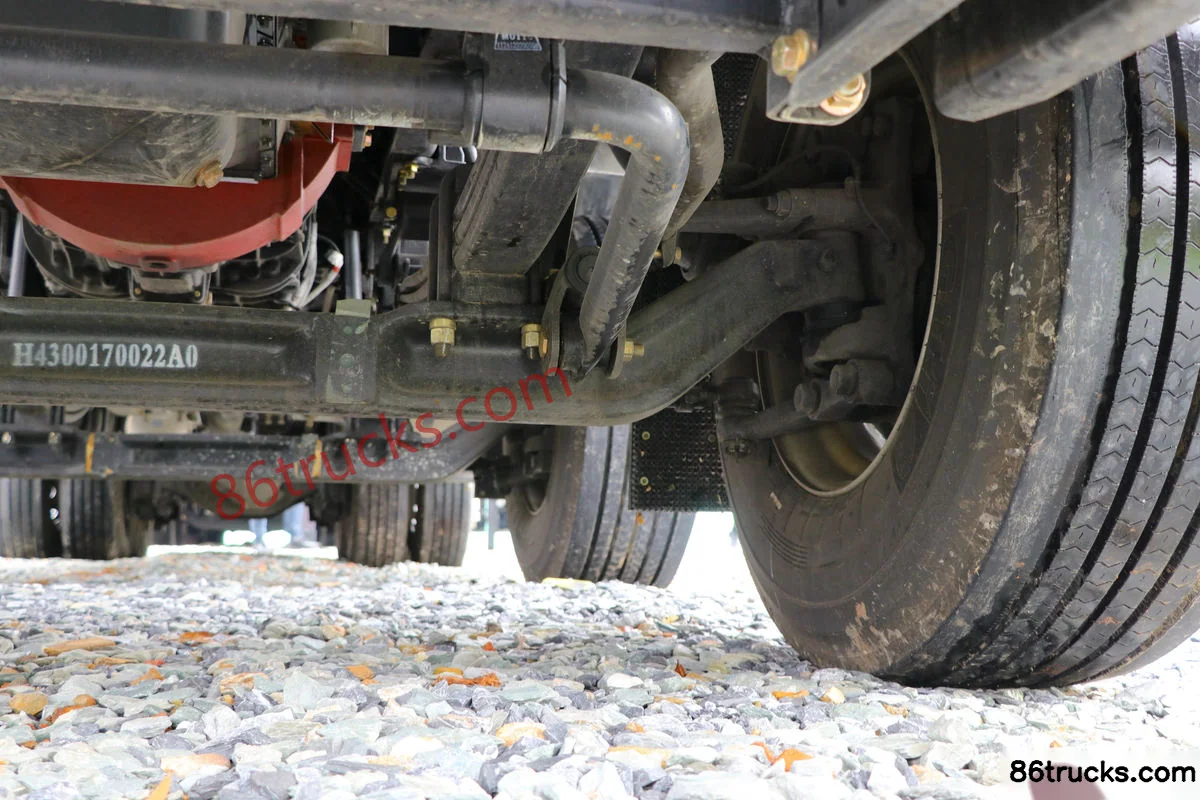

Chassis3

9 photos

FAQ

What emission standard does Foton Auman EST 470 hp 8X4(12 wheels) L10 62m Concrete Pump Truck (China VI) (Laisa Brand) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Auman EST 470 hp 8X4(12 wheels) L10 62m Concrete Pump Truck (China VI) (Laisa Brand)?

Key specs of Foton Auman EST 470 hp 8X4(12 wheels) L10 62m Concrete Pump Truck (China VI) (Laisa Brand): Drive: 8x4; Horsepower: 470 hp; Emission: China VI; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Auman EST 470 hp 8X4(12 wheels) L10 62m Concrete Pump Truck (China VI) (Laisa Brand) suited for?

Foton Auman EST 470 hp 8X4(12 wheels) L10 62m Concrete Pump Truck (China VI) (Laisa Brand) is a concrete pump truck model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Foton Auman EST 470 hp 8X4(12 wheels) L10 62m Concrete Pump Truck (China VI) (Laisa Brand) differ from other variants in the same series?

Foton Auman EST 470 hp 8X4(12 wheels) L10 62m Concrete Pump Truck (China VI) (Laisa Brand) belongs to Loxa Heavy Machinery Foton Auman Chassis (concrete pump truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Auman EST 470 hp 8X4(12 wheels) L10 62m Concrete Pump Truck (China VI) (Laisa Brand)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Auman EST 470 hp 8X4(12 wheels) L10 62m Concrete Pump Truck (China VI) (Laisa Brand)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
