Volvo FMX Heavy Truck 540 hp 10X4(14 wheels) 5-axle SANY 68m Concrete Pump Truck
EXW
Export quote
SANY Group Volvo Chassis Pump Truck concrete pump
Main model photos
24 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Volvo FMX Heavy Truck 540 hp 10X4(14 wheels) 5-axle SANY 68m Concrete Pump Truck | 10x4 / 540hp / China V | ||

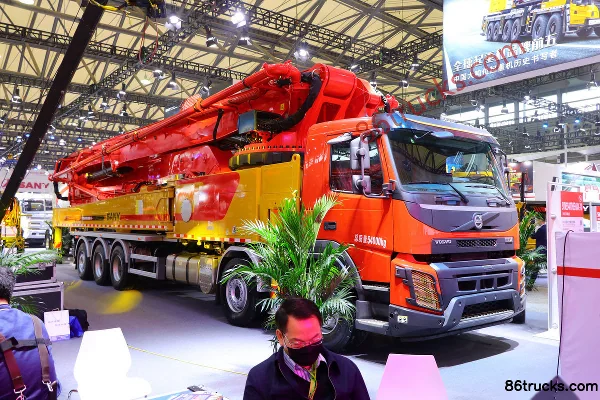

| Volvo FM Heavy Truck 540hp 10X4(14 wheels) Concrete Pump Truck (SANY brand) (SYM5540THBE 680C-10) | 10x4 / 540hp |
Volvo FM Heavy Truck 540hp 10X4(14 wheels) Concrete Pump Truck (SANY brand) (SYM5540THBE 680C-10)
EXW
Export quote
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| SANY 62m concrete pump truck (Volvo chassis) | — | ||
| SANY 37m concrete pump truck (Volvo chassis) | — | ||
| SANY 25m Concrete Pump Truck (Volvo Chassis) | — |
SANY 62m concrete pump truck (Volvo chassis)
EXW
Export quote
SANY 37m concrete pump truck (Volvo chassis)
EXW
Export quote
SANY 25m Concrete Pump Truck (Volvo Chassis)
EXW
Export quote
Series Specs
Basic Info
Model code (announced): SYM5540THBV / SY5502THB 62E / SY5296THB37 / SY5190TB25
Pumping displacement: 180 / 100m³/h
Max pumping height: 68 / 62 / 37 / 25m
Drive type: 10X4
Wheelbase: 1995+5205+1370+1480mm
Overall Dimensions: L×W×H: 16.6×2.55×4 / 15.980×2.5×4 / 11.95×2.5×3.99 / 10×2.5×3.86m
Max. travel speed: 85km/h
Curb Weight: 54 / 50.76 / 29.43 / 18.9ton
Chassis Specs
Axle Count: 5
Chassis Series: FMX / FM / VolvoFM440 / VolvoFM400 / VolvoSYM1160-01
Chassis Model: FM540
Pumping system
Pumping displacement (low/high): 180 / 67/120 / 100/60m³/h
Pumping pressure (low/high): 6.38/11.8 / 8/16
Pumping strokes (low/high): 13/24 / 30/16Times/min
Oil pressure: 32Mpa
Delivery cylinder: bore × stroke: 260×2100 / 230×2000 / 200×1800mm
Delivery pipe diameter: 125mm
Boom Outriggers
Boom Vertical Height: 67.3 / 62 / 37 / 25m
Boom Horizontal Length: 32.6 / 21m
Boom Section Count: Four-arm section
Boom Vertical Depth: 19.9 / 10.8m
Min unfolded length: 8.4m
Turntable Rotation Angle: 365°
Outrigger spread width: front/rear: 7160/6870 / 5200/2240mm
Boom Section 1 - Length: 8700 / 6500mm
first arm section angle: 92 / 39°
Boom Section 2 - Length: 7860 / 4650mm
Boom Section 2 - Angle: 180°
Boom Section 3 - Length: 8050 / 4650mm
Boom Section 3 - Angle: 180 / 245°
4th arm section length: 8390 / 5000mm
Boom Section 4 - Angle: 245 / 248°
Engine parameters
Engine Model: VolvoD13C540S EUV / D13 / HINOHINO P11C-UH
fuel type: Diesel
Displacement: 12.777 / 12.8L
Emission standard: China V
Max output power: 398 / 294 / 240kW
Max hp: 540Horsepower
Rated speed: 1800 / 1400 / 2100rpm
Cab parameters
Cab: VolvoFMX
FAQ
What kind of truck is SANY Truck SANY Group Volvo Chassis Pump Truck concrete pump truck?
SANY Truck SANY Group Volvo Chassis Pump Truck is an export-oriented concrete pump truck lineup with about 5 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does SANY Group Volvo Chassis Pump Truck concrete pump cover?
SANY Group Volvo Chassis Pump Truck concrete pump mainly covers: Drive: 10x4; Horsepower: 540 hp; Emission: China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in SANY Group Volvo Chassis Pump Truck concrete pump?
For SANY Group Volvo Chassis Pump Truck concrete pump: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is concrete pump truck typically used for?
concrete pump truck specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does SANY Group Volvo Chassis Pump Truck concrete pump include?
SANY Group Volvo Chassis Pump Truck concrete pump currently lists about 5 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for SANY Group Volvo Chassis Pump Truck concrete pump?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
