Volvo FMX Heavy Truck 540 hp 10X4(14 wheels) 5-axle SANY 68m Concrete Pump Truck

Export reference
MSRP N/A
Fuel: Diesel
Drive: 10X4 (14 wheels)
Wheelbase:: 1995+5205+1370+1480mm
Model code (announced):: SYM5540THBV
Pumping displacement:: 180m³/h
Max pumping height:: 68m
Curb Weight: 54ton
Horsepower 540
Max output power: 398kW
Emission China V

Overview

The Volvo FMX Heavy Truck 540 hp 10X4(14 wheels) 5-axle SANY 68m Concrete Pump Truck is a concrete pump truck featuring 54ton GVW, 540 hp, 398kW power and 10X4 (14 wheels) drive. On the powertrain side, it comes with China V emissions and Diesel fuel.

China V 540 Diesel 10X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): SYM5540THBV
Pumping displacement: 180m³/h
Drive type: 10X4
Max pumping height: 68m
Wheelbase: 1995+5205+1370+1480mm
Overall Dimensions: L×W×H: 16.6×2.55×4m
Max. travel speed: 85km/h
Curb Weight: 54ton
Chassis Specs
Axle Count: 5
Chassis Series: FMX
Chassis Model: FM540
Pumping system
Pumping displacement (low/high): 180m³/h
Delivery cylinder: bore × stroke: 260×2100mm
Boom Outriggers
Boom Vertical Height: 67.3m
Engine parameters
Engine Model: VolvoD13C540S EUV
fuel type: Diesel
Displacement: 12.777L
Emission standard: China V
Max output power: 398kW
Max hp: 540Horsepower
Rated speed: 1800rpm
Cab parameters
Cab: VolvoFMX
Tire

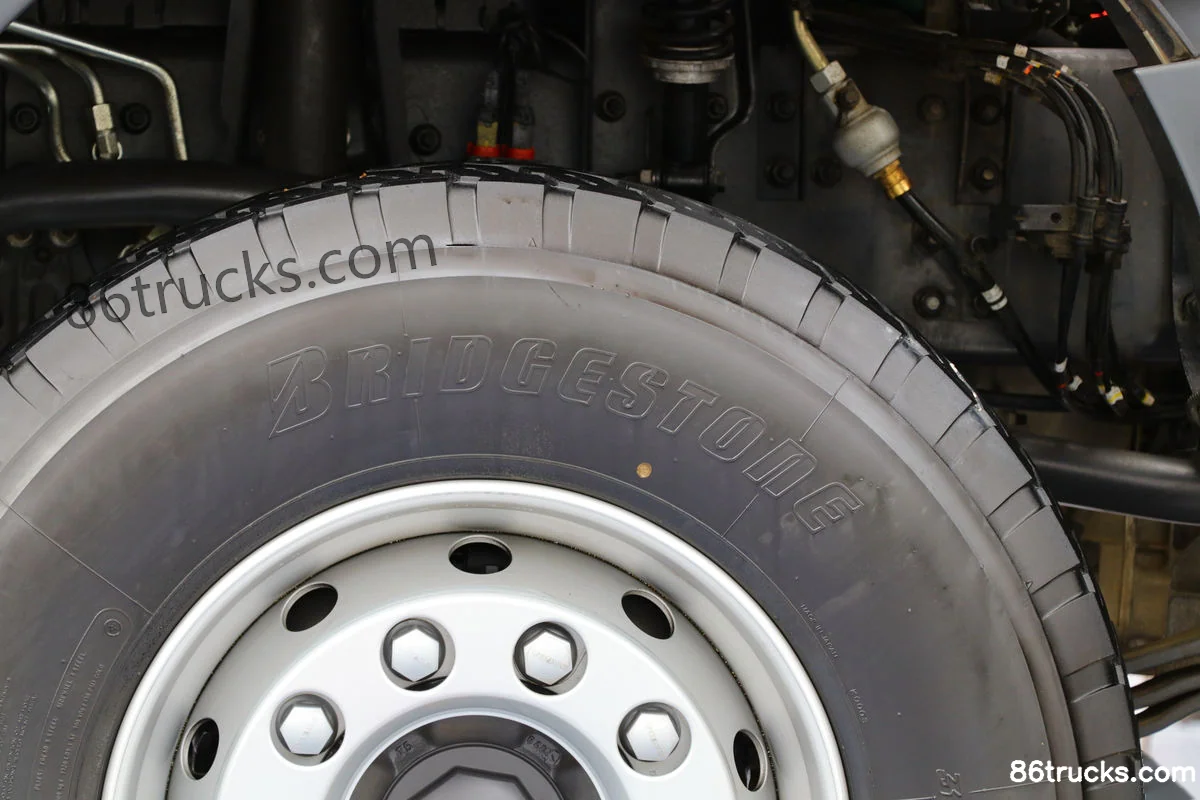

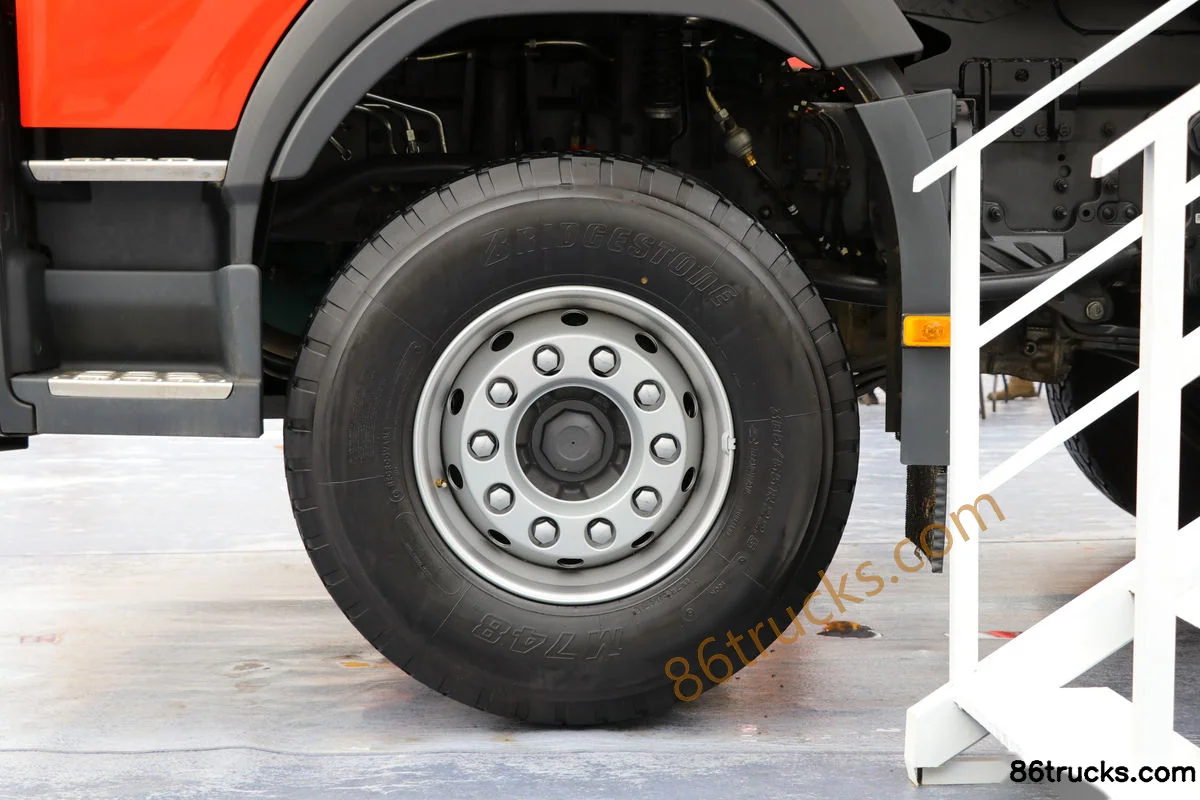

Tire Size: 385/65R22.5/315/80R22.5/385/65R22.5

Photos

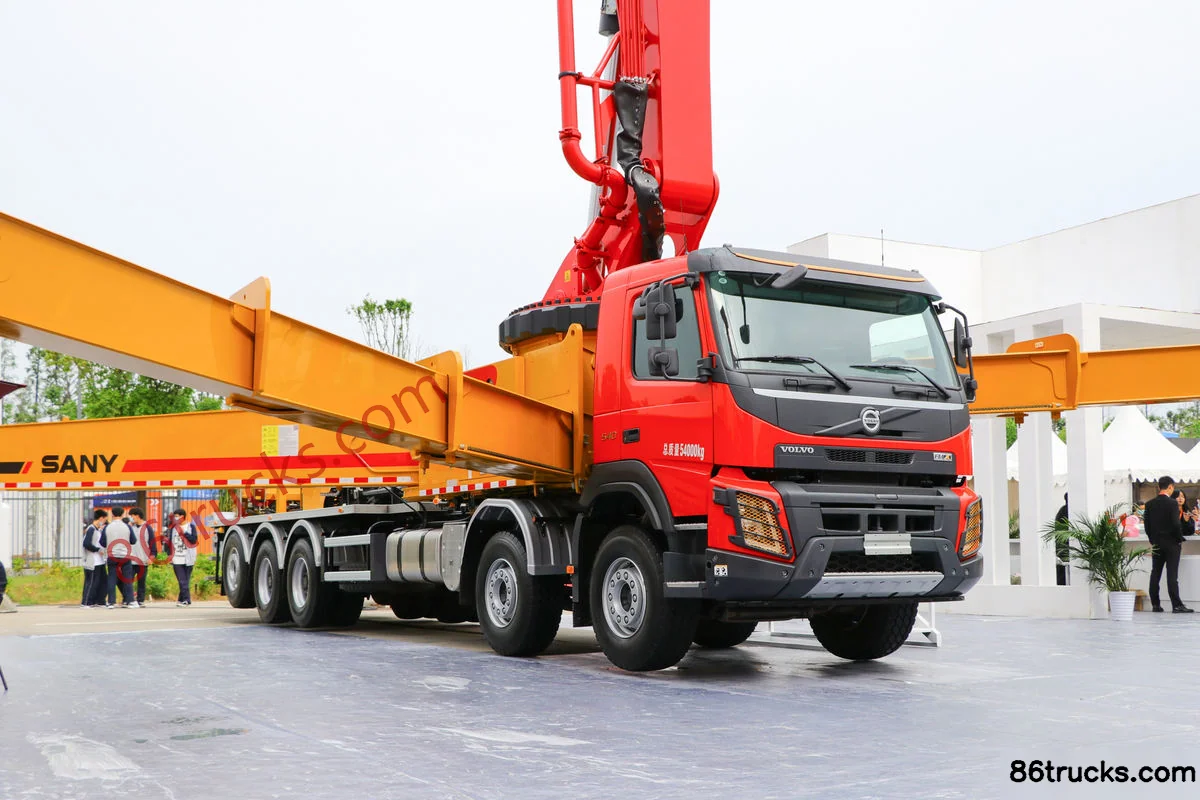

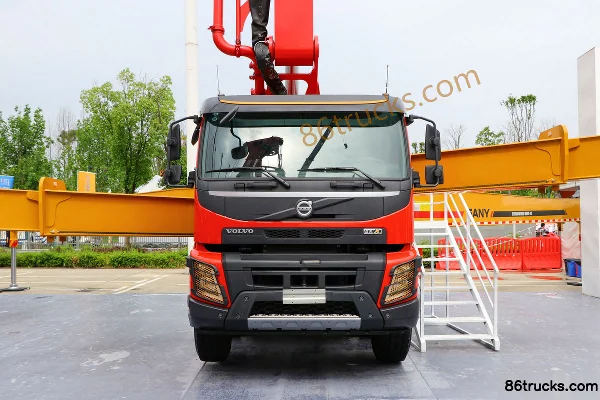

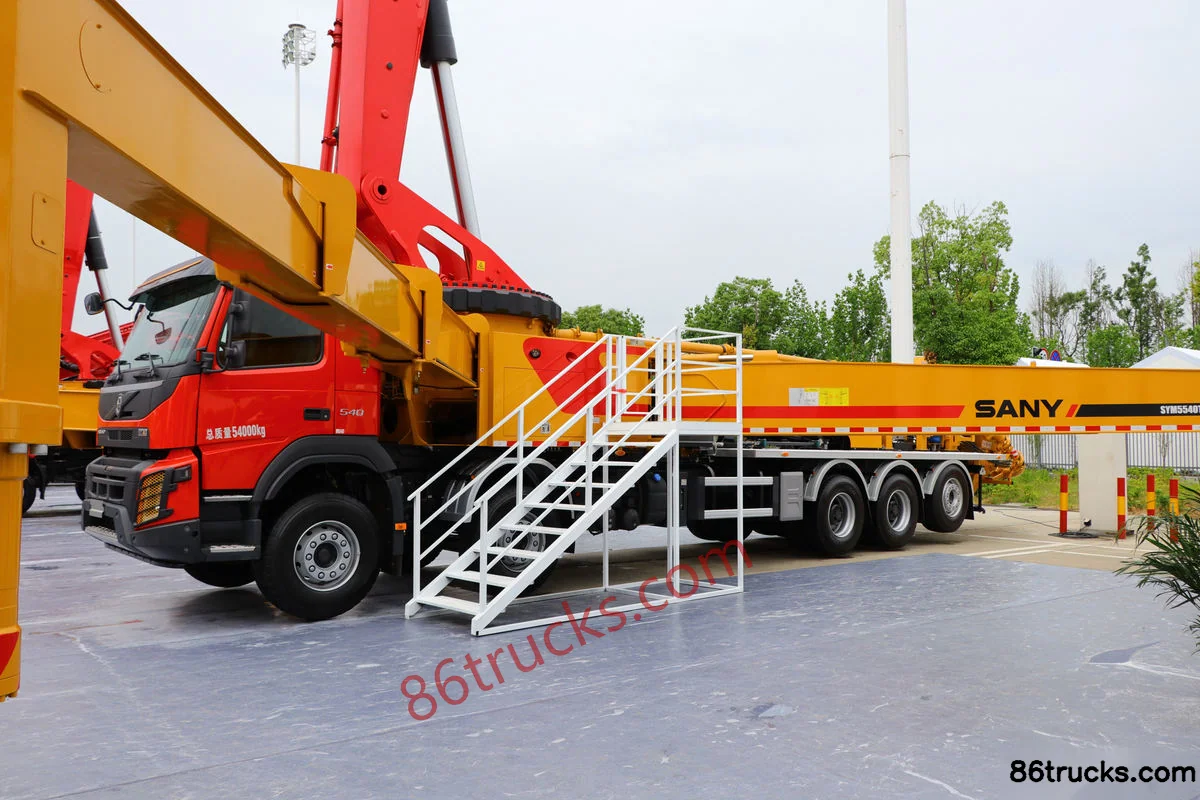

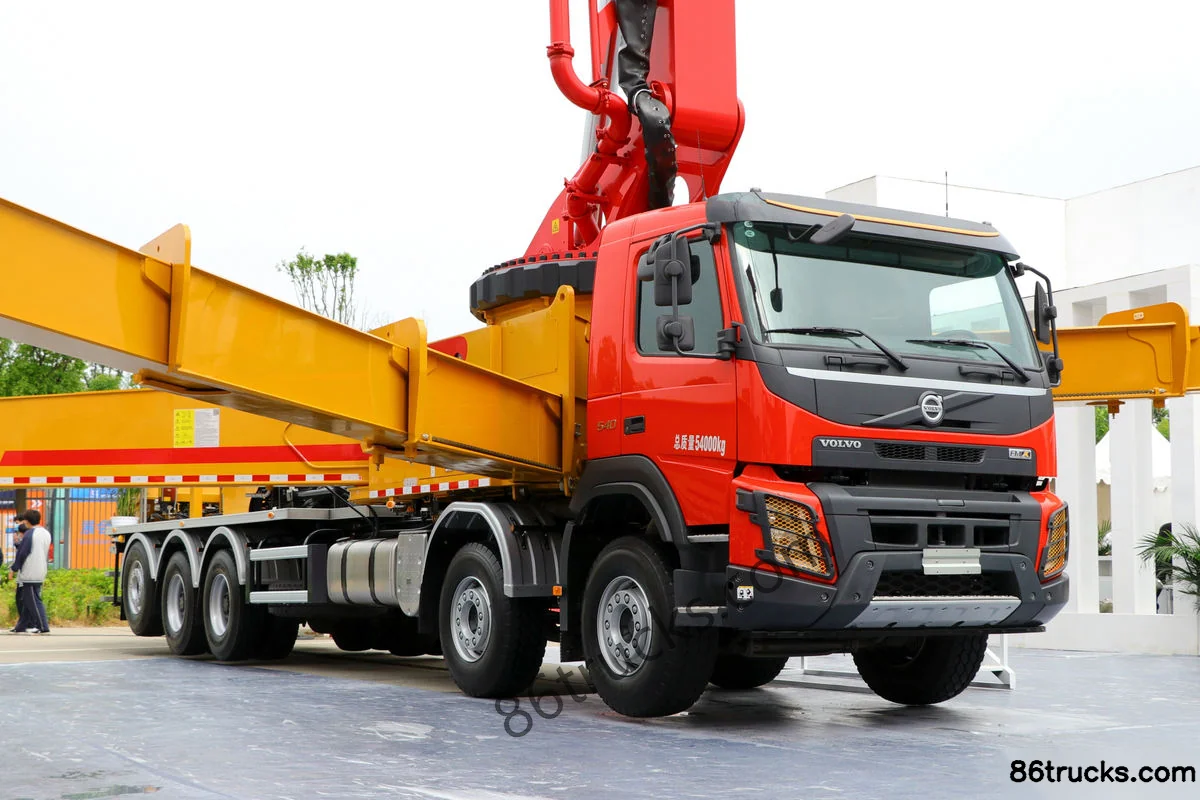

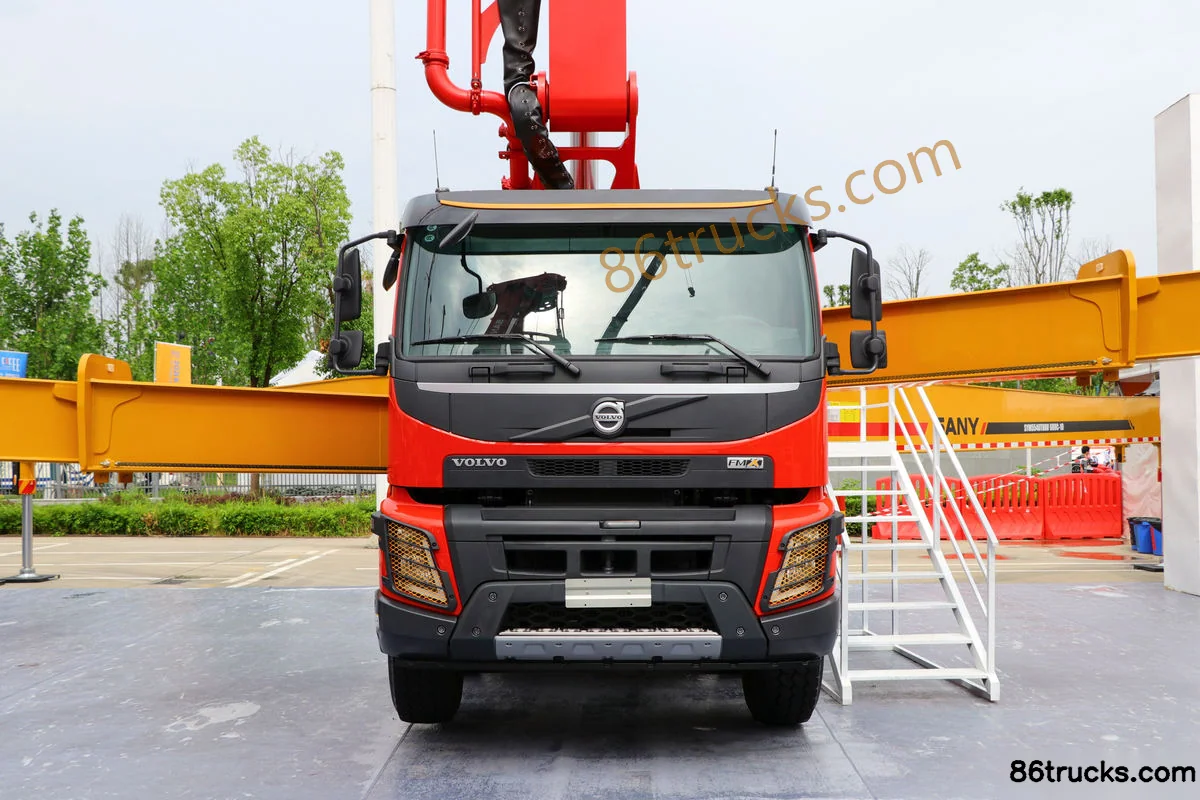

Exterior3

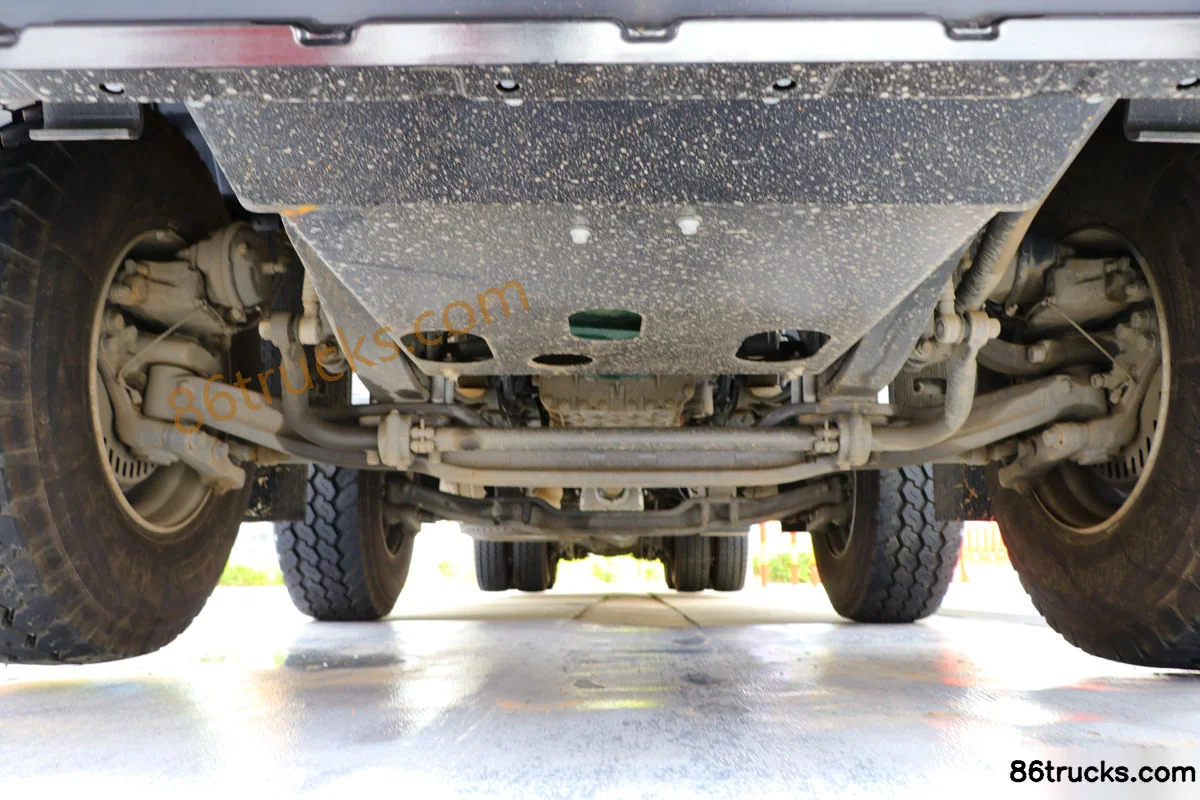

Chassis3

Chassis2

8 photos

FAQ

What emission standard does Volvo FMX Heavy Truck 540 hp 10X4(14 wheels) 5-axle SANY 68m Concrete Pump Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Volvo FMX Heavy Truck 540 hp 10X4(14 wheels) 5-axle SANY 68m Concrete Pump Truck?

Key specs of Volvo FMX Heavy Truck 540 hp 10X4(14 wheels) 5-axle SANY 68m Concrete Pump Truck: Drive: 10x4; Horsepower: 540 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Volvo FMX Heavy Truck 540 hp 10X4(14 wheels) 5-axle SANY 68m Concrete Pump Truck suited for?

Volvo FMX Heavy Truck 540 hp 10X4(14 wheels) 5-axle SANY 68m Concrete Pump Truck is a concrete pump truck model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Volvo FMX Heavy Truck 540 hp 10X4(14 wheels) 5-axle SANY 68m Concrete Pump Truck differ from other variants in the same series?

Volvo FMX Heavy Truck 540 hp 10X4(14 wheels) 5-axle SANY 68m Concrete Pump Truck belongs to SANY Group Volvo Chassis Pump Truck (concrete pump truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Volvo FMX Heavy Truck 540 hp 10X4(14 wheels) 5-axle SANY 68m Concrete Pump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Volvo FMX Heavy Truck 540 hp 10X4(14 wheels) 5-axle SANY 68m Concrete Pump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
