Dongfeng T1 2.5L Diesel 190 hp 4X2(6 wheels) Fast Gear 10-speed 3.1m Single Row Dump Truck

Export reference
From $23,333
MSRP ¥16.8M CNY
Emission: China VI
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 2.72ton
Wheelbase:: 2800mm
Tire Size:: 7.00R16LT 14PR
Rated payload: 1.645ton
Drive 4X2 (6 wheels)
Horsepower 190
Cargo box type: Dump type

Overview

The Dongfeng T1 2.5L Diesel 190 hp 4X2(6 wheels) Fast Gear 10-speed 3.1m Single Row Dump Truck is a Light Truck featuring 1.645t payload, 4.495t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a YuchaiYCY25190-66 engine, 190 hp, China VI emissions and Fast Gear transmission.

China VI 190 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): DFD3040GL6D21
Drive type: 4X2
Wheelbase: 2800mm
engine: YuchaiYCY25190-66
transmission: Fast Gear10JS91A-B
Cab length: 4.995m
Cab width: 2.05m
Cab height: 2.2m
Front track width: 1590mm
rear track: 1535mm
Curb Weight: 2.72ton
Rated payload: 1.645ton
GVWR: 4.495ton
Origin: Shiyan, Hubei
tonnage class: Light Truck
Approach angle: 19°
departure angle: 22°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YCY25190-66
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.499L
Emission standard: China VI
Max output power: 136kW
Max hp: 190Horsepower
Transmission Parameters
Transmission Model: 10JS91A-B
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 3.1m
Cargo box width: 1.8m
Cargo box height: 0.6m
Cab parameters
Cab width: 1995mm
seating capacity: 2Personnel
Chassis Specs
Front axle description: 2T
Front axle allowable load: 1950kg
Frame Dimensions: 230mm
rear axle description: 5.5T
rear axle allowable load: 2545kg
Leaf spring count: 5/6+4
Tire
Tire Size: 7.00R16LT 14PR
Number of tires: 4pcs
Control configuration
ABS:
interior configuration
AC control type: Manual
Power Windows:
Remote key:
Electronic Central Lock:
Service brake
Parking brake: Spring brake

Photos

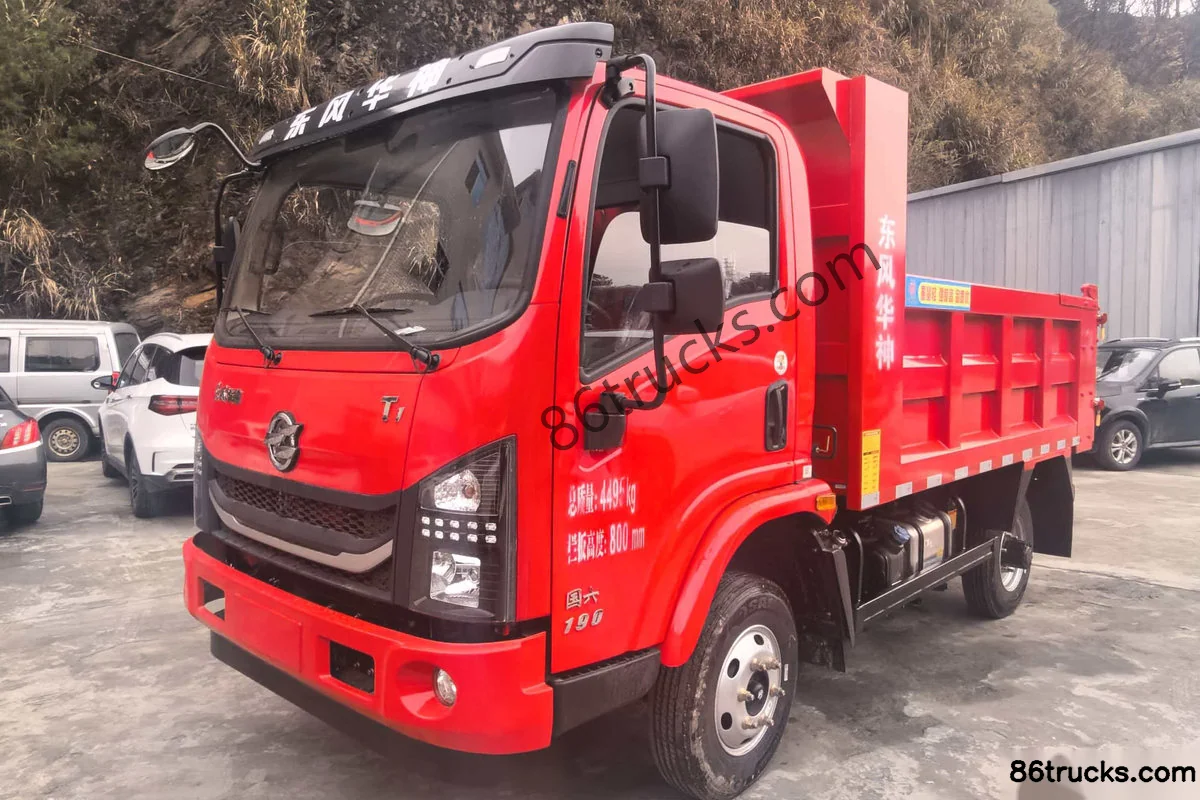

Exterior1

1 photos

FAQ

What is the export price of Dongfeng T1 2.5L Diesel 190 hp 4X2(6 wheels) Fast Gear 10-speed 3.1m Single Row Dump Truck, and what does it include?

Dongfeng T1 2.5L Diesel 190 hp 4X2(6 wheels) Fast Gear 10-speed 3.1m Single Row Dump Truck export reference is about From $23,333; MSRP is ¥16.8M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Dongfeng T1 2.5L Diesel 190 hp 4X2(6 wheels) Fast Gear 10-speed 3.1m Single Row Dump Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng T1 2.5L Diesel 190 hp 4X2(6 wheels) Fast Gear 10-speed 3.1m Single Row Dump Truck?

Key specs of Dongfeng T1 2.5L Diesel 190 hp 4X2(6 wheels) Fast Gear 10-speed 3.1m Single Row Dump Truck: Drive: 4x2; Horsepower: 190 hp; Emission: China VI; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng T1 2.5L Diesel 190 hp 4X2(6 wheels) Fast Gear 10-speed 3.1m Single Row Dump Truck suited for?

Dongfeng T1 2.5L Diesel 190 hp 4X2(6 wheels) Fast Gear 10-speed 3.1m Single Row Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Dongfeng T1 2.5L Diesel 190 hp 4X2(6 wheels) Fast Gear 10-speed 3.1m Single Row Dump Truck differ from other variants in the same series?

Dongfeng T1 2.5L Diesel 190 hp 4X2(6 wheels) Fast Gear 10-speed 3.1m Single Row Dump Truck belongs to Dongfeng T1 (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng T1 2.5L Diesel 190 hp 4X2(6 wheels) Fast Gear 10-speed 3.1m Single Row Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng T1 2.5L Diesel 190 hp 4X2(6 wheels) Fast Gear 10-speed 3.1m Single Row Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
