Yuejin Xiao Qilin 115hp 4X2(6 wheels) 2.2m Double Row Dump Truck

Export reference
From $12,194
MSRP ¥8.78M CNY
Emission: China VI
Fuel: Diesel
Transmission: WLY
Curb Weight:: 2.635ton
Wheelbase:: 2800mm
Tire Size:: 6.50R16LT 12PR/235/75R17.5 16PR
Rated payload: 1.495ton
Drive 4X2 (6 wheels)
Horsepower 115
Cargo box type: Dump type

Overview

The Yuejin Xiao Qilin 115hp 4X2(6 wheels) 2.2m Double Row Dump Truck is a Light Truck featuring 1.495t payload, 4.455t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a QuanchaiQ23-115E60 engine, 115 hp, China VI emissions and WLY transmission.

China VI 115 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): SH3043VKFDCNSD
Drive type: 4X2
Wheelbase: 2800mm
engine: QuanchaiQ23-115E60
transmission: WLYWLY5G32
Rear Axle Ratio: 4.875
Cab length: 4.995m
Cab width: 1.97m
Cab height: 2.19m
Front track width: 1505mm
rear track: 1445mm
Curb Weight: 2.635ton
Rated payload: 1.495ton
GVWR: 4.455ton
Origin: Nanjing, Jiangsu
tonnage class: Light Truck
Approach angle: 20°
departure angle: 15°
Energy Type: Diesel
Engine parameters
Engine Brand: Quanchai
Engine Model: QuanchaiQ23-115E60
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.3L
Emission standard: China VI
Max output power: 85kW
Max hp: 115Horsepower
Max torque: 320N·m
Max torque speed: 2000rpm
Rated speed: 3000rpm
Engine Type: Inline 4-cylinder, water-cooled, 4-stroke, turbocharged with intercooler, high-pressure common rail
Transmission Parameters
Transmission Model: WLYWLY5G32
Transmission Brand: WLY
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 2.2m
Cargo box width: 1.8m
Cargo box height: 0.4m
Cab parameters
Cab width: 1695mm
seating capacity: 5Personnel
fuel tank
Fuel tank capacity: 85L
Chassis Specs
Front axle allowable load: 1530kg
rear axle description: 1030 rear axle
rear axle allowable load: 2925kg
Axle ratio: 4.875
Leaf spring count: 3/3+2
Tire
Tire Size: 6.50R16LT 12PR/235/75R17.5 16PR
Number of tires: 4pcs
Control configuration
ABS:
interior configuration
AC control type: Manual
Power Windows:
Remote key:
Electronic Central Lock:
Multimedia features
External audio input (AUX/USB/iPod etc.):
Bluetooth / hands-free calling:
Service brake
Parking brake: Spring brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

Photos

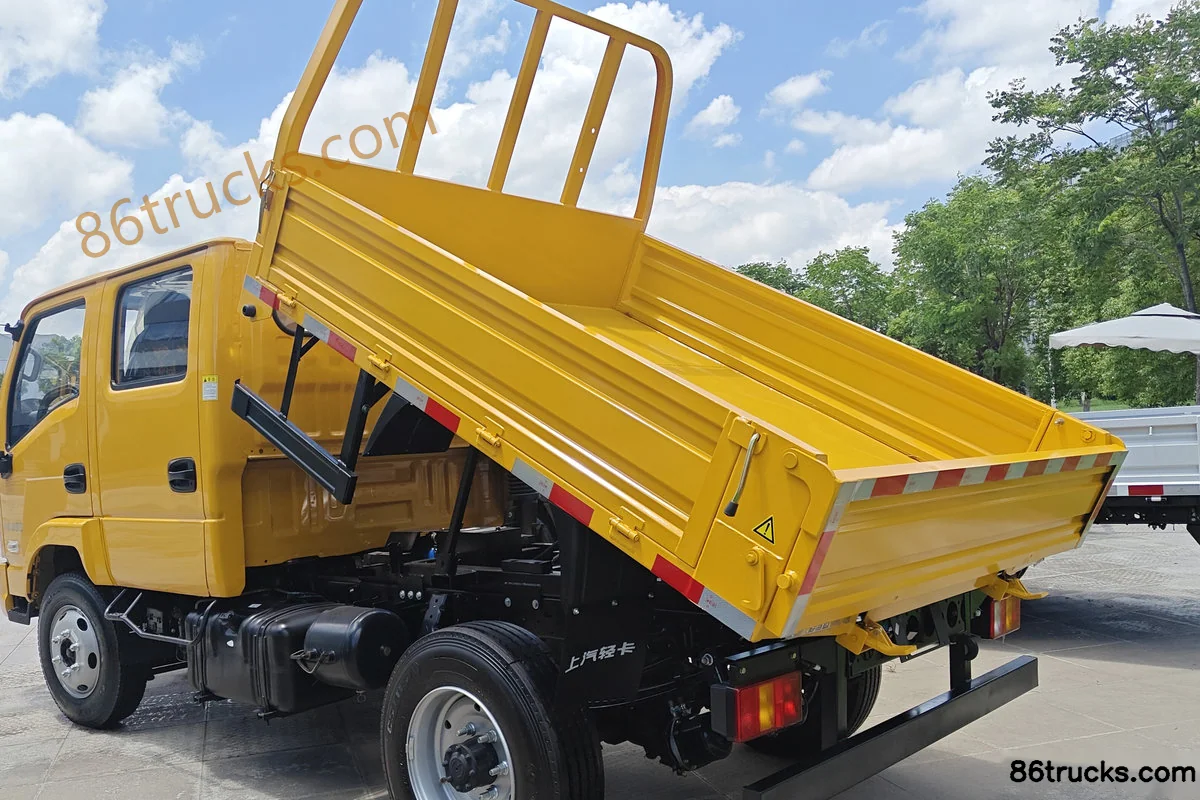

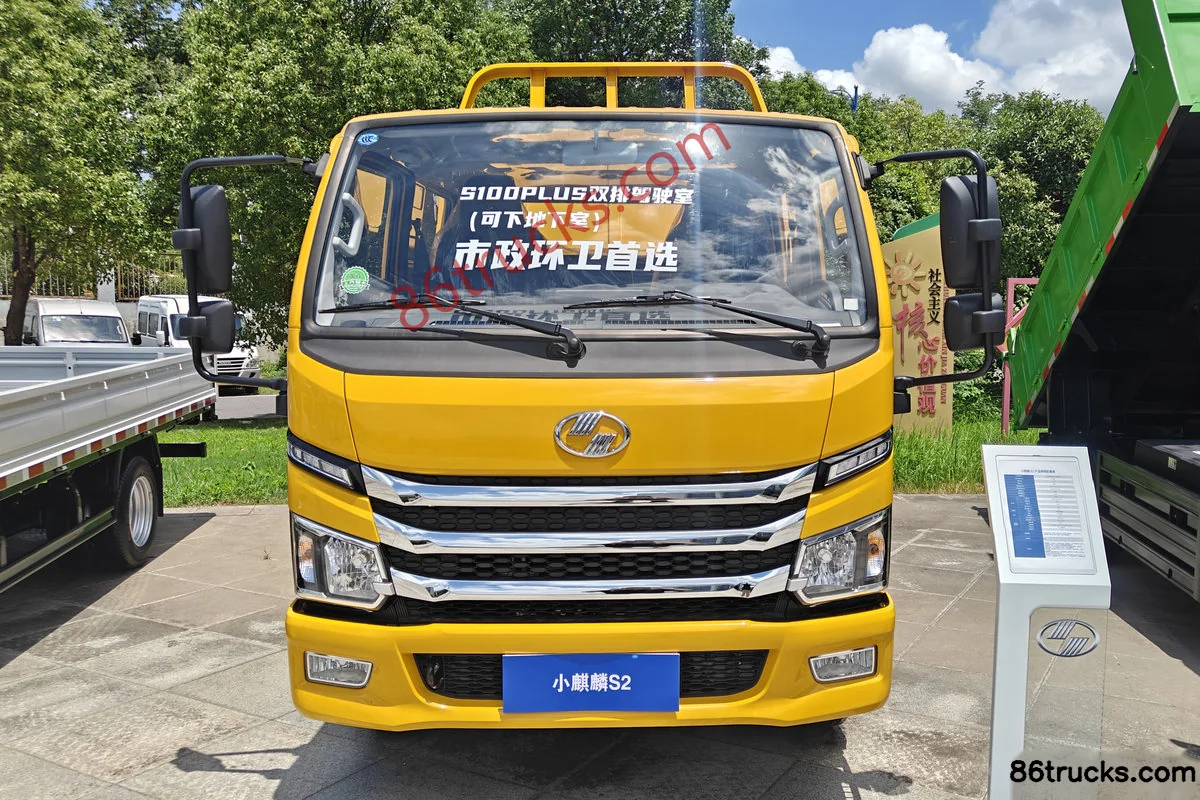

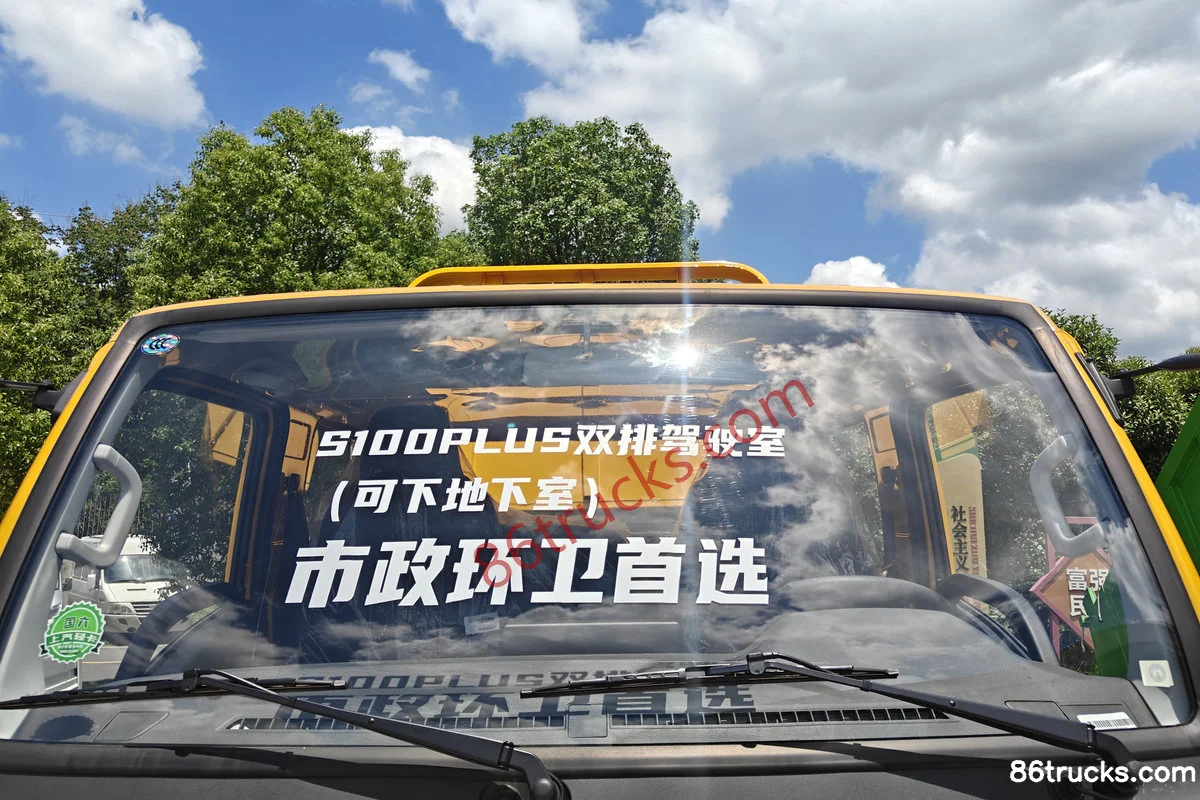

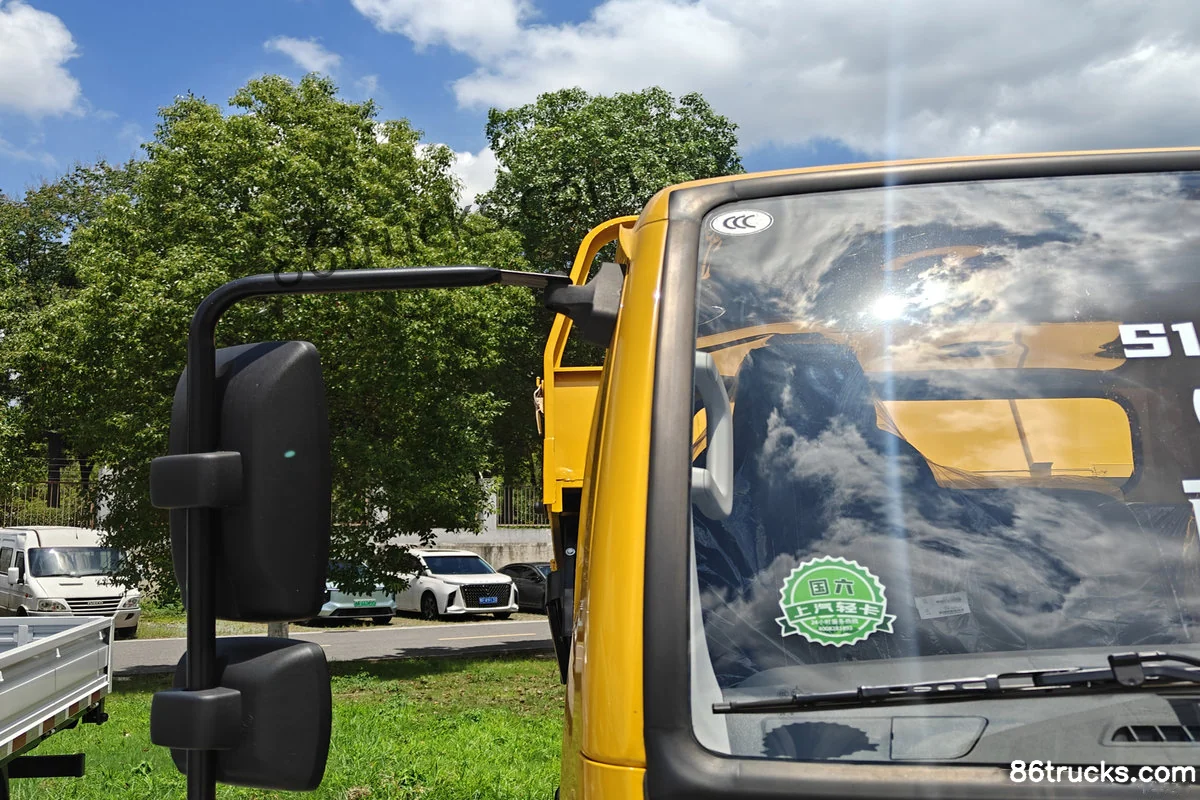

Exterior3

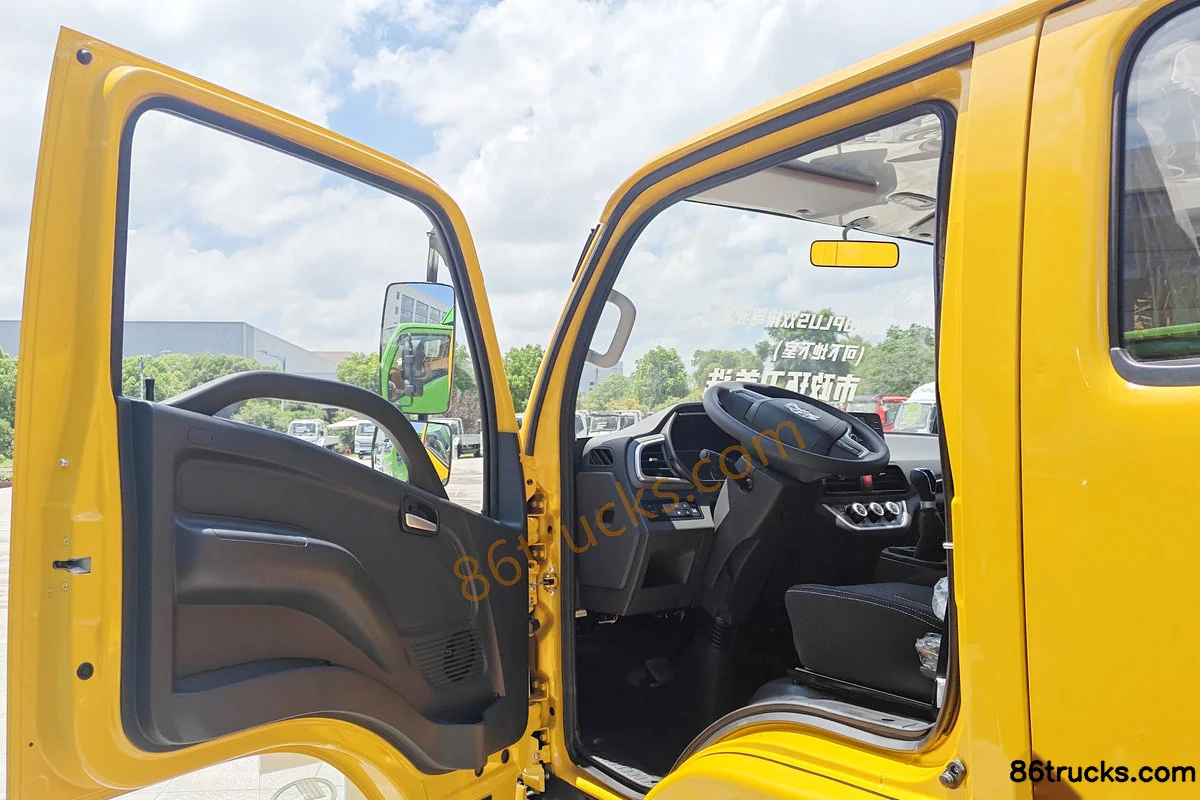

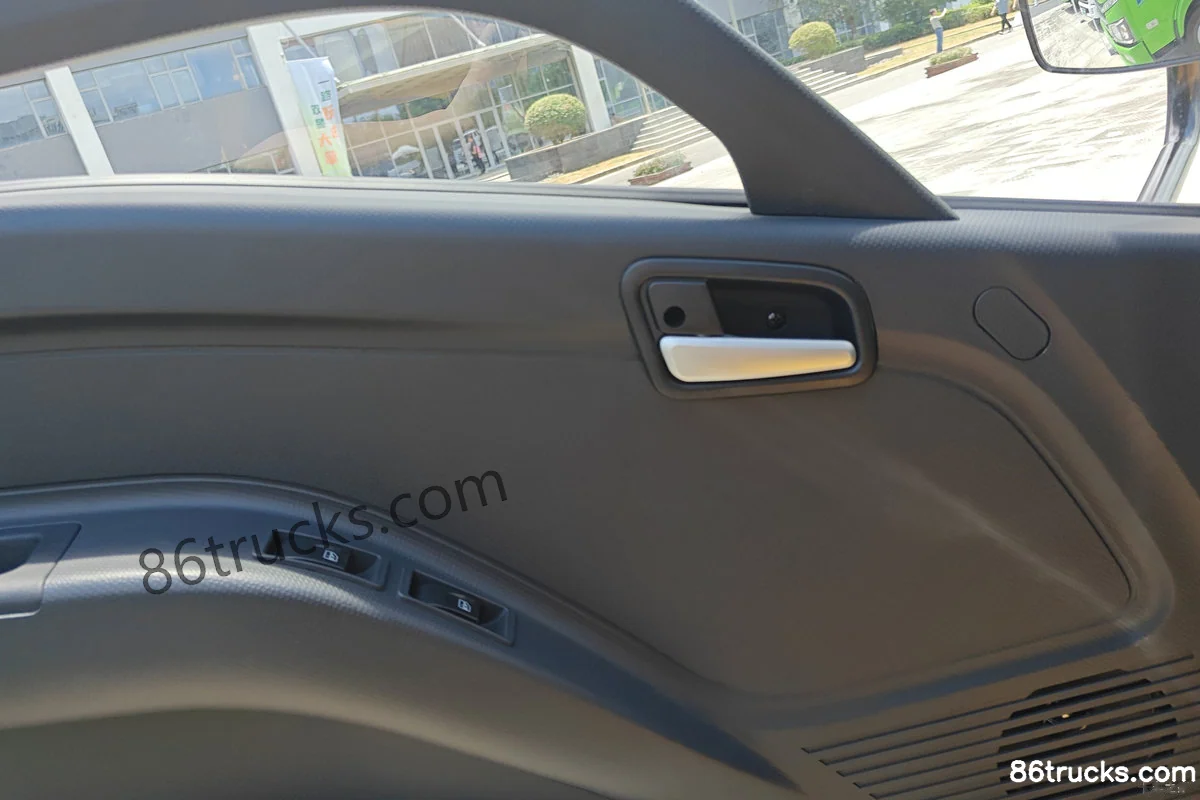

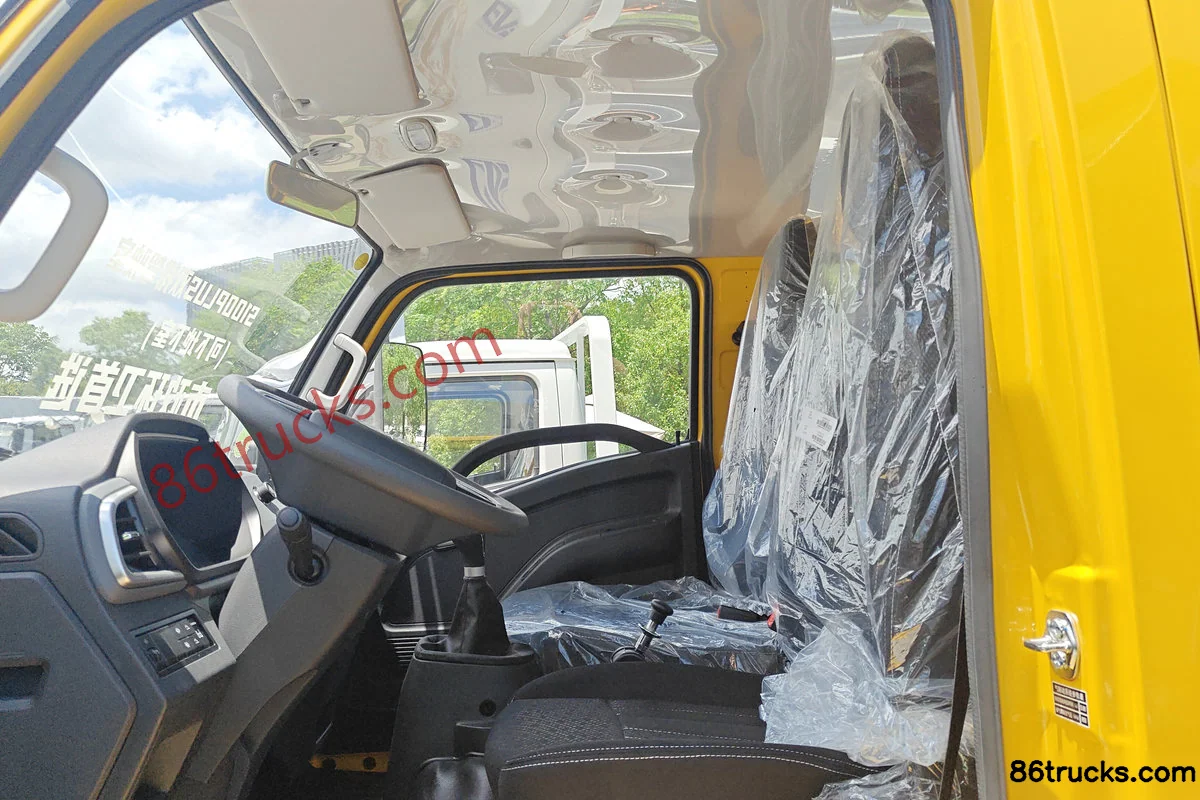

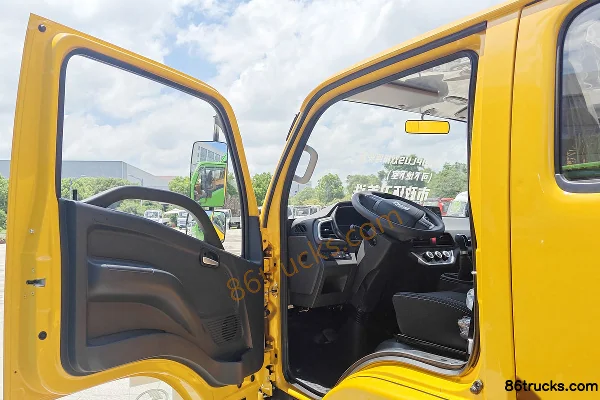

Cab3

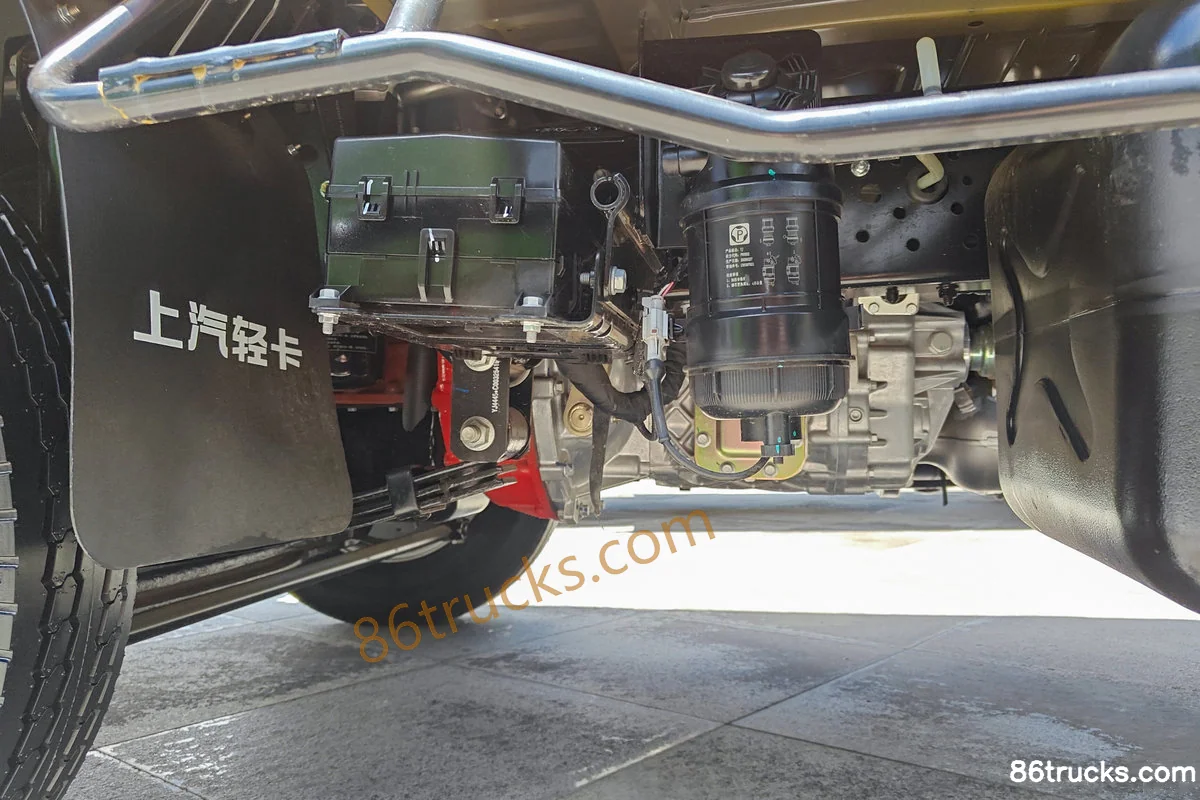

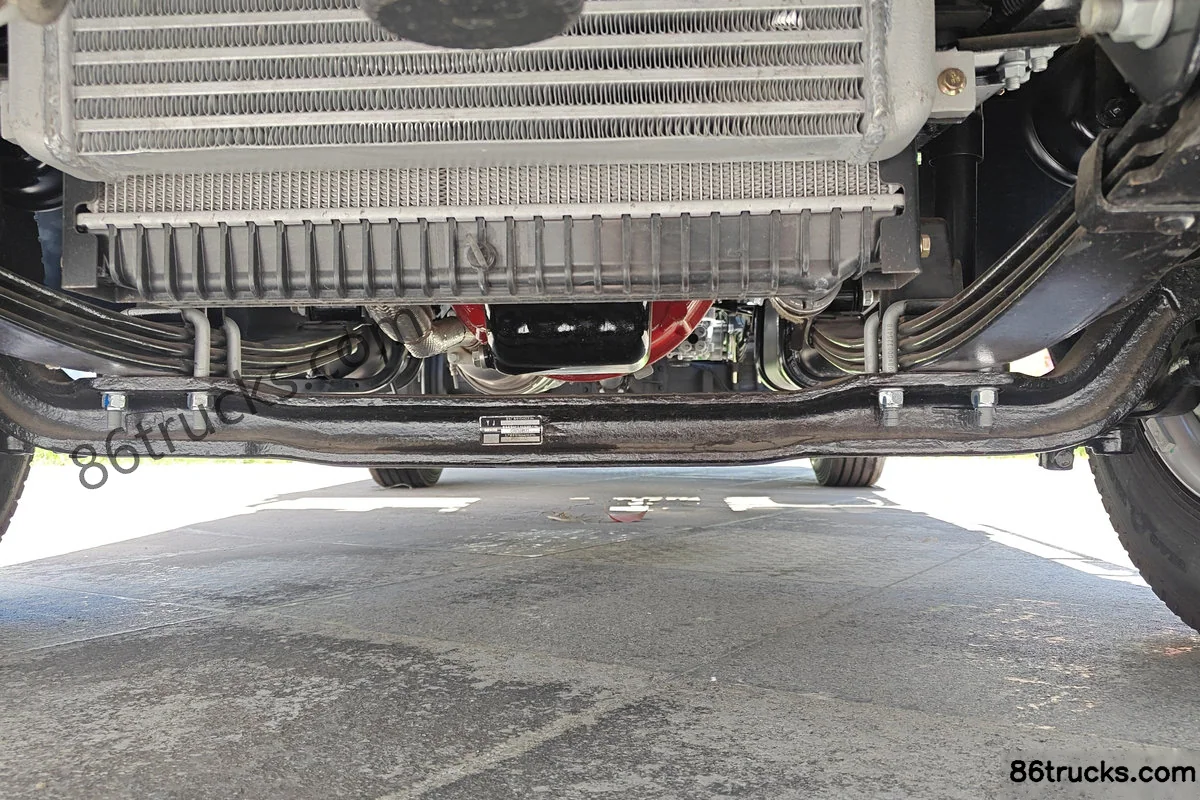

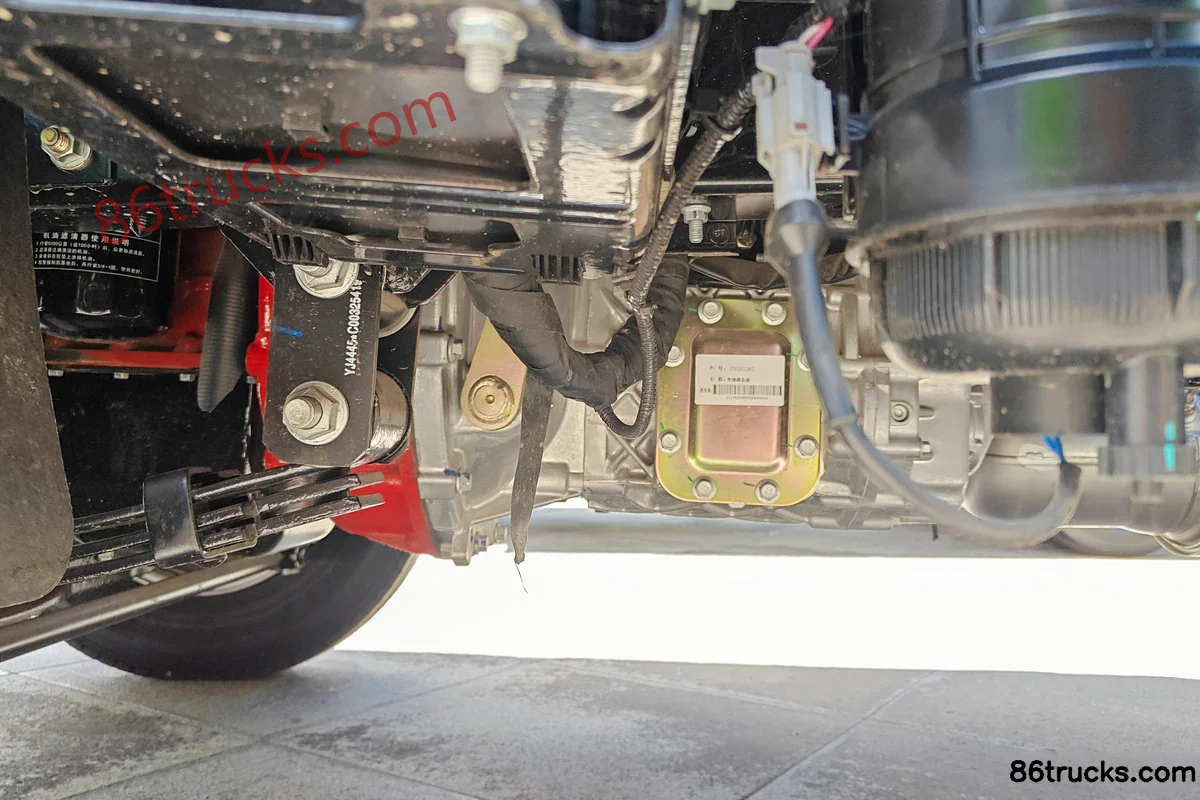

Chassis3

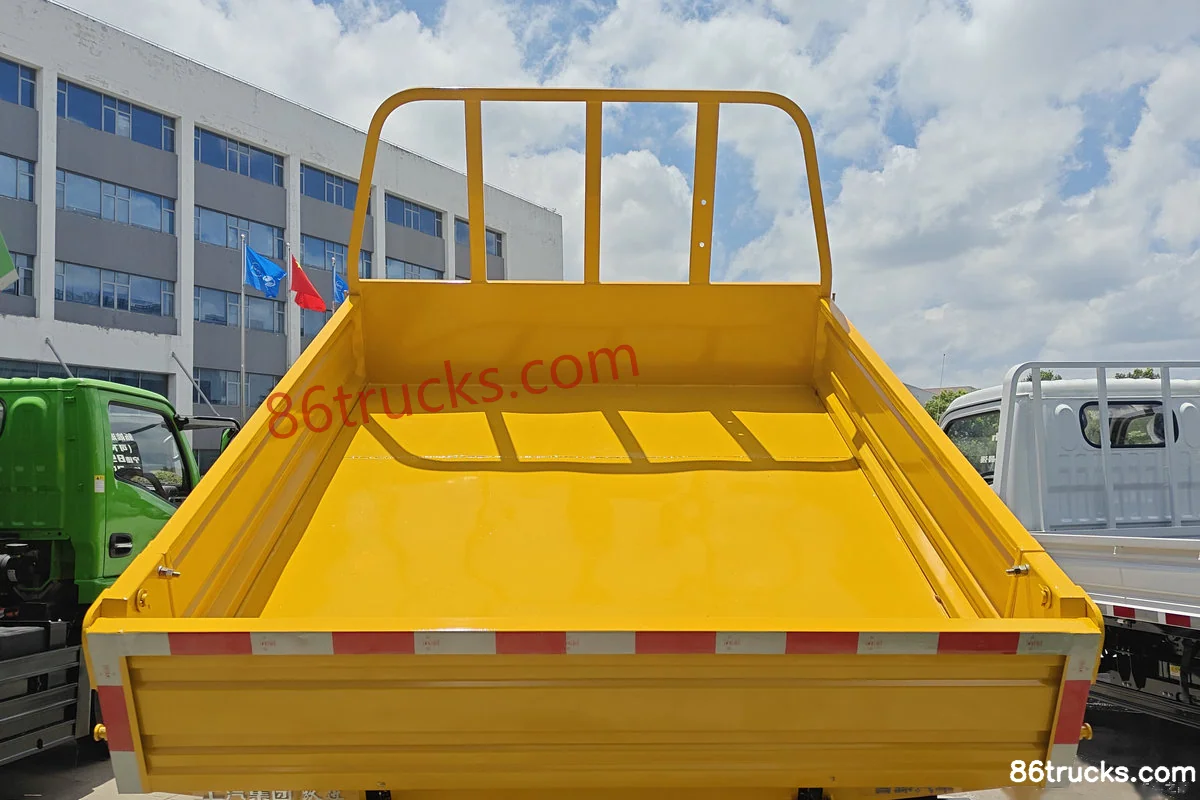

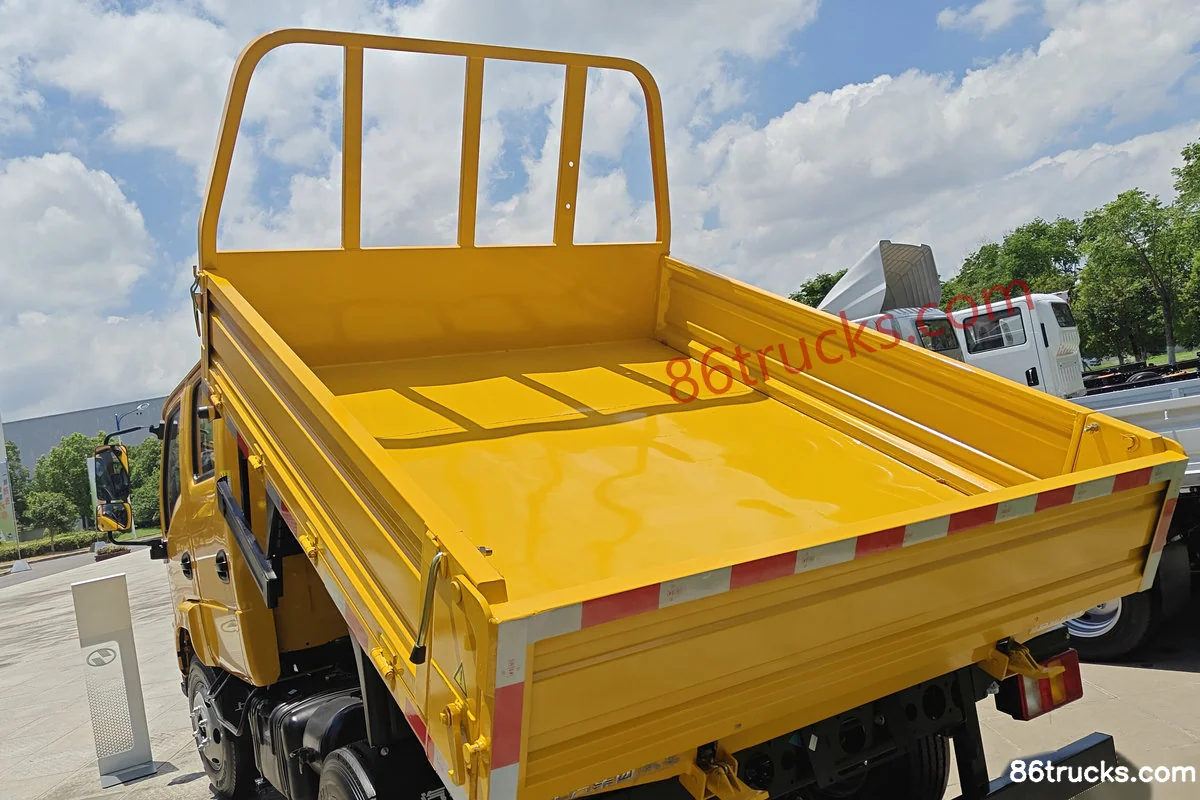

Body3

12 photos

FAQ

What is the export price of Yuejin Xiao Qilin 115hp 4X2(6 wheels) 2.2m Double Row Dump Truck, and what does it include?

Yuejin Xiao Qilin 115hp 4X2(6 wheels) 2.2m Double Row Dump Truck export reference is about From $12,194; MSRP is ¥8.78M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Yuejin Xiao Qilin 115hp 4X2(6 wheels) 2.2m Double Row Dump Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Yuejin Xiao Qilin 115hp 4X2(6 wheels) 2.2m Double Row Dump Truck?

Key specs of Yuejin Xiao Qilin 115hp 4X2(6 wheels) 2.2m Double Row Dump Truck: Drive: 4x2; Horsepower: 115 hp; Emission: China VI; Fuel: Diesel; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Yuejin Xiao Qilin 115hp 4X2(6 wheels) 2.2m Double Row Dump Truck suited for?

Yuejin Xiao Qilin 115hp 4X2(6 wheels) 2.2m Double Row Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Yuejin Xiao Qilin 115hp 4X2(6 wheels) 2.2m Double Row Dump Truck differ from other variants in the same series?

Yuejin Xiao Qilin 115hp 4X2(6 wheels) 2.2m Double Row Dump Truck belongs to Yuejin Small Kirin Light Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Yuejin Xiao Qilin 115hp 4X2(6 wheels) 2.2m Double Row Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Yuejin Xiao Qilin 115hp 4X2(6 wheels) 2.2m Double Row Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
