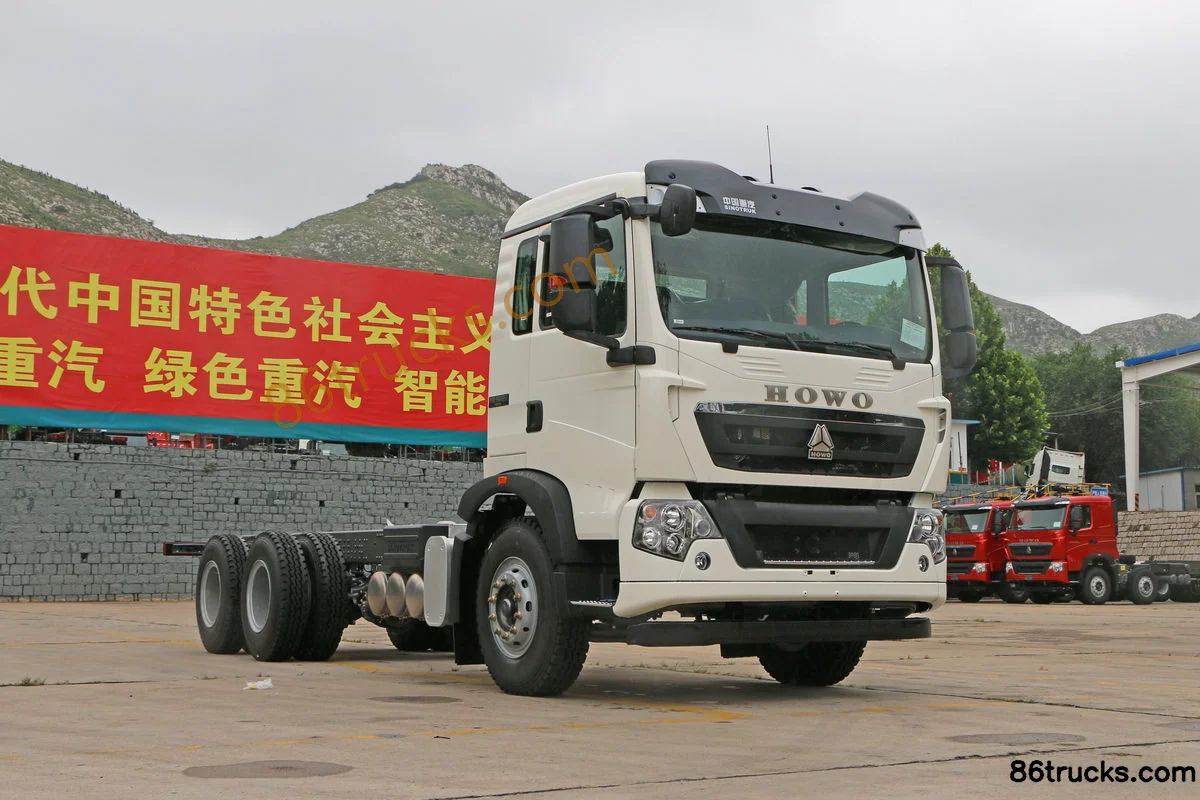

Sinotruk HOWO T5G Heavy Truck 340hp 6X4(10 wheels) Cargo Truck Chassis

Export reference
MSRP N/A
Emission: China V
Fuel: Diesel
Engine: SinotrukMAN7L
Transmission: Sinotruk
Curb Weight:: 8.72ton
Wheelbase:: 4100+1350mm
seating capacity: 3Personnel
Drive 6X4 (10 wheels)
Cargo box type: Chassis
Horsepower 340

Overview

The Sinotruk HOWO T5G Heavy Truck 340hp 6X4(10 wheels) Cargo Truck Chassis is a Heavy-duty cargo trucks featuring Chassis cargo body, 3Personnel volume, Flat roof cab and 4100+1350mm wheelbase. On the powertrain side, it comes with a SinotrukMAN7L engine, 340 hp, 6X4 (10 wheels) drive and China V emissions.

China V 340 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ1257N464GE1
Type: Chassis
Drive type: 6X4
Wheelbase: 4100+1350mm
engine: SinotrukMC07.34-50
transmission: SinotrukHW19710
Rear Axle Ratio: 4.875
Cab length: 8.63m
Cab width: 2.496m
Cab height: 3.035m
Front track width: 2015mm
rear track: 1830/1830mm
Curb Weight: 8.72ton
GVWR: 25ton
Max. speed: 101km/h
Origin: Jinan, Shandong
tonnage class: Heavy-duty cargo trucks
Approach angle: 19°
departure angle: 26°
Front/rear suspension: 1.43/1.75m
Energy Type: Diesel
Engine parameters
Engine Brand: Sinotruk
Engine Model: SinotrukMC07.34-50
Engine info: SinotrukMAN7L
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 6.87L
Emission standard: China V
Max output power: 248kW
Max hp: 340Horsepower
Max torque: 1250N·m
Max torque speed: 1200-1800rpm
Rated speed: 2300rpm
Engine Type: Inline, water-cooled, 4-stroke, turbocharged with intercooler
Transmission Parameters
Transmission Model: SinotrukHW19710
Transmission Brand: Sinotruk
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Chassis
Cab parameters
Cab: Flat roof
Cab suspension: 4-point mechanical suspension
seating capacity: 3Personnel
Seat rows: Sleeper cab
Driver seat type: air suspension seat
Sunroof: Manual sunroof
fuel tank
Fuel tank capacity: 300L
Chassis Specs
Front axle description: H153
Frame Dimensions: (8+5/280)mm
rear axle description: HT457
Axle ratio: 4.875
Leaf spring count: 11/10
Suspension (front/rear): leaf spring suspension
Tire
Tire brand: Chengshan
Tire Size: 11.00R20
Number of tires: 10pcs
Control configuration
ABS:
Inter-axle Differential Lock:
interior configuration
AC control type: Automatic

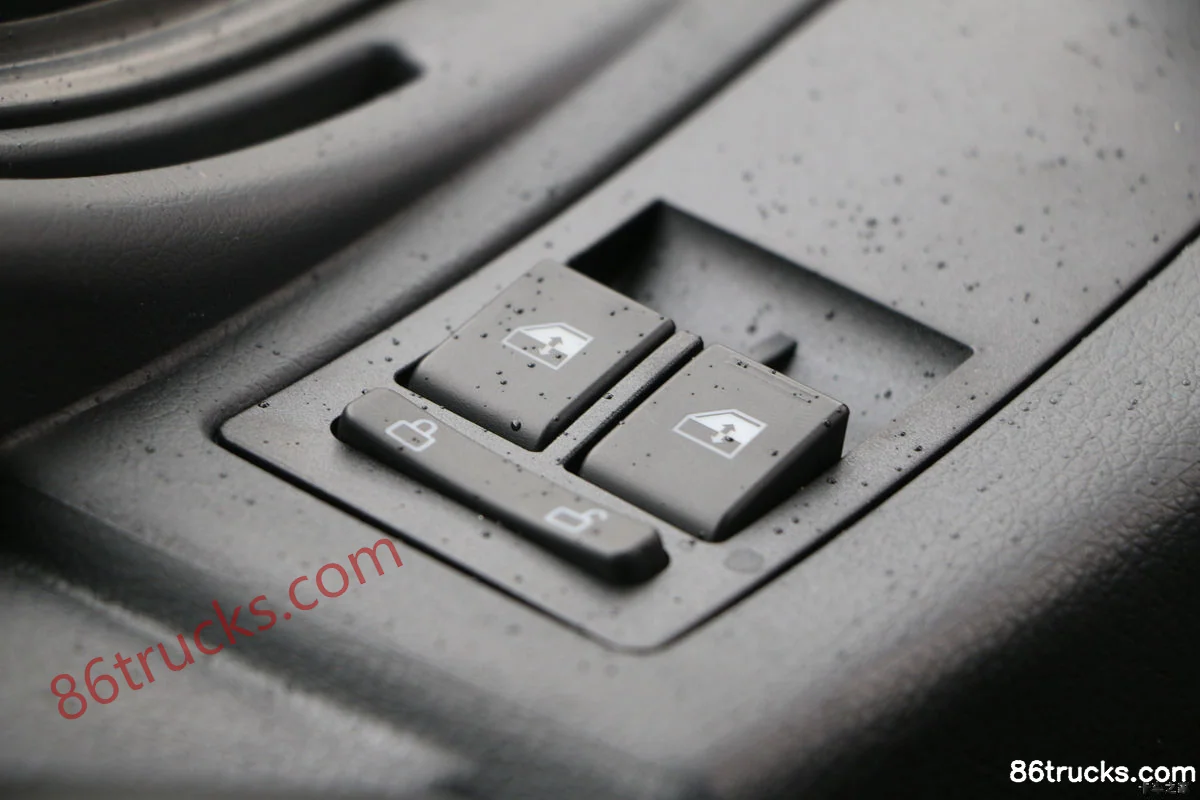

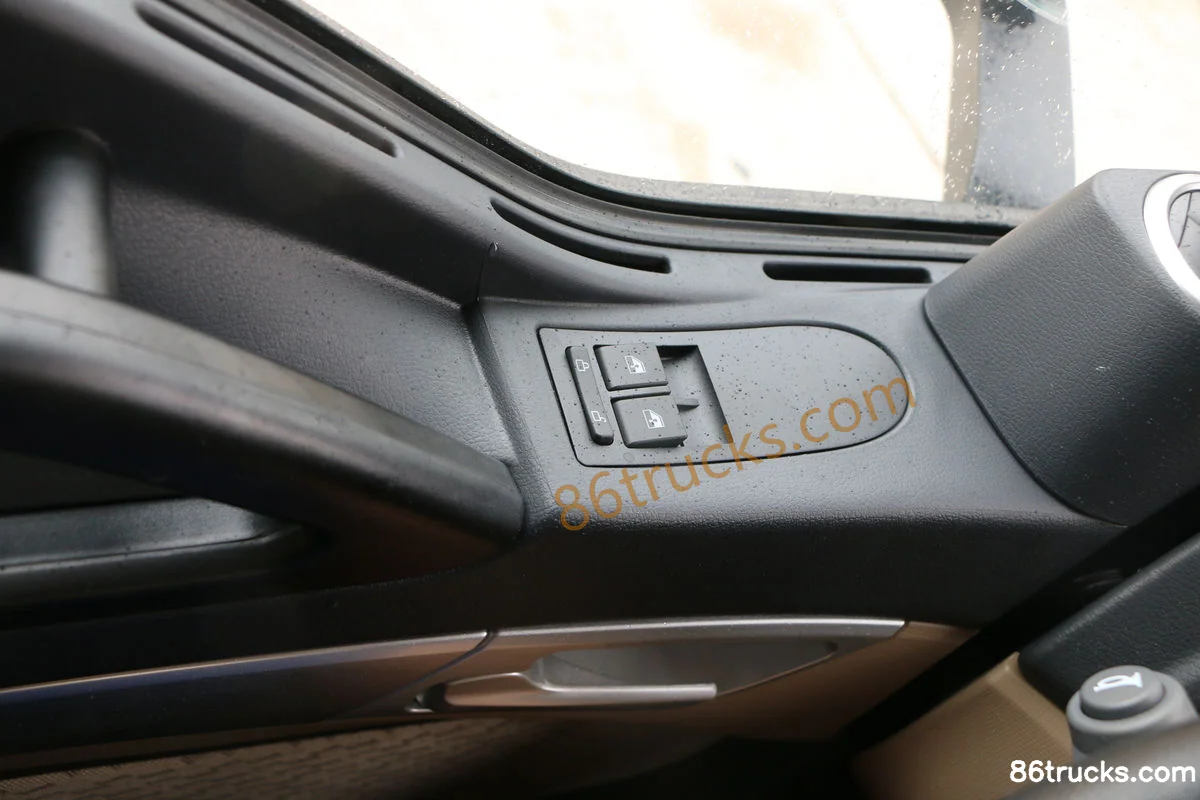

Power Windows:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
Radio:
lighting configuration
Front fog lamp:
Headlight height adjustment:
Service brake
Parking brake: Spring brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Cruise control (CCS):

Photos

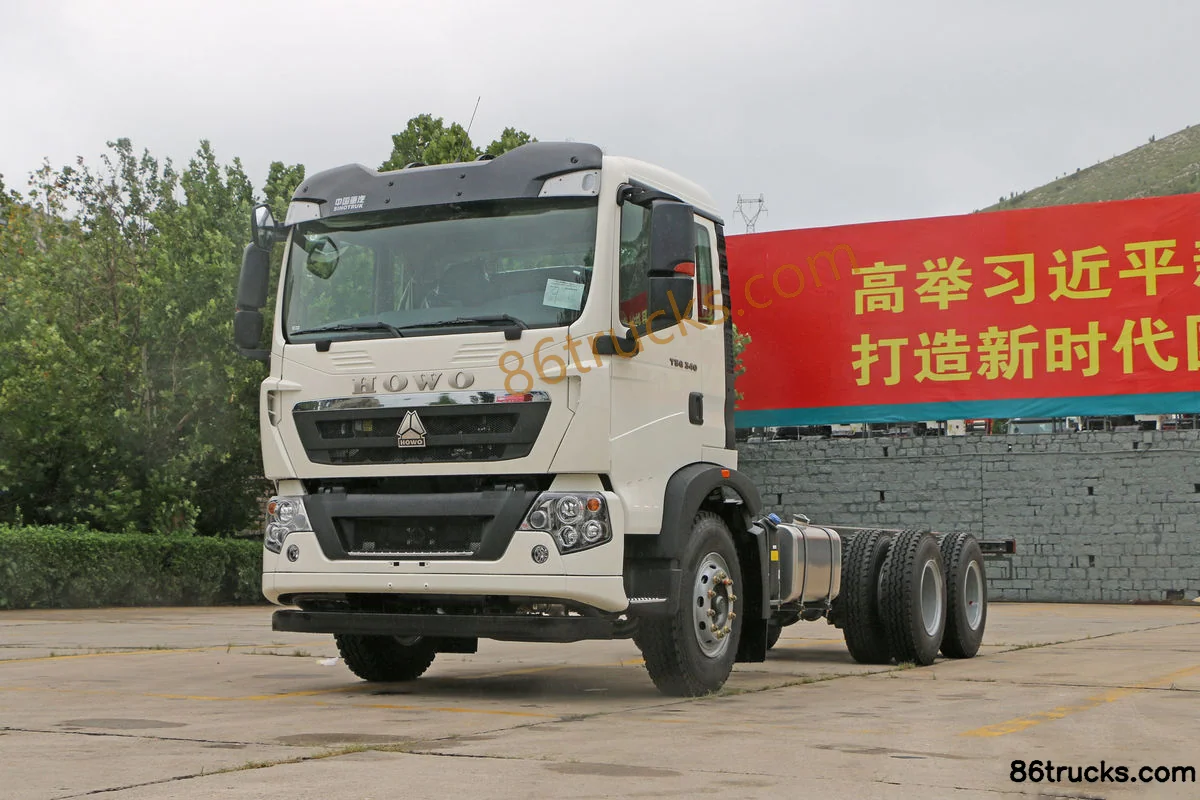

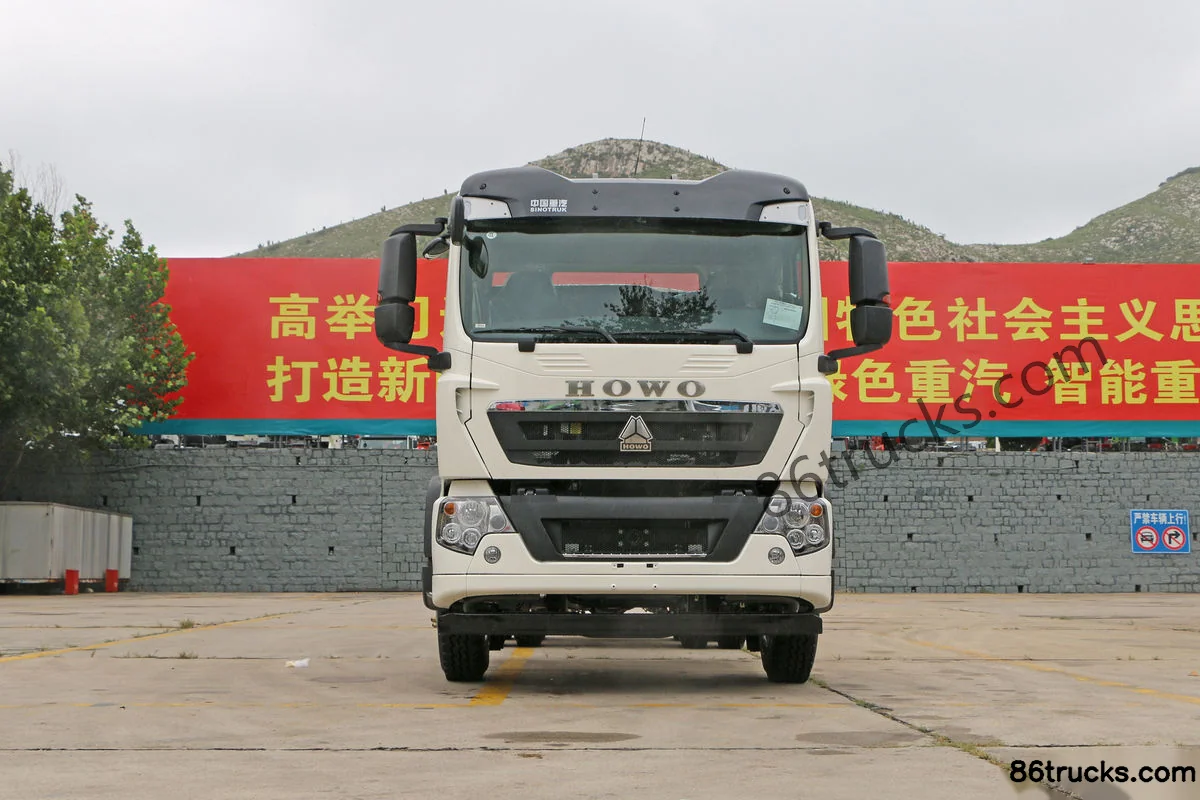

Exterior3

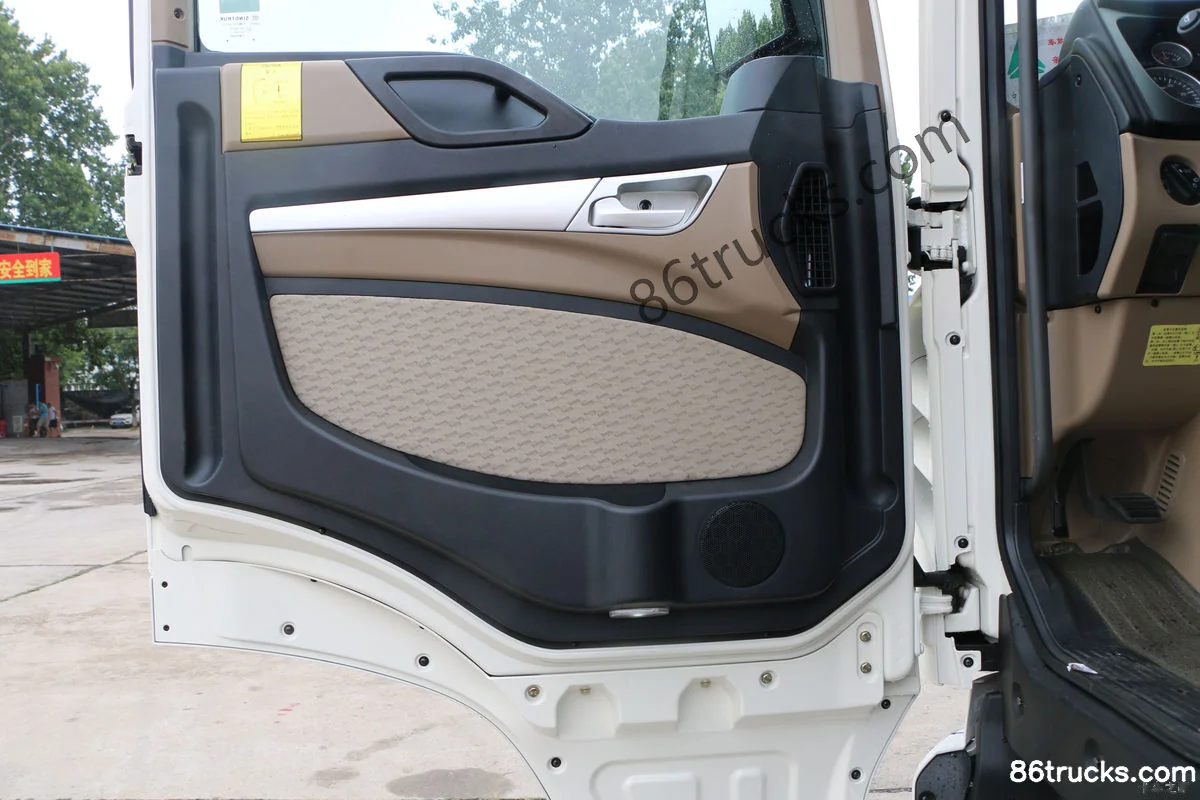

Cab3

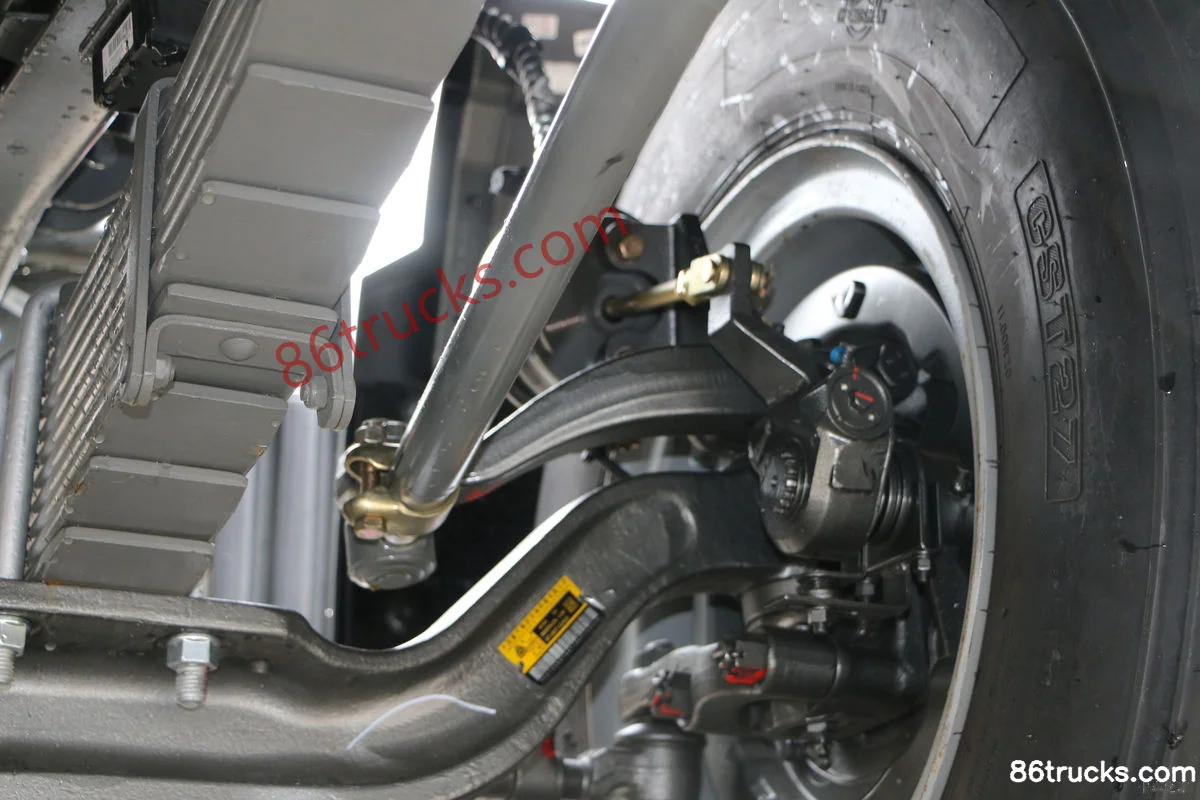

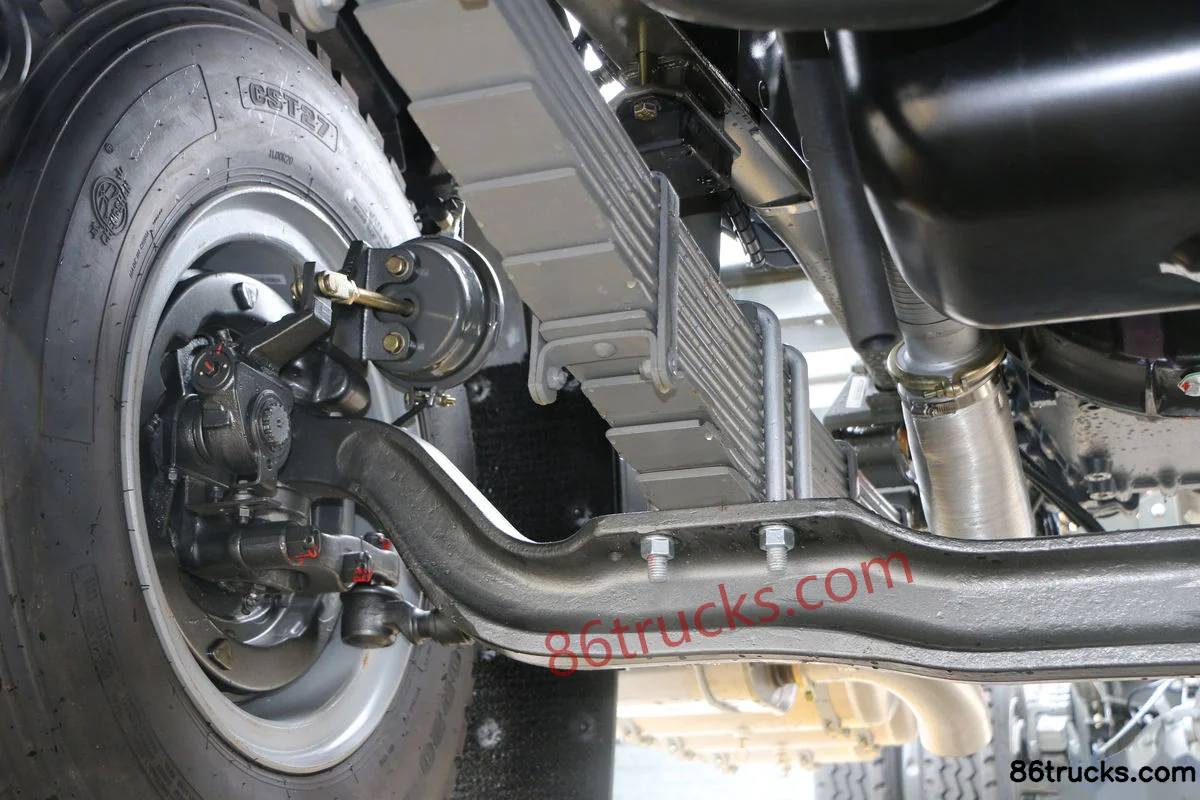

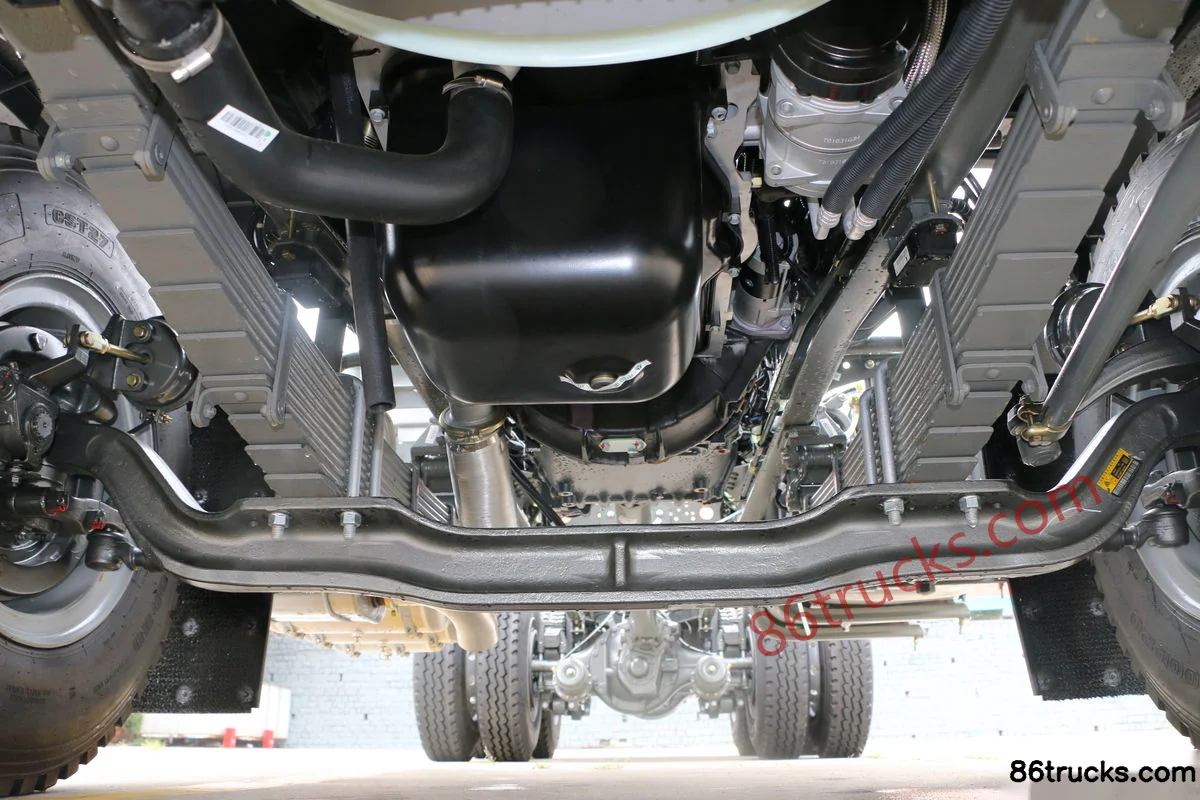

Chassis3

9 photos

FAQ

What emission standard does Sinotruk HOWO T5G Heavy Truck 340hp 6X4(10 wheels) Cargo Truck Chassis use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk HOWO T5G Heavy Truck 340hp 6X4(10 wheels) Cargo Truck Chassis?

Key specs of Sinotruk HOWO T5G Heavy Truck 340hp 6X4(10 wheels) Cargo Truck Chassis: Drive: 6x4; Horsepower: 340 hp; Emission: China V; Fuel: Diesel; Engine: SinotrukMAN7L; Transmission: Sinotruk. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk HOWO T5G Heavy Truck 340hp 6X4(10 wheels) Cargo Truck Chassis suited for?

Sinotruk HOWO T5G Heavy Truck 340hp 6X4(10 wheels) Cargo Truck Chassis is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Sinotruk HOWO T5G Heavy Truck 340hp 6X4(10 wheels) Cargo Truck Chassis differ from other variants in the same series?

Sinotruk HOWO T5G Heavy Truck 340hp 6X4(10 wheels) Cargo Truck Chassis belongs to Sinotruk HOWO T5G medium-duty truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk HOWO T5G Heavy Truck 340hp 6X4(10 wheels) Cargo Truck Chassis?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk HOWO T5G Heavy Truck 340hp 6X4(10 wheels) Cargo Truck Chassis?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
